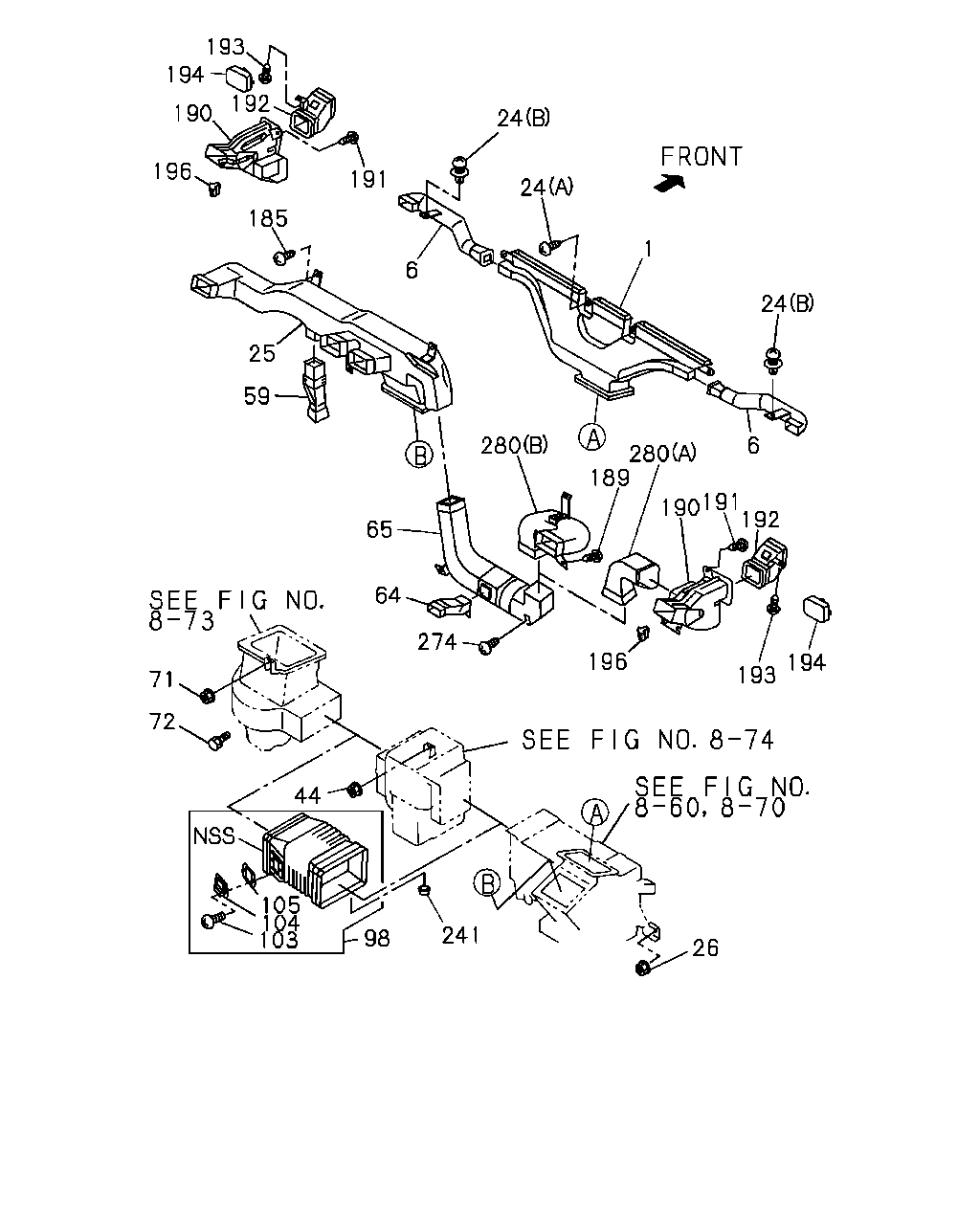

8-40 — HEATER SYSTEM (#45455) — 53 parça
çizim 16209
193 194 190 192 196 185 191 24 6 24 1 24 6 280 189 280 65 59 25 71 72 105 104 103 98 241 44 26 64 274 196 193 194 192 191 190
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 09.779 NOZZLE; DEFROSTER,INST PNL
HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 		8-94450-185-0 01 1 9210- ● ● ● ● ● ● ● ●
6 09.779 DUCT; SIDE DEFROSTER
HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 		8-94435-179-0 01 1 9210- ● ● ● ● ● ● ● ●
6 09.779 DUCT; SIDE DEFROSTER
HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 		8-94435-178-0 01 1 9210- ● ● ● ● ● ● ● ●
24 03.890 SCREW; NOZZLE TO INST PNL
HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 15.222 (A) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 04 1 9210- ● ● ● ● ● ● ● ●
24 03.890 SCREW; NOZZLE TO INST PNL
HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 06.760 (B) 		8-94243-190-0 02 1 9210- ● ● ● ● ● ● ● ●
25 09.786 DUCT; CENTER
GRADE LS(RBD) HEATER & DEFROSTER(C41),AIR CON(C60) 		8-94450-187-1 01 1 9210-9406 ● ● ● ● ● ● ● ●
25 09.786 DUCT; CENTER
HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 		8-97113-142-0 01 1 9407- ● ● ● ● ● ● ● ●
25 09.786 DUCT; CENTER
GRADE STD(RBA),GRADE DLX(RBB) HEATER & DEFROSTER(C41),AIR CON(C60) 		8-94450-186-1 01 1 9210-9406 ● ● ● ● ● ● ● ●
25 09.786 DUCT; CENTER
COOLER WO/HEATER(YL1) 		8-94450-186-1 01 1 9210-9406 ● ● ● ● ● ● ● ●
26 08.845 NUT; HTR
HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 12.809 M6 FLANGE 		8-97022-131-0 04 1 9210-9307 ● ● ● ● ● ● ● ●
26 08.845 NUT; HTR
HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 07.833 M6 FLANGE 		8-97063-399-0 04 1 9308- ● ● ● ● ● ● ● ●
44 09.222 NUT; EVAP
AIR CON(C60),COOLER WO/HEATER(YL1) 12.809 M6 FLANGE 		8-97022-131-0 02 1 9210-9307 ● ● ● ● ● ● ● ●
44 09.222 NUT; EVAP
AIR CON(C60),COOLER WO/HEATER(YL1) 07.833 M6 FLANGE 		8-97063-399-0 02 1 9308- ● ● ● ● ● ● ● ●
59 09.786 DUCT; VENT,ASSIST SIDE
HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 		8-94450-191-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
64 09.264 DUCT; VENT,DRIVER SIDE
HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 		8-94435-182-0 01 1 9210- ● ● ● ● ● ● ● ●
65 09.786 DUCT; VENT,DRIVER SIDE
HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 		8-94450-188-2 01 1 9210- ● ● ● ● ● ● ● ●
71 08.845 NUT; BLOWER UNIT TO DASH
HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 12.809 M6 FLANGE 		8-97022-131-0 01 1 9210-9307 ● ● ● ● ● ● ● ●
71 08.845 NUT; BLOWER UNIT TO DASH
HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 07.833 M6 FLANGE 		8-97063-399-0 01 1 9308- ● ● ● ● ● ● ● ●
72 08.857 BOLT; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 10.701 M6X16 		8-94206-784-0 02 1 9210- ● ● ● ● ● ● ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
HEATER & DEFROSTER(C41) 		8-94376-107-0 01 1 9210- ● ● ● ● ● ● ● ●
103 08.855 SCREW; TAPPING,RESISTOR FIX
HEATER & DEFROSTER(C41) 09.789 M4X16 TAPPING 		1-83579-114-0 02 1 9210- ● ● ● ● ● ● ● ●
104 08.855 RESISTOR; HTR DUCT
HEATER & DEFROSTER(C41) 		8-97045-850-0 01 1 9210- ● ● ● ● ● ● ● ●
105 08.856 PLATE; HTR DUCT
HEATER & DEFROSTER(C41) 00.030 		8-97045-851-0 01 1 9210- ● ● ● ● ● ● ● ●
185 09.262 SCREW; VENT DUCT
HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 16.085 M5X16 TAPPING 		9-09829-323-1 03 1 9210- ● ● ● ● ● ● ● ●
189 09.264 SCREW; AIR DUCT
GRADE STD(RBA),GRADE DLX(RBB) HEATER & DEFROSTER(C41),AIR CON(C60) 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9210-9406 ● ● ● ● ● ● ● ●
189 09.264 SCREW; AIR DUCT
COOLER WO/HEATER(YL1) 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9210-9406 ● ● ● ● ● ● ● ●
189 09.264 SCREW; AIR DUCT
HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 16.085 M5X16 TAPPING 		9-09829-323-1 01 1 9210-9406 ● ● ● ● ● ● ● ●
189 09.264 SCREW; AIR DUCT
HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 16.085 M5X16 TAPPING 		9-09829-323-1 03 1 9407- ● ● ● ● ● ● ● ●
190 09.262 BOX; VENT,RAM AIR
GRADE LS(RBD) INTERIOR COLOR MUSHROOM(150) HEATER & DEFROSTER(C41),AIR CON(C60) 		8-94435-186-0 01 1 9210- ● ● ● ● ● ● ● ●
190 09.262 BOX; VENT,RAM AIR
INTERIOR COLOR MUSHROOM(150) VENTILATION RAM AIR(6TN) 		8-94435-186-0 01 1 9210- ● ● ● ● ● ● ● ●
190 09.262 BOX; VENT,RAM AIR
GRADE LS(RBD) INTERIOR COLOR MUSHROOM(150) HEATER & DEFROSTER(C41),AIR CON(C60) 		8-94435-185-0 01 1 9210- ● ● ● ● ● ● ● ●
190 09.262 BOX; VENT,RAM AIR
INTERIOR COLOR MUSHROOM(150) VENTILATION RAM AIR(6TN) 		8-94435-185-0 01 1 9210- ● ● ● ● ● ● ● ●
191 09.262 SCREW; VENT BOX
GRADE LS(RBD) INTERIOR COLOR MUSHROOM(150) HEATER & DEFROSTER(C41),AIR CON(C60) 16.085 M5X16 TAPPING 		9-09829-323-1 06 1 9210- ● ● ● ● ● ● ● ●
191 09.262 SCREW; VENT BOX
INTERIOR COLOR MUSHROOM(150) VENTILATION RAM AIR(6TN) 16.085 M5X16 TAPPING 		9-09829-323-1 06 1 9210- ● ● ● ● ● ● ● ●
192 09.262 DUCT; RAM AIR
GRADE LS(RBD) INTERIOR COLOR MUSHROOM(150) HEATER & DEFROSTER(C41),AIR CON(C60) 		8-94435-190-1 01 1 9210- ● ● ● ● ● ● ● ●
192 09.262 DUCT; RAM AIR
INTERIOR COLOR MUSHROOM(150) VENTILATION RAM AIR(6TN) 		8-94435-190-1 01 1 9210- ● ● ● ● ● ● ● ●
192 09.262 DUCT; RAM AIR
GRADE LS(RBD) INTERIOR COLOR MUSHROOM(150) HEATER & DEFROSTER(C41),AIR CON(C60) 		8-94435-189-1 01 1 9210- ● ● ● ● ● ● ● ●
192 09.262 DUCT; RAM AIR
INTERIOR COLOR MUSHROOM(150) VENTILATION RAM AIR(6TN) 		8-94435-189-1 01 1 9210- ● ● ● ● ● ● ● ●
193 09.262 SCREW; RAM AIR DUCT
GRADE LS(RBD) INTERIOR COLOR MUSHROOM(150) HEATER & DEFROSTER(C41),AIR CON(C60) 15.222 M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9210- ● ● ● ● ● ● ● ●
193 09.262 SCREW; RAM AIR DUCT
INTERIOR COLOR MUSHROOM(150) VENTILATION RAM AIR(6TN) 15.222 M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9210- ● ● ● ● ● ● ● ●
194 09.262 COVER; HOLE,RAM AIR
GRADE STD(RBA),GRADE DLX(RBB) EXC. VENTILATION RAM AIR(6TN) 		8-94435-191-0 02 1 9210- ● ● ● ● ● ● ● ●
194 09.262 COVER; HOLE,RAM AIR
GRADE LS(RBD) EXC. HEATER & DEFROSTER(C41),AIR CON(C60),VENTILATION RAM AIR(6TN) 		8-94435-191-0 02 1 9210- ● ● ● ● ● ● ● ●
196 09.262 KNOB; VENT BOX
GRADE LS(RBD) INTERIOR COLOR BEIGE(120) HEATER & DEFROSTER(C41),AIR CON(C60) BROWN 		8-94477-098-0 02 1 9210-9308 ● ● ● ● ● ● ● ●
196 09.262 KNOB; VENT BOX
INTERIOR COLOR BEIGE(120) VENTILATION RAM AIR(6TN) BROWN 		8-94477-098-0 02 1 9210-9308 ● ● ● ● ● ● ● ●
196 09.262 KNOB; VENT BOX
GRADE LS(RBD) INTERIOR COLOR MUSHROOM(150) HEATER & DEFROSTER(C41),AIR CON(C60) GRAY 		8-94477-099-0 02 1 9210-9406 ● ● ● ● ● ● ● ●
196 09.262 KNOB; VENT BOX
INTERIOR COLOR MUSHROOM(150) VENTILATION RAM AIR(6TN) GRAY 		8-94477-099-0 02 1 9210-9406 ● ● ● ● ● ● ● ●
196 09.262 KNOB; VENT BOX
VENTILATION RAM AIR(6TN) GRAY 		8-94477-099-0 02 1 9407- ● ● ● ● ● ● ● ●
241 16.550 PLUG; RUBBER,EVAP DRAIN HOLE
EXC. AIR CON(C60),COOLER WO/HEATER(YL1) 00.206 		8-94222-309-1 01 1 9210- ● ● ● ● ● ● ● ●
274 08.852 SCREW; VENT DUCT
HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9210- ● ● ● ● ● ● ● ●
280 09.264 DUCT; VENT,DRIVER SIDE
GRADE LS(RBD) HEATER & DEFROSTER(C41),AIR CON(C60) (A) 		8-94450-189-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
280 09.264 DUCT; VENT,DRIVER SIDE
GRADE STD(RBA),GRADE DLX(RBB) HEATER & DEFROSTER(C41),AIR CON(C60) (B) 		8-94450-190-1 01 1 9210-9406 ● ● ● ● ● ● ● ●
280 09.264 DUCT; VENT,DRIVER SIDE
COOLER WO/HEATER(YL1) (B) 		8-94450-190-1 01 1 9210-9406 ● ● ● ● ● ● ● ●
280 09.264 DUCT; VENT,DRIVER SIDE
HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) (B) 		8-94450-190-1 01 1 9407- ● ● ● ● ● ● ● ●
