8-28 — CHASSIS ELECTRICAL (#45454) — 22 parça

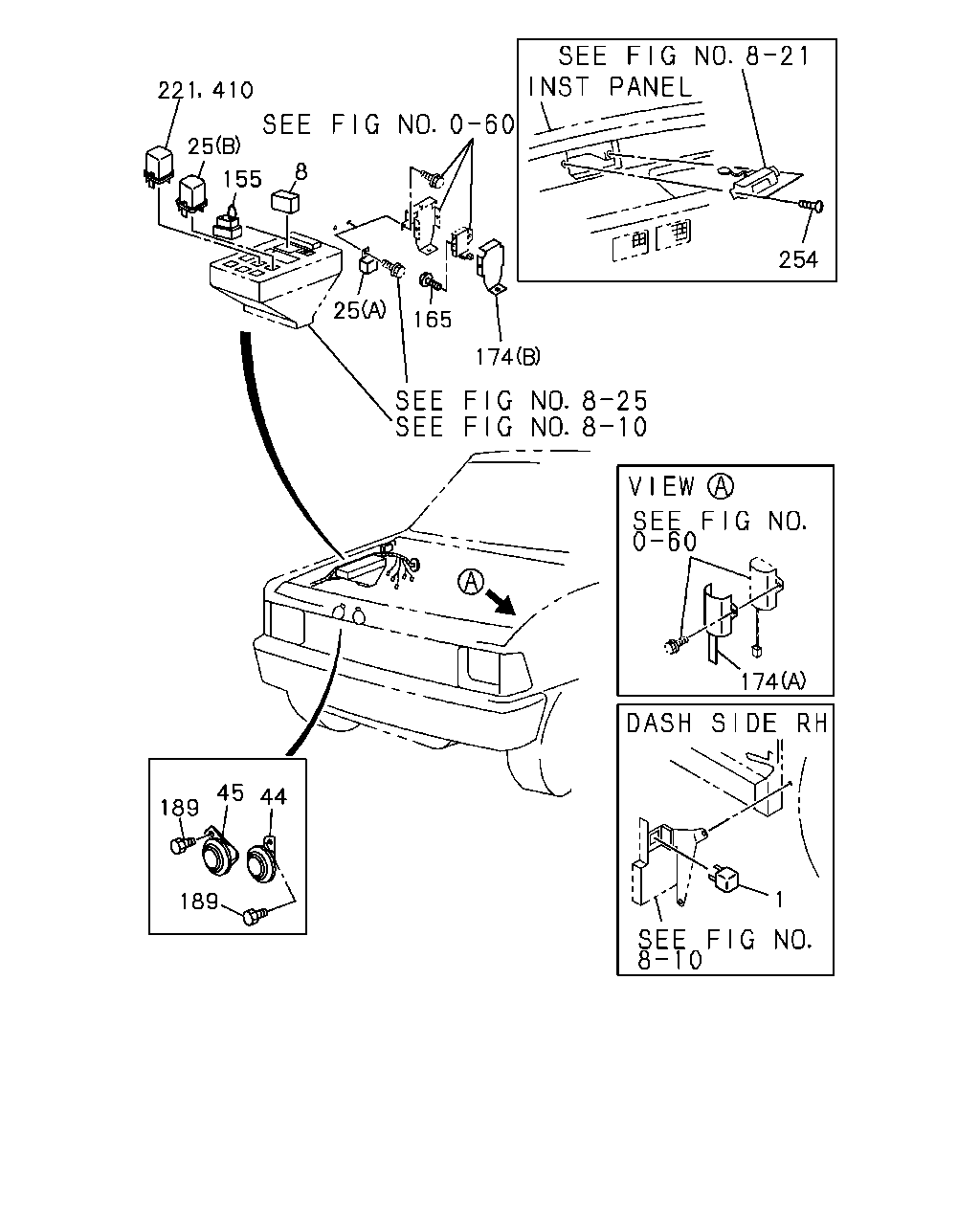

çizim 66688
254 221 410 25 155 8 25 165 174 174 1 189 189 45 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.575 UNIT; FLASHER
DENSO 		8-97038-317-0 01 1 9210- ● ● ● ● ● ● ● ●
1 02.575 UNIT; FLASHER
VALEO 		8-97039-288-0 01 1 9210-9407 ● ● ● ● ● ● ● ●
1 02.575 UNIT; FLASHER
'940718- VALEO 		8-97105-453-0 01 1 9407- ● ● ● ● ● ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-94434-674-1 01 1 9210- ● ● ● ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 03.910 (B) 12V 20A 		8-94218-497-0 01 1 9210- ● ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) 03.485 (A) 		5-82550-029-0 01 1 9210- ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> 		8-94417-171-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> 		8-94434-496-0 01 1 9309- ● ● ● ● ● ● ● ●
45 02.810 HORN; LOW NOTE
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94434-497-1 01 1 9210-9509 ● ● ● ● ●
45 02.810 HORN; LOW NOTE
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94434-497-1 01 1 9210-9509 ● ● ●
45 02.810 HORN; LOW NOTE 8-94434-497-1 01 1 9510- ● ● ● ● ● ● ● ●
155 16.067 CONNECTOR; SHORT
EXC. INTERMITTENT WIPER<C13> 		8-94442-562-0 01 1 9210- ● ● ● ● ● ● ● ●
165 02.510 BOLT; RESISTOR DROPPING
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9210- ● ● ● ● ● ●
174 02.510 COVER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97074-309-0 01 1 9210- ● ● ● ● ● ●
174 02.510 COVER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-94169-170-2 01 1 9210-9509 ● ● ● ● ●
189 02.812 BOLT; HORN
DUAL TONE HORN<U05> 02.343 M8X12 		8-94148-422-1 02 1 9210-9403 ● ● ● ● ● ● ● ●
189 02.812 BOLT; HORN
DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 9404- ● ● ● ● ● ● ● ●
189 02.812 BOLT; HORN
EXC. DUAL TONE HORN<U05> 02.343 M8X12 		8-94148-422-1 01 1 9210-9403 ● ● ● ● ● ● ● ●
189 02.812 BOLT; HORN
EXC. DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9404- ● ● ● ● ● ● ● ●
221 02.510 RELAY; AUTO CRUISE
4ZA1 ENG(L17) 03.910 12V 20A 		8-94218-497-0 01 1 9210-9509 ● ● ●
254 09.744 SCREW; BRKT
DIGITAL CLOCK<UE8> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9210- ● ● ● ● ● ● ● ●
410 00.782 RELAY; SLAVE CYL
4ZD1 ENG(LW3),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 03.485 		5-82550-029-0 01 1 9210-9404 ● ● ● ● ● ●
