8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#45453) — 26 parça

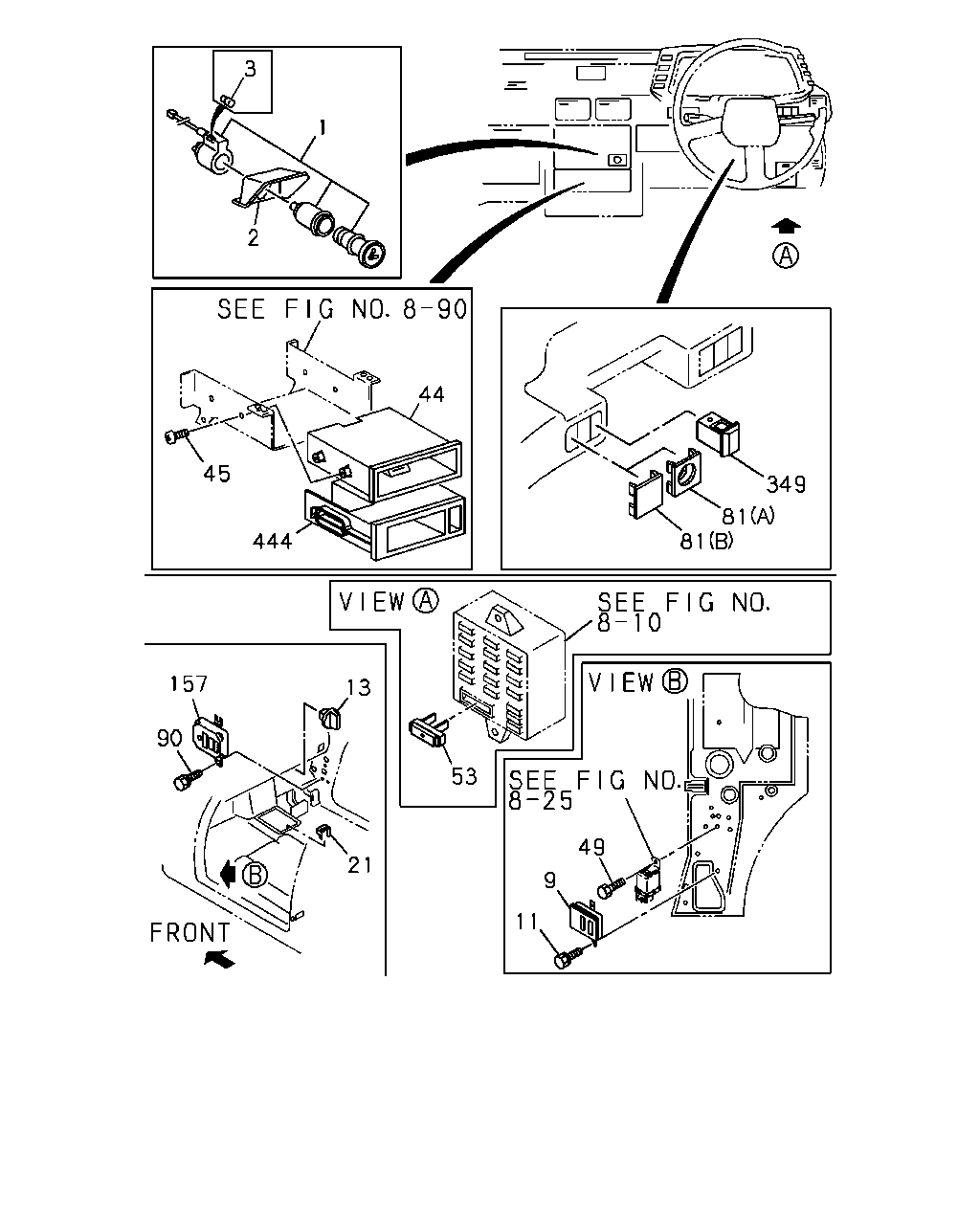

çizim 16865
3 1 2 45 444 44 81 81 349 49 9 11 53 13 157 90 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 09.709 LIGHTER; CIGAR
GRADE LS(RBD) 		8-94442-590-0 01 1 9210- ● ● ● ● ● ● ● ●
1 09.709 LIGHTER; CIGAR
GRADE STD(RBA),GRADE DLX(RBB) 		8-94442-589-1 01 1 9210- ● ● ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER
GRADE LS(RBD) INTERIOR COLOR BEIGE(120) BROWN 		8-94482-847-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER
GRADE LS(RBD) INTERIOR COLOR MUSHROOM(150) GRAY 		8-94482-848-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER
GRADE LS(RBD) INTERIOR COLOR MUSHROOM(150) BLACK 		8-97000-043-0 01 1 9510- ● ● ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER
GRADE STD(RBA),GRADE DLX(RBB) INTERIOR COLOR BEIGE(120) BROWN 		8-94482-845-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER
GRADE STD(RBA),GRADE DLX(RBB) INTERIOR COLOR MUSHROOM(150) GRAY 		8-94482-846-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER
GRADE STD(RBA),GRADE DLX(RBB) INTERIOR COLOR MUSHROOM(150) BLACK 		8-94333-793-0 01 1 9510- ● ● ● ● ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
GRADE LS(RBD) 14V 1.4W WO/CAP 		5-82194-026-0 01 1 9210- ● ● ● ● ● ● ● ●
9 03.887 CONTROLLER; CRUISE
AUTO CRUISE CONT<K30> 		8-94450-740-0 01 1 9210-9308 ● ● ● ● ● ●
11 03.880 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> 06.635 M6X16 FLANGE 		0-28480-616-0 02 1 9210-9308 ● ● ● ● ● ●
13 03.880 PLUG; CONTROLLER,CRUISE
EXC. AUTO CRUISE CONT<K30> 12.804 		8-94147-164-1 01 1 9210-9308 ● ● ● ● ● ●
13 03.880 PLUG; CONTROLLER,CRUISE
12.804 		8-94147-164-1 01 1 9210-9308 ● ●
13 03.880 PLUG; CONTROLLER,CRUISE
12.804 		8-94147-164-1 01 1 9309- ● ● ● ● ● ● ● ●
21 09.744 COVER; HOLE
A/T AISIN(RMD) 04.054 BLACK 		8-94447-298-1 01 1 9210- ● ● ●
44 16.100 BOX; RADIO COVER
GRADE STD(RBA),GRADE DLX(RBB) EXC. UNITED KINGDOM EQUIPMENT(EK3), RADIO AM ASIA/OCEANIA BAND(7AQ), RADIO AM/FM W/CASSETTE ASIA/OCEANIA BA ND(7AU),RADIO AM/FM W/CASSETTE LATIN AMERICA BAND(7AW) 10.260 44X184 		8-94435-504-2 01 1 9210- ● ● ● ● ● ● ● ●
45 10.265 SCREW; BOX TO INST PANEL
GRADE STD(RBA),GRADE DLX(RBB) EXC. UNITED KINGDOM EQUIPMENT(EK3), RADIO AM ASIA/OCEANIA BAND(7AQ), RADIO AM/FM W/CASSETTE ASIA/OCEANIA BA ND(7AU),RADIO AM/FM W/CASSETTE LATIN AMERICA BAND(7AW) 16.190 M5X12 TAPPING 		9-09829-321-1 04 1 9210-9212 ● ● ● ● ● ● ● ●
45 10.265 SCREW; BOX TO INST PANEL
GRADE STD(RBA),GRADE DLX(RBB) EXC. UNITED KINGDOM EQUIPMENT(EK3), RADIO AM ASIA/OCEANIA BAND(7AQ), RADIO AM/FM W/CASSETTE ASIA/OCEANIA BA ND(7AU),RADIO AM/FM W/CASSETTE LATIN AMERICA BAND(7AW) 09.744 M5X14 TAPPING 		9-09829-322-1 04 1 9301- ● ● ● ● ● ● ● ●
49 09.778 BOLT; RR DEFOGGER RELAY
REAR DEFOGGER<C49> 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9210- ● ● ● ●
53 02.510 BREAKER; ELEC CIRCUIT
POWER WINDOW<A30> 20A 		8-94447-470-0 01 1 9210- ● ● ● ● ● ●
81 03.451 BEZEL; IDLE CONT
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) (A) 		8-94450-511-4 01 1 9210- ● ● ● ● ● ● ● ●
81 03.451 BEZEL; IDLE CONT
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) 		8-94450-512-4 01 1 9210- ● ● ● ● ● ●
90 02.510 BOLT; QOS CONTROLLER
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. THAILAND EQUIPMENT(PM9) 10.701 M6X8 		8-94155-893-0 02 1 9210- ● ● ● ● ● ● ● ●
157 02.510 CONTROLLER; QOS
C223 ENG(LQ7) 02.559 		8-97068-788-0 01 1 9210-9308 ● ● ● ● ● ●
349 02.490 CONTROL; ILLUMINATION
4JB1 ENG(RLF),4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 		8-97085-887-1 01 1 9309- ● ● ● ● ● ●
444 02.487 BEZEL; SW,HEADLAMP LEVELING
UNITED KINGDOM EQUIPMENT(EK3) 		8-97045-187-1 01 1 9210- ● ● ● ● ● ●
