8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#45452) — 85 parça

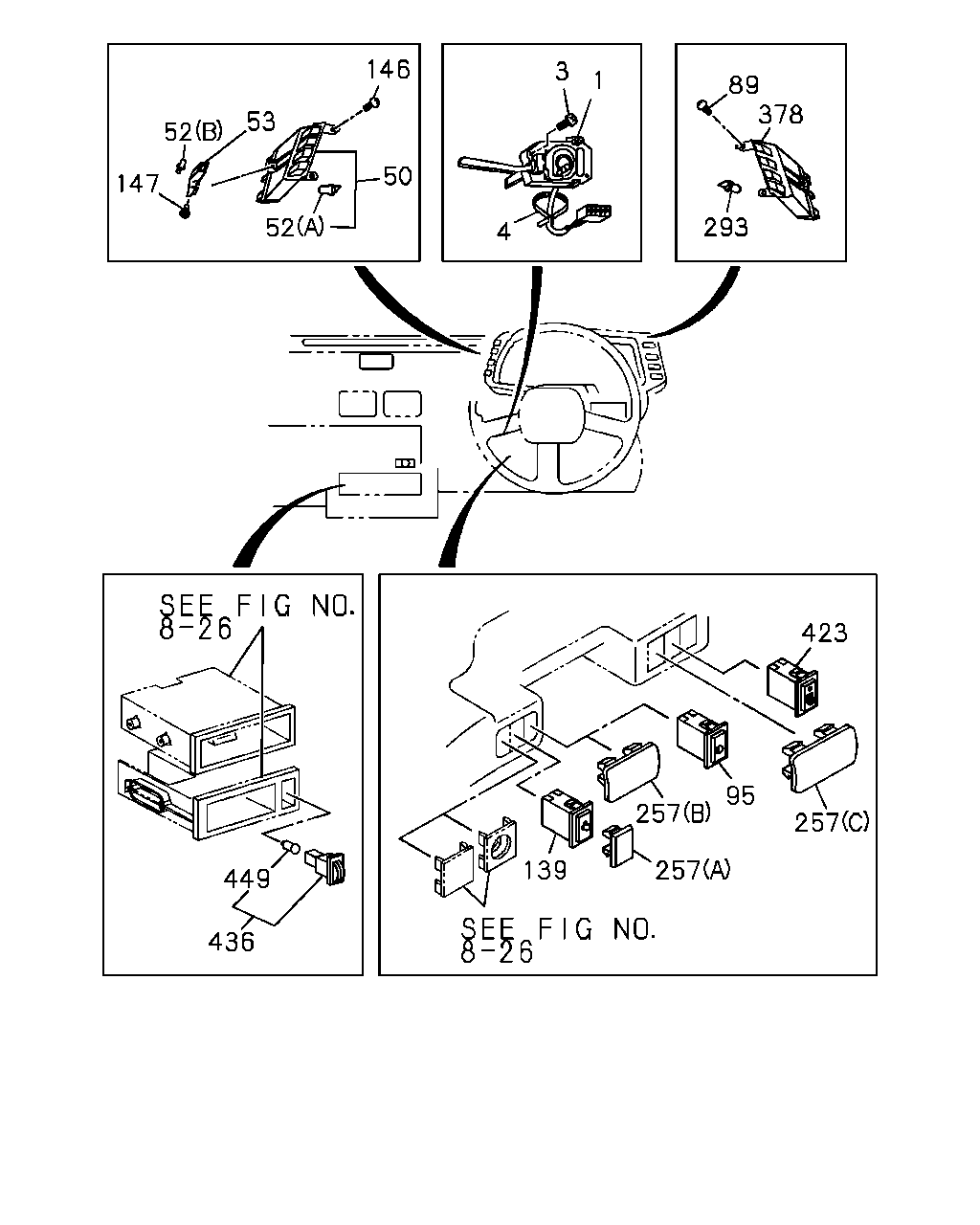

çizim 65867
147 52 53 146 50 52 4 3 1 89 378 293 423 257 95 257 257 139 436 449
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.895 SWITCH; COMB
AUTO CRUISE CONT<K30> 		8-97068-776-2 01 1 9210-9406 ● ● ● ● ● ●
1 02.895 SWITCH; COMB
EXC. AUTO CRUISE CONT<K30> 		8-97068-777-2 01 1 9210-9406 ● ● ● ● ● ●
1 02.895 SWITCH; COMB 8-97068-777-2 01 1 9210-9406 ● ●
1 02.895 SWITCH; COMB 8-97068-777-2 01 1 9407- ● ● ● ● ● ● ● ●
3 02.897 SCREW; COMB SW
06.512 M5X14 W/LK WASHER 		9-03910-514-0 02 1 9210- ● ● ● ● ● ● ● ●
4 02.892 CLIP; COMB SW
02.559 L=250 		5-09707-030-0 02 1 9210- ● ● ● ● ● ● ● ●
50 16.067 SWITCH; FRT WIPER
INTERMITTENT WIPER<C13> BLACK 		8-94477-095-2 01 1 9210- ● ● ● ● ● ● ● ●
50 16.067 SWITCH; FRT WIPER
EXC. INTERMITTENT WIPER<C13> BLACK 		8-94477-097-2 01 1 9210- ● ● ● ● ● ● ● ●
52 08.991 BULB ASM; WIPER & WASHER SW
(A) 		8-94325-077-0 01 1 9210- ● ● ● ● ● ● ● ●
52 08.991 BULB ASM; WIPER & WASHER SW
(B) 		8-94337-410-0 01 1 9210- ● ● ● ● ● ● ● ●
53 16.067 LEVER; WINDSHIELD WASHER SW
BLACK 		8-94318-136-0 01 1 9210- ● ● ● ● ● ● ● ●
89 02.485 SCREW; LIGHTING SW
16.085 M5X16 TAPPING 		9-09829-323-1 03 1 9210- ● ● ● ● ● ● ● ●
95 02.575 SWITCH; RR FOG LAMP
RR FOG LAMP<T79> 		8-97071-909-0 01 1 9210-9406 ● ●
95 02.575 SWITCH; RR FOG LAMP
RR FOG LAMP<T79> 		8-97071-909-0 01 1 9407- ● ● ●
139 09.778 SWITCH; RR DEFOGGER
REAR DEFOGGER<C49> 		8-94450-651-1 01 1 9210- ● ● ● ●
146 16.067 SCREW; SW
16.085 M5X16 TAPPING 		9-09829-323-1 03 1 9210- ● ● ● ● ● ● ● ●
147 16.067 SCREW; WASHER SW LEVER 8-94318-778-0 01 1 9210- ● ● ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) INTERIOR COLOR BEIGE(120) EXC. UNITED KINGDOM EQUIPMENT(EK3) (C) BROWN 		8-94477-560-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) INTERIOR COLOR BEIGE(120) (C) BROWN 		8-94477-560-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) INTERIOR COLOR MUSHROOM(150) EXC. UNITED KINGDOM EQUIPMENT(EK3) (C) GRAY 		8-94477-561-0 01 1 9210- ● ● ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) INTERIOR COLOR MUSHROOM(150) (C) GRAY 		8-94477-561-0 01 1 9210- ● ● ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. REAR DEFOGGER<C49>,RR FOG LAMP<T79> (A) BLACK 		8-94417-418-2 02 1 9210- ● ● ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (A) BLACK 		8-94417-418-2 02 1 9210- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) INTERIOR COLOR BEIGE(120) EXC. REAR DEFOGGER<C49>,RR FOG LAMP<T79> (B) BROWN 		8-94477-557-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) INTERIOR COLOR MUSHROOM(150) EXC. REAR DEFOGGER<C49>,RR FOG LAMP<T79> (B) GRAY 		8-94477-558-0 01 1 9210- ● ● ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
REAR DEFOGGER<C49> (A) BLACK 		8-94417-418-2 01 1 9210-9308 ● ● ● ●
257 16.081 COVER; HOLE,SW
RR FOG LAMP<T79> (A) BLACK 		8-94417-418-2 01 1 9210-9308 ● ●
257 16.081 COVER; HOLE,SW
4JB1 ENG(RLF),4ZE1 ENG(RLJ) (A) BLACK 		8-94417-418-2 01 1 9309- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
4ZD1 ENG(LW3) REAR DEFOGGER<C49> (A) BLACK 		8-94417-418-2 01 1 9309- ● ● ● ●
257 16.081 COVER; HOLE,SW
RR FOG LAMP<T79> (A) BLACK 		8-94417-418-2 01 1 9309- ● ●
293 08.991 BULB; LIGHTING SW 8-94337-410-0 01 1 9210- ● ● ● ● ● ● ● ●
378 02.485 SWITCH; LIGHTING
BLACK 		8-97000-100-0 01 1 9210- ● ● ● ● ● ● ● ●
423 03.883 SWITCH; ENG WARMING
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-94434-439-0 01 1 9210- ● ● ● ● ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
UNITED KINGDOM EQUIPMENT(EK3) 		8-97018-463-0 01 1 9210- ● ● ● ● ● ●
449 08.991 BULB ASM; HEADLAMP LEVELING SW
UNITED KINGDOM EQUIPMENT(EK3) 		8-97039-411-0 01 1 9210- ● ● ● ● ● ●

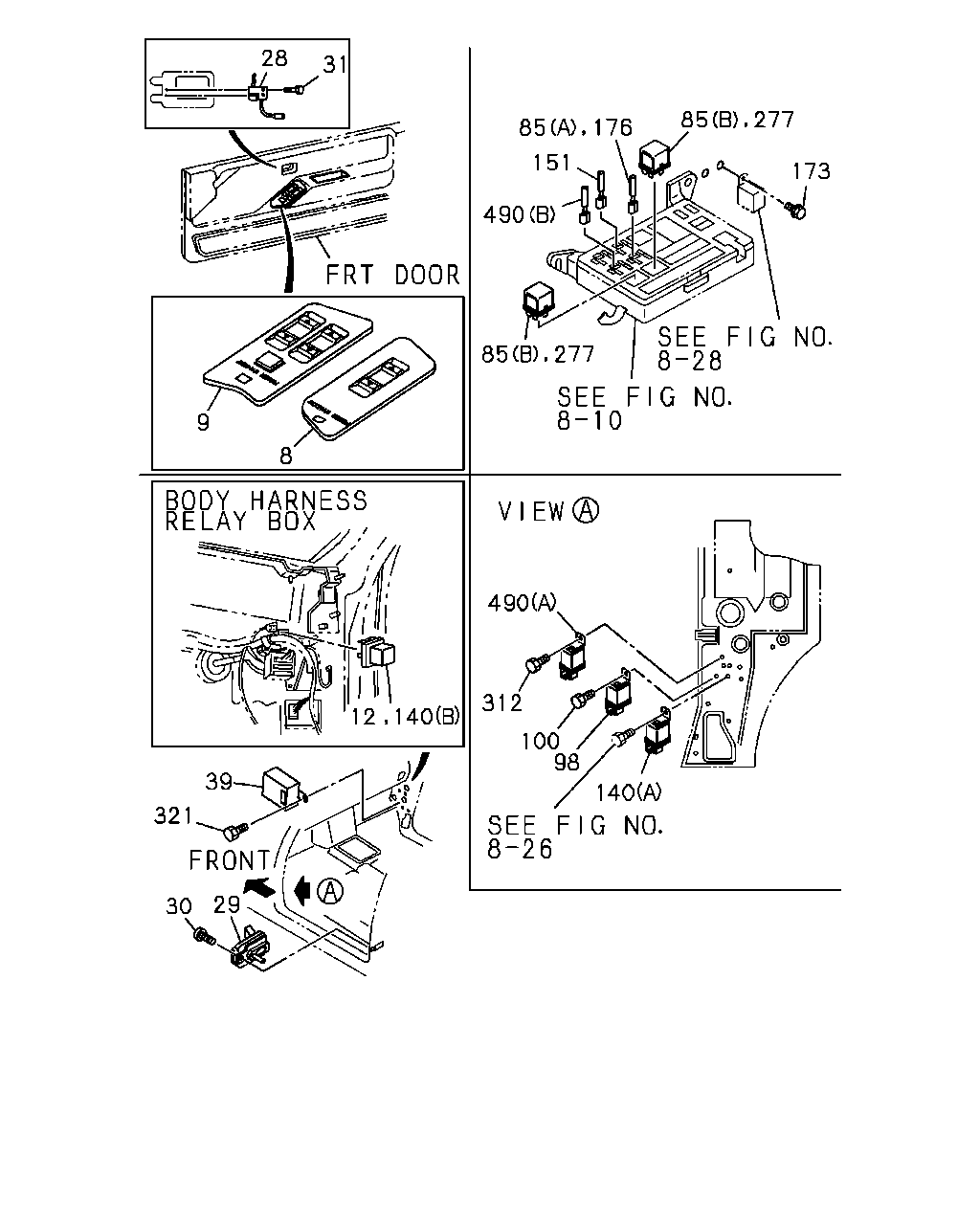

çizim 68510
28 31 85 176 151 85 277 173 490 85 277 8 9 12 140 490 312 100 98 140 39 321 30 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
8 16.263 SWITCH; POWER WINDOW
INTERIOR COLOR BEIGE(120) POWER WINDOW<A30> BROWN 		8-97003-798-0 01 1 9210-9308 ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
INTERIOR COLOR MUSHROOM(150) POWER WINDOW<A30> GRAY 		8-97003-799-0 01 1 9210-9406 ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A30> EXC. THAILAND EQUIPMENT(PM9) GRAY 		8-97003-799-0 01 1 9407- ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A30> THAILAND EQUIPMENT(PM9) GRAY 		8-97151-959-0 01 1 9407-9408 ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A30> THAILAND EQUIPMENT(PM9) BLACK 		8-97152-651-0 01 1 9409-9509 ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A30> THAILAND EQUIPMENT(PM9) BLACK 		8-97152-651-0 01 1 9510- ● ● ● ●
9 16.263 SWITCH; POWER WINDOW
INTERIOR COLOR BEIGE(120) POWER WINDOW<A30> BROWN 		8-94363-868-0 01 1 9210-9308 ● ● ● ● ● ●
9 16.263 SWITCH; POWER WINDOW
INTERIOR COLOR MUSHROOM(150) POWER WINDOW<A30> GRAY 		8-94363-869-0 01 1 9210-9406 ● ● ● ● ● ●
9 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A30> EXC. THAILAND EQUIPMENT(PM9) GRAY 		8-94363-869-0 01 1 9407- ● ● ● ● ● ●
9 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A30> THAILAND EQUIPMENT(PM9) BLACK 		8-97152-903-0 01 1 9411-9509 ● ● ● ● ●
9 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A30> THAILAND EQUIPMENT(PM9) BLACK 		8-97152-903-0 01 1 9510- ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW<A30> 03.910 12V 20A 		8-94218-497-0 01 1 9210- ● ● ● ● ● ●
28 16.341 SWITCH ASM; DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-94450-808-0 01 1 9407- ●
29 16.263 SWITCH; DOOR 8-97077-712-0 02 1 9210-9605 ● ● ● ● ● ●
29 16.263 SWITCH; DOOR 8-97146-196-0 02 1 9606- ● ● ● ● ● ●
29 16.263 SWITCH; DOOR 8-97077-712-0 04 1 9210-9605 ● ●
29 16.263 SWITCH; DOOR 8-97146-196-0 04 1 9606- ● ●
30 16.263 SCREW; DOOR SW
10.240 M5X14 		8-94120-095-0 02 1 9210- ● ● ● ● ● ●
30 16.263 SCREW; DOOR SW
10.240 M5X14 		8-94120-095-0 04 1 9210- ● ●
31 16.342 BOLT; DOOR LK SW
AUTO DOOR LOCK<AU4> 10.260 M6X14 		8-97046-332-0 02 1 9407- ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-94323-680-1 01 1 9407- ●
85 02.485 RELAY; HEADLAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.910 (A) 12V 20A 		8-94218-497-0 01 1 9210- ● ● ● ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
4ZD1 ENG(LW3),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 02.510 (B) 12V 15A 		8-94147-095-0 02 1 9210- ● ● ● ● ● ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> 02.510 12V 		8-94112-912-0 01 1 9210-9406 ● ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> 02.510 12V 		8-94112-912-0 01 1 9407- ● ● ●
100 02.483 SCREW; RELAY,FOG LAMP,RR
4ZD1 ENG(LW3),4JA1 ENG(RLE) RR FOG LAMP<T79> 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9210-9406 ● ●
100 02.483 SCREW; RELAY,FOG LAMP,RR
4ZD1 ENG(LW3),4JA1 ENG(RLE) RR FOG LAMP<T79> 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9407-9512 ● ● ●
100 02.483 SCREW; RELAY,FOG LAMP,RR
RR FOG LAMP<T79> 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9601- ● ● ●
140 09.778 RELAY; RR DEFOGGER
REAR DEFOGGER<C49> 02.510 (A) 12V 		8-94112-912-0 01 1 9210-9406 ● ● ● ●
140 09.778 RELAY; RR DEFOGGER
REAR DEFOGGER<C49> 02.510 (A) 12V 		8-94112-912-0 01 1 9407- ● ● ●
140 09.778 RELAY; RR DEFOGGER
REAR DEFOGGER<C49> EXC. UNITED KINGDOM EQUIPMENT(EK3) 02.510 (A) 12V 		8-94112-912-0 01 1 9407- ●
140 09.778 RELAY; RR DEFOGGER
REAR DEFOGGER<C49> UNITED KINGDOM EQUIPMENT(EK3) 03.910 (B) 12V 20A 		8-94218-497-0 01 1 9407- ●
151 09.277 RELAY; HTR & A/C
4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 03.910 12V 20A 		8-94218-497-0 01 1 9210- ● ● ● ● ● ● ● ●
151 09.277 RELAY; HTR & A/C
4JB1 ENG(RLF),4ZE1 ENG(RLJ) 03.910 12V 20A 		8-94218-497-0 01 1 9210- ● ● ● ● ● ● ● ●
173 02.510 BOLT; RELAY,RESISTOR
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) 00.206 M6X14 W/LK WASHER 		0-50040-614-0 01 1 9210-9212 ● ●
173 02.510 BOLT; RELAY,RESISTOR
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) 03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 01 1 9301-9406 ● ●
173 02.510 BOLT; RELAY,RESISTOR
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) 03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 01 1 9407-9509 ● ● ●
176 05.660 RELAY; OD SW
A/T AISIN(RMD) 03.910 12V 20A 		8-94218-497-0 01 1 9210- ● ● ●
277 03.900 RELAY; FUEL PUMP
AUSTRALIA EQUIPMENT(RR3) 03.910 12V 20A 		8-94218-497-0 01 1 9210- ● ● ● ● ● ●
312 02.483 BOLT; RELAY
4ZD1 ENG(LW3) AIR CON(C60) UNITED KINGDOM EQUIPMENT(EK3) 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9210-9406 ● ● ● ●
312 02.483 BOLT; RELAY
4ZD1 ENG(LW3) AIR CON(C60) UNITED KINGDOM EQUIPMENT(EK3) 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9407- ● ● ●
312 02.483 BOLT; RELAY
4JA1 ENG(RLE) AIR CON(C60) UNITED KINGDOM EQUIPMENT(EK3) 03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 01 1 9407- ● ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9407- ●
490 09.277 RELAY; THERMO
4JA1 ENG(RLE) AIR CON(C60) UNITED KINGDOM EQUIPMENT(EK3) 03.910 (B) 12V 20A 		8-94218-497-0 01 1 9210-9210 ● ● ● ● ● ● ● ●
490 09.277 RELAY; THERMO
AIR CON(C60) EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.910 (B) 12V 20A 		8-94218-497-0 01 1 9210-9210 ● ● ● ● ● ● ● ●
490 09.277 RELAY; THERMO
AIR CON(C60),COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.910 (B) 12V 20A 		8-94218-497-0 01 1 9211- ● ● ● ● ● ● ● ●
490 09.277 RELAY; THERMO
4ZD1 ENG(LW3) AIR CON(C60) UNITED KINGDOM EQUIPMENT(EK3) 02.485 (A) 		8-97069-647-0 01 1 9210-9303 ● ● ● ●
490 09.277 RELAY; THERMO
4ZD1 ENG(LW3) AIR CON(C60) UNITED KINGDOM EQUIPMENT(EK3) 02.485 (A) 		8-97093-909-1 01 1 9304-9406 ● ● ● ●
490 09.277 RELAY; THERMO
4ZD1 ENG(LW3) AIR CON(C60) UNITED KINGDOM EQUIPMENT(EK3) 02.485 (A) 		8-97093-909-1 01 1 9407- ● ● ●
490 09.277 RELAY; THERMO
4JA1 ENG(RLE) AIR CON(C60) UNITED KINGDOM EQUIPMENT(EK3) 02.510 (A) 12V 		8-94112-912-0 01 1 9407- ● ● ●
