◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50651 - TFR/TFS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#45451) — 402 parça

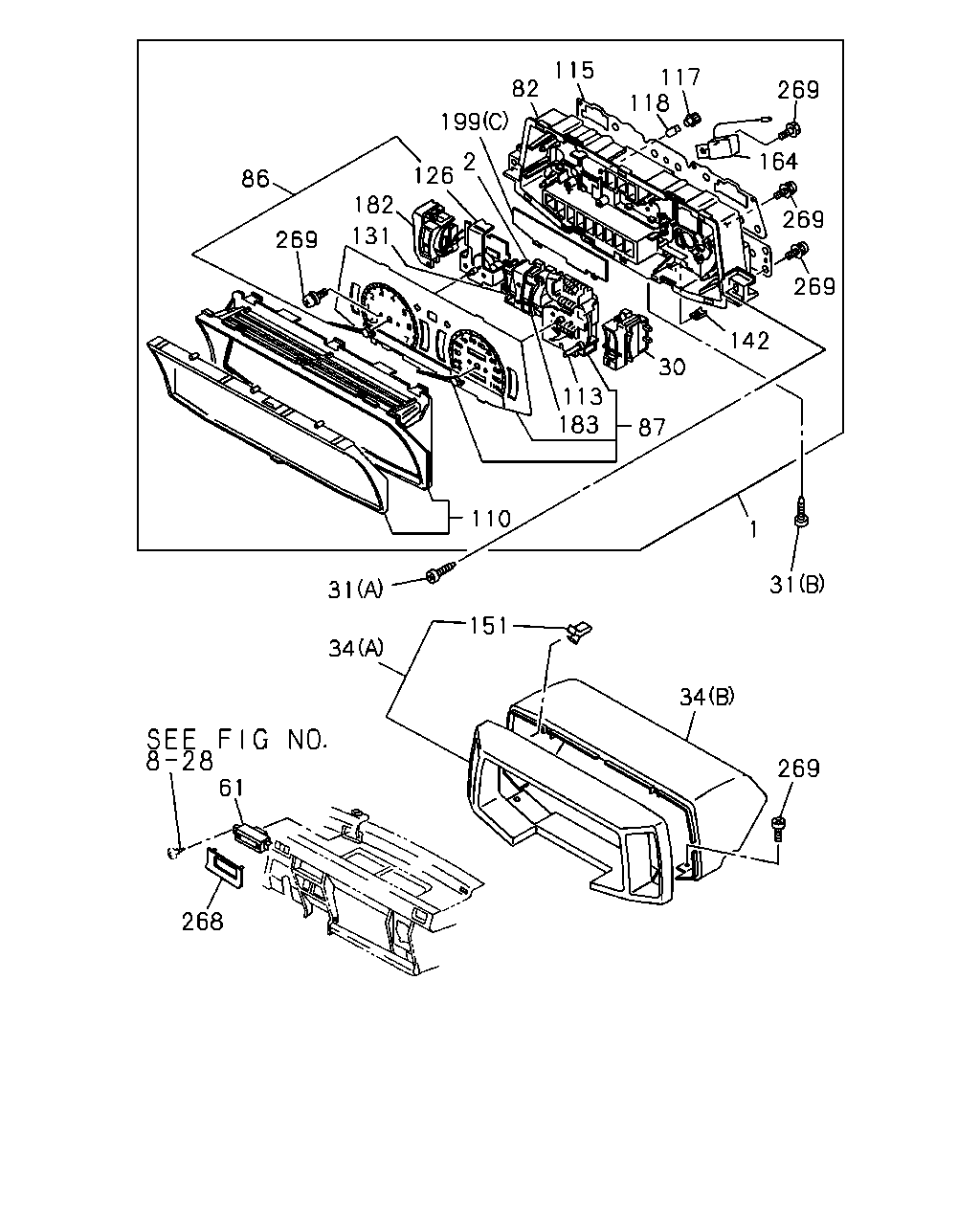

çizim 64952
86 269 131 182 126 2 199 82 115 118 117 269 164 269 269 30 142 113 183 87 110 1 31 269 34 151 34 31 61 268
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 09.735 METER COMPL; CLUSTER
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),TACHOMETER<U16> 		8-97022-590-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),TACHOMETER<U16> 		8-97115-059-0 01 1 9407- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97022-608-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97115-081-0 01 1 9407- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1> 		8-97022-606-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1> 		8-97115-079-0 01 1 9407- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97022-578-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97115-050-0 01 1 9407- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) SPEEDOMETER MILE<UC1> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),TACHOMETER<U16> 		8-97022-592-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) SPEEDOMETER MILE<UC1> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),TACHOMETER<U16> 		8-97115-061-1 01 1 9407- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97022-589-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97115-057-1 01 1 9407- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97022-607-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97115-080-1 01 1 9407- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1> 		8-97022-605-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1> 		8-97115-078-1 01 1 9407- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
A/T AISIN(RMD) TACHOMETER<U16> 		8-97022-610-0 01 1 9210-9406 ● ● ●
1 09.735 METER COMPL; CLUSTER
A/T AISIN(RMD) TACHOMETER<U16> 		8-97115-083-1 01 1 9407- ● ● ●
1 09.735 METER COMPL; CLUSTER
A/T AISIN(RMD) EXC. TACHOMETER<U16> 		8-97022-591-0 01 1 9210-9406 ● ● ●
1 09.735 METER COMPL; CLUSTER
A/T AISIN(RMD) EXC. TACHOMETER<U16> 		8-97115-060-1 01 1 9407- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 		8-97084-025-0 01 1 9210-9406 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 		8-97115-087-0 01 1 9407-9505 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97115-087-0 01 1 9506- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. TACHOMETER<U16> 		8-97084-024-0 01 1 9210-9406 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. TACHOMETER<U16> 		8-97115-067-0 01 1 9407-9505 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 		8-97115-067-0 01 1 9506- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE),4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 		8-97022-581-0 01 1 9210-9406 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE),4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 		8-97115-052-0 01 1 9407- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE),4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 		8-97022-598-0 01 1 9210-9406 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE),4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 		8-97115-074-0 01 1 9407- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 		8-97022-582-0 01 1 9210-9406 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 		8-97115-053-1 01 1 9407- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 		8-97022-599-0 01 1 9210-9406 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 		8-97115-075-1 01 1 9407- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 		8-97084-023-0 01 1 9210-9406 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 		8-97115-086-0 01 1 9407-9505 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97115-086-1 01 1 9506- ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. TACHOMETER<U16> 		8-97084-022-0 01 1 9210-9406 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. TACHOMETER<U16> 		8-97115-066-0 01 1 9407-9505 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 		8-97115-066-1 01 1 9506- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1) TACHOMETER<U16> 		8-97132-067-0 01 1 9506- ● ● ●
2 09.735 PANEL; CLUSTER
TACHOMETER<U16> 09.743 		8-94325-270-0 01 1 9210- ● ● ● ● ● ● ● ●
30 01.516 GAUGE; OIL PRESSURE
TACHOMETER<U16> SPEEDOMETER MILE<UC1> 		8-94323-635-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
30 01.516 GAUGE; OIL PRESSURE
TACHOMETER<U16> SPEEDOMETER MILE<UC1> 		8-97118-060-0 01 1 9407- ● ● ● ● ● ● ● ●
30 01.516 GAUGE; OIL PRESSURE
TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-94323-636-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
30 01.516 GAUGE; OIL PRESSURE
TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97118-029-0 01 1 9407- ● ● ● ● ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
02.510 (A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 9210-9404 ● ● ● ● ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
02.510 (A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9405- ● ● ● ● ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9210- ● ● ● ● ● ● ● ●
34 09.743 HOOD; CLUSTER METER
INTERIOR COLOR BEIGE(120) (B) BROWN 		8-94477-135-4 01 1 9210-9308 ● ● ● ● ● ● ● ●
34 09.743 HOOD; CLUSTER METER
INTERIOR COLOR BEIGE(120) (A) BROWN 		8-94477-144-3 01 1 9210-9308 ● ● ● ● ● ● ● ●
34 09.743 HOOD; CLUSTER METER
INTERIOR COLOR MUSHROOM(150) (B) GRAY 		8-94477-136-4 01 1 9210- ● ● ● ● ● ● ● ●
34 09.743 HOOD; CLUSTER METER
INTERIOR COLOR MUSHROOM(150) (A) GRAY 		8-94477-145-4 01 1 9210- ● ● ● ● ● ● ● ●
61 09.772 CLOCK; DIGITAL
DIGITAL CLOCK<UE8> 		8-94434-489-1 01 1 9210- ● ● ● ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
TACHOMETER<U16> 		8-94325-074-0 01 1 9210- ● ● ● ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
EXC. TACHOMETER<U16> 		8-94325-073-0 01 1 9210- ● ● ● ● ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
4JA1 ENG(RLE),4JB1 ENG(RLF) TACHOMETER<U16> 		8-94323-631-0 01 1 9210- ● ● ● ● ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) TACHOMETER<U16> 		8-94323-630-0 01 1 9210- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97029-963-0 01 1 9210-9508 ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),TACHOMETER<U16> 		8-97029-963-0 01 1 9509- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-94323-602-0 01 1 9210-9508 ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE),4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 		8-94323-602-0 01 1 9210-9508 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-94323-602-0 01 1 9509- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4JB1 ENG(RLF) AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 		8-94323-602-0 01 1 9509- ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97027-563-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97118-016-0 01 1 9407- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE),4JB1 ENG(RLF) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1> 		8-94323-628-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE),4JB1 ENG(RLF) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), SPEEDOMETER MILE<UC1> 		8-97118-008-0 01 1 9407- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) SPEEDOMETER MILE<UC1> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),TACHOMETER<U16> 		8-97118-004-0 01 1 9509- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97118-002-0 01 1 9509- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97027-562-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97118-015-0 01 1 9407- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1> 		8-94323-617-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1> 		8-97118-014-0 01 1 9407- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
A/T AISIN(RMD) EXC. TACHOMETER<U16> 		8-94323-604-0 01 1 9210-9508 ● ● ●
87 09.761 SPEEDOMETER
A/T AISIN(RMD) EXC. TACHOMETER<U16> 		8-97118-003-0 01 1 9509- ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 		8-97027-560-1 01 1 9210-9406 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 		8-97118-019-0 01 1 9407-9505 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97118-019-0 01 1 9506- ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. TACHOMETER<U16> 		8-97029-960-1 01 1 9210-9406 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. TACHOMETER<U16> 		8-97087-674-0 01 1 9407-9505 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 		8-97087-674-0 01 1 9506- ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE),4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 		8-94323-624-0 01 1 9210-9406 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 		8-94323-618-0 01 1 9210-9406 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 		8-97118-009-0 01 1 9407- ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 		8-94323-603-0 01 1 9210-9308 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 		8-94323-603-0 01 1 9309-9406 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 		8-94323-603-0 01 1 9407-9508 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 		8-97117-999-0 01 1 9509- ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 		8-97080-913-1 01 1 9210-9406 ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 		8-97118-018-0 01 1 9407-9505 ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97118-018-0 01 1 9506- ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. TACHOMETER<U16> 		8-97080-912-1 01 1 9210-9406 ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. TACHOMETER<U16> 		8-97087-673-0 01 1 9407-9505 ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 		8-97087-673-0 01 1 9506-9508 ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 		8-97118-007-0 01 1 9509- ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1) TACHOMETER<U16> 		8-97132-517-0 01 1 9506- ● ● ●
110 09.748 GLASS; CLUSTER METER
TACHOMETER<U16> 		8-94325-076-0 01 1 9210- ● ● ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
EXC. TACHOMETER<U16> 		8-94325-075-0 01 1 9210- ● ● ● ● ● ● ● ●
113 09.744 KNOB; DIAL,CLUSTER METER
TACHOMETER<U16> 		8-94325-269-0 01 1 9210- ● ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE),4JB1 ENG(RLF) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94323-646-0 01 1 9210- ● ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),TACHOMETER<U16> 		8-94323-593-0 01 1 9210- ● ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),TACHOMETER<U16> 		8-94323-591-0 01 1 9210- ● ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94323-641-0 01 1 9210- ● ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 		8-97016-169-0 01 1 9210-9406 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 		8-97118-045-0 01 1 9407-9505 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97118-045-0 01 1 9506- ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. TACHOMETER<U16> 		8-97016-171-0 01 1 9210-9505 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 		8-97016-171-0 01 1 9506- ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE),4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 		8-94323-594-0 01 1 9210-9406 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JB1 ENG(RLF) AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 		8-94323-594-0 01 1 9407-9509 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE),4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 		8-94323-594-0 01 1 9510- ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE),4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 		8-94323-643-0 01 1 9210-9406 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE),4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 		8-97118-041-0 01 1 9407- ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 		8-94323-638-0 01 1 9210-9406 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 		8-97118-042-0 01 1 9407- ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 		8-94323-588-0 01 1 9210-9508 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 		8-97118-034-0 01 1 9509- ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 		8-97027-564-0 01 1 9210-9406 ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 		8-97118-043-0 01 1 9407-9505 ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97118-043-0 01 1 9506- ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. TACHOMETER<U16> 		8-97029-958-0 01 1 9210-9505 ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 		8-97029-958-0 01 1 9506-9508 ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 		8-97118-033-0 01 1 9509- ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1) TACHOMETER<U16> 		8-97118-046-0 01 1 9506- ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
09.765 12V 3.4W 		5-82188-001-0 AR 1 9210- ● ● ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
02.892 12V 1.4W BLACK 		8-94114-138-0 AR 1 9210- ● ● ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 14V 3W 		8-94449-732-0 01 1 9509- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
12V 1.4W 		8-94152-313-0 AR 1 9210- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
12V 3.4W 		9-82691-397-0 AR 1 9210- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
TACHOMETER<U16> 14V 3.4W W/CAP 		5-82194-024-0 03 1 9210- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
TACHOMETER<U16> 09.765 12V 1.4W W/CAP 		8-94114-137-0 06 1 9210- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
EXC. TACHOMETER<U16> 14V 3.4W W/CAP 		5-82194-024-0 02 1 9210- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 12V 3W 		8-94449-731-0 01 1 9509- ● ● ● ● ● ● ● ●
126 09.743 PRISM; TACHOMETER
TACHOMETER<U16> 		8-94325-268-0 01 1 9210- ● ● ● ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
TACHOMETER<U16> 		8-97025-371-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
TACHOMETER<U16> 		8-97118-031-0 01 1 9407- ● ● ● ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
EXC. TACHOMETER<U16> 		8-97025-370-0 01 1 9210-9508 ● ● ● ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. TACHOMETER<U16> 		8-97025-370-0 01 1 9509- ● ● ● ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. TACHOMETER<U16> 		8-97118-030-0 01 1 9509- ● ● ● ● ● ● ● ●
142 09.744 NUT; HOOD FIX,CLUSTER METER 8-94325-265-0 02 1 9210-9406 ● ● ● ● ● ● ● ●
142 09.744 NUT; HOOD FIX,CLUSTER METER 8-94325-265-0 01 1 9407- ● ● ● ● ● ● ● ●
151 09.747 CLIP; METER CLUSTER 8-94362-088-0 02 1 9309- ● ● ● ● ● ● ● ●
164 09.744 CIRCUIT; HAZARD,METER
4ZD1 ENG(LW3),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-94323-611-0 01 1 9210-9505 ● ● ● ● ● ●
164 09.744 CIRCUIT; HAZARD,METER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1) 		8-94323-611-0 01 1 9506- ● ● ●
182 02.515 GAUGE; VOLTAGE
TACHOMETER<U16> 		8-94323-634-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
182 02.515 GAUGE; VOLTAGE
TACHOMETER<U16> 		8-97118-032-0 01 1 9407- ● ● ● ● ● ● ● ●
183 03.107 GAUGE; FUEL
TACHOMETER<U16> 		8-94323-632-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
183 03.107 GAUGE; FUEL
EXC. TACHOMETER<U16> 		8-94325-267-0 01 1 9210-9508 ● ● ● ● ● ● ● ●
183 03.107 GAUGE; FUEL
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. TACHOMETER<U16> 		8-94325-267-0 01 1 9509- ● ● ● ● ● ● ● ●
183 03.107 GAUGE; FUEL
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97118-026-0 01 1 9407-9508 ● ● ● ● ● ● ● ●
183 03.107 GAUGE; FUEL
4ZE1 ENG(RLJ) A/T AISIN(RMD) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 		8-97118-026-0 01 1 9407-9508 ● ● ●
183 03.107 GAUGE; FUEL
TACHOMETER<U16> 		8-97118-026-0 01 1 9509- ● ● ● ● ● ● ● ●
183 03.107 GAUGE; FUEL
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 02.515 		8-97118-032-0 01 1 9407-9508 ● ● ● ● ● ●
183 03.107 GAUGE; FUEL
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. TACHOMETER<U16> 		8-97118-025-0 01 1 9509- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),TACHOMETER<U16> 09.743 (B) 		8-94323-586-0 01 1 9210-9508 ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),TACHOMETER<U16> 09.743 (B) 		8-94323-586-0 01 1 9509- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 09.748 (C) 		8-97016-042-0 01 1 9210- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),TACHOMETER<U16> 09.743 (A) 		8-94323-581-0 01 1 9210- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),TACHOMETER<U16> 09.743 (A) 		8-94323-577-0 01 1 9210-9508 ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. TACHOMETER<U16> (A) 		8-97118-051-0 01 1 9509- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 09.748 (C) 		8-97014-442-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 09.743 (C) 		8-94323-654-0 01 1 9407- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 09.748 (C) 		8-97016-043-0 01 1 9210- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. TACHOMETER<U16> 09.748 (A) 		8-94323-579-0 01 1 9210-9505 ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 09.748 (A) 		8-94323-579-0 01 1 9506- ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. TACHOMETER<U16> 09.748 (B) 		8-97016-044-0 01 1 9210-9505 ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 09.748 (B) 		8-97016-044-0 01 1 9506- ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 09.748 (A) 		8-94323-578-0 01 1 9210- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 09.743 (B) 		8-94323-584-0 01 1 9210- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 09.748 (C) 		8-94323-652-0 01 1 9210- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 09.748 (C) 		8-94323-649-0 01 1 9210- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 09.748 (A) 		8-97029-955-0 01 1 9210-9508 ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> (B) 		8-97118-056-0 01 1 9509- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 09.748 (C) 		8-97027-565-0 01 1 9210-9505 ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> EXC. HONG KONG EQUIPMENT(PQ1) 09.748 (C) 		8-97027-565-0 01 1 9506- ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. TACHOMETER<U16> 09.748 (B) 		8-94323-585-0 01 1 9210-9505 ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 09.748 (B) 		8-94323-585-0 01 1 9506-9508 ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> (A) 		8-97118-050-0 01 1 9509- ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. TACHOMETER<U16> 09.748 (A) 		8-97029-956-0 01 1 9210-9505 ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 09.748 (A) 		8-97029-956-0 01 1 9506-9508 ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> (B) 		8-97118-055-0 01 1 9509- ● ● ● ● ● ● ● ●
268 09.743 BEZEL; CLOCK
DIGITAL CLOCK<UE8> BLACK 		8-94434-488-0 01 1 9210- ● ● ● ● ● ● ● ●
268 09.743 BEZEL; CLOCK
INTERIOR COLOR BEIGE(120) EXC. DIGITAL CLOCK<UE8> BROWN 		8-94477-138-1 01 1 9210-9308 ● ● ● ● ● ● ● ●
268 09.743 BEZEL; CLOCK
INTERIOR COLOR MUSHROOM(150) EXC. DIGITAL CLOCK<UE8> GRAY 		8-94477-139-1 01 1 9210- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
09.744 M3X20 		8-94326-738-0 02 1 9210- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 09.744 M3X9 		8-94326-739-0 03 1 9210-9308 ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. TACHOMETER<U16> 09.744 M3X9 		8-94326-739-0 03 1 9309-9505 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 09.744 M3X9 		8-94326-739-0 03 1 9506-9508 ● ● ●
269 09.743 SCREW; METER CLUSTER
4ZD1 ENG(LW3),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 09.744 M3X9 		8-94326-739-0 05 1 9509- ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 09.744 M2.3X9 		8-94326-742-0 02 1 9210- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 09.744 M3X20 		8-94326-743-0 03 1 9210- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> 09.744 M3X31 		8-94326-740-0 06 1 9210- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JA1 ENG(RLE),4JB1 ENG(RLF) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3) 09.744 M3X9 		8-94326-739-0 11 1 9210- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 09.744 M3X9 		8-94326-739-0 11 1 9210- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
A/T AISIN(RMD) EXC. TACHOMETER<U16> 16.085 M5X16 TAPPING 		9-09829-323-1 04 1 9210- ● ● ●
269 09.743 SCREW; METER CLUSTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 09.744 M3X9 		8-94326-739-0 16 1 9210-9505 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> EXC. HONG KONG EQUIPMENT(PQ1) 09.744 M3X9 		8-94326-739-0 16 1 9506-9508 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1) TACHOMETER<U16> 09.744 M3X9 		8-94326-739-0 14 1 9509- ● ● ●
269 09.743 SCREW; METER CLUSTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. TACHOMETER<U16> 09.744 M3X9 		8-94326-739-0 05 1 9210-9505 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 09.744 M3X9 		8-94326-739-0 05 1 9506-9508 ● ● ●
269 09.743 SCREW; METER CLUSTER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 09.744 M3X9 		8-94326-739-0 13 1 9210- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 09.744 M3X9 		8-94326-739-0 02 1 9210- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. TACHOMETER<U16> 09.744 M3X9 		8-94326-739-0 14 1 9210-9505 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1) 09.744 M3X9 		8-94326-739-0 14 1 9506-9508 ● ● ●
269 09.743 SCREW; METER CLUSTER
4ZD1 ENG(LW3),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> EXC. HONG KONG EQUIPMENT(PQ1) 09.744 M3X9 		8-94326-739-0 16 1 9509- ● ● ●

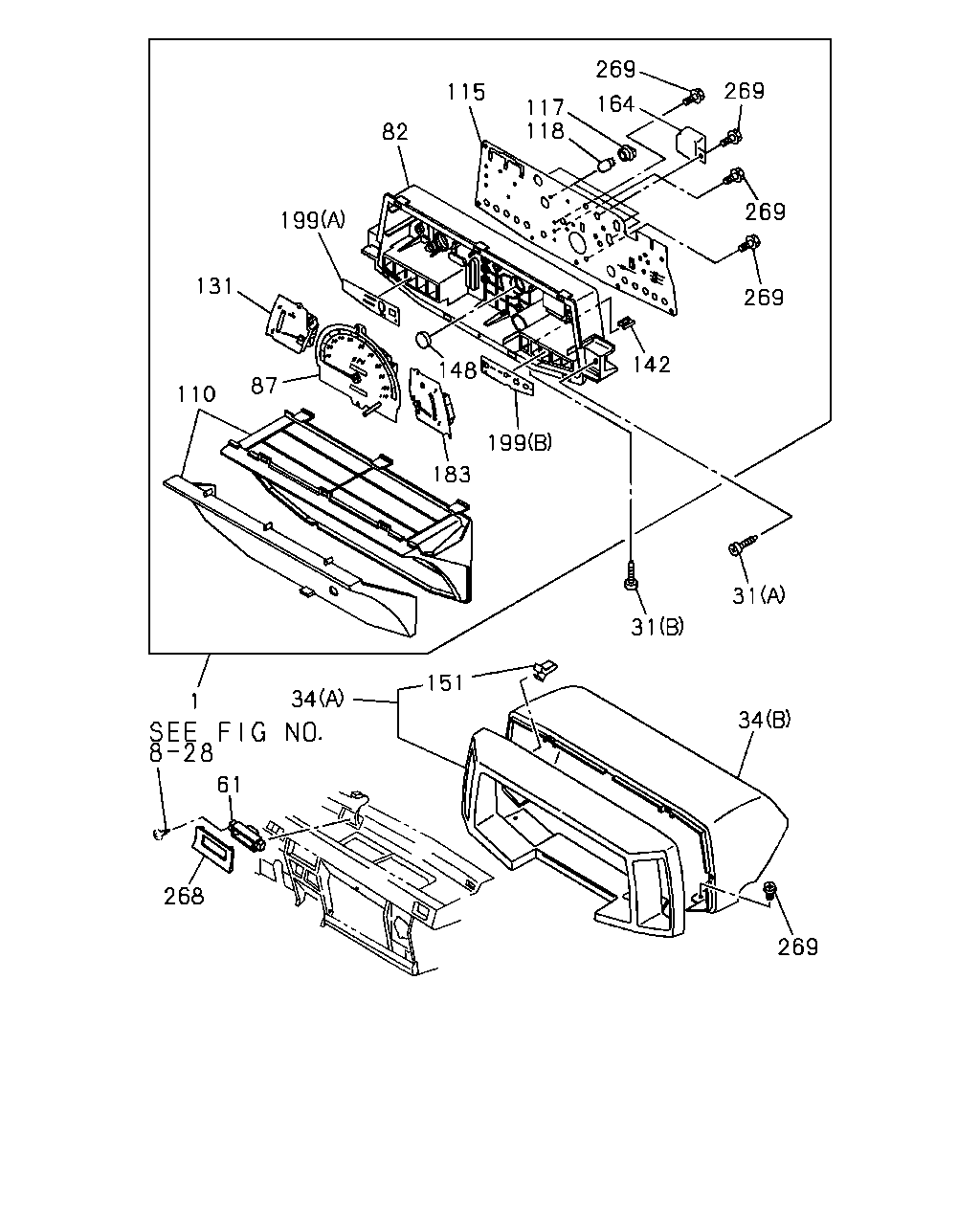

çizim 66714
115 82 199 131 110 87 183 148 199 142 269 269 269 269 164 117 118 31 31 34 269 151 34 1 61 268
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 09.735 METER COMPL; CLUSTER
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),TACHOMETER<U16> 		8-97022-590-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),TACHOMETER<U16> 		8-97115-059-0 01 1 9407- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97022-608-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97115-081-0 01 1 9407- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1> 		8-97022-606-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1> 		8-97115-079-0 01 1 9407- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97022-578-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97115-050-0 01 1 9407- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) SPEEDOMETER MILE<UC1> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),TACHOMETER<U16> 		8-97022-592-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) SPEEDOMETER MILE<UC1> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),TACHOMETER<U16> 		8-97115-061-1 01 1 9407- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97022-589-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97115-057-1 01 1 9407- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97022-607-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97115-080-1 01 1 9407- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1> 		8-97022-605-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1> 		8-97115-078-1 01 1 9407- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
A/T AISIN(RMD) TACHOMETER<U16> 		8-97022-610-0 01 1 9210-9406 ● ● ●
1 09.735 METER COMPL; CLUSTER
A/T AISIN(RMD) TACHOMETER<U16> 		8-97115-083-1 01 1 9407- ● ● ●
1 09.735 METER COMPL; CLUSTER
A/T AISIN(RMD) EXC. TACHOMETER<U16> 		8-97022-591-0 01 1 9210-9406 ● ● ●
1 09.735 METER COMPL; CLUSTER
A/T AISIN(RMD) EXC. TACHOMETER<U16> 		8-97115-060-1 01 1 9407- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 		8-97084-025-0 01 1 9210-9406 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 		8-97115-087-0 01 1 9407-9505 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97115-087-0 01 1 9506- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. TACHOMETER<U16> 		8-97084-024-0 01 1 9210-9406 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. TACHOMETER<U16> 		8-97115-067-0 01 1 9407-9505 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 		8-97115-067-0 01 1 9506- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE),4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 		8-97022-581-0 01 1 9210-9406 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE),4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 		8-97115-052-0 01 1 9407- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE),4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 		8-97022-598-0 01 1 9210-9406 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE),4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 		8-97115-074-0 01 1 9407- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 		8-97022-582-0 01 1 9210-9406 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 		8-97115-053-1 01 1 9407- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 		8-97022-599-0 01 1 9210-9406 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 		8-97115-075-1 01 1 9407- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 		8-97084-023-0 01 1 9210-9406 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 		8-97115-086-0 01 1 9407-9505 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97115-086-1 01 1 9506- ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. TACHOMETER<U16> 		8-97084-022-0 01 1 9210-9406 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. TACHOMETER<U16> 		8-97115-066-0 01 1 9407-9505 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 		8-97115-066-1 01 1 9506- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1) TACHOMETER<U16> 		8-97132-067-0 01 1 9506- ● ● ●
31 09.761 SCREW; METER,INST PANEL
02.510 (A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 9210-9404 ● ● ● ● ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
02.510 (A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9405- ● ● ● ● ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9210- ● ● ● ● ● ● ● ●
34 09.743 HOOD; CLUSTER METER
INTERIOR COLOR BEIGE(120) (B) BROWN 		8-94477-135-4 01 1 9210-9308 ● ● ● ● ● ● ● ●
34 09.743 HOOD; CLUSTER METER
INTERIOR COLOR BEIGE(120) (A) BROWN 		8-94477-144-3 01 1 9210-9308 ● ● ● ● ● ● ● ●
34 09.743 HOOD; CLUSTER METER
INTERIOR COLOR MUSHROOM(150) (B) GRAY 		8-94477-136-4 01 1 9210- ● ● ● ● ● ● ● ●
34 09.743 HOOD; CLUSTER METER
INTERIOR COLOR MUSHROOM(150) (A) GRAY 		8-94477-145-4 01 1 9210- ● ● ● ● ● ● ● ●
61 09.772 CLOCK; DIGITAL
DIGITAL CLOCK<UE8> 		8-94434-489-1 01 1 9210- ● ● ● ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
TACHOMETER<U16> 		8-94325-074-0 01 1 9210- ● ● ● ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
EXC. TACHOMETER<U16> 		8-94325-073-0 01 1 9210- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97029-963-0 01 1 9210-9508 ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),TACHOMETER<U16> 		8-97029-963-0 01 1 9509- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-94323-602-0 01 1 9210-9508 ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE),4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 		8-94323-602-0 01 1 9210-9508 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-94323-602-0 01 1 9509- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4JB1 ENG(RLF) AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 		8-94323-602-0 01 1 9509- ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97027-563-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97118-016-0 01 1 9407- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE),4JB1 ENG(RLF) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1> 		8-94323-628-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE),4JB1 ENG(RLF) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), SPEEDOMETER MILE<UC1> 		8-97118-008-0 01 1 9407- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) SPEEDOMETER MILE<UC1> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),TACHOMETER<U16> 		8-97118-004-0 01 1 9509- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97118-002-0 01 1 9509- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97027-562-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97118-015-0 01 1 9407- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1> 		8-94323-617-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1> 		8-97118-014-0 01 1 9407- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
A/T AISIN(RMD) EXC. TACHOMETER<U16> 		8-94323-604-0 01 1 9210-9508 ● ● ●
87 09.761 SPEEDOMETER
A/T AISIN(RMD) EXC. TACHOMETER<U16> 		8-97118-003-0 01 1 9509- ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 		8-97027-560-1 01 1 9210-9406 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 		8-97118-019-0 01 1 9407-9505 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97118-019-0 01 1 9506- ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. TACHOMETER<U16> 		8-97029-960-1 01 1 9210-9406 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. TACHOMETER<U16> 		8-97087-674-0 01 1 9407-9505 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 		8-97087-674-0 01 1 9506- ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE),4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 		8-94323-624-0 01 1 9210-9406 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 		8-94323-618-0 01 1 9210-9406 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 		8-97118-009-0 01 1 9407- ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 		8-94323-603-0 01 1 9210-9308 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 		8-94323-603-0 01 1 9309-9406 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 		8-94323-603-0 01 1 9407-9508 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 		8-97117-999-0 01 1 9509- ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 		8-97080-913-1 01 1 9210-9406 ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 		8-97118-018-0 01 1 9407-9505 ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97118-018-0 01 1 9506- ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. TACHOMETER<U16> 		8-97080-912-1 01 1 9210-9406 ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. TACHOMETER<U16> 		8-97087-673-0 01 1 9407-9505 ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 		8-97087-673-0 01 1 9506-9508 ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 		8-97118-007-0 01 1 9509- ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1) TACHOMETER<U16> 		8-97132-517-0 01 1 9506- ● ● ●
110 09.748 GLASS; CLUSTER METER
TACHOMETER<U16> 		8-94325-076-0 01 1 9210- ● ● ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
EXC. TACHOMETER<U16> 		8-94325-075-0 01 1 9210- ● ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE),4JB1 ENG(RLF) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94323-646-0 01 1 9210- ● ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),TACHOMETER<U16> 		8-94323-593-0 01 1 9210- ● ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),TACHOMETER<U16> 		8-94323-591-0 01 1 9210- ● ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94323-641-0 01 1 9210- ● ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 		8-97016-169-0 01 1 9210-9406 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 		8-97118-045-0 01 1 9407-9505 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97118-045-0 01 1 9506- ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. TACHOMETER<U16> 		8-97016-171-0 01 1 9210-9505 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 		8-97016-171-0 01 1 9506- ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE),4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 		8-94323-594-0 01 1 9210-9406 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JB1 ENG(RLF) AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 		8-94323-594-0 01 1 9407-9509 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE),4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 		8-94323-594-0 01 1 9510- ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE),4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 		8-94323-643-0 01 1 9210-9406 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE),4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 		8-97118-041-0 01 1 9407- ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 		8-94323-638-0 01 1 9210-9406 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 		8-97118-042-0 01 1 9407- ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 		8-94323-588-0 01 1 9210-9508 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 		8-97118-034-0 01 1 9509- ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 		8-97027-564-0 01 1 9210-9406 ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 		8-97118-043-0 01 1 9407-9505 ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97118-043-0 01 1 9506- ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. TACHOMETER<U16> 		8-97029-958-0 01 1 9210-9505 ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 		8-97029-958-0 01 1 9506-9508 ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 		8-97118-033-0 01 1 9509- ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1) TACHOMETER<U16> 		8-97118-046-0 01 1 9506- ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
09.765 12V 3.4W 		5-82188-001-0 AR 1 9210- ● ● ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
02.892 12V 1.4W BLACK 		8-94114-138-0 AR 1 9210- ● ● ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 14V 3W 		8-94449-732-0 01 1 9509- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
12V 1.4W 		8-94152-313-0 AR 1 9210- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
12V 3.4W 		9-82691-397-0 AR 1 9210- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
TACHOMETER<U16> 14V 3.4W W/CAP 		5-82194-024-0 03 1 9210- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
TACHOMETER<U16> 09.765 12V 1.4W W/CAP 		8-94114-137-0 06 1 9210- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
EXC. TACHOMETER<U16> 14V 3.4W W/CAP 		5-82194-024-0 02 1 9210- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 12V 3W 		8-94449-731-0 01 1 9509- ● ● ● ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
TACHOMETER<U16> 		8-97025-371-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
TACHOMETER<U16> 		8-97118-031-0 01 1 9407- ● ● ● ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
EXC. TACHOMETER<U16> 		8-97025-370-0 01 1 9210-9508 ● ● ● ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. TACHOMETER<U16> 		8-97025-370-0 01 1 9509- ● ● ● ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. TACHOMETER<U16> 		8-97118-030-0 01 1 9509- ● ● ● ● ● ● ● ●
142 09.744 NUT; HOOD FIX,CLUSTER METER 8-94325-265-0 02 1 9210-9406 ● ● ● ● ● ● ● ●
142 09.744 NUT; HOOD FIX,CLUSTER METER 8-94325-265-0 01 1 9407- ● ● ● ● ● ● ● ●
148 09.748 LENS; PILOT,TURN SIGNAL,CLUSTER
EXC. TACHOMETER<U16> 		8-94325-264-0 02 1 9210- ● ● ● ● ● ● ● ●
151 09.747 CLIP; METER CLUSTER 8-94362-088-0 02 1 9309- ● ● ● ● ● ● ● ●
164 09.744 CIRCUIT; HAZARD,METER
4ZD1 ENG(LW3),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-94323-611-0 01 1 9210-9505 ● ● ● ● ● ●
164 09.744 CIRCUIT; HAZARD,METER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1) 		8-94323-611-0 01 1 9506- ● ● ●
183 03.107 GAUGE; FUEL
TACHOMETER<U16> 		8-94323-632-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
183 03.107 GAUGE; FUEL
EXC. TACHOMETER<U16> 		8-94325-267-0 01 1 9210-9508 ● ● ● ● ● ● ● ●
183 03.107 GAUGE; FUEL
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. TACHOMETER<U16> 		8-94325-267-0 01 1 9509- ● ● ● ● ● ● ● ●
183 03.107 GAUGE; FUEL
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97118-026-0 01 1 9407-9508 ● ● ● ● ● ● ● ●
183 03.107 GAUGE; FUEL
4ZE1 ENG(RLJ) A/T AISIN(RMD) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 		8-97118-026-0 01 1 9407-9508 ● ● ●
183 03.107 GAUGE; FUEL
TACHOMETER<U16> 		8-97118-026-0 01 1 9509- ● ● ● ● ● ● ● ●
183 03.107 GAUGE; FUEL
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 02.515 		8-97118-032-0 01 1 9407-9508 ● ● ● ● ● ●
183 03.107 GAUGE; FUEL
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. TACHOMETER<U16> 		8-97118-025-0 01 1 9509- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),TACHOMETER<U16> 09.743 (B) 		8-94323-586-0 01 1 9210-9508 ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),TACHOMETER<U16> 09.743 (B) 		8-94323-586-0 01 1 9509- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 09.748 (C) 		8-97016-042-0 01 1 9210- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),TACHOMETER<U16> 09.743 (A) 		8-94323-581-0 01 1 9210- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),TACHOMETER<U16> 09.743 (A) 		8-94323-577-0 01 1 9210-9508 ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. TACHOMETER<U16> (A) 		8-97118-051-0 01 1 9509- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 09.748 (C) 		8-97014-442-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 09.743 (C) 		8-94323-654-0 01 1 9407- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 09.748 (C) 		8-97016-043-0 01 1 9210- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. TACHOMETER<U16> 09.748 (A) 		8-94323-579-0 01 1 9210-9505 ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 09.748 (A) 		8-94323-579-0 01 1 9506- ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. TACHOMETER<U16> 09.748 (B) 		8-97016-044-0 01 1 9210-9505 ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 09.748 (B) 		8-97016-044-0 01 1 9506- ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 09.748 (A) 		8-94323-578-0 01 1 9210- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 09.743 (B) 		8-94323-584-0 01 1 9210- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 09.748 (C) 		8-94323-652-0 01 1 9210- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 09.748 (C) 		8-94323-649-0 01 1 9210- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 09.748 (A) 		8-97029-955-0 01 1 9210-9508 ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> (B) 		8-97118-056-0 01 1 9509- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 09.748 (C) 		8-97027-565-0 01 1 9210-9505 ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> EXC. HONG KONG EQUIPMENT(PQ1) 09.748 (C) 		8-97027-565-0 01 1 9506- ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. TACHOMETER<U16> 09.748 (B) 		8-94323-585-0 01 1 9210-9505 ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 09.748 (B) 		8-94323-585-0 01 1 9506-9508 ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> (A) 		8-97118-050-0 01 1 9509- ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. TACHOMETER<U16> 09.748 (A) 		8-97029-956-0 01 1 9210-9505 ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 09.748 (A) 		8-97029-956-0 01 1 9506-9508 ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> (B) 		8-97118-055-0 01 1 9509- ● ● ● ● ● ● ● ●
268 09.743 BEZEL; CLOCK
DIGITAL CLOCK<UE8> BLACK 		8-94434-488-0 01 1 9210- ● ● ● ● ● ● ● ●
268 09.743 BEZEL; CLOCK
INTERIOR COLOR BEIGE(120) EXC. DIGITAL CLOCK<UE8> BROWN 		8-94477-138-1 01 1 9210-9308 ● ● ● ● ● ● ● ●
268 09.743 BEZEL; CLOCK
INTERIOR COLOR MUSHROOM(150) EXC. DIGITAL CLOCK<UE8> GRAY 		8-94477-139-1 01 1 9210- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
09.744 M3X20 		8-94326-738-0 02 1 9210- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 09.744 M3X9 		8-94326-739-0 03 1 9210-9308 ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. TACHOMETER<U16> 09.744 M3X9 		8-94326-739-0 03 1 9309-9505 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 09.744 M3X9 		8-94326-739-0 03 1 9506-9508 ● ● ●
269 09.743 SCREW; METER CLUSTER
4ZD1 ENG(LW3),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 09.744 M3X9 		8-94326-739-0 05 1 9509- ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 09.744 M2.3X9 		8-94326-742-0 02 1 9210- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 09.744 M3X20 		8-94326-743-0 03 1 9210- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> 09.744 M3X31 		8-94326-740-0 06 1 9210- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JA1 ENG(RLE),4JB1 ENG(RLF) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3) 09.744 M3X9 		8-94326-739-0 11 1 9210- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 09.744 M3X9 		8-94326-739-0 11 1 9210- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
A/T AISIN(RMD) EXC. TACHOMETER<U16> 16.085 M5X16 TAPPING 		9-09829-323-1 04 1 9210- ● ● ●
269 09.743 SCREW; METER CLUSTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 09.744 M3X9 		8-94326-739-0 16 1 9210-9505 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> EXC. HONG KONG EQUIPMENT(PQ1) 09.744 M3X9 		8-94326-739-0 16 1 9506-9508 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1) TACHOMETER<U16> 09.744 M3X9 		8-94326-739-0 14 1 9509- ● ● ●
269 09.743 SCREW; METER CLUSTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. TACHOMETER<U16> 09.744 M3X9 		8-94326-739-0 05 1 9210-9505 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 09.744 M3X9 		8-94326-739-0 05 1 9506-9508 ● ● ●
269 09.743 SCREW; METER CLUSTER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 09.744 M3X9 		8-94326-739-0 13 1 9210- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> 09.744 M3X9 		8-94326-739-0 02 1 9210- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. TACHOMETER<U16> 09.744 M3X9 		8-94326-739-0 14 1 9210-9505 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1) 09.744 M3X9 		8-94326-739-0 14 1 9506-9508 ● ● ●
269 09.743 SCREW; METER CLUSTER
4ZD1 ENG(LW3),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> EXC. HONG KONG EQUIPMENT(PQ1) 09.744 M3X9 		8-94326-739-0 16 1 9509- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
