◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50651 - TFR/TFS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#45449) — 462 parça

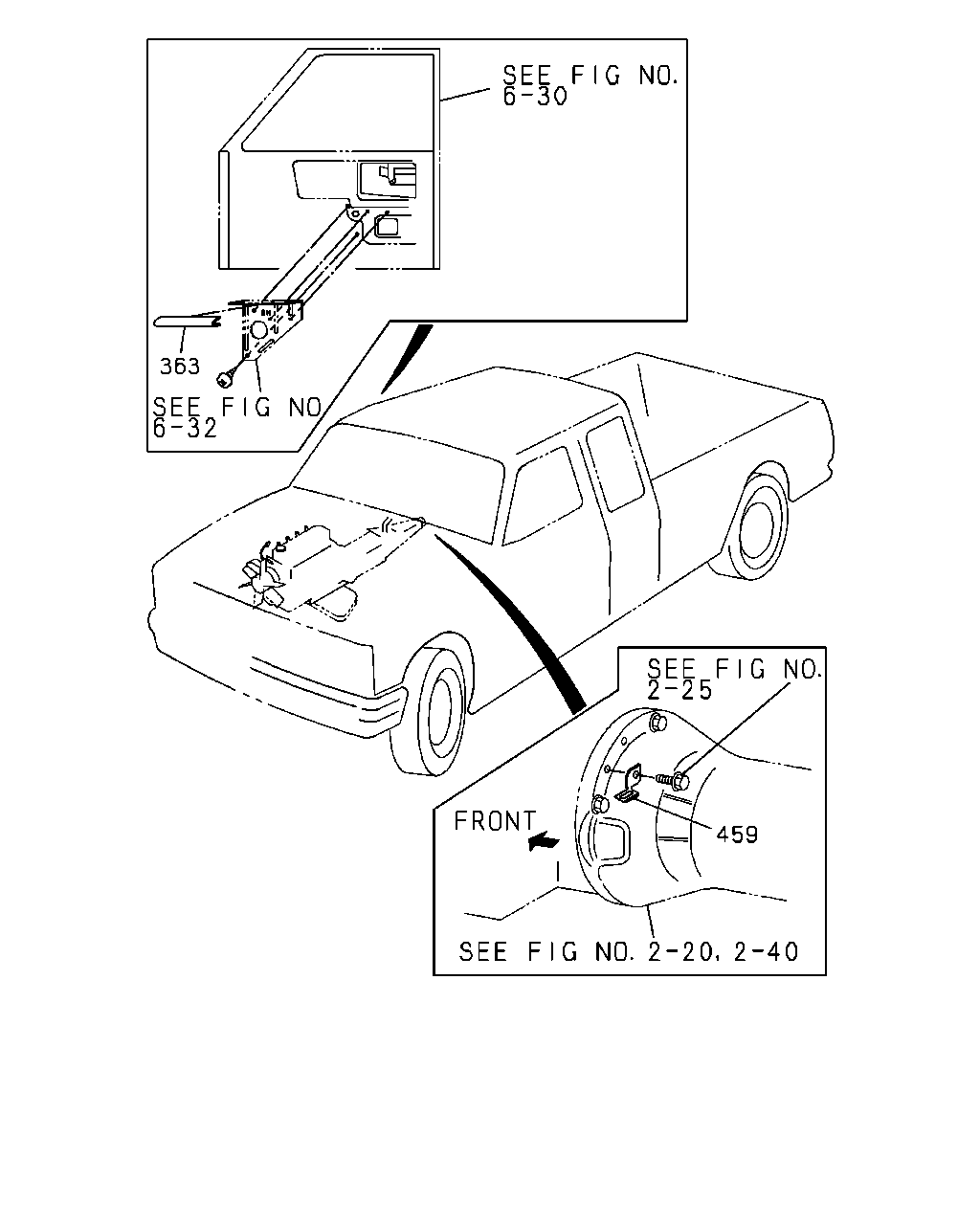

çizim 16314
363 459
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
363 16.085 FINISHER; PROTECTOR
GRADE LS(RBD) 16.570 L=190 SERVICED BY L=2040 		1-71998-300-0 02 1 9210-9406 ● ● ● ● ● ● ● ●
363 16.085 FINISHER; PROTECTOR
GRADE LS(RBD) 16.570 L=190 SERVICED BY L=2040 		1-71998-300-0 02 1 9407- ● ● ● ● ● ● ● ●
363 16.085 FINISHER; PROTECTOR
SPECIAL PACKAGE<7BB> 16.570 L=190 SERVICED BY L=2040 		1-71998-300-0 02 1 9407- ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JA1 ENG(RLE) TURBOCHARGER<K51> 		8-94315-284-0 01 1 9407- ● ● ● ● ● ● ● ●

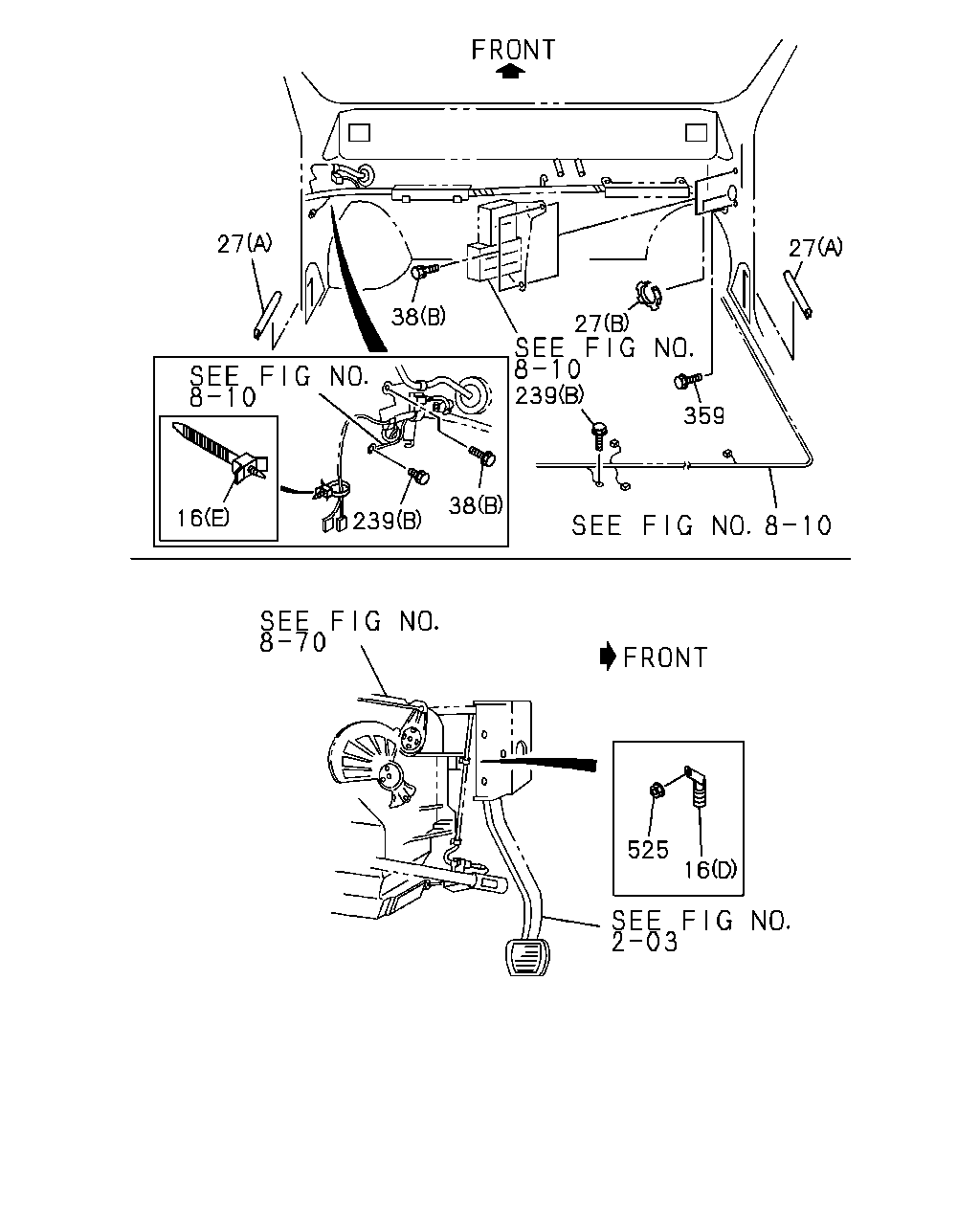

çizim 17819
27 38 27 27 359 239 38 239 16 525 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 02 1 9407- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) (A) L=60 		8-94449-752-0 06 1 9210-9502 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9503- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9406 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9406 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) ELECTRIC FUEL INJECTION<6GG> 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9406 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9407- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 03.162 (B) L=140 		5-09707-031-0 01 1 9407- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9407- ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. THAILAND EQUIPMENT(PM9) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 00.206 (H) ID=6.1 		9-09150-506-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) THAILAND EQUIPMENT(PM9) 00.413 (F) ID=5.1 		9-09150-505-0 01 1 9210-9509 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) THAILAND EQUIPMENT(PM9) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 9210- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4>,THAILAND EQUIPMENT(PM9) (A) L=60 		8-94449-752-0 03 1 9503- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIP MENT(S9Y) (J) 		8-94419-539-0 01 1 9210-9406 ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) TURBOCHARGER<K51> 16.065 (I) ID=20 		1-09709-068-0 01 1 9407-9503 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 16.065 (I) ID=20 		1-09709-068-0 01 1 9504-9505 ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 16.065 (I) ID=20 		1-09709-068-0 01 1 9506-9509 ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3) 16.065 (I) ID=20 		1-09709-068-0 01 1 9510- ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 04.594 (K) L=100 		5-09707-036-0 01 1 9504- ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9407-9509 ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9510- ● ● ●
27 02.559 PROTECTOR; EDGE
GRADE LS(RBD) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-94115-120-0 02 1 9210-9407 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
GRADE LS(RBD) ELECTRIC FUEL INJECTION<6GG> (A) 		8-94115-120-0 01 1 9408-9502 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
GRADE LS(RBD) (A) 		8-94115-120-0 01 1 9503- ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
ELECTRIC FUEL INJECTION<6GG> (A) 		8-94115-120-0 01 1 9503- ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
AUTO DOOR LOCK<AU4> EXC. THAILAND EQUIPMENT(PM9) (A) 		8-94115-120-0 01 1 9503- ●
27 02.559 PROTECTOR; EDGE
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-94115-120-0 01 1 9503- ● ● ●
27 02.559 PROTECTOR; EDGE
AUSTRALIA EQUIPMENT(RR3) (A) 		8-94115-120-0 01 1 9210-9210 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
ELECTRIC FUEL INJECTION<6GG> (A) 		8-94115-120-0 01 1 9210-9406 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-94115-120-0 01 1 9210-9406 ● ●
27 02.559 PROTECTOR; EDGE
AUSTRALIA EQUIPMENT(RR3) (B) 		8-94369-906-1 01 1 9210-9210 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
AUSTRALIA EQUIPMENT(RR3) (B) 		8-94369-906-1 01 1 9210-9406 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-94369-906-1 01 1 9210-9406 ● ●
27 02.559 PROTECTOR; EDGE
ELECTRIC FUEL INJECTION<6GG> (B) 		8-94369-906-1 02 1 9407-9407 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
ELECTRIC FUEL INJECTION<6GG> (B) 		8-94369-906-1 01 1 9408- ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
02.483 (C) 		8-94142-264-0 02 1 9210-9509 ● ●
27 02.559 PROTECTOR; EDGE
SUN ROOF<CF7> 02.483 (C) 		8-94142-264-0 02 1 9510- ● ●
38 02.559 BOLT; CLIP,HARNESS
04.686 (A) M6X16 W/LK WASHER 		0-50040-616-0 01 1 9210-9211 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 9212- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.900 (B) M6X18 W/LK&PL WASHER 		0-50140-618-0 04 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.153 (C) M6X16 W/LK&PL WASHER 		8-94279-133-0 01 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) 00.206 (E) M8X12 W/LK WASHER 		0-50040-812-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.206 (E) M8X12 W/LK WASHER 		0-50040-812-0 01 1 9309-9402 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9407- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) 00.206 (E) M8X12 W/LK WASHER 		0-50040-812-0 03 1 9210-9402 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9407-9501 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9502- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9502- ● ● ●
239 02.559 BOLT; GRAND
13.090 (A)(B) M6X22 W/LK&PL WASHER 		8-94122-769-0 05 1 9210-9210 ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
(B)'921026- M6X14 W/LK&PL WASHER 		8-97086-822-0 04 1 9210- ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
02.343 (A)'921026- M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9210- ● ● ● ● ● ● ● ●
359 02.559 BOLT; HOLDER
03.342 M6X16 		8-97012-496-0 01 1 9609- ● ● ● ● ● ● ● ●
525 02.559 NUT; CLIP
EXC. HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 12.809 M6 FLANGE 		8-97022-131-0 01 1 9210-9405 ● ● ● ● ● ● ● ●
525 02.559 NUT; CLIP
EXC. HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 07.833 M6 FLANGE 		8-97063-399-0 01 1 9406-9411 ● ● ● ● ● ● ● ●
525 02.559 NUT; CLIP
EXC. HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 07.833 M6 FLANGE 		8-97063-399-0 02 1 9412- ● ● ● ● ● ● ● ●

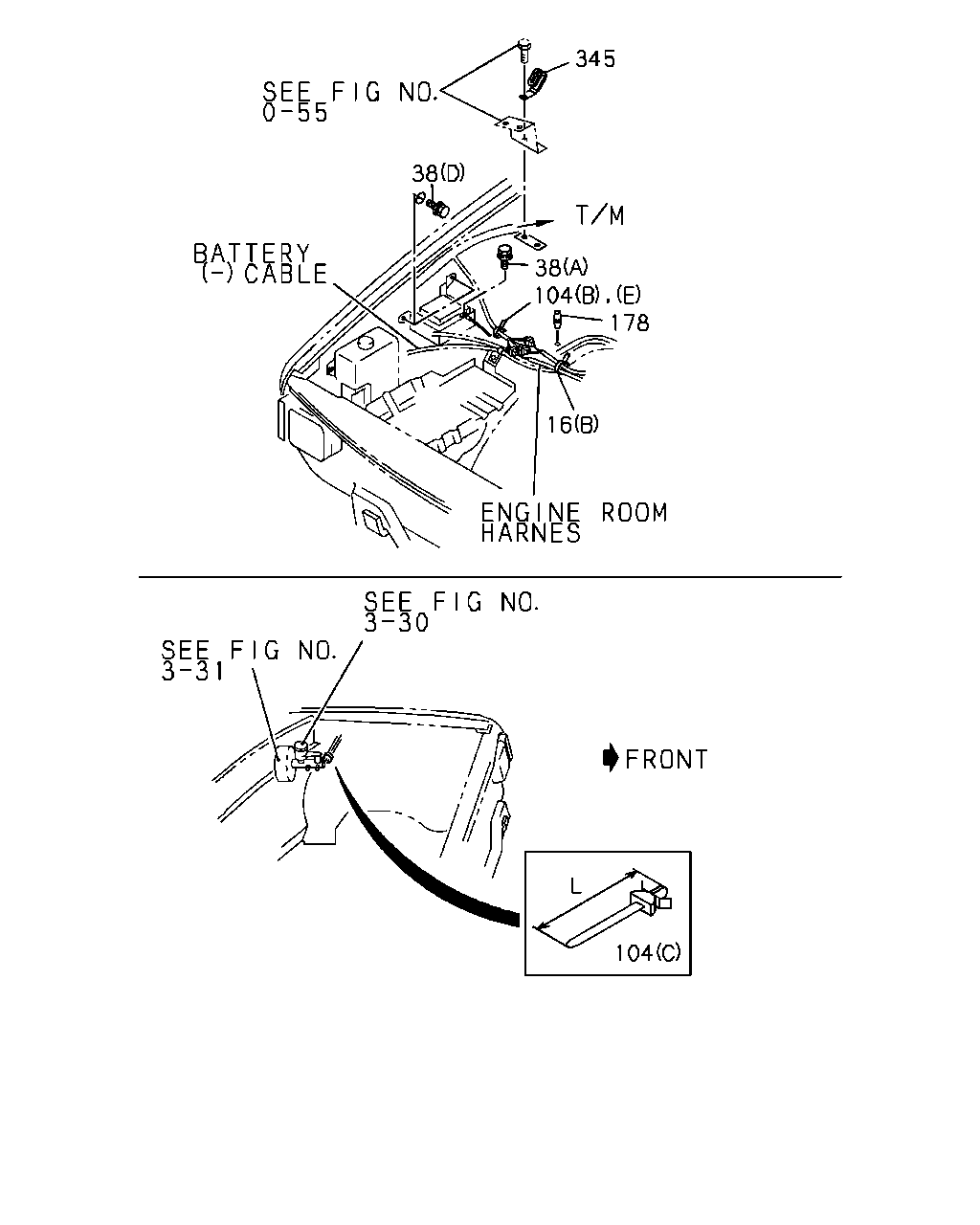

çizim 18252
345 38 38 104 178 16 104
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 02 1 9407- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) (A) L=60 		8-94449-752-0 06 1 9210-9502 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9503- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9406 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9406 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) ELECTRIC FUEL INJECTION<6GG> 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9406 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9407- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 03.162 (B) L=140 		5-09707-031-0 01 1 9407- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9407- ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. THAILAND EQUIPMENT(PM9) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 00.206 (H) ID=6.1 		9-09150-506-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) THAILAND EQUIPMENT(PM9) 00.413 (F) ID=5.1 		9-09150-505-0 01 1 9210-9509 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) THAILAND EQUIPMENT(PM9) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 9210- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4>,THAILAND EQUIPMENT(PM9) (A) L=60 		8-94449-752-0 03 1 9503- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIP MENT(S9Y) (J) 		8-94419-539-0 01 1 9210-9406 ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) TURBOCHARGER<K51> 16.065 (I) ID=20 		1-09709-068-0 01 1 9407-9503 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 16.065 (I) ID=20 		1-09709-068-0 01 1 9504-9505 ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 16.065 (I) ID=20 		1-09709-068-0 01 1 9506-9509 ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3) 16.065 (I) ID=20 		1-09709-068-0 01 1 9510- ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 04.594 (K) L=100 		5-09707-036-0 01 1 9504- ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9407-9509 ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9510- ● ● ●
38 02.559 BOLT; CLIP,HARNESS
04.686 (A) M6X16 W/LK WASHER 		0-50040-616-0 01 1 9210-9211 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 9212- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.900 (B) M6X18 W/LK&PL WASHER 		0-50140-618-0 04 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.153 (C) M6X16 W/LK&PL WASHER 		8-94279-133-0 01 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) 00.206 (E) M8X12 W/LK WASHER 		0-50040-812-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.206 (E) M8X12 W/LK WASHER 		0-50040-812-0 01 1 9309-9402 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9407- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) 00.206 (E) M8X12 W/LK WASHER 		0-50040-812-0 03 1 9210-9402 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9407-9501 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9502- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9502- ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
02.587 (C) L=172 		8-94232-620-0 02 1 9210- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 02.587 (A) L=112 		8-94232-618-0 01 1 9210- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) L=142 		8-94232-619-0 01 1 9210- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
A/T AISIN(RMD) (B) L=142 		8-94232-619-0 01 1 9210- ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZA1 ENG(L17) (B) L=142 		8-94232-619-0 01 1 9210- ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) 03.162 (D) L=140 		5-09707-031-0 01 1 9210-9210 ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) 03.430 (E)'921019- L=200 		8-94464-835-0 01 1 9210-9406 ● ● ● ● ●
178 02.559 GROMMET; HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 16.550 OD=12 		9-09956-122-0 01 1 9210- ● ● ● ● ● ● ● ●
345 03.675 CLIP; HARNESS,VSV
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) 01.152 ID=8.5 		5-09700-275-0 01 1 9210-9406 ● ●

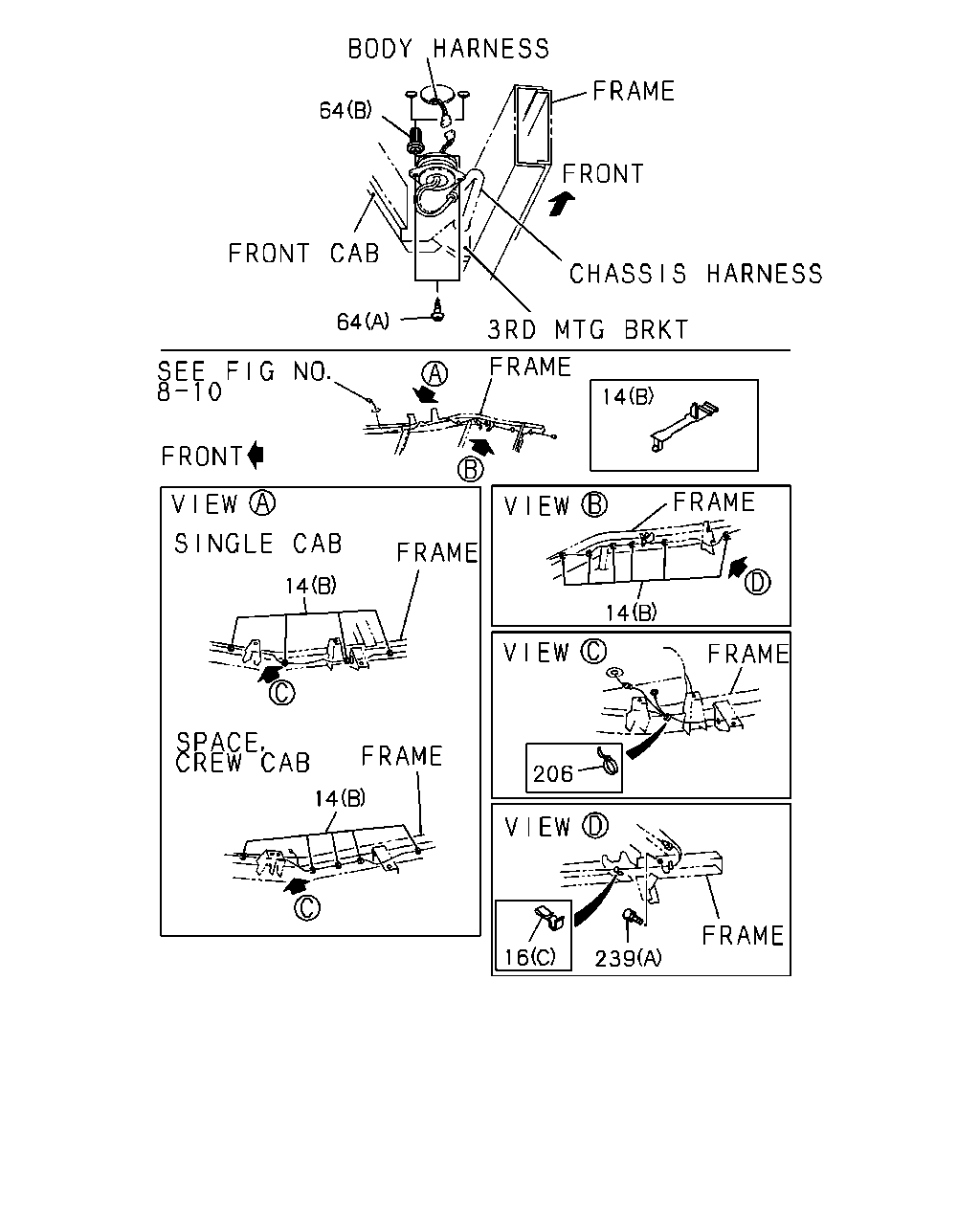

çizim 66210
64 64 14 14 14 14 206 16 239
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
14 02.559 CLIP; BAND,HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 04.594 (A) L=100 		5-09707-036-0 02 1 9210- ● ● ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) 03.162 (C) L=140 		5-09707-031-0 01 1 9210-9406 ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 03.425 (D) ID=8.3 & 20.2 		8-94470-738-0 01 1 9407- ● ● ●
14 02.559 CLIP; BAND,HARNESS
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) (E) L=142 		8-94232-619-0 01 1 9210-9308 ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 11 1 9210- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 08 1 9210- ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 10 1 9210- ● ●
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 02 1 9407- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) (A) L=60 		8-94449-752-0 06 1 9210-9502 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9503- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9406 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9406 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) ELECTRIC FUEL INJECTION<6GG> 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9406 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9407- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 03.162 (B) L=140 		5-09707-031-0 01 1 9407- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9407- ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. THAILAND EQUIPMENT(PM9) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 00.206 (H) ID=6.1 		9-09150-506-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) THAILAND EQUIPMENT(PM9) 00.413 (F) ID=5.1 		9-09150-505-0 01 1 9210-9509 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) THAILAND EQUIPMENT(PM9) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 9210- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4>,THAILAND EQUIPMENT(PM9) (A) L=60 		8-94449-752-0 03 1 9503- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIP MENT(S9Y) (J) 		8-94419-539-0 01 1 9210-9406 ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) TURBOCHARGER<K51> 16.065 (I) ID=20 		1-09709-068-0 01 1 9407-9503 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 16.065 (I) ID=20 		1-09709-068-0 01 1 9504-9505 ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 16.065 (I) ID=20 		1-09709-068-0 01 1 9506-9509 ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3) 16.065 (I) ID=20 		1-09709-068-0 01 1 9510- ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 04.594 (K) L=100 		5-09707-036-0 01 1 9504- ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9407-9509 ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9510- ● ● ●
64 02.559 SCREW; CLIP
10.240 (A) M5X14 		8-94120-095-0 02 1 9210- ● ● ● ● ● ● ● ●
64 02.559 SCREW; CLIP
02.679 (B) D=7.9X7.9 L=20 M5 		8-94441-539-0 02 1 9210- ● ● ● ● ● ● ● ●
206 02.559 CLIP; FUEL TANK HARNESS
03.162 L=140 		5-09707-031-0 01 1 9210- ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
13.090 (A)(B) M6X22 W/LK&PL WASHER 		8-94122-769-0 05 1 9210-9210 ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
(B)'921026- M6X14 W/LK&PL WASHER 		8-97086-822-0 04 1 9210- ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
02.343 (A)'921026- M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9210- ● ● ● ● ● ● ● ●

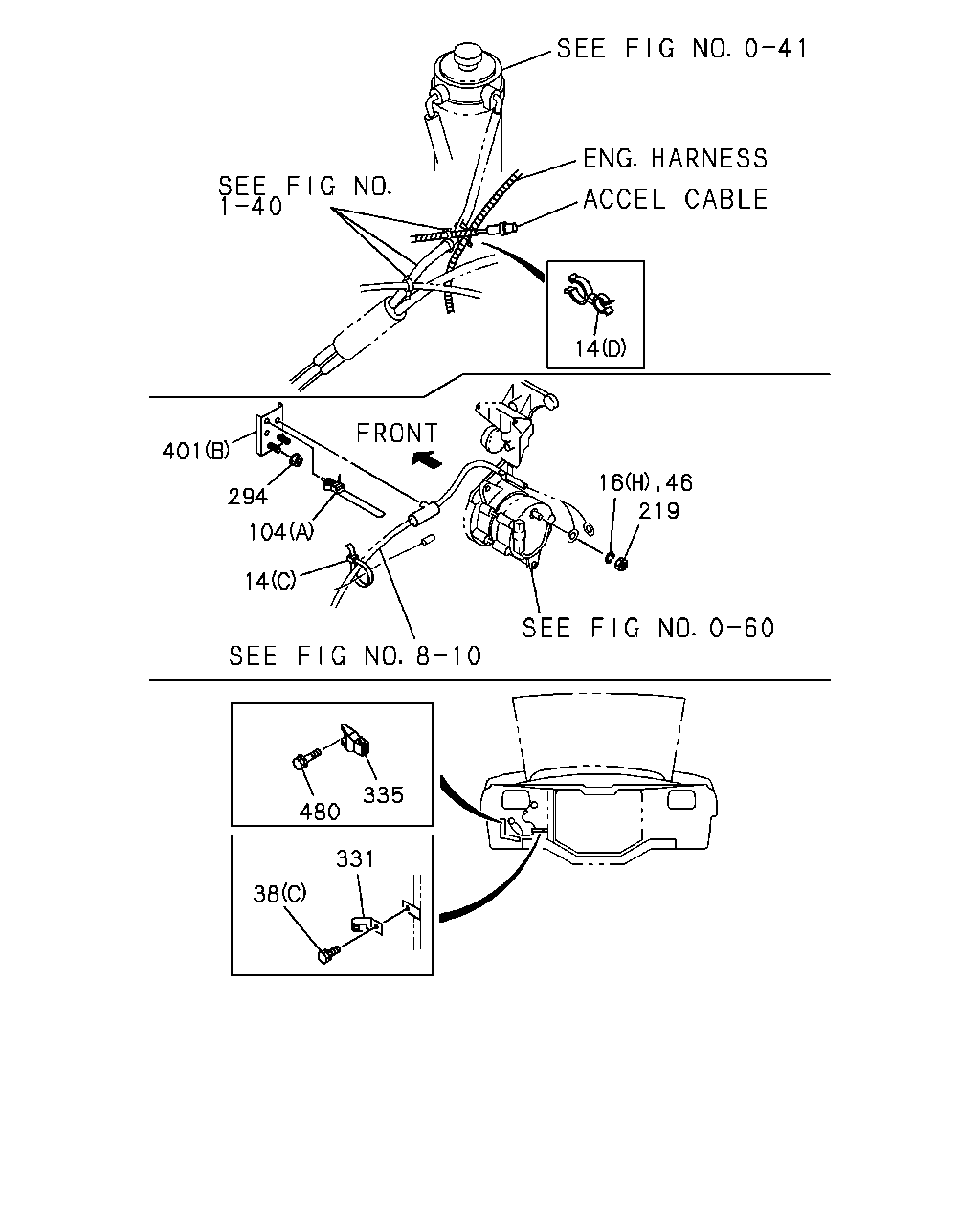

çizim 66288
14 16 46 219 14 104 294 401 480 335 331 38
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
14 02.559 CLIP; BAND,HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 04.594 (A) L=100 		5-09707-036-0 02 1 9210- ● ● ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) 03.162 (C) L=140 		5-09707-031-0 01 1 9210-9406 ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 03.425 (D) ID=8.3 & 20.2 		8-94470-738-0 01 1 9407- ● ● ●
14 02.559 CLIP; BAND,HARNESS
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) (E) L=142 		8-94232-619-0 01 1 9210-9308 ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 11 1 9210- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 08 1 9210- ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 10 1 9210- ● ●
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 02 1 9407- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) (A) L=60 		8-94449-752-0 06 1 9210-9502 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9503- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9406 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9406 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) ELECTRIC FUEL INJECTION<6GG> 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9406 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9407- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 03.162 (B) L=140 		5-09707-031-0 01 1 9407- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9407- ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. THAILAND EQUIPMENT(PM9) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 00.206 (H) ID=6.1 		9-09150-506-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) THAILAND EQUIPMENT(PM9) 00.413 (F) ID=5.1 		9-09150-505-0 01 1 9210-9509 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) THAILAND EQUIPMENT(PM9) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 9210- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4>,THAILAND EQUIPMENT(PM9) (A) L=60 		8-94449-752-0 03 1 9503- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIP MENT(S9Y) (J) 		8-94419-539-0 01 1 9210-9406 ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) TURBOCHARGER<K51> 16.065 (I) ID=20 		1-09709-068-0 01 1 9407-9503 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 16.065 (I) ID=20 		1-09709-068-0 01 1 9504-9505 ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 16.065 (I) ID=20 		1-09709-068-0 01 1 9506-9509 ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3) 16.065 (I) ID=20 		1-09709-068-0 01 1 9510- ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 04.594 (K) L=100 		5-09707-036-0 01 1 9504- ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9407-9509 ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9510- ● ● ●
38 02.559 BOLT; CLIP,HARNESS
04.686 (A) M6X16 W/LK WASHER 		0-50040-616-0 01 1 9210-9211 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 9212- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.900 (B) M6X18 W/LK&PL WASHER 		0-50140-618-0 04 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.153 (C) M6X16 W/LK&PL WASHER 		8-94279-133-0 01 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) 00.206 (E) M8X12 W/LK WASHER 		0-50040-812-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.206 (E) M8X12 W/LK WASHER 		0-50040-812-0 01 1 9309-9402 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9407- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) 00.206 (E) M8X12 W/LK WASHER 		0-50040-812-0 03 1 9210-9402 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9407-9501 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9502- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9502- ● ● ●
46 02.559 WASHER; LK,GEN TERMINAL
4JA1 ENG(RLE) THAILAND EQUIPMENT(PM9) 00.413 ID=5.1 		9-09150-505-0 01 1 9510- ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
02.587 (C) L=172 		8-94232-620-0 02 1 9210- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 02.587 (A) L=112 		8-94232-618-0 01 1 9210- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) L=142 		8-94232-619-0 01 1 9210- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
A/T AISIN(RMD) (B) L=142 		8-94232-619-0 01 1 9210- ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZA1 ENG(L17) (B) L=142 		8-94232-619-0 01 1 9210- ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) 03.162 (D) L=140 		5-09707-031-0 01 1 9210-9210 ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) 03.430 (E)'921019- L=200 		8-94464-835-0 01 1 9210-9406 ● ● ● ● ●
219 02.559 NUT
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 00.413 M6 		9-09110-506-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
219 02.559 NUT
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 16.176 		9-09110-406-0 01 1 9407-9509 ● ● ● ● ● ● ● ●
219 02.559 NUT
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 9510- ● ● ● ● ● ● ● ●
219 02.559 NUT
4JA1 ENG(RLE) THAILAND EQUIPMENT(PM9) 17.185 M5 		9-99110-405-0 01 1 9210-9509 ● ● ● ● ● ●
219 02.559 NUT
4JA1 ENG(RLE) THAILAND EQUIPMENT(PM9) 17.185 M5 		9-99110-405-0 01 1 9510- ● ● ● ● ●
294 02.559 NUT
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 07.829 M6 FLANGE 		5-09440-004-0 02 1 9210- ● ● ● ● ● ● ● ●
331 02.559 CLIP; HARNESS BRKT
01.152 ID=8.5 		5-09700-275-0 01 1 9210- ● ● ● ● ● ● ● ●
335 02.510 BRACKET; CONNECTOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), DUAL TONE HORN<U05> 		8-94326-558-0 01 1 9210- ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-94330-360-1 01 1 9210- ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZE1 ENG(RLJ) EXC. POWER STEERING<N40> (A) 		8-94329-766-0 01 1 9210-9401 ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZD1 ENG(LW3) EXC. UNITED KINGDOM EQUIPMENT(EK3), POWER STEERING<N40>,AUSTRALIA EQUIPMENT(RR3) (A) 		8-94329-766-0 01 1 9210-9401 ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZA1 ENG(L17) EXC. SINGAPORE EQUIPMENT(S9Y) (A) 		8-94329-766-0 01 1 9210-9401 ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZE1 ENG(RLJ) EXC. POWER STEERING<N40> (A) 		8-94329-766-0 01 1 9402-9406 ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZD1 ENG(LW3) EXC. UNITED KINGDOM EQUIPMENT(EK3), POWER STEERING<N40>,AUSTRALIA EQUIPMENT(RR3) (A) 		8-94329-766-0 01 1 9402-9406 ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZA1 ENG(L17) EXC. SINGAPORE EQUIPMENT(S9Y) (A) 		8-94329-766-0 01 1 9402-9406 ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZE1 ENG(RLJ) EXC. POWER STEERING<N40> (A) 		8-94329-766-0 01 1 9407-9411 ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZD1 ENG(LW3) EXC. POWER STEERING<N40>,AUSTRALIA EQUIPMENT(RR3) (A) 		8-94329-766-0 01 1 9407-9411 ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZA1 ENG(L17) (A) 		8-94329-766-0 01 1 9407-9411 ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. POWER STEERING<N40> (A) 		8-94329-766-0 01 1 9412- ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZA1 ENG(L17) (A) 		8-94329-766-0 01 1 9412- ● ● ●
480 02.483 BOLT; BRKT
EXC. UNITED KINGDOM EQUIPMENT(EK3), DUAL TONE HORN<U05> 02.343 M8X12 		8-94148-422-1 01 1 9210- ● ● ● ● ● ● ● ●

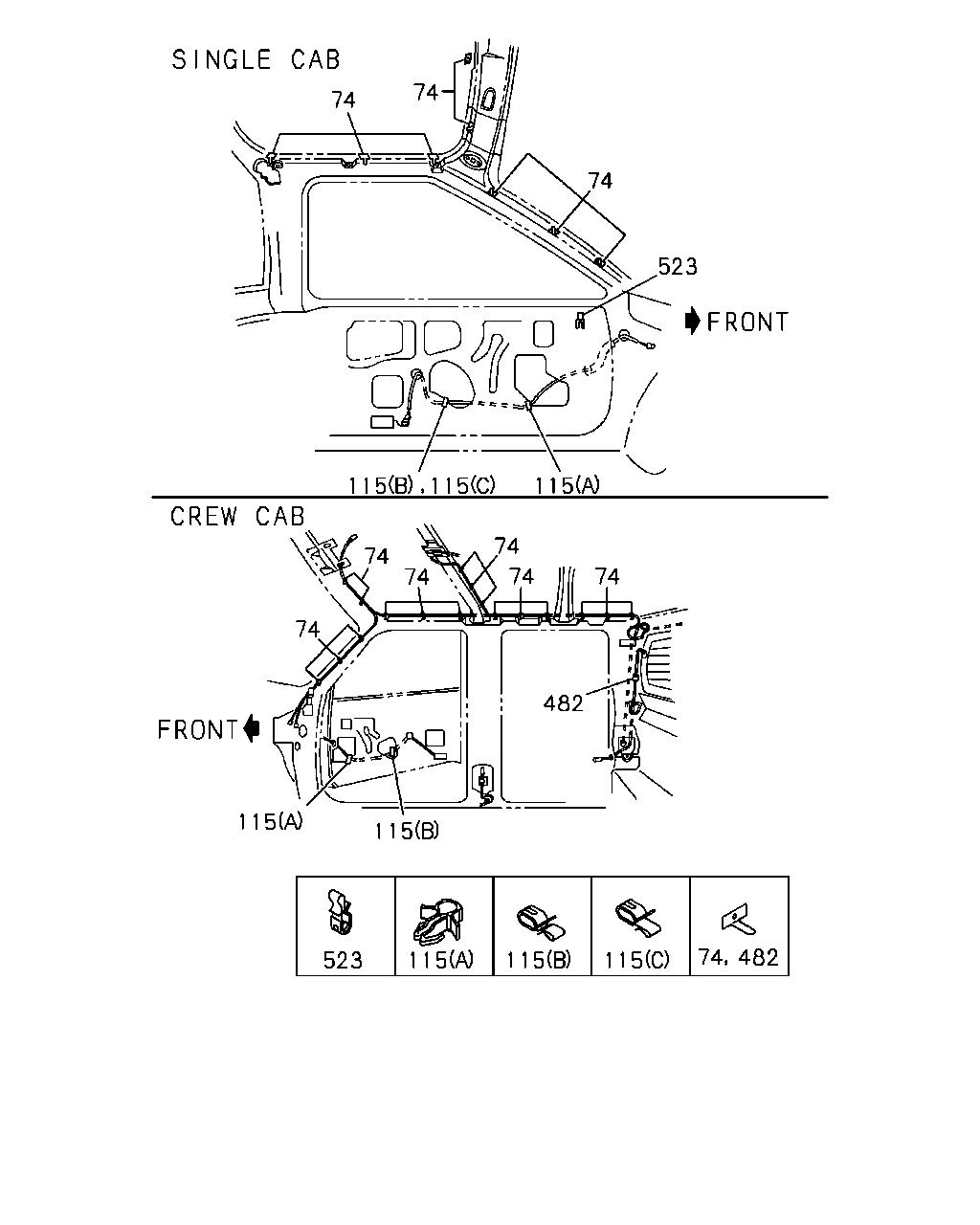

çizim 66695
74 74 74 523 115 115 115 74 74 74 74 74 482 74 115 115 523 115 115 115 74 482
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
74 02.480 CLIP; ROOM LAMP HARNESS
SUN ROOF<CF7> 		8-94138-987-0 11 1 9210-9509 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
SUN ROOF<CF7> 		8-94138-987-0 13 1 9510- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. SUN ROOF<CF7> 		8-94138-987-0 13 1 9210-9509 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
GRADE LS(RBD) 		8-94138-987-0 13 1 9510-9510 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS 8-94138-987-0 08 1 9210- ● ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS 8-94138-987-0 19 1 9210-9509 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS 8-94138-987-0 17 1 9510- ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) 13.090 (A) ID=12 		8-94218-436-0 02 1 9210-9502 ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) 13.090 (A) ID=12 		8-94218-436-0 02 1 9503-9505 ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE DLX(RBB) POWER WINDOW<A30> 13.090 (A) ID=12 		8-94218-436-0 02 1 9503-9505 ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) 13.090 (A) ID=12 		8-94218-436-0 02 1 9506- ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE DLX(RBB),GRADE LS(RBD) EXC. THAILAND EQUIPMENT(PM9) 13.090 (A) ID=12 		8-94218-436-0 02 1 9506- ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (B) 		5-09709-107-0 02 1 9210-9308 ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> 13.090 (B) ID=9 		8-94177-914-0 02 1 9309- ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
POWER WINDOW<A30> (C) ID=12 		8-94423-045-0 02 1 9210- ● ● ● ● ● ●
482 02.559 CLIP; RR DEFOGGER HARNESS
REAR DEFOGGER<C49> 02.480 		8-94138-987-0 02 1 9210- ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
POWER WINDOW<A30> THAILAND EQUIPMENT(PM9) 13.090 ID=9 		8-94177-914-0 02 1 9407-9603 ● ● ● ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
POWER WINDOW<A30> EAST MALAYSIA EQUIPMENT(PM6), THAILAND EQUIPMENT(PM9) 13.090 ID=9 		8-94177-914-0 02 1 9604-9606 ● ● ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
POWER WINDOW<A30> WITHOUT CROSS VENT<6NA> 13.090 ID=9 		8-94177-914-0 02 1 9607- ● ● ● ● ● ●

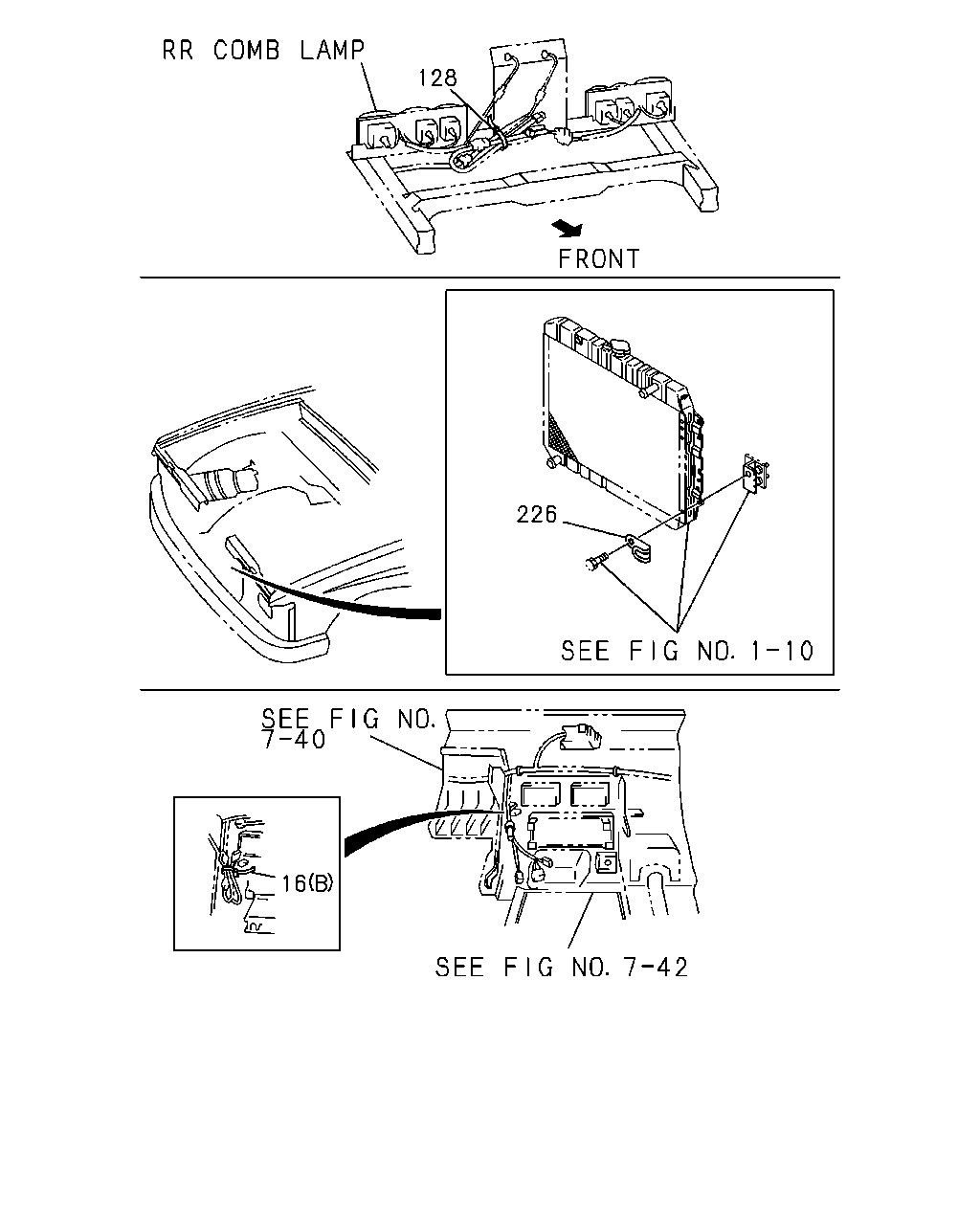

çizim 68288
128 226 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 02 1 9407- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) (A) L=60 		8-94449-752-0 06 1 9210-9502 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9503- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9406 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9406 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) ELECTRIC FUEL INJECTION<6GG> 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9406 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9407- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 03.162 (B) L=140 		5-09707-031-0 01 1 9407- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9407- ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. THAILAND EQUIPMENT(PM9) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 00.206 (H) ID=6.1 		9-09150-506-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) THAILAND EQUIPMENT(PM9) 00.413 (F) ID=5.1 		9-09150-505-0 01 1 9210-9509 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) THAILAND EQUIPMENT(PM9) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 9210- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4>,THAILAND EQUIPMENT(PM9) (A) L=60 		8-94449-752-0 03 1 9503- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIP MENT(S9Y) (J) 		8-94419-539-0 01 1 9210-9406 ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) TURBOCHARGER<K51> 16.065 (I) ID=20 		1-09709-068-0 01 1 9407-9503 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 16.065 (I) ID=20 		1-09709-068-0 01 1 9504-9505 ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 16.065 (I) ID=20 		1-09709-068-0 01 1 9506-9509 ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3) 16.065 (I) ID=20 		1-09709-068-0 01 1 9510- ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 04.594 (K) L=100 		5-09707-036-0 01 1 9504- ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9407-9509 ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9510- ● ● ●
128 02.559 CLIP; COMB SW HARNESS,STRG COLUM
EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R), RRBODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) L=250 		5-09707-030-0 01 1 9210-9210 ● ● ● ● ● ● ● ●
128 02.559 CLIP; COMB SW HARNESS,STRG COLUM
EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R), RRBODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) '921019- L=250 		5-09707-030-0 01 1 9210- ● ● ● ● ● ● ● ●
226 02.559 CLIP; RAD HARNESS
01.152 ID=18 L=44 		8-94225-185-0 01 1 9210- ● ● ● ● ● ● ● ●
çizim 68314
14 104 16 127 49 38 304 304 14 104 142 305 408 483 14 16 305 25 408 16 256 16 16 401 304
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
14 02.559 CLIP; BAND,HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 04.594 (A) L=100 		5-09707-036-0 02 1 9210- ● ● ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) 03.162 (C) L=140 		5-09707-031-0 01 1 9210-9406 ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 03.425 (D) ID=8.3 & 20.2 		8-94470-738-0 01 1 9407- ● ● ●
14 02.559 CLIP; BAND,HARNESS
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) (E) L=142 		8-94232-619-0 01 1 9210-9308 ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 11 1 9210- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 08 1 9210- ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 10 1 9210- ● ●
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 02 1 9407- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) (A) L=60 		8-94449-752-0 06 1 9210-9502 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9503- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9406 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9406 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) ELECTRIC FUEL INJECTION<6GG> 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9406 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9407- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 03.162 (B) L=140 		5-09707-031-0 01 1 9407- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9407- ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. THAILAND EQUIPMENT(PM9) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 00.206 (H) ID=6.1 		9-09150-506-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) THAILAND EQUIPMENT(PM9) 00.413 (F) ID=5.1 		9-09150-505-0 01 1 9210-9509 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) THAILAND EQUIPMENT(PM9) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 9210- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4>,THAILAND EQUIPMENT(PM9) (A) L=60 		8-94449-752-0 03 1 9503- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIP MENT(S9Y) (J) 		8-94419-539-0 01 1 9210-9406 ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) TURBOCHARGER<K51> 16.065 (I) ID=20 		1-09709-068-0 01 1 9407-9503 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 16.065 (I) ID=20 		1-09709-068-0 01 1 9504-9505 ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 16.065 (I) ID=20 		1-09709-068-0 01 1 9506-9509 ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3) 16.065 (I) ID=20 		1-09709-068-0 01 1 9510- ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 04.594 (K) L=100 		5-09707-036-0 01 1 9504- ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9407-9509 ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9510- ● ● ●
25 02.559 WASHER; PL,ENG HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIP MENT(S9Y) 00.206 ID=6.4 		9-09160-506-0 02 1 9210-9210 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
04.686 (A) M6X16 W/LK WASHER 		0-50040-616-0 01 1 9210-9211 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 9212- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.900 (B) M6X18 W/LK&PL WASHER 		0-50140-618-0 04 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.153 (C) M6X16 W/LK&PL WASHER 		8-94279-133-0 01 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) 00.206 (E) M8X12 W/LK WASHER 		0-50040-812-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.206 (E) M8X12 W/LK WASHER 		0-50040-812-0 01 1 9309-9402 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9407- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) 00.206 (E) M8X12 W/LK WASHER 		0-50040-812-0 03 1 9210-9402 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9407-9501 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9502- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9502- ● ● ●
49 02.559 CLIP; GEN HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-94319-607-0 01 1 9210- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
02.587 (C) L=172 		8-94232-620-0 02 1 9210- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 02.587 (A) L=112 		8-94232-618-0 01 1 9210- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) L=142 		8-94232-619-0 01 1 9210- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
A/T AISIN(RMD) (B) L=142 		8-94232-619-0 01 1 9210- ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZA1 ENG(L17) (B) L=142 		8-94232-619-0 01 1 9210- ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) 03.162 (D) L=140 		5-09707-031-0 01 1 9210-9210 ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) 03.430 (E)'921019- L=200 		8-94464-835-0 01 1 9210-9406 ● ● ● ● ●
127 02.726 SCREW; FACIA HARNESS CLIP
16.085 M5X16 TAPPING 		9-09829-323-1 01 1 9210- ● ● ● ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
C223 ENG(LQ7) 03.162 L=140 		5-09707-031-0 02 1 9210-9308 ● ● ● ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 03.162 L=140 		5-09707-031-0 01 1 9210- ● ● ● ● ● ● ● ●
256 02.559 CLIP; FENDER SKIRT HARNESS
L=135 		8-94473-399-0 01 1 9210- ● ● ● ● ● ● ● ●
304 02.483 BOLT; ENG HARNESS CLIP
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 03.680 (B) M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9210-9308 ● ● ● ● ● ● ● ●
304 02.483 BOLT; ENG HARNESS CLIP
4ZD1 ENG(LW3),4ZA1 ENG(L17) 03.680 (B) M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9210-9308 ● ● ● ● ● ● ●
304 02.483 BOLT; ENG HARNESS CLIP
4ZD1 ENG(LW3),4ZA1 ENG(L17) 03.680 (B) M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9309-9509 ● ● ● ● ● ● ● ●
304 02.483 BOLT; ENG HARNESS CLIP
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 03.680 (B) M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9309-9509 ● ● ● ● ● ● ● ●
304 02.483 BOLT; ENG HARNESS CLIP
4ZD1 ENG(LW3),4ZA1 ENG(L17) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIP MENT(S9Y) 00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 02 1 9210-9210 ● ● ●
304 02.483 BOLT; ENG HARNESS CLIP
4ZD1 ENG(LW3),4ZA1 ENG(L17) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIP MENT(S9Y) 01.428 (A)'921012- M6X12 FLANGE 		0-28080-612-0 02 1 9210-9402 ● ● ●
304 02.483 BOLT; ENG HARNESS CLIP
4ZD1 ENG(LW3),4ZA1 ENG(L17) UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y) 01.428 (A) M6X12 FLANGE 		0-28080-612-0 02 1 9403-9403 ● ●
304 02.483 BOLT; ENG HARNESS CLIP
4ZD1 ENG(LW3) SINGAPORE EQUIPMENT(S9Y) 01.428 (A) M6X12 FLANGE 		0-28080-612-0 02 1 9404-9509 ● ●
304 02.483 BOLT; ENG HARNESS CLIP
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 03.680 (B) M6X12 W/LK&PL WASHER 		0-50140-612-0 01 1 9210- ● ● ● ● ● ●
304 02.483 BOLT; ENG HARNESS CLIP
C223 ENG(LQ7) 01.531 (C) M8X100 W/LK&PL WASHER 		0-50140-800-0 02 1 9210-9308 ● ● ● ● ● ●
305 02.559 CLIP; ENG HARNESS
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 03.162 (A) L=140 		5-09707-031-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
305 02.559 CLIP; ENG HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17) 03.162 (A) L=140 		5-09707-031-0 01 1 9210-9308 ● ● ● ● ● ● ●
305 02.559 CLIP; ENG HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 03.162 (A) L=140 		5-09707-031-0 01 1 9309-9406 ● ● ● ● ● ● ● ●
305 02.559 CLIP; ENG HARNESS
4ZD1 ENG(LW3) AUSTRALIA EQUIPMENT(RR3) 03.162 (A) L=140 		5-09707-031-0 01 1 9309-9406 ● ● ● ● ● ●
305 02.559 CLIP; ENG HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 03.162 (A) L=140 		5-09707-031-0 01 1 9407- ● ● ● ● ● ● ● ●
305 02.559 CLIP; ENG HARNESS
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 04.594 (B) L=100 		5-09707-036-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
305 02.559 CLIP; ENG HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17) 04.594 (B) L=100 		5-09707-036-0 01 1 9210-9308 ● ● ● ● ● ● ●
305 02.559 CLIP; ENG HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 04.594 (B) L=100 		5-09707-036-0 01 1 9309- ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-94330-360-1 01 1 9210- ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZE1 ENG(RLJ) EXC. POWER STEERING<N40> (A) 		8-94329-766-0 01 1 9210-9401 ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZD1 ENG(LW3) EXC. UNITED KINGDOM EQUIPMENT(EK3), POWER STEERING<N40>,AUSTRALIA EQUIPMENT(RR3) (A) 		8-94329-766-0 01 1 9210-9401 ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZA1 ENG(L17) EXC. SINGAPORE EQUIPMENT(S9Y) (A) 		8-94329-766-0 01 1 9210-9401 ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZE1 ENG(RLJ) EXC. POWER STEERING<N40> (A) 		8-94329-766-0 01 1 9402-9406 ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZD1 ENG(LW3) EXC. UNITED KINGDOM EQUIPMENT(EK3), POWER STEERING<N40>,AUSTRALIA EQUIPMENT(RR3) (A) 		8-94329-766-0 01 1 9402-9406 ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZA1 ENG(L17) EXC. SINGAPORE EQUIPMENT(S9Y) (A) 		8-94329-766-0 01 1 9402-9406 ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZE1 ENG(RLJ) EXC. POWER STEERING<N40> (A) 		8-94329-766-0 01 1 9407-9411 ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZD1 ENG(LW3) EXC. POWER STEERING<N40>,AUSTRALIA EQUIPMENT(RR3) (A) 		8-94329-766-0 01 1 9407-9411 ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZA1 ENG(L17) (A) 		8-94329-766-0 01 1 9407-9411 ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. POWER STEERING<N40> (A) 		8-94329-766-0 01 1 9412- ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZA1 ENG(L17) (A) 		8-94329-766-0 01 1 9412- ● ● ●
408 02.559 CLIP; TRANS HARNESS
M/T MUA 5 SPEED(RMN) 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9210- ● ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
03.162 (B) L=140 		5-09707-031-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9407- ● ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
03.162 (B) L=140 		5-09707-031-0 01 1 9407- ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) L=140 		5-09707-031-0 01 1 9407- ● ● ●
483 02.559 CLIP; ENG HARNESS
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 03.162 L=140 		5-09707-031-0 01 1 9210- ● ● ● ● ● ●

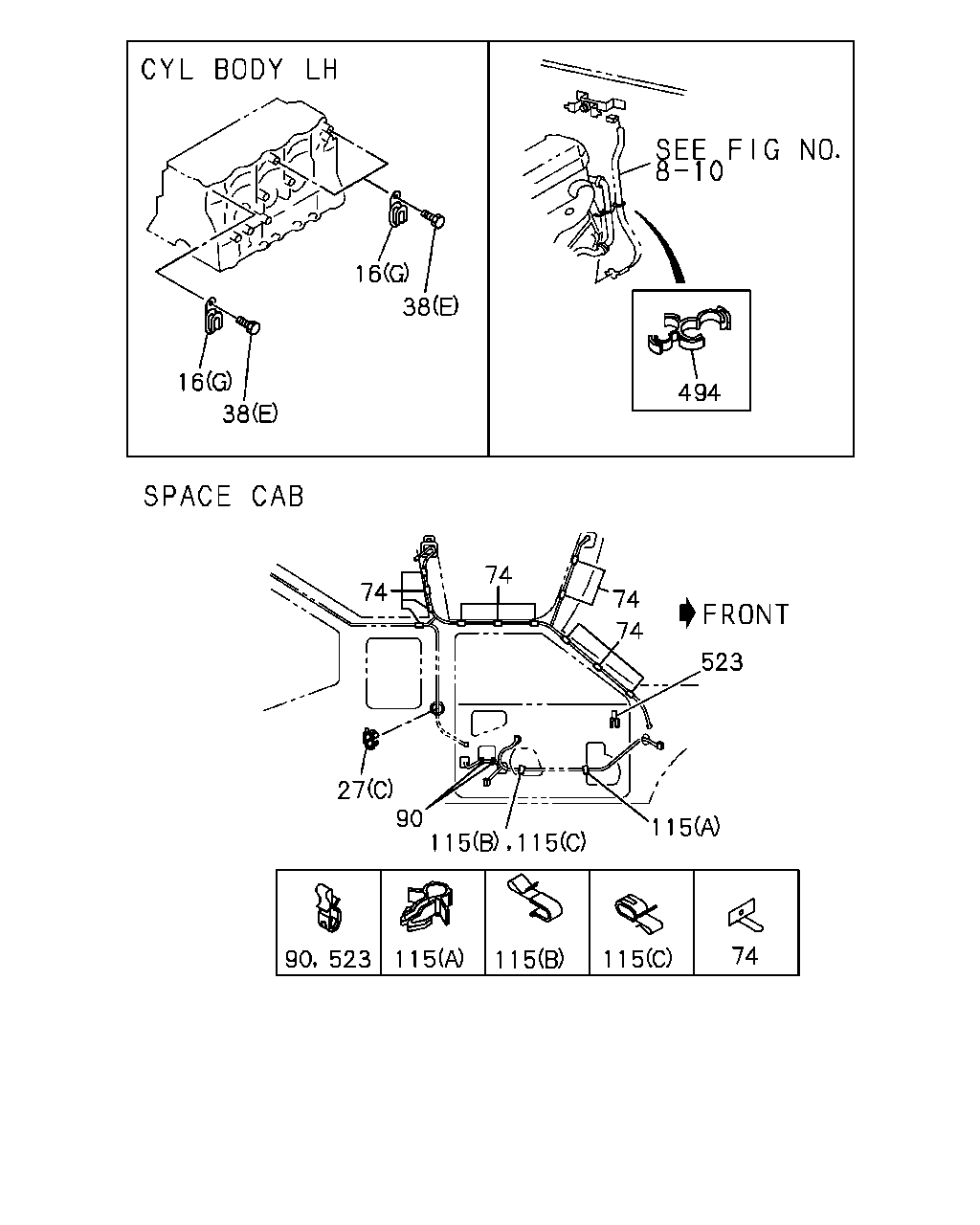

çizim 68374
16 38 16 38 494 74 74 74 74 523 115 115 115 90 27 90 523 115 115 115 74
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 02 1 9407- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) (A) L=60 		8-94449-752-0 06 1 9210-9502 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (A) L=60 		8-94449-752-0 06 1 9503- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 03.162 (B) L=140 		5-09707-031-0 01 1 9210-9403 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9406 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9406 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) ELECTRIC FUEL INJECTION<6GG> 03.162 (B) L=140 		5-09707-031-0 01 1 9404-9406 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9407- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 03.162 (B) L=140 		5-09707-031-0 01 1 9407- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9407- ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. THAILAND EQUIPMENT(PM9) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9210- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 00.206 (H) ID=6.1 		9-09150-506-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) THAILAND EQUIPMENT(PM9) 00.413 (F) ID=5.1 		9-09150-505-0 01 1 9210-9509 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) THAILAND EQUIPMENT(PM9) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 9210- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4>,THAILAND EQUIPMENT(PM9) (A) L=60 		8-94449-752-0 03 1 9503- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIP MENT(S9Y) (J) 		8-94419-539-0 01 1 9210-9406 ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) TURBOCHARGER<K51> 16.065 (I) ID=20 		1-09709-068-0 01 1 9407-9503 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 16.065 (I) ID=20 		1-09709-068-0 01 1 9504-9505 ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 16.065 (I) ID=20 		1-09709-068-0 01 1 9506-9509 ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3) 16.065 (I) ID=20 		1-09709-068-0 01 1 9510- ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 04.594 (K) L=100 		5-09707-036-0 01 1 9504- ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9407-9509 ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9510- ● ● ●
27 02.559 PROTECTOR; EDGE
GRADE LS(RBD) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-94115-120-0 02 1 9210-9407 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
GRADE LS(RBD) ELECTRIC FUEL INJECTION<6GG> (A) 		8-94115-120-0 01 1 9408-9502 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
GRADE LS(RBD) (A) 		8-94115-120-0 01 1 9503- ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
ELECTRIC FUEL INJECTION<6GG> (A) 		8-94115-120-0 01 1 9503- ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
AUTO DOOR LOCK<AU4> EXC. THAILAND EQUIPMENT(PM9) (A) 		8-94115-120-0 01 1 9503- ●
27 02.559 PROTECTOR; EDGE
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-94115-120-0 01 1 9503- ● ● ●
27 02.559 PROTECTOR; EDGE
AUSTRALIA EQUIPMENT(RR3) (A) 		8-94115-120-0 01 1 9210-9210 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
ELECTRIC FUEL INJECTION<6GG> (A) 		8-94115-120-0 01 1 9210-9406 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-94115-120-0 01 1 9210-9406 ● ●
27 02.559 PROTECTOR; EDGE
AUSTRALIA EQUIPMENT(RR3) (B) 		8-94369-906-1 01 1 9210-9210 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
AUSTRALIA EQUIPMENT(RR3) (B) 		8-94369-906-1 01 1 9210-9406 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-94369-906-1 01 1 9210-9406 ● ●
27 02.559 PROTECTOR; EDGE
ELECTRIC FUEL INJECTION<6GG> (B) 		8-94369-906-1 02 1 9407-9407 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
ELECTRIC FUEL INJECTION<6GG> (B) 		8-94369-906-1 01 1 9408- ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
02.483 (C) 		8-94142-264-0 02 1 9210-9509 ● ●
27 02.559 PROTECTOR; EDGE
SUN ROOF<CF7> 02.483 (C) 		8-94142-264-0 02 1 9510- ● ●
38 02.559 BOLT; CLIP,HARNESS
04.686 (A) M6X16 W/LK WASHER 		0-50040-616-0 01 1 9210-9211 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 9212- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.900 (B) M6X18 W/LK&PL WASHER 		0-50140-618-0 04 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.153 (C) M6X16 W/LK&PL WASHER 		8-94279-133-0 01 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) 00.206 (E) M8X12 W/LK WASHER 		0-50040-812-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.206 (E) M8X12 W/LK WASHER 		0-50040-812-0 01 1 9309-9402 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9407- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) 00.206 (E) M8X12 W/LK WASHER 		0-50040-812-0 03 1 9210-9402 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9210- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9407-9501 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9502- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9502- ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
SUN ROOF<CF7> 		8-94138-987-0 11 1 9210-9509 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
SUN ROOF<CF7> 		8-94138-987-0 13 1 9510- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. SUN ROOF<CF7> 		8-94138-987-0 13 1 9210-9509 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
GRADE LS(RBD) 		8-94138-987-0 13 1 9510-9510 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS 8-94138-987-0 08 1 9210- ● ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS 8-94138-987-0 19 1 9210-9509 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS 8-94138-987-0 17 1 9510- ● ●
90 02.559 CLIP; HARNESS,DOOR LOCK
AUTO DOOR LOCK<AU4> 13.090 ID=9 		8-94177-914-0 04 1 9501- ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) 13.090 (A) ID=12 		8-94218-436-0 02 1 9210-9502 ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) 13.090 (A) ID=12 		8-94218-436-0 02 1 9503-9505 ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE DLX(RBB) POWER WINDOW<A30> 13.090 (A) ID=12 		8-94218-436-0 02 1 9503-9505 ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) 13.090 (A) ID=12 		8-94218-436-0 02 1 9506- ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE DLX(RBB),GRADE LS(RBD) EXC. THAILAND EQUIPMENT(PM9) 13.090 (A) ID=12 		8-94218-436-0 02 1 9506- ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> (B) 		5-09709-107-0 02 1 9210-9308 ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
GRADE LS(RBD) EXC. POWER WINDOW<A30> 13.090 (B) ID=9 		8-94177-914-0 02 1 9309- ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
POWER WINDOW<A30> (C) ID=12 		8-94423-045-0 02 1 9210- ● ● ● ● ● ●
494 02.559 CLIP; BONDING CABLE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CON(C60) 08.852 ID=8 & 23 		5-09707-002-0 01 1 9210-9210 ● ● ● ● ● ● ● ●
494 02.559 CLIP; BONDING CABLE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CON(C60) 09.242 ID=12.5 & 24 		5-09709-034-0 01 1 9211- ● ● ● ● ● ● ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
POWER WINDOW<A30> THAILAND EQUIPMENT(PM9) 13.090 ID=9 		8-94177-914-0 02 1 9407-9603 ● ● ● ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
POWER WINDOW<A30> EAST MALAYSIA EQUIPMENT(PM6), THAILAND EQUIPMENT(PM9) 13.090 ID=9 		8-94177-914-0 02 1 9604-9606 ● ● ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
POWER WINDOW<A30> WITHOUT CROSS VENT<6NA> 13.090 ID=9 		8-94177-914-0 02 1 9607- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
