◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50651 - TFR/TFS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#45448) — 197 parça

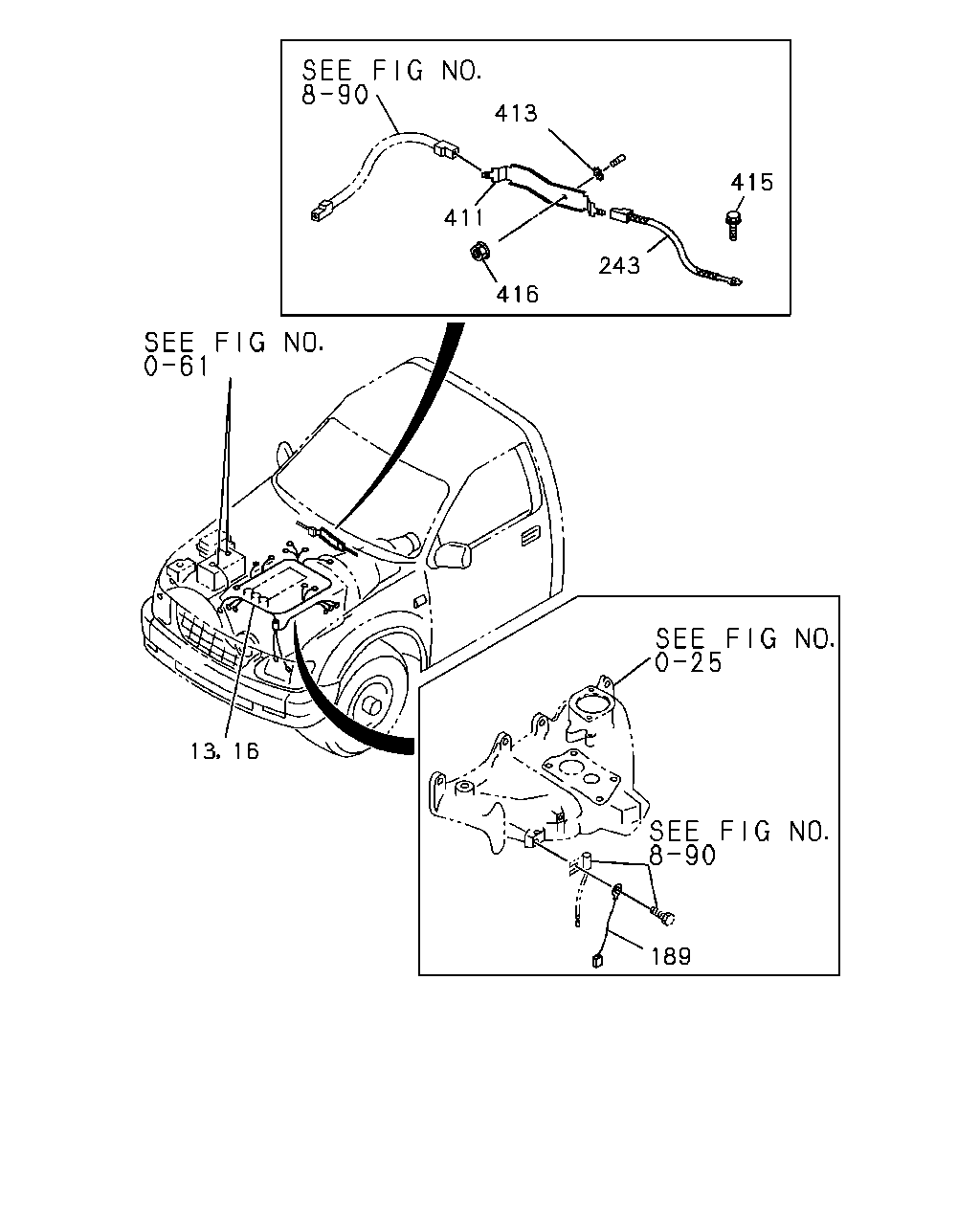

çizim 18445
413 411 416 243 415 189 13 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 02.480 		8-94384-686-1 01 1 9210-9406 ● ● ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 		8-97113-395-0 01 1 9407-9505 ● ● ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97113-395-0 01 1 9506-9509 ● ● ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 		8-97113-395-0 01 1 9510- ● ● ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 02.480 		8-97039-819-2 01 1 9210- ● ● ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 02.480 		8-97021-903-1 01 1 9210-9308 ● ● ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) 02.480 		8-97021-903-1 01 1 9309- ● ● ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97071-116-0 01 1 9210- ● ● ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) THAILAND EQUIPMENT(PM9) 02.480 		8-94384-685-0 01 1 9210-9406 ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) THAILAND EQUIPMENT(PM9) 		8-97113-394-0 01 1 9407-9407 ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) THAILAND EQUIPMENT(PM9) 		8-97117-678-0 01 1 9407-9408 ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) THAILAND EQUIPMENT(PM9) 		8-97117-678-0 01 1 9409-9409 ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) THAILAND EQUIPMENT(PM9) 		8-97113-394-0 01 1 9410-9509 ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) THAILAND EQUIPMENT(PM9) 		8-97113-394-0 01 1 9510- ● ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) A/T AISIN(RMD) POWER STEERING<N40> THAILAND EQUIPMENT(PM9) 		8-97117-679-0 01 1 9409- ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3) 02.480 		8-97015-327-1 01 1 9210-9406 ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3) 		8-97114-834-0 01 1 9407- ● ● ●
13 02.525 HARNESS; ENG
C223 ENG(LQ7) 02.480 		8-94313-620-2 01 1 9210-9308 ● ● ● ● ● ●
16 02.525 HARNESS; ENG,ECGI
4ZE1 ENG(RLJ) GENERATOR 55A(K96) EXC. AIR CON(C60),COOLER WO/HEATER(YL1) 		8-97038-772-4 01 1 9210-9308 ● ● ● ● ● ●
16 02.525 HARNESS; ENG,ECGI
4ZE1 ENG(RLJ) GENERATOR 70A(K73) 		8-97038-772-4 01 1 9210-9308 ● ● ●
16 02.525 HARNESS; ENG,ECGI
4ZE1 ENG(RLJ) GENERATOR 55A(K96) EXC. AIR CON(C60),COOLER WO/HEATER(YL1) 		8-97079-533-3 01 1 9309-9406 ● ● ● ● ● ●
16 02.525 HARNESS; ENG,ECGI
4ZE1 ENG(RLJ) GENERATOR 70A(K73) 		8-97079-533-3 01 1 9309-9406 ● ● ●
16 02.525 HARNESS; ENG,ECGI
4ZE1 ENG(RLJ) ELECTRIC FUEL INJECTION<6GG> 		8-97111-272-0 01 1 9407- ● ● ● ● ● ●
189 02.480 HARNESS; EXT
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) L=50 		8-94318-696-0 01 1 9210-9406 ● ● ● ● ● ●
243 02.480 CABLE; BONDING,TRANS
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-94389-187-0 01 1 9210- ● ● ● ● ● ● ● ●
411 02.559 TERMINAL; MALE,EARTH BONDING CAB
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 02.530 		8-94371-711-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
411 02.559 TERMINAL; MALE,EARTH BONDING CAB
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-97105-243-0 01 1 9309-9407 ● ● ● ● ● ● ● ●
411 02.559 TERMINAL; MALE,EARTH BONDING CAB
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-97116-129-0 01 1 9408- ● ● ● ● ● ● ● ●
413 02.559 WASHER; LK,TERMINAL
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 00.002 ID=6.4 TOOTH LK INT-EXT 		9-09152-206-0 01 1 9210- ● ● ● ● ● ● ● ●
415 02.559 BOLT; CABLE,BONDING
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 00.206 M8X14 W/LK WASHER 		0-50040-814-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
415 02.559 BOLT; CABLE,BONDING
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 00.206 M8X14 W/LK WASHER 		0-50040-814-0 01 1 9510-9510 ● ● ● ● ● ● ● ●
415 02.559 BOLT; CABLE,BONDING
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 08.900 '951030- M8X12 FLANGE 		0-28080-812-0 01 1 9510- ● ● ● ● ● ● ● ●
416 02.559 NUT; TERMINAL
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 07.829 M6 FLANGE 		5-09440-004-0 01 1 9210- ● ● ● ● ● ● ● ●

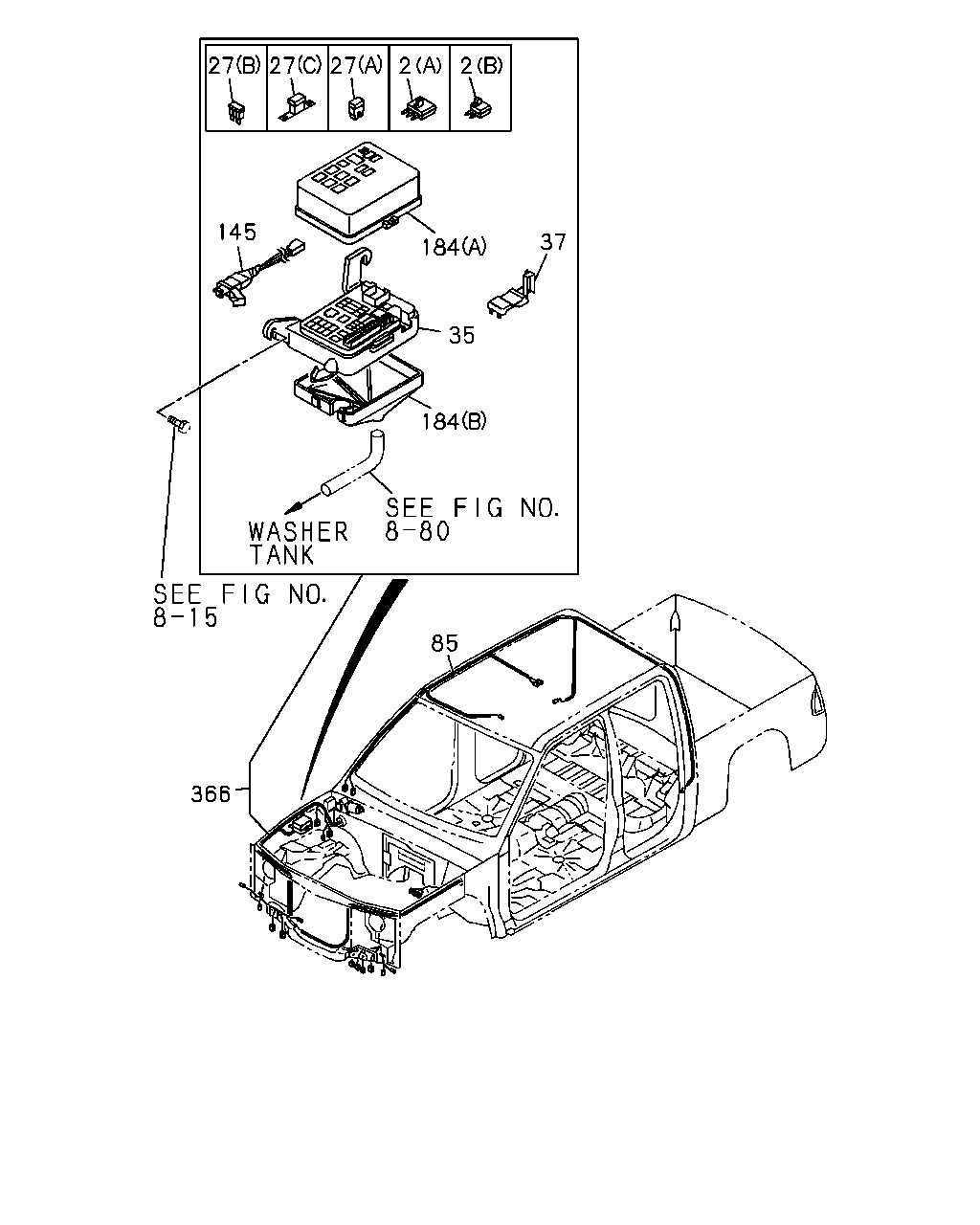

çizim 64824
27 27 27 2 2 37 184 145 35 184 85 366
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9210- ● ● ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9210- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(B) 10A RED 		5-82516-002-0 AR 1 9210- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(B) 15A BLUE 		5-82516-003-0 AR 1 9210- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(B) 20A YELLOW 		5-82516-004-0 AR 1 9210- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(A) 30A PINK 		8-94468-661-0 AR 1 9210- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
02.483 (C) 60A YELLOW 		8-94480-382-0 AR 1 9210- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(C) 80A 		8-94480-384-0 AR 1 9210- ● ● ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94315-204-1 01 1 9210-9406 ● ● ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94315-204-1 01 1 9407-9506 ● ● ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-94315-204-1 01 1 9507- ● ● ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-94362-096-1 01 1 9210-9506 ● ● ● ● ● ● ● ●
37 02.559 COVER; FUSE,RELAY & FUSE BOX
02.483 		8-94315-216-0 01 1 9210- ● ● ● ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
REAR DEFOGGER<C49> EXC. SUN ROOF<CF7> 		8-97038-390-0 01 1 9210-9509 ● ●
85 06.495 HARNESS; ROOM LAMP
REAR DEFOGGER<C49> 		8-97038-390-0 01 1 9510- ● ●
85 06.495 HARNESS; ROOM LAMP
SUN ROOF<CF7> REAR DEFOGGER<C49> 		8-97038-391-0 01 1 9210-9509 ● ●
85 06.495 HARNESS; ROOM LAMP
SUN ROOF<CF7> EXC. REAR DEFOGGER<C49> 		8-94336-996-0 01 1 9210-9509 ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. SUN ROOF<CF7>,REAR DEFOGGER<C49> 		8-94336-998-1 01 1 9210-9509 ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. REAR DEFOGGER<C49> 		8-94336-998-1 01 1 9510- ● ●
85 06.495 HARNESS; ROOM LAMP 8-94336-995-0 01 1 9210- ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
REAR DEFOGGER<C49> 		8-97031-326-3 01 1 9210- ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. REAR DEFOGGER<C49> 		8-94336-999-1 01 1 9210- ● ●
145 02.480 HARNESS; IDLE CONT ADJ
A/T AISIN(RMD) 		8-94363-520-0 01 1 9210-9211 ● ● ●
145 02.480 HARNESS; IDLE CONT ADJ
4ZE1 ENG(RLJ) OUT BACK PACKAGE<7AX> 		8-94363-520-0 01 1 9210-9211 ● ● ●
145 02.480 HARNESS; IDLE CONT ADJ
A/T AISIN(RMD) 		8-94363-520-0 01 1 9212-9308 ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
(B) 		8-94315-208-1 01 1 9309-9406 ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
(B) 		8-94315-207-1 01 1 9407-9506 ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-94315-207-1 01 1 9507-9509 ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZE1 ENG(RLJ) ELECTRIC FUEL INJECTION<6GG> (B) 		8-94315-207-1 01 1 9507-9509 ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4ZE1 ENG(RLJ) (B) 		8-94315-207-1 01 1 9510- ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) 		8-94315-207-1 01 1 9510- ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-94315-207-1 01 1 9510- ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JA1 ENG(RLE),4JB1 ENG(RLF) (A) 		8-97082-028-0 01 1 9210- ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JB1 ENG(RLF) (A) 		8-97082-028-0 01 1 9210- ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97082-028-0 01 1 9210- ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-94315-208-1 01 1 9507-9509 ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JB1 ENG(RLF) (B) 		8-94315-208-1 01 1 9510- ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-94315-208-1 01 1 9510- ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97082-027-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZD1 ENG(LW3) EXC. UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97082-027-0 01 1 9210-9406 ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZA1 ENG(L17) (A) 		8-97082-027-0 01 1 9210-9406 ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> (A) 		8-97082-027-0 01 1 9407- ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97082-025-1 01 1 9210-9508 ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97137-947-0 01 1 9509-9509 ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97137-947-0 01 1 9510- ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97082-026-0 01 1 9210-9509 ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZE1 ENG(RLJ) ELECTRIC FUEL INJECTION<6GG> (A) 		8-97082-026-0 01 1 9510- ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97082-024-0 01 1 9210-9406 ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97071-072-1 01 1 9210-9407 ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97114-105-0 01 1 9407-9506 ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 		8-97114-105-1 01 1 9507- ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97071-077-3 01 1 9210- ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97071-063-3 01 1 9210-9406 ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) 		8-97071-063-3 01 1 9407-9407 ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) '940718- 		8-97114-104-1 01 1 9407- ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97071-067-4 01 1 9210-9509 ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97130-197-0 01 1 9510- ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) THAILAND EQUIPMENT(PM9) 		8-97071-074-2 01 1 9210-9407 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) THAILAND EQUIPMENT(PM9) '940711- 		8-97117-676-0 01 1 9407- ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) '940711- 		8-97117-677-0 01 1 9407- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) AUSTRALIA EQUIPMENT(RR3) 		8-97071-078-3 01 1 9210-9410 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) AUSTRALIA EQUIPMENT(RR3) EXC. OUT BACK PACKAGE<7AX> 		8-97071-078-3 01 1 9210-9410 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) AUSTRALIA EQUIPMENT(RR3) 		8-97071-078-3 01 1 9411-9509 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) AUSTRALIA EQUIPMENT(RR3) 		8-97085-734-1 01 1 9510- ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZE1 ENG(RLJ) A/T AISIN(RMD) AUSTRALIA EQUIPMENT(RR3) 		8-97071-070-2 01 1 9210-9308 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZE1 ENG(RLJ) A/T AISIN(RMD) AUSTRALIA EQUIPMENT(RR3) 		8-97104-247-1 01 1 9309-9509 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZE1 ENG(RLJ) A/T AISIN(RMD) AUSTRALIA EQUIPMENT(RR3) 		8-97138-202-0 01 1 9510- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97071-075-2 01 1 9210-9407 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) '940718- 		8-97114-107-0 01 1 9407-9506 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97071-073-3 01 1 9210-9406 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97114-833-2 01 1 9407-9508 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97137-918-0 01 1 9509- ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) EXC. OUT BACK PACKAGE<7AX> 		8-97071-069-2 01 1 9210-9308 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) EXC. OUT BACK PACKAGE<7AX> 		8-97104-246-1 01 1 9309-9410 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) 		8-97104-246-1 01 1 9411-9509 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) 		8-97104-248-2 01 1 9510- ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) AUSTRALIA EQUIPMENT(RR3) 		8-97071-065-1 01 1 9210-9308 ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) 		8-97076-029-2 01 1 9210-9406 ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZA1 ENG(L17) EXC. SINGAPORE EQUIPMENT(S9Y) 		8-97071-060-2 01 1 9210-9509 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZA1 ENG(L17) EXC. SINGAPORE EQUIPMENT(S9Y) 		8-97130-196-0 01 1 9510- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C223 ENG(LQ7) 		8-97071-071-1 01 1 9210-9308 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZA1 ENG(L17) SINGAPORE EQUIPMENT(S9Y) 		8-97071-062-1 01 1 9210-9401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZA1 ENG(L17) SINGAPORE EQUIPMENT(S9Y) 		8-97071-062-1 01 1 9402-9402 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) AUSTRALIA EQUIPMENT(RR3) OUT BACK PACKAGE<7AX> 		8-97085-734-0 01 1 9210-9410 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZE1 ENG(RLJ) ELECTRIC FUEL INJECTION<6GG> OUT BACK PACKAGE<7AX> 		8-97085-733-1 01 1 9210-9308 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZE1 ENG(RLJ) ELECTRIC FUEL INJECTION<6GG> OUT BACK PACKAGE<7AX> 		8-97104-248-0 01 1 9309-9410 ● ● ●

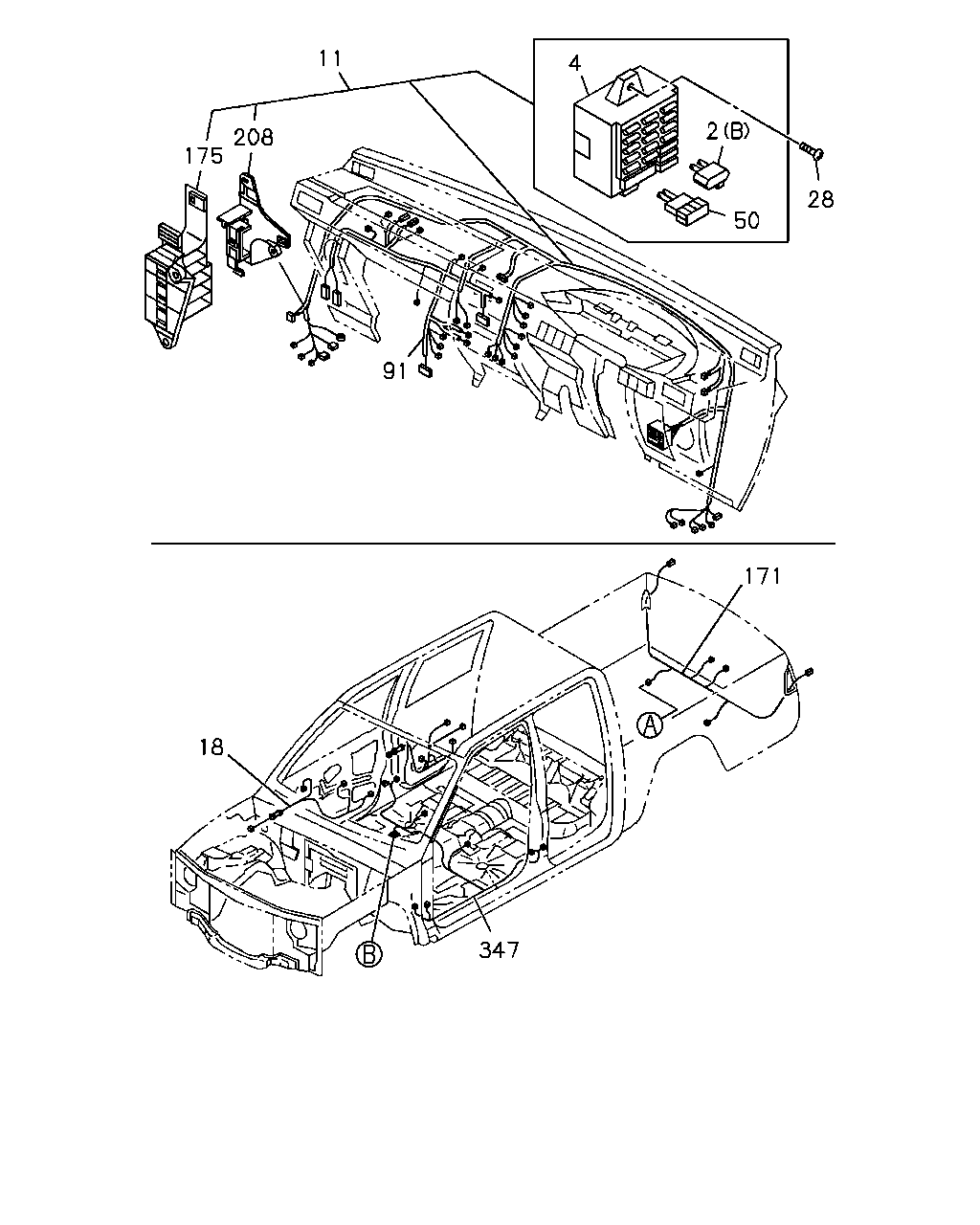

çizim 66287
11 208 175 91 4 2 50 28 171 347 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9210- ● ● ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9210- ● ● ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-94323-889-0 01 1 9210- ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97071-041-3 01 1 9210-9406 ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 		8-97071-041-3 01 1 9407-9407 ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 		8-97114-090-1 01 1 9408- ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3), SINGAPORE EQUIPMENT(S9Y) 		8-97071-037-2 01 1 9210-9401 ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97071-037-2 01 1 9402-9406 ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZA1 ENG(L17) EXC. SINGAPORE EQUIPMENT(S9Y) 		8-97071-037-2 01 1 9402-9406 ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97071-033-2 01 1 9210-9308 ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97071-033-2 01 1 9309-9406 ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) 		8-97071-033-2 01 1 9407-9409 ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) 		8-97114-089-1 01 1 9410- ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97071-042-2 01 1 9210-9406 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97114-830-1 01 1 9407- ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 		8-97071-039-3 01 1 9210-9308 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 		8-97104-245-1 01 1 9309- ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) AUSTRALIA EQUIPMENT(RR3) 		8-97071-035-2 01 1 9210-9308 ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) 		8-97076-031-2 01 1 9210-9406 ● ● ● ● ●
11 02.480 HARNESS; BODY
4JA1 ENG(RLE) THAILAND EQUIPMENT(PM9) 		8-97113-322-1 01 1 9407- ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZE1 ENG(RLJ) REAR DEFOGGER<C49> NEW ZEALAND EQUIPMENT(PK5) 		8-97089-669-1 01 1 9211-9311 ● ● ● ●
11 02.480 HARNESS; BODY
4ZE1 ENG(RLJ) REAR DEFOGGER<C49> NEW ZEALAND EQUIPMENT(PK5) 		8-97089-669-1 01 1 9312-9406 ● ● ●
11 02.480 HARNESS; BODY
4ZE1 ENG(RLJ) 		8-97089-669-2 01 1 9407- ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZA1 ENG(L17) EXC. SINGAPORE EQUIPMENT(S9Y) 		8-97089-669-2 01 1 9407- ● ● ●
11 02.480 HARNESS; BODY
C223 ENG(LQ7) 		8-97071-040-2 01 1 9210-9308 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZA1 ENG(L17) SINGAPORE EQUIPMENT(S9Y) 		8-97071-038-2 01 1 9210-9401 ●
11 02.480 HARNESS; BODY
4ZA1 ENG(L17) SINGAPORE EQUIPMENT(S9Y) 		8-97071-038-2 01 1 9402-9402 ● ●
18 02.480 HARNESS; DOOR
SPECIAL PACKAGE<7BB> 		8-97113-324-0 01 1 9407- ●
18 02.480 HARNESS; DOOR
SPECIAL PACKAGE<7BB> 		8-97113-323-0 01 1 9407- ●
18 02.480 HARNESS; DOOR
GRADE LS(RBD) EXC. POWER WINDOW<A30> 		8-94337-003-1 02 1 9210- ● ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW<A30> EXC. THAILAND EQUIPMENT(PM9) 		8-94388-798-1 01 1 9210- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW<A30> EXC. THAILAND EQUIPMENT(PM9) 		8-94388-797-0 01 1 9210-9509 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4>,THAILAND EQUIPMENT(PM9) 		8-94388-797-0 01 1 9510- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR 8-94318-501-1 01 1 9210-9502 ● ●
18 02.480 HARNESS; DOOR 8-97127-638-0 01 1 9503- ● ●
28 02.483 SCREW; FUSE BOX
16.165 M5X16 		8-94242-120-0 02 1 9210-9210 ● ● ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
08.977 M5X16 W/PL WASHER 		9-03900-516-0 02 1 9211-9305 ● ● ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
02.820 M5X16 W/LK&PL WASHER 		9-03920-516-0 02 1 9306- ● ● ● ● ● ● ● ●
50 08.965 FUSE; BODY HARNESS
10A RED 		5-82516-002-0 AR 1 9210- ● ● ● ● ● ● ● ●
50 08.965 FUSE; BODY HARNESS
15A BLUE 		5-82516-003-0 AR 1 9210- ● ● ● ● ● ● ● ●
50 08.965 FUSE; BODY HARNESS
20A YELLOW 		5-82516-004-0 AR 1 9210- ● ● ● ● ● ● ● ●
91 02.480 HARNESS; INST
EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97071-100-1 01 1 9210-9308 ● ● ● ● ● ● ● ●
91 02.480 HARNESS; INST
NEW ZEALAND EQUIPMENT(PK5) EXC. REAR DEFOGGER<C49> 		8-97071-100-1 01 1 9210-9308 ● ● ● ●
91 02.480 HARNESS; INST
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97071-102-2 01 1 9210-9308 ● ● ● ● ● ●
91 02.480 HARNESS; INST
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97088-660-2 01 1 9309-9506 ● ● ● ● ● ●
91 02.480 HARNESS; INST
AUSTRALIA EQUIPMENT(RR3) 		8-97088-660-2 01 1 9507- ● ● ● ● ● ●
91 02.480 HARNESS; INST
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97071-101-1 01 1 9210-9406 ● ● ● ● ● ●
91 02.480 HARNESS; INST
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97094-149-1 01 1 9407- ● ● ● ● ● ●
91 02.480 HARNESS; INST
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) 		8-97076-030-1 01 1 9210-9406 ● ● ● ● ●
91 02.480 HARNESS; INST
REAR DEFOGGER<C49> NEW ZEALAND EQUIPMENT(PK5) 		8-97089-670-0 01 1 9211-9308 ● ● ● ●
91 02.480 HARNESS; INST
EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97089-670-0 01 1 9309-9506 ● ● ● ● ● ● ● ●
91 02.480 HARNESS; INST
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97089-670-0 01 1 9507- ● ● ●
91 02.480 HARNESS; INST 8-97089-670-0 01 1 9507- ● ●
91 02.480 HARNESS; INST
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97089-670-0 01 1 9507- ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
RR COMB LAMP VERTICAL<T98> 		8-94328-851-3 01 1 9210- ● ● ● ● ● ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
EXC. RR COMB LAMP VERTICAL<T98> 		8-94328-852-2 01 1 9210- ● ● ● ● ● ● ● ●
175 02.483 BOX; CONNECTOR 8-94324-178-0 01 1 9210- ● ● ● ● ● ● ● ●
208 02.483 HOLDER; CONNECTOR 8-97012-683-1 01 1 9210- ● ● ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
ELECTRIC FUEL INJECTION<6GG> 		8-97071-111-2 01 1 9210-9406 ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) 		8-97071-111-2 01 1 9210-9406 ● ●
347 02.480 HARNESS; CABLE,RR BODY
AUSTRALIA EQUIPMENT(RR3) 		8-97071-111-2 01 1 9407- ● ● ● ● ● ●

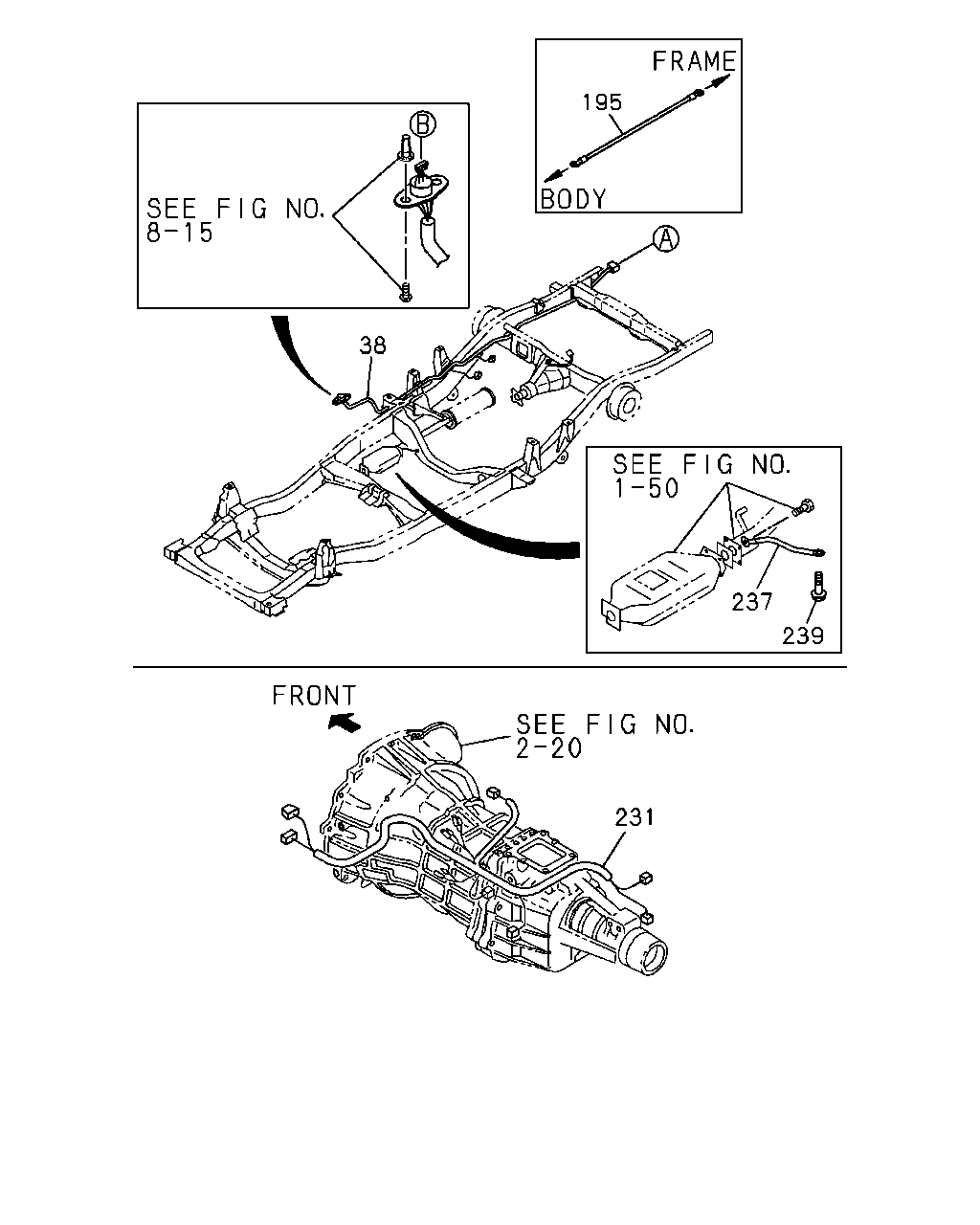

çizim 66357
195 237 239 231 38
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
38 02.480 HARNESS; CHAS
AUSTRALIA EQUIPMENT(RR3) 		8-97071-118-2 01 1 9309-9406 ● ● ● ● ● ●
38 02.480 HARNESS; CHAS
AUSTRALIA EQUIPMENT(RR3) 		8-97094-127-0 01 1 9407- ● ● ● ● ● ●
38 02.480 HARNESS; CHAS
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97071-122-2 01 1 9309- ● ● ● ● ● ●
38 02.480 HARNESS; CHAS 8-97071-121-2 01 1 9309- ● ●
195 01.150 HARNESS; EXT
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 		8-97088-658-1 01 1 9504- ●
231 02.480 HARNESS; TRANS
4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 		8-94321-825-2 01 1 9210- ● ● ● ●
231 02.480 HARNESS; TRANS
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97022-780-2 01 1 9210-9406 ● ● ● ● ● ● ● ●
231 02.480 HARNESS; TRANS
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97113-391-0 01 1 9407- ● ● ● ● ● ● ● ●
231 02.480 HARNESS; TRANS
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) 		8-97022-781-0 01 1 9210-9406 ● ● ● ● ●
231 02.480 HARNESS; TRANS
4ZA1 ENG(L17) EXC. SINGAPORE EQUIPMENT(S9Y) 		8-94360-877-0 01 1 9210- ● ● ●
231 02.480 HARNESS; TRANS
4ZA1 ENG(L17) SINGAPORE EQUIPMENT(S9Y) 		8-94473-753-2 01 1 9210-9401 ●
231 02.480 HARNESS; TRANS
4ZA1 ENG(L17) SINGAPORE EQUIPMENT(S9Y) 		8-94473-753-2 01 1 9402-9402 ● ●
231 02.480 HARNESS; TRANS
4ZD1 ENG(LW3) M/T MUA 5 SPEED(RMN) M/T LOW GEARED(6WF) 		8-97039-818-1 01 1 9210- ● ● ● ●
231 02.480 HARNESS; TRANS
4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 		8-94320-756-3 01 1 9210- ● ● ● ●
237 02.630 CABLE; BONDING,EXH PIPE
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-94318-797-0 01 1 9210- ● ● ● ●
239 02.559 BOLT; BONDING CABLE
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 02.343 M8X22 		8-94122-771-0 01 1 9210-9308 ● ● ● ●
239 02.559 BOLT; BONDING CABLE
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9309- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
