8-05 — INTERIOR LAMP (#45447) — 55 parça

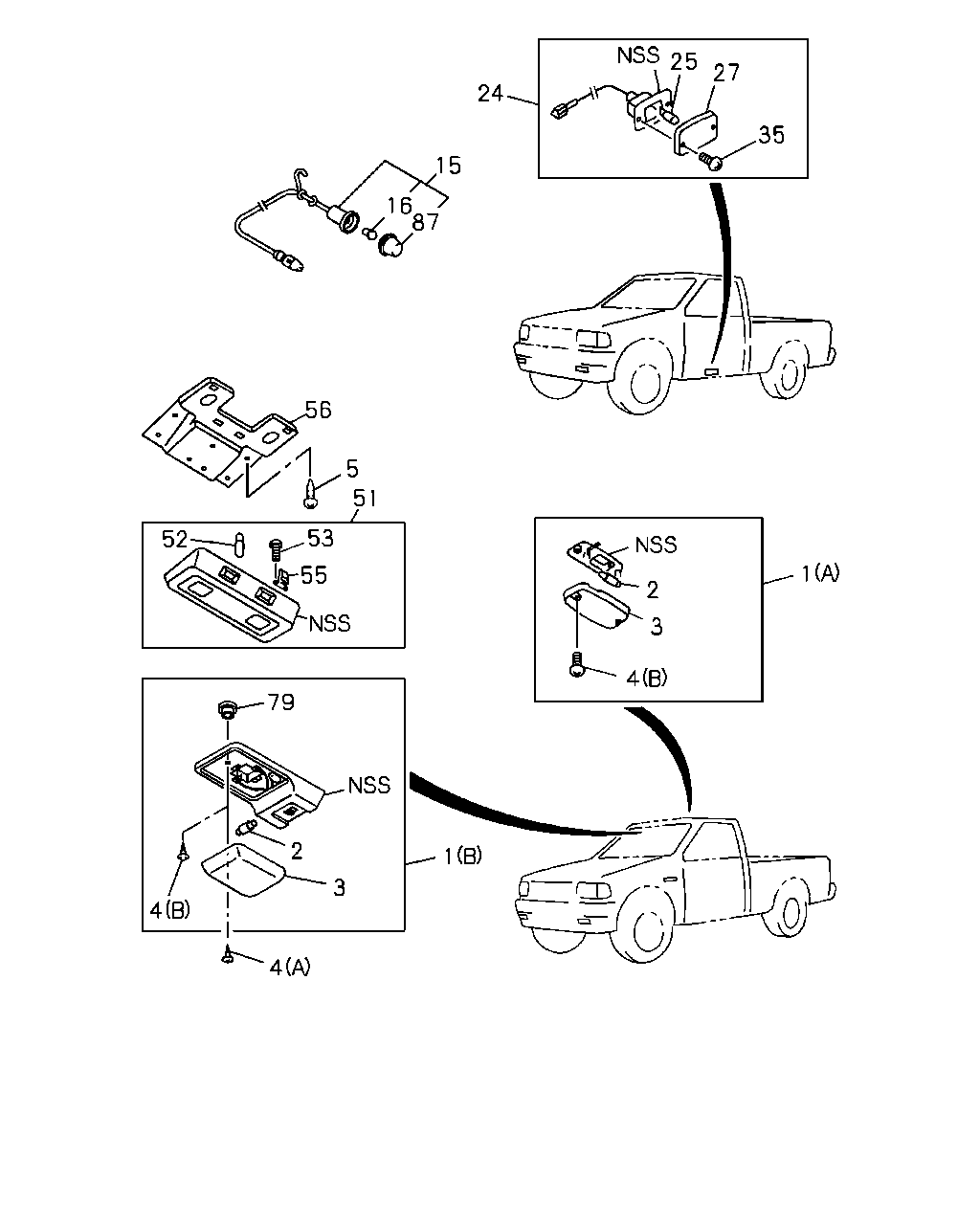

çizim 66320
24 25 27 35 15 16 87 56 5 51 53 52 55 2 3 4 1 1 3 2 79 4 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 16.494 LAMP ASM; ROOM
HEAD LINING FOR KD<6PJ> (B) 		8-94340-754-0 01 1 9210-9406 ● ●
1 16.494 LAMP ASM; ROOM
(B) 		8-94340-754-0 01 1 9210-9406 ● ●
1 16.494 LAMP ASM; ROOM
HEAD LINING FOR KD<6PJ> (B) 		8-94340-754-1 01 1 9407- ● ●
1 16.494 LAMP ASM; ROOM
(B) 		8-94340-754-1 01 1 9407- ● ●
1 16.494 LAMP ASM; ROOM
SUN ROOF<CF7> (A) 		8-94473-423-4 01 1 9210-9507 ● ●
1 16.494 LAMP ASM; ROOM
(A) 		8-94473-423-4 01 1 9210-9507 ● ● ● ●
1 16.494 LAMP ASM; ROOM
SUN ROOF<CF7> (A) 		8-97128-354-0 01 1 9508-9509 ● ●
1 16.494 LAMP ASM; ROOM
(A) 		8-97128-354-0 01 1 9508-9509 ● ● ● ●
1 16.494 LAMP ASM; ROOM
(A) 		8-97128-354-0 01 1 9510- ● ● ● ●
1 16.494 LAMP ASM; ROOM
EXC. SUN ROOF<CF7>,HEAD LINING FOR KD<6PJ> (B) 		8-94340-672-1 01 1 9210-9507 ● ●
1 16.494 LAMP ASM; ROOM
EXC. SUN ROOF<CF7>,HEAD LINING FOR KD<6PJ> (B) 		8-97128-353-0 01 1 9508-9509 ● ●
1 16.494 LAMP ASM; ROOM
EXC. HEAD LINING FOR KD<6PJ> (B) 		8-97128-353-0 01 1 9510- ● ●
2 08.991 BULB; ROOM LAMP
12V 10W 		5-82194-015-0 01 1 9210-9507 ● ● ● ● ● ● ● ●
2 08.991 BULB; ROOM LAMP
HEAD LINING FOR KD<6PJ> 12V 10W 		5-82194-015-0 01 1 9508- ● ●
2 08.991 BULB; ROOM LAMP
12V 10W 		5-82194-015-0 01 1 9508- ● ●
2 08.991 BULB; ROOM LAMP
EXC. HEAD LINING FOR KD<6PJ> 12V 10W 		8-97128-771-0 01 1 9508- ● ●
2 08.991 BULB; ROOM LAMP
12V 10W 		8-97128-771-0 01 1 9508- ● ● ● ●
3 16.495 LENS; ROOM LAMP
HEAD LINING FOR KD<6PJ> 		8-97044-784-0 01 1 9510- ● ●
3 16.495 LENS; ROOM LAMP 8-97044-784-0 01 1 9510- ● ●
3 16.495 LENS; ROOM LAMP
SUN ROOF<CF7> 		8-94289-167-1 01 1 9210-9507 ● ●
3 16.495 LENS; ROOM LAMP 8-94289-167-1 01 1 9210-9507 ● ● ● ●
3 16.495 LENS; ROOM LAMP
SUN ROOF<CF7> 		8-94289-167-1 01 1 9508-9509 ● ●
3 16.495 LENS; ROOM LAMP
HEAD LINING FOR KD<6PJ> 		8-94289-167-1 01 1 9508-9509 ● ●
3 16.495 LENS; ROOM LAMP 8-94289-167-1 01 1 9508-9509 ● ● ● ● ● ●
3 16.495 LENS; ROOM LAMP 8-94289-167-1 01 1 9510- ● ● ● ●
3 16.495 LENS; ROOM LAMP
EXC. SUN ROOF<CF7> 11.928 		8-94206-208-0 01 1 9210-9507 ● ●
3 16.495 LENS; ROOM LAMP
11.928 		8-94206-208-0 01 1 9210-9507 ● ●
3 16.495 LENS; ROOM LAMP
EXC. SUN ROOF<CF7>,HEAD LINING FOR KD<6PJ> 11.928 		8-94206-208-0 01 1 9508-9509 ● ●
3 16.495 LENS; ROOM LAMP
EXC. HEAD LINING FOR KD<6PJ> 11.928 		8-94206-208-0 01 1 9510- ● ●
4 16.495 SCREW; ROOM LAMP
HEAD LINING FOR KD<6PJ> 11.928 (A) M5X12 TAPPING 		9-07065-512-0 03 1 9210- ● ●
4 16.495 SCREW; ROOM LAMP
11.928 (A) M5X12 TAPPING 		9-07065-512-0 03 1 9210- ● ●
4 16.495 SCREW; ROOM LAMP
SUN ROOF<CF7> 11.928 (B) 		8-94334-545-0 02 1 9210-9509 ● ●
4 16.495 SCREW; ROOM LAMP
11.928 (B) 		8-94334-545-0 02 1 9210-9509 ● ● ● ●
4 16.495 SCREW; ROOM LAMP
11.928 (B) 		8-94334-545-0 02 1 9510- ● ● ● ●
4 16.495 SCREW; ROOM LAMP
EXC. SUN ROOF<CF7>,HEAD LINING FOR KD<6PJ> (B) 		8-94334-544-0 03 1 9210-9507 ● ●
4 16.495 SCREW; ROOM LAMP
EXC. SUN ROOF<CF7>,HEAD LINING FOR KD<6PJ> (B) 		8-97136-057-0 03 1 9508-9509 ● ●
4 16.495 SCREW; ROOM LAMP
EXC. HEAD LINING FOR KD<6PJ> (B) 		8-97136-057-0 03 1 9510- ● ●
5 16.545 SCREW; SPOT LAMP
MAP LAMP<UF3> 08.913 M5X12 		8-94120-094-0 02 1 9210- ● ● ● ● ● ●
15 02.490 LAMP; INSPECTION
INSPECTION LAMP<T95> 		8-94473-422-1 01 1 9210- ● ● ● ● ● ● ● ●
16 08.991 BULB; INSPECTION LAMP
INSPECTION LAMP<T95> 12V 5W 		8-94124-075-0 01 1 9210- ● ● ● ● ● ● ● ●
24 02.580 LAMP; STEP
GRADE LS(RBD) 		8-97019-236-1 02 1 9210- ● ● ● ● ● ● ● ●
25 08.991 BULB; STEP LAMP
GRADE LS(RBD) 12V 5W 		8-94124-595-0 02 1 9210- ● ● ● ● ● ● ● ●
27 02.583 LENS; STEP LAMP
GRADE LS(RBD) 		8-94289-168-0 02 1 9210- ● ● ● ● ● ● ● ●
35 02.583 SCREW; STEP LAMP
GRADE LS(RBD) 		8-94324-103-0 04 1 9210- ● ● ● ● ● ● ● ●
51 16.494 LAMP ASM; SPOT
INTERIOR COLOR MUSHROOM(150) MAP LAMP<UF3> GRAY 		8-97002-493-0 01 1 9210-9308 ● ● ●
51 16.494 LAMP ASM; SPOT
MAP LAMP<UF3> GRAY 		8-97002-493-0 01 1 9309-9502 ● ● ● ● ● ●
51 16.494 LAMP ASM; SPOT
MAP LAMP<UF3> GRAY 		8-97151-912-0 01 1 9503- ● ● ● ● ● ●
51 16.494 LAMP ASM; SPOT
INTERIOR COLOR BEIGE(120) MAP LAMP<UF3> BROWN 		8-97002-496-0 01 1 9210-9308 ● ● ● ● ● ●
52 08.991 BULB; SPOT LAMP
MAP LAMP<UF3> 12V 5W 		8-94124-595-0 02 1 9210- ● ● ● ● ● ●
53 16.495 SCREW; SPRING,SPOT LAMP
MAP LAMP<UF3> 		8-94323-992-0 10 1 9210- ● ● ● ● ● ●
55 16.495 SPRING; SPOT LAMP
MAP LAMP<UF3> 		8-94323-991-0 04 1 9210- ● ● ● ● ● ●
56 16.494 BRACKET; LAMP
MAP LAMP<UF3> 		8-94481-848-3 01 1 9210- ● ● ● ● ● ●
79 16.495 SPACER; ROOM LAMP,SCREW
EXC. SUN ROOF<CF7>,HEAD LINING FOR KD<6PJ> 		8-97136-058-0 03 1 9508-9509 ● ●
79 16.495 SPACER; ROOM LAMP,SCREW
EXC. HEAD LINING FOR KD<6PJ> 		8-97136-058-0 03 1 9510- ● ●
87 08.991 LENS; INSPECTION LAMP
INSPECTION LAMP<T95> 		8-97092-066-0 01 1 9210- ● ● ● ● ● ● ● ●
