8-03 — LAMP; REAR AND REAR SIDE (#45446) — 147 parça

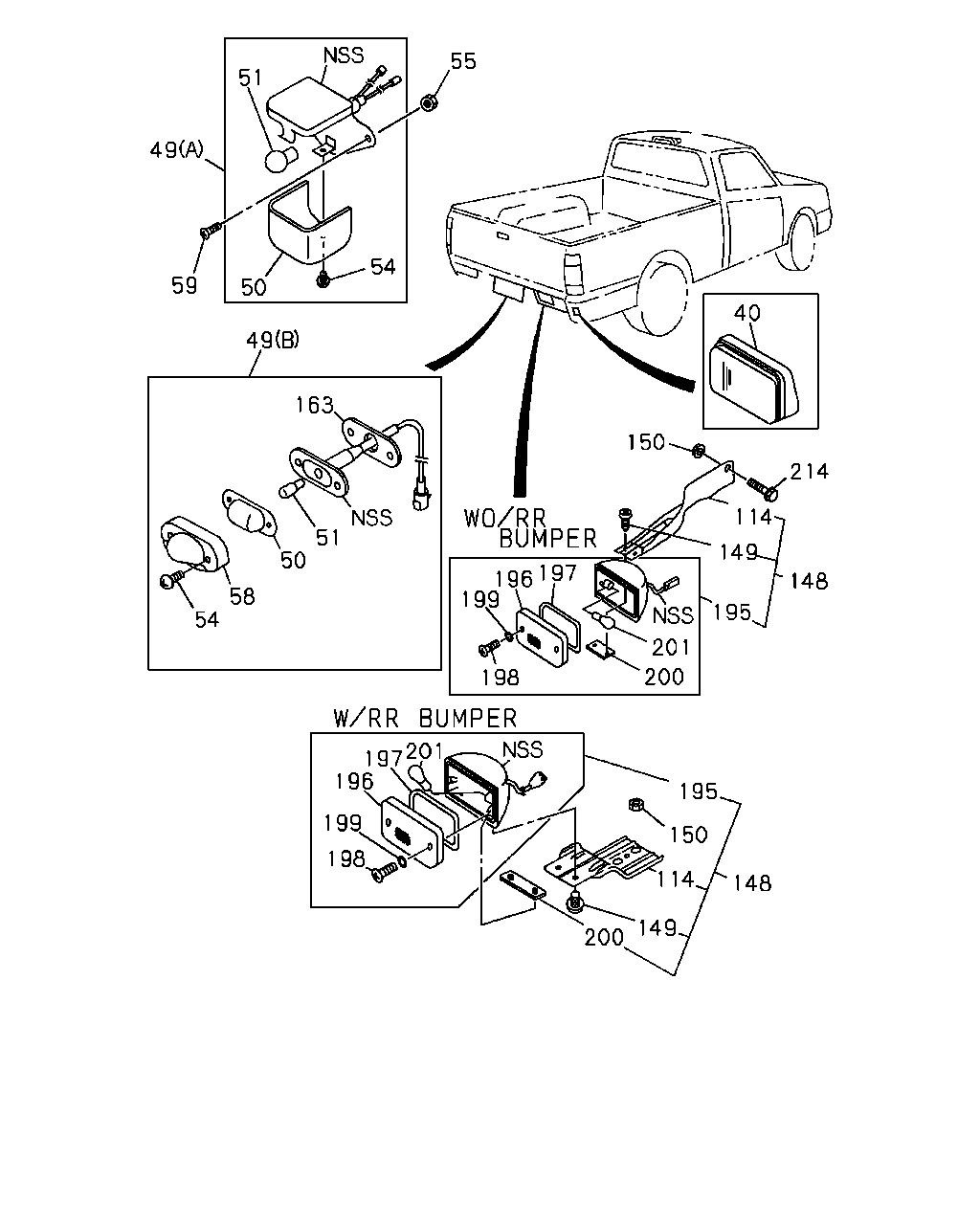

çizim 17693
55 51 49 59 50 54 49 163 51 50 58 54 40 150 214 114 149 148 195 201 200 198 199 196 197 201 197 196 199 198 200 149 114 148 150 195
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
40 02.689 REFLECTOR; REFLEX
AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> 		8-97027-100-0 01 1 9210- ● ● ●
40 02.689 REFLECTOR; REFLEX
AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> 		8-97027-099-0 01 1 9210- ● ● ●
40 02.689 REFLECTOR; REFLEX
UNITED KINGDOM EQUIPMENT(EK3) RR COMB LAMP VERTICAL<T98> 		8-94311-348-1 01 1 9210- ● ● ●
40 02.689 REFLECTOR; REFLEX
UNITED KINGDOM EQUIPMENT(EK3) RR COMB LAMP VERTICAL<T98> 		8-94311-347-1 01 1 9210- ● ● ●
49 02.700 LAMP; LICENSE PLATE
EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (B) 		8-94443-186-2 01 1 9210-9505 ● ● ● ● ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),RR BODY FLAT BED<RS6>,REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) (B) 		8-94443-186-2 01 1 9506-9608 ● ● ● ● ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),RR BODY FLAT BED<RS6> (B) 		8-94443-186-2 01 1 9609- ● ● ● ● ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (B) 		8-94443-186-2 02 1 9210-9505 ● ● ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6>,REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPE R CHROME(VB3) (B) 		8-94443-186-2 02 1 9506-9608 ● ● ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6> (B) 		8-94443-186-2 02 1 9609- ● ● ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
RR BODY FLAT BED<RS6> (A) 		8-94479-603-1 01 1 9210-9509 ● ●
49 02.700 LAMP; LICENSE PLATE
RR BODY FLAT BED<RS6> (A) 		8-94479-603-1 01 1 9510- ●
50 02.709 LENS; LICENSE PLATE LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94135-878-2 01 1 9210-9505 ● ● ● ● ● ● ● ●
50 02.709 LENS; LICENSE PLATE LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),RR BODY FLAT BED<RS6>,REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 		8-94135-878-2 01 1 9506-9608 ● ● ● ● ● ● ● ●
50 02.709 LENS; LICENSE PLATE LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),RR BODY FLAT BED<RS6> 		8-94135-878-2 01 1 9609- ● ● ● ● ● ● ● ●
50 02.709 LENS; LICENSE PLATE LAMP
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94135-878-2 02 1 9210-9505 ● ● ● ● ● ●
50 02.709 LENS; LICENSE PLATE LAMP
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6>,REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPE R CHROME(VB3) 		8-94135-878-2 02 1 9506-9608 ● ● ● ● ● ●
50 02.709 LENS; LICENSE PLATE LAMP
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6> 		8-94135-878-2 02 1 9609- ● ● ● ● ● ●
50 02.709 LENS; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> 		5-82125-004-0 01 1 9210-9509 ● ●
50 02.709 LENS; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> 		5-82125-004-0 01 1 9510- ●
51 08.991 BULB; LICENSE PLATE LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 12V 5W 		8-94124-595-0 01 1 9210-9505 ● ● ● ● ● ● ● ●
51 08.991 BULB; LICENSE PLATE LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),RR BODY FLAT BED<RS6>,REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 12V 5W 		8-94124-595-0 01 1 9506-9608 ● ● ● ● ● ● ● ●
51 08.991 BULB; LICENSE PLATE LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),RR BODY FLAT BED<RS6> 12V 5W 		8-94124-595-0 01 1 9609- ● ● ● ● ● ● ● ●
51 08.991 BULB; LICENSE PLATE LAMP
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 12V 5W 		8-94124-595-0 02 1 9210-9505 ● ● ● ● ● ●
51 08.991 BULB; LICENSE PLATE LAMP
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6>,REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPE R CHROME(VB3) 12V 5W 		8-94124-595-0 02 1 9506-9608 ● ● ● ● ● ●
51 08.991 BULB; LICENSE PLATE LAMP
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6> 12V 5W 		8-94124-595-0 02 1 9609- ● ● ● ● ● ●
51 08.991 BULB; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> 12V 7.5W 		9-82692-128-0 01 1 9210-9509 ● ●
51 08.991 BULB; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> 12V 7.5W 		9-82692-128-0 01 1 9510- ●
54 02.708 SCREW; LICENSE PLATE LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 08.977 M4X20 TAPPING STAINLESS 		0-71190-420-0 02 1 9210-9505 ● ● ● ● ● ● ● ●
54 02.708 SCREW; LICENSE PLATE LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),RR BODY FLAT BED<RS6>,REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 08.977 M4X20 TAPPING STAINLESS 		0-71190-420-0 02 1 9506-9608 ● ● ● ● ● ● ● ●
54 02.708 SCREW; LICENSE PLATE LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),RR BODY FLAT BED<RS6> 08.977 M4X20 TAPPING STAINLESS 		0-71190-420-0 02 1 9609- ● ● ● ● ● ● ● ●
54 02.708 SCREW; LICENSE PLATE LAMP
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 08.977 M4X20 TAPPING STAINLESS 		0-71190-420-0 04 1 9210-9505 ● ● ● ● ● ●
54 02.708 SCREW; LICENSE PLATE LAMP
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6>,REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPE R CHROME(VB3) 08.977 M4X20 TAPPING STAINLESS 		0-71190-420-0 04 1 9506-9608 ● ● ● ● ● ●
54 02.708 SCREW; LICENSE PLATE LAMP
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6> 08.977 M4X20 TAPPING STAINLESS 		0-71190-420-0 04 1 9609- ● ● ● ● ● ●
54 02.708 SCREW; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> 02.709 M4X8 		8-94419-312-0 01 1 9210-9509 ● ●
54 02.708 SCREW; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> 02.709 M4X8 		8-94419-312-0 01 1 9510- ●
55 02.708 NUT; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> 09.744 M5 FLANGE 		5-09440-003-0 02 1 9210-9509 ● ●
55 02.708 NUT; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> 09.744 M5 FLANGE 		5-09440-003-0 02 1 9510- ●
58 02.705 COVER; LICENSE PLATE LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94323-724-0 01 1 9210-9505 ● ● ● ● ● ● ● ●
58 02.705 COVER; LICENSE PLATE LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),RR BODY FLAT BED<RS6>,REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) BLACK 		8-94323-724-0 01 1 9506-9608 ● ● ● ● ● ● ● ●
58 02.705 COVER; LICENSE PLATE LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),RR BODY FLAT BED<RS6> BLACK 		8-94323-724-0 01 1 9609- ● ● ● ● ● ● ● ●
58 02.705 COVER; LICENSE PLATE LAMP
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94323-724-0 02 1 9210-9505 ● ● ● ● ● ●
58 02.705 COVER; LICENSE PLATE LAMP
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6>,REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPE R CHROME(VB3) BLACK 		8-94323-724-0 02 1 9506-9608 ● ● ● ● ● ●
58 02.705 COVER; LICENSE PLATE LAMP
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6> BLACK 		8-94323-724-0 02 1 9609- ● ● ● ● ● ●
59 02.708 SCREW; TAP,LICENSE LAMP BODY
RR BODY FLAT BED<RS6> 02.726 M5X12 		9-93490-512-0 02 1 9210-9509 ● ●
59 02.708 SCREW; TAP,LICENSE LAMP BODY
RR BODY FLAT BED<RS6> 02.726 M5X12 		9-93490-512-0 02 1 9510- ●
114 02.679 BRACKET; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) RR FOG LAMP<T79> 		8-94336-330-0 01 1 9210- ● ● ●
114 02.679 BRACKET; RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) 		8-94336-328-0 01 1 9210- ● ● ●
148 02.679 LAMP ASM; RR FOG
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) RR FOG LAMP<T79> 		8-94313-111-1 01 1 9210- ● ● ●
148 02.679 LAMP ASM; RR FOG
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) 		8-94334-657-2 01 1 9210- ● ● ●
149 02.689 SCREW; BRKT TO LAMP BODY
RR FOG LAMP<T79> 		8-94336-327-0 02 1 9210- ● ● ●
150 02.664 NUT; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) RR FOG LAMP<T79> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9210- ● ● ●
150 02.664 NUT; RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) 07.070 M4 FLANGE 		1-09440-004-0 02 1 9210- ● ● ●
163 02.705 SPACER; LICENSE PLATE LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94232-866-0 01 1 9210-9505 ● ● ● ● ● ● ● ●
163 02.705 SPACER; LICENSE PLATE LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),RR BODY FLAT BED<RS6>,REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPER CHROME(VB3) 		8-94232-866-0 01 1 9506-9608 ● ● ● ● ● ● ● ●
163 02.705 SPACER; LICENSE PLATE LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),RR BODY FLAT BED<RS6> 		8-94232-866-0 01 1 9609- ● ● ● ● ● ● ● ●
163 02.705 SPACER; LICENSE PLATE LAMP
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94232-866-0 02 1 9210-9505 ● ● ● ● ● ●
163 02.705 SPACER; LICENSE PLATE LAMP
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6>,REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMPE R CHROME(VB3) 		8-94232-866-0 02 1 9506-9608 ● ● ● ● ● ●
163 02.705 SPACER; LICENSE PLATE LAMP
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6> 		8-94232-866-0 02 1 9609- ● ● ● ● ● ●
195 02.679 LAMP UNIT; RR FOG
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) RR FOG LAMP<T79> 		8-94336-332-0 01 1 9210- ● ● ●
195 02.679 LAMP UNIT; RR FOG
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) 		8-94336-322-0 01 1 9210- ● ● ●
196 02.679 LENS; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) RR FOG LAMP<T79> 		8-94336-331-0 01 1 9210- ● ● ●
196 02.679 LENS; RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) 		8-94336-325-0 01 1 9210- ● ● ●
197 02.679 GASKET; RR FOG LAMP
RR FOG LAMP<T79> 		8-94336-324-0 01 1 9210- ● ● ●
198 02.688 SCREW; LENS TO BODY
RR FOG LAMP<T79> 		0-71190-416-0 02 1 9210- ● ● ●
199 02.689 WASHER; LENS,RR FOG LAMP
RR FOG LAMP<T79> 		8-94336-326-0 02 1 9210- ● ● ●
200 02.679 PLATE; SET,RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) RR FOG LAMP<T79> 		8-94336-329-0 01 1 9210- ● ● ●
200 02.679 PLATE; SET,RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) 		8-94336-323-0 01 1 9210- ● ● ●
201 08.991 BULB; RR FOG LAMP
RR FOG LAMP<T79> 12V 21W 		8-94124-074-0 01 1 9210- ● ● ●
214 02.679 BOLT; RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) 07.070 M12X30 FLANGE 		8-94475-424-0 02 1 9210- ● ● ●

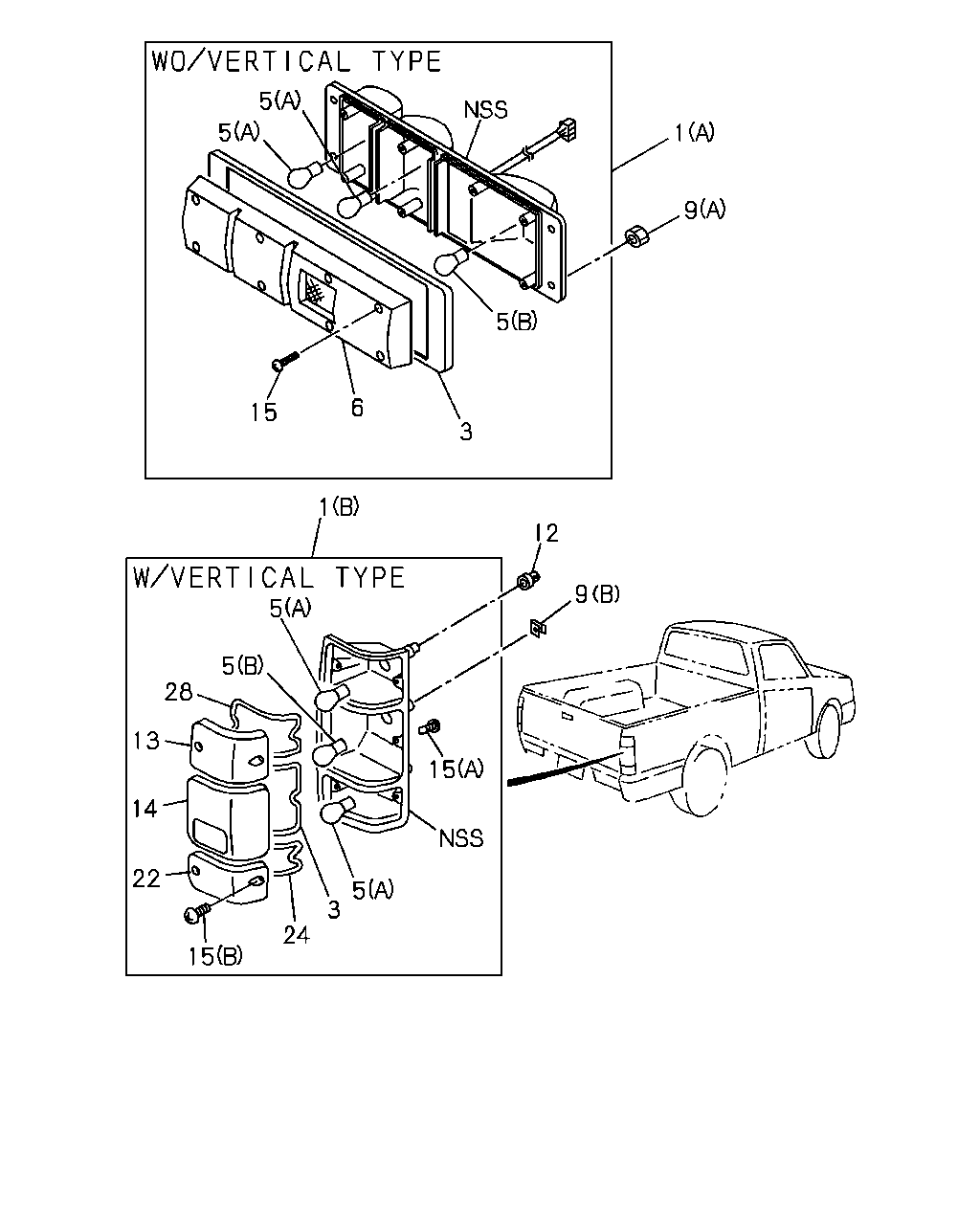

çizim 68762
5 5 1 9 5 3 6 15 1 12 9 5 5 28 13 14 22 15 24 3 5 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> EXTERIOR CHROME PACKAGE<6CX> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),RR BODY FLAT BED<RS6> (B) 		8-97068-741-1 01 1 9210-9502 ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> EXTERIOR CHROME PACKAGE<6CX> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),RR BODY FLAT BED<RS6> (B) 		8-97121-080-0 01 1 9503-9506 ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> EXTERIOR CHROME PACKAGE<6CX> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (B) 		8-97121-080-0 01 1 9507- ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> EXTERIOR CHROME PACKAGE<6CX> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),RR BODY FLAT BED<RS6> (B) 		8-97068-740-1 01 1 9210-9502 ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> EXTERIOR CHROME PACKAGE<6CX> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),RR BODY FLAT BED<RS6> (B) 		8-97121-078-0 01 1 9503-9506 ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> EXTERIOR CHROME PACKAGE<6CX> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (B) 		8-97121-078-0 01 1 9507- ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),RR BODY FLAT BED<RS6>,EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97068-733-0 01 1 9210-9502 ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),RR BODY FLAT BED<RS6>,EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97121-077-0 01 1 9503-9506 ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97121-077-0 01 1 9507- ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),RR BODY FLAT BED<RS6>,EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97068-732-0 01 1 9210-9502 ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),RR BODY FLAT BED<RS6>,EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97121-076-0 01 1 9503-9506 ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97121-076-0 01 1 9507- ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
EXC. RR COMB LAMP VERTICAL<T98> (A) 		8-94321-753-1 01 1 9210-9508 ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
EXC. RR COMB LAMP VERTICAL<T98> (A) 		8-97137-732-0 01 1 9509- ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
EXC. RR COMB LAMP VERTICAL<T98> (A) 		8-94321-752-1 01 1 9210-9508 ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
EXC. RR COMB LAMP VERTICAL<T98> (A) 		8-97137-731-0 01 1 9509- ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXC. EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97068-737-0 01 1 9210-9502 ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXC. EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97121-071-0 01 1 9503-9506 ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXC. EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97121-071-0 01 1 9507-9508 ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXC. EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97137-570-0 01 1 9509- ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97068-745-1 01 1 9210-9502 ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97121-177-0 01 1 9503-9506 ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97121-177-0 01 1 9507-9508 ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97137-572-0 01 1 9509- ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXC. EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97068-736-0 01 1 9210-9502 ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXC. EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97121-070-0 01 1 9503-9506 ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXC. EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97121-070-0 01 1 9507-9508 ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXC. EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97137-569-0 01 1 9509- ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97068-744-1 01 1 9210-9502 ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97121-176-0 01 1 9503-9506 ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97121-176-0 01 1 9507-9508 ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97137-571-0 01 1 9509- ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXC. RR BODY FLAT BED<RS6>, EXTERIORCHROME PACKAGE<6CX> (B) 		8-97068-739-0 01 1 9210-9406 ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXC. EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97068-739-0 01 1 9407-9502 ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXC. EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97121-069-0 01 1 9503-9506 ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXC. EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97121-069-0 01 1 9507-9508 ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXC. EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97137-566-0 01 1 9509- ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXTERIOR CHROME PACKAGE<6CX> EXC. RR BODY FLAT BED<RS6> (B) 		8-97068-747-1 01 1 9210-9406 ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97068-747-1 01 1 9407-9502 ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97121-179-0 01 1 9503-9506 ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97121-179-0 01 1 9507-9508 ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97137-568-0 01 1 9509- ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXC. RR BODY FLAT BED<RS6>, EXTERIORCHROME PACKAGE<6CX> (B) 		8-97068-738-0 01 1 9210-9406 ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXC. EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97068-738-0 01 1 9407-9502 ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXC. EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97121-068-0 01 1 9503-9506 ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXC. EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97121-068-0 01 1 9507-9508 ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXC. EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97137-565-0 01 1 9509- ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXTERIOR CHROME PACKAGE<6CX> EXC. RR BODY FLAT BED<RS6> (B) 		8-97068-746-1 01 1 9210-9406 ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97068-746-1 01 1 9407-9502 ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97121-178-0 01 1 9503-9506 ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97121-178-0 01 1 9507-9508 ● ● ●
1 02.679 LAMP ASM; RR COMB
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97137-567-0 01 1 9509- ● ● ●
3 02.684 GASKET; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> 		8-94372-378-0 02 1 9210- ● ● ● ● ● ● ● ●
3 02.684 GASKET; RR COMB LAMP
EXC. RR COMB LAMP VERTICAL<T98> 02.689 		5-82236-002-0 01 1 9210- ● ● ● ● ● ● ● ●
3 02.684 GASKET; RR COMB LAMP
EXC. RR COMB LAMP VERTICAL<T98> 02.689 		5-82236-001-0 01 1 9210- ● ● ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
(A) 12V 21W 		8-94124-074-0 04 1 9210- ● ● ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
(B) 12V 21/5W 		8-94125-959-0 02 1 9210- ● ● ● ● ● ● ● ●
6 02.682 LENS; RR COMB LAMP
EXC. RR COMB LAMP VERTICAL<T98> 		5-82235-002-0 01 1 9210- ● ● ● ● ● ● ● ●
6 02.682 LENS; RR COMB LAMP
EXC. RR COMB LAMP VERTICAL<T98> 		5-82235-001-0 01 1 9210- ● ● ● ● ● ● ● ●
9 02.689 NUT; LAMP,RR COMB
RR COMB LAMP VERTICAL<T98> (B) M5 SPIRE 		8-94447-452-0 04 1 9210- ● ● ● ● ● ● ● ●
9 02.689 NUT; LAMP,RR COMB
EXC. RR COMB LAMP VERTICAL<T98> 09.744 (A) M5 FLANGE 		5-09440-003-0 08 1 9210- ● ● ● ● ● ● ● ●
12 02.664 GROMMET; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> 		8-94430-318-1 04 1 9210- ● ● ● ● ● ● ● ●
13 02.682 LENS; TURN SIGNAL
RR COMB LAMP VERTICAL<T98> 		8-94372-365-0 01 1 9210- ● ● ● ● ● ● ● ●
13 02.682 LENS; TURN SIGNAL
RR COMB LAMP VERTICAL<T98> 		8-94372-366-0 01 1 9210- ● ● ● ● ● ● ● ●
14 02.682 LENS; TAIL & STOP,RR COMB LAMP
RR COMB LAMP VERTICAL<T98> 		8-94372-367-0 01 1 9210- ● ● ● ● ●
14 02.682 LENS; TAIL & STOP,RR COMB LAMP
RR COMB LAMP VERTICAL<T98> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-94372-367-0 01 1 9210- ● ● ●
14 02.682 LENS; TAIL & STOP,RR COMB LAMP
RR COMB LAMP VERTICAL<T98> 		8-94372-368-0 01 1 9210- ● ● ● ● ●
14 02.682 LENS; TAIL & STOP,RR COMB LAMP
RR COMB LAMP VERTICAL<T98> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-94372-368-0 01 1 9210- ● ● ●
14 02.682 LENS; TAIL & STOP,RR COMB LAMP
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> 		8-94372-371-0 01 1 9210- ● ● ●
14 02.682 LENS; TAIL & STOP,RR COMB LAMP
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> 		8-94372-372-0 01 1 9210- ● ● ●
15 02.664 SCREW; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> (A) M3X12 TAPPING 		0-71090-312-0 04 1 9210- ● ● ● ● ● ● ● ●
15 02.664 SCREW; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> (B) M5X25 TAPPING 		0-71190-525-0 08 1 9210- ● ● ● ● ● ● ● ●
15 02.664 SCREW; RR COMB LAMP
EXC. RR COMB LAMP VERTICAL<T98> 02.587 M4X20 TAPPING STAINLESS 		0-71090-420-0 16 1 9210- ● ● ● ● ● ● ● ●
22 02.697 LENS; BACKUP,RR COMB LAMP
RR COMB LAMP VERTICAL<T98> 		8-94372-373-0 01 1 9210- ● ● ● ● ● ● ● ●
22 02.697 LENS; BACKUP,RR COMB LAMP
RR COMB LAMP VERTICAL<T98> 		8-94372-374-0 01 1 9210- ● ● ● ● ● ● ● ●
24 02.697 GASKET; BACK,LAMP
RR COMB LAMP VERTICAL<T98> 		8-94372-379-0 02 1 9210- ● ● ● ● ● ● ● ●
28 02.684 GASKET; TURN,LAMP
RR COMB LAMP VERTICAL<T98> 		8-94372-377-0 02 1 9210- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
