◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50651 - TFR/TFS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#45445) — 219 parça

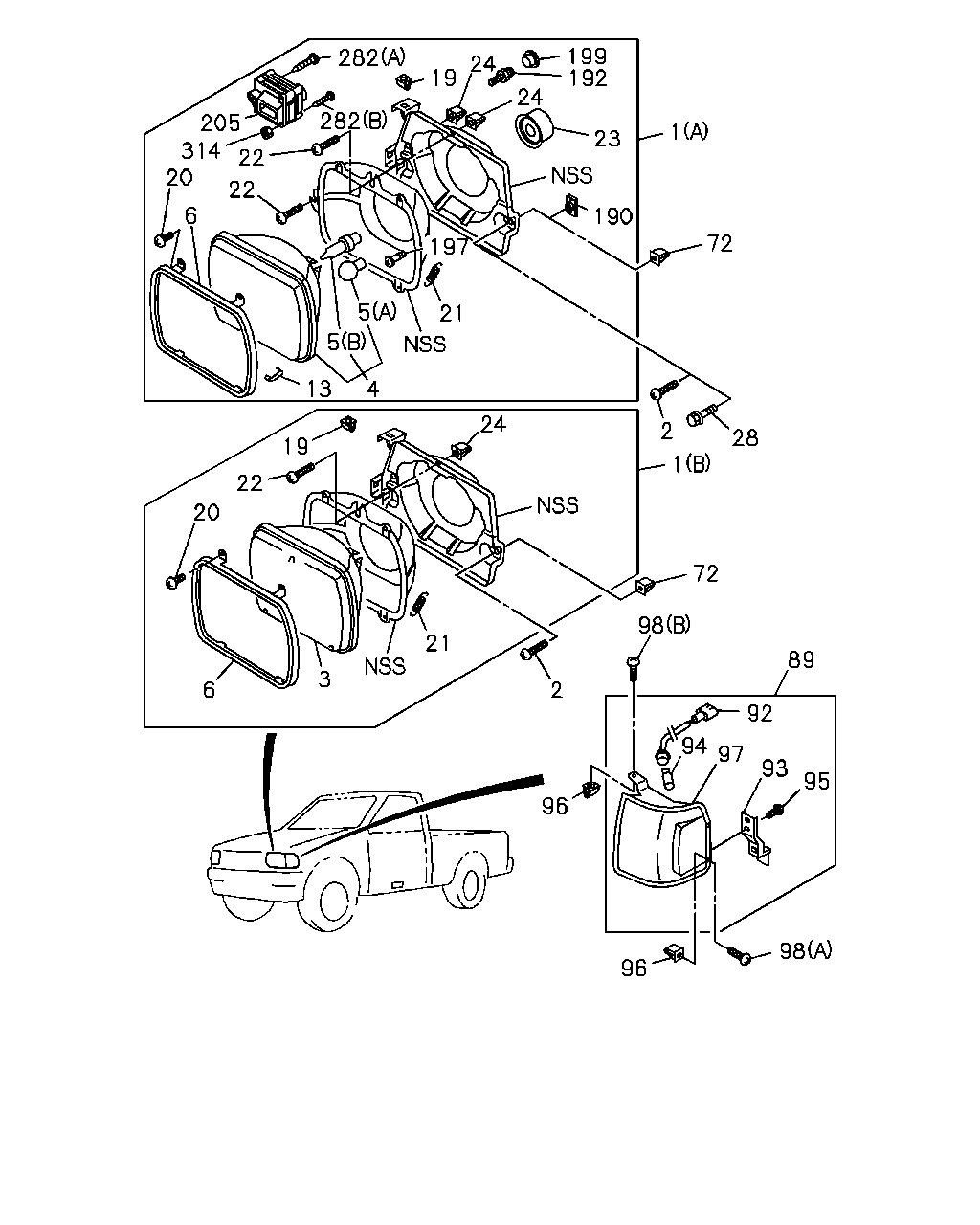

çizim 17815
199 192 24 23 1 190 72 197 21 5 5 4 13 6 20 22 22 314 205 282 282 19 24 2 28 1 72 89 92 94 97 93 95 98 96 96 2 98 21 3 6 20 22 19 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (B) 		8-94434-562-3 01 1 9210-9506 ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (B) 		8-94434-562-3 01 1 9507- ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (B) 		8-94434-561-3 01 1 9210-9506 ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (B) 		8-94434-561-3 01 1 9507- ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMP<TT5> (B) 		8-94434-560-3 01 1 9210-9506 ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HE AD LAMP<TT5> (B) 		8-94434-560-3 01 1 9507- ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMP<TT5> (B) 		8-94434-559-3 01 1 9210-9506 ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HE AD LAMP<TT5> (B) 		8-94434-559-3 01 1 9507- ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
THAILAND EQUIPMENT(PM9) (A) 		8-97018-975-0 01 1 9210-9406 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-97111-480-0 01 1 9407- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
THAILAND EQUIPMENT(PM9) (A) 		8-97018-974-0 01 1 9210-9406 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-97111-479-0 01 1 9407- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP<TT5> (A) 		8-94434-564-4 01 1 9210-9506 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP<TT5> (A) 		8-94434-564-4 01 1 9507- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP<TT5> (A) 		8-94434-563-4 01 1 9210-9506 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP<TT5> (A) 		8-94434-563-5 01 1 9507- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97039-809-2 01 1 9210-9603 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP<TT5> (A) 		8-97039-809-2 01 1 9604- ● ● ●
1 02.725 LAMP ASM; HEAD
UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97039-808-3 01 1 9210-9603 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP<TT5> (A) 		8-97039-808-3 01 1 9604- ● ● ●
1 02.725 LAMP ASM; HEAD
UNITED KINGDOM EQUIPMENT(EK3) HALOGEN HEAD LAMP<TT5> (A) 		8-97149-116-0 01 1 9604- ● ● ●
1 02.725 LAMP ASM; HEAD
UNITED KINGDOM EQUIPMENT(EK3) HALOGEN HEAD LAMP<TT5> (A) 		8-97149-115-0 01 1 9604- ● ● ●
2 02.726 SCREW; BRKT,HEADLAMP
EXC. THAILAND EQUIPMENT(PM9) 03.890 M5X16 TAPPING 		9-07076-516-0 06 1 9210- ● ● ● ● ● ● ● ●
2 02.726 SCREW; BRKT,HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) 03.890 M5X16 TAPPING 		9-07076-516-0 02 1 9210- ● ● ● ● ● ●
3 02.727 SEALED BEAM; HEADLAMP
HALOGEN HEAD LAMP<TT5> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94165-479-0 02 1 9210-9506 ● ● ● ● ● ● ● ●
3 02.727 SEALED BEAM; HEADLAMP
HALOGEN HEAD LAMP<TT5> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-94165-479-0 02 1 9507- ● ● ● ● ● ● ● ●
3 02.727 SEALED BEAM; HEADLAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMP<TT5> 		8-94165-478-0 02 1 9210-9506 ● ● ● ● ● ● ● ●
3 02.727 SEALED BEAM; HEADLAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HE AD LAMP<TT5> 		8-94165-478-0 02 1 9507- ● ● ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
THAILAND EQUIPMENT(PM9) 		8-97025-708-0 01 1 9210-9406 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97114-427-0 01 1 9407- ● ● ● ● ●
4 02.727 HEADLAMP UNIT
THAILAND EQUIPMENT(PM9) 		8-97025-707-0 01 1 9210-9406 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97113-886-0 01 1 9407- ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP<TT5> 		8-94334-631-1 02 1 9210-9506 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP<TT5> 		8-94334-631-1 02 1 9507-9603 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP<TT5> 		8-94334-631-1 02 1 9604- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
UNITED KINGDOM EQUIPMENT(EK3) 		8-94334-629-1 02 1 9210-9603 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP<TT5> 		8-94334-629-1 02 1 9604- ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 12V 60/55W 		8-97113-885-0 02 1 9407-9509 ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP<TT5> (B) 12V 60/55W 		8-94217-817-0 02 1 9210-9406 ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
THAILAND EQUIPMENT(PM9) (B) 12V 60/55W 		8-94217-817-0 02 1 9210-9406 ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP<TT5> (B) 12V 60/55W 		8-94217-817-0 02 1 9407-9506 ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP<TT5> (B) 12V 60/55W 		8-94217-817-0 02 1 9507-9509 ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP<TT5> (B) 12V 60/55W 		8-94217-817-0 02 1 9510-9603 ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 12V 60/55W 		8-94217-817-0 02 1 9510-9603 ● ● ● ● ●
5 02.727 BULB; HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP<TT5> (B) 12V 60/55W 		8-94217-817-0 02 1 9604- ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 12V 60/55W 		8-94217-817-0 02 1 9604- ● ● ● ● ●
5 02.727 BULB; HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) 08.991 (A) 12V 45/50W 		5-82193-001-0 02 1 9210-9603 ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP<TT5> 08.991 (A) 12V 45/50W 		5-82193-001-0 02 1 9604- ● ● ●
6 02.728 RIM; HEADLAMP
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 02.731 		8-94228-905-0 02 1 9210-9505 ● ● ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
EXC. AUSTRALIA EQUIPMENT(RR3), HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.731 		8-94228-905-0 02 1 9506-9603 ● ● ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
EXC. AUSTRALIA EQUIPMENT(RR3), HALOGEN HEAD LAMP RECTANGULAR<TR4>, HALOGEN HEAD LAMP<TT5> 02.731 		8-94228-905-0 02 1 9604- ● ● ● ● ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMP<TT5> EXC. UNITED KINGDOM EQUIPMENT(EK3) 02.731 		8-94228-905-0 02 1 9604- ● ● ● ● ●
6 02.728 RIM; HEADLAMP
02.731 		8-94228-905-0 02 1 9604- ● ●
6 02.728 RIM; HEADLAMP
EXC. AUSTRALIA EQUIPMENT(RR3) 02.731 		8-94228-905-0 02 1 9604- ●
6 02.728 RIM; HEADLAMP
THAILAND EQUIPMENT(PM9) 		8-97025-706-0 01 1 9210-9406 ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
THAILAND EQUIPMENT(PM9) 		8-97025-705-0 01 1 9210-9406 ● ● ● ● ● ●
13 02.736 CLIP; HEADLAMP
THAILAND EQUIPMENT(PM9) 02.729 		8-94381-588-0 08 1 9210-9406 ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94324-115-0 02 1 9210-9505 ● ● ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
EXC. AUSTRALIA EQUIPMENT(RR3), HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94324-115-0 02 1 9506-9603 ● ● ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
EXC. AUSTRALIA EQUIPMENT(RR3), HALOGEN HEAD LAMP RECTANGULAR<TR4>, HALOGEN HEAD LAMP<TT5> 		8-94324-115-0 02 1 9604- ● ● ● ● ●
19 02.726 NUT; HEADLAMP
HALOGEN HEAD LAMP<TT5> EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94324-115-0 02 1 9604- ● ● ● ● ●
19 02.726 NUT; HEADLAMP 8-94324-115-0 02 1 9604- ● ●
19 02.726 NUT; HEADLAMP
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94324-115-0 02 1 9604- ●
19 02.726 NUT; HEADLAMP
THAILAND EQUIPMENT(PM9) 02.737 		8-94387-096-0 02 1 9210-9406 ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97114-428-0 02 1 9407- ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1) 02.737 		8-94324-114-0 08 1 9210-9505 ● ● ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.737 		8-94324-114-0 08 1 9506-9506 ● ● ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
HONG KONG EQUIPMENT(PQ1) HALOGEN HEAD LAMP<TT5> 02.737 		8-94324-114-0 08 1 9506-9506 ● ● ●
20 02.736 SCREW; HEADLAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.737 		8-94324-114-0 08 1 9507- ● ● ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
THAILAND EQUIPMENT(PM9) 02.737 		8-97024-695-0 10 1 9210-9406 ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) 02.737 		8-94324-114-0 12 1 9210- ● ● ● ● ● ●
21 02.737 SPRING; ADJ HEADLAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1) 		8-94153-168-0 02 1 9210-9505 ● ● ● ● ● ● ● ●
21 02.737 SPRING; ADJ HEADLAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94153-168-0 02 1 9506-9506 ● ● ● ● ● ● ● ●
21 02.737 SPRING; ADJ HEADLAMP
HONG KONG EQUIPMENT(PQ1) HALOGEN HEAD LAMP<TT5> 		8-94153-168-0 02 1 9506-9506 ● ● ●
21 02.737 SPRING; ADJ HEADLAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94153-168-0 02 1 9507- ● ● ● ● ● ● ● ●
21 02.737 SPRING; ADJ HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) 		8-97024-577-0 04 1 9210-9406 ● ● ● ● ● ●
21 02.737 SPRING; ADJ HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) 		8-97042-577-0 04 1 9407- ● ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
THAILAND EQUIPMENT(PM9) 02.737 UP/DOWN 		8-97024-687-0 02 1 9210-9406 ● ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
THAILAND EQUIPMENT(PM9) 02.737 R/L 		8-97024-688-0 02 1 9210-9406 ● ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.737 		8-97023-135-0 04 1 9210-9505 ● ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.737 		8-97023-135-0 04 1 9210-9505 ● ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.737 		8-97023-135-0 04 1 9506-9506 ● ● ● ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
HONG KONG EQUIPMENT(PQ1) HALOGEN HEAD LAMP<TT5> 02.737 		8-97023-135-0 04 1 9506-9506 ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.737 		8-97023-135-0 04 1 9507- ● ● ● ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) 02.737 		8-97042-612-0 04 1 9210- ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 02.722 		5-82119-004-1 02 1 9210-9409 ● ● ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
THAILAND EQUIPMENT(PM9) 		8-97024-776-0 02 1 9210-9406 ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97113-887-0 02 1 9407- ● ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 02.726 		5-09470-004-0 04 1 9210-9505 ● ● ● ● ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.726 		5-09470-004-0 04 1 9506-9506 ● ● ● ● ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
HONG KONG EQUIPMENT(PQ1) HALOGEN HEAD LAMP<TT5> 02.726 		5-09470-004-0 04 1 9506-9506 ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.726 		5-09470-004-0 04 1 9507- ● ● ● ● ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
THAILAND EQUIPMENT(PM9) 02.726 		8-97024-686-0 04 1 9210-9406 ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
THAILAND EQUIPMENT(PM9) 02.726 M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 08 1 9210-9406 ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.726 M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 08 1 9407- ● ● ● ● ●
72 02.726 GROMMET; SCREW,HEADLAMP
EXC. THAILAND EQUIPMENT(PM9) D=7X7 L=7.5 		8-94291-927-0 06 1 9210- ● ● ● ● ● ● ● ●
72 02.726 GROMMET; SCREW,HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) D=7X7 L=7.5 		8-94291-927-0 02 1 9210- ● ● ● ● ● ●
89 02.585 LAMP; SIDE COMB
EXTERIOR CHROME PACKAGE<6CX> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94473-430-3 01 1 9210-9506 ● ● ● ● ● ● ● ●
89 02.585 LAMP; SIDE COMB
EXTERIOR CHROME PACKAGE<6CX> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-94473-430-3 01 1 9507- ● ● ● ● ● ● ● ●
89 02.585 LAMP; SIDE COMB
EXTERIOR CHROME PACKAGE<6CX> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94473-429-3 01 1 9210-9506 ● ● ● ● ● ● ● ●
89 02.585 LAMP; SIDE COMB
EXTERIOR CHROME PACKAGE<6CX> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-94473-429-3 01 1 9507- ● ● ● ● ● ● ● ●
89 02.585 LAMP; SIDE COMB
EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),EXTERIOR CHROME PACKAGE<6CX> 		8-94434-570-3 01 1 9210-9406 ● ● ● ● ● ● ● ●
89 02.585 LAMP; SIDE COMB
EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4>,EXTERIOR CHROME PACK AGE<6CX> 		8-94434-570-3 01 1 9407-9506 ● ● ● ● ● ● ● ●
89 02.585 LAMP; SIDE COMB
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4>,EXTERIOR C HROME PACKAGE<6CX> 		8-94434-570-3 01 1 9507- ● ● ● ● ● ● ● ●
89 02.585 LAMP; SIDE COMB
EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),EXTERIOR CHROME PACKAGE<6CX> 		8-94434-569-3 01 1 9210-9406 ● ● ● ● ● ● ● ●
89 02.585 LAMP; SIDE COMB
EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4>,EXTERIOR CHROME PACK AGE<6CX> 		8-94434-569-3 01 1 9407-9506 ● ● ● ● ● ● ● ●
89 02.585 LAMP; SIDE COMB
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4>,EXTERIOR C HROME PACKAGE<6CX> 		8-94434-569-3 01 1 9507- ● ● ● ● ● ● ● ●
89 02.585 LAMP; SIDE COMB
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97111-482-0 01 1 9407- ● ● ● ● ●
89 02.585 LAMP; SIDE COMB
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97111-481-0 01 1 9407- ● ● ● ● ●
89 02.585 LAMP; SIDE COMB
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) EXTERIOR CHROME PACKAGE<6CX> 		8-94473-432-3 01 1 9210-9506 ● ● ● ● ● ●
89 02.585 LAMP; SIDE COMB
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXTERIOR CHROME PACKAGE<6CX> 		8-94473-432-3 01 1 9507- ● ● ● ● ● ●
89 02.585 LAMP; SIDE COMB
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) EXTERIOR CHROME PACKAGE<6CX> 		8-94473-431-3 01 1 9210-9506 ● ● ● ● ● ●
89 02.585 LAMP; SIDE COMB
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXTERIOR CHROME PACKAGE<6CX> 		8-94473-431-3 01 1 9507- ● ● ● ● ● ●
89 02.585 LAMP; SIDE COMB
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-94434-572-3 01 1 9210-9506 ● ● ● ● ● ●
89 02.585 LAMP; SIDE COMB
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-94434-572-3 01 1 9507- ● ● ● ● ● ●
89 02.585 LAMP; SIDE COMB
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-94434-571-3 01 1 9210-9506 ● ● ● ● ● ●
89 02.585 LAMP; SIDE COMB
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-94434-571-3 01 1 9507- ● ● ● ● ● ●
92 02.596 SOCKET ASM; SIDE COMB LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94324-100-0 02 1 9210-9406 ● ● ● ● ● ● ● ●
92 02.596 SOCKET ASM; SIDE COMB LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94324-100-0 02 1 9407-9506 ● ● ● ● ● ● ● ●
92 02.596 SOCKET ASM; SIDE COMB LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94324-100-0 02 1 9507- ● ● ● ● ● ● ● ●
92 02.596 SOCKET ASM; SIDE COMB LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97114-418-0 01 1 9407- ● ● ● ● ●
92 02.596 SOCKET ASM; SIDE COMB LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97114-242-0 01 1 9407- ● ● ● ● ●
92 02.596 SOCKET ASM; SIDE COMB LAMP
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94324-101-0 02 1 9210-9506 ● ● ● ● ● ●
92 02.596 SOCKET ASM; SIDE COMB LAMP
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-94324-101-0 02 1 9507- ● ● ● ● ● ●
93 02.892 BRACKET; SIDE COMB LAMP 8-94324-090-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
93 02.892 BRACKET; SIDE COMB LAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94324-090-0 01 1 9407-9506 ● ● ● ● ● ● ● ●
93 02.892 BRACKET; SIDE COMB LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94324-090-0 01 1 9507- ● ● ● ● ● ● ● ●
93 02.892 BRACKET; SIDE COMB LAMP 8-94324-091-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
93 02.892 BRACKET; SIDE COMB LAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94324-091-0 01 1 9407-9506 ● ● ● ● ● ● ● ●
93 02.892 BRACKET; SIDE COMB LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94324-091-0 01 1 9507- ● ● ● ● ● ● ● ●
93 02.892 BRACKET; SIDE COMB LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97114-419-0 01 1 9407- ● ● ● ● ●
93 02.892 BRACKET; SIDE COMB LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97114-243-0 01 1 9407- ● ● ● ● ●
94 08.991 BULB; SIDE COMB LAMP
12V 5W 		8-94124-595-0 02 1 9210-9406 ● ● ● ● ● ● ● ●
94 08.991 BULB; SIDE COMB LAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 12V 5W 		8-94124-595-0 02 1 9407-9506 ● ● ● ● ● ● ● ●
94 08.991 BULB; SIDE COMB LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4> 12V 5W 		8-94124-595-0 02 1 9507- ● ● ● ● ● ● ● ●
94 08.991 BULB; SIDE COMB LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 12V 5W 		5-82194-006-0 04 1 9407- ● ● ● ● ●
95 02.895 SCREW; SIDE COMB LAMP 8-94324-093-0 04 1 9210-9406 ● ● ● ● ● ● ● ●
95 02.895 SCREW; SIDE COMB LAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94324-093-0 04 1 9407-9506 ● ● ● ● ● ● ● ●
95 02.895 SCREW; SIDE COMB LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94324-093-0 04 1 9507- ● ● ● ● ● ● ● ●
95 02.895 SCREW; SIDE COMB LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97114-240-0 06 1 9407- ● ● ● ● ●
96 02.575 GROMMET; SCREW,SIDE COMB LAMP
02.708 M4 		5-09470-002-0 04 1 9210- ● ● ● ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
EXTERIOR CHROME PACKAGE<6CX> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94324-109-0 01 1 9210-9506 ● ● ● ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
EXTERIOR CHROME PACKAGE<6CX> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-94324-109-0 01 1 9507- ● ● ● ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
EXTERIOR CHROME PACKAGE<6CX> EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94324-108-0 01 1 9210-9506 ● ● ● ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
EXTERIOR CHROME PACKAGE<6CX> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-94324-108-0 01 1 9507- ● ● ● ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),EXTERIOR CHROME PACKAGE<6CX> 		8-94324-105-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4>,EXTERIOR CHROME PACK AGE<6CX> 		8-94324-105-0 01 1 9407-9506 ● ● ● ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4>,EXTERIOR C HROME PACKAGE<6CX> 		8-94324-105-0 01 1 9507- ● ● ● ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),EXTERIOR CHROME PACKAGE<6CX> 		8-94324-104-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4>,EXTERIOR CHROME PACK AGE<6CX> 		8-94324-104-0 01 1 9407-9506 ● ● ● ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4>,EXTERIOR C HROME PACKAGE<6CX> 		8-94324-104-0 01 1 9507- ● ● ● ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97114-361-0 01 1 9407- ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97114-239-0 01 1 9407- ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) EXTERIOR CHROME PACKAGE<6CX> 		8-94324-111-0 01 1 9210-9506 ● ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXTERIOR CHROME PACKAGE<6CX> 		8-94324-111-0 01 1 9507- ● ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) EXTERIOR CHROME PACKAGE<6CX> 		8-94324-110-0 01 1 9210-9506 ● ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXTERIOR CHROME PACKAGE<6CX> 		8-94324-110-0 01 1 9507- ● ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-94324-107-0 01 1 9210-9506 ● ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-94324-107-0 01 1 9507- ● ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-94324-106-0 01 1 9210-9506 ● ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-94324-106-0 01 1 9507- ● ● ● ● ● ●
98 02.895 SCREW; SIDE COMB LAMP
(B) M4X16 TAPPING W/PL WASHER 		0-74335-416-0 02 1 9210-9303 ● ● ● ● ● ● ● ●
98 02.895 SCREW; SIDE COMB LAMP
(B) M4X16 		8-97090-762-0 02 1 9304- ● ● ● ● ● ● ● ●
98 02.895 SCREW; SIDE COMB LAMP
EXTERIOR CHROME PACKAGE<6CX> 02.587 (A) M4X20 TAPPING STAINLESS 		0-71090-420-0 04 1 9210- ● ● ● ● ● ● ● ●
98 02.895 SCREW; SIDE COMB LAMP
EXC. EXTERIOR CHROME PACKAGE<6CX> (A) M4X20 		8-94446-971-0 04 1 9210- ● ● ● ● ● ● ● ●
190 02.727 RETAINER; HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) 		8-97042-578-0 02 1 9210- ● ● ● ● ● ●
192 02.765 PIVOT; HEADLAMP
THAILAND EQUIPMENT(PM9) 		8-97024-693-0 02 1 9210-9406 ● ● ● ● ● ●
197 02.737 SCREW; PLATE TO LAMP
THAILAND EQUIPMENT(PM9) 02.729 		8-97024-696-0 04 1 9210-9406 ● ● ● ● ● ●
199 02.737 BUSHING
THAILAND EQUIPMENT(PM9) 		8-94381-605-0 06 1 9210-9406 ● ● ● ● ● ●
205 02.727 ACTUATOR; HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) 		8-97113-326-0 02 1 9210- ● ● ● ● ● ●
282 02.726 SCREW; ACTUATOR
UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97015-555-0 02 1 9210- ● ● ● ● ● ●
282 02.726 SCREW; ACTUATOR
UNITED KINGDOM EQUIPMENT(EK3) (B) M4X35 		8-97042-611-0 04 1 9210- ● ● ● ● ● ●
314 02.727 NUT; ACTUATOR
UNITED KINGDOM EQUIPMENT(EK3) 09.262 M4 		9-99111-404-0 04 1 9210- ● ● ● ● ● ●
çizim 66305
67 68 76 75 60 60 68 67 78 75 68 105 91 104 102 99
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
60 02.585 LAMP ASM; FRT COMB
EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (B) 		8-94434-576-3 01 1 9210-9506 ● ● ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		8-94434-576-3 01 1 9507- ● ● ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (B) 		8-94434-575-3 01 1 9210-9506 ● ● ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 		8-94434-575-3 01 1 9507- ● ● ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
THAILAND EQUIPMENT(PM9) (A) 		8-94434-574-3 01 1 9210- ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
THAILAND EQUIPMENT(PM9) (A) 		8-94434-573-3 01 1 9210- ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94474-317-4 01 1 9210-9506 ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (A) 		8-94474-317-4 01 1 9507-9508 ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (A) 		8-97137-734-0 01 1 9509- ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94474-316-4 01 1 9210-9506 ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (A) 		8-94474-316-4 01 1 9507-9508 ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (A) 		8-97137-733-0 01 1 9509- ● ● ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP
UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94334-881-0 02 1 9210-9506 ● ● ● ● ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP
UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-94334-881-0 02 1 9507- ● ● ● ● ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 02.599 		8-94149-259-0 02 1 9210-9506 ● ● ● ● ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 02.599 		8-94149-259-0 02 1 9507- ● ● ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (B) 12V 5W 		5-82194-006-0 02 1 9210-9506 ● ● ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) 12V 5W 		5-82194-006-0 02 1 9507- ● ● ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (C) 12V 23W 		9-82692-131-0 02 1 9210-9506 ● ● ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (C) 12V 23W 		9-82692-131-0 02 1 9507- ● ● ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
THAILAND EQUIPMENT(PM9) (A) 12V 23/8W 		9-82692-132-0 02 1 9210- ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) 12V 21W 		8-94124-074-0 02 1 9210-9506 ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (A) 12V 21W 		8-94124-074-0 02 1 9507- ● ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
08.977 		0-91190-435-0 04 1 9506- ● ● ● ● ● ● ● ●
76 02.589 LENS; FRT COMB LAMP
UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94117-030-0 01 1 9210-9506 ● ● ● ● ● ● ● ●
76 02.589 LENS; FRT COMB LAMP
UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-94117-030-0 01 1 9507- ● ● ● ● ● ● ● ●
76 02.589 LENS; FRT COMB LAMP
UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94112-723-0 01 1 9210-9506 ● ● ● ● ● ● ● ●
76 02.589 LENS; FRT COMB LAMP
UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-94112-723-0 01 1 9507- ● ● ● ● ● ● ● ●
78 02.589 LENS ASM; FRT COMB
EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94151-265-0 01 1 9210-9506 ● ● ● ● ● ● ● ●
78 02.589 LENS ASM; FRT COMB
EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-94151-265-0 01 1 9507- ● ● ● ● ● ● ● ●
78 02.589 LENS ASM; FRT COMB
EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94151-264-0 01 1 9210-9506 ● ● ● ● ● ● ● ●
78 02.589 LENS ASM; FRT COMB
EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-94151-264-0 01 1 9507- ● ● ● ● ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 12V 5W 		8-94124-595-0 02 1 9210-9506 ● ● ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 12V 5W 		8-94124-595-0 02 1 9507- ● ● ● ● ● ●
99 02.585 LAMP; SIDE FLASHER
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94327-449-0 01 1 9210-9506 ● ● ● ● ● ●
99 02.585 LAMP; SIDE FLASHER
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-94327-449-0 01 1 9507-9508 ● ● ● ● ● ●
99 02.585 LAMP; SIDE FLASHER
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97137-895-0 01 1 9509- ● ● ● ● ● ●
99 02.585 LAMP; SIDE FLASHER
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94327-448-0 01 1 9210-9506 ● ● ● ● ● ●
99 02.585 LAMP; SIDE FLASHER
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-94327-448-0 01 1 9507-9508 ● ● ● ● ● ●
99 02.585 LAMP; SIDE FLASHER
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97137-894-0 01 1 9509- ● ● ● ● ● ●
102 02.589 LENS; SIDE TURN SIGNAL
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 02.575 		8-94230-837-0 02 1 9210-9506 ● ● ● ● ● ●
102 02.589 LENS; SIDE TURN SIGNAL
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 02.575 		8-94230-837-0 02 1 9507- ● ● ● ● ● ●
104 02.587 SCREW; SIDE TURN SIGNAL
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 08.977 M4X20 TAPPING STAINLESS 		0-71190-420-0 04 1 9210-9506 ● ● ● ● ● ●
104 02.587 SCREW; SIDE TURN SIGNAL
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 08.977 M4X20 TAPPING STAINLESS 		0-71190-420-0 04 1 9507- ● ● ● ● ● ●
105 02.587 SCREW; GROMMET,LAMP FIX
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 02.708 M4 		5-09470-002-0 04 1 9210-9506 ● ● ● ● ● ●
105 02.587 SCREW; GROMMET,LAMP FIX
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 02.708 M4 		5-09470-002-0 04 1 9507- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
