7-60 — SEAT BELT (#45444) — 283 parça

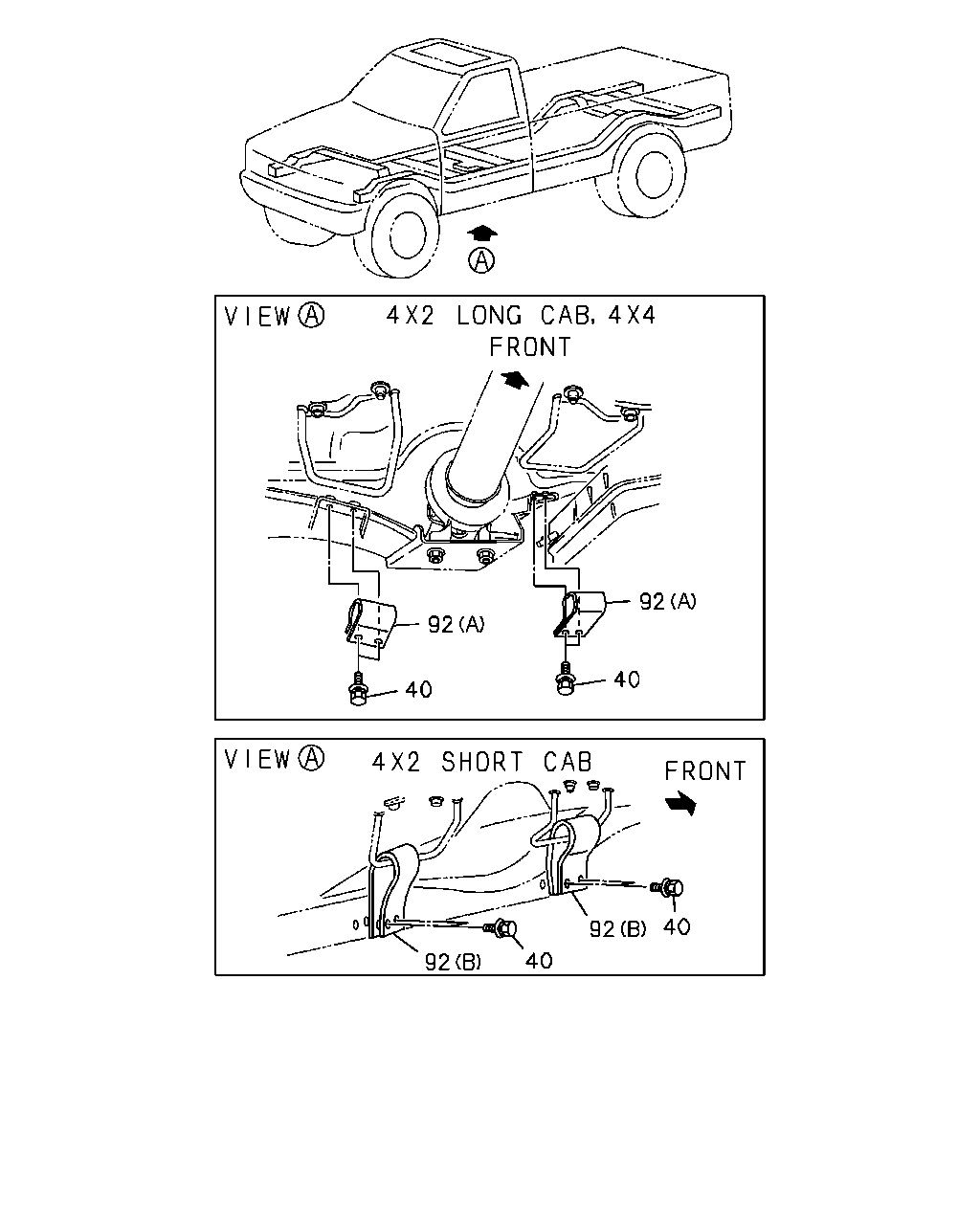

çizim 17692
92 40 40 92 40 92 40 92
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
40 16.545 BOLT; BRKT,ANCHOR
M8X30 W/LK&PL WASHER 		8-94320-540-1 04 1 9210- ● ● ● ● ● ● ● ●
92 16.714 BRACKET; SEAT BELT ANCHOR
(A) 		8-94473-965-3 02 1 9210- ● ● ● ● ● ● ●
92 16.714 BRACKET; SEAT BELT ANCHOR
16.545 (B) 		8-94471-108-2 02 1 9210- ●

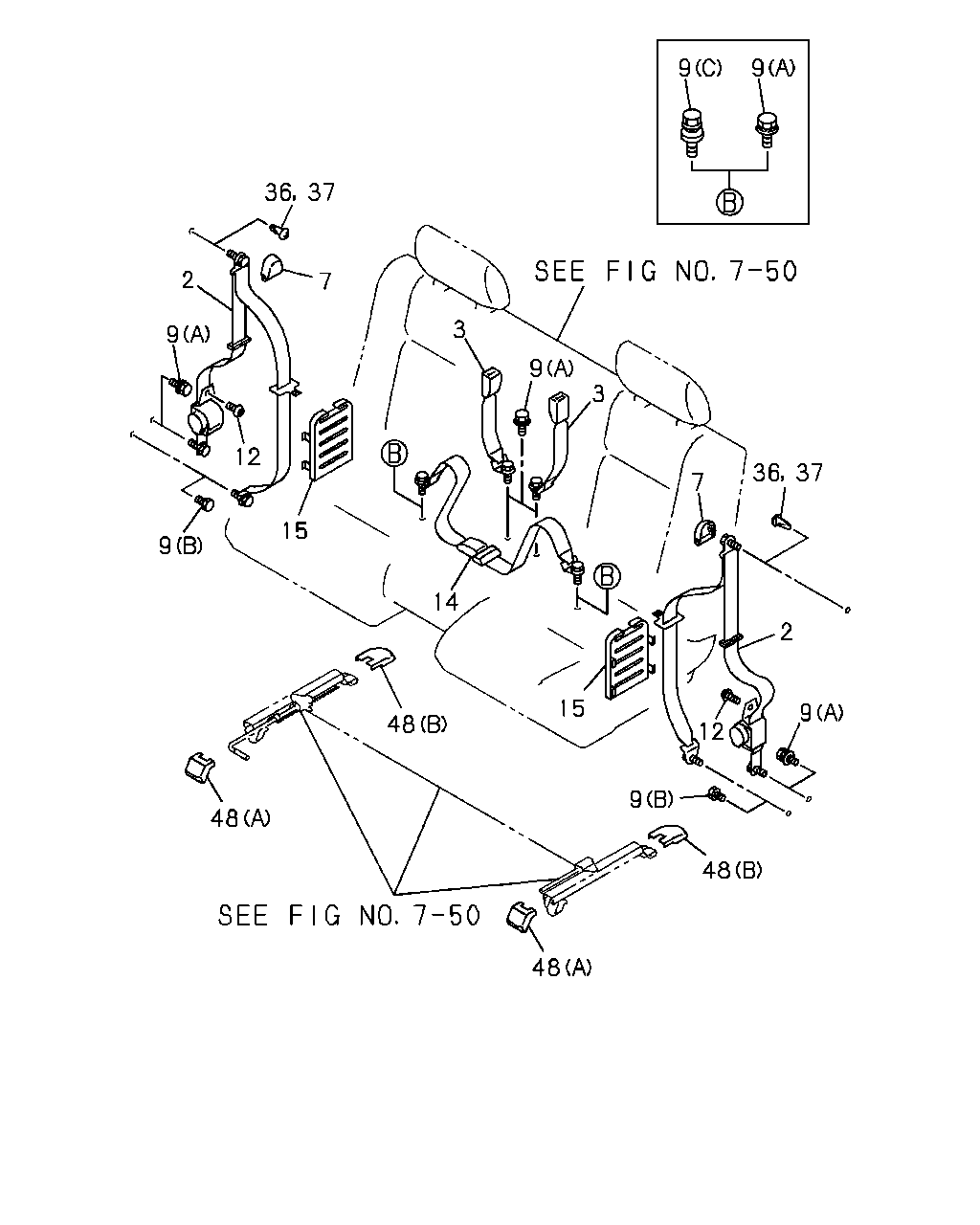

çizim 66275
36 37 7 2 9 9 12 15 3 9 9 9 3 7 36 37 2 9 48 9 12 15 14 48 48 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BEIGE(120) BROWN 		8-97004-544-3 02 1 9210-9308 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MUSHROOM(150) GRAY 		8-97004-545-4 02 1 9210- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BEIGE(120) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3) BROWN 		8-97004-534-3 02 1 9210-9308 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), UNITED KINGDOM EQUIPMENT(EK3), BUCKET SEAT W/RECLINING(S3B) BROWN 		8-97004-537-3 02 1 9210-9308 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-97004-535-4 02 1 9210- ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), UNITED KINGDOM EQUIPMENT(EK3), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-538-3 02 1 9210- ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BEIGE(120) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3) BROWN 		8-97004-528-3 02 1 9210-9308 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) BROWN 		8-97004-587-3 02 1 9210-9308 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-97004-529-4 02 1 9210- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-588-3 02 1 9210- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BEIGE(120) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3) BROWN 		8-97004-541-3 02 1 9210-9308 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), UNITED KINGDOM EQUIPMENT(EK3), BUCKET SEAT W/RECLINING(S3B) BROWN 		8-97004-548-3 02 1 9210-9308 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-97004-542-4 02 1 9210- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), UNITED KINGDOM EQUIPMENT(EK3), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-549-3 02 1 9210- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-97004-517-4 02 1 9407- ●
2 16.714 BELT; SEAT,TONGUE SIDE
FRT SEAT BELT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-553-3 02 1 9407- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) BROWN 		8-97004-579-1 01 1 9210-9308 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> BROWN 		8-97004-579-1 01 1 9210-9308 ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) BROWN 		8-97004-564-1 01 1 9210-9308 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> BROWN 		8-97004-564-1 01 1 9210-9308 ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) GRAY 		8-97004-580-1 01 1 9210- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-97004-580-1 01 1 9210- ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) GRAY 		8-97004-565-1 01 1 9210- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-97004-565-1 01 1 9210- ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) BROWN 		8-97004-576-1 01 1 9210-9308 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) BROWN 		8-97004-558-1 01 1 9210-9308 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-577-1 01 1 9210- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-559-1 01 1 9210- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) BROWN 		8-97004-573-1 01 1 9210-9308 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) BROWN 		8-97004-570-1 01 1 9210-9308 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-574-1 01 1 9210- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-571-1 01 1 9210- ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
INTERIOR COLOR BEIGE(120) BROWN 		8-94383-775-1 02 1 9210-9308 ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3) BROWN 		8-94383-775-1 02 1 9210-9308 ● ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
INTERIOR COLOR MUSHROOM(150) GRAY 		8-94383-773-1 02 1 9210- ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-94383-773-1 02 1 9210- ● ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
INTERIOR COLOR BEIGE(120) UNITED KINGDOM EQUIPMENT(EK3) BROWN 		8-94476-992-0 02 1 9210-9308 ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
INTERIOR COLOR MUSHROOM(150) UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-94430-748-0 02 1 9210-9412 ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-94430-748-0 02 1 9501- ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9210-9308 ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) AUSTRALIA EQUIPMENT(RR3) EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9210-9308 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9210-9308 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
FRT SEAT BELT W/RETRACTOR<A49> EXC. NEW ZEALAND EQUIPMENT(PK5), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQU IPMENT(RR3) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9210-9308 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9309-9406 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9309-9406 ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9309-9406 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9309-9406 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. NEW ZEALAND EQUIPMENT(PK5), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9309-9406 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
UNITED KINGDOM EQUIPMENT(EK3) EXC. SEAT BELT CENTER<S4D> (C) 		8-97039-649-0 02 1 9210- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
(B) 7/16"X14 UNF 		8-97039-648-0 04 1 9210-9210 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 7/16"X14 UNF 		8-97039-648-0 04 1 9211- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. FRT SEAT BELT W/RETRACTOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 04 1 9210- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. FRT SEAT BELT W/RETRACTOR<A49> (B) 7/16"X14 UNF 		8-97039-648-0 02 1 9210- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. FRT SEAT BELT W/RETRACTOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 08 1 9210-9304 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
FRT SEAT BELT W/RETRACTOR<A49> THAILAND EQUIPMENT(PM9) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 08 1 9210-9304 ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. FRT SEAT BELT W/RETRACTOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 06 1 9305-9310 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
FRT SEAT BELT W/RETRACTOR<A49> THAILAND EQUIPMENT(PM9) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 06 1 9305-9310 ●
9 16.714 BOLT; SEAT BELT ANCHOR
INTERIOR COLOR MUSHROOM(150) EXC. FRT SEAT BELT W/RETRACTOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 06 1 9311-9406 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9407- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9407- ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9407- ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9407- ● ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
M8X10 		9-03800-810-0 02 1 9210- ● ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
FRT SEAT BELT W/RETRACTOR<A49> M8X10 		9-03800-810-0 02 1 9210- ● ● ● ● ● ●
14 16.714 BELT; SEAT,CENTER
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> SEAT BELT CENTER<S4D> EXC. NEW ZEALAND EQUIPMENT(PK5), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQU IPMENT(RR3) BROWN 		8-97004-511-2 01 1 9210-9308 ● ● ● ● ● ●
14 16.714 BELT; SEAT,CENTER
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> SEAT BELT CENTER<S4D> EXC. NEW ZEALAND EQUIPMENT(PK5), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQU IPMENT(RR3) GRAY 		8-97004-512-2 01 1 9210-9505 ● ● ● ● ● ●
14 16.714 BELT; SEAT,CENTER
FRT SEAT BELT W/RETRACTOR<A49> SEAT BELT CENTER<S4D> EXC. NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97004-512-2 01 1 9506- ● ● ● ● ● ●
14 16.714 BELT; SEAT,CENTER
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMEN T(RR3) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) BROWN 		8-97004-513-2 01 1 9210-9308 ● ● ● ●
14 16.714 BELT; SEAT,CENTER
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMEN T(RR3) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-514-2 01 1 9210-9505 ● ● ● ●
14 16.714 BELT; SEAT,CENTER
FRT SEAT BELT W/RETRACTOR<A49> NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-514-2 01 1 9506- ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE STD(RBA),GRADE DLX(RBB) INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) BROWN 		8-97004-502-3 02 1 9210-9308 ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE STD(RBA),GRADE DLX(RBB) INTERIOR COLOR BEIGE(120) UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) BROWN 		8-97004-502-3 02 1 9210-9308 ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE STD(RBA),GRADE DLX(RBB) INTERIOR COLOR BEIGE(120) EXC. FRT SEAT BELT W/RETRACTOR<A49> BROWN 		8-97004-585-3 02 1 9210-9308 ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE STD(RBA),GRADE DLX(RBB) INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97004-503-3 02 1 9210- ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE STD(RBA),GRADE DLX(RBB) INTERIOR COLOR MUSHROOM(150) UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-503-3 02 1 9210- ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE STD(RBA),GRADE DLX(RBB) INTERIOR COLOR MUSHROOM(150) EXC. FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-97004-586-3 02 1 9210- ● ● ● ●
36 09.775 PLUG; DUMMY HOLE,SEAT BELT
EXC. NEW ZEALAND EQUIPMENT(PK5), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 16.714 		8-94433-190-0 02 1 9210-9406 ● ●
36 09.775 PLUG; DUMMY HOLE,SEAT BELT
EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMEN T(RR3) 16.714 		8-94433-190-0 02 1 9407-9505 ● ●
36 09.775 PLUG; DUMMY HOLE,SEAT BELT
EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) 16.714 		8-94433-190-0 02 1 9506- ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
GRADE STD(RBA),GRADE DLX(RBB) EXC. FRT SEAT BELT W/RETRACTOR<A49> 		8-94433-190-0 02 1 9210- ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) (A) BROWN 		8-94477-244-1 04 1 9210-9308 ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (A) BROWN 		8-94477-244-1 04 1 9210-9308 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) (B) BROWN 		8-94477-250-2 04 1 9210-9308 ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (B) BROWN 		8-94477-250-2 04 1 9210-9308 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) (C) BROWN 		8-94383-794-0 01 1 9307-9308 ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (C) BROWN 		8-94383-794-0 01 1 9307-9308 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) EXC. THAILAND EQUIPMENT(PM9) (A) GRAY 		8-94477-245-1 03 1 9309-9309 ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) EXC. THAILAND EQUIPMENT(PM9) (A) GRAY 		8-94477-245-1 03 1 9309-9309 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) (A) GRAY 		8-94477-245-1 04 1 9210-9501 ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (A) GRAY 		8-94477-245-1 04 1 9210-9501 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
(A) GRAY 		8-94477-245-1 03 1 9502-9510 ● ●
48 16.714 CAP; LAP OUTER
BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (A) GRAY 		8-94477-245-1 03 1 9502-9510 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) (B) GRAY 		8-94477-251-2 04 1 9210-9509 ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (B) GRAY 		8-94477-251-2 04 1 9210-9509 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
GRADE DLX(RBB),GRADE LS(RBD) (B) GRAY 		8-94477-251-2 04 1 9510- ● ●
48 16.714 CAP; LAP OUTER
BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (B) GRAY 		8-94477-251-2 04 1 9510- ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) (C) GRAY 		8-94383-795-0 01 1 9307-9501 ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (C) GRAY 		8-94383-795-0 01 1 9307-9501 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
(C) GRAY 		8-94383-795-0 01 1 9502-9510 ● ●
48 16.714 CAP; LAP OUTER
BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (C) GRAY 		8-94383-795-0 01 1 9502-9510 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) EXC. THAILAND EQUIPMENT(PM9) (A) GRAY 		8-94477-245-1 03 1 9407-9501 ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) EXC. THAILAND EQUIPMENT(PM9) (A) GRAY 		8-94477-245-1 03 1 9407-9501 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (A) BROWN 		8-94477-244-1 02 1 9210-9308 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (B) BROWN 		8-94477-250-2 02 1 9210-9308 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (A) GRAY 		8-94477-245-1 02 1 9210-9510 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (B) GRAY 		8-94477-251-2 02 1 9210-9509 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (B) GRAY 		8-94477-251-2 02 1 9510- ● ●

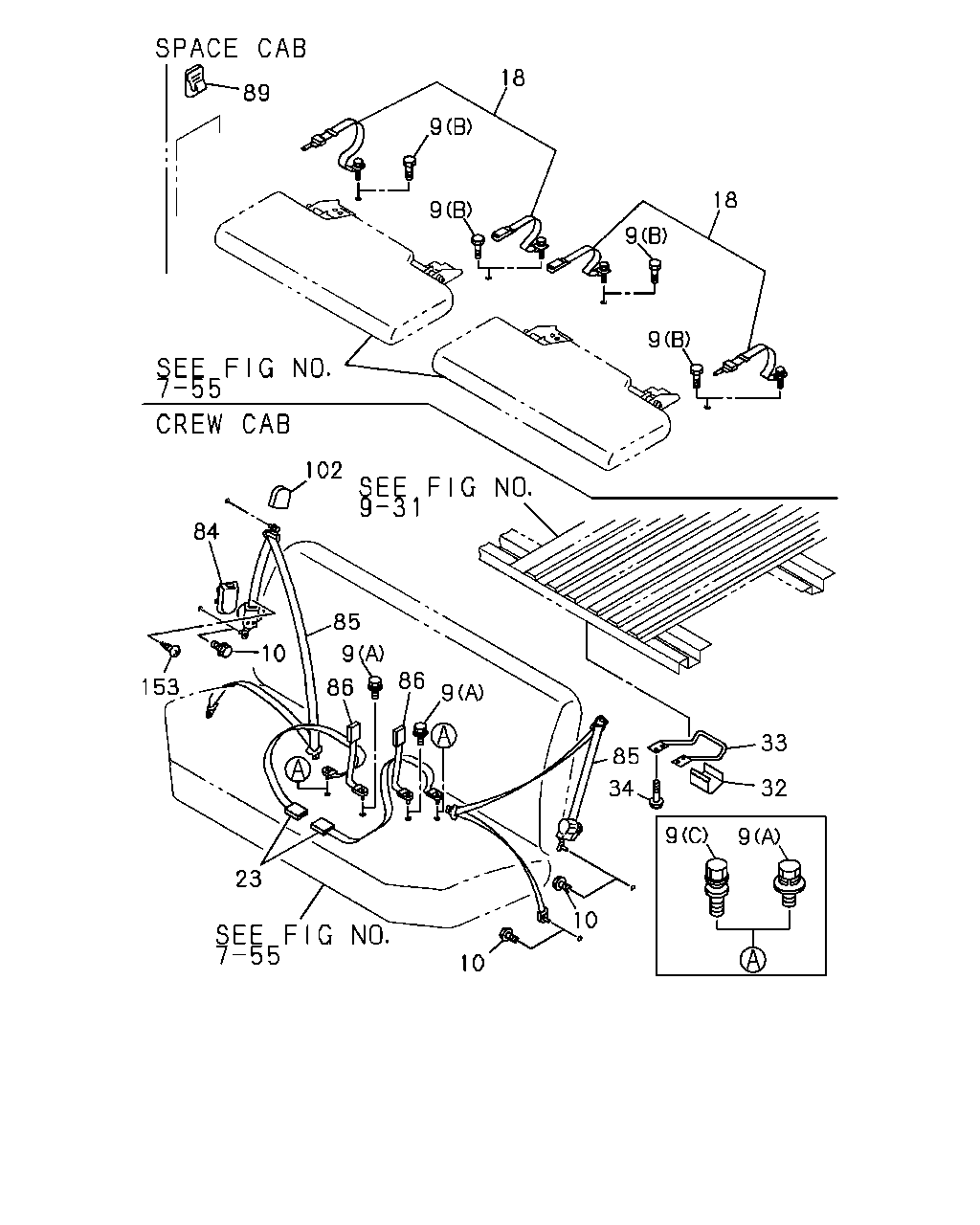

çizim 66306
89 9 18 9 9 18 9 102 84 153 10 85 9 86 86 9 23 10 10 9 9 32 33 34 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9210-9308 ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) AUSTRALIA EQUIPMENT(RR3) EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9210-9308 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9210-9308 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
FRT SEAT BELT W/RETRACTOR<A49> EXC. NEW ZEALAND EQUIPMENT(PK5), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQU IPMENT(RR3) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9210-9308 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9309-9406 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9309-9406 ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9309-9406 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9309-9406 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. NEW ZEALAND EQUIPMENT(PK5), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9309-9406 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
UNITED KINGDOM EQUIPMENT(EK3) EXC. SEAT BELT CENTER<S4D> (C) 		8-97039-649-0 02 1 9210- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
(B) 7/16"X14 UNF 		8-97039-648-0 04 1 9210-9210 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 7/16"X14 UNF 		8-97039-648-0 04 1 9211- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. FRT SEAT BELT W/RETRACTOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 04 1 9210- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. FRT SEAT BELT W/RETRACTOR<A49> (B) 7/16"X14 UNF 		8-97039-648-0 02 1 9210- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. FRT SEAT BELT W/RETRACTOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 08 1 9210-9304 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
FRT SEAT BELT W/RETRACTOR<A49> THAILAND EQUIPMENT(PM9) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 08 1 9210-9304 ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. FRT SEAT BELT W/RETRACTOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 06 1 9305-9310 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
FRT SEAT BELT W/RETRACTOR<A49> THAILAND EQUIPMENT(PM9) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 06 1 9305-9310 ●
9 16.714 BOLT; SEAT BELT ANCHOR
INTERIOR COLOR MUSHROOM(150) EXC. FRT SEAT BELT W/RETRACTOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 06 1 9311-9406 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9407- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9407- ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9407- ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9407- ● ●
10 16.714 BOLT; RETRACTOR
EXC. NEW ZEALAND EQUIPMENT(PK5), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 14.875 7/16"X22 UNF 		8-94389-890-0 04 1 9407-9505 ● ●
10 16.714 BOLT; RETRACTOR
EXC. FRT SEAT BELT W/RETRACTOR<A49> 14.875 7/16"X22 UNF 		8-94389-890-0 04 1 9506- ● ●
10 16.714 BOLT; RETRACTOR
EXC. FRT SEAT BELT W/RETRACTOR<A49> 14.875 7/16"X22 UNF 		8-94389-890-0 04 1 9506- ● ●
10 16.714 BOLT; RETRACTOR
FRT SEAT BELT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) 14.875 7/16"X22 UNF 		8-94389-890-0 04 1 9506- ● ●
18 16.714 BELT; SEAT,RR
INTERIOR COLOR BEIGE(120) JUMP SEAT<AJ2> NEW ZEALAND EQUIPMENT(PK5) BROWN 		8-97004-601-2 02 1 9210-9308 ● ●
18 16.714 BELT; SEAT,RR
INTERIOR COLOR MUSHROOM(150) JUMP SEAT<AJ2> NEW ZEALAND EQUIPMENT(PK5) GRAY 		8-97004-602-2 02 1 9210- ● ●
23 16.714 BELT; SEAT,CENTER
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMEN T(RR3) BROWN 		8-97004-605-2 01 1 9210-9308 ● ●
23 16.714 BELT; SEAT,CENTER
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> EXC. NEW ZEALAND EQUIPMENT(PK5), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQU IPMENT(RR3) BROWN 		8-97004-605-2 02 1 9210-9308 ● ●
23 16.714 BELT; SEAT,CENTER
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMEN T(RR3) GRAY 		8-97004-606-2 01 1 9210-9505 ● ●
23 16.714 BELT; SEAT,CENTER
FRT SEAT BELT W/RETRACTOR<A49> NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97004-606-2 01 1 9506- ● ●
23 16.714 BELT; SEAT,CENTER
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> EXC. NEW ZEALAND EQUIPMENT(PK5), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQU IPMENT(RR3) GRAY 		8-97004-606-2 02 1 9210-9406 ● ●
23 16.714 BELT; SEAT,CENTER
FRT SEAT BELT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMEN T(RR3) GRAY 		8-97004-606-2 02 1 9407-9505 ● ●
23 16.714 BELT; SEAT,CENTER
FRT SEAT BELT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97004-606-2 02 1 9506- ● ●
23 16.714 BELT; SEAT,CENTER
FRT SEAT BELT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-97004-612-2 01 1 9407- ●
32 16.714 BRACKET; ANCHOR ROD,SEAT BELT
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94457-459-1 01 1 9210- ● ●
32 16.714 BRACKET; ANCHOR ROD,SEAT BELT
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-94457-459-1 01 1 9210- ● ●
33 16.714 ROD; ANCHOR,SEAT BELT
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94411-347-0 01 1 9210- ● ●
33 16.714 ROD; ANCHOR,SEAT BELT
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-94411-347-0 01 1 9210- ● ●
34 16.714 BOLT; SEAT BELT ROD
EXC. NEW ZEALAND EQUIPMENT(PK5), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 07.039 		8-94130-273-0 04 1 9210- ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMEN T(RR3) BROWN 		8-94476-997-5 02 1 9210-9308 ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
INTERIOR COLOR BEIGE(120) EXC. NEW ZEALAND EQUIPMENT(PK5), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQU IPMENT(RR3) BROWN 		8-94476-994-5 02 1 9210-9308 ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMEN T(RR3) GRAY 		8-94476-998-5 02 1 9210-9406 ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQU IPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) GRAY 		8-94476-998-5 02 1 9407-9505 ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
FRT SEAT BELT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQU IPMENT(RR3) GRAY 		8-94476-998-5 02 1 9506- ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
INTERIOR COLOR MUSHROOM(150) EXC. FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-94476-995-5 02 1 9210-9505 ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> EXC. NEW ZEALAND EQUIPMENT(PK5), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQU IPMENT(RR3) GRAY 		8-94476-995-5 02 1 9210-9505 ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
FRT SEAT BELT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) GRAY 		8-94476-995-5 02 1 9506- ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
EXC. FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-94476-995-5 02 1 9506- ● ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMEN T(RR3) BROWN 		8-97004-591-3 02 1 9210-9308 ● ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMEN T(RR3) GRAY 		8-97004-592-3 02 1 9210-9505 ● ●
85 16.714 BELT; SEAT,RR OUTER
FRT SEAT BELT W/RETRACTOR<A49> NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97004-592-3 02 1 9506- ● ●
85 16.714 BELT; SEAT,RR OUTER
FRT SEAT BELT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-97150-736-0 02 1 9407- ●
86 16.714 BELT; SEAT,RR INNER
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMEN T(RR3) BROWN 		8-97004-598-1 02 1 9210-9308 ● ●
86 16.714 BELT; SEAT,RR INNER
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMEN T(RR3) GRAY 		8-97004-599-1 02 1 9210-9406 ● ●
86 16.714 BELT; SEAT,RR INNER
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQU IPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97004-599-1 02 1 9407-9505 ● ●
86 16.714 BELT; SEAT,RR INNER
FRT SEAT BELT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQU IPMENT(RR3) GRAY 		8-97004-599-1 02 1 9506- ● ●
89 16.714 HOOK; LATCH PLATE,SEAT BELT
INTERIOR COLOR BEIGE(120) BROWN 		8-94478-393-2 02 1 9210-9308 ● ●
89 16.714 HOOK; LATCH PLATE,SEAT BELT
INTERIOR COLOR MUSHROOM(150) GRAY 		8-94478-394-2 02 1 9210- ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR BEIGE(120) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMEN T(RR3) BROWN 		8-94383-775-1 02 1 9210-9308 ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMEN T(RR3) GRAY 		8-94383-773-1 02 1 9210-9505 ● ●
102 16.714 COVER; SHOULDER ANCHOR
NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) GRAY 		8-94383-773-1 02 1 9506- ● ●
102 16.714 COVER; SHOULDER ANCHOR
UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-94430-748-0 02 1 9407- ●
153 16.714 SCREW; RETRACTOR
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) M8X10 		9-03800-810-0 02 1 9210-9406 ● ●
153 16.714 SCREW; RETRACTOR
UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) M8X10 		9-03800-810-0 02 1 9407-9505 ● ●
153 16.714 SCREW; RETRACTOR
UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X10 		9-03800-810-0 02 1 9506- ● ●

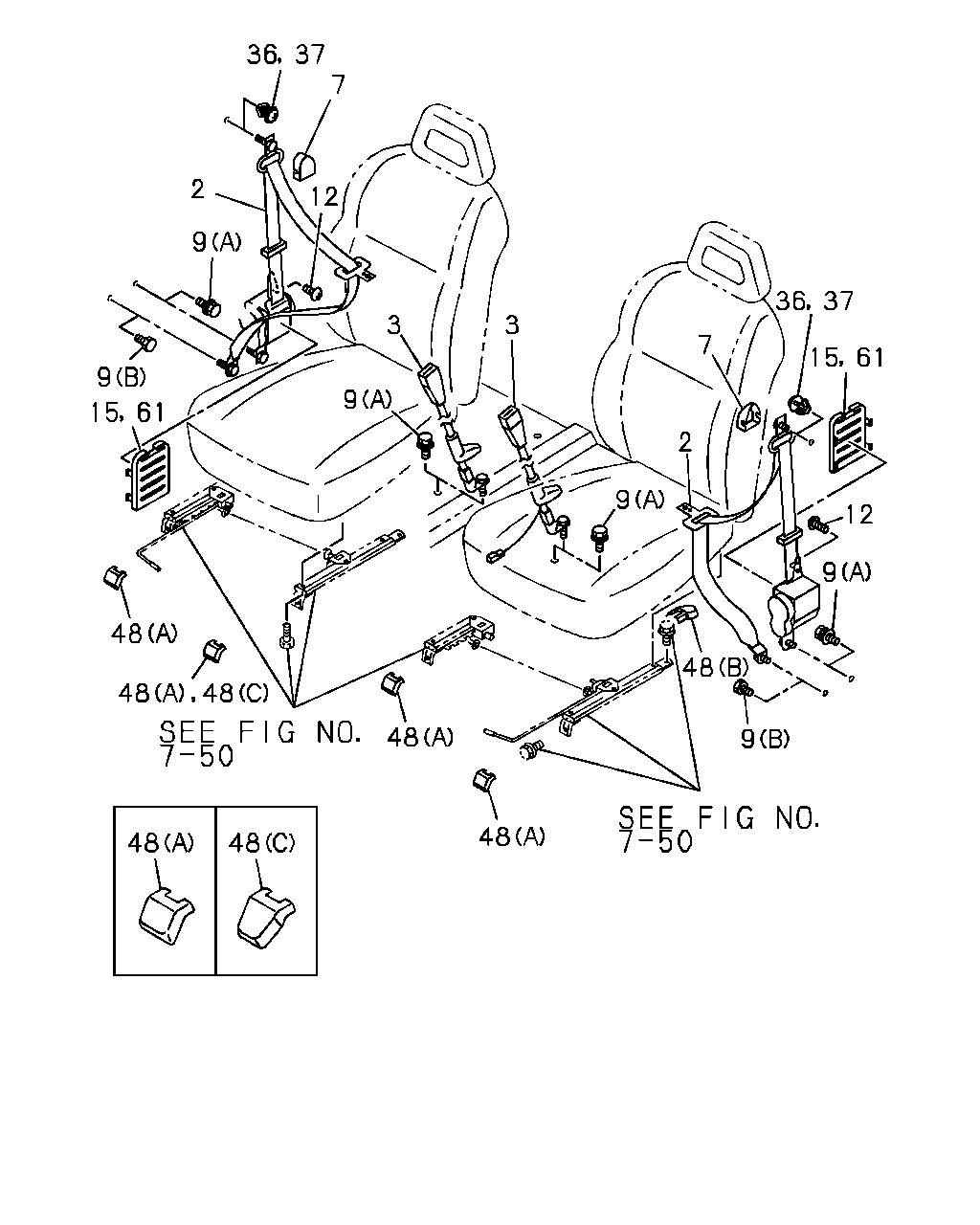

çizim 68432
37 36 7 12 2 9 9 15 61 9 3 3 9 2 7 36 37 15 61 12 9 48 9 48 48 48 48 48 48 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BEIGE(120) BROWN 		8-97004-544-3 02 1 9210-9308 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MUSHROOM(150) GRAY 		8-97004-545-4 02 1 9210- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BEIGE(120) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3) BROWN 		8-97004-534-3 02 1 9210-9308 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), UNITED KINGDOM EQUIPMENT(EK3), BUCKET SEAT W/RECLINING(S3B) BROWN 		8-97004-537-3 02 1 9210-9308 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-97004-535-4 02 1 9210- ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), UNITED KINGDOM EQUIPMENT(EK3), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-538-3 02 1 9210- ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BEIGE(120) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3) BROWN 		8-97004-528-3 02 1 9210-9308 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) BROWN 		8-97004-587-3 02 1 9210-9308 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-97004-529-4 02 1 9210- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-588-3 02 1 9210- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BEIGE(120) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3) BROWN 		8-97004-541-3 02 1 9210-9308 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), UNITED KINGDOM EQUIPMENT(EK3), BUCKET SEAT W/RECLINING(S3B) BROWN 		8-97004-548-3 02 1 9210-9308 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-97004-542-4 02 1 9210- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), UNITED KINGDOM EQUIPMENT(EK3), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-549-3 02 1 9210- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-97004-517-4 02 1 9407- ●
2 16.714 BELT; SEAT,TONGUE SIDE
FRT SEAT BELT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-553-3 02 1 9407- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) BROWN 		8-97004-579-1 01 1 9210-9308 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> BROWN 		8-97004-579-1 01 1 9210-9308 ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) BROWN 		8-97004-564-1 01 1 9210-9308 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> BROWN 		8-97004-564-1 01 1 9210-9308 ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) GRAY 		8-97004-580-1 01 1 9210- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-97004-580-1 01 1 9210- ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) GRAY 		8-97004-565-1 01 1 9210- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-97004-565-1 01 1 9210- ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) BROWN 		8-97004-576-1 01 1 9210-9308 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) BROWN 		8-97004-558-1 01 1 9210-9308 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-577-1 01 1 9210- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-559-1 01 1 9210- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) BROWN 		8-97004-573-1 01 1 9210-9308 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) BROWN 		8-97004-570-1 01 1 9210-9308 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-574-1 01 1 9210- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-571-1 01 1 9210- ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
INTERIOR COLOR BEIGE(120) BROWN 		8-94383-775-1 02 1 9210-9308 ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3) BROWN 		8-94383-775-1 02 1 9210-9308 ● ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
INTERIOR COLOR MUSHROOM(150) GRAY 		8-94383-773-1 02 1 9210- ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-94383-773-1 02 1 9210- ● ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
INTERIOR COLOR BEIGE(120) UNITED KINGDOM EQUIPMENT(EK3) BROWN 		8-94476-992-0 02 1 9210-9308 ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
INTERIOR COLOR MUSHROOM(150) UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-94430-748-0 02 1 9210-9412 ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-94430-748-0 02 1 9501- ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9210-9308 ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) AUSTRALIA EQUIPMENT(RR3) EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9210-9308 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9210-9308 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
FRT SEAT BELT W/RETRACTOR<A49> EXC. NEW ZEALAND EQUIPMENT(PK5), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQU IPMENT(RR3) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9210-9308 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9309-9406 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9309-9406 ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9309-9406 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9309-9406 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. NEW ZEALAND EQUIPMENT(PK5), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9309-9406 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
UNITED KINGDOM EQUIPMENT(EK3) EXC. SEAT BELT CENTER<S4D> (C) 		8-97039-649-0 02 1 9210- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
(B) 7/16"X14 UNF 		8-97039-648-0 04 1 9210-9210 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 7/16"X14 UNF 		8-97039-648-0 04 1 9211- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. FRT SEAT BELT W/RETRACTOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 04 1 9210- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. FRT SEAT BELT W/RETRACTOR<A49> (B) 7/16"X14 UNF 		8-97039-648-0 02 1 9210- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. FRT SEAT BELT W/RETRACTOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 08 1 9210-9304 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
FRT SEAT BELT W/RETRACTOR<A49> THAILAND EQUIPMENT(PM9) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 08 1 9210-9304 ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. FRT SEAT BELT W/RETRACTOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 06 1 9305-9310 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
FRT SEAT BELT W/RETRACTOR<A49> THAILAND EQUIPMENT(PM9) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 06 1 9305-9310 ●
9 16.714 BOLT; SEAT BELT ANCHOR
INTERIOR COLOR MUSHROOM(150) EXC. FRT SEAT BELT W/RETRACTOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 06 1 9311-9406 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9407- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9407- ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9407- ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9407- ● ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
M8X10 		9-03800-810-0 02 1 9210- ● ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
FRT SEAT BELT W/RETRACTOR<A49> M8X10 		9-03800-810-0 02 1 9210- ● ● ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE STD(RBA),GRADE DLX(RBB) INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) BROWN 		8-97004-502-3 02 1 9210-9308 ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE STD(RBA),GRADE DLX(RBB) INTERIOR COLOR BEIGE(120) UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) BROWN 		8-97004-502-3 02 1 9210-9308 ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE STD(RBA),GRADE DLX(RBB) INTERIOR COLOR BEIGE(120) EXC. FRT SEAT BELT W/RETRACTOR<A49> BROWN 		8-97004-585-3 02 1 9210-9308 ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE STD(RBA),GRADE DLX(RBB) INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97004-503-3 02 1 9210- ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE STD(RBA),GRADE DLX(RBB) INTERIOR COLOR MUSHROOM(150) UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97004-503-3 02 1 9210- ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE STD(RBA),GRADE DLX(RBB) INTERIOR COLOR MUSHROOM(150) EXC. FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-97004-586-3 02 1 9210- ● ● ● ●
36 09.775 PLUG; DUMMY HOLE,SEAT BELT
EXC. NEW ZEALAND EQUIPMENT(PK5), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 16.714 		8-94433-190-0 02 1 9210-9406 ● ●
36 09.775 PLUG; DUMMY HOLE,SEAT BELT
EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMEN T(RR3) 16.714 		8-94433-190-0 02 1 9407-9505 ● ●
36 09.775 PLUG; DUMMY HOLE,SEAT BELT
EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) 16.714 		8-94433-190-0 02 1 9506- ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
GRADE STD(RBA),GRADE DLX(RBB) EXC. FRT SEAT BELT W/RETRACTOR<A49> 		8-94433-190-0 02 1 9210- ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) (A) BROWN 		8-94477-244-1 04 1 9210-9308 ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (A) BROWN 		8-94477-244-1 04 1 9210-9308 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) (B) BROWN 		8-94477-250-2 04 1 9210-9308 ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (B) BROWN 		8-94477-250-2 04 1 9210-9308 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) (C) BROWN 		8-94383-794-0 01 1 9307-9308 ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (C) BROWN 		8-94383-794-0 01 1 9307-9308 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) EXC. THAILAND EQUIPMENT(PM9) (A) GRAY 		8-94477-245-1 03 1 9309-9309 ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) EXC. THAILAND EQUIPMENT(PM9) (A) GRAY 		8-94477-245-1 03 1 9309-9309 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) (A) GRAY 		8-94477-245-1 04 1 9210-9501 ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (A) GRAY 		8-94477-245-1 04 1 9210-9501 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
(A) GRAY 		8-94477-245-1 03 1 9502-9510 ● ●
48 16.714 CAP; LAP OUTER
BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (A) GRAY 		8-94477-245-1 03 1 9502-9510 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) (B) GRAY 		8-94477-251-2 04 1 9210-9509 ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (B) GRAY 		8-94477-251-2 04 1 9210-9509 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
GRADE DLX(RBB),GRADE LS(RBD) (B) GRAY 		8-94477-251-2 04 1 9510- ● ●
48 16.714 CAP; LAP OUTER
BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (B) GRAY 		8-94477-251-2 04 1 9510- ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) (C) GRAY 		8-94383-795-0 01 1 9307-9501 ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (C) GRAY 		8-94383-795-0 01 1 9307-9501 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
(C) GRAY 		8-94383-795-0 01 1 9502-9510 ● ●
48 16.714 CAP; LAP OUTER
BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (C) GRAY 		8-94383-795-0 01 1 9502-9510 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) EXC. THAILAND EQUIPMENT(PM9) (A) GRAY 		8-94477-245-1 03 1 9407-9501 ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) EXC. THAILAND EQUIPMENT(PM9) (A) GRAY 		8-94477-245-1 03 1 9407-9501 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (A) BROWN 		8-94477-244-1 02 1 9210-9308 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR BEIGE(120) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (B) BROWN 		8-94477-250-2 02 1 9210-9308 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (A) GRAY 		8-94477-245-1 02 1 9210-9510 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
INTERIOR COLOR MUSHROOM(150) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (B) GRAY 		8-94477-251-2 02 1 9210-9509 ● ● ● ● ● ●
48 16.714 CAP; LAP OUTER
EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) (B) GRAY 		8-94477-251-2 02 1 9510- ● ●
61 16.714 COVER; SEAT BELT,FRT SEAT
INTERIOR COLOR BEIGE(120) FRT SEAT BELT W/RETRACTOR<A49> BROWN 		8-94476-997-5 02 1 9210-9308 ● ●
61 16.714 COVER; SEAT BELT,FRT SEAT
INTERIOR COLOR BEIGE(120) EXC. FRT SEAT BELT W/RETRACTOR<A49> BROWN 		8-94476-994-5 02 1 9210-9308 ● ●
61 16.714 COVER; SEAT BELT,FRT SEAT
INTERIOR COLOR MUSHROOM(150) FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-94476-998-5 02 1 9210- ● ●
61 16.714 COVER; SEAT BELT,FRT SEAT
INTERIOR COLOR MUSHROOM(150) EXC. FRT SEAT BELT W/RETRACTOR<A49> GRAY 		8-94476-995-5 02 1 9210- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
