7-45 — CONSOLE BOX (#45441) — 42 parça

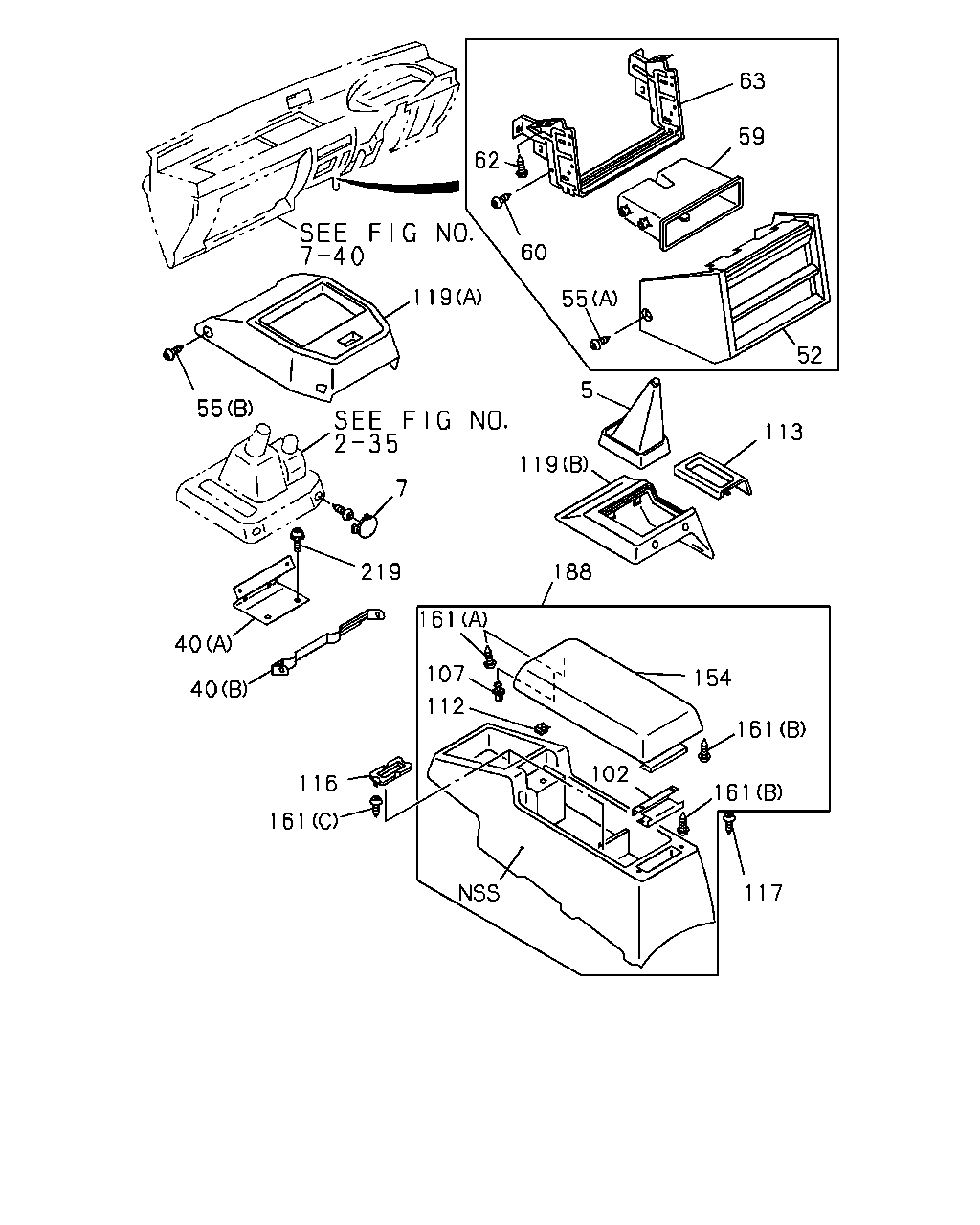

çizim 66164
63 59 52 55 60 62 119 5 113 119 188 154 161 161 102 117 161 116 112 107 161 219 7 40 40 55
BalonParca AdiParca NoAdetTipApplied Date A B C
5 16.650 COVER; SHIFT LEVER
4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) FRONT CONSOLE<D55> 		8-94462-741-3 01 1 9210- ●
5 16.650 COVER; SHIFT LEVER
4X4(TFS***) FRONT CONSOLE<D55> 		8-94462-741-3 01 1 9210- ● ●
5 16.650 COVER; SHIFT LEVER
4X2(TFB***) M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94462-742-3 01 1 9210- ● ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) INTERIOR COLOR BEIGE(120) FRONT CONSOLE<D55> BROWN 		8-94474-731-1 02 1 9210-9308 ● ● ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) INTERIOR COLOR MUSHROOM(150) FRONT CONSOLE<D55> GRAY 		8-94474-732-1 02 1 9210- ● ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) FRONT CONSOLE<D55> (A) 		8-94463-384-0 01 1 9210- ● ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) FRONT CONSOLE<D55> (B) 		8-94479-072-1 01 1 9210- ● ● ●
52 16.650 CONSOLE; FRT
INTERIOR COLOR BEIGE(120) UNITED KINGDOM EQUIPMENT(EK3) BROWN 		8-94476-760-2 01 1 9210-9308 ● ●
52 16.650 CONSOLE; FRT
INTERIOR COLOR BEIGE(120) BROWN 		8-94476-760-2 01 1 9210-9308 ●
52 16.650 CONSOLE; FRT
INTERIOR COLOR MUSHROOM(150) UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-94476-761-2 01 1 9210- ● ●
52 16.650 CONSOLE; FRT
INTERIOR COLOR MUSHROOM(150) GRAY 		8-94476-761-2 01 1 9210- ●
55 09.744 SCREW; FRT CONSOLE
UNITED KINGDOM EQUIPMENT(EK3) 16.085 (A) M5X16 TAPPING 		9-09829-323-1 02 1 9210- ● ●
55 09.744 SCREW; FRT CONSOLE
16.085 (A) M5X16 TAPPING 		9-09829-323-1 02 1 9210- ●
55 09.744 SCREW; FRT CONSOLE
FRONT CONSOLE<D55> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 04 1 9210- ● ● ●
59 16.650 BOX; FRT CONSOLE
UNITED KINGDOM EQUIPMENT(EK3) EXC. RADIO AM ASIA/OCEANIA BAND(7AQ), RADIO AM/FM W/CASSETTE ASIA/OCEANIA BAND(7AU),RADIO AM/FM W/CASSETTE LATIN AMERICA BAND(7AW) 10.260 44X184 		8-94435-504-2 01 1 9210- ● ●
59 16.650 BOX; FRT CONSOLE
EXC. UNITED KINGDOM EQUIPMENT(EK3), RADIOAM ASIA/OCEANIA BAND(7AQ),RADIO AM/FM W /CASSETTE ASIA/OCEANIA BAND(7AU),RADIO AM/FM W/CASSETTE LATIN AMERICA BAND(7AW) 10.260 44X184 		8-94435-504-2 01 1 9210- ●
60 16.650 SCREW; BOX
UNITED KINGDOM EQUIPMENT(EK3) EXC. RADIO AM ASIA/OCEANIA BAND(7AQ), RADIO AM/FM W/CASSETTE ASIA/OCEANIA BAND(7AU),RADIO AM/FM W/CASSETTE LATIN AMERICA BAND(7AW) 16.190 M5X12 TAPPING 		9-09829-321-1 04 1 9210-9212 ● ●
60 16.650 SCREW; BOX
EXC. RADIO AM ASIA/OCEANIA BAND(7AQ), RADIO AM/FM W/CASSETTE ASIA/OCEANIA BAND(7AU),RADIO AM/FM W/CASSETTE LATIN AMERICA BAND(7AW) 16.190 M5X12 TAPPING 		9-09829-321-1 04 1 9210-9212 ●
60 16.650 SCREW; BOX
UNITED KINGDOM EQUIPMENT(EK3) EXC. RADIO AM ASIA/OCEANIA BAND(7AQ), RADIO AM/FM W/CASSETTE ASIA/OCEANIA BAND(7AU),RADIO AM/FM W/CASSETTE LATIN AMERICA BAND(7AW) 09.744 M5X14 TAPPING 		9-09829-322-1 04 1 9301- ● ●
60 16.650 SCREW; BOX
EXC. RADIO AM ASIA/OCEANIA BAND(7AQ), RADIO AM/FM W/CASSETTE ASIA/OCEANIA BAND(7AU),RADIO AM/FM W/CASSETTE LATIN AMERICA BAND(7AW) 09.744 M5X14 TAPPING 		9-09829-322-1 04 1 9301- ●
62 16.650 SCREW; BRKT
10.701 M6X16 		8-94206-784-0 04 1 9210- ● ● ●
63 16.650 BRACKET; FRT CONSOLE
UNITED KINGDOM EQUIPMENT(EK3) 		8-94435-485-3 01 1 9210- ● ●
63 16.650 BRACKET; FRT CONSOLE 8-94435-485-3 01 1 9210- ●
102 16.650 LOCK ASM; RR CONSOLE
CENTER CONSOLE<D63> 		8-94253-330-0 01 1 9210- ● ● ●
107 16.650 LOCK; LID,RR CONSOLE
CENTER CONSOLE<D63> 		8-94110-961-1 01 1 9210- ● ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
CENTER CONSOLE<D63> 		8-94110-962-1 01 1 9210- ● ● ●
113 04.015 BOX; CONSOLE
4X2(TFB***) M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) BLACK 		8-94373-417-2 01 1 9210- ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
INTERIOR COLOR BEIGE(120) CENTER CONSOLE<D63> BROWN 		8-94474-721-2 02 1 9210-9308 ● ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
INTERIOR COLOR MUSHROOM(150) CENTER CONSOLE<D63> GRAY 		8-94474-722-2 02 1 9210- ● ● ●
117 16.650 SCREW; CONSOLE TO BODY PNL
CENTER CONSOLE<D63> 16.870 M5X19 		1-09981-152-0 02 1 9210- ● ● ●
119 04.015 CONSOLE; SHIFT LEVER
A/T AISIN(RMD) INTERIOR COLOR BEIGE(120) (A) BROWN 		8-94474-724-1 01 1 9210-9308 ● ● ●
119 04.015 CONSOLE; SHIFT LEVER
A/T AISIN(RMD) INTERIOR COLOR MUSHROOM(150) (A) GRAY 		8-94474-725-1 01 1 9210- ● ● ●
119 04.015 CONSOLE; SHIFT LEVER
M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) INTERIOR COLOR BEIGE(120) FRONT CONSOLE<D55> (B) BROWN 		8-94478-245-2 01 1 9210-9308 ● ● ●
119 04.015 CONSOLE; SHIFT LEVER
M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) INTERIOR COLOR MUSHROOM(150) FRONT CONSOLE<D55> (B) GRAY 		8-94478-246-2 01 1 9210- ● ● ●
154 16.650 LID ASM; RR CONSOLE
INTERIOR COLOR BEIGE(120) CENTER CONSOLE<D63> BROWN 		8-94478-251-2 01 1 9210-9308 ● ● ●
154 16.650 LID ASM; RR CONSOLE
INTERIOR COLOR MUSHROOM(150) CENTER CONSOLE<D63> GRAY 		8-94478-252-2 01 1 9210- ● ● ●
161 16.650 SCREW; RR CONSOLE
CENTER CONSOLE<D63> (A) 		0-70080-031-0 04 1 9210- ● ● ●
161 16.650 SCREW; RR CONSOLE
CENTER CONSOLE<D63> 16.085 (C) M5X16 TAPPING 		9-09829-323-1 02 1 9210- ● ● ●
161 16.650 SCREW; RR CONSOLE
CENTER CONSOLE<D63> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 04 1 9210- ● ● ●
188 16.650 CONSOLE; RR
INTERIOR COLOR BEIGE(120) CENTER CONSOLE<D63> BROWN 		8-94474-719-3 01 1 9210-9308 ● ● ●
188 16.650 CONSOLE; RR
INTERIOR COLOR MUSHROOM(150) CENTER CONSOLE<D63> GRAY 		8-94474-720-3 01 1 9210- ● ● ●
219 16.650 SCREW; BRKT TO CONSOLE
M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) FRONT CONSOLE<D55> M8X20 		9-03900-820-0 04 1 9210- ● ● ●
