7-40 — INSTRUMENT PANEL AND BOX (#45437) — 86 parça

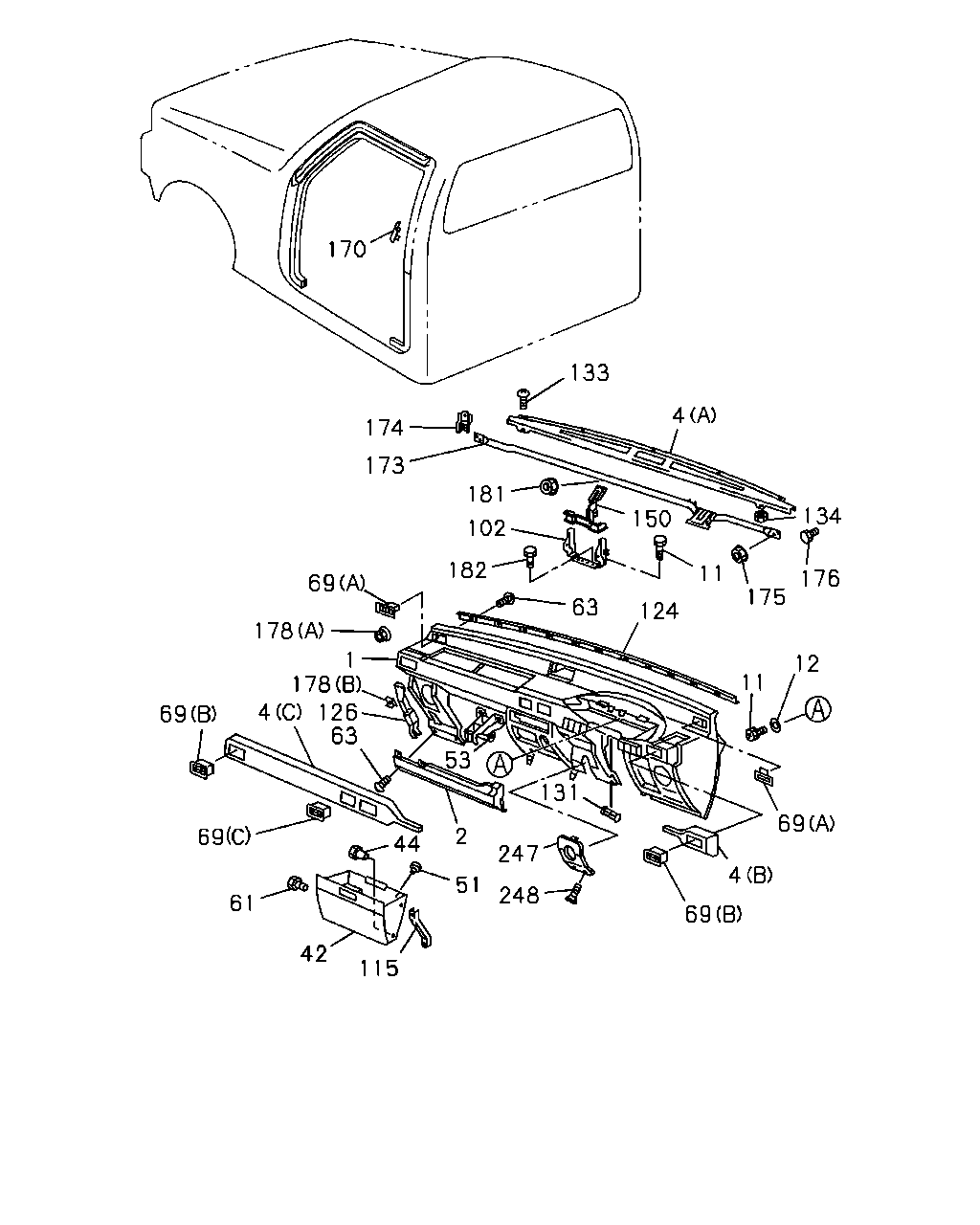

çizim 17382
170 174 173 133 4 181 102 150 134 176 175 11 124 63 182 69 178 178 1 126 63 4 69 69 61 42 115 44 51 2 53 131 247 248 69 4 69 11 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 16.080 PANEL; INST
INTERIOR COLOR BEIGE(120) BROWN 		8-97000-406-3 01 1 9210-9308 ● ● ● ● ● ● ● ●
1 16.080 PANEL; INST
INTERIOR COLOR MUSHROOM(150) GRAY 		8-97000-404-3 01 1 9210-9308 ● ● ● ● ● ● ● ●
1 16.080 PANEL; INST
GRAY 		8-97000-404-3 01 1 9309- ● ● ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR 8-94450-175-3 01 1 9210-9406 ● ● ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR 8-97113-413-0 01 1 9407- ● ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(C) GRAY 		8-94477-643-1 01 1 9407- ● ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(B) GRAY 		8-94477-640-1 01 1 9407- ● ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 16.081 (A) 		8-94450-154-3 01 1 9210- ● ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 16.081 (A) 		8-94330-164-1 01 1 9210- ● ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
INTERIOR COLOR BEIGE(120) (C) BROWN 		8-94477-642-1 01 1 9210-9308 ● ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
INTERIOR COLOR BEIGE(120) (B) BROWN 		8-94477-639-1 01 1 9210-9308 ● ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
INTERIOR COLOR MUSHROOM(150) (C) GRAY 		8-94477-643-1 01 1 9210-9308 ● ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(C) GRAY 		8-94477-643-1 01 1 9309-9406 ● ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
INTERIOR COLOR MUSHROOM(150) (B) GRAY 		8-94477-640-1 01 1 9210-9308 ● ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(B) GRAY 		8-94477-640-1 01 1 9309-9406 ● ● ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
16.085 M6X12 		8-94136-136-0 02 1 9210- ● ● ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 05 1 9210- ● ● ● ● ● ● ● ●
12 16.085 WASHER; PL,INST PANEL
02.587 ID=6.4 OD=18 		9-09160-706-0 01 1 9210- ● ● ● ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL
INTERIOR COLOR BEIGE(120) BROWN 		8-94475-856-6 01 1 9210-9308 ● ● ● ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL
INTERIOR COLOR MUSHROOM(150) GRAY 		8-94475-857-6 01 1 9210- ● ● ● ● ● ● ● ●
44 16.100 PIN; GLOVE BOX
10.262 		8-94129-687-2 02 1 9210- ● ● ● ● ● ● ● ●
51 16.110 CUSHION; STOPPER,GLOVE BOX 8-94389-122-0 03 1 9210- ● ● ● ● ● ● ● ●
53 16.115 STRIKER; GLOVE BOX 8-94310-754-1 01 1 9210- ● ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.110 M4X8 CK-HEAD 		9-03094-408-0 02 1 9210-9401 ● ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
M4X10 		8-97107-420-0 02 1 9402- ● ● ● ● ● ● ● ●
63 16.115 SCREW; BINDER HD
CHROMATE M5X16 TAPPING 		9-09829-188-0 14 1 9210-9406 ● ● ● ● ● ● ● ●
63 16.115 SCREW; BINDER HD
16.085 BLACK M5X16 TAPPING 		9-09829-323-1 06 1 9210- ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(C) GRAY 		8-94474-762-3 02 1 9407- ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
GRADE LS(RBD) INTERIOR COLOR BEIGE(120) HEATER & DEFROSTER(C41),AIR CON(C60) 16.070 (B) BROWN 		8-94474-765-3 01 1 9210-9308 ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BEIGE(120) VENTILATION RAM AIR(6TN) 16.070 (B) BROWN 		8-94474-765-3 01 1 9210-9308 ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
GRADE LS(RBD) INTERIOR COLOR BEIGE(120) HEATER & DEFROSTER(C41),AIR CON(C60) 16.070 (B) BROWN 		8-94474-763-3 01 1 9210-9308 ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BEIGE(120) VENTILATION RAM AIR(6TN) 16.070 (B) BROWN 		8-94474-763-3 01 1 9210-9308 ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
GRADE LS(RBD) INTERIOR COLOR MUSHROOM(150) HEATER & DEFROSTER(C41),AIR CON(C60) 16.070 (B) GRAY 		8-94474-766-3 01 1 9210-9406 ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR MUSHROOM(150) VENTILATION RAM AIR(6TN) 16.070 (B) GRAY 		8-94474-766-3 01 1 9210-9406 ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
VENTILATION RAM AIR(6TN) 16.070 (B) GRAY 		8-94474-766-3 01 1 9407- ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
GRADE LS(RBD) INTERIOR COLOR MUSHROOM(150) HEATER & DEFROSTER(C41),AIR CON(C60) 16.070 (B) GRAY 		8-94474-764-3 01 1 9210-9406 ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR MUSHROOM(150) VENTILATION RAM AIR(6TN) 16.070 (B) GRAY 		8-94474-764-3 01 1 9210-9406 ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
VENTILATION RAM AIR(6TN) 16.070 (B) GRAY 		8-94474-764-3 01 1 9407- ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
GRADE STD(RBA),GRADE DLX(RBB) INTERIOR COLOR BEIGE(120) EXC. VENTILATION RAM AIR(6TN) (C) BROWN 		8-94474-761-3 02 1 9210-9308 ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
GRADE LS(RBD) INTERIOR COLOR BEIGE(120) EXC. HEATER & DEFROSTER(C41),AIR CON(C60),VENTILATION RAM AIR(6TN) (C) BROWN 		8-94474-761-3 02 1 9210-9308 ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BEIGE(120) (C) BROWN 		8-94474-761-3 02 1 9210-9308 ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
GRADE STD(RBA),GRADE DLX(RBB) INTERIOR COLOR MUSHROOM(150) EXC. VENTILATION RAM AIR(6TN) (C) GRAY 		8-94474-762-3 02 1 9210-9406 ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
GRADE LS(RBD) INTERIOR COLOR MUSHROOM(150) EXC. HEATER & DEFROSTER(C41),AIR CON(C60),VENTILATION RAM AIR(6TN) (C) GRAY 		8-94474-762-3 02 1 9210-9406 ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR MUSHROOM(150) (C) GRAY 		8-94474-762-3 02 1 9210-9406 ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
EXC. VENTILATION RAM AIR(6TN) (B) GRAY 		8-94474-762-4 02 1 9407- ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BEIGE(120) (A) BROWN 		8-94474-788-2 01 1 9210-9308 ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BEIGE(120) (A) BROWN 		8-94474-785-2 01 1 9210-9308 ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR MUSHROOM(150) (A) GRAY 		8-94474-789-2 01 1 9210- ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR MUSHROOM(150) (A) GRAY 		8-94474-786-2 01 1 9210- ● ● ● ● ● ● ● ●
102 16.085 BRACKET; INST PANEL TO FLOOR 8-94375-135-1 01 1 9210- ● ● ● ● ● ● ● ●
115 16.085 RETAINER; GLOVE BOX 8-94339-842-0 01 1 9210- ● ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR 8-94449-374-4 01 1 9210- ● ● ● ● ● ● ● ●
126 16.085 STAY; GLOVE BOX SIDE 8-94339-844-0 01 1 9210- ● ● ● ● ● ● ● ●
126 16.085 STAY; GLOVE BOX SIDE 8-94339-843-0 01 1 9210- ● ● ● ● ● ● ● ●
131 09.264 GRILLE ASM; LAP VENT 8-94365-787-0 01 1 9210- ● ● ● ● ● ● ● ●
133 16.081 SCREW; COVER,INST PNL
10.230 M6X14 		8-94152-833-0 05 1 9210-9406 ● ● ● ● ● ● ● ●
133 16.081 SCREW; COVER,INST PNL
08.155 M6X16 		8-94479-534-0 05 1 9407- ● ● ● ● ● ● ● ●
134 16.081 NUT; FRT COVER,INST PANEL
M6 FLANGE 		8-94159-247-0 03 1 9210-9305 ● ● ● ● ● ● ● ●
134 16.081 NUT; FRT COVER,INST PANEL
07.833 M6 FLANGE 		8-97063-399-0 03 1 9306- ● ● ● ● ● ● ● ●
150 16.085 STAY; INST PNL 8-94383-563-1 01 1 9210- ● ● ● ● ● ● ● ●
170 16.165 COVER; HOLE
GRADE STD(RBA),GRADE DLX(RBB) EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97042-361-1 01 1 9210-9505 ● ● ● ● ● ●
170 16.165 COVER; HOLE
GRADE STD(RBA),GRADE DLX(RBB) UNITED KINGDOM EQUIPMENT(EK3) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) 		8-97042-361-1 01 1 9210-9505 ● ●
170 16.165 COVER; HOLE
GRADE STD(RBA),GRADE DLX(RBB) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97042-361-1 01 1 9506-9509 ● ● ● ● ● ●
170 16.165 COVER; HOLE
GRADE STD(RBA),GRADE DLX(RBB) UNITED KINGDOM EQUIPMENT(EK3) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) 		8-97042-361-1 01 1 9506-9509 ● ●
170 16.165 COVER; HOLE
GRADE STD(RBA),GRADE DLX(RBB) EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97049-460-2 01 1 9210-9505 ● ● ● ● ● ●
170 16.165 COVER; HOLE
GRADE STD(RBA),GRADE DLX(RBB) UNITED KINGDOM EQUIPMENT(EK3) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) 		8-97049-460-2 01 1 9210-9505 ● ●
170 16.165 COVER; HOLE
GRADE STD(RBA),GRADE DLX(RBB) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97049-460-2 01 1 9506-9509 ● ● ● ● ● ●
170 16.165 COVER; HOLE
GRADE STD(RBA),GRADE DLX(RBB) UNITED KINGDOM EQUIPMENT(EK3) EXC. BUCKET SEAT WO/RECLINING(AV5), BUCKET SEAT W/RECLINING(S3B) 		8-97049-460-2 01 1 9506-9509 ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL 8-94381-056-0 01 1 9210- ● ● ● ● ● ● ● ●
174 16.085 BRACKET; BEAM SIDE 8-94375-073-2 01 1 9210- ● ● ● ● ● ● ● ●
175 16.085 NUT; CROSS BEAM
07.833 M6 W/DISHED WASHER 		8-94170-192-0 01 1 9210-9305 ● ● ● ● ● ● ● ●
175 16.085 NUT; CROSS BEAM
07.833 M6 FLANGE 		8-97063-399-0 01 1 9306- ● ● ● ● ● ● ● ●
175 16.085 NUT; CROSS BEAM
07.832 M8 FLANGE 		8-94459-656-0 04 1 9210-9603 ● ● ● ● ● ● ● ●
175 16.085 NUT; CROSS BEAM
09.011 M8 W/LK WASHER 		8-97065-435-0 04 1 9604- ● ● ● ● ● ● ● ●
176 16.085 BOLT; CROSS BEAM
01.540 M8X18 W/LK&PL WASHER 		0-50140-818-0 01 1 9210-9411 ● ● ● ● ● ● ● ●
176 16.085 BOLT; CROSS BEAM
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9412- ● ● ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
07.833 (A) M6 W/DISHED WASHER 		8-94170-192-0 03 1 9210-9305 ● ● ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
07.833 (A) M6 FLANGE 		8-97063-399-0 03 1 9306- ● ● ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
09.262 (B) M5 SPIRE NUT 		8-94217-271-0 14 1 9210- ● ● ● ● ● ● ● ●
181 16.085 NUT; STAY,INST PANEL
07.833 M6 W/DISHED WASHER 		8-94170-192-0 02 1 9210-9305 ● ● ● ● ● ● ● ●
181 16.085 NUT; STAY,INST PANEL
07.833 M6 FLANGE 		8-97063-399-0 02 1 9306- ● ● ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94452-505-0 02 1 9210-9609 ● ● ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
10.230 M6X16 FLANGE 		8-94380-676-1 02 1 9610- ● ● ● ● ● ● ● ●
247 16.080 COVER; HAND BRAKE LEVER,INST PAN
INTERIOR COLOR BEIGE(120) BROWN 		8-94478-313-3 01 1 9210-9308 ● ● ● ● ● ● ● ●
247 16.080 COVER; HAND BRAKE LEVER,INST PAN
INTERIOR COLOR MUSHROOM(150) GRAY 		8-94478-314-3 01 1 9210- ● ● ● ● ● ● ● ●
248 16.085 SCREW; HAND BRAKE LEVER COVER
M5X16 TAPPING 		9-09829-323-1 02 1 9210- ● ● ● ● ● ● ● ●
