◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50651 - TFR/TFS-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#45434) — 131 parça

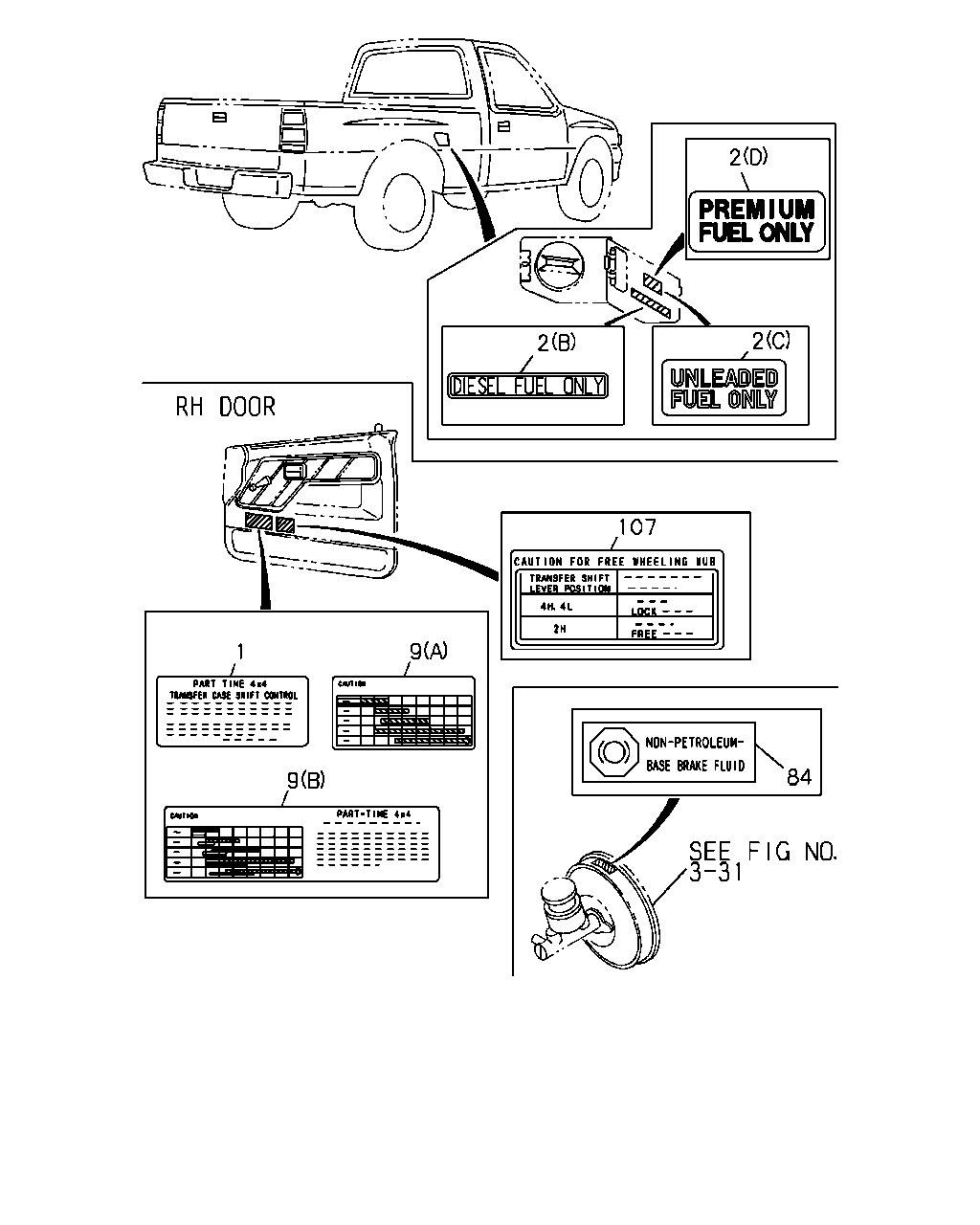

çizim 64825
2 2 2 107 84 9 1 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.017 PLATE; CAUTION,SHIFT PATTERN
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) CAUTION SPANISH<YN1> 		5-85883-056-1 01 1 9210-9311 ● ● ● ●
1 04.017 PLATE; CAUTION,SHIFT PATTERN
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) CAUTION SPANISH<YN1> 		8-97108-716-0 01 1 9312- ● ● ● ●
1 04.017 PLATE; CAUTION,SHIFT PATTERN
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. CAUTION SPANISH<YN1> 		5-85883-055-1 01 1 9210-9311 ● ● ● ●
1 04.017 PLATE; CAUTION,SHIFT PATTERN
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. CAUTION SPANISH<YN1> 		8-97108-715-0 01 1 9312- ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
C223 ENG(LQ7),4JA1 ENG(RLE) CAUTION SPANISH<YN1> (A) 		8-94332-265-0 01 1 9210-9410 ● ● ● ● ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) (B) 		8-94414-353-0 01 1 9210- ● ● ● ● ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
C223 ENG(LQ7),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), CAUTION SPANISH<YN1> (A) 		8-94332-264-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), CAUTION SPANISH<YN1> (A) 		8-94332-264-0 01 1 9407-9410 ● ● ● ● ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-94332-263-1 01 1 9210-9406 ● ● ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-94332-263-1 01 1 9407-9410 ● ● ●
2 03.680 LABEL; FUEL CAUTION
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 08.808 (C) 		8-94206-917-1 01 1 9210-9401 ● ● ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) 08.808 (C) 		8-94206-917-1 01 1 9210-9401 ● ●
2 03.680 LABEL; FUEL CAUTION
4ZD1 ENG(LW3),4JA1 ENG(RLE) AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) 08.808 (C) 		8-94206-917-1 01 1 9402-9406 ● ● ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) 08.808 (C) 		8-94206-917-1 01 1 9402-9406 ● ●
2 03.680 LABEL; FUEL CAUTION
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIP MENT(S9Y) 08.808 (C) 		8-94206-917-1 01 1 9407- ● ● ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
4ZE1 ENG(RLJ) NEW ZEALAND EQUIPMENT(PK5) EXC. ELECTRIC FUEL INJECTION<6GG> (D) 		8-97089-516-0 01 1 9211- ● ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) CAUTION SPANISH<YN1> REAR AXLE LOW GEARED(6ST) EXC. SPEEDOMETER MILE<UC1> (A) 		8-94381-055-0 01 1 9210- ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>,REAR AXLE LOW GEARED(6ST),M/T LOW GEARED(6WF) (A) 		8-94331-887-0 01 1 9210- ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) REAR AXLE LOW GEARED(6ST) EXC. UNITED KINGDOM EQUIPMENT(EK3), SPEEDOMETER MILE<UC1>,CAUTION SPANISH<YN1> (A) 		8-94381-054-0 01 1 9210-9505 ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. UNITED KINGDOM EQUIPMENT(EK3), SPEEDOMETER MILE<UC1>,CAUTION SPANISH<YN1>,REAR AXLE LOW GEARED(6ST) (A) 		8-94381-054-0 01 1 9210-9505 ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE),4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94381-054-0 01 1 9210-9505 ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE),4JB1 ENG(RLF) THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94381-054-0 01 1 9506- ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) REAR AXLE LOW GEARED(6ST) EXC. UNITED KINGDOM EQUIPMENT(EK3), SPEEDOMETER MILE<UC1>,CAUTION SPANISH<YN1> (A) 		8-94381-054-0 01 1 9506- ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. UNITED KINGDOM EQUIPMENT(EK3), SPEEDOMETER MILE<UC1>,CAUTION SPANISH<YN1>,REAR AXLE LOW GEARED(6ST) (A) 		8-94381-054-0 01 1 9506- ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) HONG KONG EQUIPMENT(PQ1) (A) 		8-94381-054-0 01 1 9506- ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) SPEEDOMETER MILE<UC1> EXC. CAUTION SPANISH<YN1>,REAR AXLELOW GEARED(6ST) (A) 		8-94332-957-0 01 1 9210- ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) SPEEDOMETER MILE<UC1> REAR AXLE LOW GEARED(6ST) EXC. CAUTION SPANISH<YN1> (A) 		8-94381-053-0 01 1 9210-9505 ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-94381-053-0 01 1 9210-9505 ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) SPEEDOMETER MILE<UC1> REAR AXLE LOW GEARED(6ST) EXC. CAUTION SPANISH<YN1> (A) 		8-94381-053-0 01 1 9506- ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1) (A) 		8-94381-053-0 01 1 9506- ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,CAUTION SPANISH<YN1>,RE AR AXLE LOW GEARED(6ST),M/T LOW GEARED(6WF) (A) 		8-94423-384-0 01 1 9210-9210 ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1> ,CAUTION SPANISH<YN1>,REAR AXLE LOWGEARED(6ST),M/T LOW GEARED(6WF) (A) 		8-94423-384-0 01 1 9211- ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
C223 ENG(LQ7) CAUTION SPANISH<YN1> (A) 		8-94167-656-0 01 1 9210-9308 ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
C223 ENG(LQ7) EXC. UNITED KINGDOM EQUIPMENT(EK3), SPEEDOMETER MILE<UC1>,CAUTION SPANISH<YN1> (A) 		8-94167-651-0 01 1 9210-9308 ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
C223 ENG(LQ7),SPEEDOMETER MILE<UC1> (A) 		8-94167-654-0 01 1 9210-9308 ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
C223 ENG(LQ7) UNITED KINGDOM EQUIPMENT(EK3) EXC. SPEEDOMETER MILE<UC1> (A) 		8-94167-654-0 01 1 9210-9308 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) CAUTION SPANISH<YN1> M/T LOW GEARED(6WF) EXC. SPEEDOMETER MILE<UC1> (B) 		8-97039-424-0 01 1 9210-9509 ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) CAUTION SPANISH<YN1> M/T LOW GEARED(6WF) EXC. SPEEDOMETER MILE<UC1> (B) 		8-97039-424-0 01 1 9510- ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JB1 ENG(RLF) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1> (B) 		8-97039-424-0 01 1 9510- ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>,M/T LOW GEARED(6WF) (B) 		8-94331-889-0 01 1 9210- ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. SPEEDOMETER MILE<UC1>,CAUTION SPANISH<YN1> (B) 		8-97039-423-0 01 1 9210-9408 ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. SPEEDOMETER MILE<UC1>,CAUTION SPANISH<YN1> (B) 		8-97039-423-0 01 1 9409- ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) THAILAND EQUIPMENT(PM9) (B) 		8-97039-423-0 01 1 9409- ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) SPEEDOMETER MILE<UC1> EXC. CAUTION SPANISH<YN1>,M/T LOW GEARED(6WF) (B) 		8-94332-958-0 01 1 9210-9505 ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-94332-958-0 01 1 9210-9505 ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) SPEEDOMETER MILE<UC1> EXC. CAUTION SPANISH<YN1>,M/T LOW GEARED(6WF) (B) 		8-94332-958-0 01 1 9506- ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1) (B) 		8-94332-958-0 01 1 9506- ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) SPEEDOMETER MILE<UC1> M/T LOW GEARED(6WF) EXC. CAUTION SPANISH<YN1> (B) 		8-97039-422-0 01 1 9210- ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3), SPEEDOMETER MILE<UC1>,CAUTION SPANISH<YN1>,M/T LOW GEARED(6WF) (B) 		8-94331-888-0 01 1 9210-9408 ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9), SPEEDOMETERMILE<UC1>,CAUTION SPANISH<YN1>,M/T LOW GEARED(6WF) (B) 		8-94331-888-0 01 1 9409-9505 ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9), SPEEDOMETERMILE<UC1>,CAUTION SPANISH<YN1>,M/T LOW GEARED(6WF) (B) 		8-94331-888-0 01 1 9506- ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1) (B) 		8-94331-888-0 01 1 9506- ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> (B) 		8-97021-925-0 01 1 9210- ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JB1 ENG(RLF) EXC. SPEEDOMETER MILE<UC1> (B) 		8-97013-728-0 01 1 9210- ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
C223 ENG(LQ7) CAUTION SPANISH<YN1> (B) 		8-94167-655-0 01 1 9210-9308 ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
C223 ENG(LQ7) SPEEDOMETER MILE<UC1> (B) 		8-94167-653-0 01 1 9210-9308 ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
UNITED KINGDOM EQUIPMENT(EK3) EXC. SPEEDOMETER MILE<UC1> (B) 		8-94167-653-0 01 1 9210-9308 ● ●
9 08.808 PLATE; NAME,SPD RANGE
C223 ENG(LQ7) EXC. UNITED KINGDOM EQUIPMENT(EK3), SPEEDOMETER MILE<UC1>,CAUTION SPANISH<YN1> (B) 		8-94167-652-0 01 1 9210-9308 ● ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID
UNITED KINGDOM EQUIPMENT(EK3) 		8-97062-755-2 01 1 9210-9406 ● ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID
UNITED KINGDOM EQUIPMENT(EK3) 		8-97062-755-2 01 1 9407-9510 ● ● ●
107 08.808 LABEL; FREE WHEEL HUB
AUTO LOCKING HUB(S1Y) CAUTION SPANISH<YN1> 		8-94103-623-0 01 1 9210-9308 ● ● ● ●
107 08.808 LABEL; FREE WHEEL HUB
AUTO LOCKING HUB(S1Y) CAUTION SPANISH<YN1> 		8-97101-553-0 01 1 9309-9309 ● ● ● ●
107 08.808 LABEL; FREE WHEEL HUB
AUTO LOCKING HUB(S1Y) CAUTION SPANISH<YN1> 		8-97107-439-0 01 1 9310-9310 ● ● ● ●
107 08.808 LABEL; FREE WHEEL HUB
AUTO LOCKING HUB(S1Y) CAUTION SPANISH<YN1> 		8-97108-671-1 01 1 9311- ● ● ● ●
107 08.808 LABEL; FREE WHEEL HUB
AUTO LOCKING HUB(S1Y) EXC. CAUTION SPANISH<YN1> 		8-94157-936-0 01 1 9210-9308 ● ● ● ●
107 08.808 LABEL; FREE WHEEL HUB
AUSTRALIA EQUIPMENT(RR3) EXC. MANUAL LOCKING HUB(ED2) 		8-94157-936-0 01 1 9210-9308 ● ● ●
107 08.808 LABEL; FREE WHEEL HUB
AUTO LOCKING HUB(S1Y) EXC. CAUTION SPANISH<YN1> 		8-97101-554-0 01 1 9309-9310 ● ● ● ●
107 08.808 LABEL; FREE WHEEL HUB
AUSTRALIA EQUIPMENT(RR3) EXC. MANUAL LOCKING HUB(ED2) 		8-97101-554-0 01 1 9309-9310 ● ● ●
107 08.808 LABEL; FREE WHEEL HUB
AUTO LOCKING HUB(S1Y) EXC. CAUTION SPANISH<YN1> 931018- 		8-97108-672-1 01 1 9310- ● ● ● ●
107 08.808 LABEL; FREE WHEEL HUB
AUSTRALIA EQUIPMENT(RR3) EXC. MANUAL LOCKING HUB(ED2) 931018- 		8-97108-672-1 01 1 9310- ● ● ●
107 08.808 LABEL; FREE WHEEL HUB
MANUAL LOCKING HUB(ED2) CAUTION SPANISH<YN1> 		5-85883-065-1 01 1 9210-9308 ● ● ● ●
107 08.808 LABEL; FREE WHEEL HUB
MANUAL LOCKING HUB(ED2) CAUTION SPANISH<YN1> 		8-97101-556-0 01 1 9309-9309 ● ● ● ●
107 08.808 LABEL; FREE WHEEL HUB
MANUAL LOCKING HUB(ED2) CAUTION SPANISH<YN1> 		8-97107-442-0 01 1 9310-9310 ● ● ● ●
107 08.808 LABEL; FREE WHEEL HUB
MANUAL LOCKING HUB(ED2) CAUTION SPANISH<YN1> 		8-97108-674-1 01 1 9311- ● ● ● ●
107 08.808 LABEL; FREE WHEEL HUB
MANUAL LOCKING HUB(ED2) EXC. CAUTION SPANISH<YN1> 		5-85883-064-1 01 1 9210-9308 ● ● ● ●
107 08.808 LABEL; FREE WHEEL HUB
MANUAL LOCKING HUB(ED2) EXC. CAUTION SPANISH<YN1> 		8-97101-555-0 01 1 9309-9309 ● ● ● ●
107 08.808 LABEL; FREE WHEEL HUB
MANUAL LOCKING HUB(ED2) EXC. CAUTION SPANISH<YN1> 		8-97107-441-0 01 1 9310-9310 ● ● ● ●
107 08.808 LABEL; FREE WHEEL HUB
MANUAL LOCKING HUB(ED2) EXC. CAUTION SPANISH<YN1> 		8-97108-673-1 01 1 9311- ● ● ● ●

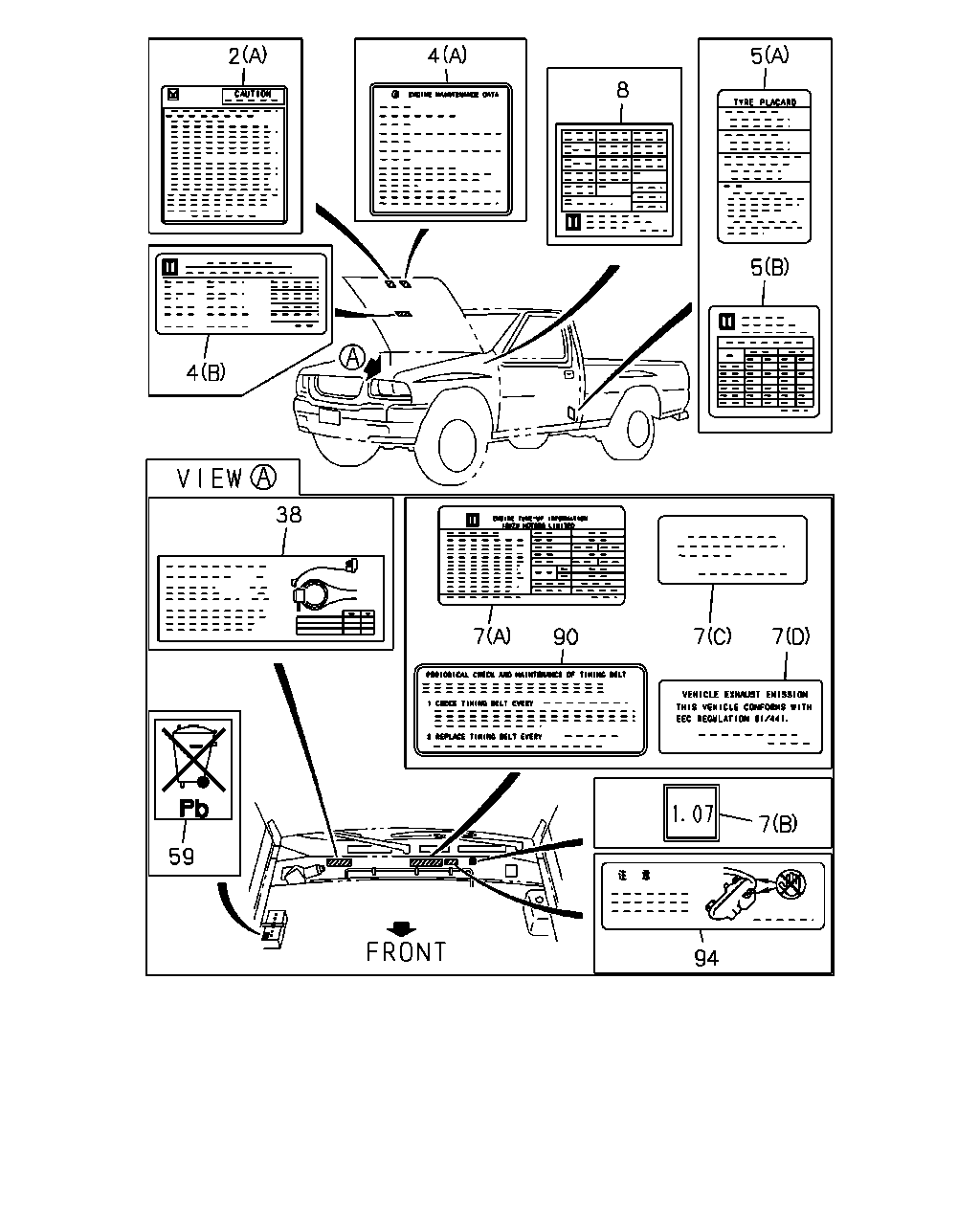

çizim 68514
2 4 4 8 5 5 7 7 90 7 38 59 94 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 03.680 LABEL; FUEL CAUTION
C223 ENG(LQ7),4JA1 ENG(RLE) CAUTION SPANISH<YN1> (A) 		8-94332-265-0 01 1 9210-9410 ● ● ● ● ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) (B) 		8-94414-353-0 01 1 9210- ● ● ● ● ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
C223 ENG(LQ7),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), CAUTION SPANISH<YN1> (A) 		8-94332-264-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), CAUTION SPANISH<YN1> (A) 		8-94332-264-0 01 1 9407-9410 ● ● ● ● ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-94332-263-1 01 1 9210-9406 ● ● ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-94332-263-1 01 1 9407-9410 ● ● ●
2 03.680 LABEL; FUEL CAUTION
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 08.808 (C) 		8-94206-917-1 01 1 9210-9401 ● ● ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) 08.808 (C) 		8-94206-917-1 01 1 9210-9401 ● ●
2 03.680 LABEL; FUEL CAUTION
4ZD1 ENG(LW3),4JA1 ENG(RLE) AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) 08.808 (C) 		8-94206-917-1 01 1 9402-9406 ● ● ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) 08.808 (C) 		8-94206-917-1 01 1 9402-9406 ● ●
2 03.680 LABEL; FUEL CAUTION
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIP MENT(S9Y) 08.808 (C) 		8-94206-917-1 01 1 9407- ● ● ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
4ZE1 ENG(RLJ) NEW ZEALAND EQUIPMENT(PK5) EXC. ELECTRIC FUEL INJECTION<6GG> (D) 		8-97089-516-0 01 1 9211- ● ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JA1 ENG(RLE) CAUTION SPANISH<YN1> (A) 		8-94332-267-0 01 1 9210- ● ● ● ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) EXC. CAUTION SPANISH<YN1> (A) 		8-94384-349-0 01 1 9210- ● ● ● ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) TURBOCHARGER<K51> CAUTION SPANISH<YN1> (A) 		8-94384-351-0 01 1 9510- ● ● ● ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) (B) 		8-94160-628-0 01 1 9210- ● ● ● ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JA1 ENG(RLE) EXC. CAUTION SPANISH<YN1> (A) 		8-94332-266-0 01 1 9210-9308 ● ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3), CAUTION SPANISH<YN1> (A) 		8-94332-266-0 01 1 9210-9308 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3), COOLER WO/HEATER(YL1) (A) 		8-94332-266-0 01 1 9309- ● ● ● ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97044-279-0 01 1 9210-9406 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97044-279-0 01 1 9407- ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
EXC. AUSTRALIA EQUIPMENT(RR3), CAUTION SPANISH<YN1> (B) 		8-97071-648-0 01 1 9210- ● ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
CAUTION SPANISH<YN1> (B) 		8-97071-649-0 01 1 9210- ● ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
AUSTRALIA EQUIPMENT(RR3) (A) 		8-97017-394-0 01 1 9210- ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
EXC. AUSTRALIA EQUIPMENT(RR3), CAUTION SPANISH<YN1> (B) 		8-97071-650-0 01 1 9210- ● ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
CAUTION SPANISH<YN1> (B) 		8-97071-647-0 01 1 9210- ● ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
AUSTRALIA EQUIPMENT(RR3) (A) 		8-97071-646-0 01 1 9210- ● ● ●
7 03.680 LABEL; EMISSION
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 1.07 		8-97020-678-0 01 1 9210-9406 ● ● ● ● ● ●
7 03.680 LABEL; EMISSION
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 1.07 		8-97020-678-0 01 1 9407-9407 ● ● ●
7 03.680 LABEL; EMISSION
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 0.95 '940711- 		8-97117-848-0 01 1 9407- ● ● ●
7 03.680 LABEL; EMISSION
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97065-484-0 01 1 9210-9403 ● ● ● ● ●
7 03.680 LABEL; EMISSION
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y) (A) 		8-97065-484-0 01 1 9404-9406 ● ● ●
7 03.680 LABEL; EMISSION
4ZD1 ENG(LW3) SINGAPORE EQUIPMENT(S9Y) (A) 		8-97065-484-0 01 1 9407- ● ●
7 03.680 LABEL; EMISSION
4ZA1 ENG(L17) SINGAPORE EQUIPMENT(S9Y) (C) 		8-94175-166-0 01 1 9210-9402 ●
7 03.680 LABEL; EMISSION
4ZD1 ENG(LW3) SINGAPORE EQUIPMENT(S9Y) (D) 		8-97109-031-0 01 1 9403- ● ●
8 03.680 LABEL; FUSE
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) DARK RED 		8-94361-710-0 01 1 9210-9407 ● ● ● ● ● ● ● ●
8 03.680 LABEL; FUSE
4JA1 ENG(RLE),4JB1 ENG(RLF) DARK RED 		8-94361-710-0 01 1 9408-9509 ● ● ● ● ●
8 03.680 LABEL; FUSE
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) DARK RED 		8-94361-710-0 01 1 9408-9509 ● ● ●
8 03.680 LABEL; FUSE
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) DARK RED 		8-94361-710-0 01 1 9510-9606 ● ● ●
8 03.680 LABEL; FUSE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) BLACK 		8-94371-684-0 01 1 9210- ● ● ● ● ● ● ● ●
8 03.680 LABEL; FUSE
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) BLUE 		8-94388-329-1 01 1 9408-9509 ● ● ●
8 03.680 LABEL; FUSE
4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) BLUE 		8-94388-329-1 01 1 9510-9606 ● ● ●
8 03.680 LABEL; FUSE
4JA1 ENG(RLE),4JB1 ENG(RLF) BLUE 		8-94388-329-1 01 1 9607- ● ● ● ● ● ● ● ●
38 08.808 PLATE; CAUTION,LSV
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 04.730 		8-97031-148-0 01 1 9210- ● ● ●
38 08.808 PLATE; CAUTION,LSV
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) 04.730 		8-97031-149-0 01 1 9210- ● ● ●
38 08.808 PLATE; CAUTION,LSV
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 04.730 		8-97031-147-0 01 1 9210-9406 ● ● ●
38 08.808 PLATE; CAUTION,LSV
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 04.730 		8-97031-147-0 01 1 9407- ● ●
38 08.808 PLATE; CAUTION,LSV
4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) 04.730 		8-97031-146-0 01 1 9210- ● ●
59 08.808 PLATE; CAUTION,BATTERY
UNITED KINGDOM EQUIPMENT(EK3) 10 PER 1 SHEET 		8-97116-760-0 01 1 9408-9507 ● ● ●
59 08.808 PLATE; CAUTION,BATTERY
UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1) 10 PER 1 SHEET 		8-97116-760-0 01 1 9508- ● ● ●
90 08.808 LABEL; CAUTION,TIMING BELT
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-94481-501-0 01 1 9210-9406 ● ● ●
90 08.808 LABEL; CAUTION,TIMING BELT
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-94481-501-0 01 1 9407- ● ● ●
94 08.808 PLATE; CAUTION,EGR PIPE
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97113-154-0 01 1 9408- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
