1 |

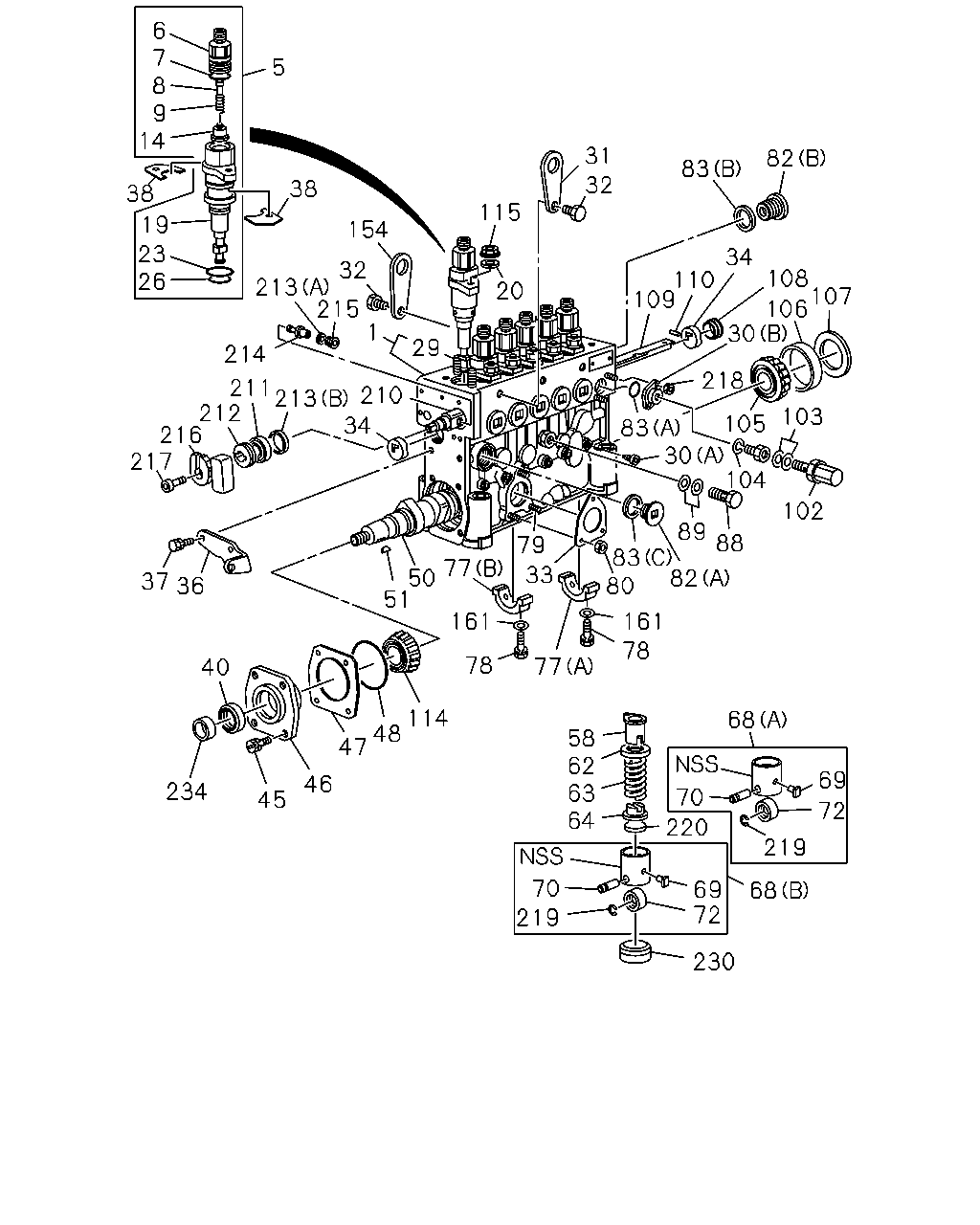

HOUSING; PUMP,FUEL INJ
ASM PART: A = 1-15603-271-2
|
1-15611-193-0 |
01 |
1 |
- |
| |
5 |
PLUNGER COMPL; INJ PUMP
ASM PART: A = 1-15603-271-2
|
1-15631-204-0 |
06 |
1 |
- |
| |
6 |
HOLDER; DELIVERY VLV,INJ PUMP
ASM PART: A = 1-15603-271-2
|
1-15644-016-0 |
06 |
1 |
- |
| |
7 |
GASKET; HOLDER,DELIVERY VLV
ASM PART: A = 1-15603-271-2
|
1-15629-095-0 |
06 |
1 |
- |
| |
8 |
STOPPER; DELIVERY VLV,INJ PUMP
ASM PART: A = 1-15603-271-2
|
1-15639-104-0 |
06 |
1 |
- |
| |
9 |
SPRING; DELIVERY VLV
ASM PART: A = 1-15603-271-2
|
1-15643-130-0 |
06 |
1 |
- |
| |
14 |
VALVE; DELIVERY,INJ PUMP
ASM PART: A = 1-15603-271-2
|
1-15641-041-0 |
06 |
1 |
- |
| |
19 |
PLUNGER ASM; INJ PUMP
ASM PART: A = 1-15603-271-2
|
1-15632-042-0 |
06 |
1 |
- |
| |
20 |
WASHER; PLUNGER BARREL
ASM PART: A = 1-15603-271-2
|
1-15639-020-0 |
12 |
1 |
- |
| |
23 |
GASKET; PLUNGER,BARREL SIDE
ASM PART: A = 1-15603-271-2
|
1-15629-096-0 |
06 |
1 |
- |
| |
26 |
GASKET; PLUNGER UPR
ASM PART: A = 1-15603-271-2
|
1-15629-097-0 |
06 |
1 |
- |
| |
29 |
STUD; PLUNGER FIX,PUMP HSG
ASM PART: A = 1-15603-271-2
|
1-15619-328-0 |
12 |
1 |
- |
| |
30 |
PLUG; SCREW,INJ PUMP HSG
(B) ASM PART: A = 1-15603-271-2
|
1-15619-345-0 |
01 |
1 |
- |
| |
30 |
PLUG; SCREW,INJ PUMP HSG
(A) ASM PART: A = 1-15603-271-2
|
9-81215-130-0 |
06 |
1 |
- |
| |
31 |
HANGER; FRT,INJ PUMP
ASM PART: A = 1-15603-271-2
|
1-15619-347-0 |
01 |
1 |
- |
| |
32 |
BOLT; HANGER TO INJ PUMP
ASM PART: A = 1-15603-271-2
|
1-15789-098-0 |
02 |
1 |
- |
| |
33 |
GASKET; FUEL FEED PUMP,INJ PUMP
ASM PART: A = 1-15603-271-2
|
1-15619-320-0 |
01 |
1 |
- |
| |
34 |
BUSHING; CONT RACK,INJ PUMP
ASM PART: A = 1-15603-271-2
|
9-81215-123-0 |
02 |
1 |
- |
| |
36 |
POINTER; TIMING,INJ PUMP
ASM PART: A = 1-15603-271-2
|
1-15619-408-0 |
01 |
1 |
- |
| |
37 |
BOLT; POINTER FIX,INJ PUMP
ASM PART: A = 1-15603-271-2
|
5-15729-063-0 |
02 |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.500
ASM PART: A = 1-15603-271-2
|
1-15639-024-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.525
ASM PART: A = 1-15603-271-2
|
1-15639-025-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.550
ASM PART: A = 1-15603-271-2
|
1-15639-026-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.575
ASM PART: A = 1-15603-271-2
|
1-15639-027-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.600
ASM PART: A = 1-15603-271-2
|
1-15639-028-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.625
ASM PART: A = 1-15603-271-2
|
1-15639-029-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.650
ASM PART: A = 1-15603-271-2
|
1-15639-030-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.675
ASM PART: A = 1-15603-271-2
|
1-15639-031-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.700
ASM PART: A = 1-15603-271-2
|
1-15639-032-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.725
ASM PART: A = 1-15603-271-2
|
1-15639-033-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.750
ASM PART: A = 1-15603-271-2
|
1-15639-034-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.775
ASM PART: A = 1-15603-271-2
|
1-15639-035-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.800
ASM PART: A = 1-15603-271-2
|
1-15639-036-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.825
ASM PART: A = 1-15603-271-2
|
1-15639-037-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.850
ASM PART: A = 1-15603-271-2
|
1-15639-038-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.875
ASM PART: A = 1-15603-271-2
|
1-15639-039-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.900
ASM PART: A = 1-15603-271-2
|
1-15639-040-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.925
ASM PART: A = 1-15603-271-2
|
1-15639-041-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.950
ASM PART: A = 1-15603-271-2
|
1-15639-042-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.975
ASM PART: A = 1-15603-271-2
|
1-15639-043-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.000
ASM PART: A = 1-15603-271-2
|
1-15639-044-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.025
ASM PART: A = 1-15603-271-2
|
1-15639-045-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.050
ASM PART: A = 1-15603-271-2
|
1-15639-046-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.075
ASM PART: A = 1-15603-271-2
|
1-15639-047-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.100
ASM PART: A = 1-15603-271-2
|
1-15639-048-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.125
ASM PART: A = 1-15603-271-2
|
1-15639-049-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.150
ASM PART: A = 1-15603-271-2
|
1-15639-050-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.175
ASM PART: A = 1-15603-271-2
|
1-15639-051-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.200
ASM PART: A = 1-15603-271-2
|
1-15639-052-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.225
ASM PART: A = 1-15603-271-2
|
1-15639-053-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.250
ASM PART: A = 1-15603-271-2
|
1-15639-054-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.275
ASM PART: A = 1-15603-271-2
|
1-15639-055-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.300
ASM PART: A = 1-15603-271-2
|
1-15639-056-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.325
ASM PART: A = 1-15603-271-2
|
1-15639-057-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.350
ASM PART: A = 1-15603-271-2
|
1-15639-058-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.375
ASM PART: A = 1-15603-271-2
|
1-15639-059-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.400
ASM PART: A = 1-15603-271-2
|
1-15639-060-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.425
ASM PART: A = 1-15603-271-2
|
1-15639-061-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.450
ASM PART: A = 1-15603-271-2
|
1-15639-062-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.475
ASM PART: A = 1-15603-271-2
|
1-15639-063-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.500
ASM PART: A = 1-15603-271-2
|
1-15639-064-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.525
ASM PART: A = 1-15603-271-2
|
1-15639-065-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.550
ASM PART: A = 1-15603-271-2
|
1-15639-066-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.575
ASM PART: A = 1-15603-271-2
|
1-15639-067-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.600
ASM PART: A = 1-15603-271-2
|
1-15639-068-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.625
ASM PART: A = 1-15603-271-2
|
1-15639-069-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.650
ASM PART: A = 1-15603-271-2
|
1-15639-070-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.675
ASM PART: A = 1-15603-271-2
|
1-15639-071-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.700
ASM PART: A = 1-15603-271-2
|
1-15639-072-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.725
ASM PART: A = 1-15603-271-2
|
1-15639-073-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.750
ASM PART: A = 1-15603-271-2
|
1-15639-074-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.775
ASM PART: A = 1-15603-271-2
|
1-15639-075-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.800
ASM PART: A = 1-15603-271-2
|
1-15639-076-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.825
ASM PART: A = 1-15603-271-2
|
1-15639-077-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.850
ASM PART: A = 1-15603-271-2
|
1-15639-078-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.875
ASM PART: A = 1-15603-271-2
|
1-15639-079-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.900
ASM PART: A = 1-15603-271-2
|
1-15639-080-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.925
ASM PART: A = 1-15603-271-2
|
1-15639-081-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.950
ASM PART: A = 1-15603-271-2
|
1-15639-082-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.975
ASM PART: A = 1-15603-271-2
|
1-15639-083-0 |
AR |
1 |
- |
| |
40 |
SEAL; OIL,CM/SHF FRT,INJ PUMP
ASM PART: A = 1-15603-271-2
|
1-15629-100-0 |
01 |
1 |
- |
| |
45 |
BOLT; FRT COVER TO HSG
ASM PART: A = 1-15603-271-2
|
1-15619-338-0 |
04 |
1 |
- |
| |
46 |
COVER; FRT,PUMP HSG
ASM PART: A = 1-15603-271-2
|
1-15612-042-0 |
01 |
1 |
- |
| |
47 |
SHIM; FRT COVER,INJ PUMP HSG
T=0.10
ASM PART: A = 1-15603-271-2
|
1-15639-097-0 |
AR |
1 |
- |
| |
47 |
SHIM; FRT COVER,INJ PUMP HSG
T=0.12
ASM PART: A = 1-15603-271-2
|
1-15639-098-0 |
AR |
1 |
- |
| |
47 |
SHIM; FRT COVER,INJ PUMP HSG
T=0.14
ASM PART: A = 1-15603-271-2
|
1-15639-099-0 |
AR |
1 |
- |
| |
47 |
SHIM; FRT COVER,INJ PUMP HSG
T=0.16
ASM PART: A = 1-15603-271-2
|
1-15639-100-0 |
AR |
1 |
- |
| |
47 |
SHIM; FRT COVER,INJ PUMP HSG
T=0.18
ASM PART: A = 1-15603-271-2
|
1-15639-101-0 |
AR |
1 |
- |
| |
47 |
SHIM; FRT COVER,INJ PUMP HSG
T=0.30
ASM PART: A = 1-15603-271-2
|
1-15639-102-0 |
AR |
1 |
- |
| |
47 |
SHIM; FRT COVER,INJ PUMP HSG
T=0.50
ASM PART: A = 1-15603-271-2
|
1-15639-103-0 |
AR |
1 |
- |
| |
48 |
GASKET; FRT COVER TO HSG
ASM PART: A = 1-15603-271-2
|
1-15629-101-0 |
01 |
1 |
- |
| |
50 |
CAMSHAFT; INJ PUMP
ASM PART: A = 1-15603-271-2
|
1-15621-103-0 |
01 |
1 |
- |
| |
51 |
KEY; DRIVE GEAR,INJ PUMP
ASM PART: A = 1-15603-271-2
|
1-09735-041-0 |
01 |
1 |
- |
| |
58 |
SLEEVE; CONT,INJ PUMP
ASM PART: A = 1-15603-271-2
|
1-15635-003-0 |
06 |
1 |
- |
| |
62 |
SEAT; PLUNGER SPRING,INJ PUMP
ASM PART: A = 1-15603-271-2
|
1-15634-017-1 |
06 |
1 |
- |
| |
63 |
SPRING; PLUNGER,INJ PUMP
ASM PART: A = 1-15603-271-2
|
1-15634-019-0 |
06 |
1 |
- |
| |
64 |
SEAT; PLUNGER SPRING LWR,INJ PUMP
ASM PART: A = 1-15603-271-2
|
1-15643-009-0 |
06 |
1 |
- |
| |
68 |
TAPPET; CM/SHF,INJ PUMP
(A) ASM PART: A = 1-15603-271-2
|
1-15622-009-0 |
02 |
1 |
- |
| |
68 |
TAPPET; CM/SHF,INJ PUMP
(B) ASM PART: A = 1-15603-271-2
|
1-15622-010-0 |
04 |
1 |
- |
| |
69 |
GUIDE; TAPPET,INJ PUMP
ASM PART: A = 1-15603-271-2
|
1-15629-063-0 |
06 |
1 |
- |
| |
70 |
PIN; TAPPET ROLLER,INJ PUMP
ASM PART: A = 1-15603-271-2
|
1-15619-313-0 |
06 |
1 |
- |
| |
72 |
ROLLER; TAPPET,INJ PUMP
ASM PART: A = 1-15603-271-2
|
1-15619-312-0 |
06 |
1 |
- |
| |
77 |
BEARING; CM/SHF CENTER,INJ PUMP
(A) ASM PART: A = 1-15603-271-2
|
1-15619-396-0 |
01 |
1 |
- |
| |
77 |
BEARING; CM/SHF CENTER,INJ PUMP
(B) ASM PART: A = 1-15603-271-2
|
1-15619-397-0 |
02 |
1 |
- |
| |
78 |
BOLT; CENTER BRG,INJ PUMP
ASM PART: A = 1-15603-271-2
|
1-09054-022-0 |
06 |
1 |
- |
| |
79 |
STUD; FUEL FEED PUMP TO HSG
ASM PART: A = 1-15603-271-2
|
9-81215-115-0 |
03 |
1 |
- |
| |
80 |
NUT; FUEL FEED PUMP FIX
ASM PART: A = 1-15603-271-2
|
8-94171-110-0 |
03 |
1 |
- |
| |
82 |
PLUG; HSG,INJ PUMP
(B) ASM PART: A = 1-15603-271-2
|
1-15619-329-0 |
01 |
1 |
- |
| |
82 |
PLUG; HSG,INJ PUMP
(A) ASM PART: A = 1-15603-271-2
|
9-81215-129-0 |
01 |
1 |
- |
| |
83 |
GASKET; HSG PLUG
(A) ASM PART: A = 1-15603-271-2
|
1-15619-067-0 |
01 |
1 |
- |
| |
83 |
GASKET; HSG PLUG
(C) ASM PART: A = 1-15603-271-2
|
1-15629-102-0 |
01 |
1 |
- |
| |
83 |
GASKET; HSG PLUG
(B) ASM PART: A = 1-15603-271-2
|
5-15729-022-0 |
01 |
1 |
- |
| |
88 |
BOLT; EYE,OIL FEED,INJ PUMP
ASM PART: A = 1-15603-271-2
|
1-15619-092-0 |
01 |
1 |
- |
| |
89 |
GASKET; OIL FEED BOLT,INJ PUMP
ASM PART: A = 1-15603-271-2
|
1-15719-093-0 |
02 |
1 |
- |
| |
102 |
VALVE; OVERFLOW,INJ PUMP
ASM PART: A = 1-15603-271-2
|
1-15719-346-0 |
01 |
1 |
- |
| |
103 |
GASKET; OVERFLOW VLV,INJ PUMP
ID=14.2 OD=19.2
ASM PART: A = 1-15603-271-2
|
1-09630-085-0 |
02 |
1 |
- |
| |
104 |
GASKET; OVERFLOW VLV
ASM PART: A = 1-15603-271-2
|
1-15729-850-0 |
01 |
1 |
- |
| |
105 |
BEARING; CM/SHF RR,INJ PUMP
ASM PART: A = 1-15603-271-2
|
9-81225-068-0 |
01 |
1 |
- |
| |
106 |
RING; HSG,INJ PUMP
ASM PART: A = 1-15603-271-2
|
9-81225-064-0 |
01 |
1 |
- |
| |
107 |
SHIM; RR BEARING,CM/SHF
T=1.60
ASM PART: A = 1-15603-271-2
|
1-15639-105-0 |
01 |
1 |
- |
| |
108 |
BUSHING; CONT RACK END,INJ PUMP
ASM PART: A = 1-15603-271-2
|
9-81215-125-0 |
01 |
1 |
- |
| |
109 |
RACK; CONT,INJ PUMP
ASM PART: A = 1-15603-271-2
|
1-15637-040-0 |
01 |
1 |
- |
| |
110 |
PIN; CONT RACK,INJ PUMP
ASM PART: A = 1-15603-271-2
|
9-88410-440-0 |
01 |
1 |
- |
| |
114 |
BEARING; CM/SHF FRT,INJ PUMP
ASM PART: A = 1-15603-271-2
|
1-15629-099-0 |
01 |
1 |
- |
| |
115 |
NUT; PLUNGER FIX,INJ PUMP
ASM PART: A = 1-15603-271-2
|
1-15619-337-0 |
12 |
1 |
- |
| |
154 |
HANGER; RR,INJ PUMP
ASM PART: A = 1-15603-271-2
|
1-15619-347-0 |
01 |
1 |
- |
| |
161 |
GASKET; SCREW,CENTER BRG
ASM PART: A = 1-15603-271-2
|
5-15729-099-0 |
06 |
1 |
- |
| |
204 |
ACTUATOR; INJ PUMP
ASM PART: A = 1-15603-271-2
|
1-15612-096-0 |
01 |
1 |
9812- |
| |
206 |
GASKET; ACTUATOR
ASM PART: A = 1-15603-271-2
|
1-15629-145-0 |
01 |
1 |
- |
| |
206 |
GASKET; ACTUATOR
ASM PART: A = 1-15603-271-2
|
1-15629-146-0 |
01 |
1 |
- |
| |
210 |
ROD; CONT
ASM PART: A = 1-15603-271-2
|
1-15637-019-0 |
01 |
1 |
- |
| |
211 |
BEARING; CONT ROD
ASM PART: A = 1-15603-271-2
|
1-15629-098-0 |
01 |
1 |
- |
| |
212 |
BUSHING; CONT ROD
ASM PART: A = 1-15603-271-2
|
1-15619-330-0 |
01 |
1 |
- |
| |
213 |
WASHER; CONT ROD
(A) ASM PART: A = 1-15603-271-2
|
1-15619-331-0 |
06 |
1 |
- |
| |
213 |
WASHER; CONT ROD
(B) ASM PART: A = 1-15603-271-2
|
1-15619-336-0 |
01 |
1 |
- |
| |
214 |
PIN; CONT ROD
ASM PART: A = 1-15603-271-2
|
1-15619-332-0 |
06 |
1 |
- |
| |
215 |
SCREW; CONT ROD
ASM PART: A = 1-15603-271-2
|
1-15619-333-0 |
06 |
1 |
- |
| |
216 |
CONNECTOR; CONT ROD
ASM PART: A = 1-15603-271-2
|
1-15619-334-0 |
01 |
1 |
- |
| |
217 |
BOLT; CONT ROD
ASM PART: A = 1-15603-271-2
|
1-15619-335-0 |
01 |
1 |
- |
| |
218 |
NUT; PLUG
ASM PART: A = 1-15603-271-2
|
1-15619-344-0 |
02 |
1 |
- |
| |
219 |
RING; SNAP,ROLLER
ASM PART: A = 1-15603-271-2
|
1-15619-314-0 |
06 |
1 |
- |
| |
220 |
SEAT; TAPPET
ASM PART: A = 1-15603-271-2
|
1-15619-311-0 |
06 |
1 |
- |
| |
221 |
ACTUATOR ASM; INJ PUMP
ASM PART: A = 1-15603-271-2
|
1-15612-098-0 |
01 |
1 |
9812- |
| |
230 |
PLUG; TAPPET
ASM PART: A = 1-15603-271-2
|
1-15619-388-0 |
06 |
1 |
- |
| |
234 |
SLEEVE; FRT COVER
ASM PART: A = 1-15603-271-2
|
1-15635-004-0 |
01 |
1 |
- |
