6-45 — MOLDING AND STRIPE (#45416) — 142 parça

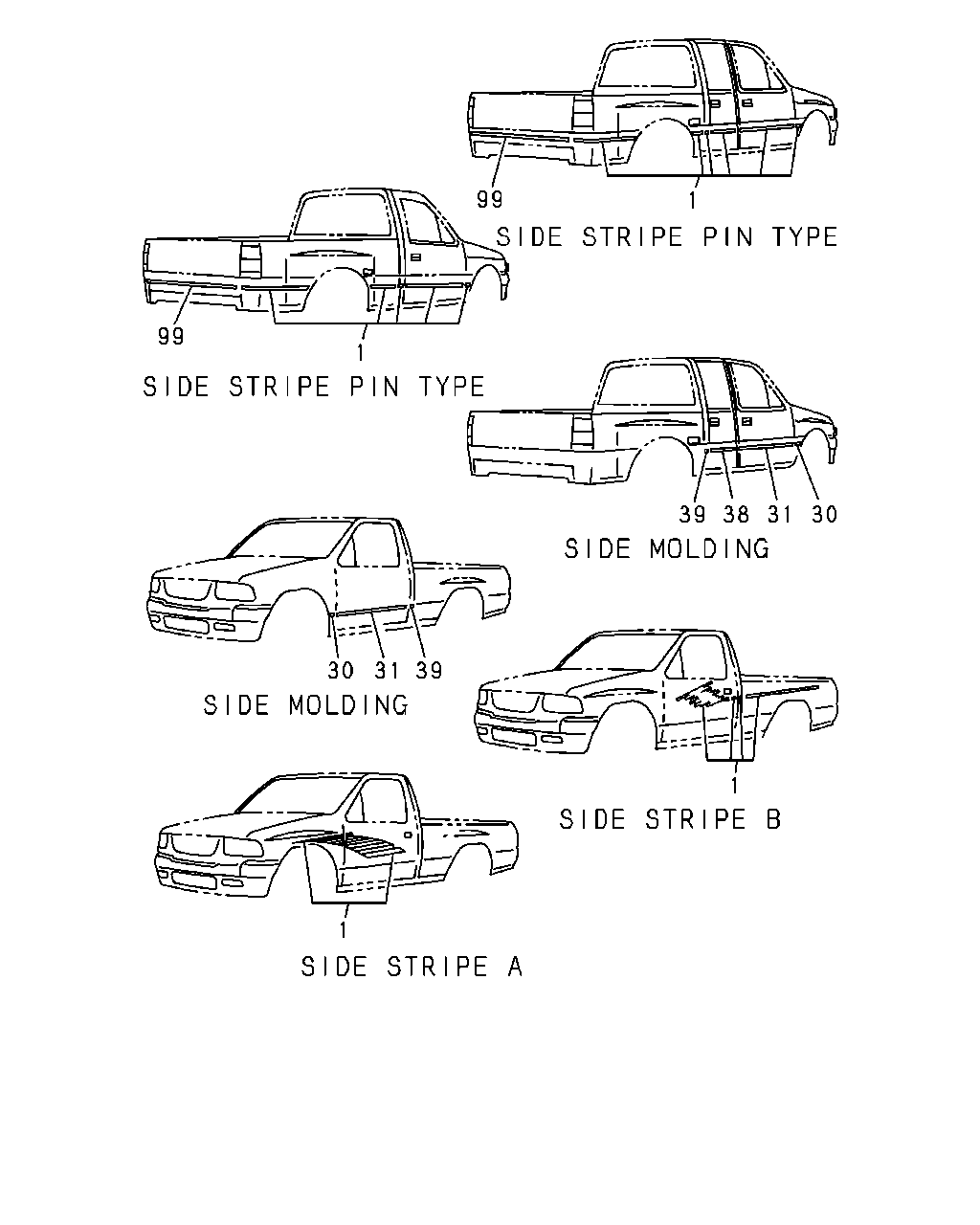

çizim 68512
99 1 99 1 39 38 31 30 1 39 31 30 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 08.304 STRIPE SET; BODY SIDE
STRIPE WARM GRADATION(226) BODY SIDE STRIPE TYPE A(6MB) YELLOW & ORANGE & RED 		8-97008-611-1 01 1 9210- ● ● ●
1 08.304 STRIPE SET; BODY SIDE
STRIPE WARM GRADATION(226) BODY SIDE STRIPE TYPE A(6MB) YELLOW & ORANGE & RED 		8-97008-610-1 01 1 9210- ● ● ●
1 08.304 STRIPE SET; BODY SIDE
STRIPE WING GRADATION(225) BODY SIDE STRIPE TYPE A(6MB) SILVER & GOLD & BROWN 		8-97008-607-1 01 1 9210- ● ● ●
1 08.304 STRIPE SET; BODY SIDE
STRIPE WING GRADATION(225) BODY SIDE STRIPE TYPE A(6MB) SILVER & GOLD & BROWN 		8-97008-606-1 01 1 9210- ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SHORT(TF***C) BODY COLOR CREAM WHITE/IRON GRAY MET(776) BODY SIDE STRIPE PIN TYPE(6MD) GRAY 		5-87831-273-0 01 1 9210-9308 ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SHORT(TF***C) BODY COLOR CREAM WHITE/IRON GRAY MET(776) BODY SIDE STRIPE PIN TYPE(6MD) GRAY 		5-87831-272-0 01 1 9210-9308 ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SHORT(TF***C) BODY COLOR CREAM WHITE/LT.SILVER MET(748),BODY COLOR DARK REGATTA/LT. SILVER MET (764),BODY COLOR RADIANT RED/LT.SILVER MET(779) BODY SIDE STRIPE PIN TYPE(6MD) GRAY & RED 		5-87831-438-0 01 1 9510- ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SHORT(TF***C) BODY COLOR CREAM WHITE/LT.SILVER MET(748),BODY COLOR DARK REGATTA/LT. SILVER MET (764),BODY COLOR RADIANT RED/LT.SILVER MET(779) BODY SIDE STRIPE PIN TYPE(6MD) GRAY & RED 		5-87831-437-0 01 1 9510- ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SHORT(TF***C) BODY COLOR EBONY BLACK/PLATINUM SILVER M ET(793) BODY SIDE STRIPE PIN TYPE(6MD) BLACK 		5-87831-049-1 01 1 9210-9308 ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SHORT(TF***C) BODY COLOR EBONY BLACK/PLATINUM SILVER M ET(793) BODY SIDE STRIPE PIN TYPE(6MD) BLACK 		5-87831-048-1 01 1 9210-9308 ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SHORT(TF***C) BODY COLOR HUNTING GREEN MICA/ANTIQUE SI LVER(766) BODY SIDE STRIPE PIN TYPE(6MD) LIGHT BEIGE & DARK GREEN 		5-87831-269-0 01 1 9210-9308 ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SHORT(TF***C) BODY COLOR CREAM WHITE/LT.SILVER MET(748),BODY COLOR DARK REGATTA/LT. SILVER MET (764),BODY COLOR RADIANT RED/LT.SILVER MET(779) BODY SIDE STRIPE PIN TYPE(6MD) GRAY & RED 		5-87831-438-0 01 1 9309-9509 ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SHORT(TF***C) BODY COLOR HUNTING GREEN MICA/ANTIQUE SI LVER(766) BODY SIDE STRIPE PIN TYPE(6MD) LIGHT BEIGE & DARK GREEN 		5-87831-268-0 01 1 9210-9308 ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SHORT(TF***C) BODY COLOR CREAM WHITE/LT.SILVER MET(748),BODY COLOR DARK REGATTA/LT. SILVER MET (764),BODY COLOR RADIANT RED/LT.SILVER MET(779) BODY SIDE STRIPE PIN TYPE(6MD) GRAY & RED 		5-87831-437-0 01 1 9309-9509 ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SHORT(TF***C) BODY COLOR IRON GRAY MET/PLATINUM SILVER (787) BODY SIDE STRIPE PIN TYPE(6MD) SILVER & DARK GRAY 		5-87831-170-0 01 1 9210-9308 ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SHORT(TF***C) BODY COLOR IRON GRAY MET/PLATINUM SILVER (787) BODY SIDE STRIPE PIN TYPE(6MD) SILVER & DARK GRAY 		5-87831-169-0 01 1 9210-9308 ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SHORT(TF***C) BODY COLOR TROOPER BLUE/PLATINUM SILVER MET(788) BODY SIDE STRIPE PIN TYPE(6MD) DARK BLUE 		5-87831-172-0 01 1 9210-9308 ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SHORT(TF***C) BODY COLOR TROOPER BLUE/PLATINUM SILVER MET(788) BODY SIDE STRIPE PIN TYPE(6MD) DARK BLUE 		5-87831-171-0 01 1 9210-9308 ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SHORT(TF***C) STRIPE COOL GRADATION(228) BODY SIDE STRIPE TYPE B(6MC) GREEN & BLUE & DARK BLUE 		5-87831-375-0 01 1 9210- ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SHORT(TF***C) STRIPE COOL GRADATION(228) BODY SIDE STRIPE TYPE B(6MC) GREEN & BLUE & DARK BLUE 		5-87831-374-0 01 1 9210- ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SHORT(TF***C) STRIPE NATURAL GRADATION(227) BODY SIDE STRIPE TYPE B(6MC) SILVER & GOLD & BROWN 		5-87831-373-0 01 1 9210- ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SHORT(TF***C) STRIPE NATURAL GRADATION(227) BODY SIDE STRIPE TYPE B(6MC) SILVER & GOLD & BROWN 		5-87831-372-0 01 1 9210- ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SINGLE CAB LONG(TF**SF) BODY COLOR CREAM WHITE/IRON GRAY MET(776) BODY SIDE STRIPE PIN TYPE(6MD) GRAY 		5-87831-251-0 01 1 9210-9308 ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SINGLE CAB LONG(TF**SF) BODY COLOR CREAM WHITE/IRON GRAY MET(776) BODY SIDE STRIPE PIN TYPE(6MD) GRAY 		5-87831-250-0 01 1 9210-9308 ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SINGLE CAB LONG(TF**SF) BODY COLOR EBONY BLACK/PLATINUM SILVER M ET(793) BODY SIDE STRIPE PIN TYPE(6MD) BLACK 		5-87831-037-1 01 1 9210-9308 ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SINGLE CAB LONG(TF**SF) BODY COLOR EBONY BLACK/PLATINUM SILVER M ET(793) BODY SIDE STRIPE PIN TYPE(6MD) BLACK 		5-87831-036-1 01 1 9210-9308 ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SINGLE CAB LONG(TF**SF) BODY COLOR HUNTING GREEN MICA/ANTIQUE SI LVER(766) BODY SIDE STRIPE PIN TYPE(6MD) LIGHT BEIGE & DARK GREEN 		5-87831-263-0 01 1 9210-9308 ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SINGLE CAB LONG(TF**SF) BODY COLOR CREAM WHITE/LT.SILVER MET(748),BODY COLOR DARK REGATTA/LT. SILVER MET (764),BODY COLOR RADIANT RED/LT.SILVER MET(779) BODY SIDE STRIPE PIN TYPE(6MD) GRAY & RED 		5-87831-436-0 01 1 9309-9509 ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SINGLE CAB LONG(TF**SF) BODY COLOR CREAM WHITE/LT.SILVER MET(748),BODY COLOR DARK REGATTA/LT. SILVER MET (764),BODY COLOR RADIANT RED/LT.SILVER MET(779) BODY SIDE STRIPE PIN TYPE(6MD) GRAY & RED 		5-87831-436-0 01 1 9510- ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SINGLE CAB LONG(TF**SF) BODY COLOR HUNTING GREEN MICA/ANTIQUE SI LVER(766) BODY SIDE STRIPE PIN TYPE(6MD) LIGHT BEIGE & DARK GREEN 		5-87831-262-0 01 1 9210-9308 ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SINGLE CAB LONG(TF**SF) BODY COLOR CREAM WHITE/LT.SILVER MET(748),BODY COLOR DARK REGATTA/LT. SILVER MET (764),BODY COLOR RADIANT RED/LT.SILVER MET(779) BODY SIDE STRIPE PIN TYPE(6MD) GRAY & RED 		5-87831-435-0 01 1 9309-9509 ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SINGLE CAB LONG(TF**SF) BODY COLOR CREAM WHITE/LT.SILVER MET(748),BODY COLOR DARK REGATTA/LT. SILVER MET (764),BODY COLOR RADIANT RED/LT.SILVER MET(779) BODY SIDE STRIPE PIN TYPE(6MD) GRAY & RED 		5-87831-435-0 01 1 9510- ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SINGLE CAB LONG(TF**SF) BODY COLOR IRON GRAY MET/PLATINUM SILVER (787) BODY SIDE STRIPE PIN TYPE(6MD) SILVER & DARK GRAY 		5-87831-164-0 01 1 9210-9308 ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SINGLE CAB LONG(TF**SF) BODY COLOR IRON GRAY MET/PLATINUM SILVER (787) BODY SIDE STRIPE PIN TYPE(6MD) SILVER & DARK GRAY 		5-87831-163-0 01 1 9210-9308 ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SINGLE CAB LONG(TF**SF) BODY COLOR TROOPER BLUE/PLATINUM SILVER MET(788) BODY SIDE STRIPE PIN TYPE(6MD) DARK BLUE 		5-87831-166-0 01 1 9210-9308 ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SINGLE CAB LONG(TF**SF) BODY COLOR TROOPER BLUE/PLATINUM SILVER MET(788) BODY SIDE STRIPE PIN TYPE(6MD) DARK BLUE 		5-87831-165-0 01 1 9210-9308 ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SINGLE CAB LONG(TF**SF) STRIPE COOL GRADATION(228) BODY SIDE STRIPE TYPE B(6MC) GREEN & BLUE & DARK BLUE 		5-87831-371-0 01 1 9210- ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SINGLE CAB LONG(TF**SF) STRIPE COOL GRADATION(228) BODY SIDE STRIPE TYPE B(6MC) GREEN & BLUE & DARK BLUE 		5-87831-370-0 01 1 9210- ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SINGLE CAB LONG(TF**SF) STRIPE NATURAL GRADATION(227) BODY SIDE STRIPE TYPE B(6MC) SILVER & GOLD & BROWN 		5-87831-369-0 01 1 9210- ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SINGLE CAB LONG(TF**SF) STRIPE NATURAL GRADATION(227) BODY SIDE STRIPE TYPE B(6MC) SILVER & GOLD & BROWN 		5-87831-368-0 01 1 9210- ● ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY COLOR CREAM WHITE/IRON GRAY MET(776) BODY SIDE STRIPE PIN TYPE(6MD) GRAY 		5-87831-267-0 01 1 9210-9308 ● ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY COLOR CREAM WHITE/IRON GRAY MET(776) BODY SIDE STRIPE PIN TYPE(6MD) GRAY 		5-87831-266-0 01 1 9210-9308 ● ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY COLOR HUNTING GREEN MICA/ANTIQUE SI LVER(766) BODY SIDE STRIPE PIN TYPE(6MD) LIGHT BEIGE & DARK GREEN 		5-87831-259-0 01 1 9210-9308 ● ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY COLOR CREAM WHITE/LT.SILVER MET(748),BODY COLOR DARK REGATTA/LT. SILVER MET (764),BODY COLOR RADIANT RED/LT.SILVER MET(779) BODY SIDE STRIPE PIN TYPE(6MD) GRAY & RED 		5-87831-442-0 01 1 9309-9509 ● ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY COLOR CREAM WHITE/LT.SILVER MET(748),BODY COLOR DARK REGATTA/LT. SILVER MET (764),BODY COLOR RADIANT RED/LT.SILVER MET(779) BODY SIDE STRIPE PIN TYPE(6MD) GRAY & RED 		5-87831-442-0 01 1 9510- ● ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY COLOR HUNTING GREEN MICA/ANTIQUE SI LVER(766) BODY SIDE STRIPE PIN TYPE(6MD) LIGHT BEIGE & DARK GREEN 		5-87831-258-0 01 1 9210-9308 ● ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY COLOR CREAM WHITE/LT.SILVER MET(748),BODY COLOR DARK REGATTA/LT. SILVER MET (764),BODY COLOR RADIANT RED/LT.SILVER MET(779) BODY SIDE STRIPE PIN TYPE(6MD) GRAY & RED 		5-87831-441-0 01 1 9309-9509 ● ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY COLOR CREAM WHITE/LT.SILVER MET(748),BODY COLOR DARK REGATTA/LT. SILVER MET (764),BODY COLOR RADIANT RED/LT.SILVER MET(779) BODY SIDE STRIPE PIN TYPE(6MD) GRAY & RED 		5-87831-441-0 01 1 9510- ● ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY COLOR IRON GRAY MET/PLATINUM SILVER (787) BODY SIDE STRIPE PIN TYPE(6MD) SILVER & DARK GRAY 		5-87831-180-0 01 1 9210-9308 ● ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY COLOR IRON GRAY MET/PLATINUM SILVER (787) BODY SIDE STRIPE PIN TYPE(6MD) SILVER & DARK GRAY 		5-87831-179-0 01 1 9210-9308 ● ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY COLOR TROOPER BLUE/PLATINUM SILVER MET(788) BODY SIDE STRIPE PIN TYPE(6MD) DARK BLUE 		5-87831-182-0 01 1 9210-9308 ● ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY COLOR TROOPER BLUE/PLATINUM SILVER MET(788) BODY SIDE STRIPE PIN TYPE(6MD) DARK BLUE 		5-87831-181-0 01 1 9210-9308 ● ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) STRIPE COOL GRADATION(228) BODY SIDE STRIPE TYPE B(6MC) GREEN & BLUE & DARK BLUE 		5-87831-383-0 01 1 9210- ● ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) STRIPE COOL GRADATION(228) BODY SIDE STRIPE TYPE B(6MC) GREEN & BLUE & DARK BLUE 		5-87831-382-0 01 1 9210- ● ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) STRIPE NATURAL GRADATION(227) BODY SIDE STRIPE TYPE B(6MC) SILVER & GOLD & BROWN 		5-87831-381-0 01 1 9210- ● ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) STRIPE NATURAL GRADATION(227) BODY SIDE STRIPE TYPE B(6MC) SILVER & GOLD & BROWN 		5-87831-380-0 01 1 9210- ● ● ●
1 08.304 STRIPE SET; BODY SIDE
SPACE CAB(TF**C*) BODY COLOR CREAM WHITE/IRON GRAY MET(776) BODY SIDE STRIPE PIN TYPE(6MD) GRAY 		5-87831-275-0 01 1 9210-9308 ● ●
1 08.304 STRIPE SET; BODY SIDE
SPACE CAB(TF**C*) BODY COLOR CREAM WHITE/IRON GRAY MET(776) BODY SIDE STRIPE PIN TYPE(6MD) GRAY 		5-87831-274-0 01 1 9210-9308 ● ●
1 08.304 STRIPE SET; BODY SIDE
SPACE CAB(TF**C*) BODY COLOR HUNTING GREEN MICA/ANTIQUE SI LVER(766) BODY SIDE STRIPE PIN TYPE(6MD) LIGHT BEIGE & DARK GREEN 		5-87831-277-0 01 1 9210-9308 ● ●
1 08.304 STRIPE SET; BODY SIDE
SPACE CAB(TF**C*) BODY COLOR CREAM WHITE/LT.SILVER MET(748),BODY COLOR DARK REGATTA/LT. SILVER MET (764),BODY COLOR RADIANT RED/LT.SILVER MET(779) BODY SIDE STRIPE PIN TYPE(6MD) GRAY & RED 		5-87831-440-0 01 1 9309-9509 ● ●
1 08.304 STRIPE SET; BODY SIDE
SPACE CAB(TF**C*) BODY COLOR CREAM WHITE/LT.SILVER MET(748),BODY COLOR DARK REGATTA/LT. SILVER MET (764),BODY COLOR RADIANT RED/LT.SILVER MET(779) BODY SIDE STRIPE PIN TYPE(6MD) GRAY & RED 		5-87831-440-0 01 1 9510- ● ●
1 08.304 STRIPE SET; BODY SIDE
SPACE CAB(TF**C*) BODY COLOR HUNTING GREEN MICA/ANTIQUE SI LVER(766) BODY SIDE STRIPE PIN TYPE(6MD) LIGHT BEIGE & DARK GREEN 		5-87831-276-0 01 1 9210-9308 ● ●
1 08.304 STRIPE SET; BODY SIDE
SPACE CAB(TF**C*) BODY COLOR CREAM WHITE/LT.SILVER MET(748),BODY COLOR DARK REGATTA/LT. SILVER MET (764),BODY COLOR RADIANT RED/LT.SILVER MET(779) BODY SIDE STRIPE PIN TYPE(6MD) GRAY & RED 		5-87831-439-0 01 1 9309-9509 ● ●
1 08.304 STRIPE SET; BODY SIDE
SPACE CAB(TF**C*) BODY COLOR CREAM WHITE/LT.SILVER MET(748),BODY COLOR DARK REGATTA/LT. SILVER MET (764),BODY COLOR RADIANT RED/LT.SILVER MET(779) BODY SIDE STRIPE PIN TYPE(6MD) GRAY & RED 		5-87831-439-0 01 1 9510- ● ●
1 08.304 STRIPE SET; BODY SIDE
SPACE CAB(TF**C*) BODY COLOR IRON GRAY MET/PLATINUM SILVER (787) BODY SIDE STRIPE PIN TYPE(6MD) SILVER & DARK GRAY 		5-87831-176-0 01 1 9210-9308 ● ●
1 08.304 STRIPE SET; BODY SIDE
SPACE CAB(TF**C*) BODY COLOR IRON GRAY MET/PLATINUM SILVER (787) BODY SIDE STRIPE PIN TYPE(6MD) SILVER & DARK GRAY 		5-87831-175-0 01 1 9210-9308 ● ●
1 08.304 STRIPE SET; BODY SIDE
SPACE CAB(TF**C*) BODY COLOR TROOPER BLUE/PLATINUM SILVER MET(788) BODY SIDE STRIPE PIN TYPE(6MD) DARK BLUE 		5-87831-178-0 01 1 9210-9308 ● ●
1 08.304 STRIPE SET; BODY SIDE
SPACE CAB(TF**C*) BODY COLOR TROOPER BLUE/PLATINUM SILVER MET(788) BODY SIDE STRIPE PIN TYPE(6MD) DARK BLUE 		5-87831-177-0 01 1 9210-9308 ● ●
1 08.304 STRIPE SET; BODY SIDE
SPACE CAB(TF**C*) STRIPE COOL GRADATION(228) BODY SIDE STRIPE TYPE B(6MC) GREEN & BLUE & DARK BLUE 		5-87831-379-0 01 1 9210- ● ●
1 08.304 STRIPE SET; BODY SIDE
SPACE CAB(TF**C*) STRIPE COOL GRADATION(228) BODY SIDE STRIPE TYPE B(6MC) GREEN & BLUE & DARK BLUE 		5-87831-378-0 01 1 9210- ● ●
1 08.304 STRIPE SET; BODY SIDE
SPACE CAB(TF**C*) STRIPE NATURAL GRADATION(227) BODY SIDE STRIPE TYPE B(6MC) SILVER & GOLD & BROWN 		5-87831-377-0 01 1 9210- ● ●
1 08.304 STRIPE SET; BODY SIDE
SPACE CAB(TF**C*) STRIPE NATURAL GRADATION(227) BODY SIDE STRIPE TYPE B(6MC) SILVER & GOLD & BROWN 		5-87831-376-0 01 1 9210- ● ●
30 08.132 MOLDING; FENDER
BODY SIDE MOLDING WIDE<BX4> 		8-94380-806-0 01 1 9210- ● ● ●
30 08.132 MOLDING; FENDER
BODY SIDE MOLDING WIDE<BX4> 		8-94380-805-0 01 1 9210- ● ● ●
31 16.445 MOLDING; FRT DOOR
BODY SIDE MOLDING WIDE<BX4> 		8-94380-808-0 01 1 9210- ● ● ●
31 16.445 MOLDING; FRT DOOR
BODY SIDE MOLDING WIDE<BX4> 		8-94380-807-0 01 1 9210- ● ● ●
38 16.445 MOLDING; RR DOOR
CREW CAB(TF**W*) BODY SIDE MOLDING WIDE<BX4> 		8-94380-810-0 01 1 9210- ● ● ●
38 16.445 MOLDING; RR DOOR
CREW CAB(TF**W*) BODY SIDE MOLDING WIDE<BX4> 		8-94380-809-0 01 1 9210- ● ● ●
39 16.450 MOLDING; QUARTER
BODY SIDE MOLDING WIDE<BX4> 		8-94380-812-0 01 1 9210- ●
39 16.450 MOLDING; QUARTER
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) BODY SIDE MOLDING WIDE<BX4> 		8-94380-812-0 01 1 9210- ● ●
39 16.450 MOLDING; QUARTER
BODY SIDE MOLDING WIDE<BX4> 		8-94380-811-0 01 1 9210- ●
39 16.450 MOLDING; QUARTER
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) BODY SIDE MOLDING WIDE<BX4> 		8-94380-811-0 01 1 9210- ● ●
39 16.450 MOLDING; QUARTER
SPACE CAB(TF**C*) BODY SIDE MOLDING WIDE<BX4> 		8-94380-814-0 01 1 9210- ● ●
39 16.450 MOLDING; QUARTER
SPACE CAB(TF**C*) BODY SIDE MOLDING WIDE<BX4> 		8-94380-813-0 01 1 9210- ● ●
99 16.290 STRIPE; TAIL GATE
BODY COLOR CREAM WHITE/IRON GRAY MET(776) BODY SIDE STRIPE PIN TYPE(6MD) GRAY 		8-97004-706-1 01 1 9210-9308 ● ● ●
99 16.290 STRIPE; TAIL GATE
BODY COLOR EBONY BLACK/PLATINUM SILVER M ET(793) BODY SIDE STRIPE PIN TYPE(6MD) BLACK 		8-94373-704-1 01 1 9210-9308 ● ● ●
99 16.290 STRIPE; TAIL GATE
BODY COLOR HUNTING GREEN MICA/ANTIQUE SI LVER(766) BODY SIDE STRIPE PIN TYPE(6MD) SILVER & BEIGE 		8-97004-633-1 01 1 9210-9308 ● ● ●
99 16.290 STRIPE; TAIL GATE
BODY COLOR CREAM WHITE/LT.SILVER MET(748),BODY COLOR DARK REGATTA/LT. SILVER MET(764),BODY COLOR RADIANT RED/LT.SILVER M ET(779) BODY SIDE STRIPE PIN TYPE(6MD) GRAY & RED 		8-97082-860-1 01 1 9309- ● ● ●
99 16.290 STRIPE; TAIL GATE
BODY COLOR IRON GRAY MET/PLATINUM SILVER (787) BODY SIDE STRIPE PIN TYPE(6MD) LIGHT SILVER 		8-97002-479-1 01 1 9210-9308 ● ● ●
99 16.290 STRIPE; TAIL GATE
BODY COLOR TROOPER BLUE/PLATINUM SILVER MET(788) BODY SIDE STRIPE PIN TYPE(6MD) DARK BLUE 		8-97002-480-1 01 1 9210-9308 ● ● ●
çizim 68536
73 57 59 58 54 53 42 47 27 59 28
BalonParca AdiParca NoAdetTipApplied Date A B C
27 08.132 MOLDING; FRT WHEEL ARCH,FRT
PROTECTOR-BODY SIDE MOLDING<B84> 		8-94472-655-0 01 1 9210- ● ● ●
27 08.132 MOLDING; FRT WHEEL ARCH,FRT
PROTECTOR-BODY SIDE MOLDING<B84> 		8-94472-654-0 01 1 9210- ● ● ●
28 08.132 NUT; SPIRE
PROTECTOR-BODY SIDE MOLDING<B84> 08.133 M4 SPIRE 		8-94473-926-1 10 1 9210- ● ● ●
42 17.507 MOLDING; ROCKER
SINGLE CAB(TF**S*) PROTECTOR-BODY SIDE MOLDING<B84> 		8-94473-903-4 01 1 9210- ● ● ●
42 17.507 MOLDING; ROCKER
SINGLE CAB(TF**S*) PROTECTOR-BODY SIDE MOLDING<B84> 		8-94473-902-4 01 1 9210- ● ● ●
42 17.507 MOLDING; ROCKER
CREW CAB(TF**W*) PROTECTOR-BODY SIDE MOLDING<B84> 		8-94474-009-4 01 1 9210- ● ● ●
42 17.507 MOLDING; ROCKER
CREW CAB(TF**W*) PROTECTOR-BODY SIDE MOLDING<B84> 		8-94474-008-4 01 1 9210- ● ● ●
42 17.507 MOLDING; ROCKER
SPACE CAB(TF**C*) PROTECTOR-BODY SIDE MOLDING<B84> 		8-94473-905-4 01 1 9210- ● ●
42 17.507 MOLDING; ROCKER
SPACE CAB(TF**C*) PROTECTOR-BODY SIDE MOLDING<B84> 		8-94473-904-4 01 1 9210- ● ●
47 17.507 SCREW; ROCKER MOLDING
PROTECTOR-BODY SIDE MOLDING<B84> 		0-70090-620-0 02 1 9210- ● ● ●
53 17.507 MOLDING; ROCKER,PICKUP BOX,FRT
SHORT(TF***C) BODY SIDE MOLDING WIDE<BX4> 		8-94380-818-0 01 1 9210- ● ● ●
53 17.507 MOLDING; ROCKER,PICKUP BOX,FRT
SHORT(TF***C) BODY SIDE MOLDING WIDE<BX4> 		8-94380-817-0 01 1 9210- ● ● ●
53 17.507 MOLDING; ROCKER,PICKUP BOX,FRT
SHORT(TF***C) PROTECTOR-BODY SIDE MOLDING<B84> 		8-94473-909-4 01 1 9210-9503 ● ● ●
53 17.507 MOLDING; ROCKER,PICKUP BOX,FRT
SHORT(TF***C) PROTECTOR-BODY SIDE MOLDING<B84> RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) ,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GU ARD FRAME(6MW) 		8-94473-909-4 01 1 9504- ● ● ●
53 17.507 MOLDING; ROCKER,PICKUP BOX,FRT
SHORT(TF***C) PROTECTOR-BODY SIDE MOLDING<B84> 		8-94473-908-4 01 1 9210-9503 ● ● ●
53 17.507 MOLDING; ROCKER,PICKUP BOX,FRT
SHORT(TF***C) PROTECTOR-BODY SIDE MOLDING<B84> RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) ,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GU ARD FRAME(6MW) 		8-94473-908-4 01 1 9504- ● ● ●
53 17.507 MOLDING; ROCKER,PICKUP BOX,FRT
SINGLE CAB LONG(TF**SF) BODY SIDE MOLDING WIDE<BX4> 		8-94380-816-0 01 1 9210- ● ● ●
53 17.507 MOLDING; ROCKER,PICKUP BOX,FRT
SINGLE CAB LONG(TF**SF) BODY SIDE MOLDING WIDE<BX4> 		8-94380-815-0 01 1 9210- ● ● ●
53 17.507 MOLDING; ROCKER,PICKUP BOX,FRT
SINGLE CAB LONG(TF**SF) PROTECTOR-BODY SIDE MOLDING<B84> 		8-94473-907-4 01 1 9210-9503 ● ● ●
53 17.507 MOLDING; ROCKER,PICKUP BOX,FRT
SINGLE CAB LONG(TF**SF) PROTECTOR-BODY SIDE MOLDING<B84> RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) ,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GU ARD FRAME(6MW) 		8-94473-907-4 01 1 9504- ● ● ●
53 17.507 MOLDING; ROCKER,PICKUP BOX,FRT
SINGLE CAB LONG(TF**SF) PROTECTOR-BODY SIDE MOLDING<B84> 		8-94473-906-4 01 1 9210-9503 ● ● ●
53 17.507 MOLDING; ROCKER,PICKUP BOX,FRT
SINGLE CAB LONG(TF**SF) PROTECTOR-BODY SIDE MOLDING<B84> RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) ,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GU ARD FRAME(6MW) 		8-94473-906-4 01 1 9504- ● ● ●
53 17.507 MOLDING; ROCKER,PICKUP BOX,FRT
SPACE CAB(TF**C*) BODY SIDE MOLDING WIDE<BX4> 		8-94380-820-0 01 1 9210- ● ●
53 17.507 MOLDING; ROCKER,PICKUP BOX,FRT
SPACE CAB(TF**C*) BODY SIDE MOLDING WIDE<BX4> 		8-94380-819-0 01 1 9210- ● ●
53 17.507 MOLDING; ROCKER,PICKUP BOX,FRT
SPACE CAB(TF**C*) PROTECTOR-BODY SIDE MOLDING<B84> 		8-94474-011-4 01 1 9210-9503 ● ●
53 17.507 MOLDING; ROCKER,PICKUP BOX,FRT
SPACE CAB(TF**C*) PROTECTOR-BODY SIDE MOLDING<B84> RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) ,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GU ARD FRAME(6MW) 		8-94474-011-4 01 1 9504- ● ●
53 17.507 MOLDING; ROCKER,PICKUP BOX,FRT
SPACE CAB(TF**C*) PROTECTOR-BODY SIDE MOLDING<B84> 		8-94474-010-4 01 1 9210-9503 ● ●
53 17.507 MOLDING; ROCKER,PICKUP BOX,FRT
SPACE CAB(TF**C*) PROTECTOR-BODY SIDE MOLDING<B84> RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) ,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GU ARD FRAME(6MW) 		8-94474-010-4 01 1 9504- ● ●
54 16.507 MOLDING; ROCKER,PICKUP BOX,RR
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) BODY SIDE MOLDING WIDE<BX4> 17.507 		8-94380-822-0 01 1 9210- ●
54 16.507 MOLDING; ROCKER,PICKUP BOX,RR
LONG(TF***F) BODY SIDE MOLDING WIDE<BX4> 17.507 		8-94380-822-0 01 1 9210- ● ●
54 16.507 MOLDING; ROCKER,PICKUP BOX,RR
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) BODY SIDE MOLDING WIDE<BX4> 17.507 		8-94380-821-0 01 1 9210- ●
54 16.507 MOLDING; ROCKER,PICKUP BOX,RR
LONG(TF***F) BODY SIDE MOLDING WIDE<BX4> 17.507 		8-94380-821-0 01 1 9210- ● ●
54 16.507 MOLDING; ROCKER,PICKUP BOX,RR
SHORT(TF***C) BODY SIDE MOLDING WIDE<BX4> 17.507 		8-94380-824-0 01 1 9210- ● ● ●
54 16.507 MOLDING; ROCKER,PICKUP BOX,RR
SHORT(TF***C) BODY SIDE MOLDING WIDE<BX4> 17.507 		8-94380-823-0 01 1 9210- ● ● ●
57 08.132 MOLDING; WHEEL ARCH
SINGLE CAB(TF**S*) PROTECTOR-BODY SIDE MOLDING<B84> 		8-94472-657-0 01 1 9210-9503 ●
57 08.132 MOLDING; WHEEL ARCH
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) PROTECTOR-BODY SIDE MOLDING<B84> 		8-94472-657-0 01 1 9210-9503 ● ●
57 08.132 MOLDING; WHEEL ARCH
SINGLE CAB(TF**S*) PROTECTOR-BODY SIDE MOLDING<B84> RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) ,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GU ARD FRAME(6MW) 		8-94472-657-0 01 1 9504- ●
57 08.132 MOLDING; WHEEL ARCH
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) PROTECTOR-BODY SIDE MOLDING<B84> RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) ,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GU ARD FRAME(6MW) 		8-94472-657-0 01 1 9504- ● ●
57 08.132 MOLDING; WHEEL ARCH
SINGLE CAB(TF**S*) PROTECTOR-BODY SIDE MOLDING<B84> 		8-94472-656-0 01 1 9210-9503 ●
57 08.132 MOLDING; WHEEL ARCH
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) PROTECTOR-BODY SIDE MOLDING<B84> 		8-94472-656-0 01 1 9210-9503 ● ●
57 08.132 MOLDING; WHEEL ARCH
SINGLE CAB(TF**S*) PROTECTOR-BODY SIDE MOLDING<B84> RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) ,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GU ARD FRAME(6MW) 		8-94472-656-0 01 1 9504- ●
57 08.132 MOLDING; WHEEL ARCH
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) PROTECTOR-BODY SIDE MOLDING<B84> RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) ,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GU ARD FRAME(6MW) 		8-94472-656-0 01 1 9504- ● ●
57 08.132 MOLDING; WHEEL ARCH
CREW CAB(TF**W*) PROTECTOR-BODY SIDE MOLDING<B84> 		8-94311-840-0 01 1 9210- ● ● ●
57 08.132 MOLDING; WHEEL ARCH
CREW CAB(TF**W*) PROTECTOR-BODY SIDE MOLDING<B84> 		8-94311-839-0 01 1 9210- ● ● ●
58 08.133 NUT; MOLDING
PROTECTOR-BODY SIDE MOLDING<B84> M4 SPIRE 		8-94473-926-1 10 1 9210-9503 ● ● ●
58 08.133 NUT; MOLDING
PROTECTOR-BODY SIDE MOLDING<B84> RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) ,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GU ARD FRAME(6MW) M4 SPIRE 		8-94473-926-1 10 1 9504- ● ● ●
59 08.133 SCREW; MOLDING
PROTECTOR-BODY SIDE MOLDING<B84> M4X12 TAPPING 		8-94338-741-0 20 1 9210-9504 ● ● ●
59 08.133 SCREW; MOLDING
PROTECTOR-BODY SIDE MOLDING<B84> M4 TAPPING 		8-97113-403-0 20 1 9505-9505 ● ● ●
59 08.133 SCREW; MOLDING
PROTECTOR-BODY SIDE MOLDING<B84> RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) ,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GU ARD FRAME(6MW) M4 TAPPING 		8-97113-403-1 10 1 9506- ● ● ●
59 08.133 SCREW; MOLDING
PROTECTOR-BODY SIDE MOLDING<B84> M4 TAPPING 		8-97113-403-1 10 1 9506- ● ● ●
73 16.642 MOLDING; DRIP,BODY SIDE
SPACE CAB(TF**C*) 		8-94465-494-6 01 1 9210- ● ●
73 16.642 MOLDING; DRIP,BODY SIDE
SPACE CAB(TF**C*) 		8-94465-493-6 01 1 9210- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
