Isuzu WW
▶
PICKUP
▶
TFR
▶
50651 - TFR/TFS-RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-30 - FRONT DOOR AND HINGE
▶

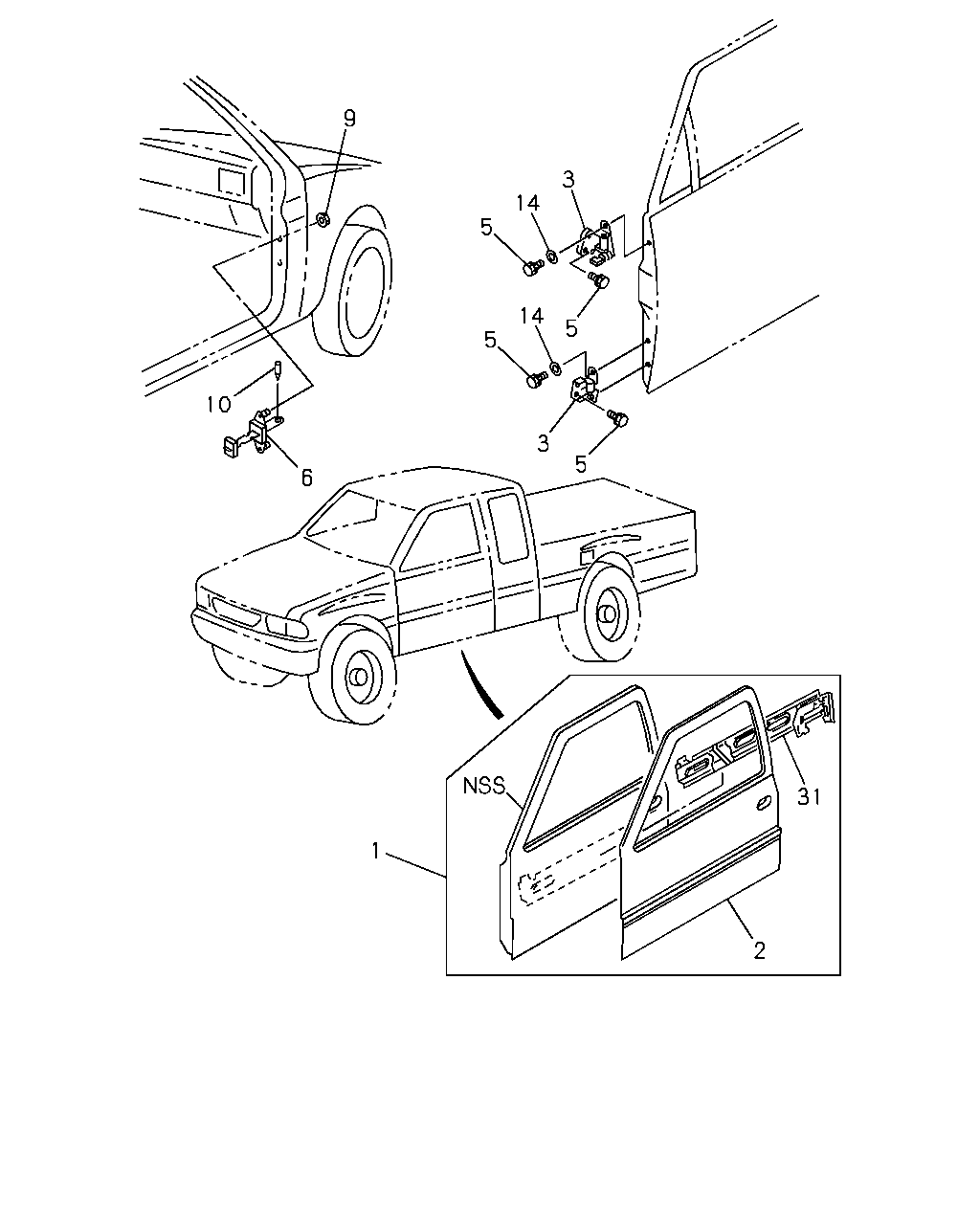

6-30 — FRONT DOOR AND HINGE
(#45410) — 25 parça
Tümü
A - TFB5CF
B - TFB5SC
C - TFB5SF
D - TFB5WF
E - TFS5CF
F - TFS5SC
G - TFS5SF
H - TFS5WF
9
10
6
5
14
3
5
14
5
3
5
1
2
31
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H
1
16.150 DOOR ASM; FRT,WO/TRIM
EXC. THAILAND EQUIPMENT(PM9)
8-97076-558-2
01
1
9210-9308
●
●
●
●
●
●
●
●
1
16.150 DOOR ASM; FRT,WO/TRIM
EXC. THAILAND EQUIPMENT(PM9)
8-97088-623-1
01
1
9309-
●
●
●
●
●
●
●
●
1
16.150 DOOR ASM; FRT,WO/TRIM
EXC. THAILAND EQUIPMENT(PM9)
8-97076-557-2
01
1
9210-9308
●
●
●
●
●
●
●
●
1
16.150 DOOR ASM; FRT,WO/TRIM
EXC. THAILAND EQUIPMENT(PM9)
8-97088-622-1
01
1
9309-
●
●
●
●
●
●
●
●
1
16.150 DOOR ASM; FRT,WO/TRIM
THAILAND EQUIPMENT(PM9)
8-97021-873-0
01
1
9210-
●
●
●
●
●
●
1
16.150 DOOR ASM; FRT,WO/TRIM
THAILAND EQUIPMENT(PM9)
8-97021-872-0
01
1
9210-
●
●
●
●
●
●
2
16.152 PANEL; FRT DOOR OUTER
8-94449-356-5
01
1
9210-
●
●
●
●
●
●
●
●
2
16.152 PANEL; FRT DOOR OUTER
8-94449-355-5
01
1
9210-
●
●
●
●
●
●
●
●
3
16.320 HINGE; DOOR FRT
10.454 LOWER
8-94155-315-2
01
1
9210-
●
●
●
●
●
●
●
●
3
16.320 HINGE; DOOR FRT
UPPER
8-94230-392-4
01
1
9210-
●
●
●
●
●
●
●
●
3
16.320 HINGE; DOOR FRT
10.454 LOWER
8-94155-314-2
01
1
9210-
●
●
●
●
●
●
●
●
3
16.320 HINGE; DOOR FRT
UPPER
8-94230-393-4
01
1
9210-
●
●
●
●
●
●
●
●
5
16.320 BOLT; HINGE
10.463 M8X23 FLANGE
8-94174-559-2
16
1
9210-
●
●
●
●
●
●
●
●
6
16.320 ARM; CHECK,FRT DOOR
8-94370-880-1
02
1
9210-
●
●
●
●
●
●
●
●
9
16.320 NUT; CHECK ARM
07.829 M6 FLANGE
5-09440-004-0
04
1
9210-
●
●
●
●
●
●
●
●
10
16.320 PIN; CHECK ARM
10.455
8-94111-468-0
02
1
9210-
●
●
●
●
●
●
●
●
14
16.320 WASHER; PL,HINGE
ID=8 OD=21 W/ADHESIVE TAPE
8-97113-760-0
04
1
9404-9510
●
●
●
●
●
●
●
●
31
16.152 REINFORCEMENT; FRT DOOR
EXC. THAILAND EQUIPMENT(PM9)
8-94440-191-3
01
1
9210-9210
●
●
●
●
●
●
●
●
31
16.152 REINFORCEMENT; FRT DOOR
EXC. THAILAND EQUIPMENT(PM9)
8-97088-617-0
01
1
9211-9404
●
●
●
●
●
●
●
●
31
16.152 REINFORCEMENT; FRT DOOR
EXC. THAILAND EQUIPMENT(PM9)
8-94440-190-3
01
1
9210-9210
●
●
●
●
●
●
●
●
31
16.152 REINFORCEMENT; FRT DOOR
EXC. THAILAND EQUIPMENT(PM9)
8-97088-616-0
01
1
9211-9404
●
●
●
●
●
●
●
●
31
16.152 REINFORCEMENT; FRT DOOR
THAILAND EQUIPMENT(PM9)
8-97021-293-0
01
1
9210-
●
●
●
●
●
●
31
16.152 REINFORCEMENT; FRT DOOR
THAILAND EQUIPMENT(PM9)
8-97021-292-0
01
1
9210-
●
●
●
●
●
●
31
16.152 REINFORCEMENT; FRT DOOR
EXC. THAILAND EQUIPMENT(PM9)
8-97112-918-0
01
1
9405-
●
●
●
●
●
●
●
●
31
16.152 REINFORCEMENT; FRT DOOR
EXC. THAILAND EQUIPMENT(PM9)
8-97112-917-0
01
1
9405-
●
●
●
●
●
●
●
●
