0-66 — GENERATOR (#4541) — 65 parça

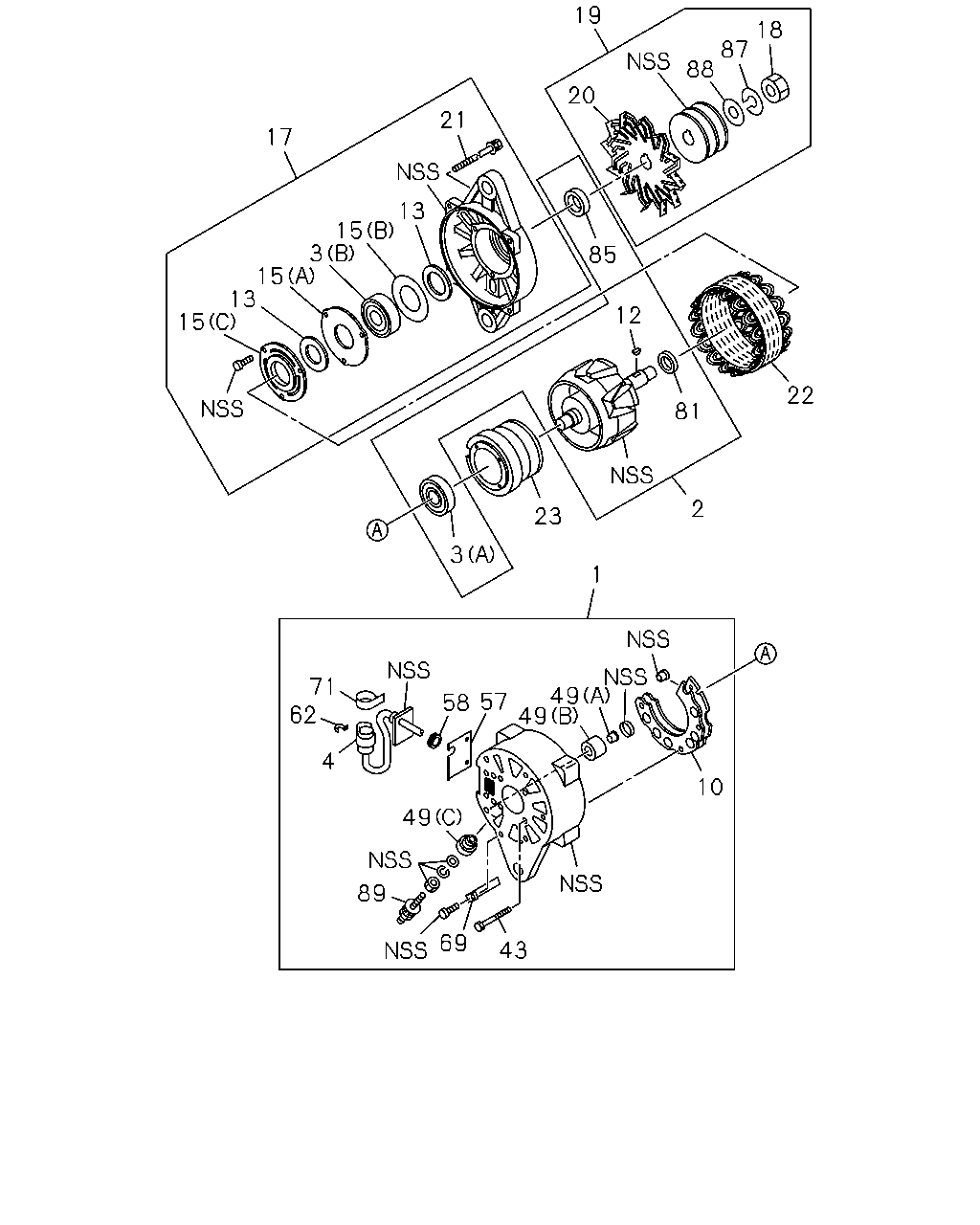

çizim 38099
19 18 87 88 20 21 17 13 15 3 85 15 13 15 12 22 81 2 23 3 1 71 62 49 49 57 58 4 49 10 89 69 43
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
ASM PART: A = 1-81200-491-0, C = 1-81200-505-0 		1-81214-349-0 01 1 -
1 COVER ASM; RR,GEN
ASM PART: D = 1-81200-506-1 		1-81214-350-1 01 1 -9910
1 COVER ASM; RR,GEN
ASM PART: B = 1-81200-492-1 		1-81214-350-1 01 1 -
1 COVER ASM; RR,GEN
ASM PART: F = 1-81200-561-0 		1-81214-364-0 01 1 -
1 COVER ASM; RR,GEN
ASM PART: E = 1-81200-542-0 		1-81214-365-0 01 1 -
1 COVER ASM; RR,GEN
ASM PART: D = 1-81200-506-1 		1-81214-368-0 01 1 9911-
2 ROTOR; GEN
ASM PART: A = 1-81200-491-0, B = 1-81200-492-1, C = 1-81200-505-0, D = 1-81200-506-1 		1-81221-092-0 01 1 -
2 ROTOR; GEN
ASM PART: E = 1-81200-542-0, F = 1-81200-561-0 		1-81221-106-0 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 1-81200-491-0, B = 1-81200-492-1, C = 1-81200-505-0, D = 1-81200-506-1 		1-81229-628-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 1-81200-491-0, B = 1-81200-492-1, C = 1-81200-505-0, D = 1-81200-506-1 		1-81229-631-0 01 1 -
3 BEARING; ROTOR,GEN
ASM PART: E = 1-81200-542-0, F = 1-81200-561-0 		1-81229-815-0 01 1 -
3 BEARING; ROTOR,GEN
ASM PART: E = 1-81200-542-0, F = 1-81200-561-0 		1-81229-816-0 01 1 -
4 TERMINAL; BRUSH,GEN
ASM PART: A = 1-81200-491-0, B = 1-81200-492-1, C = 1-81200-505-0, D = 1-81200-506-1 		1-81229-750-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
ASM PART: E = 1-81200-542-0, F = 1-81200-561-0 		1-81260-018-0 01 1 -
10 RECTIFIER; GEN
ASM PART: A = 1-81200-491-0, B = 1-81200-492-1, C = 1-81200-505-0, D = 1-81200-506-1 		1-81219-114-0 01 1 -
10 RECTIFIER; GEN
ASM PART: F = 1-81200-561-0 		1-81219-133-0 01 1 -
10 RECTIFIER; GEN
ASM PART: F = 1-81200-561-0 		1-81219-134-0 01 1 -
10 RECTIFIER; GEN
ASM PART: E = 1-81200-542-0 		1-81219-135-0 01 1 -
10 RECTIFIER; GEN
ASM PART: E = 1-81200-542-0 		1-81219-136-0 01 1 -
12 KEY; ROTOR,GEN
ASM PART: E = 1-81200-542-0, F = 1-81200-561-0 		1-81229-822-0 01 1 -
12 KEY; ROTOR,GEN
ASM PART: A = 1-81200-491-0, B = 1-81200-492-1, C = 1-81200-505-0, D = 1-81200-506-1 		9-82215-867-0 01 1 -
13 GASKET; ROTOR,GEN
ASM PART: A = 1-81200-491-0, B = 1-81200-492-1, C = 1-81200-505-0, D = 1-81200-506-1 		1-81229-630-0 02 1 -
15 RETAINER; ROTOR,GEN
(A) ASM PART: A = 1-81200-491-0, B = 1-81200-492-1, C = 1-81200-505-0, D = 1-81200-506-1 		1-81229-190-0 01 1 -
15 RETAINER; ROTOR,GEN
(B) ASM PART: A = 1-81200-491-0, B = 1-81200-492-1, C = 1-81200-505-0, D = 1-81200-506-1 		1-81229-349-0 01 1 -
15 RETAINER; ROTOR,GEN
(C) ASM PART: A = 1-81200-491-0, B = 1-81200-492-1, C = 1-81200-505-0, D = 1-81200-506-1 		1-81229-629-0 01 1 -
16 TERMINAL ASM; RECTIFIER,GEN
ASM PART: F = 1-81200-561-0 		1-81229-826-0 01 1 -
16 TERMINAL ASM; RECTIFIER,GEN
ASM PART: E = 1-81200-542-0 		1-81229-827-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: D = 1-81200-506-1 		1-81213-080-0 01 1 -9910
17 COVER ASM; FRT,GEN
ASM PART: A = 1-81200-491-0, B = 1-81200-492-1, C = 1-81200-505-0 		1-81213-080-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: E = 1-81200-542-0, F = 1-81200-561-0 		1-81213-110-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: D = 1-81200-506-1 		1-81213-111-0 01 1 9911-
18 NUT; PULLEY,GEN
ASM PART: A = 1-81200-491-0, B = 1-81200-492-1, C = 1-81200-505-0, D = 1-81200-506-1 		9-82216-098-0 01 1 -
19 PULLEY; GEN
ASM PART: A = 1-81200-491-0, B = 1-81200-492-1 		1-81222-111-0 01 1 -
19 PULLEY; GEN
ASM PART: C = 1-81200-505-0, D = 1-81200-506-1 		1-81222-127-0 01 1 -
19 PULLEY; GEN
ASM PART: E = 1-81200-542-0, F = 1-81200-561-0 		1-81222-151-0 01 1 -
20 FAN; GEN
ASM PART: A = 1-81200-491-0, B = 1-81200-492-1, C = 1-81200-505-0, D = 1-81200-506-1 		1-81223-003-1 01 1 -
21 BOLT; THROUGH,GEN
ASM PART: A = 1-81200-491-0, B = 1-81200-492-1, C = 1-81200-505-0, D = 1-81200-506-1 		1-81229-661-0 04 1 -
22 STATOR; GEN
ASM PART: A = 1-81200-491-0, B = 1-81200-492-1, C = 1-81200-505-0, D = 1-81200-506-1 		1-81211-111-0 01 1 -
23 COIL; ROTOR GEN
ASM PART: A = 1-81200-491-0, B = 1-81200-492-1 		1-81212-014-0 01 1 -
23 COIL; ROTOR GEN
ASM PART: C = 1-81200-505-0, D = 1-81200-506-1 		1-81212-015-0 01 1 -
23 COIL; ROTOR GEN
ASM PART: E = 1-81200-542-0, F = 1-81200-561-0 		1-81212-020-0 01 1 -
27 NUT; RECTIFIER,GEN
ASM PART: E = 1-81200-542-0, F = 1-81200-561-0 		1-81229-821-0 01 1 -
36 SCREW; FRT COVER
ASM PART: E = 1-81200-542-0, F = 1-81200-561-0 		1-81229-814-0 01 1 -
40 PLATE; RR COVER
ASM PART: E = 1-81200-542-0, F = 1-81200-561-0 		1-81222-148-0 01 1 -
43 SCREW; RR END COVER
ASM PART: A = 1-81200-491-0, B = 1-81200-492-1, C = 1-81200-505-0, D = 1-81200-506-1 		1-81229-664-0 04 1 -
43 SCREW; RR END COVER
ASM PART: E = 1-81200-542-0, F = 1-81200-561-0 		1-81229-774-0 01 1 -
43 SCREW; RR END COVER
ASM PART: E = 1-81200-542-0, F = 1-81200-561-0 		1-81229-817-0 01 1 -
43 SCREW; RR END COVER
ASM PART: E = 1-81200-542-0, F = 1-81200-561-0 		1-81229-830-0 01 1 -
49 BUSHING; RECTIFIER,GEN
(A) ASM PART: A = 1-81200-491-0, B = 1-81200-492-1, C = 1-81200-505-0, D = 1-81200-506-1 		1-81229-001-0 02 1 -
49 BUSHING; RECTIFIER,GEN
(B) ASM PART: A = 1-81200-491-0, B = 1-81200-492-1, C = 1-81200-505-0, D = 1-81200-506-1 		1-81229-352-0 01 1 -
49 BUSHING; RECTIFIER,GEN
(C) ASM PART: A = 1-81200-491-0, B = 1-81200-492-1, C = 1-81200-505-0, D = 1-81200-506-1 		1-81229-635-0 01 1 -
57 COVER; BRUSH,GEN
ASM PART: A = 1-81200-491-0, B = 1-81200-492-1, C = 1-81200-505-0, D = 1-81200-506-1 		1-81229-663-0 01 1 -
58 BUSHING; BRUSH,GEN
ASM PART: A = 1-81200-491-0, B = 1-81200-492-1, C = 1-81200-505-0, D = 1-81200-506-1 		1-81229-640-0 01 1 -
62 CLIP; TERMINAL,BRUSH,GEN
ASM PART: A = 1-81200-491-0, B = 1-81200-492-1, C = 1-81200-505-0, D = 1-81200-506-1 		1-81229-700-0 01 1 -
69 CLIP; WIRE,GEN
ASM PART: A = 1-81200-491-0, B = 1-81200-492-1, C = 1-81200-505-0, D = 1-81200-506-1 		1-81229-516-0 01 1 -
71 HOLDER; TERMINAL,GEN
ASM PART: A = 1-81200-491-0, B = 1-81200-492-1, C = 1-81200-505-0, D = 1-81200-506-1 		1-81229-703-0 01 1 -
81 SPACER; ROTOR,GEN
ASM PART: A = 1-81200-491-0, B = 1-81200-492-1, C = 1-81200-505-0, D = 1-81200-506-1 		1-81229-627-0 01 1 -
81 SPACER; ROTOR,GEN
ASM PART: E = 1-81200-542-0, F = 1-81200-561-0 		1-81229-813-0 01 1 -
85 SPACER; PULLEY,GEN
ASM PART: A = 1-81200-491-0, B = 1-81200-492-1, C = 1-81200-505-0, D = 1-81200-506-1 		1-81229-626-0 01 1 -
86 NUT SET; PULLEY,GEN
ASM PART: E = 1-81200-542-0, F = 1-81200-561-0 		8-97178-134-0 01 1 -
87 WASHER; PULLEY,GEN
ASM PART: A = 1-81200-491-0, B = 1-81200-492-1, C = 1-81200-505-0, D = 1-81200-506-1 		1-81229-672-0 01 1 -
88 WASHER; PL,PULLEY GEN
ASM PART: A = 1-81200-491-0, B = 1-81200-492-1, C = 1-81200-505-0, D = 1-81200-506-1 		1-81229-673-0 01 1 -
89 BOLT; RECTIFIER,GEN
ASM PART: A = 1-81200-491-0, B = 1-81200-492-1, C = 1-81200-505-0, D = 1-81200-506-1 		1-81229-698-0 01 1 -
127 BOLT SET; GEN
ASM PART: E = 1-81200-542-0, F = 1-81200-561-0 		1-81229-812-0 01 1 -
130 CONNECTOR; GEN
ASM PART: E = 1-81200-542-0, F = 1-81200-561-0 		1-81229-829-0 01 1 -
