◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50651 - TFR/TFS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-14 - DASH PANEL AND FENDER SKIRT ▶
6-14 — DASH PANEL AND FENDER SKIRT (#45408) — 36 parça

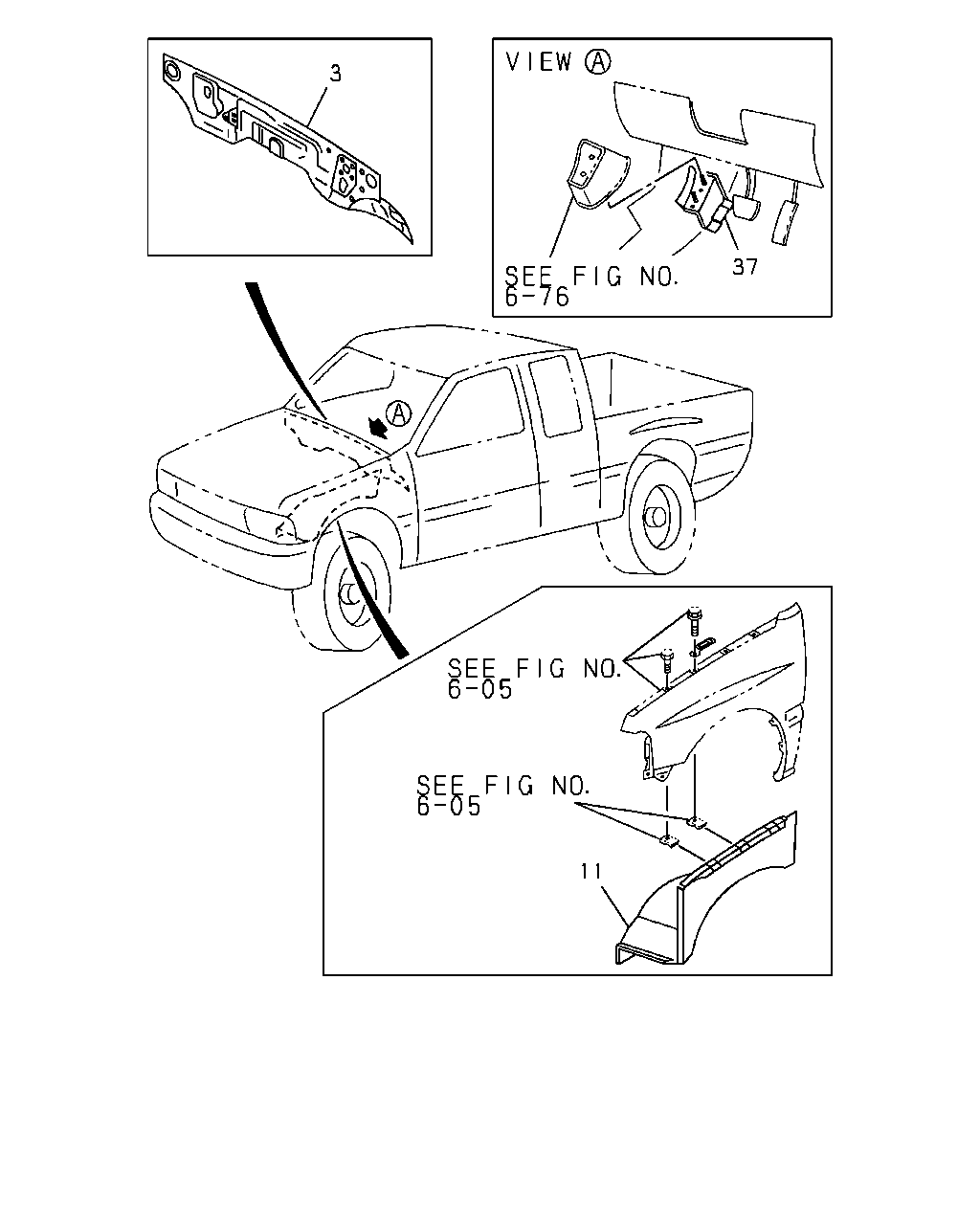

çizim 20044
3 37 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
3 16.550 PANEL; SUB,DASH LWR
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97065-583-4 01 1 9210-9308 ● ● ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97065-583-4 01 1 9309-9410 ● ● ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) 		8-97065-583-6 01 1 9411- ● ●
3 16.550 PANEL; SUB,DASH LWR
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97065-583-6 01 1 9411- ● ●
3 16.550 PANEL; SUB,DASH LWR
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97065-583-6 01 1 9411- ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97065-581-3 01 1 9210-9308 ● ● ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97065-581-4 01 1 9309- ● ● ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4ZE1 ENG(RLJ) A/T AISIN(RMD) AUSTRALIA EQUIPMENT(RR3) 		8-97088-142-1 01 1 9309- ● ●
3 16.550 PANEL; SUB,DASH LWR
4ZE1 ENG(RLJ) A/T AISIN(RMD) 		8-97065-585-0 01 1 9210-9406 ● ● ●
3 16.550 PANEL; SUB,DASH LWR
C223 ENG(LQ7),4ZA1 ENG(L17) 		8-97065-585-0 01 1 9210-9406 ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4ZE1 ENG(RLJ) A/T AISIN(RMD) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97065-585-1 01 1 9407- ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4ZA1 ENG(L17) 		8-97065-585-1 01 1 9407- ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4JB1 ENG(RLF) AUSTRALIA EQUIPMENT(RR3) 		8-97079-418-2 01 1 9309-9406 ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4JB1 ENG(RLF) AUSTRALIA EQUIPMENT(RR3) 		8-97088-141-1 01 1 9407-9601 ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) 		8-97088-141-1 01 1 9602- ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) 		8-97088-141-0 01 1 9309-9406 ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) 		8-97079-418-2 01 1 9407-9410 ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) 		8-97079-418-3 01 1 9411-9601 ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) THAILAND EQUIPMENT(PM9) 		8-97079-418-3 01 1 9411-9601 ● ●
3 16.550 PANEL; SUB,DASH LWR
4JA1 ENG(RLE) A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) 		8-97079-418-3 01 1 9411-9601 ●
3 16.550 PANEL; SUB,DASH LWR
4JB1 ENG(RLF) AUSTRALIA EQUIPMENT(RR3) 		8-97079-418-4 01 1 9602- ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) THAILAND EQUIPMENT(PM9) 		8-97079-418-4 01 1 9602- ● ●
3 16.550 PANEL; SUB,DASH LWR
4JA1 ENG(RLE) A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) 		8-97079-418-4 01 1 9602- ●
3 16.550 PANEL; SUB,DASH LWR
4ZE1 ENG(RLJ) A/T AISIN(RMD) AUSTRALIA EQUIPMENT(RR3) 		8-97089-268-0 01 1 9309- ●
3 16.550 PANEL; SUB,DASH LWR
4JB1 ENG(RLF) AUSTRALIA EQUIPMENT(RR3) 		8-97089-266-0 01 1 9309-9601 ● ●
3 16.550 PANEL; SUB,DASH LWR
4JB1 ENG(RLF) AUSTRALIA EQUIPMENT(RR3) 		8-97089-267-1 01 1 9602- ● ●
3 16.550 PANEL; SUB,DASH LWR
4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) 		8-97089-267-0 01 1 9309-9601 ● ●
3 16.550 PANEL; SUB,DASH LWR
4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) 		8-97089-266-0 01 1 9602- ● ●
11 08.153 SKIRT; FRT FENDER PNL 8-97038-160-0 01 1 9210- ● ● ● ● ● ● ● ●
11 08.153 SKIRT; FRT FENDER PNL 8-97039-960-3 01 1 9210-9306 ● ● ● ● ● ● ● ●
11 08.153 SKIRT; FRT FENDER PNL 8-97079-420-0 01 1 9307-9501 ● ● ● ● ● ● ● ●
11 08.153 SKIRT; FRT FENDER PNL 8-97100-052-0 01 1 9502-9502 ● ● ● ● ● ● ● ●
11 08.153 SKIRT; FRT FENDER PNL 8-97130-526-0 01 1 9503- ● ● ● ● ● ● ● ●
37 07.039 BRACKET; FOOT REST
4JB1 ENG(RLF),4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 		8-97081-472-3 01 1 9309-9410 ● ● ● ● ● ●
37 07.039 BRACKET; FOOT REST
THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-97081-472-3 01 1 9411-9509 ● ●
37 07.039 BRACKET; FOOT REST
AUSTRALIA EQUIPMENT(RR3) 		8-97081-472-3 01 1 9411-9509 ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
