6-10 — ENGINE HOOD AND LOCK (#45407) — 29 parça

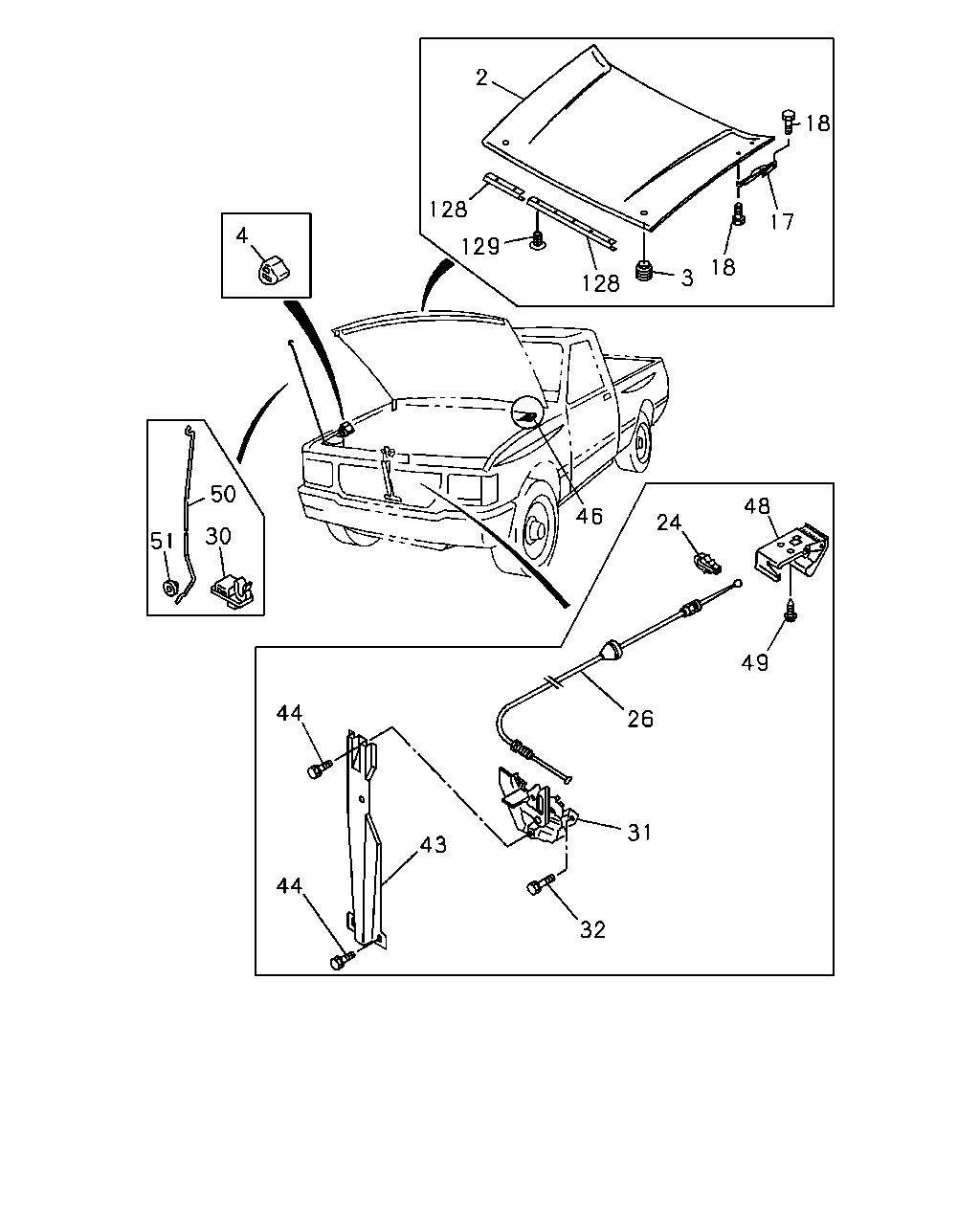

çizim 68329
2 128 129 128 3 18 17 18 4 50 30 51 44 44 43 32 31 26 49 48 24 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 08.000 PANEL; ENG HOOD 8-94450-839-4 01 1 9210-9308 ● ● ● ● ● ● ● ●
2 08.000 PANEL; ENG HOOD 8-97081-434-1 01 1 9309-9409 ● ● ● ● ● ● ● ●
2 08.000 PANEL; ENG HOOD 8-97111-443-0 01 1 9410- ● ● ● ● ● ● ● ●
3 08.077 BUFFER; ENG HOOD,FRT
08.024 		8-94237-385-0 02 1 9210-9308 ● ● ● ● ● ● ● ●
3 08.077 BUFFER; ENG HOOD,FRT 8-97810-601-0 02 1 9309-9608 ● ● ● ● ● ● ● ●
3 08.077 BUFFER; ENG HOOD,FRT
08.024 		8-94237-385-0 02 1 9609- ● ● ● ● ● ● ● ●
4 08.024 REST; SIDE 8-94442-966-0 02 1 9210- ● ● ● ● ● ● ● ●
17 08.015 HINGE; ENG HOOD 8-94388-235-4 01 1 9210- ● ● ● ● ● ● ● ●
17 08.015 HINGE; ENG HOOD 8-94388-234-4 01 1 9210- ● ● ● ● ● ● ● ●
18 08.015 BOLT; HINGE
M8X16 		8-94139-492-0 08 1 9210- ● ● ● ● ● ● ● ●
24 08.077 CLIP; CONT CABLE 8-94225-098-0 02 1 9210- ● ● ● ● ● ● ● ●
26 08.075 CABLE; ENG HOOD CONT 8-94455-461-2 01 1 9210- ● ● ● ● ● ● ● ●
30 08.077 CLIP; SUPPORT ROD,HOOD 8-94441-538-0 01 1 9210- ● ● ● ● ● ● ● ●
31 08.083 LOCK; ENG HOOD 8-94478-132-2 01 1 9210- ● ● ● ● ● ● ● ●
32 08.077 BOLT; HOOD LK
M6X18 		8-94408-386-1 02 1 9210-9210 ● ● ● ● ● ● ● ●
32 08.077 BOLT; HOOD LK
M6X18 		8-97071-681-0 02 1 9211- ● ● ● ● ● ● ● ●
43 08.077 STAY; ENG HOOD,FRT END 8-94434-818-3 01 1 9210- ● ● ● ● ● ● ● ●
44 08.077 BOLT; STAY,HOOD
M6X18 		8-94408-386-1 03 1 9210-9210 ● ● ● ● ● ● ● ●
44 08.077 BOLT; STAY,HOOD
M6X18 		8-97071-681-0 03 1 9211- ● ● ● ● ● ● ● ●
46 01.272 SEAL; ENG HOOD
08.021 		8-94434-824-1 01 1 9210- ● ● ● ● ● ● ● ●
48 08.083 LEVER; ENG HOOD
INTERIOR COLOR BEIGE(120) BROWN 		8-94474-734-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
48 08.083 LEVER; ENG HOOD
INTERIOR COLOR MUSHROOM(150) GRAY 		8-94474-735-0 01 1 9210-9309 ● ● ● ● ● ● ● ●
48 08.083 LEVER; ENG HOOD
INTERIOR COLOR MUSHROOM(150) '930927- GRAY 		8-97098-100-0 01 1 9309- ● ● ● ● ● ● ● ●
49 08.083 SCREW; LEVER,ENG HOOD OPENER
08.077 M5X10 		9-09829-185-0 02 1 9210- ● ● ● ● ● ● ● ●
50 08.015 ROD; SUPPORT,ENG HOOD 8-97073-612-1 01 1 9210- ● ● ● ● ● ● ● ●
51 08.080 GROMMET; SUPPORT ROD 8-94220-508-2 01 1 9210- ● ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
C223 ENG(LQ7),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) L=574 		8-94313-930-1 01 1 9210- ● ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
C223 ENG(LQ7),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) L=201 		8-94313-931-0 01 1 9210- ● ● ● ● ● ● ● ●
129 08.010 CLIP; ENG HOOD SEAL
C223 ENG(LQ7),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) 15.100 BLACK 		8-94104-935-0 07 1 9210- ● ● ● ● ● ● ● ●
