6-05 — FRONT PANEL (#45405) — 93 parça

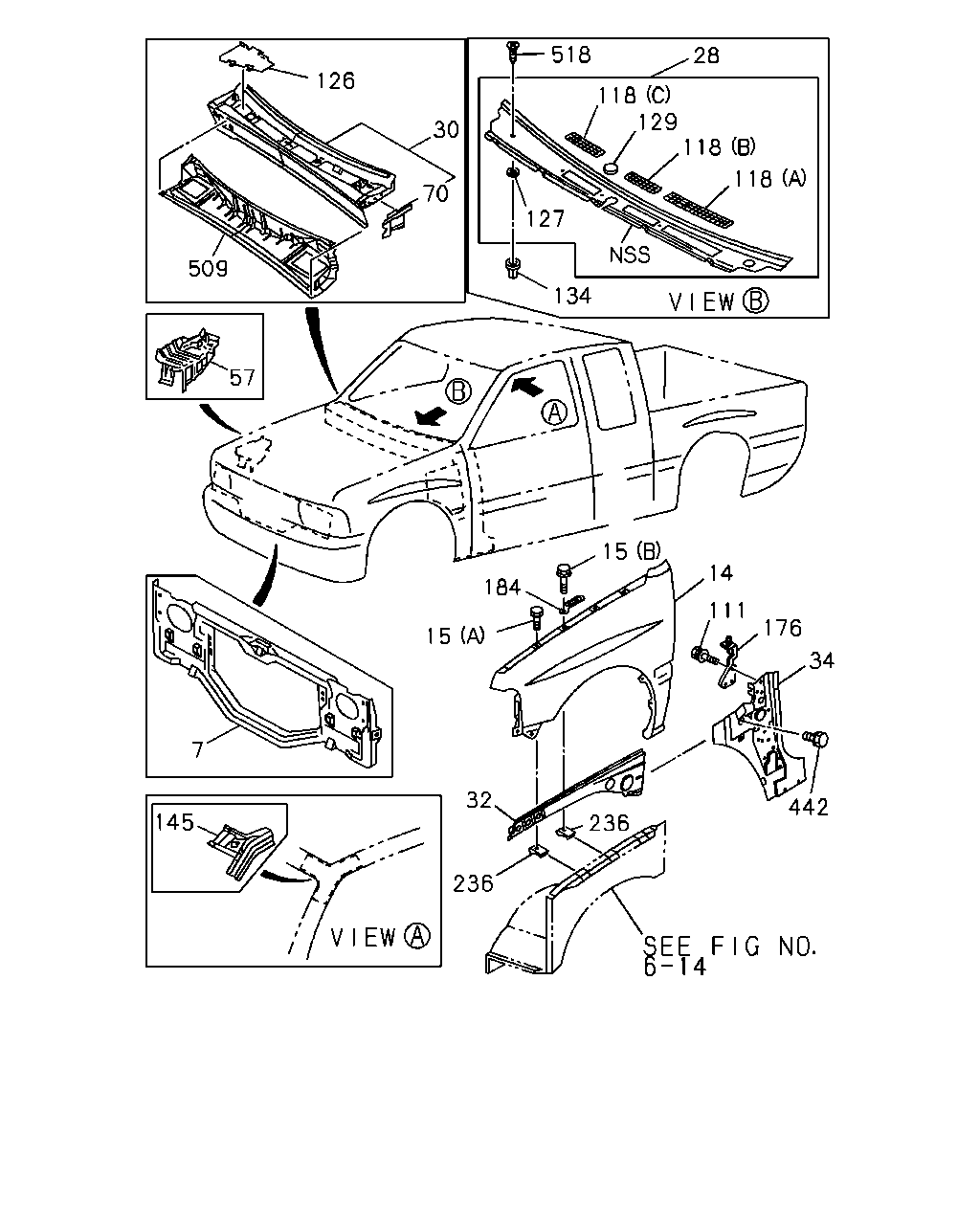

çizim 65189
126 30 70 509 57 7 145 236 32 236 442 34 176 111 14 15 184 15 134 127 118 118 129 118 28 518
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
7 01.271 PANEL; DEFLECTOR 8-97065-571-3 01 1 9210-9507 ● ● ● ● ● ● ● ●
7 01.271 PANEL; DEFLECTOR 8-97104-243-1 01 1 9508- ● ● ● ● ● ● ● ●
14 08.130 FENDER; FRT
THAILAND EQUIPMENT(PM9) 		8-97012-986-0 01 1 9210-9509 ● ● ● ● ● ●
14 08.130 FENDER; FRT
THAILAND EQUIPMENT(PM9) 		8-97012-986-0 01 1 9510- ● ● ● ● ●
14 08.130 FENDER; FRT
EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),IRISH EQUIPMENT(6CU) 		8-97012-990-0 01 1 9210-9506 ● ● ● ● ● ● ●
14 08.130 FENDER; FRT 8-97012-990-0 01 1 9210-9506 ●
14 08.130 FENDER; FRT
EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),IRISH EQUIPMENT(6CU) 		8-97012-990-0 01 1 9507- ● ● ● ● ● ● ● ●
14 08.130 FENDER; FRT
EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),IRISH EQUIPMENT(6CU) 		8-97012-989-0 01 1 9210-9505 ● ● ● ● ● ●
14 08.130 FENDER; FRT 8-97012-989-0 01 1 9210-9505 ● ●
14 08.130 FENDER; FRT
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97012-989-0 01 1 9506-9506 ● ● ●
14 08.130 FENDER; FRT 8-97012-989-0 01 1 9506-9506 ● ●
14 08.130 FENDER; FRT
EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97012-989-0 01 1 9506-9506 ● ●
14 08.130 FENDER; FRT
EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),IRISH EQUIPMENT(6CU) 		8-97012-989-0 01 1 9506-9506 ●
14 08.130 FENDER; FRT
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97012-989-0 01 1 9507- ● ● ●
14 08.130 FENDER; FRT 8-97012-989-0 01 1 9507- ● ●
14 08.130 FENDER; FRT
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97012-989-0 01 1 9507- ● ●
14 08.130 FENDER; FRT
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),IRISH EQUIPMENT(6CU) 		8-97012-989-0 01 1 9507- ●
14 08.130 FENDER; FRT
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97012-992-0 01 1 9210-9406 ● ●
14 08.130 FENDER; FRT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97012-992-0 01 1 9210-9406 ●
14 08.130 FENDER; FRT
AUSTRALIA EQUIPMENT(RR3) 		8-97012-992-0 01 1 9210-9406 ● ●
14 08.130 FENDER; FRT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. IRISH EQUIPMENT(6CU) 		8-97012-992-0 01 1 9210-9406 ●
14 08.130 FENDER; FRT
IRISH EQUIPMENT(6CU) 		8-97012-992-0 01 1 9210-9406 ●
14 08.130 FENDER; FRT
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97012-992-0 01 1 9407-9505 ● ●
14 08.130 FENDER; FRT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97012-992-0 01 1 9407-9505 ● ●
14 08.130 FENDER; FRT
AUSTRALIA EQUIPMENT(RR3) 		8-97012-992-0 01 1 9407-9505 ●
14 08.130 FENDER; FRT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. IRISH EQUIPMENT(6CU) 		8-97012-992-0 01 1 9407-9505 ●
14 08.130 FENDER; FRT
IRISH EQUIPMENT(6CU) 		8-97012-992-0 01 1 9407-9505 ●
14 08.130 FENDER; FRT
AUSTRALIA EQUIPMENT(RR3) 		8-97012-992-0 01 1 9506-9506 ● ● ●
14 08.130 FENDER; FRT
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97012-992-0 01 1 9506-9506 ● ●
14 08.130 FENDER; FRT
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) EXC. IRISH EQUIPMENT(6CU) 		8-97012-992-0 01 1 9506-9506 ●
14 08.130 FENDER; FRT
IRISH EQUIPMENT(6CU) 		8-97012-992-0 01 1 9506-9506 ●
14 08.130 FENDER; FRT
AUSTRALIA EQUIPMENT(RR3) 		8-97012-992-0 01 1 9507-9509 ● ● ●
14 08.130 FENDER; FRT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97012-992-0 01 1 9507-9509 ● ●
14 08.130 FENDER; FRT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. IRISH EQUIPMENT(6CU) 		8-97012-992-0 01 1 9507-9509 ●
14 08.130 FENDER; FRT
IRISH EQUIPMENT(6CU) 		8-97012-992-0 01 1 9507-9509 ●
14 08.130 FENDER; FRT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. IRISH EQUIPMENT(6CU) 		8-97012-992-0 01 1 9510- ● ● ● ● ● ●
14 08.130 FENDER; FRT
IRISH EQUIPMENT(6CU) 		8-97012-992-0 01 1 9510- ●
14 08.130 FENDER; FRT
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97012-991-0 01 1 9210-9406 ● ●
14 08.130 FENDER; FRT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97012-991-0 01 1 9210-9406 ●
14 08.130 FENDER; FRT
AUSTRALIA EQUIPMENT(RR3) 		8-97012-991-0 01 1 9210-9406 ● ●
14 08.130 FENDER; FRT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. IRISH EQUIPMENT(6CU) 		8-97012-991-0 01 1 9210-9406 ●
14 08.130 FENDER; FRT
IRISH EQUIPMENT(6CU) 		8-97012-991-0 01 1 9210-9406 ●
14 08.130 FENDER; FRT
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97012-991-0 01 1 9407-9505 ● ●
14 08.130 FENDER; FRT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97012-991-0 01 1 9407-9505 ● ●
14 08.130 FENDER; FRT
AUSTRALIA EQUIPMENT(RR3) 		8-97012-991-0 01 1 9407-9505 ●
14 08.130 FENDER; FRT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. IRISH EQUIPMENT(6CU) 		8-97012-991-0 01 1 9407-9505 ●
14 08.130 FENDER; FRT
IRISH EQUIPMENT(6CU) 		8-97012-991-0 01 1 9407-9505 ●
14 08.130 FENDER; FRT
AUSTRALIA EQUIPMENT(RR3) 		8-97012-991-0 01 1 9506-9506 ● ● ●
14 08.130 FENDER; FRT
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97012-991-0 01 1 9506-9506 ● ●
14 08.130 FENDER; FRT
UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) EXC. IRISH EQUIPMENT(6CU) 		8-97012-991-0 01 1 9506-9506 ●
14 08.130 FENDER; FRT
IRISH EQUIPMENT(6CU) 		8-97012-991-0 01 1 9506-9506 ●
14 08.130 FENDER; FRT
AUSTRALIA EQUIPMENT(RR3) 		8-97012-991-0 01 1 9507-9509 ● ● ●
14 08.130 FENDER; FRT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97012-991-0 01 1 9507-9509 ● ●
14 08.130 FENDER; FRT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. IRISH EQUIPMENT(6CU) 		8-97012-991-0 01 1 9507-9509 ●
14 08.130 FENDER; FRT
IRISH EQUIPMENT(6CU) 		8-97012-991-0 01 1 9507-9509 ●
14 08.130 FENDER; FRT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. IRISH EQUIPMENT(6CU) 		8-97012-991-0 01 1 9510- ● ● ● ● ● ●
14 08.130 FENDER; FRT
IRISH EQUIPMENT(6CU) 		8-97012-991-0 01 1 9510- ●
15 08.143 BOLT; FENDER
(A) M6X16 		0-28800-616-0 02 1 9210- ● ● ● ● ● ● ● ●
15 08.143 BOLT; FENDER
(B) M6X16 W/PL WASHER 		8-94199-279-1 02 1 9210- ● ● ● ● ● ● ● ●
15 08.143 BOLT; FENDER
(B) M6X12 W/PL WASHER 		8-94232-078-0 13 1 9210- ● ● ● ● ● ● ● ●
28 16.125 COVER; DASH COWL 8-97064-544-1 01 1 9210- ● ● ● ● ● ● ● ●
30 16.125 PANEL; COWL UPR 8-97013-016-0 01 1 9210- ● ● ● ● ● ●
30 16.125 PANEL; COWL UPR 8-97013-017-0 01 1 9210- ● ●
32 08.155 REINFORCEMENT; COWL SIDE,ENG ROO 8-97078-329-1 01 1 9210- ● ● ● ● ● ● ● ●
32 08.155 REINFORCEMENT; COWL SIDE,ENG ROO 8-97078-328-1 01 1 9210- ● ● ● ● ● ● ● ●
34 16.570 PANEL; DASH SIDE 8-94471-147-6 01 1 9210-9210 ● ● ● ● ● ● ● ●
34 16.570 PANEL; DASH SIDE 8-97081-113-2 01 1 9211-9608 ● ● ● ● ● ● ● ●
34 16.570 PANEL; DASH SIDE 8-97141-992-0 01 1 9609- ● ● ● ● ● ● ● ●
34 16.570 PANEL; DASH SIDE 8-94471-146-5 01 1 9210-9210 ● ● ● ● ● ● ● ●
34 16.570 PANEL; DASH SIDE 8-97081-112-2 01 1 9211-9608 ● ● ● ● ● ● ● ●
34 16.570 PANEL; DASH SIDE 8-97141-991-0 01 1 9609- ● ● ● ● ● ● ● ●
57 02.333 TRAY; BATTERY 8-97084-957-2 01 1 9210- ● ● ● ● ● ● ● ●
70 16.551 PANEL ASM; COWL SIDE 8-94435-660-4 01 1 9210- ● ● ● ● ● ● ● ●
70 16.551 PANEL ASM; COWL SIDE 8-94435-659-4 01 1 9210- ● ● ● ● ● ● ● ●
111 16.550 BOLT; INST SUPPORT BAR
M8X16 W/LK&PL WASHER 		8-94310-730-0 08 1 9210- ● ● ● ● ● ● ● ●
118 16.125 GRILLE; AIR INL
(A) 		8-94434-778-0 01 1 9210- ● ● ● ● ● ● ● ●
118 16.125 GRILLE; AIR INL
(B) 		8-94434-779-0 01 1 9210- ● ● ● ● ● ● ● ●
118 16.125 GRILLE; AIR INL
(C) 		8-94434-780-0 01 1 9210- ● ● ● ● ● ● ● ●
126 12.800 COVER; COWL HOLE
GRADE LS(RBD) HEATER & DEFROSTER(C41),AIR CON(C60) 		8-97104-480-0 01 1 9311-9601 ● ● ● ● ● ● ● ●
126 12.800 COVER; COWL HOLE
VENTILATION RAM AIR(6TN) 		8-97104-480-0 01 1 9311-9601 ● ● ● ● ● ● ● ●
126 12.800 COVER; COWL HOLE
VENTILATION RAM AIR(6TN) 		8-97104-480-0 01 1 9602- ● ● ● ● ● ● ● ●
127 16.125 SPACER; COWL COVER 8-94441-843-0 05 1 9210- ● ● ● ● ● ● ● ●
129 16.125 FINISHER; COWL COVER 8-94441-844-1 01 1 9210- ● ● ● ● ● ● ● ●
134 16.125 GROMMET; SCREW,COVER TO BODY 8-94380-833-0 05 1 9210- ● ● ● ● ● ● ● ●
145 16.570 GUSSET; FRT PILLAR,UPR 8-94455-358-3 01 1 9210- ● ● ● ● ● ● ● ●
145 16.570 GUSSET; FRT PILLAR,UPR 8-94455-357-3 01 1 9210- ● ● ● ● ● ● ● ●
176 16.550 BRACKET; INST SUPPORT BAR 8-94456-884-3 01 1 9210- ● ● ● ● ● ● ● ●
176 16.550 BRACKET; INST SUPPORT BAR 8-94457-288-3 01 1 9210- ● ● ● ● ● ● ● ●
184 08.143 CLIP; REST,FENDER 8-94443-017-1 02 1 9210- ● ● ● ● ● ● ● ●
236 08.143 NUT; CLIP FENDER 8-94334-769-0 09 1 9210- ● ● ● ● ● ● ● ●
442 16.570 BOLT; SEAL,DASH SIDE
03.342 M6X16 		8-97012-496-0 01 1 9210- ● ● ● ● ● ● ● ●
509 16.550 PANEL; DASH 8-94454-095-2 01 1 9210- ● ● ● ● ● ● ● ●
518 16.125 SCREW; BRKT,COWL COVER
M5X20 TAPPING 		8-94380-832-1 05 1 9210- ● ● ● ● ● ● ● ●
