Sayfa 0-65 - Isuzu EPC

0-65 — STARTER (#454) — 183 parça

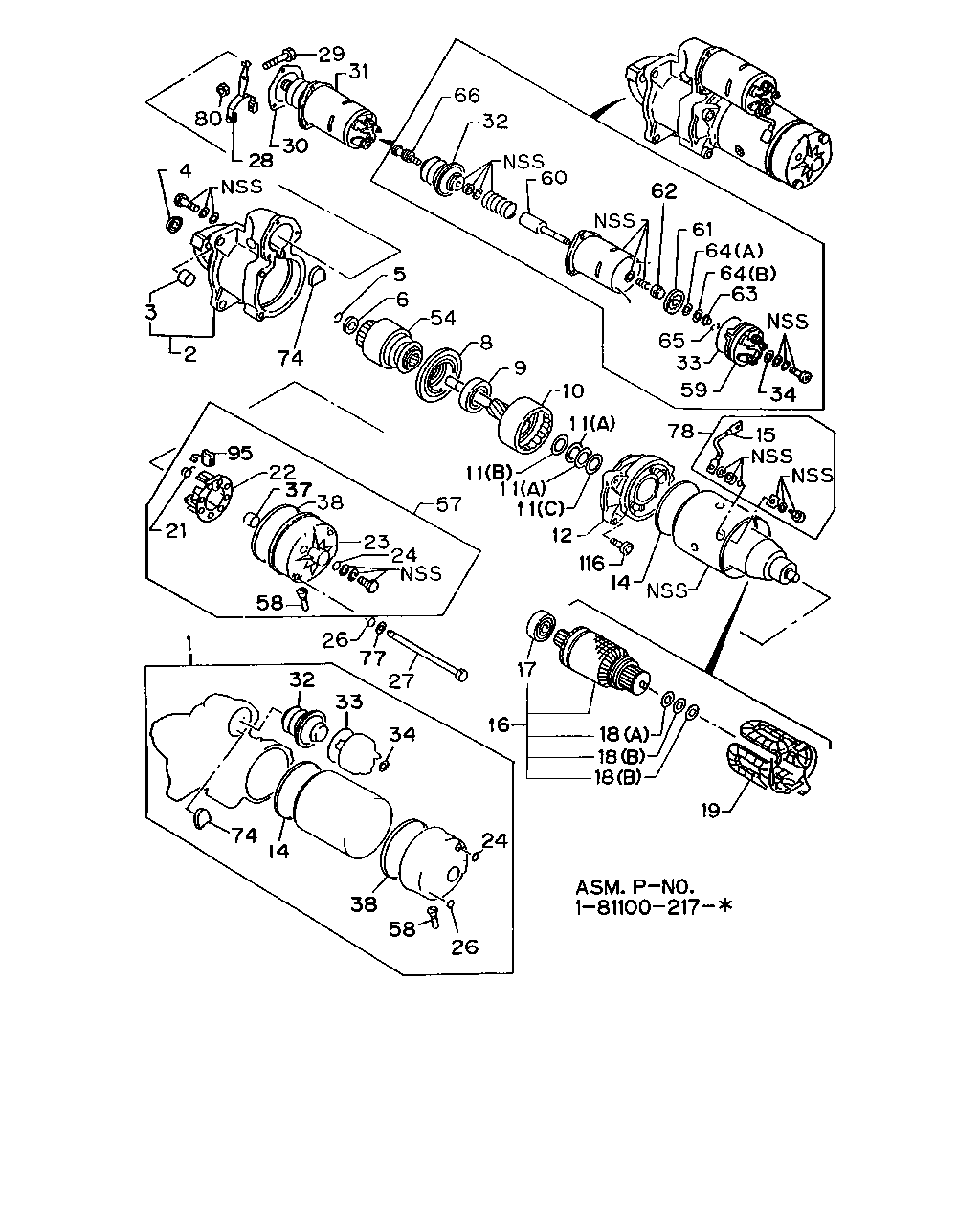

29 31 80 30 28 4 66 32 60 62 61 64 64 63 34 59 33 65 3 2 74 5 6 54 8 9 10 11 78 15 14 116 12 11 11 11 57 95 22 37 38 23 24 58 21 1 26 77 27 17 16 18 18 18 19 32 33 34 74 14 24 38 58 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SEAL KIT; STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-440-0	01	1	-
1	SEAL KIT; STARTER ASM PART: C = 1-81100-274-1, D = 1-81100-275-1	1-81129-601-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 1-81100-217-1	1-81113-050-0	01	1	-
2	CASE; PINION,STARTER ASM PART: A = 1-81100-216-1	1-81113-052-0	01	1	-
2	CASE; PINION,STARTER ASM PART: C = 1-81100-274-1	1-81113-113-0	01	1	-
2	CASE; PINION,STARTER ASM PART: D = 1-81100-275-1	1-81113-115-0	01	1	-
3	METAL; PINION CASE STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-286-0	01	1	-
4	COVER; PINION CASE STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-305-0	01	1	-
5	CLIP; PINION STOPPER STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-189-0	01	1	-
6	STOPPER; PINION STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-190-0	01	1	-
8	BRACKET; CENTER STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81113-084-0	01	1	-
9	BEARING; GEAR SHAFT STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-298-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81123-017-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: C = 1-81100-274-1, D = 1-81100-275-1	1-81123-042-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (C) ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-160-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (B) ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-295-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (B) ASM PART: C = 1-81100-274-1, D = 1-81100-275-1	1-81129-297-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (A) ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	5-81129-159-0	02	1	-
11	WASHER; GEAR SHAFT STARTER (C) ASM PART: C = 1-81100-274-1, D = 1-81100-275-1	5-81129-160-0	01	1	-
12	BRACKET; CENTER RR STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81113-083-0	01	1	-
14	GASKET; YOKE,STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-205-0	01	1	-
15	WIRE; LEAD STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81116-034-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81121-033-0	01	1	-
16	ARMATURE; STARTER ASM PART: C = 1-81100-274-1, D = 1-81100-275-1	1-81121-056-0	01	1	-
17	BEARING; ARMATURE,STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-294-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER (A) ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-289-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER (B) ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-290-0	02	1	-
19	COIL; FIELD,STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81112-028-0	01	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81117-016-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81118-032-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 1-81100-216-1	1-81115-074-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81115-180-0	01	1	-
24	SEAL; HOLDER STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	5-81128-029-0	02	1	-
26	SEAL; THROUGH BOLT STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	9-82215-686-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-292-0	02	1	-
28	LEVER; SHIFT,STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81127-040-0	01	1	-
29	PIN; SHIFT LEVER STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-185-0	01	1	-
30	PLATE; ENGAGE SW STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-287-0	01	1	-
30	PLATE; ENGAGE SW STARTER ASM PART: C = 1-81100-274-1, D = 1-81100-275-1	1-81129-598-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81151-037-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: C = 1-81100-274-1, D = 1-81100-275-1	1-81151-090-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-120-0	01	1	-
33	GASKET; ENGAGE SW STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-093-0	01	1	-
34	GASKET; TERMINAL ENGAGE SW STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	9-88120-277-0	02	1	-
37	METAL; RR COVER STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-291-0	01	1	-
38	GASKET; RR COVER,STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-300-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 1-81100-216-1	1-81122-039-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 1-81100-217-1	1-81122-040-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: C = 1-81100-274-1	1-81122-057-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: D = 1-81100-275-1	1-81122-058-0	01	1	-
57	COVER ASM; RR,STARTER ASM PART: A = 1-81100-216-1	1-81115-073-0	01	1	-
57	COVER ASM; RR,STARTER ASM PART: B = 1-81100-217-1	1-81115-179-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER NIKKO ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-439-0	01	1	-
59	TERMINAL; ENGAGE SW STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-121-0	01	1	-
60	PLUNGER; ENGAGE SW STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-122-0	01	1	-
61	CONTACT; ENGAGE SW STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-193-0	01	1	-
62	BUSHING; ENGAGE SW STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-192-0	01	1	-
63	HOLDER; ENGAGE SW STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81118-009-0	01	1	-
64	WASHER; INSULATION ENGAGE SW STARTER (A) ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-096-0	01	1	-
64	WASHER; INSULATION ENGAGE SW STARTER (B) ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-194-0	02	1	-
65	RING; CLIP ENGAGE SW STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-104-0	02	1	-
66	SCREW; ENGAGE SW STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-191-0	01	1	-
74	GASKET; PINION CASE,STARTER ASM PART: B = 1-81100-217-1	1-81129-120-0	01	1	-
74	GASKET; PINION CASE,STARTER ASM PART: A = 1-81100-216-1	1-81129-299-0	01	1	-
77	WASHER; THROUGH BOLT,STARTER NIKKO ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81229-114-0	02	1	-
78	TERMINAL; LEAD WIRE STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-288-0	01	1	-
80	NUT; SHIFT LEVER PIN STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-184-0	01	1	-
95	BRUSH ASM; STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81116-035-0	04	1	-
116	BOLT; BRKT ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-293-0	03	1	-

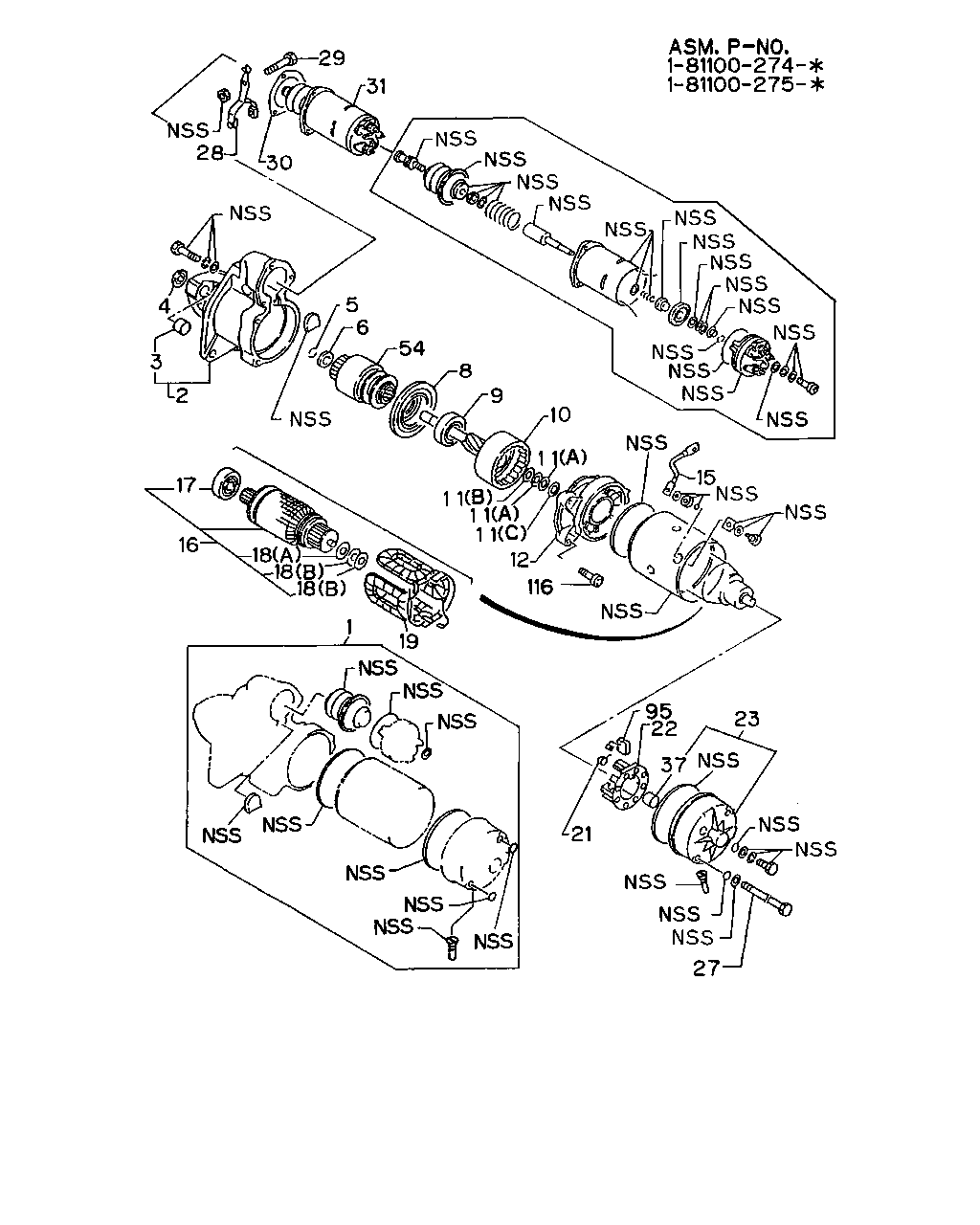

29 31 80 28 30 66 32 60 62 61 64 64 63 64 65 33 59 34 4 5 6 54 8 9 10 11 14 15 78 116 12 11 11 11 74 3 2 95 22 23 21 37 38 24 58 57 26 77 27 1 17 16 18 18 18 19 32 33 34 74 14 38 26 58 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SEAL KIT; STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-440-0	01	1	-
1	SEAL KIT; STARTER ASM PART: C = 1-81100-274-1, D = 1-81100-275-1	1-81129-601-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 1-81100-217-1	1-81113-050-0	01	1	-
2	CASE; PINION,STARTER ASM PART: A = 1-81100-216-1	1-81113-052-0	01	1	-
2	CASE; PINION,STARTER ASM PART: C = 1-81100-274-1	1-81113-113-0	01	1	-
2	CASE; PINION,STARTER ASM PART: D = 1-81100-275-1	1-81113-115-0	01	1	-
3	METAL; PINION CASE STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-286-0	01	1	-
4	COVER; PINION CASE STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-305-0	01	1	-
5	CLIP; PINION STOPPER STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-189-0	01	1	-
6	STOPPER; PINION STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-190-0	01	1	-
8	BRACKET; CENTER STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81113-084-0	01	1	-
9	BEARING; GEAR SHAFT STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-298-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81123-017-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: C = 1-81100-274-1, D = 1-81100-275-1	1-81123-042-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (C) ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-160-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (B) ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-295-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (B) ASM PART: C = 1-81100-274-1, D = 1-81100-275-1	1-81129-297-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (A) ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	5-81129-159-0	02	1	-
11	WASHER; GEAR SHAFT STARTER (C) ASM PART: C = 1-81100-274-1, D = 1-81100-275-1	5-81129-160-0	01	1	-
12	BRACKET; CENTER RR STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81113-083-0	01	1	-
14	GASKET; YOKE,STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-205-0	01	1	-
15	WIRE; LEAD STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81116-034-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81121-033-0	01	1	-
16	ARMATURE; STARTER ASM PART: C = 1-81100-274-1, D = 1-81100-275-1	1-81121-056-0	01	1	-
17	BEARING; ARMATURE,STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-294-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER (A) ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-289-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER (B) ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-290-0	02	1	-
19	COIL; FIELD,STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81112-028-0	01	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81117-016-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81118-032-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 1-81100-216-1	1-81115-074-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81115-180-0	01	1	-
24	SEAL; HOLDER STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	5-81128-029-0	02	1	-
26	SEAL; THROUGH BOLT STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	9-82215-686-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-292-0	02	1	-
28	LEVER; SHIFT,STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81127-040-0	01	1	-
29	PIN; SHIFT LEVER STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-185-0	01	1	-
30	PLATE; ENGAGE SW STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-287-0	01	1	-
30	PLATE; ENGAGE SW STARTER ASM PART: C = 1-81100-274-1, D = 1-81100-275-1	1-81129-598-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81151-037-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: C = 1-81100-274-1, D = 1-81100-275-1	1-81151-090-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-120-0	01	1	-
33	GASKET; ENGAGE SW STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-093-0	01	1	-
34	GASKET; TERMINAL ENGAGE SW STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	9-88120-277-0	02	1	-
37	METAL; RR COVER STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-291-0	01	1	-
38	GASKET; RR COVER,STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-300-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 1-81100-216-1	1-81122-039-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 1-81100-217-1	1-81122-040-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: C = 1-81100-274-1	1-81122-057-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: D = 1-81100-275-1	1-81122-058-0	01	1	-
57	COVER ASM; RR,STARTER ASM PART: A = 1-81100-216-1	1-81115-073-0	01	1	-
57	COVER ASM; RR,STARTER ASM PART: B = 1-81100-217-1	1-81115-179-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER NIKKO ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-439-0	01	1	-
59	TERMINAL; ENGAGE SW STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-121-0	01	1	-
60	PLUNGER; ENGAGE SW STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-122-0	01	1	-
61	CONTACT; ENGAGE SW STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-193-0	01	1	-
62	BUSHING; ENGAGE SW STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-192-0	01	1	-
63	HOLDER; ENGAGE SW STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81118-009-0	01	1	-
64	WASHER; INSULATION ENGAGE SW STARTER (A) ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-096-0	01	1	-
64	WASHER; INSULATION ENGAGE SW STARTER (B) ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-194-0	02	1	-
65	RING; CLIP ENGAGE SW STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-104-0	02	1	-
66	SCREW; ENGAGE SW STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-191-0	01	1	-
74	GASKET; PINION CASE,STARTER ASM PART: B = 1-81100-217-1	1-81129-120-0	01	1	-
74	GASKET; PINION CASE,STARTER ASM PART: A = 1-81100-216-1	1-81129-299-0	01	1	-
77	WASHER; THROUGH BOLT,STARTER NIKKO ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81229-114-0	02	1	-
78	TERMINAL; LEAD WIRE STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-288-0	01	1	-
80	NUT; SHIFT LEVER PIN STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-184-0	01	1	-
95	BRUSH ASM; STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81116-035-0	04	1	-
116	BOLT; BRKT ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-293-0	03	1	-

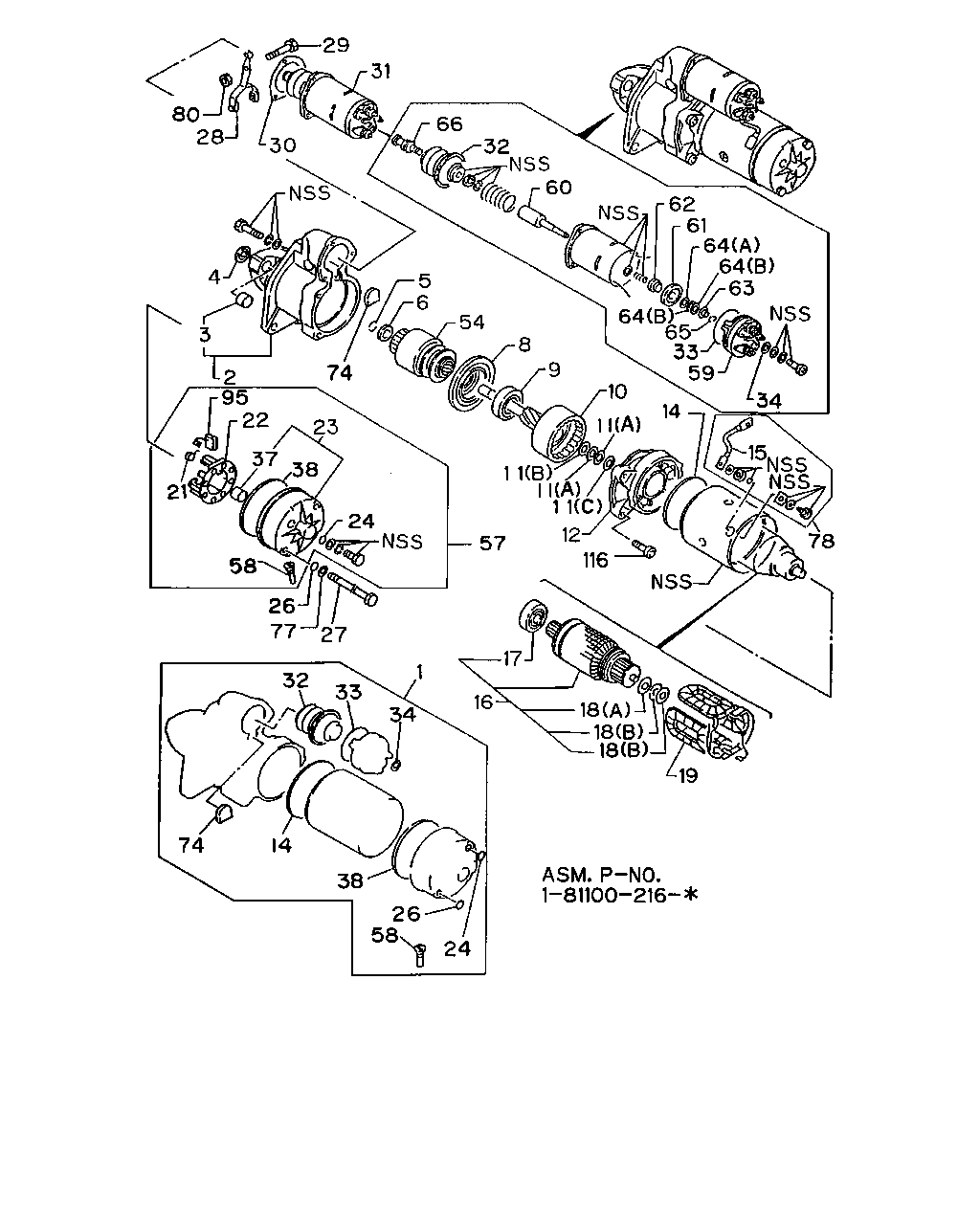

29 31 28 30 4 3 2 5 6 54 8 9 10 11 11 11 12 116 11 15 17 16 18 18 18 1 19 95 22 23 37 21 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SEAL KIT; STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-440-0	01	1	-
1	SEAL KIT; STARTER ASM PART: C = 1-81100-274-1, D = 1-81100-275-1	1-81129-601-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 1-81100-217-1	1-81113-050-0	01	1	-
2	CASE; PINION,STARTER ASM PART: A = 1-81100-216-1	1-81113-052-0	01	1	-
2	CASE; PINION,STARTER ASM PART: C = 1-81100-274-1	1-81113-113-0	01	1	-
2	CASE; PINION,STARTER ASM PART: D = 1-81100-275-1	1-81113-115-0	01	1	-
3	METAL; PINION CASE STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-286-0	01	1	-
4	COVER; PINION CASE STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-305-0	01	1	-
5	CLIP; PINION STOPPER STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-189-0	01	1	-
6	STOPPER; PINION STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-190-0	01	1	-
8	BRACKET; CENTER STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81113-084-0	01	1	-
9	BEARING; GEAR SHAFT STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-298-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81123-017-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: C = 1-81100-274-1, D = 1-81100-275-1	1-81123-042-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (C) ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-160-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (B) ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-295-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (B) ASM PART: C = 1-81100-274-1, D = 1-81100-275-1	1-81129-297-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (A) ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	5-81129-159-0	02	1	-
11	WASHER; GEAR SHAFT STARTER (C) ASM PART: C = 1-81100-274-1, D = 1-81100-275-1	5-81129-160-0	01	1	-
12	BRACKET; CENTER RR STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81113-083-0	01	1	-
15	WIRE; LEAD STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81116-034-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81121-033-0	01	1	-
16	ARMATURE; STARTER ASM PART: C = 1-81100-274-1, D = 1-81100-275-1	1-81121-056-0	01	1	-
17	BEARING; ARMATURE,STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-294-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER (A) ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-289-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER (B) ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-290-0	02	1	-
19	COIL; FIELD,STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81112-028-0	01	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81117-016-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81118-032-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 1-81100-216-1	1-81115-074-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81115-180-0	01	1	-
27	BOLT; THROUGH,STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-292-0	02	1	-
28	LEVER; SHIFT,STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81127-040-0	01	1	-
29	PIN; SHIFT LEVER STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-185-0	01	1	-
30	PLATE; ENGAGE SW STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81129-287-0	01	1	-
30	PLATE; ENGAGE SW STARTER ASM PART: C = 1-81100-274-1, D = 1-81100-275-1	1-81129-598-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1	1-81151-037-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: C = 1-81100-274-1, D = 1-81100-275-1	1-81151-090-0	01	1	-
37	METAL; RR COVER STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-291-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 1-81100-216-1	1-81122-039-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 1-81100-217-1	1-81122-040-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: C = 1-81100-274-1	1-81122-057-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: D = 1-81100-275-1	1-81122-058-0	01	1	-
95	BRUSH ASM; STARTER ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81116-035-0	04	1	-
116	BOLT; BRKT ASM PART: A = 1-81100-216-1, B = 1-81100-217-1, C = 1-81100-274-1, D = 1-81100-275-1	1-81129-293-0	03	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
