5-10 — CAB MOUNTING; FRAME SIDE (#45398) — 100 parça

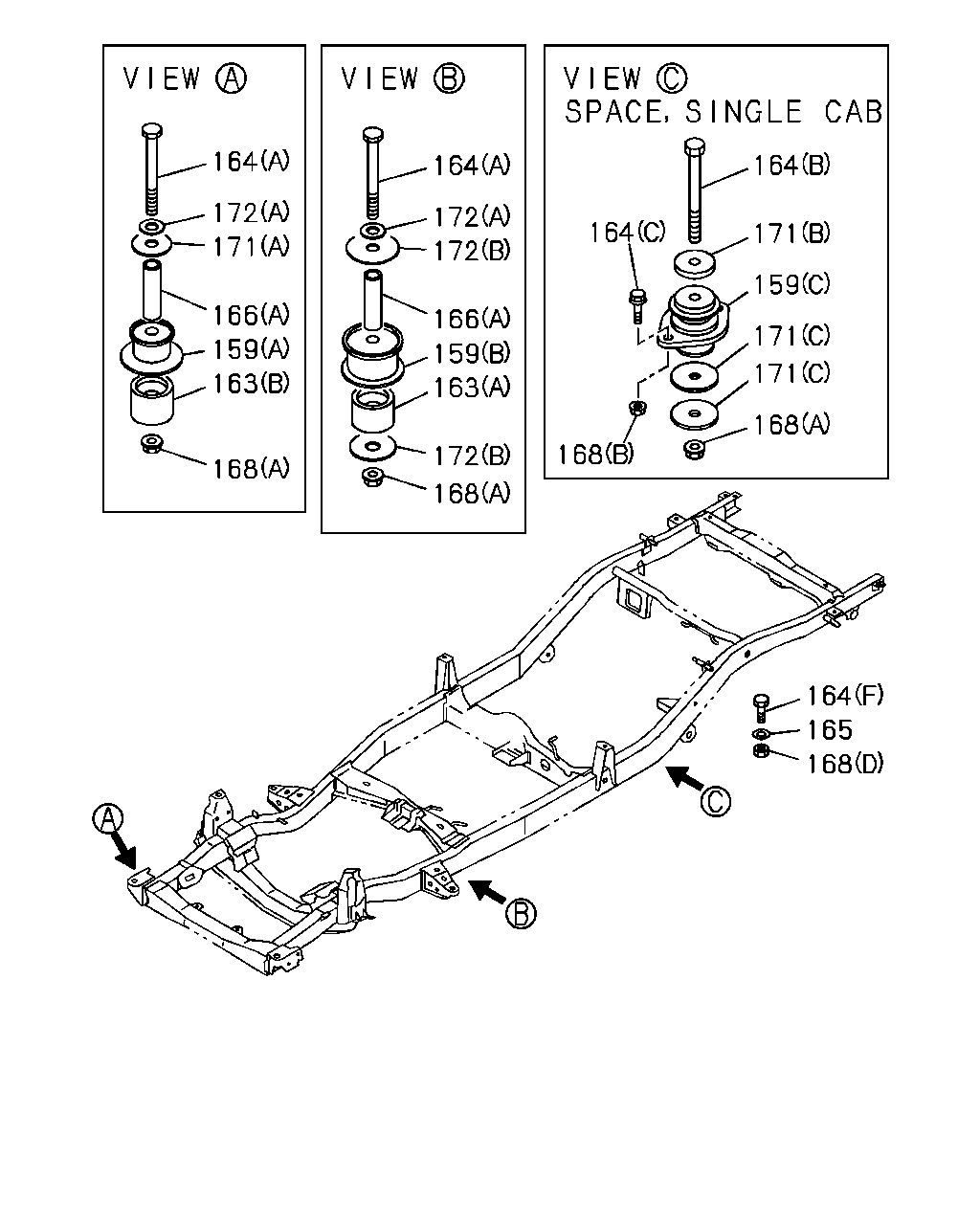

çizim 66399
164 172 171 166 159 163 168 164 172 172 166 159 163 172 168 168 168 171 171 159 171 164 164 164 165 168
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
159 09.023 RUBBER; CUSHION,CAB MTG
(A) 		8-94325-155-2 02 1 9210- ● ● ● ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) 		8-94325-158-2 02 1 9210- ● ● ● ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) 		8-94328-247-2 01 1 9210- ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) 		8-94328-248-2 01 1 9210- ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) 		8-94325-159-1 01 1 9210- ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) 		8-94325-160-1 01 1 9210- ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(D) 		8-94325-155-2 02 1 9210- ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) 		8-94474-029-1 02 1 9210-9504 ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) 		8-94325-158-1 02 1 9505- ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(B) 		8-94325-156-0 02 1 9210- ● ● ● ● ● ● ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(A) 		8-94325-157-1 02 1 9210- ● ● ● ● ● ● ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(D) 		8-94227-780-1 02 1 9210-9504 ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(D) 		8-97035-572-1 02 1 9505- ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(C) 		8-94325-157-1 02 1 9210- ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(A) M10X125 		8-97042-439-1 04 1 9210-9501 ● ● ● ● ● ● ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(A) M10X120 		8-97122-607-1 04 1 9502-9505 ● ● ● ● ● ● ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(A) M10X120 		8-97134-968-0 04 1 9506- ● ● ● ● ● ● ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(C) M10X20 FLANGE 		0-28081-020-0 04 1 9210-9412 ● ● ● ● ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
03.611 (C) M10X20 FLANGE 		0-28681-020-0 04 1 9501- ● ● ● ● ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(B) M10X125 		8-97042-439-1 02 1 9210-9501 ● ● ● ● ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(B) M10X120 		8-97122-607-1 02 1 9502-9507 ● ● ● ● ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(B) M10X120 		8-97134-968-0 02 1 9508- ● ● ● ● ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
06.056 (F) M12X25 		0-20801-225-0 02 1 9210- ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(D) M10X90 		0-10806-090-0 02 1 9210-9501 ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(E) M10X125 		8-97042-439-1 02 1 9210-9501 ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(D),(E) M10X120 		8-97122-607-0 04 1 9502-9507 ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(D),(E) M10X120 		8-97134-968-0 04 1 9508- ● ●
165 09.011 WASHER; PL,CAB MTG
00.793 ID=12.5 OD=26 		9-09160-612-0 02 1 9210- ● ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(A) L=70 		8-97042-440-0 04 1 9210-9605 ● ● ● ● ● ● ● ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(A) L=70 		8-97148-478-0 04 1 9606- ● ● ● ● ● ● ● ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(C) L=54.9 		8-94109-646-1 02 1 9210-9504 ● ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(B) L=70 		8-97042-440-0 02 1 9210-9504 ● ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(B),(C) L=70 		8-97042-440-0 04 1 9505- ● ●
168 09.011 NUT; CUSHION RUBBER,BODY MTG
08.917 (A) M10 FLANGE 		0-91150-210-0 06 1 9210- ● ● ● ● ● ● ● ●
168 09.011 NUT; CUSHION RUBBER,BODY MTG
04.785 (B) M10 FLANGE 		0-91150-110-0 04 1 9210-9406 ● ● ● ● ● ●
168 09.011 NUT; CUSHION RUBBER,BODY MTG
04.785 (B) M10 FLANGE 		0-91150-110-0 04 1 9407- ● ● ● ● ● ●
168 09.011 NUT; CUSHION RUBBER,BODY MTG
05.586 (D) M12 FLANGE 		0-91150-112-0 02 1 9210- ● ●
168 09.011 NUT; CUSHION RUBBER,BODY MTG
08.917 (C) M10 FLANGE 		0-91150-210-0 04 1 9210- ● ●
171 09.011 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 		8-94223-170-0 02 1 9210- ● ● ● ● ● ● ● ●
171 09.011 WASHER; BODY MTG RUBBER
(C) ID=11 OD=62 T=2.9 		8-94223-176-0 04 1 9210-9308 ● ● ● ● ● ●
171 09.011 WASHER; BODY MTG RUBBER
(C) ID=11 OD=62 T=2.9 		8-97037-993-0 04 1 9309- ● ● ● ● ● ●
171 09.011 WASHER; BODY MTG RUBBER
(B) OD=48 T=6.0 		8-94416-694-0 02 1 9210- ● ● ● ● ● ●
171 09.011 WASHER; BODY MTG RUBBER
(D) ID=11 OD=48 T=2.9 		8-94223-170-0 04 1 9210-9504 ● ●
171 09.011 WASHER; BODY MTG RUBBER
(D),(E) ID=11 OD=48 T=2.9 		8-94223-170-0 06 1 9505- ● ●
171 09.011 WASHER; BODY MTG RUBBER
(E) ID=11 OD=62 T=2.9 		8-94223-176-0 02 1 9210-9308 ● ●
171 09.011 WASHER; BODY MTG RUBBER
(E) ID=11 OD=62 T=2.9 		8-97037-993-0 02 1 9309-9504 ● ●
171 09.011 WASHER; BODY MTG RUBBER
(F) OD=32 T=6.0 		8-94416-693-0 02 1 9210- ● ●
172 09.011 WASHER; BODY MTG RUBBER
(B) ID=11 OD=48 T=2.9 		8-94223-170-0 04 1 9210- ● ● ● ● ● ● ● ●
172 09.011 WASHER; BODY MTG RUBBER
(A) OD=32 T=6.0 		8-94416-693-0 04 1 9210- ● ● ● ● ● ● ● ●
172 09.011 WASHER; BODY MTG RUBBER
(C) OD=48 T=6.0 		8-94416-694-0 02 1 9210- ● ●

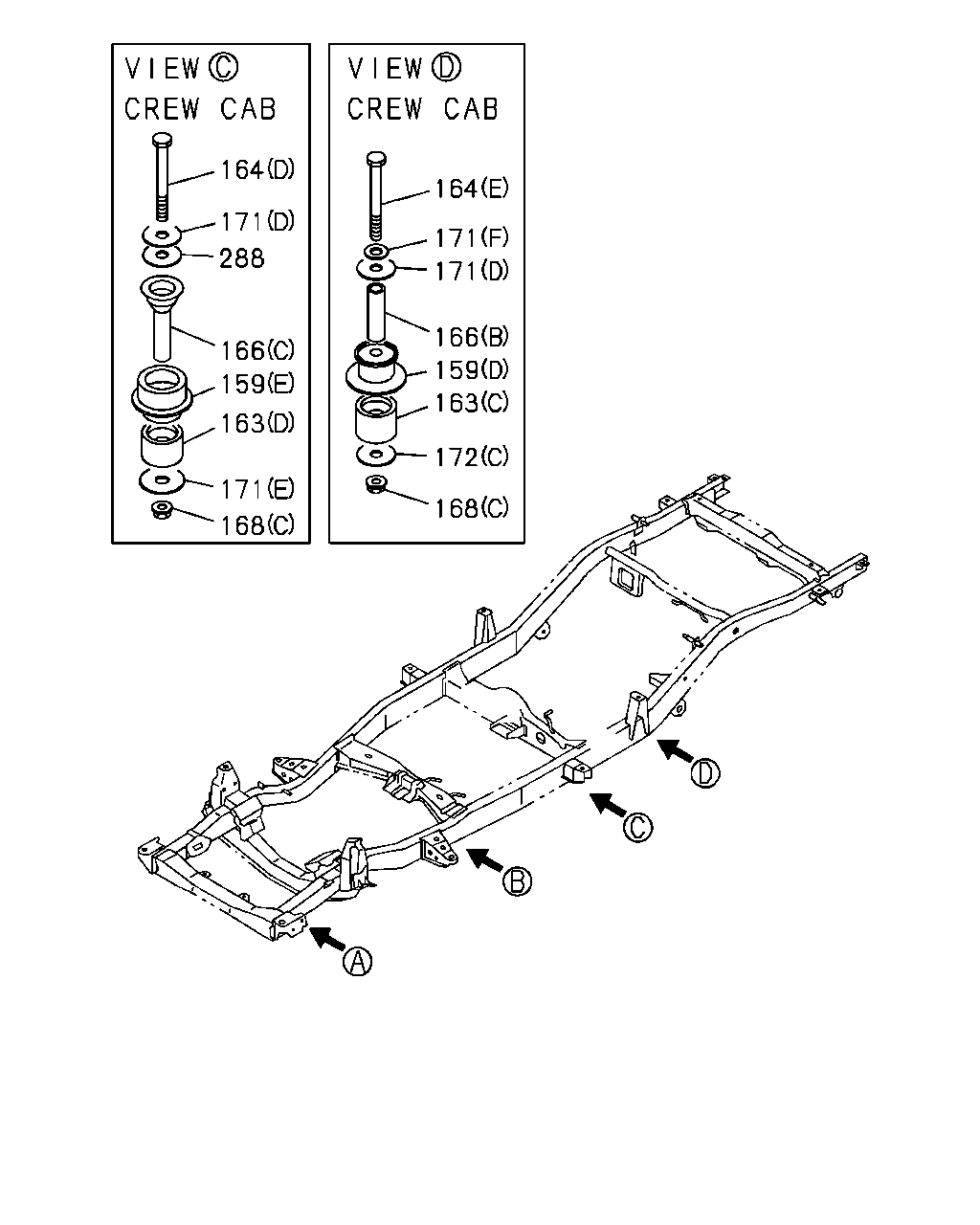

çizim 66500
164 171 288 166 159 163 171 168 168 172 163 159 166 171 171 164
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
159 09.023 RUBBER; CUSHION,CAB MTG
(A) 		8-94325-155-2 02 1 9210- ● ● ● ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) 		8-94325-158-2 02 1 9210- ● ● ● ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) 		8-94328-247-2 01 1 9210- ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) 		8-94328-248-2 01 1 9210- ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) 		8-94325-159-1 01 1 9210- ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) 		8-94325-160-1 01 1 9210- ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(D) 		8-94325-155-2 02 1 9210- ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) 		8-94474-029-1 02 1 9210-9504 ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) 		8-94325-158-1 02 1 9505- ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(B) 		8-94325-156-0 02 1 9210- ● ● ● ● ● ● ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(A) 		8-94325-157-1 02 1 9210- ● ● ● ● ● ● ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(D) 		8-94227-780-1 02 1 9210-9504 ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(D) 		8-97035-572-1 02 1 9505- ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(C) 		8-94325-157-1 02 1 9210- ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(A) M10X125 		8-97042-439-1 04 1 9210-9501 ● ● ● ● ● ● ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(A) M10X120 		8-97122-607-1 04 1 9502-9505 ● ● ● ● ● ● ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(A) M10X120 		8-97134-968-0 04 1 9506- ● ● ● ● ● ● ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(C) M10X20 FLANGE 		0-28081-020-0 04 1 9210-9412 ● ● ● ● ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
03.611 (C) M10X20 FLANGE 		0-28681-020-0 04 1 9501- ● ● ● ● ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(B) M10X125 		8-97042-439-1 02 1 9210-9501 ● ● ● ● ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(B) M10X120 		8-97122-607-1 02 1 9502-9507 ● ● ● ● ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(B) M10X120 		8-97134-968-0 02 1 9508- ● ● ● ● ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
06.056 (F) M12X25 		0-20801-225-0 02 1 9210- ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(D) M10X90 		0-10806-090-0 02 1 9210-9501 ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(E) M10X125 		8-97042-439-1 02 1 9210-9501 ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(D),(E) M10X120 		8-97122-607-0 04 1 9502-9507 ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(D),(E) M10X120 		8-97134-968-0 04 1 9508- ● ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(A) L=70 		8-97042-440-0 04 1 9210-9605 ● ● ● ● ● ● ● ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(A) L=70 		8-97148-478-0 04 1 9606- ● ● ● ● ● ● ● ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(C) L=54.9 		8-94109-646-1 02 1 9210-9504 ● ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(B) L=70 		8-97042-440-0 02 1 9210-9504 ● ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(B),(C) L=70 		8-97042-440-0 04 1 9505- ● ●
168 09.011 NUT; CUSHION RUBBER,BODY MTG
08.917 (A) M10 FLANGE 		0-91150-210-0 06 1 9210- ● ● ● ● ● ● ● ●
168 09.011 NUT; CUSHION RUBBER,BODY MTG
04.785 (B) M10 FLANGE 		0-91150-110-0 04 1 9210-9406 ● ● ● ● ● ●
168 09.011 NUT; CUSHION RUBBER,BODY MTG
04.785 (B) M10 FLANGE 		0-91150-110-0 04 1 9407- ● ● ● ● ● ●
168 09.011 NUT; CUSHION RUBBER,BODY MTG
05.586 (D) M12 FLANGE 		0-91150-112-0 02 1 9210- ● ●
168 09.011 NUT; CUSHION RUBBER,BODY MTG
08.917 (C) M10 FLANGE 		0-91150-210-0 04 1 9210- ● ●
171 09.011 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 		8-94223-170-0 02 1 9210- ● ● ● ● ● ● ● ●
171 09.011 WASHER; BODY MTG RUBBER
(C) ID=11 OD=62 T=2.9 		8-94223-176-0 04 1 9210-9308 ● ● ● ● ● ●
171 09.011 WASHER; BODY MTG RUBBER
(C) ID=11 OD=62 T=2.9 		8-97037-993-0 04 1 9309- ● ● ● ● ● ●
171 09.011 WASHER; BODY MTG RUBBER
(B) OD=48 T=6.0 		8-94416-694-0 02 1 9210- ● ● ● ● ● ●
171 09.011 WASHER; BODY MTG RUBBER
(D) ID=11 OD=48 T=2.9 		8-94223-170-0 04 1 9210-9504 ● ●
171 09.011 WASHER; BODY MTG RUBBER
(D),(E) ID=11 OD=48 T=2.9 		8-94223-170-0 06 1 9505- ● ●
171 09.011 WASHER; BODY MTG RUBBER
(E) ID=11 OD=62 T=2.9 		8-94223-176-0 02 1 9210-9308 ● ●
171 09.011 WASHER; BODY MTG RUBBER
(E) ID=11 OD=62 T=2.9 		8-97037-993-0 02 1 9309-9504 ● ●
171 09.011 WASHER; BODY MTG RUBBER
(F) OD=32 T=6.0 		8-94416-693-0 02 1 9210- ● ●
172 09.011 WASHER; BODY MTG RUBBER
(B) ID=11 OD=48 T=2.9 		8-94223-170-0 04 1 9210- ● ● ● ● ● ● ● ●
172 09.011 WASHER; BODY MTG RUBBER
(A) OD=32 T=6.0 		8-94416-693-0 04 1 9210- ● ● ● ● ● ● ● ●
172 09.011 WASHER; BODY MTG RUBBER
(C) OD=48 T=6.0 		8-94416-694-0 02 1 9210- ● ●
288 09.008 WASHER; PL
09.011 ID=11 OD=48 T=2.9 		8-94223-170-0 02 1 9505- ● ●
