5-01 — FRAME AND OTHER PARTS (#45397) — 198 parça

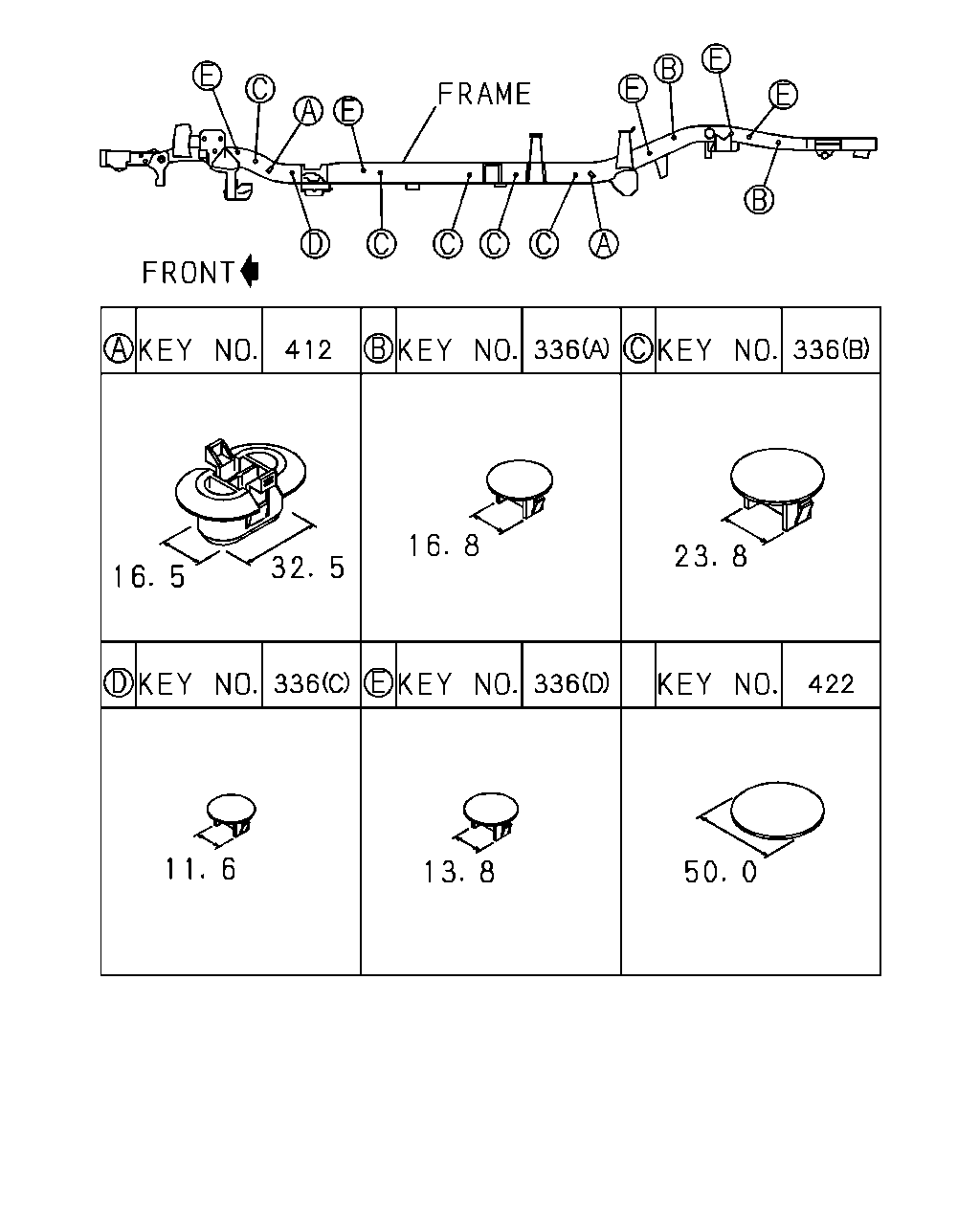

412 336 336 422 336 336

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
336	07.068 PLUG; HOLE UNITED KINGDOM EQUIPMENT(EK3) (A) OD=33 BLUE	8-97806-919-0	04	1	9210-	●
336	07.068 PLUG; HOLE UNITED KINGDOM EQUIPMENT(EK3) 07.070 (C) OD=27 GRAY	8-97071-775-0	02	1	9210-9406	●	●
336	07.068 PLUG; HOLE UNITED KINGDOM EQUIPMENT(EK3) 07.070 (C) OD=27 GRAY	8-97071-775-0	02	1	9407-	●	●	●
336	07.068 PLUG; HOLE UNITED KINGDOM EQUIPMENT(EK3) (B) OD=40 BLACK	8-97806-918-0	10	1	9210-9406	●	●
336	07.068 PLUG; HOLE UNITED KINGDOM EQUIPMENT(EK3) (B) OD=40 BLACK	8-97806-918-0	10	1	9407-	●	●	●
336	07.068 PLUG; HOLE UNITED KINGDOM EQUIPMENT(EK3) (D) OD=30 BLACK	8-97806-920-0	09	1	9210-9406	●	●
336	07.068 PLUG; HOLE UNITED KINGDOM EQUIPMENT(EK3) (D) OD=30 BLACK	8-97806-920-0	09	1	9407-	●	●	●
336	07.068 PLUG; HOLE UNITED KINGDOM EQUIPMENT(EK3) (A) OD=33 BLUE	8-97806-919-0	02	1	9210-9406		●
336	07.068 PLUG; HOLE UNITED KINGDOM EQUIPMENT(EK3) (A) OD=33 BLUE	8-97806-919-0	02	1	9407-		●	●
412	07.039 PLUG; TIE DOWN HOLE UNITED KINGDOM EQUIPMENT(EK3)	8-97071-716-0	04	1	9210-9406	●	●
412	07.039 PLUG; TIE DOWN HOLE UNITED KINGDOM EQUIPMENT(EK3)	8-97071-716-0	04	1	9407-	●	●	●
422	07.068 SEAL; HOLE KD PREPARATORY PACK<6HF> OD=50	8-94241-235-0	33	1	9510-	●			●	●
422	07.068 SEAL; HOLE KD PREPARATORY PACK<6HF> OD=50	8-94241-235-0	31	1	9510-						●
422	07.068 SEAL; HOLE KD PREPARATORY PACK<6HF> OD=50	8-94241-235-0	27	1	9510-		●	●				●	●

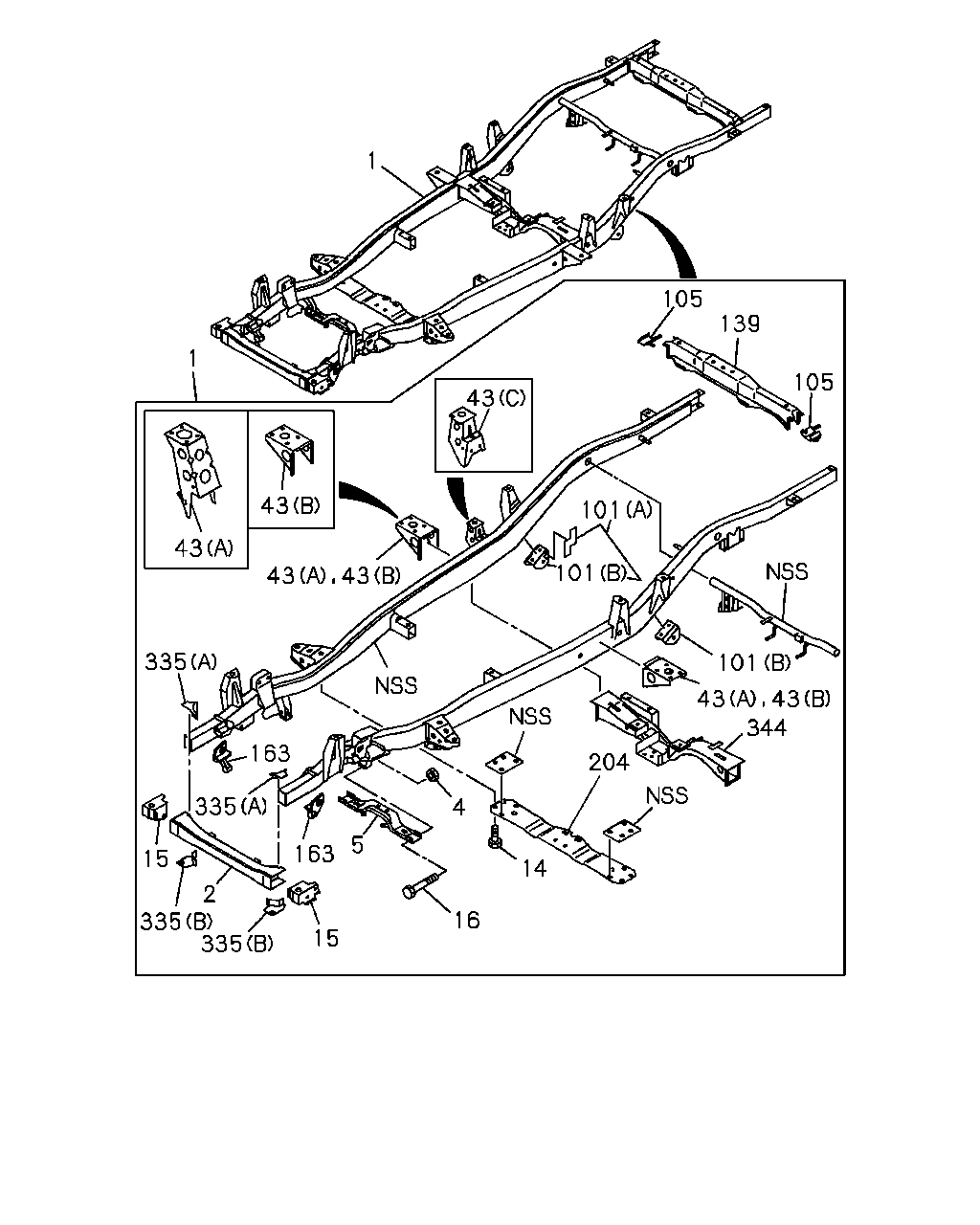

1 1 43 43 43 43 43 105 139 105 101 101 101 43 43 344 204 14 16 4 5 163 15 335 2 15 335 163 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	07.003 FRAME ASM A/T AISIN(RMD)	8-97046-545-2	01	1	9210-9406				●
1	07.003 FRAME ASM A/T AISIN(RMD) EXC. THAILAND EQUIPMENT(PM9)	8-97046-545-2	01	1	9407-				●
1	07.003 FRAME ASM A/T AISIN(RMD) THAILAND EQUIPMENT(PM9)	8-97117-779-0	01	1	9407-				●
1	07.003 FRAME ASM M/T MSG 5 SPEED(M75) THAILAND EQUIPMENT(PM9)	8-97123-453-0	01	1	9412-				●
1	07.003 FRAME ASM M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN)	8-97046-544-2	01	1	9210-9411				●
1	07.003 FRAME ASM M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. THAILAND EQUIPMENT(PM9)	8-97046-544-2	01	1	9412-				●
1	07.003 FRAME ASM	8-94434-955-5	01	1	9210-						●
1	07.003 FRAME ASM A/T AISIN(RMD)	8-97046-543-2	01	1	9210-	●
1	07.003 FRAME ASM M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UNITED KINGDOM EQUIPMENT(EK3), RR BODY FLAT BED<RS6>	8-97046-542-2	01	1	9210-9411	●
1	07.003 FRAME ASM M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),RR BODY FLAT BED<RS6>	8-97046-542-2	01	1	9412-	●
1	07.003 FRAME ASM M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3) EXC. RR BODY FLAT BED<RS6>	8-97046-548-2	01	1	9210-9406	●
1	07.003 FRAME ASM M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3) EXC. RR BODY FLAT BED<RS6>	8-97116-742-0	01	1	9407-	●
1	07.003 FRAME ASM RR BODY FLAT BED<RS6>	8-94461-012-6	01	1	9210-	●
1	07.003 FRAME ASM THAILAND EQUIPMENT(PM9)	8-97123-452-0	01	1	9412-	●
1	07.003 FRAME ASM A/T AISIN(RMD)	8-97046-547-3	01	1	9210-					●
1	07.003 FRAME ASM M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN)	8-97046-546-2	01	1	9210-9411					●
1	07.003 FRAME ASM M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. THAILAND EQUIPMENT(PM9)	8-97046-546-3	01	1	9412-					●
1	07.003 FRAME ASM THAILAND EQUIPMENT(PM9)	8-97123-454-0	01	1	9412-					●
1	07.003 FRAME ASM	8-97046-553-3	01	1	9210-9411							●
1	07.003 FRAME ASM EXC. THAILAND EQUIPMENT(PM9)	8-97046-553-3	01	1	9412-							●
1	07.003 FRAME ASM THAILAND EQUIPMENT(PM9)	8-97123-455-0	01	1	9412-							●
1	07.003 FRAME ASM	8-97021-796-5	01	1	9210-								●
1	07.003 FRAME ASM RR BODY FLAT BED<RS6>	8-94473-354-8	01	1	9210-9509		●
1	07.003 FRAME ASM THAILAND EQUIPMENT(PM9)	8-97123-464-0	01	1	9412-		●
1	07.003 FRAME ASM UNITED KINGDOM EQUIPMENT(EK3) EXC. RR BODY FLAT BED<RS6>	8-97046-555-3	01	1	9210-9406		●
1	07.003 FRAME ASM UNITED KINGDOM EQUIPMENT(EK3) EXC. RR BODY FLAT BED<RS6>	8-97116-743-1	01	1	9407-9509		●
1	07.003 FRAME ASM UNITED KINGDOM EQUIPMENT(EK3)	8-97116-743-1	01	1	9510-		●
1	07.003 FRAME ASM EXC. UNITED KINGDOM EQUIPMENT(EK3), RR BODY FLAT BED<RS6>	8-97046-552-3	01	1	9210-9411		●
1	07.003 FRAME ASM EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),RR BODY FLAT BED<RS6>	8-97046-552-3	01	1	9412-9509		●
1	07.003 FRAME ASM EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9)	8-97046-552-3	01	1	9510-		●
1	07.003 FRAME ASM	8-97046-554-3	01	1	9210-9406			●
1	07.003 FRAME ASM EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97046-554-4	01	1	9407-			●
1	07.003 FRAME ASM 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3)	8-97109-408-0	01	1	9407-9407			●
1	07.003 FRAME ASM 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) '940711-	8-97116-744-2	01	1	9407-			●
2	07.010 MEMBER; CROSS,1ST	8-94436-856-4	01	1	9210-	●			●	●	●
2	07.010 MEMBER; CROSS,1ST	8-94436-857-4	01	1	9210-		●	●				●	●
4	07.039 NUT; 1ST C/MBR TO S/MBR M10 FLANGE	8-94383-595-0	02	1	9210-		●	●				●	●
5	07.010 MEMBER; CROSS,SUSPENSION	8-94485-919-0	01	1	9210-9411		●	●				●	●
5	07.010 MEMBER; CROSS,SUSPENSION EXC. THAILAND EQUIPMENT(PM9)	8-94485-919-0	01	1	9412-9512		●					●
5	07.010 MEMBER; CROSS,SUSPENSION	8-94485-919-0	01	1	9412-9512			●					●
5	07.010 MEMBER; CROSS,SUSPENSION EXC. THAILAND EQUIPMENT(PM9)	8-97134-403-0	01	1	9601-		●					●
5	07.010 MEMBER; CROSS,SUSPENSION	8-97134-403-0	01	1	9601-			●					●
5	07.010 MEMBER; CROSS,SUSPENSION THAILAND EQUIPMENT(PM9)	8-97117-957-0	01	1	9412-9512		●					●
5	07.010 MEMBER; CROSS,SUSPENSION THAILAND EQUIPMENT(PM9)	8-97144-943-0	01	1	9601-		●					●
14	07.039 BOLT; TRANS MTG MBR,FRAME M12X25	8-94498-772-0	08	1	9210-9407		●	●				●	●
14	07.039 BOLT; TRANS MTG MBR,FRAME A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) 940718- M12X25	8-94498-772-0	08	1	9407-				●
14	07.039 BOLT; TRANS MTG MBR,FRAME 940718- M12X25	8-94498-772-0	08	1	9407-		●	●				●	●
15	07.039 BRACKET; BODY MTG,FRT	8-94472-367-4	01	1	9210-	●	●	●	●	●	●	●	●
15	07.039 BRACKET; BODY MTG,FRT	8-94472-366-4	01	1	9210-	●	●	●	●	●	●	●	●
16	07.039 BOLT; 1ST C/MBR TO S/MBR M10X83 FLANGE	8-97805-841-0	02	1	9210-		●	●				●	●
43	09.003 BRACKET; CAB MTG,RR (A)	8-94476-272-2	01	1	9510-				●			●
43	09.003 BRACKET; CAB MTG,RR (B)	8-94476-275-0	02	1	9510-	●	●				●		●
43	09.003 BRACKET; CAB MTG,RR (B)	8-94158-629-1	02	1	9510-			●		●
43	09.003 BRACKET; CAB MTG,RR (C)	8-94332-800-0	01	1	9510-			●		●
43	09.003 BRACKET; CAB MTG,RR (C)	8-94332-799-0	01	1	9510-			●		●
101	07.112 BRACKET; RR SPR,FRT (B)	8-94362-622-0	01	1	9210-	●			●	●	●
101	07.112 BRACKET; RR SPR,FRT (A)	8-94362-621-0	01	1	9210-	●			●	●	●
101	07.112 BRACKET; RR SPR,FRT (B)	8-94363-179-0	01	1	9210-		●	●				●	●
101	07.112 BRACKET; RR SPR,FRT (A)	8-97020-318-0	01	1	9210-		●	●				●	●
101	07.112 BRACKET; RR SPR,FRT (B)	8-94362-624-0	01	1	9510-		●	●				●	●
105	07.112 BRACKET; RR SPR,RR	8-94438-573-1	01	1	9212-	●			●	●	●
105	07.112 BRACKET; RR SPR,RR	8-94438-572-0	01	1	9212-	●			●	●	●
105	07.112 BRACKET; RR SPR,RR	8-94438-575-1	01	1	9303-		●	●				●	●
105	07.112 BRACKET; RR SPR,RR	8-94438-574-0	01	1	9303-		●	●				●	●
139	07.012 MEMBER; CROSS,6TH	8-94477-762-0	01	1	9212-9510	●	●	●	●	●	●	●	●
139	07.012 MEMBER; CROSS,6TH THAILAND EQUIPMENT(PM9)	8-94477-762-0	01	1	9511-	●	●		●	●		●
139	07.012 MEMBER; CROSS,6TH EXC. THAILAND EQUIPMENT(PM9)	8-97126-554-0	01	1	9511-	●	●		●	●		●
139	07.012 MEMBER; CROSS,6TH	8-97126-554-0	01	1	9511-			●			●		●
163	07.105 BRACKET; LINK ARM	8-94498-721-2	01	1	9210-9411		●	●				●	●
163	07.105 BRACKET; LINK ARM EXC. THAILAND EQUIPMENT(PM9)	8-94498-721-2	01	1	9412-9512		●					●
163	07.105 BRACKET; LINK ARM	8-94498-721-2	01	1	9412-9512			●					●
163	07.105 BRACKET; LINK ARM EXC. THAILAND EQUIPMENT(PM9)	8-97142-704-0	01	1	9601-		●					●
163	07.105 BRACKET; LINK ARM	8-97142-704-0	01	1	9601-			●					●
163	07.105 BRACKET; LINK ARM	8-94498-720-2	01	1	9210-9411		●	●				●	●
163	07.105 BRACKET; LINK ARM EXC. THAILAND EQUIPMENT(PM9)	8-94498-720-2	01	1	9412-9512		●					●
163	07.105 BRACKET; LINK ARM	8-94498-720-2	01	1	9412-9512			●					●
163	07.105 BRACKET; LINK ARM EXC. THAILAND EQUIPMENT(PM9)	8-97142-703-0	01	1	9601-		●					●
163	07.105 BRACKET; LINK ARM	8-97142-703-0	01	1	9601-			●					●
163	07.105 BRACKET; LINK ARM THAILAND EQUIPMENT(PM9)	8-97120-439-0	01	1	9412-9412		●					●
163	07.105 BRACKET; LINK ARM THAILAND EQUIPMENT(PM9)	8-94484-381-1	01	1	9501-9512		●					●
163	07.105 BRACKET; LINK ARM THAILAND EQUIPMENT(PM9)	8-97142-706-0	01	1	9601-		●					●
163	07.105 BRACKET; LINK ARM THAILAND EQUIPMENT(PM9)	8-97120-521-0	01	1	9412-9412		●					●
163	07.105 BRACKET; LINK ARM THAILAND EQUIPMENT(PM9)	8-94484-380-1	01	1	9501-9512		●					●
163	07.105 BRACKET; LINK ARM THAILAND EQUIPMENT(PM9)	8-97142-705-0	01	1	9601-		●					●
204	07.010 MEMBER; CROSS,TRANS MTG A/T AISIN(RMD) THAILAND EQUIPMENT(PM9)	8-97117-780-0	01	1	9407-				●
204	07.010 MEMBER; CROSS,TRANS MTG	8-97802-396-4	01	1	9210-		●	●				●	●
335	07.039 PATCH; 1ST C/MBR (A) UPPER	8-94493-830-0	01	1	9210-9411		●	●				●	●
335	07.039 PATCH; 1ST C/MBR EXC. THAILAND EQUIPMENT(PM9) (A) UPPER	8-94493-830-0	01	1	9412-9412		●					●
335	07.039 PATCH; 1ST C/MBR (A) UPPER	8-94493-830-0	01	1	9412-9412			●					●
335	07.039 PATCH; 1ST C/MBR EXC. THAILAND EQUIPMENT(PM9) '941219- (A) UPPER	8-97122-707-0	01	1	9412-		●					●
335	07.039 PATCH; 1ST C/MBR '941219- (A) UPPER	8-97122-707-0	01	1	9412-			●					●
335	07.039 PATCH; 1ST C/MBR (B) LOWER	8-94493-832-1	01	1	9210-9411		●	●				●	●
335	07.039 PATCH; 1ST C/MBR EXC. THAILAND EQUIPMENT(PM9) (B) LOWER	8-94493-832-1	01	1	9412-9412		●					●
335	07.039 PATCH; 1ST C/MBR (B) LOWER	8-94493-832-1	01	1	9412-9412			●					●
335	07.039 PATCH; 1ST C/MBR EXC. THAILAND EQUIPMENT(PM9) '941219- (B) LOWER	8-97122-709-0	01	1	9412-		●					●
335	07.039 PATCH; 1ST C/MBR '941219- (B) LOWER	8-97122-709-0	01	1	9412-			●					●
335	07.039 PATCH; 1ST C/MBR (A) UPPER	8-94493-829-0	01	1	9210-9411		●	●				●	●
335	07.039 PATCH; 1ST C/MBR EXC. THAILAND EQUIPMENT(PM9) (A) UPPER	8-94493-829-0	01	1	9412-9412		●					●
335	07.039 PATCH; 1ST C/MBR (A) UPPER	8-94493-829-0	01	1	9412-9412			●					●
335	07.039 PATCH; 1ST C/MBR EXC. THAILAND EQUIPMENT(PM9) '941219- (A) UPPER	8-97122-706-0	01	1	9412-		●					●
335	07.039 PATCH; 1ST C/MBR '941219- (A) UPPER	8-97122-706-0	01	1	9412-			●					●
335	07.039 PATCH; 1ST C/MBR (B) LOWER	8-94493-831-1	01	1	9210-9411		●	●				●	●
335	07.039 PATCH; 1ST C/MBR EXC. THAILAND EQUIPMENT(PM9) (B) LOWER	8-94493-831-1	01	1	9412-9412		●					●
335	07.039 PATCH; 1ST C/MBR (B) LOWER	8-94493-831-1	01	1	9412-9412			●					●
335	07.039 PATCH; 1ST C/MBR EXC. THAILAND EQUIPMENT(PM9) '941219- (B) LOWER	8-97122-708-0	01	1	9412-		●					●
335	07.039 PATCH; 1ST C/MBR '941219- (B) LOWER	8-97122-708-0	01	1	9412-			●					●
335	07.039 PATCH; 1ST C/MBR THAILAND EQUIPMENT(PM9) (B) LOWER	8-97114-261-0	01	1	9412-		●					●
335	07.039 PATCH; 1ST C/MBR THAILAND EQUIPMENT(PM9) (A) UPPER	8-97121-281-0	01	1	9412-		●					●
335	07.039 PATCH; 1ST C/MBR THAILAND EQUIPMENT(PM9) (B) LOWER	8-97114-258-0	01	1	9412-		●					●
335	07.039 PATCH; 1ST C/MBR THAILAND EQUIPMENT(PM9) (A) UPPER	8-97121-280-0	01	1	9412-		●					●
344	07.012 MEMBER; CROSS,4TH	8-94375-449-3	01	1	9510-		●					●
344	07.012 MEMBER; CROSS,4TH	8-94493-573-5	01	1	9510-			●

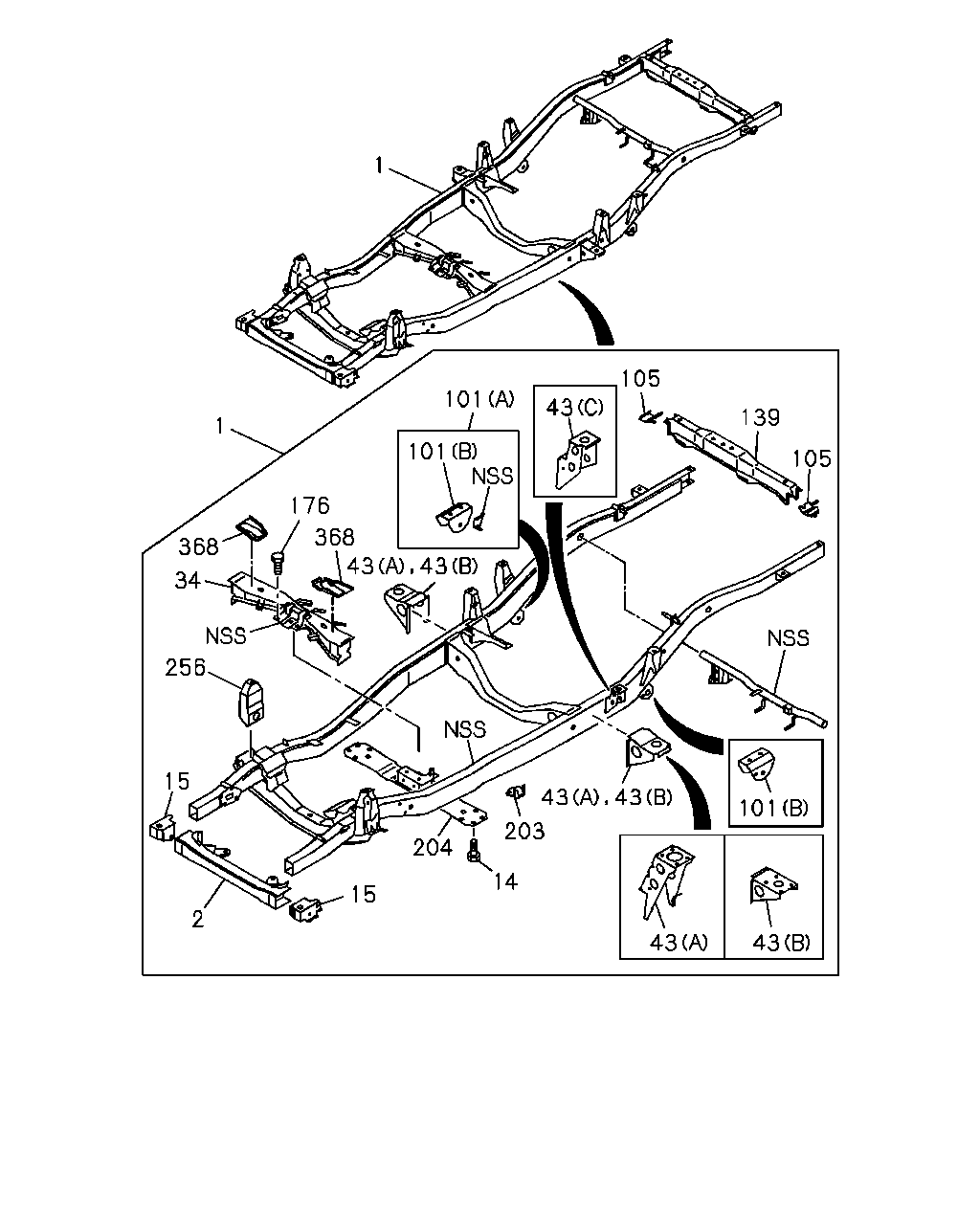

1 1 101 101 43 105 139 105 43 43 368 176 368 34 256 15 2 15 204 14 203 43 43 43 43 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	07.003 FRAME ASM A/T AISIN(RMD)	8-97046-545-2	01	1	9210-9406				●
1	07.003 FRAME ASM A/T AISIN(RMD) EXC. THAILAND EQUIPMENT(PM9)	8-97046-545-2	01	1	9407-				●
1	07.003 FRAME ASM A/T AISIN(RMD) THAILAND EQUIPMENT(PM9)	8-97117-779-0	01	1	9407-				●
1	07.003 FRAME ASM M/T MSG 5 SPEED(M75) THAILAND EQUIPMENT(PM9)	8-97123-453-0	01	1	9412-				●
1	07.003 FRAME ASM M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN)	8-97046-544-2	01	1	9210-9411				●
1	07.003 FRAME ASM M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. THAILAND EQUIPMENT(PM9)	8-97046-544-2	01	1	9412-				●
1	07.003 FRAME ASM	8-94434-955-5	01	1	9210-						●
1	07.003 FRAME ASM A/T AISIN(RMD)	8-97046-543-2	01	1	9210-	●
1	07.003 FRAME ASM M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UNITED KINGDOM EQUIPMENT(EK3), RR BODY FLAT BED<RS6>	8-97046-542-2	01	1	9210-9411	●
1	07.003 FRAME ASM M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),RR BODY FLAT BED<RS6>	8-97046-542-2	01	1	9412-	●
1	07.003 FRAME ASM M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3) EXC. RR BODY FLAT BED<RS6>	8-97046-548-2	01	1	9210-9406	●
1	07.003 FRAME ASM M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3) EXC. RR BODY FLAT BED<RS6>	8-97116-742-0	01	1	9407-	●
1	07.003 FRAME ASM RR BODY FLAT BED<RS6>	8-94461-012-6	01	1	9210-	●
1	07.003 FRAME ASM THAILAND EQUIPMENT(PM9)	8-97123-452-0	01	1	9412-	●
1	07.003 FRAME ASM A/T AISIN(RMD)	8-97046-547-3	01	1	9210-					●
1	07.003 FRAME ASM M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN)	8-97046-546-2	01	1	9210-9411					●
1	07.003 FRAME ASM M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. THAILAND EQUIPMENT(PM9)	8-97046-546-3	01	1	9412-					●
1	07.003 FRAME ASM THAILAND EQUIPMENT(PM9)	8-97123-454-0	01	1	9412-					●
1	07.003 FRAME ASM	8-97046-553-3	01	1	9210-9411							●
1	07.003 FRAME ASM EXC. THAILAND EQUIPMENT(PM9)	8-97046-553-3	01	1	9412-							●
1	07.003 FRAME ASM THAILAND EQUIPMENT(PM9)	8-97123-455-0	01	1	9412-							●
1	07.003 FRAME ASM	8-97021-796-5	01	1	9210-								●
1	07.003 FRAME ASM RR BODY FLAT BED<RS6>	8-94473-354-8	01	1	9210-9509		●
1	07.003 FRAME ASM THAILAND EQUIPMENT(PM9)	8-97123-464-0	01	1	9412-		●
1	07.003 FRAME ASM UNITED KINGDOM EQUIPMENT(EK3) EXC. RR BODY FLAT BED<RS6>	8-97046-555-3	01	1	9210-9406		●
1	07.003 FRAME ASM UNITED KINGDOM EQUIPMENT(EK3) EXC. RR BODY FLAT BED<RS6>	8-97116-743-1	01	1	9407-9509		●
1	07.003 FRAME ASM UNITED KINGDOM EQUIPMENT(EK3)	8-97116-743-1	01	1	9510-		●
1	07.003 FRAME ASM EXC. UNITED KINGDOM EQUIPMENT(EK3), RR BODY FLAT BED<RS6>	8-97046-552-3	01	1	9210-9411		●
1	07.003 FRAME ASM EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),RR BODY FLAT BED<RS6>	8-97046-552-3	01	1	9412-9509		●
1	07.003 FRAME ASM EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9)	8-97046-552-3	01	1	9510-		●
1	07.003 FRAME ASM	8-97046-554-3	01	1	9210-9406			●
1	07.003 FRAME ASM EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97046-554-4	01	1	9407-			●
1	07.003 FRAME ASM 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3)	8-97109-408-0	01	1	9407-9407			●
1	07.003 FRAME ASM 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) '940711-	8-97116-744-2	01	1	9407-			●
2	07.010 MEMBER; CROSS,1ST	8-94436-856-4	01	1	9210-	●			●	●	●
2	07.010 MEMBER; CROSS,1ST	8-94436-857-4	01	1	9210-		●	●				●	●
14	07.039 BOLT; TRANS MTG MBR,FRAME M12X25	8-94498-772-0	08	1	9210-9407		●	●				●	●
14	07.039 BOLT; TRANS MTG MBR,FRAME A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) 940718- M12X25	8-94498-772-0	08	1	9407-				●
14	07.039 BOLT; TRANS MTG MBR,FRAME 940718- M12X25	8-94498-772-0	08	1	9407-		●	●				●	●
15	07.039 BRACKET; BODY MTG,FRT	8-94472-367-4	01	1	9210-	●	●	●	●	●	●	●	●
15	07.039 BRACKET; BODY MTG,FRT	8-94472-366-4	01	1	9210-	●	●	●	●	●	●	●	●
34	07.012 MEMBER; CROSS,3RD	8-94436-860-3	01	1	9510-	●			●	●	●
43	09.003 BRACKET; CAB MTG,RR (A)	8-94476-272-2	01	1	9510-				●			●
43	09.003 BRACKET; CAB MTG,RR (B)	8-94476-275-0	02	1	9510-	●	●				●		●
43	09.003 BRACKET; CAB MTG,RR (B)	8-94158-629-1	02	1	9510-			●		●
43	09.003 BRACKET; CAB MTG,RR (C)	8-94332-800-0	01	1	9510-			●		●
43	09.003 BRACKET; CAB MTG,RR (C)	8-94332-799-0	01	1	9510-			●		●
101	07.112 BRACKET; RR SPR,FRT (B)	8-94362-622-0	01	1	9210-	●			●	●	●
101	07.112 BRACKET; RR SPR,FRT (A)	8-94362-621-0	01	1	9210-	●			●	●	●
101	07.112 BRACKET; RR SPR,FRT (B)	8-94363-179-0	01	1	9210-		●	●				●	●
101	07.112 BRACKET; RR SPR,FRT (A)	8-97020-318-0	01	1	9210-		●	●				●	●
101	07.112 BRACKET; RR SPR,FRT (B)	8-94362-624-0	01	1	9510-		●	●				●	●
105	07.112 BRACKET; RR SPR,RR	8-94438-573-1	01	1	9212-	●			●	●	●
105	07.112 BRACKET; RR SPR,RR	8-94438-572-0	01	1	9212-	●			●	●	●
105	07.112 BRACKET; RR SPR,RR	8-94438-575-1	01	1	9303-		●	●				●	●
105	07.112 BRACKET; RR SPR,RR	8-94438-574-0	01	1	9303-		●	●				●	●
139	07.012 MEMBER; CROSS,6TH	8-94477-762-0	01	1	9212-9510	●	●	●	●	●	●	●	●
139	07.012 MEMBER; CROSS,6TH THAILAND EQUIPMENT(PM9)	8-94477-762-0	01	1	9511-	●	●		●	●		●
139	07.012 MEMBER; CROSS,6TH EXC. THAILAND EQUIPMENT(PM9)	8-97126-554-0	01	1	9511-	●	●		●	●		●
139	07.012 MEMBER; CROSS,6TH	8-97126-554-0	01	1	9511-			●			●		●
176	04.085 BOLT; C/MBR,ENG MTG 14.785 M10X25 FLANGE	0-28281-025-0	04	1	9210-9409	●			●	●	●
176	04.085 BOLT; C/MBR,ENG MTG M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 14.785 M10X25 FLANGE	0-28281-025-0	04	1	9410-9411				●
176	04.085 BOLT; C/MBR,ENG MTG A/T AISIN(RMD) EXC. THAILAND EQUIPMENT(PM9) 14.785 M10X25 FLANGE	0-28281-025-0	04	1	9410-9411				●
176	04.085 BOLT; C/MBR,ENG MTG 14.785 M10X25 FLANGE	0-28281-025-0	04	1	9410-9411	●				●	●
176	04.085 BOLT; C/MBR,ENG MTG 14.785 M10X25 FLANGE	0-28281-025-0	04	1	9412-	●			●	●	●
203	07.039 BRACKET; TRANS,FRAME SIDE A/T AISIN(RMD) THAILAND EQUIPMENT(PM9)	8-97117-784-0	01	1	9407-				●
203	07.039 BRACKET; TRANS,FRAME SIDE A/T AISIN(RMD) THAILAND EQUIPMENT(PM9)	8-97117-783-0	01	1	9407-				●
204	07.010 MEMBER; CROSS,TRANS MTG A/T AISIN(RMD) THAILAND EQUIPMENT(PM9)	8-97117-780-0	01	1	9407-				●
204	07.010 MEMBER; CROSS,TRANS MTG	8-97802-396-4	01	1	9210-		●	●				●	●
256	07.395 BRACKET; S/ABS	8-94438-193-0	01	1	9510-						●
368	07.039 SEAT; TORSION BAR	8-94476-268-1	01	1	9510-	●			●	●	●
368	07.039 SEAT; TORSION BAR	8-94476-267-1	01	1	9510-	●			●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
