Isuzu WW
▶
PICKUP
▶
TFR
▶
50651 - TFR/TFS-RHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-61 - SHOCK ABSORBER; REAR SUSPENSION
▶

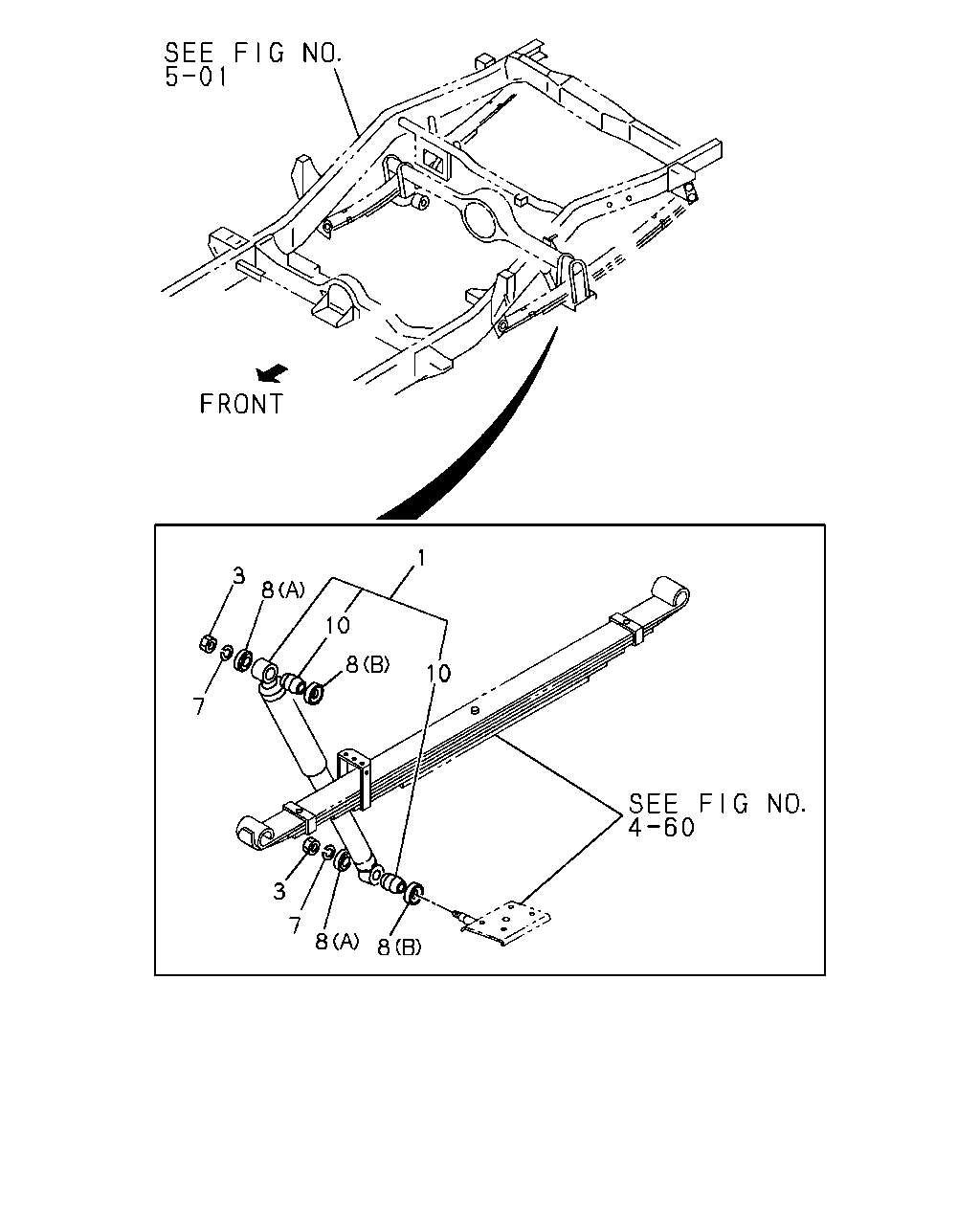

4-61 — SHOCK ABSORBER; REAR SUSPENSION
(#45394) — 11 parça
Tümü
A - TFB5CF
B - TFB5SC
C - TFB5SF
D - TFB5WF
E - TFS5CF
F - TFS5SC
G - TFS5SF
H - TFS5WF
3
8
10
1
8
10
7
3
7
8
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H
1
07.395 ABSORBER ASM; SHOCK,RR
SHOCK ABSORBER GAS FILLED(FG3) TOKICO
8-94454-920-2
02
1
9210-
●
●
●
●
1
07.395 ABSORBER ASM; SHOCK,RR
EXC. SHOCK ABSORBER GAS FILLED(FG3) 07.345 TOKICO
8-94473-186-0
02
1
9210-
●
●
●
●
1
07.395 ABSORBER ASM; SHOCK,RR
EXC. SHOCK ABSORBER GAS FILLED(FG3) 07.345 KYB
8-94473-187-0
02
1
9210-
●
●
●
●
1
07.395 ABSORBER ASM; SHOCK,RR
SHOCK ABSORBER GAS FILLED(FG3) TOKICO
8-94454-921-2
02
1
9210-
●
●
●
●
1
07.395 ABSORBER ASM; SHOCK,RR
EXC. SHOCK ABSORBER GAS FILLED(FG3) TOKICO
8-94433-697-0
02
1
9210-
●
●
●
●
3
07.347 NUT; S/ABS
M12
9-99111-412-0
04
1
9210-
●
●
●
●
●
●
●
●
7
07.347 WASHER; LK,S/ABS
04.634 ID=12.2
9-09150-512-0
04
1
9210-
●
●
●
●
●
●
●
●
8
07.347 WASHER; S/ABS
(B) ID=16.5
8-94445-688-0
04
1
9210-
●
●
●
●
●
●
●
●
8
07.347 WASHER; S/ABS
(A) ID=12.5
9-51679-022-0
04
1
9210-
●
●
●
●
●
●
●
●
10
07.388 BUSHING; RUBBER,S/ABS
EXC. SHOCK ABSORBER GAS FILLED(FG3) 07.347 KAYABA KYB
5-51631-016-0
04
1
9210-
●
●
●
●
10
07.388 BUSHING; RUBBER,S/ABS
07.347 TOKICO TOKICO
8-94224-694-0
04
1
9210-
●
●
●
●
●
●
●
●
