◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50651 - TFR/TFS-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#45393) — 59 parça

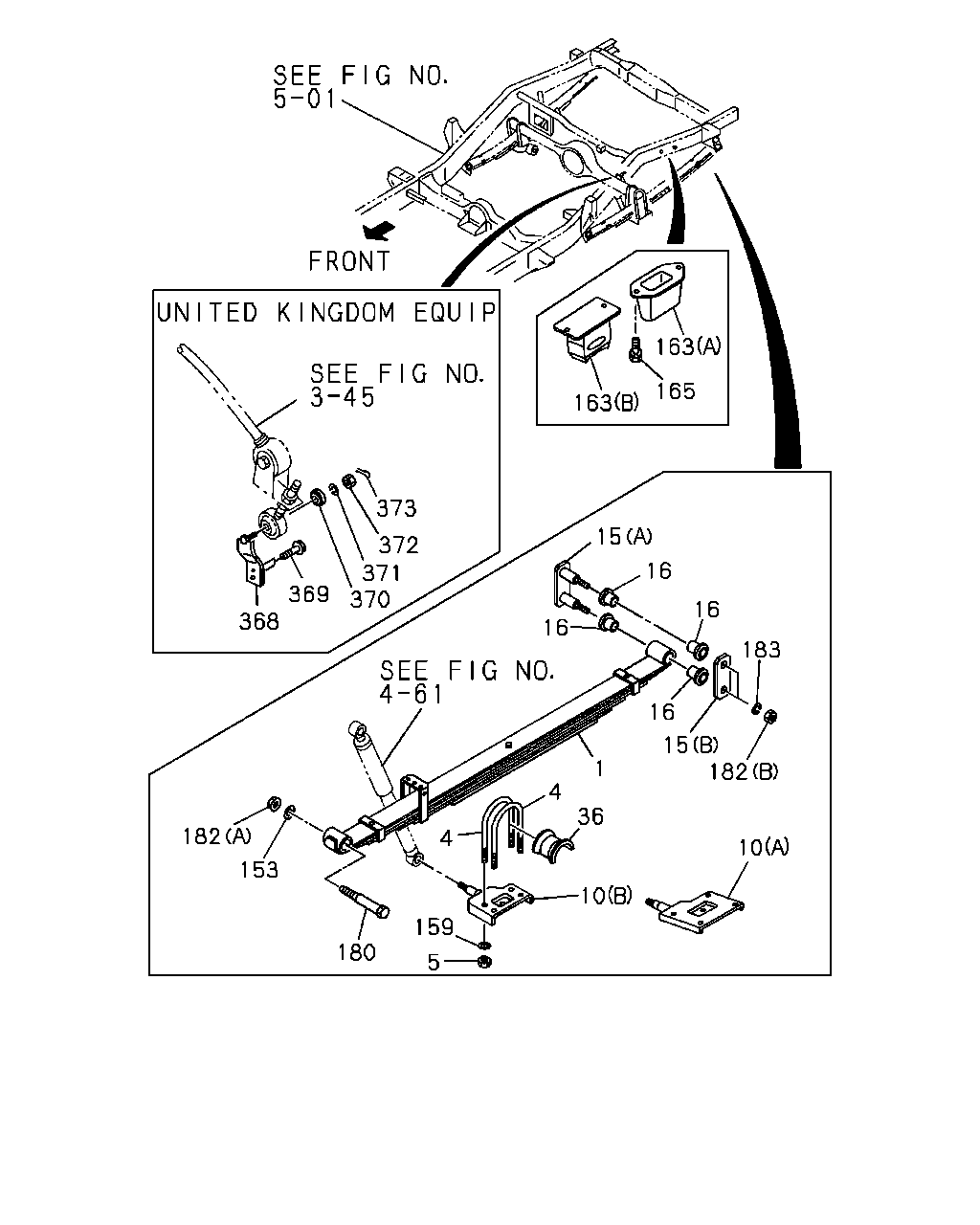

çizim 68723
163 165 163 373 372 371 370 369 368 182 153 180 5 159 4 4 36 10 10 182 15 16 183 16 16 15 16 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY(G50) EXC. RR BODY FLAT BED<RS6> 		8-97062-577-0 02 1 9210- ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. REAR SPRING HEAVY DUTY(G50), RRBODY FLAT BED<RS6> 		8-97061-938-0 02 1 9210- ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. RR BODY FLAT BED<RS6> 		8-97062-605-0 02 1 9210- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY(G50) EXC. RR BODY FLAT BED<RS6> 		8-97062-597-0 02 1 9210-9509 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY DOUBLE WALL CTR PULL H ANDLE(S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-97062-597-0 02 1 9210-9509 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY(G50) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97062-597-0 02 1 9510- ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION RIDE&HANDLING(FE2) AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY DOUBLE WALL CTR PULL H ANDLE(S7R),RR BODY DOUBLE WALL SIDELOCK OUTER HOOK(S7S),RR BODY DOUBL E WALL CTR PULL W/GUARD FRAME(6MW) 		8-97062-597-0 02 1 9510- ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. REAR SPRING HEAVY DUTY(G50), AUSTRALIA EQUIPMENT(RR3),RR BODY FLATBED<RS6> 		8-97061-933-0 02 1 9210-9509 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. AUSTRALIA EQUIPMENT(RR3) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-97061-933-0 02 1 9210-9509 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. REAR SPRING HEAVY DUTY(G50), AUSTRALIA EQUIPMENT(RR3) 		8-97061-933-0 02 1 9510- ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION RIDE&HANDLING(FE2) AUSTRALIA EQUIPMENT(RR3) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) 		8-97061-933-0 02 1 9510- ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. RR BODY FLAT BED<RS6> 		8-97062-573-0 02 1 9210-9509 ●
4 07.516 U-BOLT; RR SPR
REAR SPRING HEAVY DUTY(G50) EXC. RR BODY FLAT BED<RS6> L=186 		8-94473-259-1 04 1 9210-9509 ● ● ● ● ● ● ● ●
4 07.516 U-BOLT; RR SPR
AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY DOUBLE WALL CTR PULL H ANDLE(S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) L=186 		8-94473-259-1 04 1 9210-9509 ● ● ●
4 07.516 U-BOLT; RR SPR
REAR SPRING HEAVY DUTY(G50) EXC. AUSTRALIA EQUIPMENT(RR3),RR BODY FLAT BED<RS6> L=186 		8-94473-259-2 04 1 9510- ● ● ● ● ● ● ● ●
4 07.516 U-BOLT; RR SPR
SUSPENSION RIDE&HANDLING(FE2) AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY DOUBLE WALL CTR PULL H ANDLE(S7R),RR BODY DOUBLE WALL SIDELOCK OUTER HOOK(S7S),RR BODY DOUBL E WALL CTR PULL W/GUARD FRAME(6MW) L=186 		8-94473-259-2 04 1 9510- ● ● ●
4 07.516 U-BOLT; RR SPR
EXC. REAR SPRING HEAVY DUTY(G50), RRBODY FLAT BED<RS6> L=160 		8-94318-381-0 04 1 9210-9509 ● ● ● ● ● ● ● ●
4 07.516 U-BOLT; RR SPR
AUSTRALIA EQUIPMENT(RR3) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) L=160 		8-94318-381-0 04 1 9210-9509 ● ● ●
4 07.516 U-BOLT; RR SPR
EXC. REAR SPRING HEAVY DUTY(G50), AUSTRALIA EQUIPMENT(RR3),RR BODY FLATBED<RS6> L=160 		8-94318-381-1 04 1 9510- ● ● ● ● ● ● ● ●
4 07.516 U-BOLT; RR SPR
SUSPENSION RIDE&HANDLING(FE2) AUSTRALIA EQUIPMENT(RR3) L=160 		8-94318-381-1 04 1 9510- ● ● ●
4 07.516 U-BOLT; RR SPR
SUSPENSION RIDE&HANDLING(FE2) AUSTRALIA EQUIPMENT(RR3) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) L=160 		8-94318-381-1 04 1 9510- ● ● ●
4 07.516 U-BOLT; RR SPR
RR BODY FLAT BED<RS6> L=160 		8-94473-919-1 04 1 9210-9509 ● ●
4 07.516 U-BOLT; RR SPR
RR BODY FLAT BED<RS6> L=160 		8-94473-919-2 04 1 9510- ●
5 07.529 NUT; U-BOLT,RR SPR
M14 		9-99110-514-0 08 1 9210- ● ● ● ● ● ● ● ●
10 07.529 CLAMP; LWR,RR SPR
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94473-188-0 02 1 9210-9505 ● ● ● ● ● ● ● ●
10 07.529 CLAMP; LWR,RR SPR
AUSTRALIA EQUIPMENT(RR3) (A) 		8-94473-188-0 02 1 9506- ● ● ● ● ● ●
10 07.529 CLAMP; LWR,RR SPR
EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) (B) 		8-94455-238-0 02 1 9210-9505 ● ● ● ● ● ● ● ●
10 07.529 CLAMP; LWR,RR SPR
EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		8-94455-238-0 02 1 9506- ● ● ● ● ● ●
10 07.529 CLAMP; LWR,RR SPR
(B) 		8-94455-238-0 02 1 9506- ● ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94450-310-3 02 1 9210- ● ● ● ● ● ● ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-94450-311-2 02 1 9210- ● ● ● ● ● ● ● ●
16 07.524 BUSHING; SHACKLE,RR SPR 8-94234-319-0 08 1 9210- ● ● ● ● ● ● ● ●
36 07.529 SEAT; HELPER RUBBER,RR SPR 8-94454-478-0 02 1 9210-9509 ● ● ● ● ● ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
EXC. RR BODY FLAT BED<RS6> 		8-94454-478-0 02 1 9210-9509 ● ●
36 07.529 SEAT; HELPER RUBBER,RR SPR 8-94454-478-0 02 1 9510- ● ● ● ● ● ● ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
EXC. RR BODY FLAT BED<RS6> 		8-94454-478-0 02 1 9510- ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
RR BODY FLAT BED<RS6> 		8-94459-265-0 02 1 9210-9509 ● ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
RR BODY FLAT BED<RS6> 		8-94459-265-0 02 1 9510- ●
153 07.529 WASHER; PL,SPRING PIN
ID=14.5 OD=30 		8-94476-635-0 02 1 9210- ● ● ● ● ● ● ● ●
159 07.529 WASHER; LK,RR SPR
05.387 ID=14.2 		9-09150-614-0 08 1 9210- ● ● ● ● ● ● ● ●
163 07.529 RUBBER; HELPER,RR SPR
(A) 		8-94459-452-2 02 1 9210- ● ● ●
163 07.529 RUBBER; HELPER,RR SPR
EXC. RR BODY FLAT BED<RS6> (A) 		8-94459-452-2 02 1 9210- ●
163 07.529 RUBBER; HELPER,RR SPR
RR BODY FLAT BED<RS6> 07.535 (A) 		8-94234-897-3 02 1 9210- ●
163 07.529 RUBBER; HELPER,RR SPR
EXC. SUSPENSION RIDE&HANDLING(FE2), AUSTRALIA EQUIPMENT(RR3) 07.535 (A) 		8-94234-897-3 02 1 9210- ● ● ● ●
163 07.529 RUBBER; HELPER,RR SPR
AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY DOUBLE WALL CTR PULL H ANDLE(S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 07.535 (A) 		8-94234-897-3 02 1 9210- ● ● ●
163 07.529 RUBBER; HELPER,RR SPR
SUSPENSION RIDE&HANDLING(FE2) EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		8-94426-037-1 02 1 9210- ● ● ●
163 07.529 RUBBER; HELPER,RR SPR
AUSTRALIA EQUIPMENT(RR3) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) (B) 		8-94426-037-1 02 1 9210- ● ● ●
165 07.529 BOLT; HELPER RUBBER
06.606 M10X20 W/LK WASHER 		8-97033-053-1 04 1 9210-9603 ● ● ● ● ● ● ● ●
165 07.529 BOLT; HELPER RUBBER
11.377 M10X20 W/LK WASHER 		0-50041-020-0 04 1 9604- ● ● ● ● ● ● ● ●
180 07.529 PIN; RR SPR
M14X106 		8-94438-834-1 02 1 9210- ● ● ● ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
(A) M14 		8-94232-849-0 02 1 9210- ● ● ● ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
06.232 (B) M14 		9-99110-414-0 04 1 9210- ● ● ● ● ● ● ● ●
183 07.529 WASHER; LK,PIN,RR SPR
05.387 ID=14.2 		9-09150-614-0 04 1 9210- ● ● ● ● ● ● ● ●
368 07.526 BRACKET; SHACKLE TO RR AXLE
UNITED KINGDOM EQUIPMENT(EK3) 		8-94446-917-0 01 1 9210- ● ● ● ● ● ●
369 07.526 BOLT; BRKT TO RR AXLE
UNITED KINGDOM EQUIPMENT(EK3) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 02 1 9210- ● ● ● ● ● ●
370 07.529 RETAINER; SHACKLE
UNITED KINGDOM EQUIPMENT(EK3) 04.710 		8-94241-364-0 01 1 9210- ● ● ● ● ● ●
371 07.529 WASHER; LK,SHACKLE
UNITED KINGDOM EQUIPMENT(EK3) 00.002 ID=8.2 		9-09150-508-0 01 1 9210- ● ● ● ● ● ●
372 07.529 NUT; SHACKLE
UNITED KINGDOM EQUIPMENT(EK3) M8 		9-09117-408-0 01 1 9210- ● ● ● ● ● ●
373 07.529 PIN; SPLIT,SHACKLE
UNITED KINGDOM EQUIPMENT(EK3) 00.793 OD=1.8 L=15 		9-08112-015-0 01 1 9210- ● ● ● ● ● ●
