4-42 — POWER STEERING OIL PUMP (#45391) — 74 parça

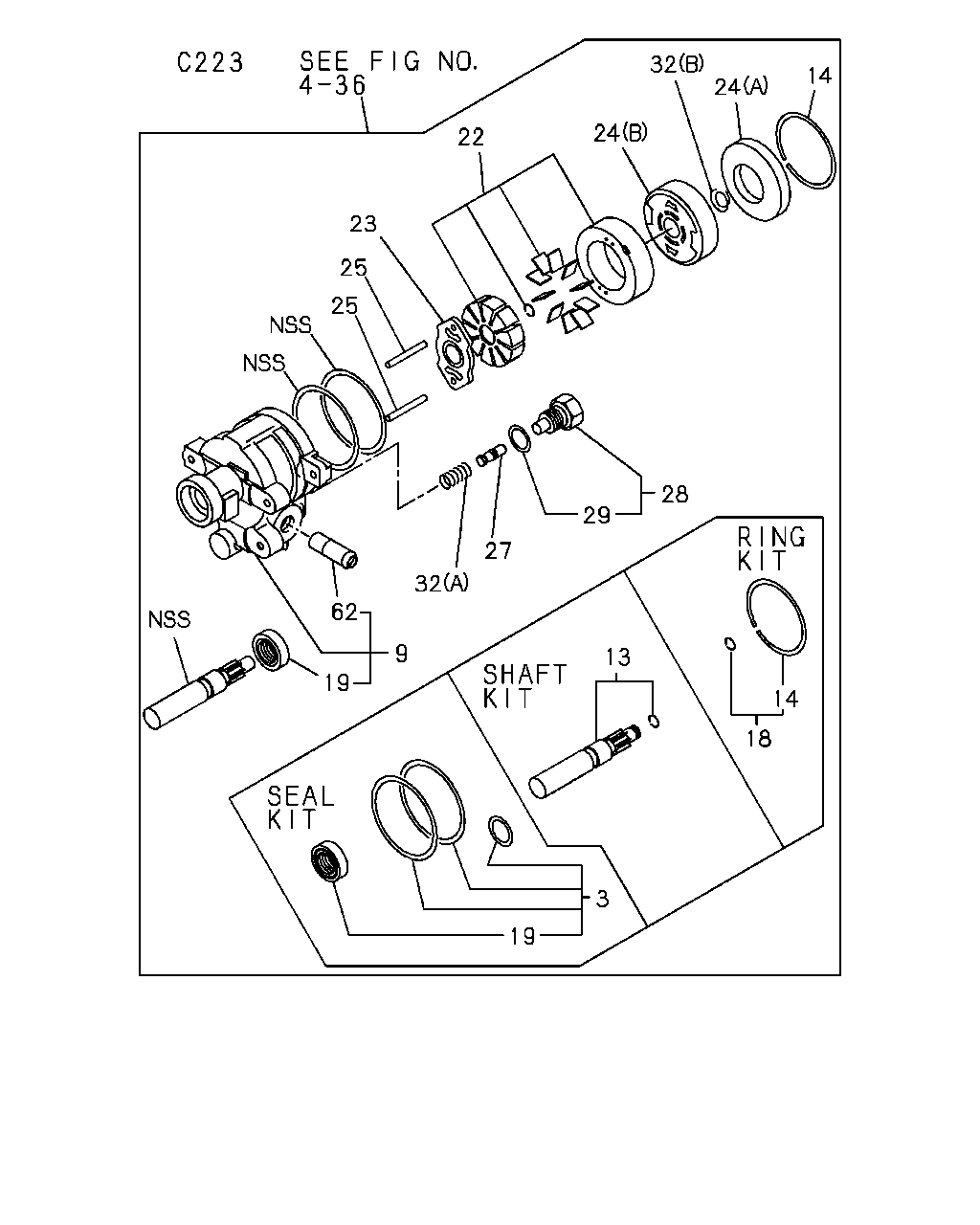

22 24 32 24 14 23 25 25 62 19 9 32 27 29 28 14 18 13 3 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	06.609 SEAL KIT; OIL PUMP,POWER STRG ASM PART: A = 8-94160-669-0, 94160669	8-07834-853-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-94160-669-0, 94160669	8-07840-525-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-94450-411-5, 94450411	8-94311-985-1	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: E = 8-97084-953-1, 97084953, G = 8-97110-269-0, 97110269, H = 8-97129-593-1, 97129593	8-97061-642-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97041-469-0, 97041469, D = 8-97084-950-1, 97084950	8-97084-213-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: F = 8-97104-020-0, 97104020	8-97105-554-0	01	1	-
13	06.605 SHAFT KIT; RET 06.609 ASM PART: A = 8-94160-669-0, 94160669	8-07837-321-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614 ASM PART: B = 8-94450-411-5, 94450411, F = 8-97104-020-0, 97104020	8-94475-373-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614 ASM PART: C = 8-97041-469-0, 97041469, D = 8-97084-950-1, 97084950, E = 8-97084-953-1, 97084953, G = 8-97110-269-0, 97110269, H = 8-97129-593-1, 97129593	8-97061-633-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: A = 8-94160-669-0, 94160669	8-05688-014-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: C = 8-97041-469-0, 97041469, D = 8-97084-950-1, 97084950, E = 8-97084-953-1, 97084953, G = 8-97110-269-0, 97110269, H = 8-97129-593-1, 97129593	8-97061-636-0	01	1	-
14	06.616 RING; RET,OIL PUMP 06.840, OD=37.8 ASM PART: B = 8-94450-411-5, 94450411, F = 8-97104-020-0, 97104020	9-09180-135-0	01	1	-
18	06.609 RING KIT; RET ASM PART: A = 8-94160-669-0, 94160669	8-07837-284-0	01	1	-
19	06.617 SEAL; OIL,OIL PUMP 06.609 ASM PART: A = 8-94160-669-0, 94160669	8-07808-195-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP 06.609 ASM PART: A = 8-94160-669-0, 94160669	8-07837-337-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-94450-411-5, 94450411, C = 8-97041-469-0, 97041469, D = 8-97084-950-1, 97084950, E = 8-97084-953-1, 97084953, F = 8-97104-020-0, 97104020	8-94475-369-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: G = 8-97110-269-0, 97110269, H = 8-97129-593-1, 97129593	8-97110-274-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP 06.606 ASM PART: A = 8-94160-669-0, 94160669	8-07836-369-0	01	1	-
24	06.612 PLATE ASM; THRUST (A) ASM PART: A = 8-94160-669-0, 94160669	8-05689-358-0	01	1	-
24	06.612 PLATE ASM; THRUST (B) ASM PART: A = 8-94160-669-0, 94160669	8-07839-669-0	01	1	-
24	06.612 PLATE ASM; THRUST 06.609 ASM PART: C = 8-97041-469-0, 97041469, D = 8-97084-950-1, 97084950, E = 8-97084-953-1, 97084953, G = 8-97110-269-0, 97110269, H = 8-97129-593-1, 97129593	8-97063-133-0	01	1	-
25	06.608 PIN; HSG,P/S ASM PART: A = 8-94160-669-0, 94160669	8-05689-357-0	02	1	-
25	06.608 PIN; HSG,P/S ASM PART: B = 8-94450-411-5, 94450411, C = 8-97041-469-0, 97041469, D = 8-97084-950-1, 97084950, E = 8-97084-953-1, 97084953, F = 8-97104-020-0, 97104020, G = 8-97110-269-0, 97110269, H = 8-97129-593-1, 97129593	8-94475-371-0	02	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-94160-669-0, 94160669	8-07848-673-0	01	1	-
28	06.606 PLUG; DRAIN,OIL PUMP 06.624 ASM PART: A = 8-94160-669-0, 94160669	8-07848-090-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.617 ASM PART: A = 8-94160-669-0, 94160669	8-05688-035-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612, (A) ASM PART: A = 8-94160-669-0, 94160669	8-05688-037-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612, (B) ASM PART: A = 8-94160-669-0, 94160669	8-07839-667-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612 ASM PART: B = 8-94450-411-5, 94450411, C = 8-97041-469-0, 97041469, D = 8-97084-950-1, 97084950, E = 8-97084-953-1, 97084953, F = 8-97104-020-0, 97104020, G = 8-97110-269-0, 97110269, H = 8-97129-593-1, 97129593	8-94475-376-0	01	1	-
62	06.605 TUBE; INL 06.608 ASM PART: A = 8-94160-669-0, 94160669	8-07840-158-0	01	1	-

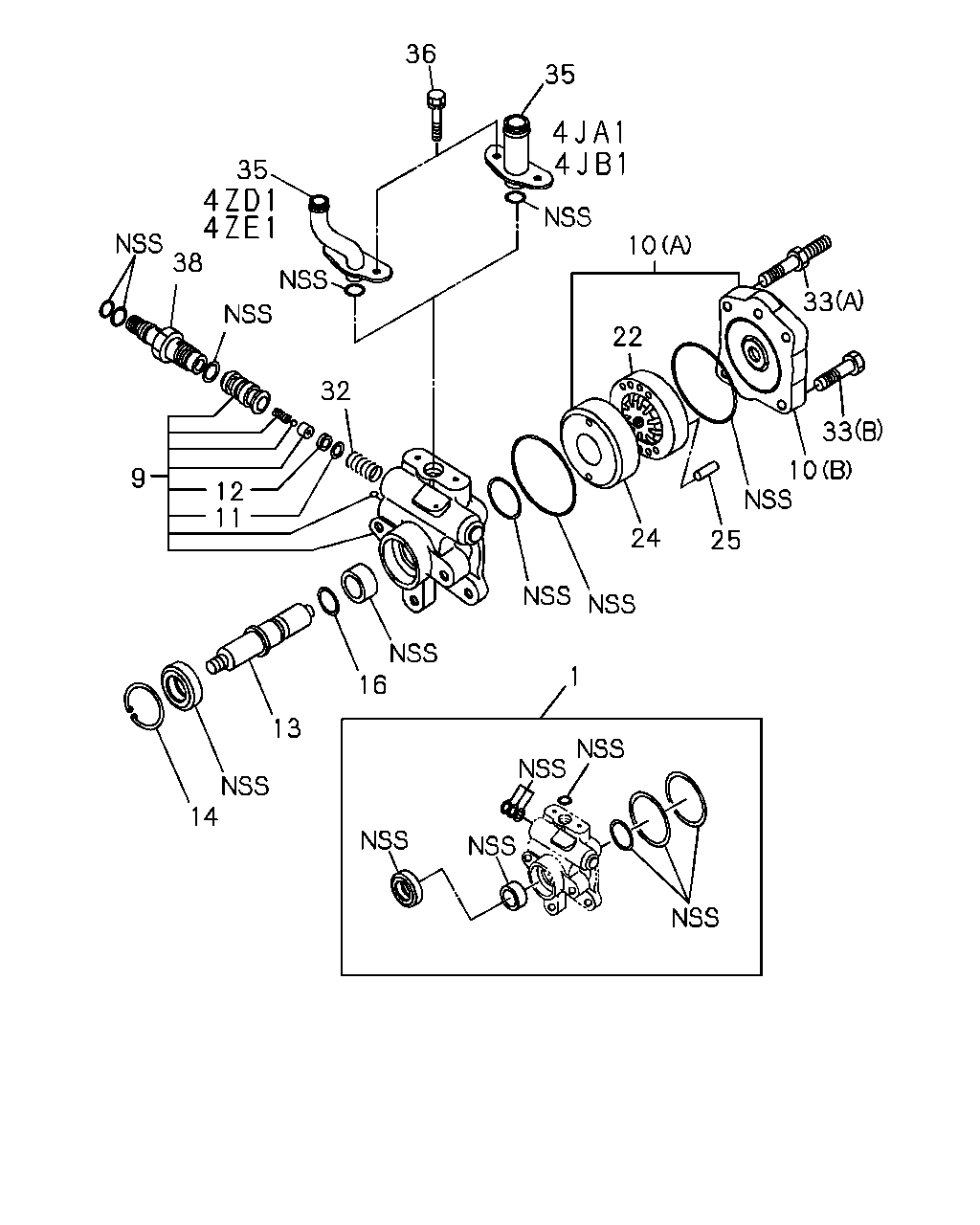

36 35 10 33 33 10 22 25 24 1 16 13 14 11 12 9 32 38 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP ASM PART: B = 8-94450-411-5, 94450411, F = 8-97104-020-0, 97104020	8-94311-983-1	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: C = 8-97041-469-0, 97041469	8-97061-640-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: H = 8-97129-593-1, 97129593	8-97085-147-0	01	1	-9505
1	06.609 REPAIR KIT; OIL PUMP ASM PART: D = 8-97084-950-1, 97084950, E = 8-97084-953-1, 97084953, G = 8-97110-269-0, 97110269	8-97085-147-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: H = 8-97129-593-1, 97129593	8-97131-341-0	01	1	9506-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-94160-669-0, 94160669	8-07840-525-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-94450-411-5, 94450411	8-94311-985-1	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: E = 8-97084-953-1, 97084953, G = 8-97110-269-0, 97110269, H = 8-97129-593-1, 97129593	8-97061-642-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97041-469-0, 97041469, D = 8-97084-950-1, 97084950	8-97084-213-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: F = 8-97104-020-0, 97104020	8-97105-554-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP 06.609, (A) ASM PART: B = 8-94450-411-5, 94450411, F = 8-97104-020-0, 97104020	8-94382-178-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP (B) ASM PART: C = 8-97041-469-0, 97041469, D = 8-97084-950-1, 97084950, E = 8-97084-953-1, 97084953, G = 8-97110-269-0, 97110269, H = 8-97129-593-1, 97129593	8-97061-638-0	01	1	-
11	06.616 RING; RET,OIL TANK ASM PART: B = 8-94450-411-5, 94450411, C = 8-97041-469-0, 97041469, D = 8-97084-950-1, 97084950, E = 8-97084-953-1, 97084953, F = 8-97104-020-0, 97104020, G = 8-97110-269-0, 97110269, H = 8-97129-593-1, 97129593	8-94175-185-0	01	1	-
12	06.616 FILTER; OIL PUMP 06.630 ASM PART: B = 8-94450-411-5, 94450411, C = 8-97041-469-0, 97041469, D = 8-97084-950-1, 97084950, E = 8-97084-953-1, 97084953, F = 8-97104-020-0, 97104020, G = 8-97110-269-0, 97110269, H = 8-97129-593-1, 97129593	8-94175-184-0	01	1	-
13	06.605 SHAFT KIT; RET 06.609 ASM PART: A = 8-94160-669-0, 94160669	8-07837-321-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614 ASM PART: B = 8-94450-411-5, 94450411, F = 8-97104-020-0, 97104020	8-94475-373-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614 ASM PART: C = 8-97041-469-0, 97041469, D = 8-97084-950-1, 97084950, E = 8-97084-953-1, 97084953, G = 8-97110-269-0, 97110269, H = 8-97129-593-1, 97129593	8-97061-633-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: A = 8-94160-669-0, 94160669	8-05688-014-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: C = 8-97041-469-0, 97041469, D = 8-97084-950-1, 97084950, E = 8-97084-953-1, 97084953, G = 8-97110-269-0, 97110269, H = 8-97129-593-1, 97129593	8-97061-636-0	01	1	-
14	06.616 RING; RET,OIL PUMP 06.840, OD=37.8 ASM PART: B = 8-94450-411-5, 94450411, F = 8-97104-020-0, 97104020	9-09180-135-0	01	1	-
16	06.616 RING; RET,OIL PUMP ASM PART: B = 8-94450-411-5, 94450411, F = 8-97104-020-0, 97104020	8-94475-374-0	01	1	-
16	06.616 RING; RET,OIL PUMP ASM PART: C = 8-97041-469-0, 97041469, D = 8-97084-950-1, 97084950, E = 8-97084-953-1, 97084953, G = 8-97110-269-0, 97110269, H = 8-97129-593-1, 97129593	8-97061-637-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP 06.609 ASM PART: A = 8-94160-669-0, 94160669	8-07837-337-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-94450-411-5, 94450411, C = 8-97041-469-0, 97041469, D = 8-97084-950-1, 97084950, E = 8-97084-953-1, 97084953, F = 8-97104-020-0, 97104020	8-94475-369-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: G = 8-97110-269-0, 97110269, H = 8-97129-593-1, 97129593	8-97110-274-0	01	1	-
24	06.612 PLATE ASM; THRUST (A) ASM PART: A = 8-94160-669-0, 94160669	8-05689-358-0	01	1	-
24	06.612 PLATE ASM; THRUST (B) ASM PART: A = 8-94160-669-0, 94160669	8-07839-669-0	01	1	-
24	06.612 PLATE ASM; THRUST 06.609 ASM PART: C = 8-97041-469-0, 97041469, D = 8-97084-950-1, 97084950, E = 8-97084-953-1, 97084953, G = 8-97110-269-0, 97110269, H = 8-97129-593-1, 97129593	8-97063-133-0	01	1	-
25	06.608 PIN; HSG,P/S ASM PART: A = 8-94160-669-0, 94160669	8-05689-357-0	02	1	-
25	06.608 PIN; HSG,P/S ASM PART: B = 8-94450-411-5, 94450411, C = 8-97041-469-0, 97041469, D = 8-97084-950-1, 97084950, E = 8-97084-953-1, 97084953, F = 8-97104-020-0, 97104020, G = 8-97110-269-0, 97110269, H = 8-97129-593-1, 97129593	8-94475-371-0	02	1	-
32	06.606 SPRING; OIL PUMP 06.612, (A) ASM PART: A = 8-94160-669-0, 94160669	8-05688-037-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612, (B) ASM PART: A = 8-94160-669-0, 94160669	8-07839-667-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612 ASM PART: B = 8-94450-411-5, 94450411, C = 8-97041-469-0, 97041469, D = 8-97084-950-1, 97084950, E = 8-97084-953-1, 97084953, F = 8-97104-020-0, 97104020, G = 8-97110-269-0, 97110269, H = 8-97129-593-1, 97129593	8-94475-376-0	01	1	-
33	06.606 BOLT; COVER 06.608, (A) ASM PART: B = 8-94450-411-5, 94450411, F = 8-97104-020-0, 97104020	8-94311-982-1	02	1	-
33	06.606 BOLT; COVER 06.608, (A) ASM PART: C = 8-97041-469-0, 97041469	8-94311-982-1	01	1	-
33	06.606 BOLT; COVER 06.608, (B) ASM PART: B = 8-94450-411-5, 94450411, F = 8-97104-020-0, 97104020	8-94475-381-0	02	1	-
33	06.606 BOLT; COVER 06.608, (B) ASM PART: C = 8-97041-469-0, 97041469, D = 8-97084-950-1, 97084950, E = 8-97084-953-1, 97084953, G = 8-97110-269-0, 97110269, H = 8-97129-593-1, 97129593	8-94475-381-0	03	1	-
33	06.606 BOLT; COVER 06.608, (A) ASM PART: D = 8-97084-950-1, 97084950, E = 8-97084-953-1, 97084953, G = 8-97110-269-0, 97110269	8-97084-979-0	01	1	-
33	06.606 BOLT; COVER 06.608, (A) ASM PART: H = 8-97129-593-1, 97129593	8-97084-979-0	01	1	-9505
33	06.606 BOLT; COVER (A) ASM PART: H = 8-97129-593-1, 97129593	8-97131-502-0	01	1	9506-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: B = 8-94450-411-5, 94450411, F = 8-97104-020-0, 97104020	8-94311-986-2	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: C = 8-97041-469-0, 97041469, D = 8-97084-950-1, 97084950, E = 8-97084-953-1, 97084953, G = 8-97110-269-0, 97110269, H = 8-97129-593-1, 97129593	8-94461-138-2	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: B = 8-94450-411-5, 94450411, C = 8-97041-469-0, 97041469, D = 8-97084-950-1, 97084950, E = 8-97084-953-1, 97084953, F = 8-97104-020-0, 97104020, G = 8-97110-269-0, 97110269, H = 8-97129-593-1, 97129593	8-94461-139-1	02	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: B = 8-94450-411-5, 94450411, C = 8-97041-469-0, 97041469, D = 8-97084-950-1, 97084950, E = 8-97084-953-1, 97084953, F = 8-97104-020-0, 97104020, G = 8-97110-269-0, 97110269, H = 8-97129-593-1, 97129593	8-94311-981-0	01	1	-
