Isuzu WW
▶
BUSES
▶
LV
▶
10695 - LV233(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-61 - BATTERY AND ENGINE ELECTRICAL PARTS
▶

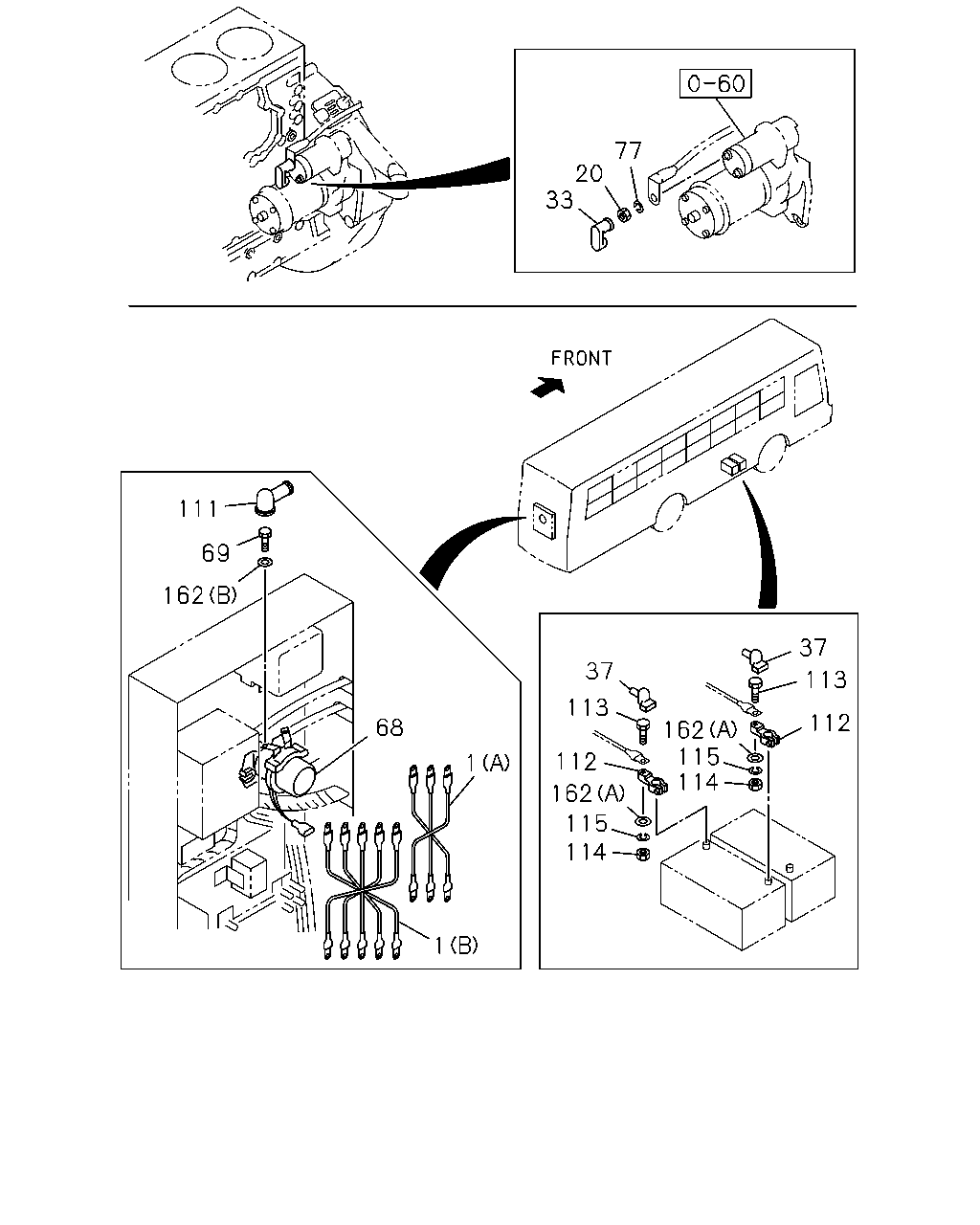

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS
(#4539) — 22 parça
77
20
33
111
69
162
37
37
113
113
112
68
162
115
114
112
1
162
115
114
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; BATTERY
(A)
1-82650-277-2
01
1
9712-
1
CABLE; BATTERY
(B)
1-82650-313-1
01
1
9712-
20
NUT; STARTER CABLE
M5
9-99110-405-0
01
1
9712-
33
CAP; INSULATOR
1-82699-034-0
01
1
9712-
37
CAP; TERMINAL,BATTERY CABLE
BLACK BLACK
1-82699-106-0
02
1
9712-
37
CAP; TERMINAL,BATTERY CABLE
RED RED
1-82699-975-0
02
1
9712-
68
RELAY; BATTERY
1-82550-252-1
01
1
9712-
68
RELAY; BATTERY
1-82550-252-1
01
1
9712-
69
BOLT; CABLE BATTERY
M8X20 FLANGE
0-28680-820-0
02
1
9712-
69
BOLT; CABLE BATTERY
M8X20 FLANGE
0-28680-820-0
02
1
9712-
77
WASHER; LK,STARTER CABLE
ID=5.1
9-09150-505-0
01
1
9712-
111
CAP; INSULATOR,BATTERY RELAY
1-82699-001-0
02
1
9712-9712
111
CAP; INSULATOR,BATTERY RELAY
1-82699-001-0
02
1
9801-
111
CAP; INSULATOR,BATTERY RELAY
1-82699-001-0
02
1
9801-
112
TERMINAL; BATTERY
<+>
1-82695-034-2
02
1
9712-
112
TERMINAL; BATTERY
<->
1-82695-035-2
02
1
9712-
113
BOLT; TERMINAL,BATTERY CABLE
M8X30
0-20800-830-0
04
1
9712-
114
NUT; CABLE,BATTERY TERMINAL
M8
9-09110-408-0
04
1
9712-
115
WASHER; LK,CABLE,BATTERY
ID=8.2
9-09150-508-0
04
1
9712-
162
WASHER; PL,CABLE,BATTERY
(A) ID=8.4 OD=22
9-09160-708-0
04
1
9712-
162
WASHER; PL,CABLE,BATTERY
(B) ID=8.4 OD=18
9-09164-608-0
02
1
9712-
162
WASHER; PL,CABLE,BATTERY
(B) ID=8.4 OD=18
9-09164-608-0
02
1
9712-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
