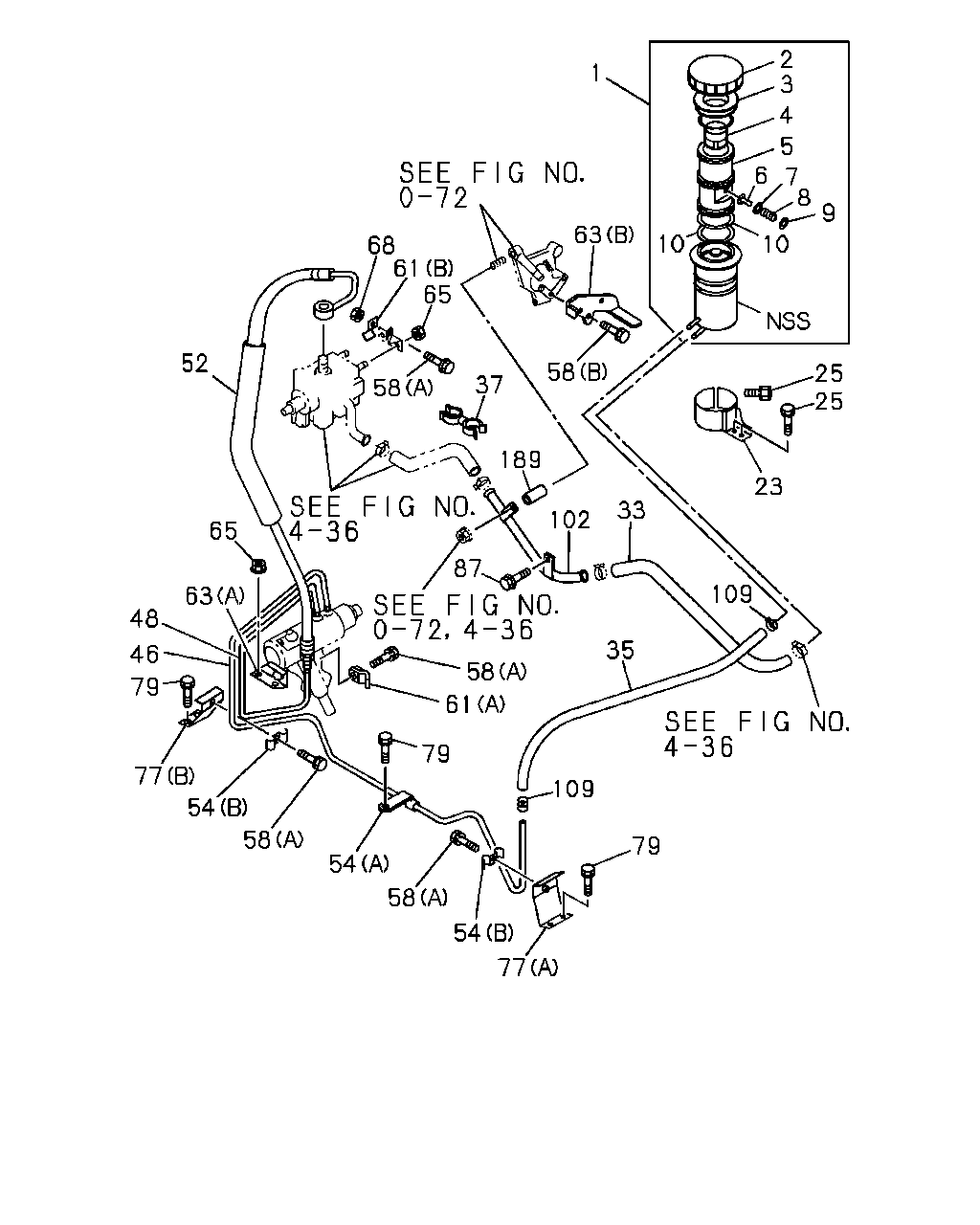

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#45388) — 124 parça

1 2 3 4 5 6 7 8 9 10 10 63 68 61 65 37 58 25 25 23 33 102 189 109 35 109 79 77 54 58 54 79 61 58 87 58 52 65 63 48 46 79 77 54 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	06.635 TANK ASM; OIL,P/S POWER STEERING<N40>	8-94105-282-6	01	1	9210-	●	●	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S POWER STEERING<N40> 06.635	5-21241-001-1	01	1	9210-	●	●	●	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S POWER STEERING<N40> 06.635	8-94246-510-0	01	1	9210-	●	●	●	●	●	●	●	●
4	06.635 FILTER; OIL TANK,P/S POWER STEERING<N40>	8-94204-441-1	01	1	9210-	●	●	●	●	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S POWER STEERING<N40>	8-94405-458-1	01	1	9210-	●	●	●	●	●	●	●	●
6	06.672 HOLDER; GASKET,OIL TANK,P/S POWER STEERING<N40> 06.635	5-21219-005-0	01	1	9210-	●	●	●	●	●	●	●	●
7	06.672 RING; GASKET,OIL TANK,P/S POWER STEERING<N40> 06.635	5-21219-007-0	01	1	9210-	●	●	●	●	●	●	●	●
8	06.672 SPRING; OIL TANK,P/S POWER STEERING<N40> 06.635	5-09580-088-1	01	1	9210-	●	●	●	●	●	●	●	●
9	06.672 COVER; SPR,OIL TANK,P/S POWER STEERING<N40> 06.635	5-21219-006-0	01	1	9210-	●	●	●	●	●	●	●	●
10	06.672 SEAL; OIL TANK,P/S POWER STEERING<N40> 06.635	8-94405-457-0	02	1	9210-	●	●	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-94440-403-1	01	1	9210-	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> M6X16 FLANGE	0-28480-616-0	02	1	9210-	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> 08.155 M8X16 FLANGE	0-28480-816-0	02	1	9210-	●	●	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> EXC. UNITED KINGDOM EQUIPMENT(EK3) 06.673	8-94473-739-1	01	1	9210-	●	●	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.673	8-94434-125-3	01	1	9210-	●	●	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG C223 ENG(LQ7) POWER STEERING<N40> 06.673	8-94329-828-0	01	1	9210-9308		●	●	●		●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) POWER STEERING<N40> 06.673	8-97021-234-1	01	1	9210-			●				●	●
35	06.671 HOSE; RETURN,P/S TANK C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94329-684-1	01	1	9210-	●	●	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-94434-127-1	01	1	9210-	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 03.162 (A) L=170	5-09707-054-0	01	1	9210-	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 02.589 ID=13 & 16.5	8-94169-028-0	01	1	9210-	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S C223 ENG(LQ7) POWER STEERING<N40> 06.672 (B) D=14.5 /22	8-94317-707-0	01	1	9210-9308		●	●	●		●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97013-835-1	01	1	9210-	●	●	●	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-97014-194-0	01	1	9210-	●	●	●	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94450-558-0	01	1	9210-	●	●	●	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-94434-128-0	01	1	9210-	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1 ENG(RLE) POWER STEERING<N40>	8-94473-740-2	01	1	9210-	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JB1 ENG(RLF) POWER STEERING<N40>	8-97013-977-1	01	1	9210-9602	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JB1 ENG(RLF) POWER STEERING<N40>	8-97147-694-0	01	1	9603-	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-94473-737-3	01	1	9210-9608	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-97165-978-0	01	1	9609-	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV C223 ENG(LQ7) POWER STEERING<N40> 06.672	8-94120-499-2	01	1	9210-9308		●	●	●		●	●	●
54	06.672 CLIP; OIL PIPE C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 04.342 (A)	8-94222-795-1	01	1	9210-	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> (B) ID=11 L=45	8-94296-897-1	01	1	9210-	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> (C)	8-94451-983-0	01	1	9210-	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> (A)	8-94178-110-0	01	1	9210-	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 04.342 (B)	8-94222-795-1	02	1	9210-	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635 (A) M6X16 FLANGE	0-28480-616-0	03	1	9210-9501	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 07.010 (B) M8X20 FLANGE	0-28080-820-0	03	1	9210-9601	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 02.664 (B) M8X20 FLANGE	0-28680-820-0	03	1	9602-	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635 (A) M6X16 FLANGE	0-28480-616-0	04	1	9210-9501	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 06.635 (A) M6X16 FLANGE	0-28480-616-0	02	1	9502-9503	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635 (A) M6X16 FLANGE	0-28480-616-0	01	1	9504-	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 06.635 (A) M6X16 FLANGE	0-28480-616-0	01	1	9504-	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635 (A) M6X16 FLANGE	0-28480-616-0	01	1	9504-	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635 (A) M6X16 FLANGE	0-28480-616-0	03	1	9504-	●	●	●	●	●	●	●	●
61	06.672 CLIP; OIL PIPE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> (A)	8-94363-358-0	01	1	9210-	●	●	●	●	●	●	●	●
61	06.672 CLIP; OIL PIPE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 04.930 (B)	9-09716-061-0	01	1	9210-	●	●	●	●	●	●	●	●
63	06.672 BRACKET; CLIP,P/S 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> (B)	8-94329-683-0	01	1	9210-	●	●	●	●	●	●	●	●
63	06.672 BRACKET; CLIP,P/S 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> (A)	8-94441-816-0	01	1	9210-9405	●	●	●	●	●	●	●	●
63	06.672 BRACKET; CLIP,P/S 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> (A)	8-97114-363-0	01	1	9406-9408	●	●	●	●	●	●	●	●
63	06.672 BRACKET; CLIP,P/S 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> (A)	8-97117-867-0	01	1	9409-	●	●	●	●	●	●	●	●
65	06.672 NUT; BRKT 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 04.785 M10 FLANGE	0-91150-110-0	02	1	9210-	●	●	●	●	●	●	●	●
68	06.672 NUT; CLIP,OIL PIPE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 04.594 M6 FLANGE	0-91150-106-0	01	1	9210-	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE POWER STEERING<N40> (B)	8-94442-104-1	01	1	9210-9501	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE POWER STEERING<N40> (B)	8-97120-707-0	01	1	9502-	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> (A)	8-94442-105-1	01	1	9210-9501	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> (A)	8-97120-708-0	01	1	9502-	●	●	●	●	●	●	●	●
79	06.672 BOLT; BRKT C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	03	1	9504-	●	●	●	●	●	●	●	●
79	06.672 BOLT; BRKT POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	04	1	9210-9503	●	●	●	●	●	●	●	●
79	06.672 BOLT; BRKT 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	02	1	9504-	●	●	●	●	●	●	●	●
87	06.672 BOLT; POWER STRG PIPE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> M8X16 FLANGE	0-28280-816-0	01	1	9210-	●	●	●	●	●	●	●	●
102	06.671 PIPE; SUCTION,P/S 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-94146-056-1	01	1	9210-	●	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> 04.930 ID=16	8-94238-568-0	02	1	9210-	●	●	●	●	●	●	●	●
189	06.672 SPACER; PIPE,P/S 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	9-46133-003-0	01	1	9210-	●	●	●	●	●	●	●	●

1 2 3 4 5 6 7 8 9 10 10 37 33 109 37 35 25 25 23 79 58 59 81 82 54 109 60 54 58 54 77 79 79 48 46 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	06.635 TANK ASM; OIL,P/S POWER STEERING<N40>	8-94105-282-6	01	1	9210-	●	●	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S POWER STEERING<N40> 06.635	5-21241-001-1	01	1	9210-	●	●	●	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S POWER STEERING<N40> 06.635	8-94246-510-0	01	1	9210-	●	●	●	●	●	●	●	●
4	06.635 FILTER; OIL TANK,P/S POWER STEERING<N40>	8-94204-441-1	01	1	9210-	●	●	●	●	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S POWER STEERING<N40>	8-94405-458-1	01	1	9210-	●	●	●	●	●	●	●	●
6	06.672 HOLDER; GASKET,OIL TANK,P/S POWER STEERING<N40> 06.635	5-21219-005-0	01	1	9210-	●	●	●	●	●	●	●	●
7	06.672 RING; GASKET,OIL TANK,P/S POWER STEERING<N40> 06.635	5-21219-007-0	01	1	9210-	●	●	●	●	●	●	●	●
8	06.672 SPRING; OIL TANK,P/S POWER STEERING<N40> 06.635	5-09580-088-1	01	1	9210-	●	●	●	●	●	●	●	●
9	06.672 COVER; SPR,OIL TANK,P/S POWER STEERING<N40> 06.635	5-21219-006-0	01	1	9210-	●	●	●	●	●	●	●	●
10	06.672 SEAL; OIL TANK,P/S POWER STEERING<N40> 06.635	8-94405-457-0	02	1	9210-	●	●	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-94440-403-1	01	1	9210-	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> M6X16 FLANGE	0-28480-616-0	02	1	9210-	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> 08.155 M8X16 FLANGE	0-28480-816-0	02	1	9210-	●	●	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> EXC. UNITED KINGDOM EQUIPMENT(EK3) 06.673	8-94473-739-1	01	1	9210-	●	●	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.673	8-94434-125-3	01	1	9210-	●	●	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG C223 ENG(LQ7) POWER STEERING<N40> 06.673	8-94329-828-0	01	1	9210-9308		●	●	●		●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) POWER STEERING<N40> 06.673	8-97021-234-1	01	1	9210-			●				●	●
35	06.671 HOSE; RETURN,P/S TANK C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94329-684-1	01	1	9210-	●	●	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-94434-127-1	01	1	9210-	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 03.162 (A) L=170	5-09707-054-0	01	1	9210-	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 02.589 ID=13 & 16.5	8-94169-028-0	01	1	9210-	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S C223 ENG(LQ7) POWER STEERING<N40> 06.672 (B) D=14.5 /22	8-94317-707-0	01	1	9210-9308		●	●	●		●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97013-835-1	01	1	9210-	●	●	●	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-97014-194-0	01	1	9210-	●	●	●	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94450-558-0	01	1	9210-	●	●	●	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-94434-128-0	01	1	9210-	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1 ENG(RLE) POWER STEERING<N40>	8-94473-740-2	01	1	9210-	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JB1 ENG(RLF) POWER STEERING<N40>	8-97013-977-1	01	1	9210-9602	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JB1 ENG(RLF) POWER STEERING<N40>	8-97147-694-0	01	1	9603-	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-94473-737-3	01	1	9210-9608	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-97165-978-0	01	1	9609-	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV C223 ENG(LQ7) POWER STEERING<N40> 06.672	8-94120-499-2	01	1	9210-9308		●	●	●		●	●	●
54	06.672 CLIP; OIL PIPE C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 04.342 (A)	8-94222-795-1	01	1	9210-	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> (B) ID=11 L=45	8-94296-897-1	01	1	9210-	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> (C)	8-94451-983-0	01	1	9210-	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> (A)	8-94178-110-0	01	1	9210-	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 04.342 (B)	8-94222-795-1	02	1	9210-	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635 (A) M6X16 FLANGE	0-28480-616-0	03	1	9210-9501	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 07.010 (B) M8X20 FLANGE	0-28080-820-0	03	1	9210-9601	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 02.664 (B) M8X20 FLANGE	0-28680-820-0	03	1	9602-	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635 (A) M6X16 FLANGE	0-28480-616-0	04	1	9210-9501	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 06.635 (A) M6X16 FLANGE	0-28480-616-0	02	1	9502-9503	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635 (A) M6X16 FLANGE	0-28480-616-0	01	1	9504-	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 06.635 (A) M6X16 FLANGE	0-28480-616-0	01	1	9504-	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635 (A) M6X16 FLANGE	0-28480-616-0	01	1	9504-	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635 (A) M6X16 FLANGE	0-28480-616-0	03	1	9504-	●	●	●	●	●	●	●	●
59	06.672 BRACKET; CLIP,OIL PIPE C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94454-664-0	01	1	9210-9211	●	●	●	●	●	●	●	●
59	06.672 BRACKET; CLIP,OIL PIPE C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97087-533-1	01	1	9212-	●	●	●	●	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> ID=10X2 H=22	8-94252-455-2	01	1	9210-	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE POWER STEERING<N40> (B)	8-94442-104-1	01	1	9210-9501	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE POWER STEERING<N40> (B)	8-97120-707-0	01	1	9502-	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> (A)	8-94442-105-1	01	1	9210-9501	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> (A)	8-97120-708-0	01	1	9502-	●	●	●	●	●	●	●	●
79	06.672 BOLT; BRKT C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	03	1	9504-	●	●	●	●	●	●	●	●
79	06.672 BOLT; BRKT POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	04	1	9210-9503	●	●	●	●	●	●	●	●
79	06.672 BOLT; BRKT 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	02	1	9504-	●	●	●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9210-	●	●	●	●	●	●	●	●
82	06.672 NUT; FLEX HOSE,P/S C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 04.681 M16	9-99111-416-0	01	1	9210-	●	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> 04.930 ID=16	8-94238-568-0	02	1	9210-	●	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
