Sayfa 4-33 - Isuzu EPC

4-33 — STEERING LINKAGE (#45387) — 177 parça

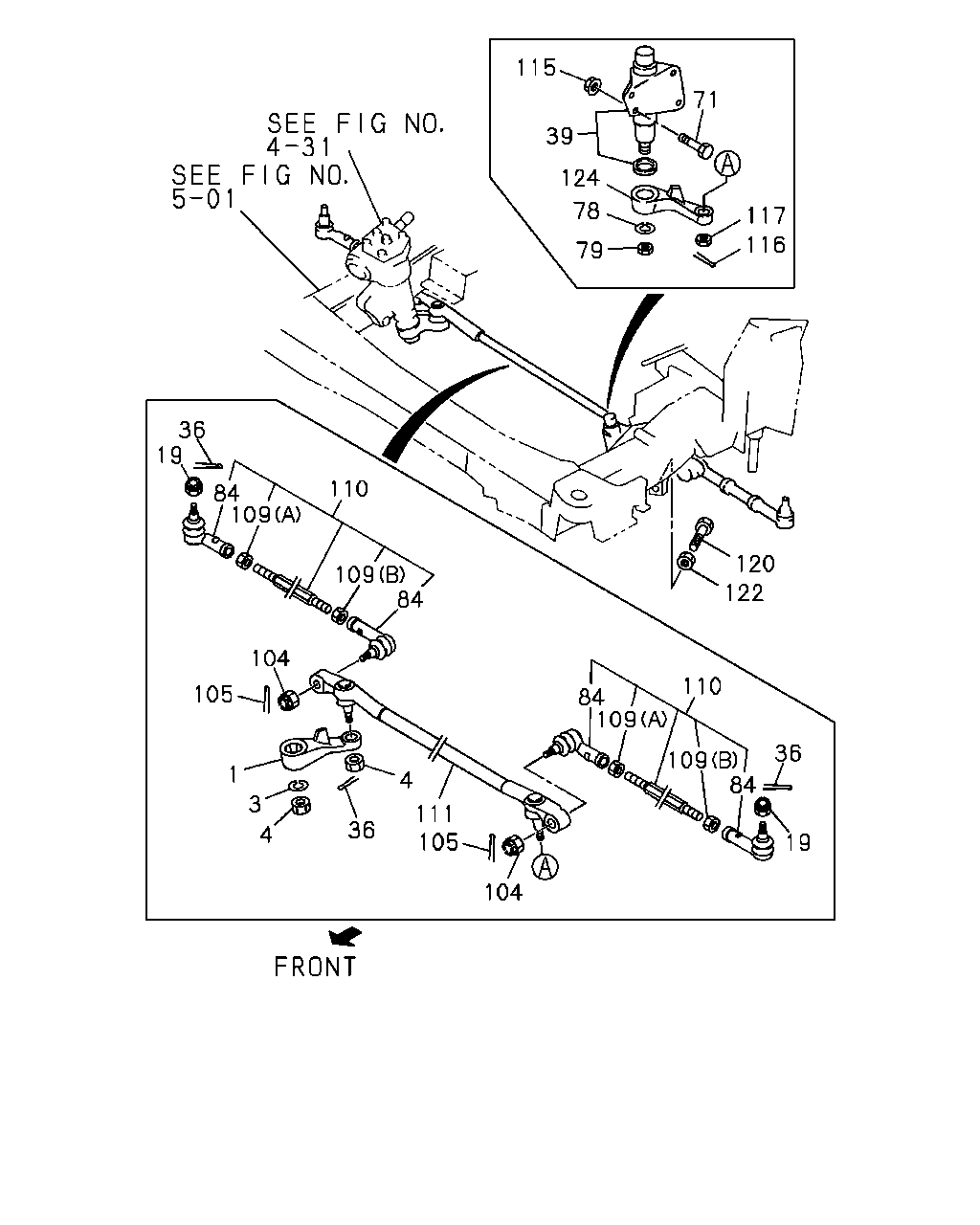

115 39 124 78 79 71 117 116 120 122 110 36 19 84 109 109 84 104 105 111 4 36 4 3 1 105 104 84 109 110 109 84 36 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	06.859 ARM; PITMAN,STRG	8-94440-892-3	01	1	9210-	●	●	●	●
1	06.859 ARM; PITMAN,STRG	8-97026-252-0	01	1	9210-					●	●	●	●
3	06.861 WASHER; LK,PITMAN ARM ID=22.5	9-09150-522-0	01	1	9210-	●	●	●	●	●	●	●	●
4	06.861 NUT; PITMAN ARM 06.865 M14	8-94465-411-0	01	1	9210-	●	●	●	●	●	●	●	●
4	06.861 NUT; PITMAN ARM 08.915 M22	9-09111-522-0	01	1	9210-	●	●	●	●	●	●	●	●
19	06.865 NUT; PITMAN ARM,STOPPER M14	8-94465-411-0	02	1	9210-	●	●	●	●	●	●	●	●
36	06.881 PIN; SPLIT,DRAG LINK 06.865 OD=2.8 L=25	9-08113-025-0	02	1	9210-	●	●	●	●	●	●	●	●
36	06.881 PIN; SPLIT,DRAG LINK 06.865 OD=2.8 L=25	9-08113-025-0	01	1	9210-	●	●	●	●	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3)	8-97028-967-2	01	1	9210-9403	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-97028-967-2	01	1	9210-9403					●		●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3)	8-97039-325-1	01	1	9404-9505	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-97039-325-1	01	1	9404-9505					●		●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-97039-325-1	01	1	9506-9506	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE HONG KONG EQUIPMENT(PQ1)	8-97039-325-1	01	1	9506-9506			●				●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-97039-325-1	01	1	9506-9506					●		●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-97039-325-1	01	1	9507-9509	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-97039-325-1	01	1	9507-9509					●		●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-97039-325-1	01	1	9510-	●			●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-97039-325-1	01	1	9510-			●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-97039-325-1	01	1	9510-					●		●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3)	8-97028-971-2	01	1	9210-9403	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-97028-971-2	01	1	9210-9403					●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3)	8-97106-663-0	01	1	9404-9505	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-97106-663-0	01	1	9404-9505					●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-97106-663-0	01	1	9506-9506	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE EXC. HONG KONG EQUIPMENT(PQ1)	8-97106-663-0	01	1	9506-9506			●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3)	8-97106-663-0	01	1	9506-9506					●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-97106-663-0	01	1	9507-9509	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-97106-663-0	01	1	9507-9509					●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-97106-663-0	01	1	9510-	●	●	●	●		●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-97106-663-0	01	1	9510-					●		●	●
71	06.896 BOLT; RELAY LEVER BRKT 06.509 M10X92 FLANGE	8-94313-798-1	04	1	9210-	●	●	●	●	●	●	●	●
78	06.897 WASHER; LINK,RELAY LEVER 07.247 ID=16.2	9-09150-816-0	01	1	9210-	●	●	●	●	●	●	●	●
79	06.897 NUT; RELAY LEVER 04.681 M16	9-99111-416-0	01	1	9210-9511	●	●	●	●	●	●	●	●
79	06.897 NUT; RELAY LEVER 04.681 M16	9-99111-516-0	01	1	9512-	●	●	●	●	●	●	●	●
84	06.874 ROD END; TRACK ROD RH THREAD	8-94459-480-1	02	1	9210-9404	●	●	●	●	●	●	●	●
84	06.874 ROD END; TRACK ROD RH THREAD	8-97020-953-1	02	1	9405-	●	●	●	●	●	●	●	●
84	06.874 ROD END; TRACK ROD LH THREAD	8-94459-481-1	02	1	9210-9404	●	●	●	●	●	●	●	●
84	06.874 ROD END; TRACK ROD LH THREAD	8-97020-954-2	02	1	9405-	●	●	●	●	●	●	●	●
104	06.233 NUT; ROD END 06.865 M14	8-94465-411-0	02	1	9210-	●	●	●	●	●	●	●	●
105	06.865 PIN; SPLIT,ROD END OD=2.8 L=25	9-08113-025-0	02	1	9210-	●	●	●	●	●	●	●	●
109	06.897 NUT; ROD (A) M14 LH THREAD	5-09400-010-0	02	1	9210-	●	●	●	●	●	●	●	●
109	06.897 NUT; ROD 06.232 (B) M14	9-99110-414-0	02	1	9210-	●	●	●	●	●	●	●	●
110	06.870 ROD; TRACK,OUTER L=306.9	8-94459-478-2	02	1	9210-	●	●	●	●
110	06.870 ROD; TRACK,OUTER L=262	8-94459-493-2	02	1	9210-					●	●	●	●
111	06.870 ROD; TRACK,CENTER UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3)	8-94459-474-2	01	1	9210-9505	●	●	●	●
111	06.870 ROD; TRACK,CENTER THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-94459-474-2	01	1	9506-9506	●	●	●	●
111	06.870 ROD; TRACK,CENTER UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1)	8-94459-474-2	01	1	9506-9506			●
111	06.870 ROD; TRACK,CENTER UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-94459-474-2	01	1	9507-	●	●	●	●
111	06.870 ROD; TRACK,CENTER EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3)	8-94389-209-2	01	1	9210-9505	●	●	●	●
111	06.870 ROD; TRACK,CENTER EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-94389-209-2	01	1	9506-9506	●	●	●	●
111	06.870 ROD; TRACK,CENTER EXC. HONG KONG EQUIPMENT(PQ1)	8-94389-209-2	01	1	9506-9506			●
111	06.870 ROD; TRACK,CENTER EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-94389-209-2	01	1	9507-	●	●	●	●
111	06.870 ROD; TRACK,CENTER EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-94389-221-2	01	1	9210-					●	●	●	●
111	06.870 ROD; TRACK,CENTER THAILAND EQUIPMENT(PM9)	8-94459-491-2	01	1	9210-					●		●
111	06.870 ROD; TRACK,CENTER AUSTRALIA EQUIPMENT(RR3)	8-94459-489-2	01	1	9210-9406					●			●
111	06.870 ROD; TRACK,CENTER UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-94459-489-2	01	1	9210-9406							●
111	06.870 ROD; TRACK,CENTER AUSTRALIA EQUIPMENT(RR3)	8-94459-489-2	01	1	9407-9509					●
111	06.870 ROD; TRACK,CENTER UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-94459-489-2	01	1	9407-9509							●	●
111	06.870 ROD; TRACK,CENTER UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-94459-489-2	01	1	9510-					●		●	●
115	06.896 NUT; RELAY LEVER BRKT 06.509 M10 FLANGE	8-94313-797-0	04	1	9210-	●	●	●	●	●	●	●	●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER 06.870 OD=2.8 L=20	9-08113-020-0	01	1	9210-	●	●	●	●	●	●	●	●
117	06.233 NUT; DRAG LINK M12 SLOTTED	9-99117-512-0	01	1	9210-	●	●	●	●	●	●	●	●
120	06.897 BOLT; RELAY LEVER STOPPER 06.861 L=35	9-09802-280-0	02	1	9210-	●	●	●	●
120	06.897 BOLT; RELAY LEVER STOPPER L=57	8-94403-347-1	02	1	9210-					●	●	●	●
122	06.896 NUT; RELAY LEVER STOPPER 03.459 M10	9-09111-510-0	02	1	9210-9406	●	●	●	●	●	●	●	●
122	06.896 NUT; RELAY LEVER STOPPER 06.822	9-09111-410-0	02	1	9407-	●	●	●	●	●	●	●	●
124	06.859 LEVER; RELAY,STRG LINKAGE	8-94440-893-3	01	1	9210-	●	●	●	●
124	06.859 LEVER; RELAY,STRG LINKAGE	8-94404-000-5	01	1	9210-					●	●	●	●

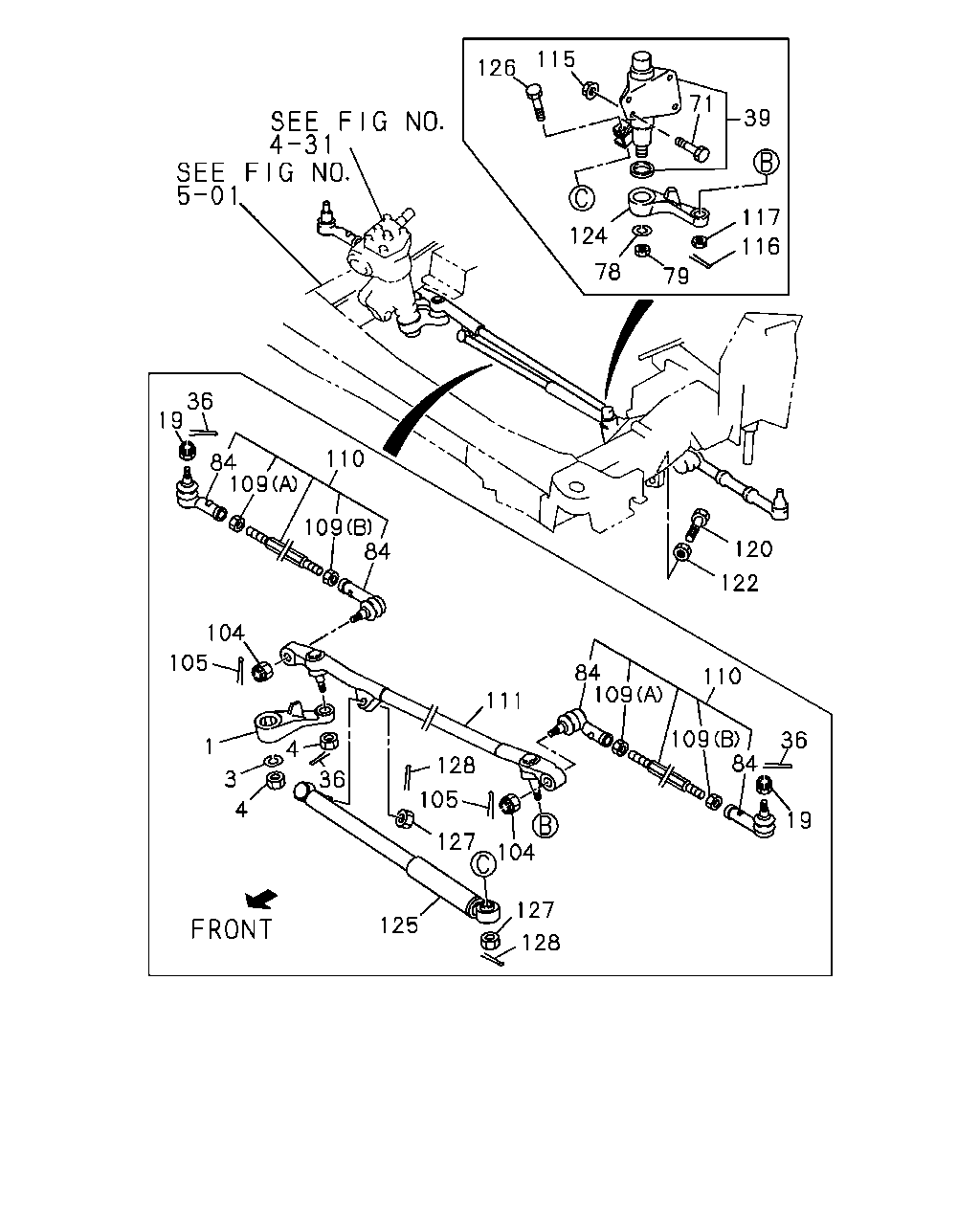

126 115 124 78 79 116 117 39 71 120 122 36 19 84 109 110 109 84 104 105 1 3 4 4 36 125 128 127 127 105 128 111 104 84 109 109 110 36 84 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	06.859 ARM; PITMAN,STRG	8-94440-892-3	01	1	9210-	●	●	●	●
1	06.859 ARM; PITMAN,STRG	8-97026-252-0	01	1	9210-					●	●	●	●
3	06.861 WASHER; LK,PITMAN ARM ID=22.5	9-09150-522-0	01	1	9210-	●	●	●	●	●	●	●	●
4	06.861 NUT; PITMAN ARM 06.865 M14	8-94465-411-0	01	1	9210-	●	●	●	●	●	●	●	●
4	06.861 NUT; PITMAN ARM 08.915 M22	9-09111-522-0	01	1	9210-	●	●	●	●	●	●	●	●
19	06.865 NUT; PITMAN ARM,STOPPER M14	8-94465-411-0	02	1	9210-	●	●	●	●	●	●	●	●
36	06.881 PIN; SPLIT,DRAG LINK 06.865 OD=2.8 L=25	9-08113-025-0	02	1	9210-	●	●	●	●	●	●	●	●
36	06.881 PIN; SPLIT,DRAG LINK 06.865 OD=2.8 L=25	9-08113-025-0	01	1	9210-	●	●	●	●	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3)	8-97028-967-2	01	1	9210-9403	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-97028-967-2	01	1	9210-9403					●		●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3)	8-97039-325-1	01	1	9404-9505	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-97039-325-1	01	1	9404-9505					●		●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-97039-325-1	01	1	9506-9506	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE HONG KONG EQUIPMENT(PQ1)	8-97039-325-1	01	1	9506-9506			●				●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-97039-325-1	01	1	9506-9506					●		●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-97039-325-1	01	1	9507-9509	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-97039-325-1	01	1	9507-9509					●		●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-97039-325-1	01	1	9510-	●			●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-97039-325-1	01	1	9510-			●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-97039-325-1	01	1	9510-					●		●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3)	8-97028-971-2	01	1	9210-9403	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-97028-971-2	01	1	9210-9403					●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3)	8-97106-663-0	01	1	9404-9505	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-97106-663-0	01	1	9404-9505					●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-97106-663-0	01	1	9506-9506	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE EXC. HONG KONG EQUIPMENT(PQ1)	8-97106-663-0	01	1	9506-9506			●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3)	8-97106-663-0	01	1	9506-9506					●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-97106-663-0	01	1	9507-9509	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-97106-663-0	01	1	9507-9509					●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-97106-663-0	01	1	9510-	●	●	●	●		●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-97106-663-0	01	1	9510-					●		●	●
71	06.896 BOLT; RELAY LEVER BRKT 06.509 M10X92 FLANGE	8-94313-798-1	04	1	9210-	●	●	●	●	●	●	●	●
78	06.897 WASHER; LINK,RELAY LEVER 07.247 ID=16.2	9-09150-816-0	01	1	9210-	●	●	●	●	●	●	●	●
79	06.897 NUT; RELAY LEVER 04.681 M16	9-99111-416-0	01	1	9210-9511	●	●	●	●	●	●	●	●
79	06.897 NUT; RELAY LEVER 04.681 M16	9-99111-516-0	01	1	9512-	●	●	●	●	●	●	●	●
84	06.874 ROD END; TRACK ROD RH THREAD	8-94459-480-1	02	1	9210-9404	●	●	●	●	●	●	●	●
84	06.874 ROD END; TRACK ROD RH THREAD	8-97020-953-1	02	1	9405-	●	●	●	●	●	●	●	●
84	06.874 ROD END; TRACK ROD LH THREAD	8-94459-481-1	02	1	9210-9404	●	●	●	●	●	●	●	●
84	06.874 ROD END; TRACK ROD LH THREAD	8-97020-954-2	02	1	9405-	●	●	●	●	●	●	●	●
104	06.233 NUT; ROD END 06.865 M14	8-94465-411-0	02	1	9210-	●	●	●	●	●	●	●	●
105	06.865 PIN; SPLIT,ROD END OD=2.8 L=25	9-08113-025-0	02	1	9210-	●	●	●	●	●	●	●	●
109	06.897 NUT; ROD (A) M14 LH THREAD	5-09400-010-0	02	1	9210-	●	●	●	●	●	●	●	●
109	06.897 NUT; ROD 06.232 (B) M14	9-99110-414-0	02	1	9210-	●	●	●	●	●	●	●	●
110	06.870 ROD; TRACK,OUTER L=306.9	8-94459-478-2	02	1	9210-	●	●	●	●
110	06.870 ROD; TRACK,OUTER L=262	8-94459-493-2	02	1	9210-					●	●	●	●
111	06.870 ROD; TRACK,CENTER UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3)	8-94459-474-2	01	1	9210-9505	●	●	●	●
111	06.870 ROD; TRACK,CENTER THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-94459-474-2	01	1	9506-9506	●	●	●	●
111	06.870 ROD; TRACK,CENTER UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1)	8-94459-474-2	01	1	9506-9506			●
111	06.870 ROD; TRACK,CENTER UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-94459-474-2	01	1	9507-	●	●	●	●
111	06.870 ROD; TRACK,CENTER EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3)	8-94389-209-2	01	1	9210-9505	●	●	●	●
111	06.870 ROD; TRACK,CENTER EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-94389-209-2	01	1	9506-9506	●	●	●	●
111	06.870 ROD; TRACK,CENTER EXC. HONG KONG EQUIPMENT(PQ1)	8-94389-209-2	01	1	9506-9506			●
111	06.870 ROD; TRACK,CENTER EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-94389-209-2	01	1	9507-	●	●	●	●
111	06.870 ROD; TRACK,CENTER EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-94389-221-2	01	1	9210-					●	●	●	●
111	06.870 ROD; TRACK,CENTER THAILAND EQUIPMENT(PM9)	8-94459-491-2	01	1	9210-					●		●
111	06.870 ROD; TRACK,CENTER AUSTRALIA EQUIPMENT(RR3)	8-94459-489-2	01	1	9210-9406					●			●
111	06.870 ROD; TRACK,CENTER UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-94459-489-2	01	1	9210-9406							●
111	06.870 ROD; TRACK,CENTER AUSTRALIA EQUIPMENT(RR3)	8-94459-489-2	01	1	9407-9509					●
111	06.870 ROD; TRACK,CENTER UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-94459-489-2	01	1	9407-9509							●	●
111	06.870 ROD; TRACK,CENTER UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-94459-489-2	01	1	9510-					●		●	●
115	06.896 NUT; RELAY LEVER BRKT 06.509 M10 FLANGE	8-94313-797-0	04	1	9210-	●	●	●	●	●	●	●	●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER 06.870 OD=2.8 L=20	9-08113-020-0	01	1	9210-	●	●	●	●	●	●	●	●
117	06.233 NUT; DRAG LINK M12 SLOTTED	9-99117-512-0	01	1	9210-	●	●	●	●	●	●	●	●
120	06.897 BOLT; RELAY LEVER STOPPER 06.861 L=35	9-09802-280-0	02	1	9210-	●	●	●	●
120	06.897 BOLT; RELAY LEVER STOPPER L=57	8-94403-347-1	02	1	9210-					●	●	●	●
122	06.896 NUT; RELAY LEVER STOPPER 03.459 M10	9-09111-510-0	02	1	9210-9406	●	●	●	●	●	●	●	●
122	06.896 NUT; RELAY LEVER STOPPER 06.822	9-09111-410-0	02	1	9407-	●	●	●	●	●	●	●	●
124	06.859 LEVER; RELAY,STRG LINKAGE	8-94440-893-3	01	1	9210-	●	●	●	●
124	06.859 LEVER; RELAY,STRG LINKAGE	8-94404-000-5	01	1	9210-					●	●	●	●
125	06.865 DAMPER; STEERING EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3)	8-94312-814-1	01	1	9210-9505	●	●	●	●
125	06.865 DAMPER; STEERING EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-94312-814-1	01	1	9210-9505					●	●	●	●
125	06.865 DAMPER; STEERING EXC. THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3)	8-94312-814-1	01	1	9506-9506	●	●	●	●
125	06.865 DAMPER; STEERING EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3)	8-94312-814-1	01	1	9506-9506			●		●	●	●	●
125	06.865 DAMPER; STEERING EXC. THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3)	8-94312-814-1	01	1	9507-9509	●	●	●	●
125	06.865 DAMPER; STEERING EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-94312-814-1	01	1	9507-9509			●		●	●	●	●
125	06.865 DAMPER; STEERING EXC. THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3)	8-94312-814-1	01	1	9510-9609	●	●		●		●
125	06.865 DAMPER; STEERING EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-94312-814-1	01	1	9510-9609			●
125	06.865 DAMPER; STEERING EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-94312-814-1	01	1	9510-9609					●		●	●
125	06.865 DAMPER; STEERING EXC. THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3)	8-97161-106-0	01	1	9610-	●	●		●		●
125	06.865 DAMPER; STEERING EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-97161-106-0	01	1	9610-			●
125	06.865 DAMPER; STEERING EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-97161-106-0	01	1	9610-					●		●	●
126	06.865 BOLT; STRG DAMPER TO RELAY LEVER EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3)	8-94241-456-0	01	1	9210-9505	●	●	●	●
126	06.865 BOLT; STRG DAMPER TO RELAY LEVER EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-94241-456-0	01	1	9210-9505					●	●	●	●
126	06.865 BOLT; STRG DAMPER TO RELAY LEVER EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3)	8-94241-456-0	01	1	9506-9506	●	●	●	●
126	06.865 BOLT; STRG DAMPER TO RELAY LEVER EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3)	8-94241-456-0	01	1	9506-9506					●	●	●	●
126	06.865 BOLT; STRG DAMPER TO RELAY LEVER EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-94241-456-0	01	1	9507-9509	●	●	●	●
126	06.865 BOLT; STRG DAMPER TO RELAY LEVER EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-94241-456-0	01	1	9507-9509					●	●	●	●
126	06.865 BOLT; STRG DAMPER TO RELAY LEVER EXC. THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3)	8-94241-456-0	01	1	9510-	●	●		●		●
126	06.865 BOLT; STRG DAMPER TO RELAY LEVER EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-94241-456-0	01	1	9510-			●
126	06.865 BOLT; STRG DAMPER TO RELAY LEVER EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-94241-456-0	01	1	9510-					●		●	●
127	06.865 NUT; STRG DAMPER EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 05.511 M10	9-09116-510-0	02	1	9210-9505	●	●	●	●
127	06.865 NUT; STRG DAMPER EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 05.511 M10	9-09116-510-0	02	1	9210-9505					●	●	●	●
127	06.865 NUT; STRG DAMPER EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 05.511 M10	9-09116-510-0	02	1	9506-9506	●	●	●	●
127	06.865 NUT; STRG DAMPER EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 05.511 M10	9-09116-510-0	02	1	9506-9506					●	●	●	●
127	06.865 NUT; STRG DAMPER EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 05.511 M10	9-09116-510-0	02	1	9507-9509	●	●	●	●
127	06.865 NUT; STRG DAMPER EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 05.511 M10	9-09116-510-0	02	1	9507-9509					●	●	●	●
127	06.865 NUT; STRG DAMPER EXC. THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) 05.511 M10	9-09116-510-0	02	1	9510-	●	●		●		●
127	06.865 NUT; STRG DAMPER EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 05.511 M10	9-09116-510-0	02	1	9510-			●
127	06.865 NUT; STRG DAMPER EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 05.511 M10	9-09116-510-0	02	1	9510-					●		●	●
128	06.865 PIN; SPLIT,STRG DAMPER EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 00.793 OD=1.8 L=15	9-08112-015-0	02	1	9210-9505	●	●	●	●
128	06.865 PIN; SPLIT,STRG DAMPER EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 00.793 OD=1.8 L=15	9-08112-015-0	02	1	9210-9505					●	●	●	●
128	06.865 PIN; SPLIT,STRG DAMPER EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 00.793 OD=1.8 L=15	9-08112-015-0	02	1	9506-9506	●	●	●	●
128	06.865 PIN; SPLIT,STRG DAMPER EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 00.793 OD=1.8 L=15	9-08112-015-0	02	1	9506-9506					●	●	●	●
128	06.865 PIN; SPLIT,STRG DAMPER EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 00.793 OD=1.8 L=15	9-08112-015-0	02	1	9507-9509	●	●	●	●
128	06.865 PIN; SPLIT,STRG DAMPER EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 00.793 OD=1.8 L=15	9-08112-015-0	02	1	9507-9509					●	●	●	●
128	06.865 PIN; SPLIT,STRG DAMPER EXC. THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) 00.793 OD=1.8 L=15	9-08112-015-0	02	1	9510-	●	●		●		●
128	06.865 PIN; SPLIT,STRG DAMPER EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 00.793 OD=1.8 L=15	9-08112-015-0	02	1	9510-			●
128	06.865 PIN; SPLIT,STRG DAMPER EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 00.793 OD=1.8 L=15	9-08112-015-0	02	1	9510-					●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
