4-31 — STEERING COLUMN AND SHAFT (#45386) — 91 parça

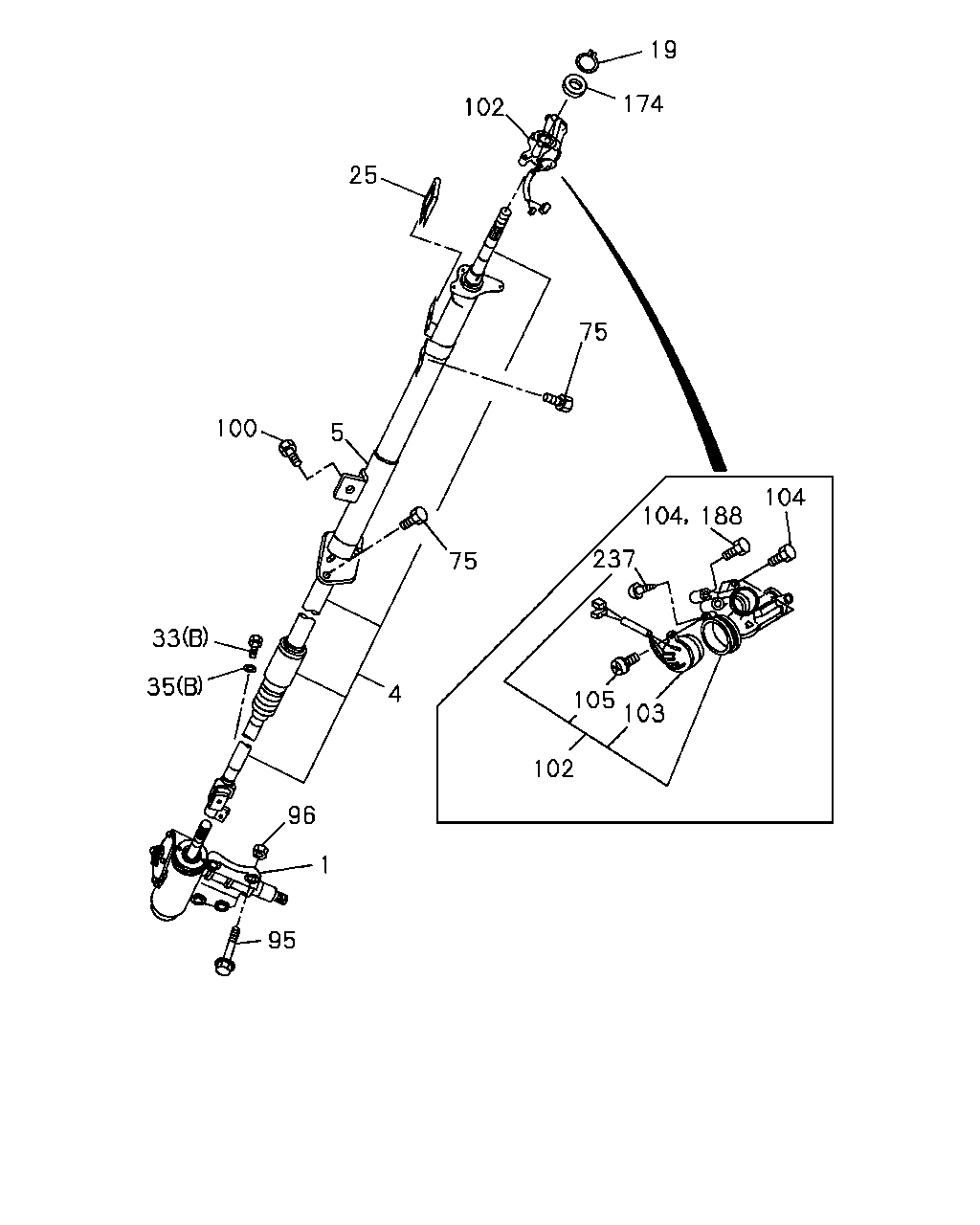

çizim 68497
19 174 102 25 75 5 100 75 4 33 35 96 1 95 102 103 105 237 104 188 104
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> 		8-94173-300-5 01 1 9210-9405 ● ● ● ● ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> 		8-97101-356-1 01 1 9406- ● ● ● ● ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40> 		8-97045-344-0 01 1 9210- ● ● ● ● ● ● ● ●
4 06.524 SHAFT; STRG
UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) EXC. TILT STEERING<N33> 		8-97084-684-0 01 1 9210-9505 ● ● ● ● ● ● ● ●
4 06.524 SHAFT; STRG
THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) EXC. TILT STEERING<N33> 		8-97084-684-0 01 1 9506-9506 ● ● ● ●
4 06.524 SHAFT; STRG
UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) EXC. TILT STEERING<N33> 		8-97084-684-0 01 1 9506-9506 ● ● ●
4 06.524 SHAFT; STRG
THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) EXC. TILT STEERING<N33> 		8-97084-684-0 01 1 9507-9509 ● ● ● ●
4 06.524 SHAFT; STRG
UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) EXC. TILT STEERING<N33> 		8-97084-684-0 01 1 9507-9509 ● ● ●
4 06.524 SHAFT; STRG
THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) EXC. TILT STEERING<N33> 		8-97084-684-0 01 1 9510- ● ● ●
4 06.524 SHAFT; STRG
UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) EXC. TILT STEERING<N33> 		8-97084-684-0 01 1 9510- ● ● ●
4 06.524 SHAFT; STRG
EXC. UNITED KINGDOM EQUIPMENT(EK3), TILT STEERING<N33>,THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AU STRALIA EQUIPMENT(RR3) 		8-97084-689-0 01 1 9210-9505 ● ● ● ● ● ● ● ●
4 06.524 SHAFT; STRG
EXC. TILT STEERING<N33>,THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-97084-689-0 01 1 9506-9506 ● ● ● ●
4 06.524 SHAFT; STRG
EXC. UNITED KINGDOM EQUIPMENT(EK3), TILT STEERING<N33>,THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AU STRALIA EQUIPMENT(RR3) 		8-97084-689-0 01 1 9506-9506 ● ● ● ●
4 06.524 SHAFT; STRG
EXC. TILT STEERING<N33>,THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-97084-689-0 01 1 9507-9509 ● ● ● ●
4 06.524 SHAFT; STRG
EXC. UNITED KINGDOM EQUIPMENT(EK3), TILT STEERING<N33>,THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-97084-689-0 01 1 9507-9509 ● ● ● ●
4 06.524 SHAFT; STRG
EXC. UNITED KINGDOM EQUIPMENT(EK3), TILT STEERING<N33>,THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-97084-689-0 01 1 9510- ● ● ● ● ● ● ● ●
5 06.518 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97078-231-0 01 1 9210- ● ● ● ● ● ● ● ●
19 06.515 RING; SNAP,STRG SHAFT
00.349 ID=17.5 		9-09180-019-0 01 1 9210- ● ● ● ● ● ● ● ●
25 06.518 PLATE; COATING,STRG COLUMN 8-94477-971-0 02 1 9210- ● ● ● ● ● ● ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
(B) M8X30 		8-94247-692-0 01 1 9210- ● ● ● ● ● ● ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
TILT STEERING<N33> (A) 		8-94477-976-1 01 1 9210- ● ● ● ● ● ● ● ●
35 06.525 WASHER; LK,STRG SHAFT
00.002 (B) ID=8.2 		9-09150-508-0 01 1 9210- ● ● ● ● ● ● ● ●
35 06.525 WASHER; LK,STRG SHAFT
TILT STEERING<N33> (A) 		8-94477-979-0 01 1 9210- ● ● ● ● ● ● ● ●
75 03.417 BOLT; STRG COLUMN
06.760 M8X25 W/LK&PL WASHER 		8-94331-747-1 02 1 9210- ● ● ● ● ● ● ● ●
95 06.509 BOLT; STRG UNIT
M10X92 FLANGE 		8-94313-798-1 04 1 9210- ● ● ● ● ● ● ● ●
96 06.509 NUT; STRG UNIT
M10 FLANGE 		8-94313-797-0 04 1 9210- ● ● ● ● ● ● ● ●
100 03.670 BOLT; COLUMN TO FLOOR
M8X16 W/PL WASHER 		8-94389-962-2 01 1 9210- ● ● ● ● ● ● ● ●
102 06.500 LOCK ASM; STRG 8-97047-799-2 01 1 9210- ● ● ● ● ● ● ● ●
103 02.188 SWITCH; IGNITION 8-97020-997-0 01 1 9210-9402 ● ● ● ● ● ● ● ●
103 02.188 SWITCH; IGNITION 8-97020-998-0 01 1 9403- ● ● ● ● ● ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
EXC. UNITED KINGDOM EQUIPMENT(EK3) 04.054 M6X25 W/LK WASHER 		0-50040-625-0 03 1 9210-9406 ● ● ● ● ● ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
04.054 M6X25 W/LK WASHER 		0-50040-625-0 03 1 9407-9411 ● ● ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
EXC. UNITED KINGDOM EQUIPMENT(EK3) 04.054 M6X25 W/LK WASHER 		0-50040-625-0 03 1 9407-9411 ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
M6X25 W/LK&PL WASHER 		8-97122-790-0 03 1 9412- ● ● ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
EXC. UNITED KINGDOM EQUIPMENT(EK3) M6X25 W/LK&PL WASHER 		8-97122-790-0 03 1 9412- ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
UNITED KINGDOM EQUIPMENT(EK3) 04.054 M6X25 W/LK WASHER 		0-50040-625-0 02 1 9210-9406 ● ● ● ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
UNITED KINGDOM EQUIPMENT(EK3) 04.054 M6X25 W/LK WASHER 		0-50040-625-0 02 1 9407-9411 ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
UNITED KINGDOM EQUIPMENT(EK3) M6X25 W/LK&PL WASHER 		8-97122-790-0 02 1 9412- ● ● ●
105 06.500 SCREW; IGN SW
M4X12 W/LK WASHER 		9-03910-412-0 02 1 9210- ● ● ● ● ● ● ● ●
174 06.521 RUBBER; CUSHION,STRG COLUMN 8-94372-808-0 01 1 9210-9605 ● ● ● ● ● ● ● ●
174 06.521 RUBBER; CUSHION,STRG COLUMN 8-97176-324-0 01 1 9606- ● ● ● ● ● ● ● ●
188 06.500 BOLT; TORQUE,STEERING
UNITED KINGDOM EQUIPMENT(EK3) 		8-94474-206-0 01 1 9210- ● ● ● ● ● ●
237 02.195 SCREW; DOOR WARNING SW
11.950 M3X8 W/LK WASHER 		9-03910-308-0 03 1 9403- ● ● ● ● ● ● ● ●

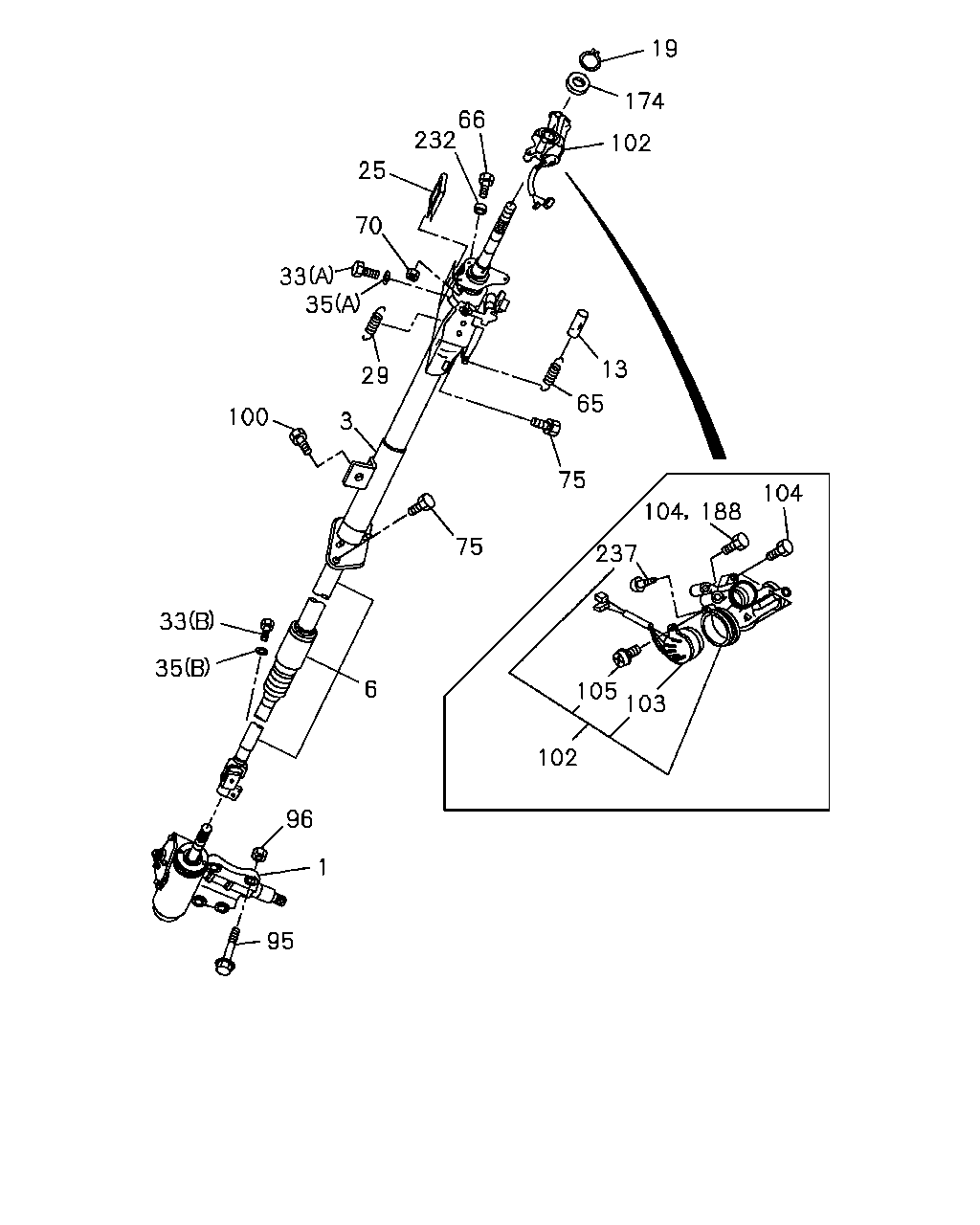

çizim 68744
19 174 102 66 232 25 70 33 35 29 3 100 33 35 95 1 96 6 75 75 65 13 104 188 104 237 105 103 102
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> 		8-94173-300-5 01 1 9210-9405 ● ● ● ● ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> 		8-97101-356-1 01 1 9406- ● ● ● ● ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40> 		8-97045-344-0 01 1 9210- ● ● ● ● ● ● ● ●
3 06.524 SHAFT & COLUMN ASM; STRG
TILT STEERING<N33> 		8-97078-239-0 01 1 9210- ● ● ● ● ● ● ● ●
6 06.524 SHAFT; STRG LWR
TILT STEERING<N33> UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPM ENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97084-687-0 01 1 9210-9505 ● ● ● ● ● ● ● ●
6 06.524 SHAFT; STRG LWR
THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) TILT STEERING<N33> 		8-97084-687-0 01 1 9506-9506 ● ● ● ●
6 06.524 SHAFT; STRG LWR
UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) TILT STEERING<N33> 		8-97084-687-0 01 1 9506-9506 ● ● ●
6 06.524 SHAFT; STRG LWR
THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) TILT STEERING<N33> 		8-97084-687-0 01 1 9507-9509 ● ● ● ●
6 06.524 SHAFT; STRG LWR
UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) TILT STEERING<N33> 		8-97084-687-0 01 1 9507-9509 ● ● ●
6 06.524 SHAFT; STRG LWR
UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) TILT STEERING<N33> 		8-97084-687-0 01 1 9510- ● ● ● ● ● ●
6 06.524 SHAFT; STRG LWR
TILT STEERING<N33> EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97084-691-0 01 1 9210-9505 ● ● ● ● ● ● ● ●
6 06.524 SHAFT; STRG LWR
TILT STEERING<N33> EXC. THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) 		8-97084-691-0 01 1 9506-9506 ● ● ● ●
6 06.524 SHAFT; STRG LWR
TILT STEERING<N33> EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97084-691-0 01 1 9506-9506 ● ● ● ●
6 06.524 SHAFT; STRG LWR
TILT STEERING<N33> EXC. THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3) 		8-97084-691-0 01 1 9507-9509 ● ● ● ●
6 06.524 SHAFT; STRG LWR
TILT STEERING<N33> EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-97084-691-0 01 1 9507-9509 ● ● ● ●
6 06.524 SHAFT; STRG LWR
TILT STEERING<N33> EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-97084-691-0 01 1 9510- ● ● ● ● ● ● ● ●
13 06.521 COVER; SPR
TILT STEERING<N33> 		8-97078-243-0 02 1 9210-9310 ● ● ● ● ● ● ● ●
19 06.515 RING; SNAP,STRG SHAFT
00.349 ID=17.5 		9-09180-019-0 01 1 9210- ● ● ● ● ● ● ● ●
25 06.518 PLATE; COATING,STRG COLUMN 8-94477-971-0 02 1 9210- ● ● ● ● ● ● ● ●
29 06.514 SPRING; COLUMN
TILT STEERING<N33> 		8-97078-242-0 02 1 9210- ● ● ● ● ● ● ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
(B) M8X30 		8-94247-692-0 01 1 9210- ● ● ● ● ● ● ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
TILT STEERING<N33> (A) 		8-94477-976-1 01 1 9210- ● ● ● ● ● ● ● ●
35 06.525 WASHER; LK,STRG SHAFT
00.002 (B) ID=8.2 		9-09150-508-0 01 1 9210- ● ● ● ● ● ● ● ●
35 06.525 WASHER; LK,STRG SHAFT
TILT STEERING<N33> (A) 		8-94477-979-0 01 1 9210- ● ● ● ● ● ● ● ●
65 06.521 SPRING; STRG COLUMN
TILT STEERING<N33> 		8-97078-241-0 02 1 9210- ● ● ● ● ● ● ● ●
66 06.514 BOLT; STRG COLUMN
TILT STEERING<N33> 		8-94477-977-0 01 1 9210- ● ● ● ● ● ● ● ●
70 06.514 NUT; STRG COLUMN
TILT STEERING<N33> 		8-94477-978-0 01 1 9210-9310 ● ● ● ● ● ● ● ●
75 03.417 BOLT; STRG COLUMN
06.760 M8X25 W/LK&PL WASHER 		8-94331-747-1 02 1 9210- ● ● ● ● ● ● ● ●
95 06.509 BOLT; STRG UNIT
M10X92 FLANGE 		8-94313-798-1 04 1 9210- ● ● ● ● ● ● ● ●
96 06.509 NUT; STRG UNIT
M10 FLANGE 		8-94313-797-0 04 1 9210- ● ● ● ● ● ● ● ●
100 03.670 BOLT; COLUMN TO FLOOR
M8X16 W/PL WASHER 		8-94389-962-2 01 1 9210- ● ● ● ● ● ● ● ●
102 06.500 LOCK ASM; STRG 8-97047-799-2 01 1 9210- ● ● ● ● ● ● ● ●
103 02.188 SWITCH; IGNITION 8-97020-997-0 01 1 9210-9402 ● ● ● ● ● ● ● ●
103 02.188 SWITCH; IGNITION 8-97020-998-0 01 1 9403- ● ● ● ● ● ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
EXC. UNITED KINGDOM EQUIPMENT(EK3) 04.054 M6X25 W/LK WASHER 		0-50040-625-0 03 1 9210-9406 ● ● ● ● ● ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
04.054 M6X25 W/LK WASHER 		0-50040-625-0 03 1 9407-9411 ● ● ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
EXC. UNITED KINGDOM EQUIPMENT(EK3) 04.054 M6X25 W/LK WASHER 		0-50040-625-0 03 1 9407-9411 ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
M6X25 W/LK&PL WASHER 		8-97122-790-0 03 1 9412- ● ● ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
EXC. UNITED KINGDOM EQUIPMENT(EK3) M6X25 W/LK&PL WASHER 		8-97122-790-0 03 1 9412- ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
UNITED KINGDOM EQUIPMENT(EK3) 04.054 M6X25 W/LK WASHER 		0-50040-625-0 02 1 9210-9406 ● ● ● ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
UNITED KINGDOM EQUIPMENT(EK3) 04.054 M6X25 W/LK WASHER 		0-50040-625-0 02 1 9407-9411 ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
UNITED KINGDOM EQUIPMENT(EK3) M6X25 W/LK&PL WASHER 		8-97122-790-0 02 1 9412- ● ● ●
105 06.500 SCREW; IGN SW
M4X12 W/LK WASHER 		9-03910-412-0 02 1 9210- ● ● ● ● ● ● ● ●
174 06.521 RUBBER; CUSHION,STRG COLUMN 8-94372-808-0 01 1 9210-9605 ● ● ● ● ● ● ● ●
174 06.521 RUBBER; CUSHION,STRG COLUMN 8-97176-324-0 01 1 9606- ● ● ● ● ● ● ● ●
188 06.500 BOLT; TORQUE,STEERING
UNITED KINGDOM EQUIPMENT(EK3) 		8-94474-206-0 01 1 9210- ● ● ● ● ● ●
232 06.514 SPACER; STRG SHAFT
TILT STEERING<N33> 		8-94477-982-0 01 1 9210-9310 ● ● ● ● ● ● ● ●
237 02.195 SCREW; DOOR WARNING SW
11.950 M3X8 W/LK WASHER 		9-03910-308-0 03 1 9403- ● ● ● ● ● ● ● ●
