◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50651 - TFR/TFS-RHD ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#45373) — 25 parça

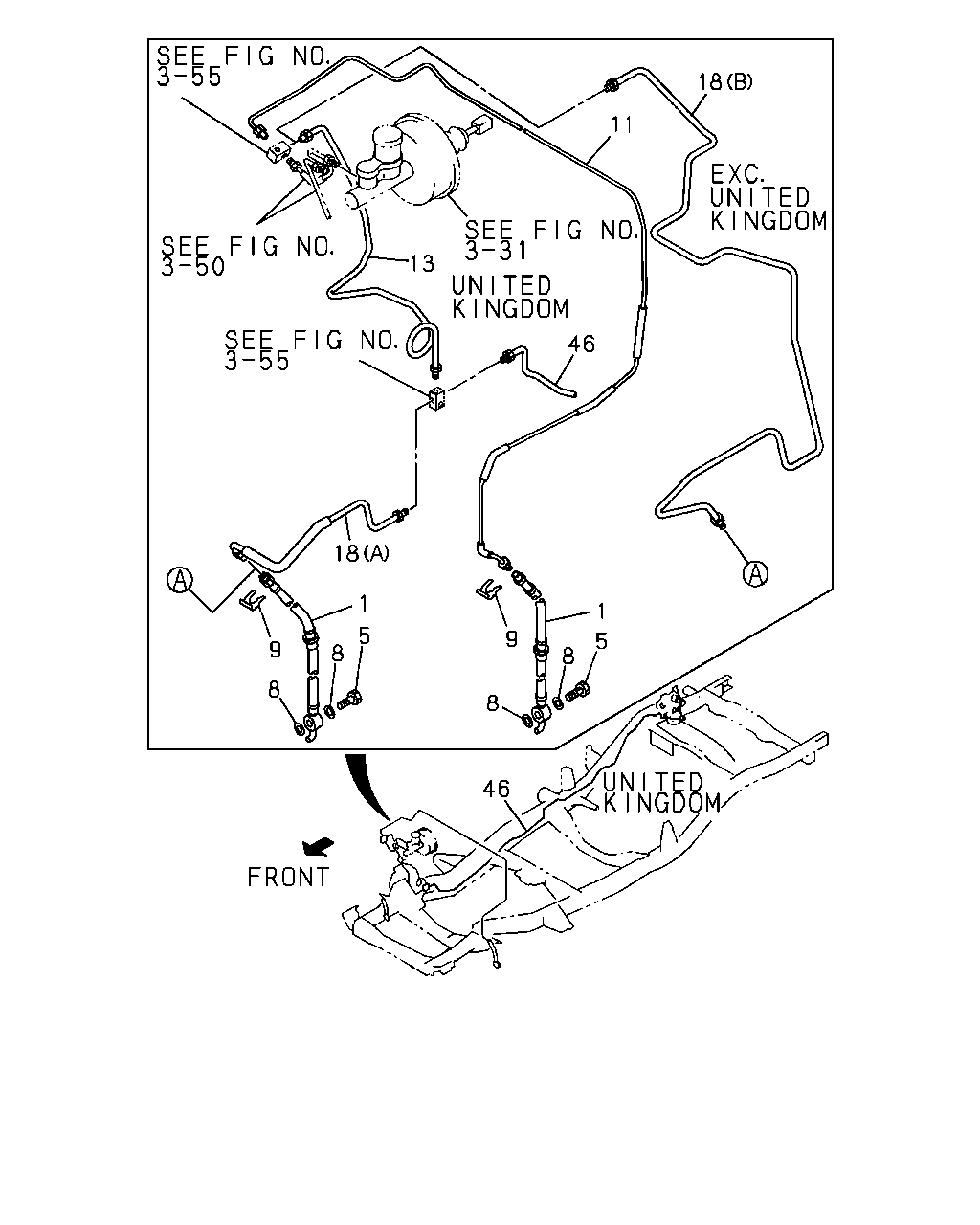

çizim 66685
18 11 13 46 18 9 1 5 8 8 9 8 8 5 1 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.680 HOSE; FLEX,FRT BRK 8-94316-795-1 02 1 9210-9509 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97134-829-0 02 1 9510- ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-94403-322-3 02 1 9210-9509 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97134-830-0 02 1 9510- ● ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
04.665 M10X22 		5-09675-017-0 02 1 9210- ● ● ● ● ● ● ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 9210- ● ● ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 05 1 9210- ● ● ● ● ● ● ● ●
11 04.685 PIPE; BRK,UNION TO FLEX HOSE,FRT 8-94450-593-6 01 1 9210-9604 ● ● ● ●
11 04.685 PIPE; BRK,UNION TO FLEX HOSE,FRT 8-97160-147-0 01 1 9605- ● ● ● ●
11 04.685 PIPE; BRK,UNION TO FLEX HOSE,FRT 8-97020-999-1 01 1 9210- ● ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
UNITED KINGDOM EQUIPMENT(EK3) 		8-97084-570-0 01 1 9210- ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
UNITED KINGDOM EQUIPMENT(EK3) 		8-94333-042-1 01 1 9210- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4ZE1 ENG(RLJ) EXC. UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-94450-591-3 01 1 9210- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) (B) 		8-94389-471-1 01 1 9210- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-94435-238-2 01 1 9210-9406 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97086-043-0 01 1 9407- ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
C223 ENG(LQ7),4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) EXC. UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-94450-592-3 01 1 9210-9308 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
C223 ENG(LQ7),4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) EXC. UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97104-394-0 01 1 9309- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) (B) 		8-94389-472-1 01 1 9210- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-94435-237-2 01 1 9210-9406 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97115-645-0 01 1 9407- ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
UNITED KINGDOM EQUIPMENT(EK3) 		8-94435-260-3 01 1 9210-9406 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
UNITED KINGDOM EQUIPMENT(EK3) 		8-97070-773-2 01 1 9407- ●
46 04.685 PIPE; BRK,JOINT TO VLV
UNITED KINGDOM EQUIPMENT(EK3) 		8-94435-259-2 01 1 9210-9406 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
UNITED KINGDOM EQUIPMENT(EK3) 		8-97070-774-2 01 1 9407- ● ●
