3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#45372) — 62 parça

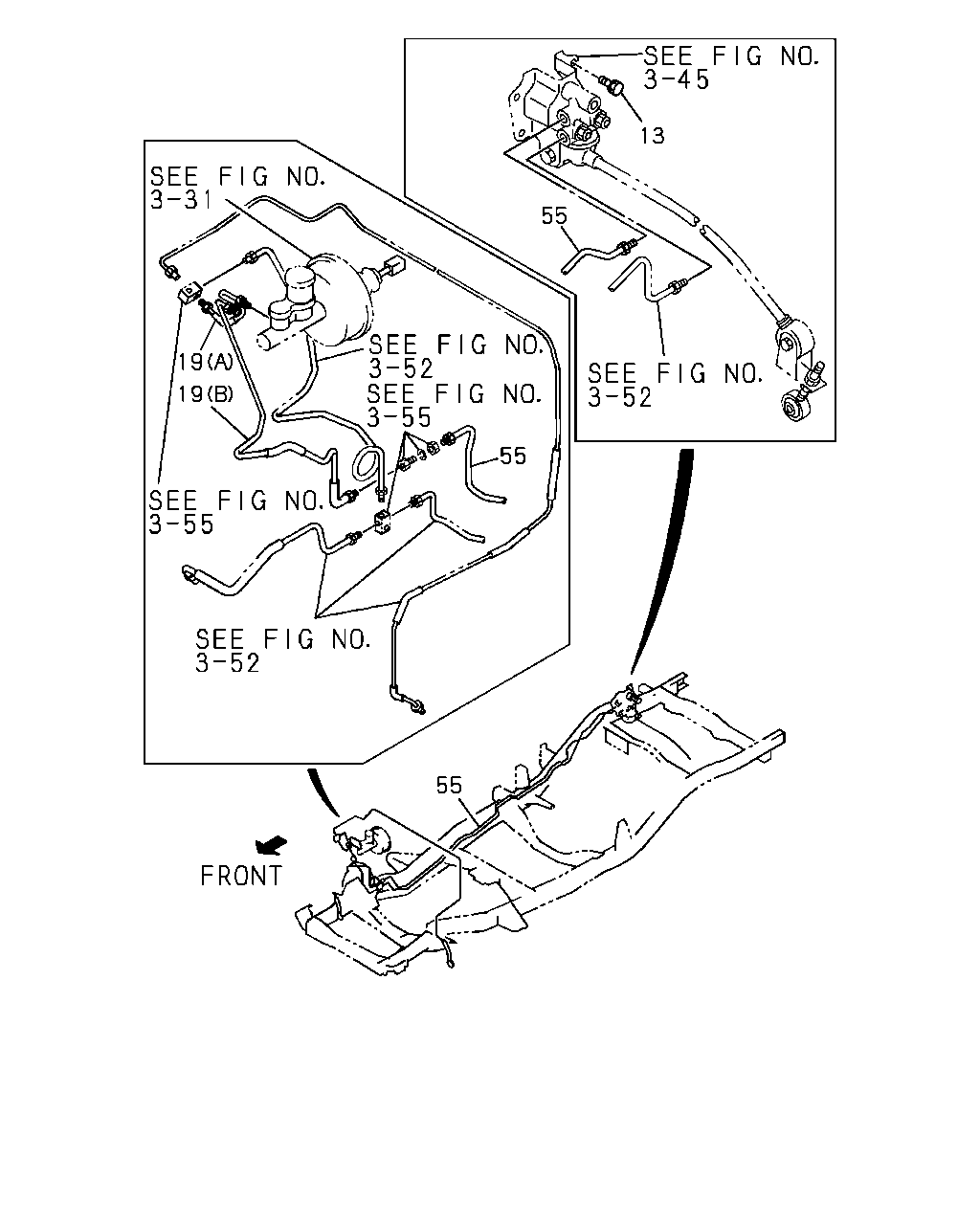

çizim 17881
13 55 19 19 55 55
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
13 04.686 BOLT; VLV TO BRKT
01.252 M8X45 W/LK WASHER 		0-50040-845-0 02 1 9210-9406 ● ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.252 M8X45 W/LK WASHER 		0-50040-845-0 02 1 9210-9406 ● ●
13 04.686 BOLT; VLV TO BRKT
01.252 M8X45 W/LK WASHER 		0-50040-845-0 02 1 9407-9412 ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.252 M8X45 W/LK WASHER 		0-50040-845-0 02 1 9407-9412 ● ● ●
13 04.686 BOLT; VLV TO BRKT
01.780 M8X50 FLANGE 		0-28080-850-0 02 1 9501- ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.780 M8X50 FLANGE 		0-28080-850-0 02 1 9501- ● ● ●
13 04.686 BOLT; VLV TO BRKT
UNITED KINGDOM EQUIPMENT(EK3) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9210-9406 ● ●
13 04.686 BOLT; VLV TO BRKT
UNITED KINGDOM EQUIPMENT(EK3) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9407- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> (B) 		8-97075-994-0 01 1 9210- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. ELECTRIC FUEL INJECTION<6GG> (A) 		8-94450-598-0 01 1 9210- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JB1 ENG(RLF) (B) 		8-94389-470-2 01 1 9210-9604 ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JB1 ENG(RLF) (B) 		8-97160-578-0 01 1 9605- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4ZE1 ENG(RLJ) ELECTRIC FUEL INJECTION<6GG> (A) 		8-94450-599-1 01 1 9210- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4ZE1 ENG(RLJ) ELECTRIC FUEL INJECTION<6GG> (B) 		8-94450-601-2 01 1 9210- ● ● ● ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
UNITED KINGDOM EQUIPMENT(EK3) 		8-94435-258-3 01 1 9210- ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JA1 ENG(RLE) A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) 		8-97117-446-0 01 1 9407-9412 ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JA1 ENG(RLE) A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) 		8-97127-084-0 01 1 9501- ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION 8-94435-250-5 01 1 9210-9406 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94435-250-5 01 1 9210-9406 ●
55 04.686 PIPE; BRK,VLV TO UNION
THAILAND EQUIPMENT(PM9) M/T MSG 5 SPEED(M75) 		8-94435-250-5 01 1 9407- ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 		8-94435-250-5 01 1 9407- ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION 8-94435-249-3 01 1 9210- ●
55 04.686 PIPE; BRK,VLV TO UNION
UNITED KINGDOM EQUIPMENT(EK3) 		8-97109-384-0 01 1 9407- ●
55 04.686 PIPE; BRK,VLV TO UNION 8-94435-252-5 01 1 9407- ●
55 04.686 PIPE; BRK,VLV TO UNION
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94435-252-5 01 1 9407- ● ●
55 04.686 PIPE; BRK,VLV TO UNION 8-94435-252-5 01 1 9210-9406 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94435-252-5 01 1 9210-9406 ●
55 04.686 PIPE; BRK,VLV TO UNION 8-94435-251-3 01 1 9210- ●
55 04.686 PIPE; BRK,VLV TO UNION
UNITED KINGDOM EQUIPMENT(EK3) 		8-97109-385-0 01 1 9407- ● ●
çizim 18434
19 19 55 11 13 55
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
11 04.686 VALVE; BRK CONT 8-94126-764-3 01 1 9210-9406 ● ● ● ● ● ●
11 04.686 VALVE; BRK CONT
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94126-764-3 01 1 9210-9406 ● ●
11 04.686 VALVE; BRK CONT 8-94126-764-3 01 1 9407- ● ● ● ● ●
11 04.686 VALVE; BRK CONT
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94126-764-3 01 1 9407- ● ● ●
13 04.686 BOLT; VLV TO BRKT
01.252 M8X45 W/LK WASHER 		0-50040-845-0 02 1 9210-9406 ● ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.252 M8X45 W/LK WASHER 		0-50040-845-0 02 1 9210-9406 ● ●
13 04.686 BOLT; VLV TO BRKT
01.252 M8X45 W/LK WASHER 		0-50040-845-0 02 1 9407-9412 ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.252 M8X45 W/LK WASHER 		0-50040-845-0 02 1 9407-9412 ● ● ●
13 04.686 BOLT; VLV TO BRKT
01.780 M8X50 FLANGE 		0-28080-850-0 02 1 9501- ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.780 M8X50 FLANGE 		0-28080-850-0 02 1 9501- ● ● ●
13 04.686 BOLT; VLV TO BRKT
UNITED KINGDOM EQUIPMENT(EK3) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9210-9406 ● ●
13 04.686 BOLT; VLV TO BRKT
UNITED KINGDOM EQUIPMENT(EK3) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9407- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> (B) 		8-97075-994-0 01 1 9210- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. ELECTRIC FUEL INJECTION<6GG> (A) 		8-94450-598-0 01 1 9210- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JB1 ENG(RLF) (B) 		8-94389-470-2 01 1 9210-9604 ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JB1 ENG(RLF) (B) 		8-97160-578-0 01 1 9605- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4ZE1 ENG(RLJ) ELECTRIC FUEL INJECTION<6GG> (A) 		8-94450-599-1 01 1 9210- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4ZE1 ENG(RLJ) ELECTRIC FUEL INJECTION<6GG> (B) 		8-94450-601-2 01 1 9210- ● ● ● ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
UNITED KINGDOM EQUIPMENT(EK3) 		8-94435-258-3 01 1 9210- ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JA1 ENG(RLE) A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) 		8-97117-446-0 01 1 9407-9412 ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JA1 ENG(RLE) A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) 		8-97127-084-0 01 1 9501- ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION 8-94435-250-5 01 1 9210-9406 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94435-250-5 01 1 9210-9406 ●
55 04.686 PIPE; BRK,VLV TO UNION
THAILAND EQUIPMENT(PM9) M/T MSG 5 SPEED(M75) 		8-94435-250-5 01 1 9407- ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 		8-94435-250-5 01 1 9407- ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION 8-94435-249-3 01 1 9210- ●
55 04.686 PIPE; BRK,VLV TO UNION
UNITED KINGDOM EQUIPMENT(EK3) 		8-97109-384-0 01 1 9407- ●
55 04.686 PIPE; BRK,VLV TO UNION 8-94435-252-5 01 1 9407- ●
55 04.686 PIPE; BRK,VLV TO UNION
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94435-252-5 01 1 9407- ● ●
55 04.686 PIPE; BRK,VLV TO UNION 8-94435-252-5 01 1 9210-9406 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94435-252-5 01 1 9210-9406 ●
55 04.686 PIPE; BRK,VLV TO UNION 8-94435-251-3 01 1 9210- ●
55 04.686 PIPE; BRK,VLV TO UNION
UNITED KINGDOM EQUIPMENT(EK3) 		8-97109-385-0 01 1 9407- ● ●
