3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER (#45370) — 95 parça

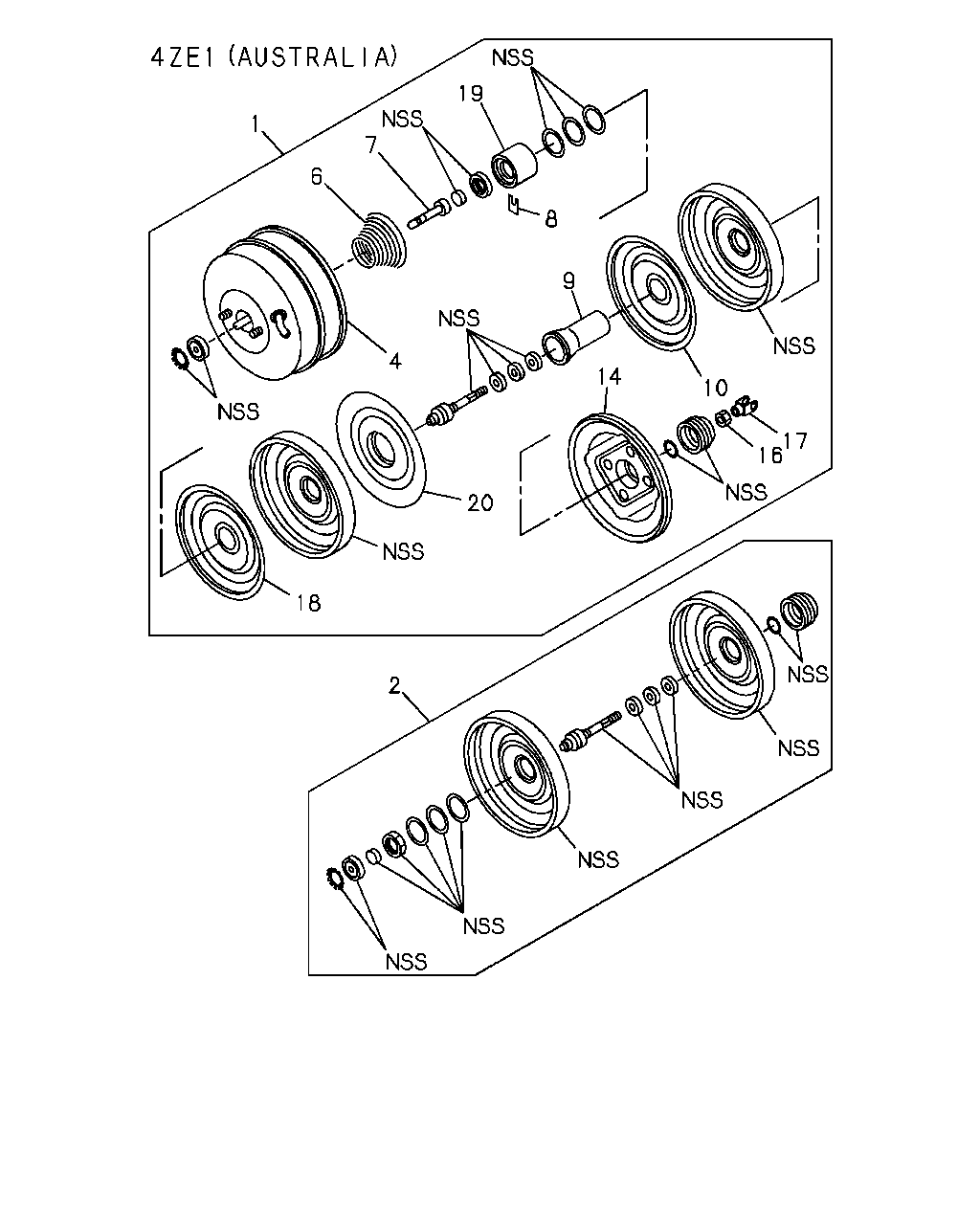

çizim 17939
1 19 7 6 4 8 9 10 14 17 16 20 18 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.901 MASTER VAC ASM; BRK
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97021-944-1 01 1 9210-9308 ● ● ● ● ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97021-944-1 01 1 9309- ● ● ● ● ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97021-943-1 01 1 9210- ● ● ● ● ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
4ZD1 ENG(LW3),4ZA1 ENG(L17) 		8-97021-943-1 01 1 9210- ● ● ● ● ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 		8-94434-070-4 01 1 9210- ● ● ● ● ● ●
2 04.898 REPAIR KIT; M/VAC
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94319-253-2 01 1 9210- ● ● ● ● ● ● ● ●
2 04.898 REPAIR KIT; M/VAC
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94319-253-2 01 1 9210- ● ● ● ● ● ● ● ●
2 04.898 REPAIR KIT; M/VAC
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 		8-94480-325-1 01 1 9210- ● ● ● ● ● ●
4 04.906 SHELL; FRT,M/VAC
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94454-458-0 01 1 9210- ● ● ● ● ● ● ● ●
4 04.906 SHELL; FRT,M/VAC
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94454-459-0 01 1 9210- ● ● ● ● ● ● ● ●
4 04.906 SHELL; FRT,M/VAC
4ZD1 ENG(LW3),4ZA1 ENG(L17) 		8-94454-459-0 01 1 9210- ● ● ● ● ● ● ●
4 04.906 SHELL; FRT,M/VAC
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 		8-94313-316-0 01 1 9210- ● ● ● ● ● ●
6 04.924 SPRING; M/VAC
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) 9" 		8-94123-118-0 01 1 9210- ● ● ● ● ● ● ● ●
6 04.924 SPRING; M/VAC
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 9" 		8-94123-118-0 01 1 9210- ● ● ● ● ● ● ● ●
6 04.924 SPRING; M/VAC
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 		8-94402-126-0 01 1 9210- ● ● ● ● ● ●
7 04.924 ROD; PUSH,M/VAC
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) 9" 		8-94122-139-0 01 1 9210- ● ● ● ● ● ● ● ●
7 04.924 ROD; PUSH,M/VAC
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 9" 		8-94122-139-0 01 1 9210- ● ● ● ● ● ● ● ●
7 04.924 ROD; PUSH,M/VAC
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 		8-94402-132-0 01 1 9210- ● ● ● ● ● ●
8 04.924 KEY; STOPPER,M/VAC
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94123-120-0 01 1 9210- ● ● ● ● ● ● ● ●
8 04.924 KEY; STOPPER,M/VAC
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94123-120-0 01 1 9210- ● ● ● ● ● ● ● ●
8 04.924 KEY; STOPPER,M/VAC
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 		8-94402-133-0 01 1 9210- ● ● ● ● ● ●
9 04.924 BODY; VALVE,M/VAC
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94454-461-0 01 1 9210- ● ● ● ● ● ● ● ●
9 04.924 BODY; VALVE,M/VAC
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94454-461-0 01 1 9210- ● ● ● ● ● ● ● ●
9 04.924 BODY; VALVE,M/VAC
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 		8-94402-135-0 01 1 9210- ● ● ● ● ● ●
10 04.922 PLATE; DIAPH,M/VAC
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) 04.906 		8-94402-129-1 01 1 9210- ● ● ● ● ● ● ● ●
10 04.922 PLATE; DIAPH,M/VAC
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 04.906 		8-94402-129-1 01 1 9210- ● ● ● ● ● ● ● ●
10 04.922 PLATE; DIAPH,M/VAC
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 		8-94402-134-1 01 1 9210- ● ● ● ● ● ●
14 04.906 SHELL; RR,M/VAC
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94480-318-0 01 1 9210- ● ● ● ● ● ● ● ●
14 04.906 SHELL; RR,M/VAC
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94480-318-0 01 1 9210- ● ● ● ● ● ● ● ●
14 04.906 SHELL; RR,M/VAC
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 		8-94480-319-0 01 1 9210- ● ● ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
04.785 M10 FLANGE 		0-91150-110-0 01 1 9210-9306 ● ● ● ● ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
M10 FLANGE 		8-97096-430-0 01 1 9307- ● ● ● ● ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC 8-94342-517-0 01 1 9210- ● ● ● ● ● ● ● ●
18 04.906 PLATE; DIAPH,M/VAC
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 		8-94402-129-1 01 1 9210- ● ● ● ● ● ●
19 04.906 BODY; CENTER,M/VAC
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 		8-94402-131-0 01 1 9210- ● ● ● ● ● ●
20 04.906 PLATE; CENTER,M/VAC
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 		8-94402-130-0 01 1 9210- ● ● ● ● ● ●

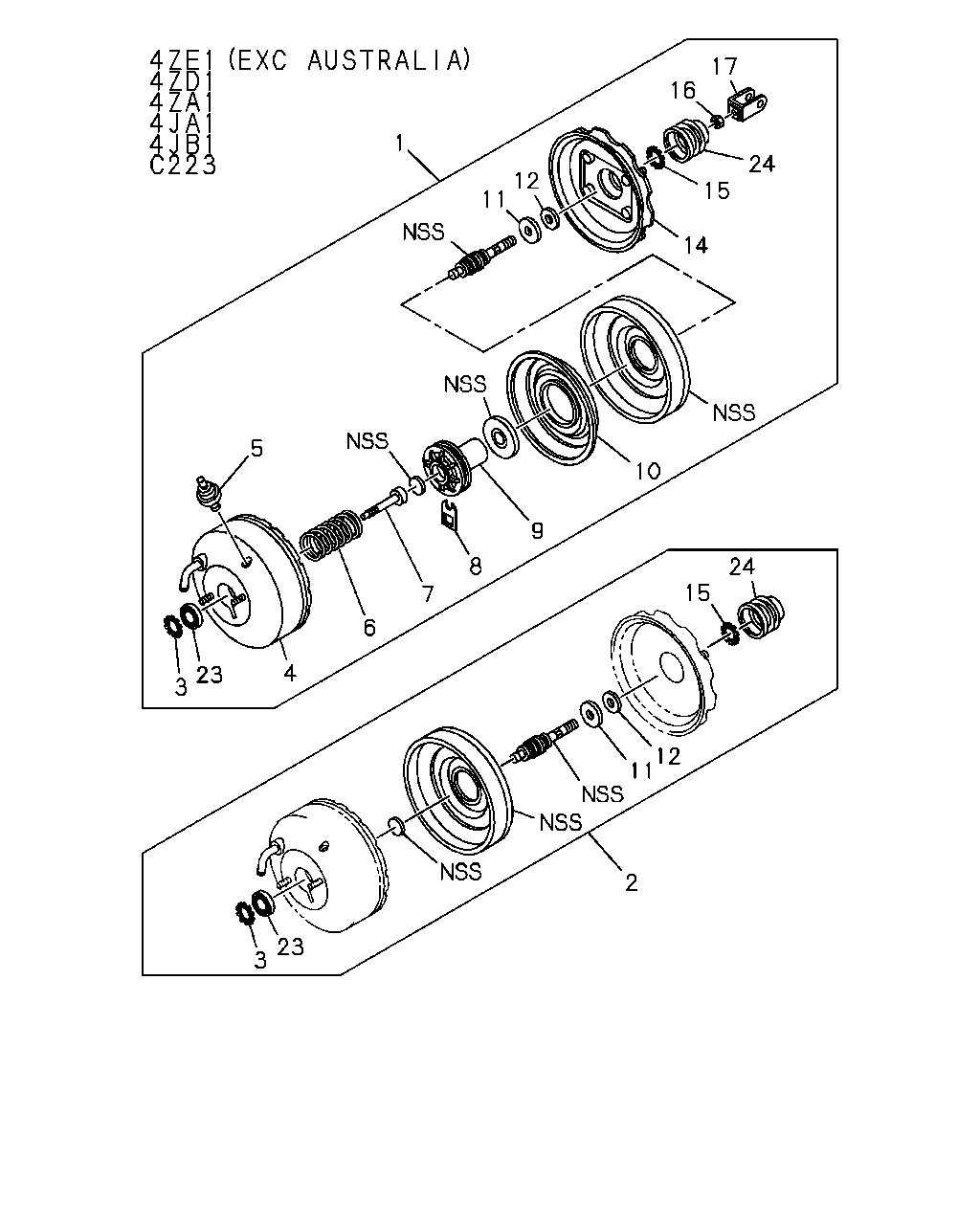

çizim 66166
17 16 24 15 14 10 9 8 7 6 4 23 3 5 12 11 1 24 15 12 11 2 23 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.901 MASTER VAC ASM; BRK
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97021-944-1 01 1 9210-9308 ● ● ● ● ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97021-944-1 01 1 9309- ● ● ● ● ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97021-943-1 01 1 9210- ● ● ● ● ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
4ZD1 ENG(LW3),4ZA1 ENG(L17) 		8-97021-943-1 01 1 9210- ● ● ● ● ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 		8-94434-070-4 01 1 9210- ● ● ● ● ● ●
2 04.898 REPAIR KIT; M/VAC
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94319-253-2 01 1 9210- ● ● ● ● ● ● ● ●
2 04.898 REPAIR KIT; M/VAC
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94319-253-2 01 1 9210- ● ● ● ● ● ● ● ●
2 04.898 REPAIR KIT; M/VAC
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 		8-94480-325-1 01 1 9210- ● ● ● ● ● ●
3 04.906 RETAINER; FRT SHELL,M/VAC
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) 		9-83315-319-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
3 04.906 RETAINER; FRT SHELL,M/VAC
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 		9-83315-319-0 01 1 9210-9308 ● ● ● ● ● ●
3 04.906 RETAINER; FRT SHELL,M/VAC
4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) 		9-83315-319-0 01 1 9309- ● ● ● ● ● ● ● ●
3 04.906 RETAINER; FRT SHELL,M/VAC
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 		9-83315-319-0 01 1 9309- ● ● ● ● ● ●
4 04.906 SHELL; FRT,M/VAC
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94454-458-0 01 1 9210- ● ● ● ● ● ● ● ●
4 04.906 SHELL; FRT,M/VAC
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94454-459-0 01 1 9210- ● ● ● ● ● ● ● ●
4 04.906 SHELL; FRT,M/VAC
4ZD1 ENG(LW3),4ZA1 ENG(L17) 		8-94454-459-0 01 1 9210- ● ● ● ● ● ● ●
4 04.906 SHELL; FRT,M/VAC
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 		8-94313-316-0 01 1 9210- ● ● ● ● ● ●
5 04.906 SWITCH; VAC,M/VAC
C223 ENG(LQ7),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94460-517-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
5 04.906 SWITCH; VAC,M/VAC
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94460-517-0 01 1 9309- ● ● ● ● ● ● ● ●
6 04.924 SPRING; M/VAC
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) 9" 		8-94123-118-0 01 1 9210- ● ● ● ● ● ● ● ●
6 04.924 SPRING; M/VAC
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 9" 		8-94123-118-0 01 1 9210- ● ● ● ● ● ● ● ●
6 04.924 SPRING; M/VAC
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 		8-94402-126-0 01 1 9210- ● ● ● ● ● ●
7 04.924 ROD; PUSH,M/VAC
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) 9" 		8-94122-139-0 01 1 9210- ● ● ● ● ● ● ● ●
7 04.924 ROD; PUSH,M/VAC
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 9" 		8-94122-139-0 01 1 9210- ● ● ● ● ● ● ● ●
7 04.924 ROD; PUSH,M/VAC
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 		8-94402-132-0 01 1 9210- ● ● ● ● ● ●
8 04.924 KEY; STOPPER,M/VAC
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94123-120-0 01 1 9210- ● ● ● ● ● ● ● ●
8 04.924 KEY; STOPPER,M/VAC
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94123-120-0 01 1 9210- ● ● ● ● ● ● ● ●
8 04.924 KEY; STOPPER,M/VAC
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 		8-94402-133-0 01 1 9210- ● ● ● ● ● ●
9 04.924 BODY; VALVE,M/VAC
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94454-461-0 01 1 9210- ● ● ● ● ● ● ● ●
9 04.924 BODY; VALVE,M/VAC
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94454-461-0 01 1 9210- ● ● ● ● ● ● ● ●
9 04.924 BODY; VALVE,M/VAC
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 		8-94402-135-0 01 1 9210- ● ● ● ● ● ●
10 04.922 PLATE; DIAPH,M/VAC
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) 04.906 		8-94402-129-1 01 1 9210- ● ● ● ● ● ● ● ●
10 04.922 PLATE; DIAPH,M/VAC
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 04.906 		8-94402-129-1 01 1 9210- ● ● ● ● ● ● ● ●
10 04.922 PLATE; DIAPH,M/VAC
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 		8-94402-134-1 01 1 9210- ● ● ● ● ● ●
11 04.906 FILTER; M/VAC
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) 04.913 		9-83345-063-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
11 04.906 FILTER; M/VAC
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 04.913 		9-83345-063-0 01 1 9210-9308 ● ● ● ● ● ●
11 04.906 FILTER; M/VAC
4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) 04.913 		9-83345-063-0 01 1 9309- ● ● ● ● ● ● ● ●
11 04.906 FILTER; M/VAC
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 04.913 		9-83345-063-0 01 1 9309- ● ● ● ● ● ●
12 04.906 SILENCER; M/VAC
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94341-722-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
12 04.906 SILENCER; M/VAC
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94341-722-0 01 1 9210-9308 ● ● ● ● ● ●
12 04.906 SILENCER; M/VAC
4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94341-722-0 01 1 9309- ● ● ● ● ● ● ● ●
12 04.906 SILENCER; M/VAC
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94341-722-0 01 1 9309- ● ● ● ● ● ●
14 04.906 SHELL; RR,M/VAC
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94480-318-0 01 1 9210- ● ● ● ● ● ● ● ●
14 04.906 SHELL; RR,M/VAC
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94480-318-0 01 1 9210- ● ● ● ● ● ● ● ●
14 04.906 SHELL; RR,M/VAC
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 		8-94480-319-0 01 1 9210- ● ● ● ● ● ●
15 04.906 RETAINER; GUARD,M/VAC
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94375-083-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
15 04.906 RETAINER; GUARD,M/VAC
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94375-083-0 01 1 9210-9308 ● ● ● ● ● ●
15 04.906 RETAINER; GUARD,M/VAC
4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94375-083-0 01 1 9309- ● ● ● ● ● ● ● ●
15 04.906 RETAINER; GUARD,M/VAC
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94375-083-0 01 1 9309- ● ● ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
04.785 M10 FLANGE 		0-91150-110-0 01 1 9210-9306 ● ● ● ● ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
M10 FLANGE 		8-97096-430-0 01 1 9307- ● ● ● ● ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC 8-94342-517-0 01 1 9210- ● ● ● ● ● ● ● ●
23 04.910 SEAL; M/VAC
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94152-349-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
23 04.910 SEAL; M/VAC
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94152-349-0 01 1 9210-9308 ● ● ● ● ● ●
23 04.910 SEAL; M/VAC
4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94152-349-0 01 1 9309- ● ● ● ● ● ● ● ●
23 04.910 SEAL; M/VAC
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94152-349-0 01 1 9309- ● ● ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94375-084-1 01 1 9210-9308 ● ● ● ● ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94375-084-1 01 1 9210-9308 ● ● ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94375-084-1 01 1 9309- ● ● ● ● ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94375-084-1 01 1 9309- ● ● ● ● ● ●
