◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50651 - TFR/TFS-RHD ▶ 3 - Brakes, Brake System ▶ 3-30 - BRAKE MASTER CYLINDER ▶
3-30 — BRAKE MASTER CYLINDER (#45369) — 27 parça

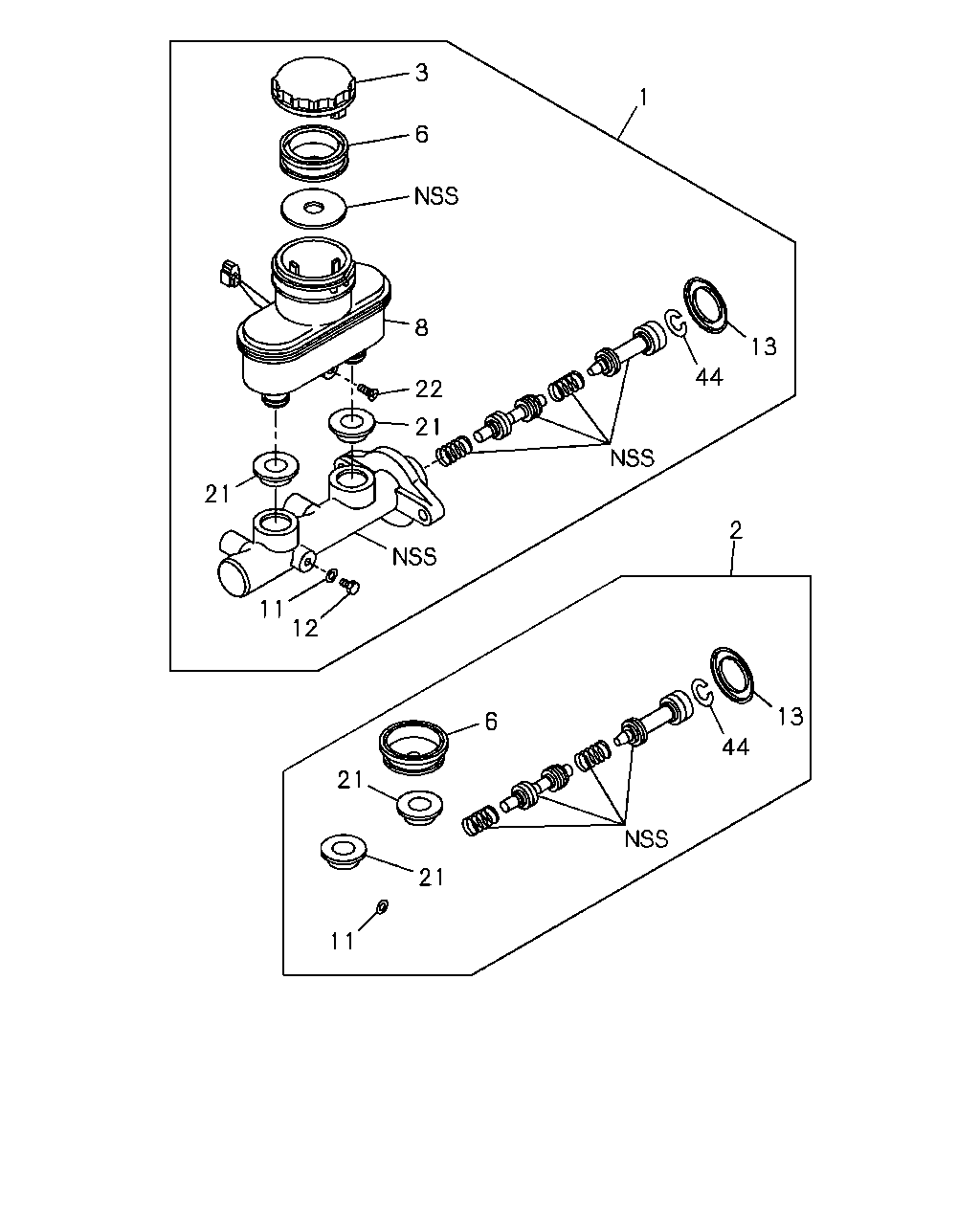

çizim 67347
1 13 44 3 6 8 22 21 21 11 12 2 13 44 6 21 21 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.650 CYLINDER ASM; BRK MASTER
EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMEN T(RR3),IRISH EQUIPMENT(6CU) 		8-97038-248-0 01 1 9210-9505 ● ● ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3),IRISH EQUIPMENT(6CU) 		8-97038-248-0 01 1 9506- ● ● ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQU IPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),IRISH EQUIPMENT(6CU) 		8-97038-247-0 01 1 9210-9505 ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4ZE1 ENG(RLJ) NEW ZEALAND EQUIPMENT(PK5) 		8-97038-247-0 01 1 9210-9505 ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQU IPMENT(RR3),IRISH EQUIPMENT(6CU) 		8-97038-247-0 01 1 9506-9510 ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4ZE1 ENG(RLJ) NEW ZEALAND EQUIPMENT(PK5) 		8-97038-247-0 01 1 9506-9510 ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3),IRISH EQUIPMENT(6CU) 		8-97038-247-0 01 1 9510- ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4ZE1 ENG(RLJ) NEW ZEALAND EQUIPMENT(PK5) 		8-97038-247-0 01 1 9510- ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 		8-97038-249-0 01 1 9210- ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97137-619-0 01 1 9510- ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97071-803-0 01 1 9210-9505 ● ● ● ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97071-803-0 01 1 9210-9505 ● ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97071-803-0 01 1 9506- ● ● ● ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97071-803-0 01 1 9506- ● ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 		8-97071-804-0 01 1 9210- ● ● ● ● ● ●
3 04.651 CAP; OIL TANK 8-94124-872-0 01 1 9210- ● ● ● ● ● ● ● ●
6 04.651 DIAPHRAGM; BRK M/CYL
04.657 		8-94124-873-0 01 1 9210- ● ● ● ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL
UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),IRISH EQUIPMENT(6CU) 		8-97071-797-0 01 1 9210-9505 ● ● ● ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL
UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),IRISH EQUIPMENT(6CU) 		8-97071-797-0 01 1 9506- ● ● ● ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL
EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMEN T(RR3),IRISH EQUIPMENT(6CU) 		8-97071-798-0 01 1 9210-9505 ● ● ● ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL
EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3),IRISH EQUIPMENT(6CU) 		8-97071-798-0 01 1 9506- ● ● ● ● ● ● ● ●
11 04.653 GASKET; STOPPER BOLT TO BRK M/CY 8-94107-675-0 01 1 9210- ● ● ● ● ● ● ● ●
12 04.653 BOLT; STOPPER,BRK M/CYL
M6X13 		8-94107-674-0 01 1 9210- ● ● ● ● ● ● ● ●
13 04.648 SEAL; DUST,BRK M/CYL TO M/VAC 8-94132-833-0 01 1 9210- ● ● ● ● ● ● ● ●
21 04.651 GROMMET; BRK M/CYL 8-94133-716-0 02 1 9210- ● ● ● ● ● ● ● ●
22 04.651 SCREW; OIL TANK 8-94230-600-1 01 1 9210- ● ● ● ● ● ● ● ●
44 04.656 RING; SNAP,M/CYL
04.017 OD=27.9 		9-09180-126-0 01 1 9210- ● ● ● ● ● ● ● ●
