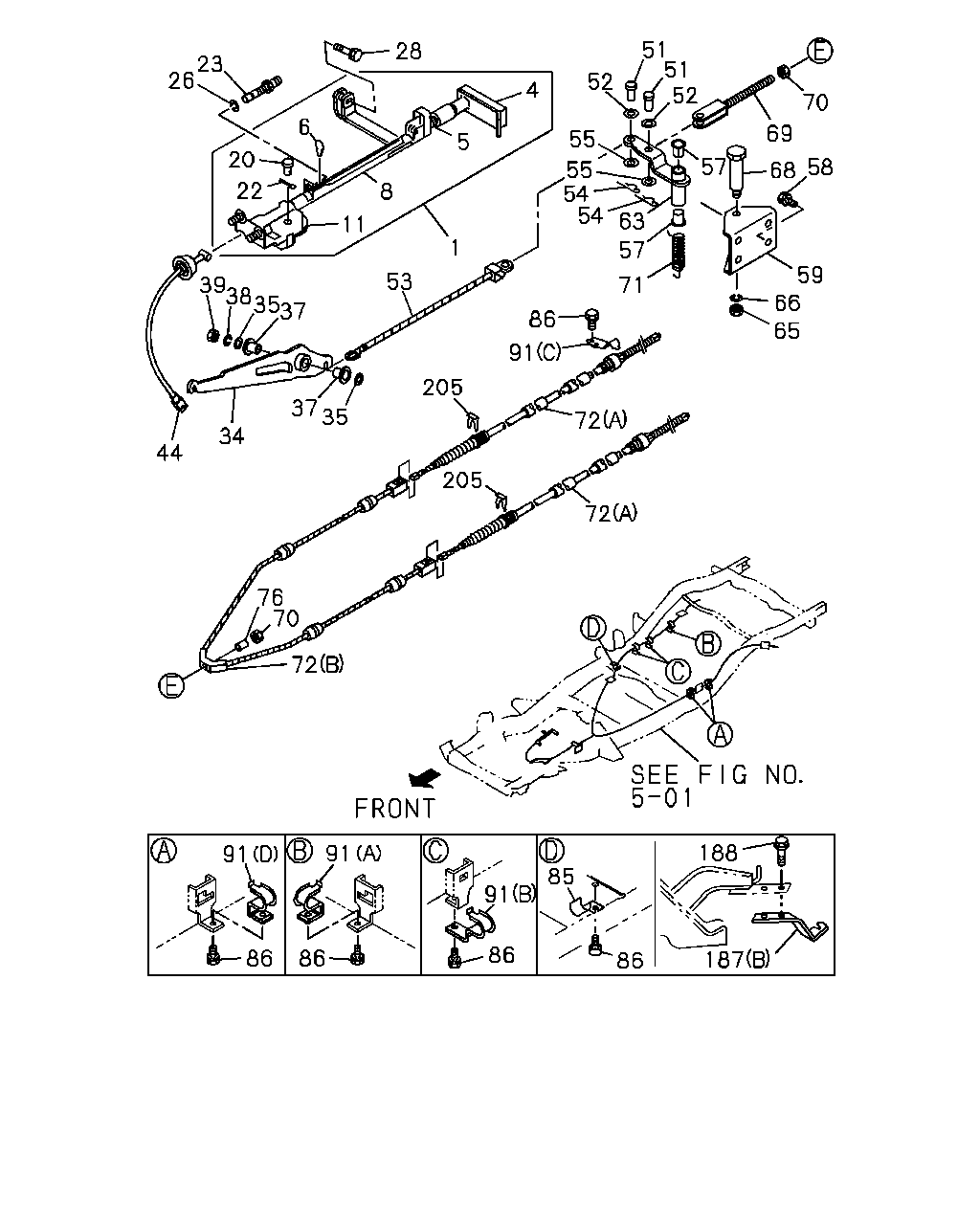

3-11 — PARKING BRAKE CONTROL (#45368) — 127 parça

26 23 28 4 5 8 11 6 20 22 1 53 37 35 38 39 44 34 37 35 205 91 86 65 66 59 58 70 69 68 57 52 51 51 52 55 55 54 54 63 57 71 72 205 76 70 72 72 91 86 86 91 91 86 85 86 188 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.592 STEM ASM; PARKING BRK	8-97076-055-0	01	1	9210-	●	●	●	●
4	04.592 STEM; PARKING BRK	8-94479-085-0	01	1	9210-	●	●	●	●
5	04.592 BUSHING; PARKING BRK	9-46129-022-0	01	1	9210-	●	●	●	●
6	04.589 PIN; STEM,PARK BRK	5-46129-009-0	01	1	9210-	●	●	●	●
8	04.592 GUIDE; PARKING BRK	8-97076-058-0	01	1	9210-	●	●	●	●
11	04.790 ROLLER; PARKING BRK 04.606	9-46125-071-0	01	1	9210-	●	●	●	●
20	04.790 PIN; PARKING BRK	8-94171-208-0	01	1	9210-	●	●	●	●
22	04.595 PIN; SHAFT,PARKING BRK 04.606 L=20	9-08112-520-0	01	1	9210-	●	●	●	●
23	04.589 SWITCH; PARKING BRK 12V	9-82750-367-0	01	1	9210-	●	●	●	●
26	04.595 WASHER; PARKING BRK SW 00.002 ID=8.2	9-09150-508-0	01	1	9210-	●	●	●	●
28	04.594 BOLT; HAND BRK LEVER 01.531 M8X45 W/LK&PL WASHER	0-50140-845-0	01	1	9210-9412	●	●	●	●
28	04.594 BOLT; HAND BRK LEVER 01.780 M8X50 FLANGE	0-28080-850-0	01	1	9501-	●	●	●	●
34	04.591 LEVER; PARK BRK CONT	8-94479-100-1	01	1	9210-	●	●	●	●
35	04.792 WASHER; PL,RELAY LEVER,PARK BRK ID=15.5 OD=24	8-94222-473-0	01	1	9210-	●	●	●	●
35	04.792 WASHER; PL,RELAY LEVER,PARK BRK ID=10.5 OD=26	9-09160-710-0	01	1	9210-	●	●	●	●
37	04.792 BUSHING; RELAY LEVER,PARK BRK	8-94408-022-0	02	1	9210-	●	●	●	●
38	04.792 WASHER; LK,RELAY LEVER,PARK BRK 00.002 ID=10.2	9-09150-510-0	01	1	9210-	●	●	●	●
39	04.792 NUT; RELAY LEVER,PARK BRK 00.002 M10	9-09110-510-0	01	1	9210-9406	●	●	●	●
39	04.792 NUT; RELAY LEVER,PARK BRK 09.011	9-09110-410-0	01	1	9407-	●	●	●	●
44	04.779 CABLE; PARKING BRK,FRT	8-94341-285-0	01	1	9210-	●	●	●	●
51	04.785 PIN; JOINT,RELAY LEVER 08.942 OD=8 L=20	9-08233-820-0	02	1	9210-	●	●	●	●
52	04.785 WASHER; CURVED RELAY LEVER 04.037 ID=8.5 T=0.3	5-09509-001-0	02	1	9210-	●	●	●	●
53	04.779 CABLE; PARK BRK,FRT LWR 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF)	8-94479-095-0	01	1	9210-	●
53	04.779 CABLE; PARK BRK,FRT LWR 4X2(TFB***)	8-94479-095-0	01	1	9210-		●		●
53	04.779 CABLE; PARK BRK,FRT LWR	8-94479-095-0	01	1	9210-			●
53	04.779 CABLE; PARK BRK,FRT LWR 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF)	8-94479-099-0	01	1	9210-	●
53	04.779 CABLE; PARK BRK,FRT LWR 4X4(TFS***)	8-94479-099-0	01	1	9210-		●		●
54	04.606 PIN; SNAP,CABLE TO LEVER 00.793 OD=1.8 L=15	9-08112-015-0	02	1	9210-	●	●	●	●
55	04.792 WASHER; PL,PARK BRK CABLE 16.674 ID=8.4	9-09160-508-0	02	1	9210-	●	●	●	●
57	04.592 BUSHING; RELAY LEVER 04.439	5-33659-053-0	02	1	9210-	●	●	●	●
58	04.765 BOLT; RELAY LEVER,PARK BRK 08.900 M8X20 W/LK WASHER	0-50040-820-0	04	1	9210-9412	●	●	●	●
58	04.765 BOLT; RELAY LEVER,PARK BRK 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9501-9509	●	●	●	●
59	04.765 BRACKET; RELAY LEVER 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF)	8-94479-094-0	01	1	9210-	●
59	04.765 BRACKET; RELAY LEVER 4X2(TFB***)	8-94479-094-0	01	1	9210-		●		●
59	04.765 BRACKET; RELAY LEVER	8-94479-094-0	01	1	9210-			●
59	04.765 BRACKET; RELAY LEVER 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF)	8-94479-098-1	01	1	9210-	●
59	04.765 BRACKET; RELAY LEVER 4X4(TFS***)	8-94479-098-1	01	1	9210-		●		●
63	04.792 LEVER; RELAY,HAND BRK 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF)	8-94324-632-0	01	1	9210-	●
63	04.792 LEVER; RELAY,HAND BRK 4X2(TFB***)	8-94324-632-0	01	1	9210-		●		●
63	04.792 LEVER; RELAY,HAND BRK	8-94324-632-0	01	1	9210-			●
63	04.792 LEVER; RELAY,HAND BRK 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF)	8-94324-633-1	01	1	9210-	●
63	04.792 LEVER; RELAY,HAND BRK 4X4(TFS***)	8-94324-633-1	01	1	9210-		●		●
65	04.594 NUT; RELAY LEVER 00.002 M10	9-09110-510-0	01	1	9210-9406	●	●	●	●
65	04.594 NUT; RELAY LEVER 09.011	9-09110-410-0	01	1	9407-	●	●	●	●
66	04.592 WASHER; LK,RELAY LEVER 00.002 ID=10.2	9-09150-510-0	01	1	9210-	●	●	●	●
68	04.792 PIN; FULCRUM,RELAY LEVER,PARK BR	8-94404-908-1	01	1	9210-	●	●	●	●
69	04.589 ROD; RELAY LEVER 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF)	8-94314-430-0	01	1	9210-	●
69	04.589 ROD; RELAY LEVER 4X2(TFB***)	8-94314-430-0	01	1	9210-		●		●
69	04.589 ROD; RELAY LEVER	8-94314-430-0	01	1	9210-			●
69	04.589 ROD; RELAY LEVER 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 04.765	8-94479-248-0	01	1	9210-	●
69	04.589 ROD; RELAY LEVER 4X4(TFS***) 04.765	8-94479-248-0	01	1	9210-		●		●
70	04.606 NUT; EQUALIZER TO FRT CABLE 08.915 M8	9-09111-508-0	02	1	9210-9406	●	●	●	●
70	04.606 NUT; EQUALIZER TO FRT CABLE 00.787	9-09111-408-0	02	1	9407-	●	●	●	●
71	04.606 SPRING; RETURN,PARKING BRK TO BO 03.302	8-94479-600-2	01	1	9210-	●	●	●	●
72	04.779 CABLE; PARKING BRK 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) (B) L=1850 WHITE	8-94367-286-0	01	1	9210-9409	●
72	04.779 CABLE; PARKING BRK 4X2 LONG(TFB**F) (B) L=1850 WHITE	8-94367-286-0	01	1	9210-9409		●		●
72	04.779 CABLE; PARKING BRK (B) L=1850 WHITE	8-94367-286-0	01	1	9210-9409			●
72	04.779 CABLE; PARKING BRK 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) (B) L=1850 WHITE	8-94367-286-0	01	1	9410-	●
72	04.779 CABLE; PARKING BRK 4X2 LONG(TFB**F) (B) L=1850 WHITE	8-94367-286-0	01	1	9410-		●		●
72	04.779 CABLE; PARKING BRK EXC. THAILAND EQUIPMENT(PM9) (B) L=1850 WHITE	8-94367-286-0	01	1	9410-			●
72	04.779 CABLE; PARKING BRK 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) (A) L=1604	8-94366-770-2	01	1	9210-	●
72	04.779 CABLE; PARKING BRK 4X2 LONG(TFB**F) (A) L=1604	8-94366-770-2	01	1	9210-		●		●
72	04.779 CABLE; PARKING BRK (A) L=1604	8-94366-770-2	01	1	9210-			●
72	04.779 CABLE; PARKING BRK 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) (A) L=1684	8-94366-769-2	01	1	9210-	●
72	04.779 CABLE; PARKING BRK 4X2 LONG(TFB**F) (A) L=1684	8-94366-769-2	01	1	9210-		●		●
72	04.779 CABLE; PARKING BRK (A) L=1684	8-94366-769-2	01	1	9210-			●
72	04.779 CABLE; PARKING BRK 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (B) L=1380	8-94367-287-0	01	1	9210-	●
72	04.779 CABLE; PARKING BRK 4X4(TFS***) (B) L=1380	8-94367-287-0	01	1	9210-		●		●
72	04.779 CABLE; PARKING BRK 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (A) L=1609 WHITE	8-94366-774-2	01	1	9210-	●
72	04.779 CABLE; PARKING BRK 4X4 LONG(TFS**F) (A) L=1609 WHITE	8-94366-774-2	01	1	9210-		●		●
72	04.779 CABLE; PARKING BRK 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (A) L=1694 WHITE	8-94366-773-2	01	1	9210-	●
72	04.779 CABLE; PARKING BRK 4X4 LONG(TFS**F) (A) L=1694 WHITE	8-94366-773-2	01	1	9210-		●		●
72	04.779 CABLE; PARKING BRK 4X2 SHORT(TFB**C) (B) L=1300	8-94367-285-0	01	1	9210-	●	●		●
72	04.779 CABLE; PARKING BRK 4X2 SHORT(TFB**C) (A) L=1684	8-94366-772-2	01	1	9210-	●	●		●
72	04.779 CABLE; PARKING BRK 4X2 SHORT(TFB**C) (A) L=1464	8-94366-771-2	01	1	9210-	●	●		●
72	04.779 CABLE; PARKING BRK 4X4 SHORT(TFS**C) (A) L=1264 WHITE	8-94366-776-2	01	1	9210-	●	●		●
72	04.779 CABLE; PARKING BRK 4X4 SHORT(TFS**C) (A) L=1344 WHITE	8-94366-775-2	01	1	9210-	●	●		●
72	04.779 CABLE; PARKING BRK THAILAND EQUIPMENT(PM9) (B) L=1870 BLACK	8-97117-132-0	01	1	9410-			●
76	04.595 SLEEVE; CABLE GUIDE,PARKING BRK 05.601	8-11042-301-3	01	1	9210-	●	●	●	●
85	04.785 CLIP; BRKT 4X2 SHORT(TFB**C) ID=14	9-09916-883-0	01	1	9210-	●	●		●
86	04.785 BOLT 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	06	1	9210-9503	●	●	●	●
86	04.785 BOLT 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	04	1	9504-9512	●	●	●	●
86	04.785 BOLT SHORT(TF***C) 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9407-9503	●	●		●
86	04.785 BOLT 4X2 SHORT(TFB**C) 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9407-9503	●	●		●
86	04.785 BOLT SHORT(TF***C) 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9504-	●	●		●
86	04.785 BOLT 4X2 SHORT(TFB**C) 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9504-	●	●		●
86	04.785 BOLT 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	03	1	9407-9503	●
86	04.785 BOLT LONG(TF***F) 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	03	1	9407-9503		●		●
86	04.785 BOLT 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	03	1	9407-9503			●
86	04.785 BOLT 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	03	1	9504-	●
86	04.785 BOLT LONG(TF***F) 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	03	1	9504-		●		●
86	04.785 BOLT 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	03	1	9504-			●
86	04.785 BOLT 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	02	1	9504-9512	●	●	●	●
86	04.785 BOLT 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	06	1	9601-	●	●	●	●
86	04.785 BOLT 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9510-	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (B)	8-94459-413-0	02	1	9210-	●
91	04.785 CLIP; PARKING BRK CABLE LONG(TF***F) (B)	8-94459-413-0	02	1	9210-		●		●
91	04.785 CLIP; PARKING BRK CABLE (B)	8-94459-413-0	02	1	9210-			●
91	04.785 CLIP; PARKING BRK CABLE SHORT(TF***C) (B)	8-94459-413-0	01	1	9210-	●	●		●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-94126-640-1	01	1	9210-	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (D)	8-94146-602-0	01	1	9210-	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (D)	8-94146-602-0	01	1	9210-	●
91	04.785 CLIP; PARKING BRK CABLE LONG(TF***F) (D)	8-94146-602-0	01	1	9210-		●		●
91	04.785 CLIP; PARKING BRK CABLE (D)	8-94146-602-0	01	1	9210-			●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-94126-639-1	01	1	9210-	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (A)	8-94450-389-0	01	1	9210-	●	●	●	●
187	04.606 BRACKET; HAND BRK 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (B)	8-94327-452-0	01	1	9210-	●
187	04.606 BRACKET; HAND BRK 4X4(TFS***) (B)	8-94327-452-0	01	1	9210-		●		●
187	04.606 BRACKET; HAND BRK (A)	8-94479-103-0	01	1	9210-	●	●	●	●
188	04.606 BOLT; BRKT SET 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9210-9412	●
188	04.606 BOLT; BRKT SET 4X4(TFS***) 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9210-9412		●		●
188	04.606 BOLT; BRKT SET 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9501-	●
188	04.606 BOLT; BRKT SET 4X4(TFS***) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9501-		●		●
205	04.785 CLIP; 3RD C/MBR 04.681	5-09709-039-0	02	1	9210-	●	●	●	●

1 41 41 180 179 43 47 42 187 179

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.592 STEM ASM; PARKING BRK	8-97076-055-0	01	1	9210-	●	●	●	●
41	04.592 NUT; HAND BRK STEM 00.854 M8 FLANGE	5-09440-005-0	02	1	9210-	●	●	●	●
42	04.785 ROLLER; PARK BRK CABLE	8-94341-286-0	01	1	9210-	●	●	●	●
43	04.790 BOLT; ROLLER,PARK BRK CABLE 00.727 M8X32 W/LK WASHER	0-50040-832-0	01	1	9210-9412	●	●	●	●
43	04.790 BOLT; ROLLER,PARK BRK CABLE 03.704 M8X40 FLANGE	0-28680-840-0	01	1	9501-	●	●	●	●
47	04.790 COLLAR; ROLLER,PARK BRK CABLE	9-46129-013-1	01	1	9210-	●	●	●	●
179	04.790 NUT; ROLLER,PARK BRK CABLE 00.854 (A) M8 FLANGE	5-09440-005-0	04	1	9210-	●	●	●	●
179	04.790 NUT; ROLLER,PARK BRK CABLE 00.002 (B)	9-09110-508-0	01	1	9210-9406	●	●	●	●
179	04.790 NUT; ROLLER,PARK BRK CABLE 02.559 (B)	9-09110-408-0	01	1	9407-	●	●	●	●
180	04.591 GASKET; ROLLER BRKT,PARKING BRK	8-94334-899-0	04	1	9210-	●	●	●	●
187	04.606 BRACKET; HAND BRK 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (B)	8-94327-452-0	01	1	9210-	●
187	04.606 BRACKET; HAND BRK 4X4(TFS***) (B)	8-94327-452-0	01	1	9210-		●		●
187	04.606 BRACKET; HAND BRK (A)	8-94479-103-0	01	1	9210-	●	●	●	●
