3-05 — REAR WHEEL BRAKE (#45366) — 46 parça

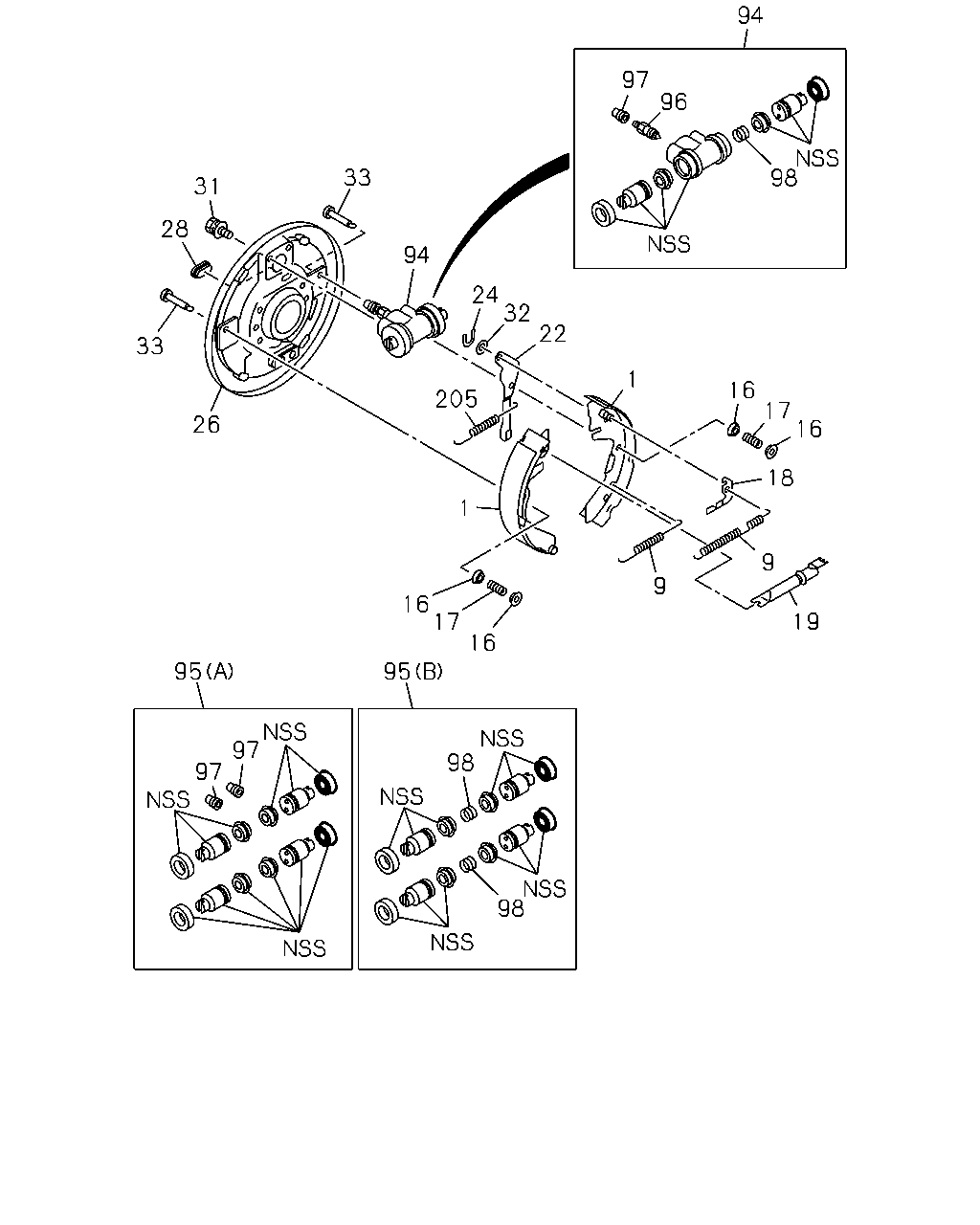

çizim 65898
19 9 9 18 16 17 16 1 22 32 24 94 33 31 28 33 26 95 97 97 98 98 95 16 17 16 96 97 94 98 1 205
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 05.017 SHOE; BRK,RR
EXC. UNITED KINGDOM EQUIPMENT(EK3) LEADING 		8-97049-175-0 02 1 9210- ● ● ● ● ● ● ● ●
1 05.017 SHOE; BRK,RR
EXC. UNITED KINGDOM EQUIPMENT(EK3) TRAILING 		8-97049-177-0 01 1 9210- ● ● ● ● ● ● ● ●
1 05.017 SHOE; BRK,RR
EXC. UNITED KINGDOM EQUIPMENT(EK3) TRAILING 		8-97049-176-0 01 1 9210- ● ● ● ● ● ● ● ●
1 05.017 SHOE; BRK,RR
UNITED KINGDOM EQUIPMENT(EK3) LEADING 		8-94479-709-1 02 1 9210- ● ● ●
1 05.017 SHOE; BRK,RR
UNITED KINGDOM EQUIPMENT(EK3) TRAILING 		8-94479-711-1 01 1 9210- ● ● ●
1 05.017 SHOE; BRK,RR
UNITED KINGDOM EQUIPMENT(EK3) TRAILING 		8-94479-710-1 01 1 9210- ● ● ●
9 05.026 SPRING; RETURN,BRK SHOE
LOWER 		8-94127-066-0 02 1 9210- ● ● ● ● ● ● ● ●
9 05.026 SPRING; RETURN,BRK SHOE
UPPER 		8-94480-191-0 02 1 9210- ● ● ● ● ● ● ● ●
16 05.043 CUP; SHOE HOLDING 9-47162-033-0 08 1 9210- ● ● ● ● ● ● ● ●
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		8-94134-106-0 04 1 9210- ● ● ● ● ● ● ● ●
18 05.103 LEVER; AUTO ADJ 8-94124-866-1 01 1 9210- ● ● ● ● ● ● ● ●
18 05.103 LEVER; AUTO ADJ 8-94124-865-1 01 1 9210- ● ● ● ● ● ● ● ●
19 05.110 ADJUSTER; RR BRK 8-94127-078-1 01 1 9210- ● ● ● ● ● ● ● ●
19 05.110 ADJUSTER; RR BRK 8-94127-077-1 01 1 9210- ● ● ● ● ● ● ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK
05.158 		8-94124-868-2 01 1 9210- ● ● ● ● ● ● ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK
05.158 		8-94124-867-2 01 1 9210- ● ● ● ● ● ● ● ●
24 05.158 RETAINER; PARKING BRK 9-46349-005-1 02 1 9210- ● ● ● ● ● ● ● ●
26 05.001 PLATE; BACK,RR BRK 8-94124-861-2 01 1 9210- ● ● ● ● ● ● ● ●
26 05.001 PLATE; BACK,RR BRK 8-94124-860-2 01 1 9210- ● ● ● ● ● ● ● ●
28 05.117 COVER; ADJ HOLE 8-94111-509-0 02 1 9210- ● ● ● ● ● ● ● ●
31 04.665 BOLT; RR WHEEL CYL 9-09602-058-1 04 1 9210- ● ● ● ● ● ● ● ●
32 05.056 WASHER; LK
05.158 ID=9.5 		9-09850-529-0 02 1 9210- ● ● ● ● ● ● ● ●
33 05.043 PIN; SHOE HOLD DOWN 8-94201-061-0 04 1 9210- ● ● ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 		8-94233-500-6 02 1 9210-9506 ● ● ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94233-500-6 02 1 9507- ● ● ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
THAILAND EQUIPMENT(PM9) 		8-94472-842-2 02 1 9210-9506 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
UNITED KINGDOM EQUIPMENT(EK3) 		8-94230-541-5 02 1 9210-9509 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
UNITED KINGDOM EQUIPMENT(EK3) 		8-97127-616-0 02 1 9510- ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
EXC. UNITED KINGDOM EQUIPMENT(EK3) (A) W/PISTON 		5-87830-489-3 01 1 9210- ● ● ● ● ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
UNITED KINGDOM EQUIPMENT(EK3) (B) 		5-87830-082-4 01 1 9210-9509 ● ● ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
UNITED KINGDOM EQUIPMENT(EK3) (B) 		5-87831-543-0 01 1 9510- ● ● ●
96 04.666 SCREW; BLEEDER,RR BRK 9-47615-027-0 02 1 9210- ● ● ● ● ● ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
EXC. THAILAND EQUIPMENT(PM9) 		9-47619-038-0 02 1 9210-9412 ● ● ● ● ● ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 		9-47619-038-0 02 1 9501-9506 ● ● ● ● ● ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 		9-47619-038-0 02 1 9507- ● ● ● ● ● ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) EXC. REAR AXLE LOW GEARED(6ST) 		9-47619-038-0 02 1 9507- ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
THAILAND EQUIPMENT(PM9) 		8-94482-339-0 02 1 9210-9506 ● ● ● ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
UNITED KINGDOM EQUIPMENT(EK3) 		1-47619-009-0 02 1 9501-9506 ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
M/T MSG 5 SPEED(M75) THAILAND EQUIPMENT(PM9) EXC. REAR AXLE LOW GEARED(6ST) 		1-47619-009-0 02 1 9507-9509 ● ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
UNITED KINGDOM EQUIPMENT(EK3) 		1-47619-009-0 02 1 9507-9509 ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
REAR SPRING HEAVY DUTY(G50) LIMITED SLIP DIFF(G80) THAILAND EQUIPMENT(PM9) EXC. M/T LOW GEARED(6WF) 		1-47619-009-0 02 1 9507-9509 ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
M/T MSG 5 SPEED(M75) THAILAND EQUIPMENT(PM9) EXC. REAR AXLE LOW GEARED(6ST) 		1-47619-009-0 02 1 9510- ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
UNITED KINGDOM EQUIPMENT(EK3) 		1-47619-009-0 02 1 9510- ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
REAR SPRING HEAVY DUTY(G50) LIMITED SLIP DIFF(G80) THAILAND EQUIPMENT(PM9) EXC. M/T LOW GEARED(6WF) 		1-47619-009-0 02 1 9510- ● ●
98 04.669 SPRING; RR WHEEL CYL 8-94230-597-2 02 1 9210- ● ● ● ● ● ● ● ●
205 05.026 SPRING; RETURN 8-94480-190-0 02 1 9210- ● ● ● ● ● ● ● ●
