3-02 — FRONT DISC BRAKE CALIPER (#45365) — 46 parça

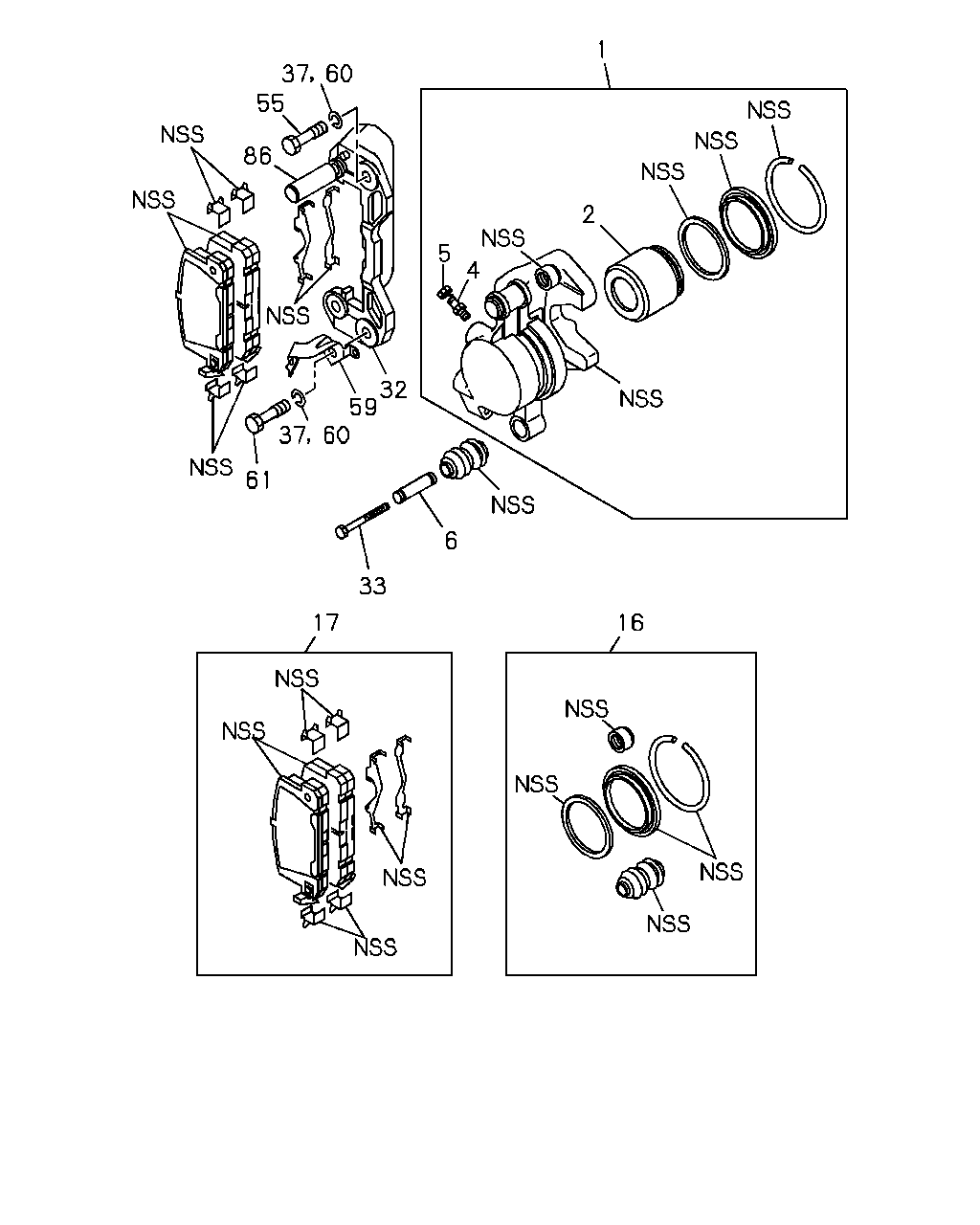

çizim 66421
1 2 4 5 60 37 55 86 32 59 60 37 61 6 33 17 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.665 CALIPER; FRT DISC BRK
THAILAND EQUIPMENT(PM9) 		8-94388-015-0 01 1 9210-9309 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK 8-94388-015-0 01 1 9310-9506 ● ● ●
1 04.665 CALIPER; FRT DISC BRK
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94388-015-0 01 1 9310-9506 ●
1 04.665 CALIPER; FRT DISC BRK
THAILAND EQUIPMENT(PM9) 		8-94388-014-0 01 1 9210-9309 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK 8-94388-014-0 01 1 9310-9506 ● ● ●
1 04.665 CALIPER; FRT DISC BRK
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94388-014-0 01 1 9310-9506 ●
1 04.665 CALIPER; FRT DISC BRK
EXC. THAILAND EQUIPMENT(PM9) 		8-94388-013-0 01 1 9210-9309 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
UNITED KINGDOM EQUIPMENT(EK3) 		8-94388-013-0 01 1 9310-9506 ●
1 04.665 CALIPER; FRT DISC BRK 8-94388-013-0 01 1 9507- ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
EXC. THAILAND EQUIPMENT(PM9) 		8-94388-012-0 01 1 9210-9309 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
UNITED KINGDOM EQUIPMENT(EK3) 		8-94388-012-0 01 1 9310-9506 ●
1 04.665 CALIPER; FRT DISC BRK 8-94388-012-0 01 1 9507- ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
EXC. THAILAND EQUIPMENT(PM9) 		8-94388-017-0 01 1 9210-9309 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4ZD1 ENG(LW3),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-94388-017-0 01 1 9310-9406 ●
1 04.665 CALIPER; FRT DISC BRK
4ZD1 ENG(LW3),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-94388-017-0 01 1 9407-9506 ● ●
1 04.665 CALIPER; FRT DISC BRK 8-94388-017-0 01 1 9507- ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
EXC. THAILAND EQUIPMENT(PM9) 		8-94388-016-0 01 1 9210-9309 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4ZD1 ENG(LW3),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-94388-016-0 01 1 9310-9406 ●
1 04.665 CALIPER; FRT DISC BRK
4ZD1 ENG(LW3),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-94388-016-0 01 1 9407-9506 ● ●
1 04.665 CALIPER; FRT DISC BRK 8-94388-016-0 01 1 9507- ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
THAILAND EQUIPMENT(PM9) 		8-97065-351-0 01 1 9210-9309 ● ●
1 04.665 CALIPER; FRT DISC BRK
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97065-351-0 01 1 9310-9506 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
THAILAND EQUIPMENT(PM9) 		8-97065-350-0 01 1 9210-9309 ● ●
1 04.665 CALIPER; FRT DISC BRK
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97065-350-0 01 1 9310-9506 ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-94438-689-0 02 1 9210- ● ● ● ● ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 8-94438-713-0 02 1 9210- ● ● ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
EXC. THAILAND EQUIPMENT(PM9) 		5-47619-007-2 02 1 9210-9309 ● ● ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
UNITED KINGDOM EQUIPMENT(EK3) 		5-47619-007-2 02 1 9310-9506 ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 5-47619-007-2 02 1 9507- ● ● ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
THAILAND EQUIPMENT(PM9) 		8-94482-339-0 02 1 9210-9309 ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94482-339-0 02 1 9310-9506 ● ● ● ● ● ● ● ●
6 04.681 SLEEVE; BOOT,CALIPER 8-94136-644-0 02 1 9210- ● ● ● ● ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 8-94388-022-0 01 1 9210- ● ● ● ● ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97049-429-1 01 1 9210- ● ● ● ● ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
UNITED KINGDOM EQUIPMENT(EK3) 		8-94483-220-1 01 1 9210- ● ● ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK 8-94438-690-0 02 1 9210- ● ● ● ● ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
M10X59.5 		8-94438-712-0 02 1 9210- ● ● ● ● ● ● ● ●
37 04.665 WASHER; LK
05.422 ID=14.2 		9-09150-814-0 04 1 9503- ● ● ● ● ● ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
04.665 M14X29 		8-94423-252-0 02 1 9210-9502 ● ● ● ● ● ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
04.665 M14X29 		8-97126-347-0 02 1 9503- ● ● ● ● ● ● ● ●
59 04.665 BRACKET; FLEX HOSE,FRT 8-94433-667-0 01 1 9210- ● ● ● ●
59 04.665 BRACKET; FLEX HOSE,FRT 8-94433-666-0 01 1 9210- ● ● ● ●
60 04.665 WASHER; LK,SUPPORT BRKT TO KNUCK
05.422 ID=14.2 		9-09150-814-0 04 1 9210-9502 ● ● ● ● ● ● ● ●
61 04.665 BOLT; SUPPORT BRKT TO KNUCKLE
M14X29 		8-94423-252-0 02 1 9210-9502 ● ● ● ● ● ● ● ●
61 04.665 BOLT; SUPPORT BRKT TO KNUCKLE
M14X29 		8-97126-347-0 02 1 9503- ● ● ● ● ● ● ● ●
86 04.665 PIN; GUIDE 8-94438-694-0 02 1 9210- ● ● ● ● ● ● ● ●
