Isuzu WW
▶
PICKUP
▶
TFR
▶
50651 - TFR/TFS-RHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-56 - AUTO TRANS CONTROL LINK
▶

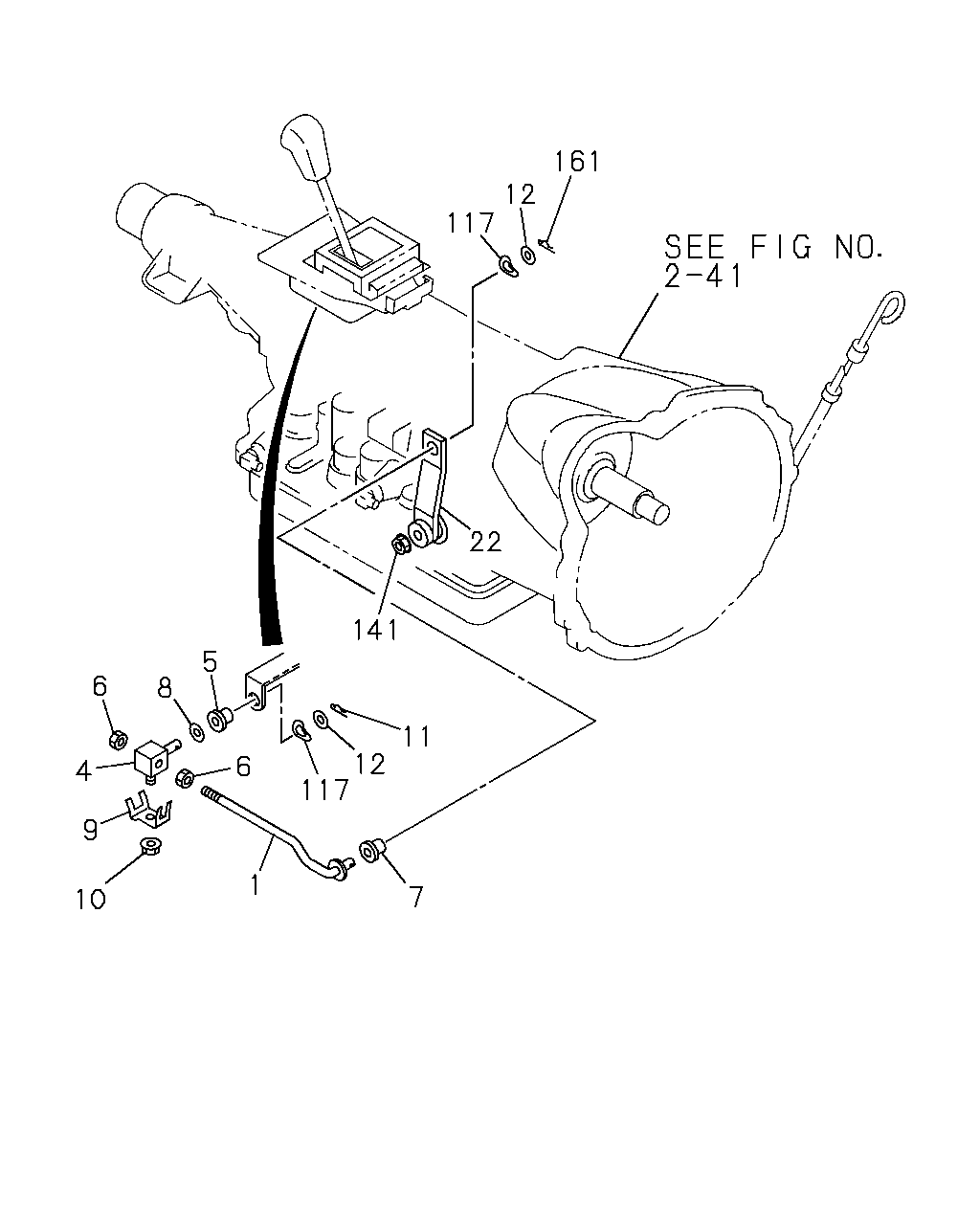

2-56 — AUTO TRANS CONTROL LINK
(#45363) — 20 parça
161
12
117
22
141
11
12
117
7
1
10
9
6
5
8
6
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.035 ROD; LINK,SELECT CONT
8-94472-149-0
01
1
9210-9305
1
04.035 ROD; LINK,SELECT CONT
8-97096-450-0
01
1
9306-9407
1
04.035 ROD; LINK,SELECT CONT
EXC. THAILAND EQUIPMENT(PM9)
8-97096-450-0
01
1
9407-
1
04.035 ROD; LINK,SELECT CONT
THAILAND EQUIPMENT(PM9)
8-97112-536-0
01
1
9407-
4
04.037 BOSS; SELECT LEVER
8-94341-788-0
01
1
9210-
5
04.037 BUSHING; LINK ROD TO SELECT LEVE
8-97038-937-0
01
1
9210-
6
04.012 NUT; SELECT CONT
03.459 M10
9-09111-510-0
02
1
9210-9406
6
04.012 NUT; SELECT CONT
06.822
9-09111-410-0
02
1
9407-
7
04.037 BUSHING; JOINT,A/T CONT
8-97038-937-0
01
1
9210-
8
04.047 WASHER; PL,A/T CONT
06.760 ID=8.4 OD=22
9-09160-708-0
01
1
9210-
9
04.047 CLIP; NUT STOPPER
8-94124-163-0
01
1
9210-
10
04.037 NUT; CLIP
07.829 M6 FLANGE
5-09440-004-0
01
1
9210-
11
04.047 PIN; SNAP,A/T CONT
04.004 L=27.7
8-94210-407-0
01
1
9210-
12
04.012 WASHER; PL,SELECT CONT
06.760 ID=8.4 OD=22
9-09160-708-0
02
1
9210-9509
12
04.012 WASHER; PL,SELECT CONT
06.760 ID=8.4 OD=22
9-09160-708-0
03
1
9510-
22
04.045 LEVER; A/T CONT
04.035
8-94474-060-1
01
1
9210-
117
04.012 WASHER; CURVED,SELECT CONT
04.037 ID=8.5 T=0.3
5-09509-001-0
02
1
9210-
141
04.012 NUT; SHIFT LEVER
07.633 M8 FLANGE
0-91150-108-0
01
1
9407-
161
04.047 PIN; SNAP,LINK ROD TO SELECT LEV
00.833 L=27.7
8-94111-137-0
01
1
9210-9501
161
04.047 PIN; SNAP,LINK ROD TO SELECT LEV
04.004 L=27.7
8-94210-407-0
01
1
9502-
