◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UC ▶ 50688 - UC-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#45362) — 52 parça

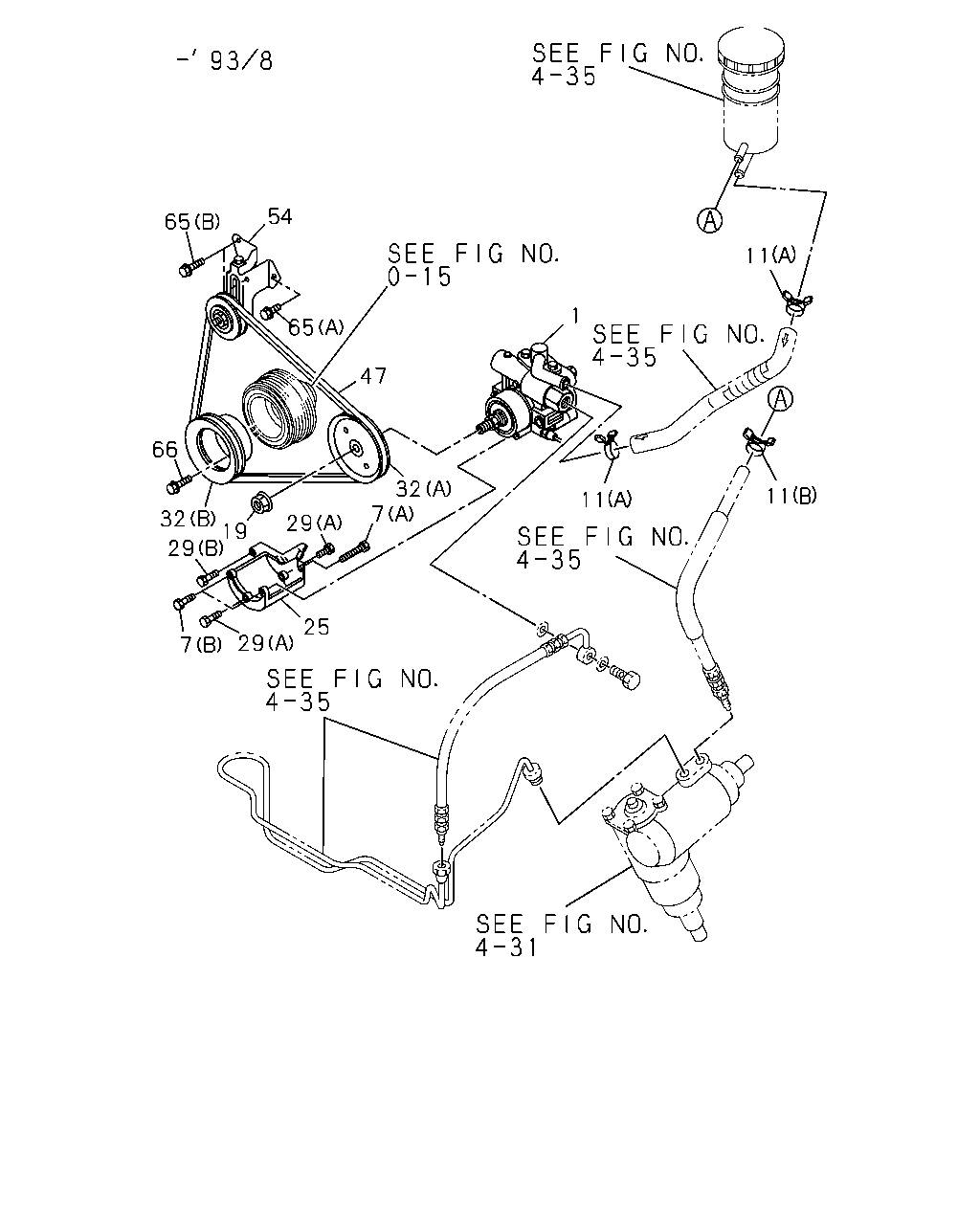

çizim 66094
65 54 65 47 32 7 29 25 29 7 29 32 19 66 11 11 1 11
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-97063-969-0 01 1 9301-9308
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-97083-110-5 01 1 9309-
7 BOLT; OIL PUMP,P/S
(A) M10X100 W/LK WASHER 		0-50041-000-0 01 1 9301-
7 BOLT; OIL PUMP,P/S
(B) M8X25 FLANGE 		0-28080-825-0 02 1 9301-9308
7 BOLT; OIL PUMP,P/S
(B) M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9309-9607
7 BOLT; OIL PUMP,P/S
(B) M8X20 FLANGE 		0-28680-820-0 02 1 9608-
11 CLIP; FLEX HOSE
(A) ID=21 		8-94242-034-0 02 1 9301-
11 CLIP; FLEX HOSE
(B) ID=16 		8-94238-568-0 01 1 9301-
19 NUT; PULLEY,OIL PUMP
M12 		8-94139-015-0 01 1 9301-
25 BRACKET; P/S PUMP 8-97041-855-0 01 1 9301-9308
25 BRACKET; P/S PUMP 8-97086-455-1 01 1 9309-
29 BOLT; BRKT,POWER STRG
(A) M8X35 FLANGE 		0-28080-835-0 02 1 9301-9308
29 BOLT; BRKT,POWER STRG
(A) M8X35 FLANGE 		0-28080-835-0 01 1 9309-9405
29 BOLT; BRKT,POWER STRG
(A)(C) M8X35 FLANGE 		0-28080-835-0 03 1 9406-
29 BOLT; BRKT,POWER STRG
(B) M8X50 FLANGE 		0-28080-850-0 01 1 9301-9403
29 BOLT; BRKT,POWER STRG
(B) M8X50 W/LK&PL WASHER 		0-50140-850-0 01 1 9404-
29 BOLT; BRKT,POWER STRG
(C) M8X30 FLANGE 		0-28080-830-0 02 1 9309-9405
32 PULLEY; IDLER,P/S
(A) 		8-97079-408-0 01 1 9301-9308
32 PULLEY; IDLER,P/S
(B) 		8-97064-297-0 01 1 9301-9308
32 PULLEY; IDLER,P/S 8-97083-111-1 01 1 9309-
47 BELT; P/S PUMP 8-97042-046-0 01 1 9301-9308
47 BELT; P/S PUMP 8-97086-828-0 01 1 9309-
54 IDLER ASM; P/S OIL PUMP 8-97041-860-0 01 1 9301-9308
65 BOLT; IDLER
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9301-9308
65 BOLT; IDLER
(B) M8X80 FLANGE 		0-28080-880-0 02 1 9301-9308
66 BOLT; PULLEY
M6X16 W/LK WASHER 		0-50040-616-0 04 1 9301-9308

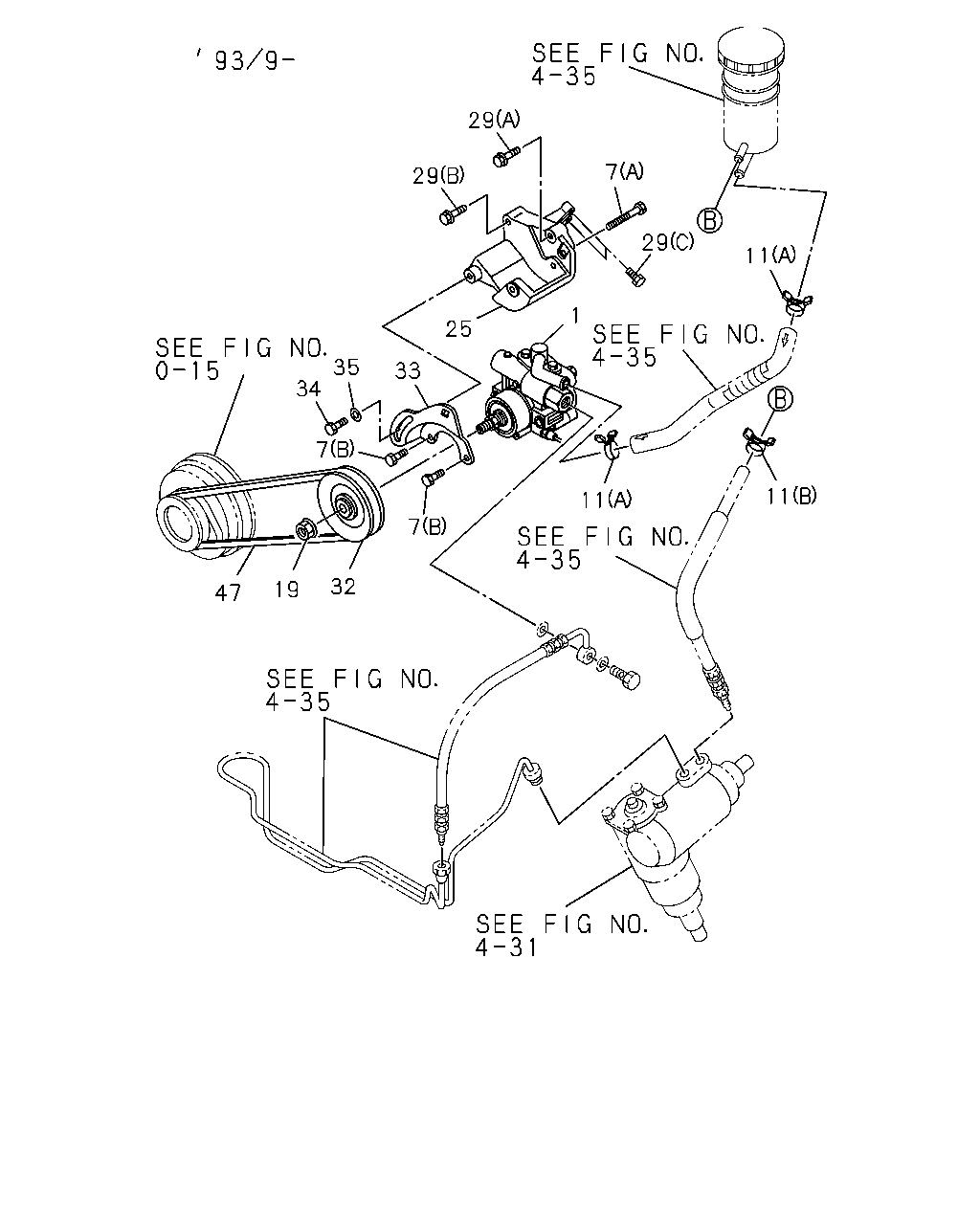

çizim 66115
29 29 7 29 11 1 25 33 35 34 7 47 19 32 7 11 11
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-97063-969-0 01 1 9301-9308
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-97083-110-5 01 1 9309-
7 BOLT; OIL PUMP,P/S
(A) M10X100 W/LK WASHER 		0-50041-000-0 01 1 9301-
7 BOLT; OIL PUMP,P/S
(B) M8X25 FLANGE 		0-28080-825-0 02 1 9301-9308
7 BOLT; OIL PUMP,P/S
(B) M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9309-9607
7 BOLT; OIL PUMP,P/S
(B) M8X20 FLANGE 		0-28680-820-0 02 1 9608-
11 CLIP; FLEX HOSE
(A) ID=21 		8-94242-034-0 02 1 9301-
11 CLIP; FLEX HOSE
(B) ID=16 		8-94238-568-0 01 1 9301-
19 NUT; PULLEY,OIL PUMP
M12 		8-94139-015-0 01 1 9301-
25 BRACKET; P/S PUMP 8-97041-855-0 01 1 9301-9308
25 BRACKET; P/S PUMP 8-97086-455-1 01 1 9309-
29 BOLT; BRKT,POWER STRG
(A) M8X35 FLANGE 		0-28080-835-0 02 1 9301-9308
29 BOLT; BRKT,POWER STRG
(A) M8X35 FLANGE 		0-28080-835-0 01 1 9309-9405
29 BOLT; BRKT,POWER STRG
(A)(C) M8X35 FLANGE 		0-28080-835-0 03 1 9406-
29 BOLT; BRKT,POWER STRG
(B) M8X50 FLANGE 		0-28080-850-0 01 1 9301-9403
29 BOLT; BRKT,POWER STRG
(B) M8X50 W/LK&PL WASHER 		0-50140-850-0 01 1 9404-
29 BOLT; BRKT,POWER STRG
(C) M8X30 FLANGE 		0-28080-830-0 02 1 9309-9405
32 PULLEY; IDLER,P/S
(A) 		8-97079-408-0 01 1 9301-9308
32 PULLEY; IDLER,P/S
(B) 		8-97064-297-0 01 1 9301-9308
32 PULLEY; IDLER,P/S 8-97083-111-1 01 1 9309-
33 PLATE; ADJ,P/S 8-97086-827-1 01 1 9309-
34 BOLT; ADJ PLATE
M10X25 W/LK WASHER 		0-50041-025-0 01 1 9309-9607
34 BOLT; ADJ PLATE
M10X30 FLANGE 		0-28681-030-0 01 1 9608-
35 WASHER; PL,ADJ PLATE
ID=10.5 OD=26 		9-09164-710-0 01 1 9309-
47 BELT; P/S PUMP 8-97042-046-0 01 1 9301-9308
47 BELT; P/S PUMP 8-97086-828-0 01 1 9309-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
