4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#45361) — 34 parça

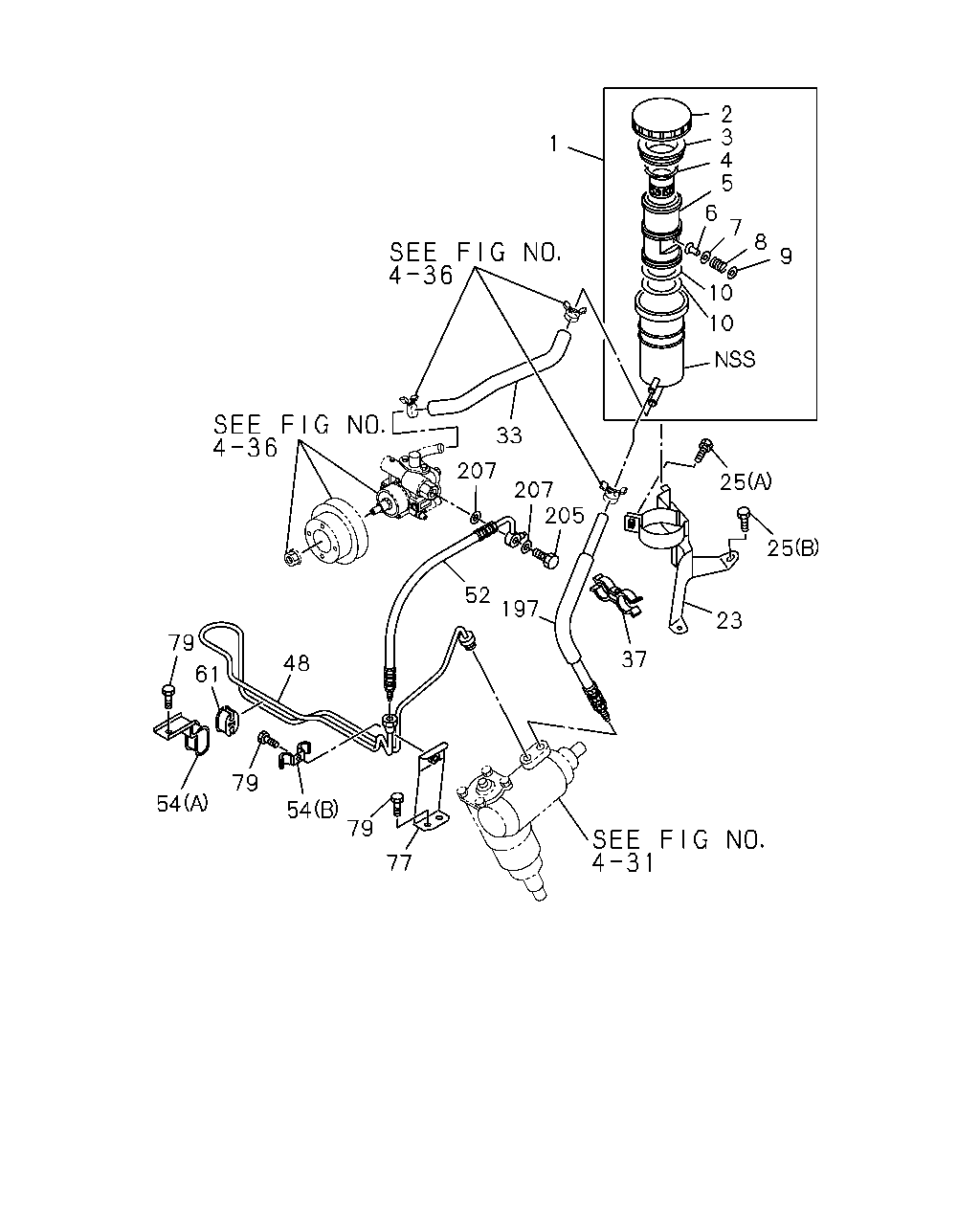

çizim 66093
1 2 3 4 5 6 7 8 9 10 10 25 25 23 37 197 52 205 207 207 33 48 61 79 54 79 54 79 77
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 8-94105-282-6 01 1 9301-
2 CAP; OIL TANK,P/S 5-21241-001-1 01 1 9301-
3 GASKET; OIL TANK,P/S 8-94246-510-0 01 1 9301-
4 FILTER; OIL TANK,P/S 8-94204-441-1 01 1 9301-
5 STRAINER; OIL TANK,P/S 8-94405-458-1 01 1 9301-
6 HOLDER; GASKET,OIL TANK,P/S 5-21219-005-0 01 1 9301-
7 RING; GASKET,OIL TANK,P/S 5-21219-007-0 01 1 9301-
8 SPRING; OIL TANK,P/S 5-09580-088-1 01 1 9301-
9 COVER; SPR,OIL TANK,P/S 5-21219-006-0 01 1 9301-
10 SEAL; OIL TANK,P/S 8-94405-457-0 02 1 9301-
23 BRACKET; OIL TANK,P/S 8-97064-085-4 01 1 9301-
25 BOLT; OIL TANK BRKT
(A) M6X16 FLANGE 		0-28480-616-0 01 1 9301-
25 BOLT; OIL TANK BRKT
(B) M8X16 FLANGE 		0-28480-816-0 02 1 9301-
33 HOSE; RUBBER,POWER STRG 8-97086-578-2 01 1 9301-9508
33 HOSE; RUBBER,POWER STRG 8-97110-000-1 01 1 9509-
37 CLIP; HOSE,P/S
ID=20.2X2 		8-94480-371-0 01 1 9301-9511
37 CLIP; HOSE,P/S 8-94328-308-0 01 1 9512-
48 PIPE; OIL,FLEX HOSE TO STRG UNIT 8-97084-518-2 01 1 9301-9401
48 PIPE; OIL,FLEX HOSE TO STRG UNIT 8-97109-389-0 01 1 9402-
52 HOSE; FLEX,P/S CONT VLV 8-97064-315-2 01 1 9301-9308
52 HOSE; FLEX,P/S CONT VLV 8-97086-599-1 01 1 9309-9504
52 HOSE; FLEX,P/S CONT VLV 8-97110-001-1 01 1 9505-
54 CLIP; OIL PIPE
(A) 		8-97026-703-0 01 1 9301-
54 CLIP; OIL PIPE
(B) 		8-94222-795-1 01 1 9301-
61 CLIP; OIL PIPE
ID=10X2 H=22 		8-94252-455-2 01 1 9301-
77 BRACKET; POWER STEERING HOSE 8-94442-105-1 01 1 9301-9401
77 BRACKET; POWER STEERING HOSE 8-97075-968-0 01 1 9402-9501
77 BRACKET; POWER STEERING HOSE 8-97120-706-0 01 1 9502-
79 BOLT; BRKT
M6X16 FLANGE 		0-28480-616-0 04 1 9301-9501
79 BOLT; BRKT
M6X16 FLANGE 		0-28480-616-0 03 1 9502-
197 HOSE; FLEX,P/S,RETURN 8-97083-715-0 01 1 9301-9508
197 HOSE; FLEX,P/S,RETURN 8-97109-999-1 01 1 9509-
205 BOLT; EYE,FLEX HOSE,P/S
M16X28 		8-94383-489-0 01 1 9301-
207 GASKET; FLEX HOSE,P/S PUMP
ID=16.2 OD=24 		9-09571-416-0 02 1 9301-
