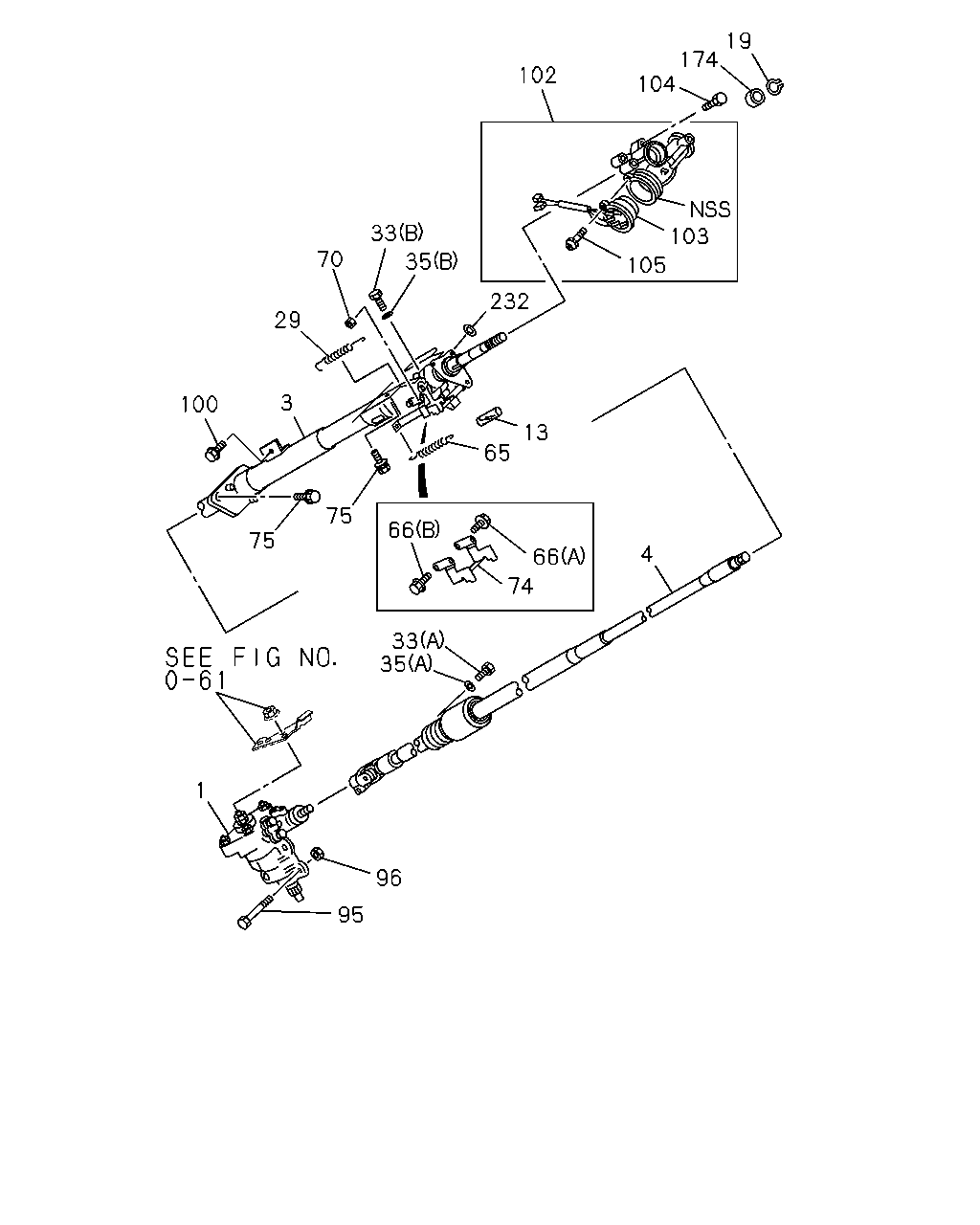

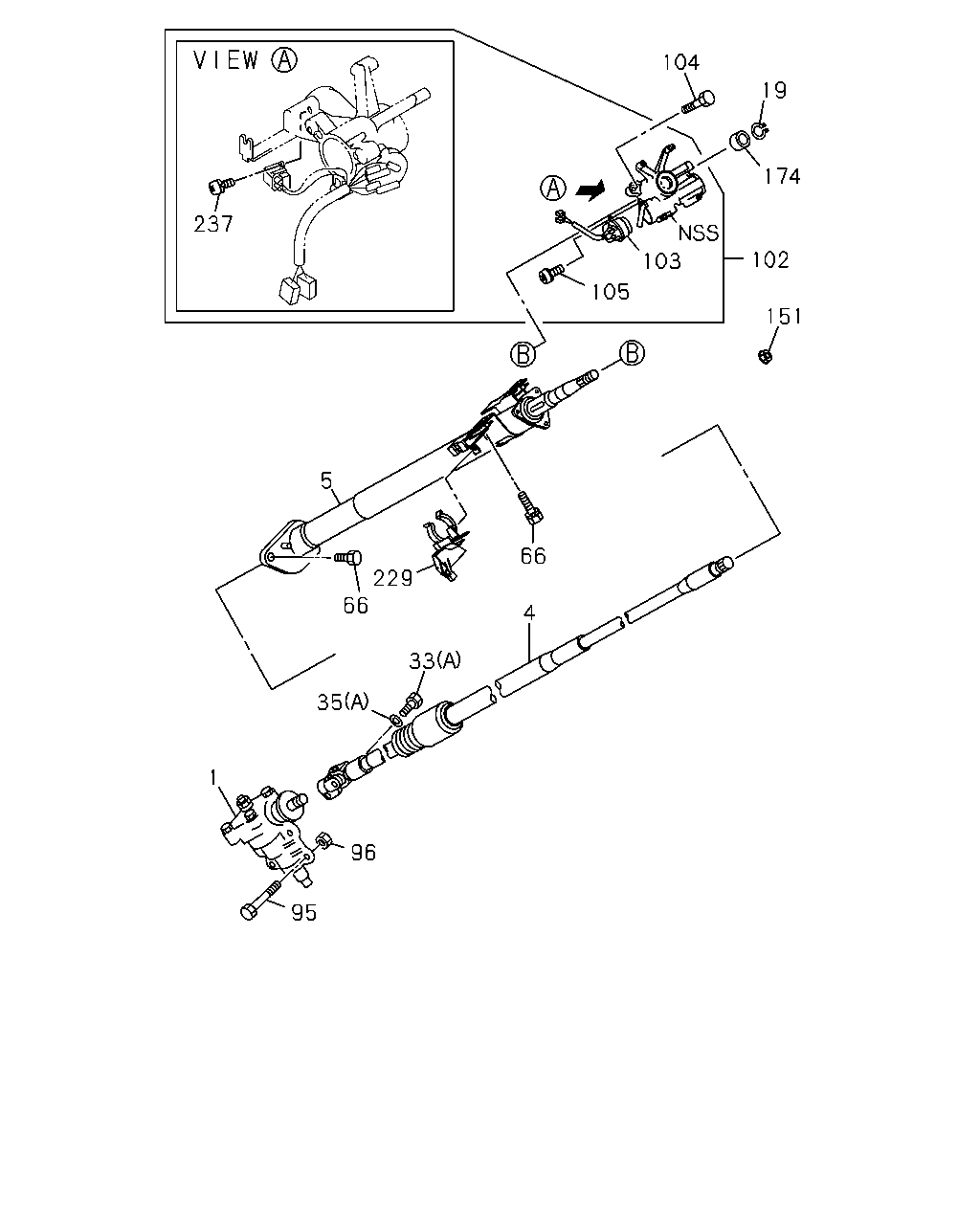

4-31 — STEERING COLUMN AND SHAFT (#45359) — 176 parça

19 174 104 102 103 105 75 5 100 75 1 95 96 35 33 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-94388-921-0	01	1	9301-9308
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97102-289-0	01	1	9309-9403
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97101-354-1	01	1	9404-
4	SHAFT; STRG TILT STEERING<N33>	8-97084-686-0	01	1	9301-9504
4	SHAFT; STRG TILT STEERING<N33>	8-97108-695-0	01	1	9505-
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97084-689-0	01	1	9301-9504
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97108-697-0	01	1	9505-
5	COLUMN; STRG TILT STEERING<N33>	8-97108-694-0	01	1	9505-
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97078-229-0	01	1	9301-9504
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97108-696-0	01	1	9505-
19	RING; SNAP,STRG SHAFT ID=17.5	9-09180-019-0	01	1	9301-9504
19	RING; SNAP,STRG SHAFT ID=20.5	9-09180-022-0	01	1	9505-
33	BOLT; STRG SHAFT TO UNIT (A) M8X30	8-94247-692-0	01	1	9301-
33	BOLT; STRG SHAFT TO UNIT TILT STEERING<N33> (B)	8-94477-976-1	01	1	9301-
35	WASHER; LK,STRG SHAFT (A) ID=8.2	9-09150-508-0	01	1	9301-
35	WASHER; LK,STRG SHAFT TILT STEERING<N33> (B)	8-94477-979-0	01	1	9301-
75	BOLT; STRG COLUMN M8X32 W/LK&PL WASHER	8-97014-296-0	04	1	9301-9504
95	BOLT; STRG UNIT M10X92 FLANGE	8-94313-798-1	04	1	9301-
96	NUT; STRG UNIT M10 FLANGE	8-94313-797-0	04	1	9301-
100	BOLT; COLUMN TO FLOOR M8X16 W/PL WASHER	8-94389-962-2	01	1	9301-9504
102	LOCK ASM; STRG A/T THM(RMQ)	8-97049-684-2	01	1	9301-9504
102	LOCK ASM; STRG A/T THM(RMQ)	8-97100-436-3	01	1	9505-9505
102	LOCK ASM; STRG A/T THM(RMQ) 950522-	8-97132-519-0	01	1	9505-9511
102	LOCK ASM; STRG A/T THM(RMQ)	8-97135-981-0	01	1	9512-
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-97068-725-1	01	1	9301-9504
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-97100-460-3	01	1	9505-9505
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) 950522-	8-97132-520-0	01	1	9505-9511
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-97135-982-0	01	1	9512-9612
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-97170-876-0	01	1	9701-
103	SWITCH; IGNITION	8-94382-435-0	01	1	9301-9504
103	SWITCH; IGNITION	8-97128-809-0	01	1	9505-9511
103	SWITCH; IGNITION	8-97145-347-0	01	1	9512-
104	BOLT; STRG LOCK TO COLUMN M6X25 W/LK WASHER	0-50040-625-0	03	1	9301-9504
104	BOLT; STRG LOCK TO COLUMN M6X25 W/LK&PL WASHER	8-97122-790-0	02	1	9505-
105	SCREW; IGN SW	8-94382-436-0	01	1	9301-9504
105	SCREW; IGN SW M4X12	9-03465-412-0	01	1	9505-
174	RUBBER; CUSHION,STRG COLUMN	8-94372-808-0	01	1	9301-9504
174	RUBBER; CUSHION,STRG COLUMN	8-97081-806-0	01	1	9505-9605
174	RUBBER; CUSHION,STRG COLUMN	8-97176-325-0	01	1	9606-

19 174 104 102 103 105 232 13 65 66 66 74 4 33 35 96 95 1 75 75 3 100 29 70 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-94388-921-0	01	1	9301-9308
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97102-289-0	01	1	9309-9403
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97101-354-1	01	1	9404-
3	SHAFT & COLUMN ASM; STRG TILT STEERING<N33>	8-97078-237-0	01	1	9301-9504
4	SHAFT; STRG TILT STEERING<N33>	8-97084-686-0	01	1	9301-9504
4	SHAFT; STRG TILT STEERING<N33>	8-97108-695-0	01	1	9505-
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97084-689-0	01	1	9301-9504
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97108-697-0	01	1	9505-
13	COVER; SPR TILT STEERING<N33>	8-97078-243-0	02	1	9301-9310
19	RING; SNAP,STRG SHAFT ID=17.5	9-09180-019-0	01	1	9301-9504
19	RING; SNAP,STRG SHAFT ID=20.5	9-09180-022-0	01	1	9505-
29	SPRING; COLUMN TILT STEERING<N33>	8-97078-242-0	02	1	9301-9504
29	SPRING; COLUMN TILT STEERING<N33>	8-97131-110-0	02	1	9505-
33	BOLT; STRG SHAFT TO UNIT (A) M8X30	8-94247-692-0	01	1	9301-
33	BOLT; STRG SHAFT TO UNIT TILT STEERING<N33> (B)	8-94477-976-1	01	1	9301-
35	WASHER; LK,STRG SHAFT (A) ID=8.2	9-09150-508-0	01	1	9301-
35	WASHER; LK,STRG SHAFT TILT STEERING<N33> (B)	8-94477-979-0	01	1	9301-
65	SPRING; STRG COLUMN TILT STEERING<N33>	8-97078-241-0	02	1	9301-9504
65	SPRING; STRG COLUMN TILT STEERING<N33>	8-97078-241-0	01	1	9505-
66	BOLT; STRG COLUMN TILT STEERING<N33> (A)	8-94477-977-0	01	1	9301-9504
66	BOLT; STRG COLUMN M8X35	8-97100-457-0	04	1	9505-
66	BOLT; STRG COLUMN TILT STEERING<N33> (B)	8-97078-245-0	04	1	9301-9504
70	NUT; STRG COLUMN TILT STEERING<N33>	8-94477-978-0	01	1	9301-9310
74	BRACKET; SUPPORT,STRG TILT STEERING<N33>	8-97078-244-0	01	1	9301-9504
75	BOLT; STRG COLUMN M8X32 W/LK&PL WASHER	8-97014-296-0	04	1	9301-9504
95	BOLT; STRG UNIT M10X92 FLANGE	8-94313-798-1	04	1	9301-
96	NUT; STRG UNIT M10 FLANGE	8-94313-797-0	04	1	9301-
100	BOLT; COLUMN TO FLOOR M8X16 W/PL WASHER	8-94389-962-2	01	1	9301-9504
102	LOCK ASM; STRG A/T THM(RMQ)	8-97049-684-2	01	1	9301-9504
102	LOCK ASM; STRG A/T THM(RMQ)	8-97100-436-3	01	1	9505-9505
102	LOCK ASM; STRG A/T THM(RMQ) 950522-	8-97132-519-0	01	1	9505-9511
102	LOCK ASM; STRG A/T THM(RMQ)	8-97135-981-0	01	1	9512-
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-97068-725-1	01	1	9301-9504
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-97100-460-3	01	1	9505-9505
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) 950522-	8-97132-520-0	01	1	9505-9511
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-97135-982-0	01	1	9512-9612
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-97170-876-0	01	1	9701-
103	SWITCH; IGNITION	8-94382-435-0	01	1	9301-9504
103	SWITCH; IGNITION	8-97128-809-0	01	1	9505-9511
103	SWITCH; IGNITION	8-97145-347-0	01	1	9512-
104	BOLT; STRG LOCK TO COLUMN M6X25 W/LK WASHER	0-50040-625-0	03	1	9301-9504
104	BOLT; STRG LOCK TO COLUMN M6X25 W/LK&PL WASHER	8-97122-790-0	02	1	9505-
105	SCREW; IGN SW	8-94382-436-0	01	1	9301-9504
105	SCREW; IGN SW M4X12	9-03465-412-0	01	1	9505-
174	RUBBER; CUSHION,STRG COLUMN	8-94372-808-0	01	1	9301-9504
174	RUBBER; CUSHION,STRG COLUMN	8-97081-806-0	01	1	9505-9605
174	RUBBER; CUSHION,STRG COLUMN	8-97176-325-0	01	1	9606-
232	SPACER; STRG SHAFT TILT STEERING<N33>	8-94477-982-0	01	1	9301-9310

19 104 174 151 103 102 105 237 33 35 29 5 66 229 66 65 4 33 35 1 96 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-94388-921-0	01	1	9301-9308
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97102-289-0	01	1	9309-9403
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97101-354-1	01	1	9404-
4	SHAFT; STRG TILT STEERING<N33>	8-97084-686-0	01	1	9301-9504
4	SHAFT; STRG TILT STEERING<N33>	8-97108-695-0	01	1	9505-
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97084-689-0	01	1	9301-9504
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97108-697-0	01	1	9505-
5	COLUMN; STRG TILT STEERING<N33>	8-97108-694-0	01	1	9505-
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97078-229-0	01	1	9301-9504
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97108-696-0	01	1	9505-
19	RING; SNAP,STRG SHAFT ID=17.5	9-09180-019-0	01	1	9301-9504
19	RING; SNAP,STRG SHAFT ID=20.5	9-09180-022-0	01	1	9505-
29	SPRING; COLUMN TILT STEERING<N33>	8-97078-242-0	02	1	9301-9504
29	SPRING; COLUMN TILT STEERING<N33>	8-97131-110-0	02	1	9505-
33	BOLT; STRG SHAFT TO UNIT (A) M8X30	8-94247-692-0	01	1	9301-
33	BOLT; STRG SHAFT TO UNIT TILT STEERING<N33> (B)	8-94477-976-1	01	1	9301-
35	WASHER; LK,STRG SHAFT (A) ID=8.2	9-09150-508-0	01	1	9301-
35	WASHER; LK,STRG SHAFT TILT STEERING<N33> (B)	8-94477-979-0	01	1	9301-
65	SPRING; STRG COLUMN TILT STEERING<N33>	8-97078-241-0	02	1	9301-9504
65	SPRING; STRG COLUMN TILT STEERING<N33>	8-97078-241-0	01	1	9505-
66	BOLT; STRG COLUMN TILT STEERING<N33> (A)	8-94477-977-0	01	1	9301-9504
66	BOLT; STRG COLUMN M8X35	8-97100-457-0	04	1	9505-
66	BOLT; STRG COLUMN TILT STEERING<N33> (B)	8-97078-245-0	04	1	9301-9504
95	BOLT; STRG UNIT M10X92 FLANGE	8-94313-798-1	04	1	9301-
96	NUT; STRG UNIT M10 FLANGE	8-94313-797-0	04	1	9301-
102	LOCK ASM; STRG A/T THM(RMQ)	8-97049-684-2	01	1	9301-9504
102	LOCK ASM; STRG A/T THM(RMQ)	8-97100-436-3	01	1	9505-9505
102	LOCK ASM; STRG A/T THM(RMQ) 950522-	8-97132-519-0	01	1	9505-9511
102	LOCK ASM; STRG A/T THM(RMQ)	8-97135-981-0	01	1	9512-
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-97068-725-1	01	1	9301-9504
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-97100-460-3	01	1	9505-9505
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) 950522-	8-97132-520-0	01	1	9505-9511
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-97135-982-0	01	1	9512-9612
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-97170-876-0	01	1	9701-
103	SWITCH; IGNITION	8-94382-435-0	01	1	9301-9504
103	SWITCH; IGNITION	8-97128-809-0	01	1	9505-9511
103	SWITCH; IGNITION	8-97145-347-0	01	1	9512-
104	BOLT; STRG LOCK TO COLUMN M6X25 W/LK WASHER	0-50040-625-0	03	1	9301-9504
104	BOLT; STRG LOCK TO COLUMN M6X25 W/LK&PL WASHER	8-97122-790-0	02	1	9505-
105	SCREW; IGN SW	8-94382-436-0	01	1	9301-9504
105	SCREW; IGN SW M4X12	9-03465-412-0	01	1	9505-
151	NUT; FLANGE M6 FLANGE	0-91150-106-0	01	1	9505-
174	RUBBER; CUSHION,STRG COLUMN	8-94372-808-0	01	1	9301-9504
174	RUBBER; CUSHION,STRG COLUMN	8-97081-806-0	01	1	9505-9605
174	RUBBER; CUSHION,STRG COLUMN	8-97176-325-0	01	1	9606-
229	PROTECTOR; STRG COLUMN	8-97109-628-2	01	1	9505-
237	SCREW; DOOR WARNING SW M3X8 W/LK WASHER	9-03910-308-0	02	1	9505-9511
237	SCREW; DOOR WARNING SW M3X8 W/LK WASHER	9-03910-308-0	01	1	9512-

237 104 19 174 102 151 103 105 66 4 33 229 66 5 35 96 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	SHAFT; STRG TILT STEERING<N33>	8-97084-686-0	01	1	9301-9504
4	SHAFT; STRG TILT STEERING<N33>	8-97108-695-0	01	1	9505-
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97084-689-0	01	1	9301-9504
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97108-697-0	01	1	9505-
5	COLUMN; STRG TILT STEERING<N33>	8-97108-694-0	01	1	9505-
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97078-229-0	01	1	9301-9504
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97108-696-0	01	1	9505-
19	RING; SNAP,STRG SHAFT ID=17.5	9-09180-019-0	01	1	9301-9504
19	RING; SNAP,STRG SHAFT ID=20.5	9-09180-022-0	01	1	9505-
33	BOLT; STRG SHAFT TO UNIT (A) M8X30	8-94247-692-0	01	1	9301-
33	BOLT; STRG SHAFT TO UNIT TILT STEERING<N33> (B)	8-94477-976-1	01	1	9301-
35	WASHER; LK,STRG SHAFT (A) ID=8.2	9-09150-508-0	01	1	9301-
35	WASHER; LK,STRG SHAFT TILT STEERING<N33> (B)	8-94477-979-0	01	1	9301-
66	BOLT; STRG COLUMN TILT STEERING<N33> (A)	8-94477-977-0	01	1	9301-9504
66	BOLT; STRG COLUMN M8X35	8-97100-457-0	04	1	9505-
66	BOLT; STRG COLUMN TILT STEERING<N33> (B)	8-97078-245-0	04	1	9301-9504
95	BOLT; STRG UNIT M10X92 FLANGE	8-94313-798-1	04	1	9301-
96	NUT; STRG UNIT M10 FLANGE	8-94313-797-0	04	1	9301-
102	LOCK ASM; STRG A/T THM(RMQ)	8-97049-684-2	01	1	9301-9504
102	LOCK ASM; STRG A/T THM(RMQ)	8-97100-436-3	01	1	9505-9505
102	LOCK ASM; STRG A/T THM(RMQ) 950522-	8-97132-519-0	01	1	9505-9511
102	LOCK ASM; STRG A/T THM(RMQ)	8-97135-981-0	01	1	9512-
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-97068-725-1	01	1	9301-9504
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-97100-460-3	01	1	9505-9505
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) 950522-	8-97132-520-0	01	1	9505-9511
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-97135-982-0	01	1	9512-9612
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-97170-876-0	01	1	9701-
103	SWITCH; IGNITION	8-94382-435-0	01	1	9301-9504
103	SWITCH; IGNITION	8-97128-809-0	01	1	9505-9511
103	SWITCH; IGNITION	8-97145-347-0	01	1	9512-
104	BOLT; STRG LOCK TO COLUMN M6X25 W/LK WASHER	0-50040-625-0	03	1	9301-9504
104	BOLT; STRG LOCK TO COLUMN M6X25 W/LK&PL WASHER	8-97122-790-0	02	1	9505-
105	SCREW; IGN SW	8-94382-436-0	01	1	9301-9504
105	SCREW; IGN SW M4X12	9-03465-412-0	01	1	9505-
151	NUT; FLANGE M6 FLANGE	0-91150-106-0	01	1	9505-
174	RUBBER; CUSHION,STRG COLUMN	8-94372-808-0	01	1	9301-9504
174	RUBBER; CUSHION,STRG COLUMN	8-97081-806-0	01	1	9505-9605
174	RUBBER; CUSHION,STRG COLUMN	8-97176-325-0	01	1	9606-
229	PROTECTOR; STRG COLUMN	8-97109-628-2	01	1	9505-
237	SCREW; DOOR WARNING SW M3X8 W/LK WASHER	9-03910-308-0	02	1	9505-9511
237	SCREW; DOOR WARNING SW M3X8 W/LK WASHER	9-03910-308-0	01	1	9512-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
