◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UC ▶ 50688 - UC-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#45358) — 45 parça
çizim 65348
3 5 20 66 26 6 30 37 37
BalonParca AdiParca NoAdetTipApplied Date
3 WHEEL; STRG
STRG WHEEL URETHANE<NK4> GRAY 		8-97009-133-0 01 1 9301-9504
3 WHEEL; STRG
STRG WHEEL URETHANE<NK4> BLACK 		8-97098-331-2 01 1 9505-9509
3 WHEEL; STRG
STRG WHEEL URETHANE<NK4> BLACK 		8-97155-250-0 01 1 9510-
3 WHEEL; STRG
STRG WHEEL LEATHER<NK3> GRAY 		8-97009-161-0 01 1 9301-9504
3 WHEEL; STRG
STRG WHEEL LEATHER<NK3> BLACK 		8-97098-332-2 01 1 9505-9509
3 WHEEL; STRG
STRG WHEEL LEATHER<NK3> BLACK 		8-97155-251-0 01 1 9510-9603
3 WHEEL; STRG
STRG WHEEL LEATHER<NK3> BLACK 		8-97157-034-1 01 1 9604-
5 NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER 		8-94455-487-0 01 1 9301-
6 SCREW; HORN SPR CONTACT
STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> 		8-94472-414-0 05 1 9301-9504
6 SCREW; HORN SPR CONTACT
STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> 		8-97122-618-0 03 1 9505-
20 SHROUD; PAD,STRG WHEEL
GRAY 		8-97009-139-1 01 1 9301-9504
26 COVER; STRG WHEEL,LWR
STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> GRAY 		8-94378-093-0 01 1 9301-9504
26 COVER; STRG WHEEL,LWR
STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> BLACK 		8-97153-000-0 01 1 9505-
30 COWL; STEERING
AUTO CRUISE CONT<K30> GRAY 		8-97004-850-2 01 1 9301-9504
30 COWL; STEERING
BLACK 		8-97098-330-5 01 1 9505-
30 COWL; STEERING
EXC. AUTO CRUISE CONT<K30> GRAY 		8-97004-846-2 01 1 9301-9504
37 SCREW; STRG COWL UPR
(A) M5X16 		5-09981-053-0 02 1 9301-9504
37 SCREW; STRG COWL UPR
(A) M5X16 		5-09981-053-0 04 1 9505-
37 SCREW; STRG COWL UPR
(B) M4X12 W/PL WASHER 		9-03900-412-0 03 1 9301-
66 BRACKET; HOLD,STRG WHEEL
STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> 		8-94472-413-0 01 1 9301-9504

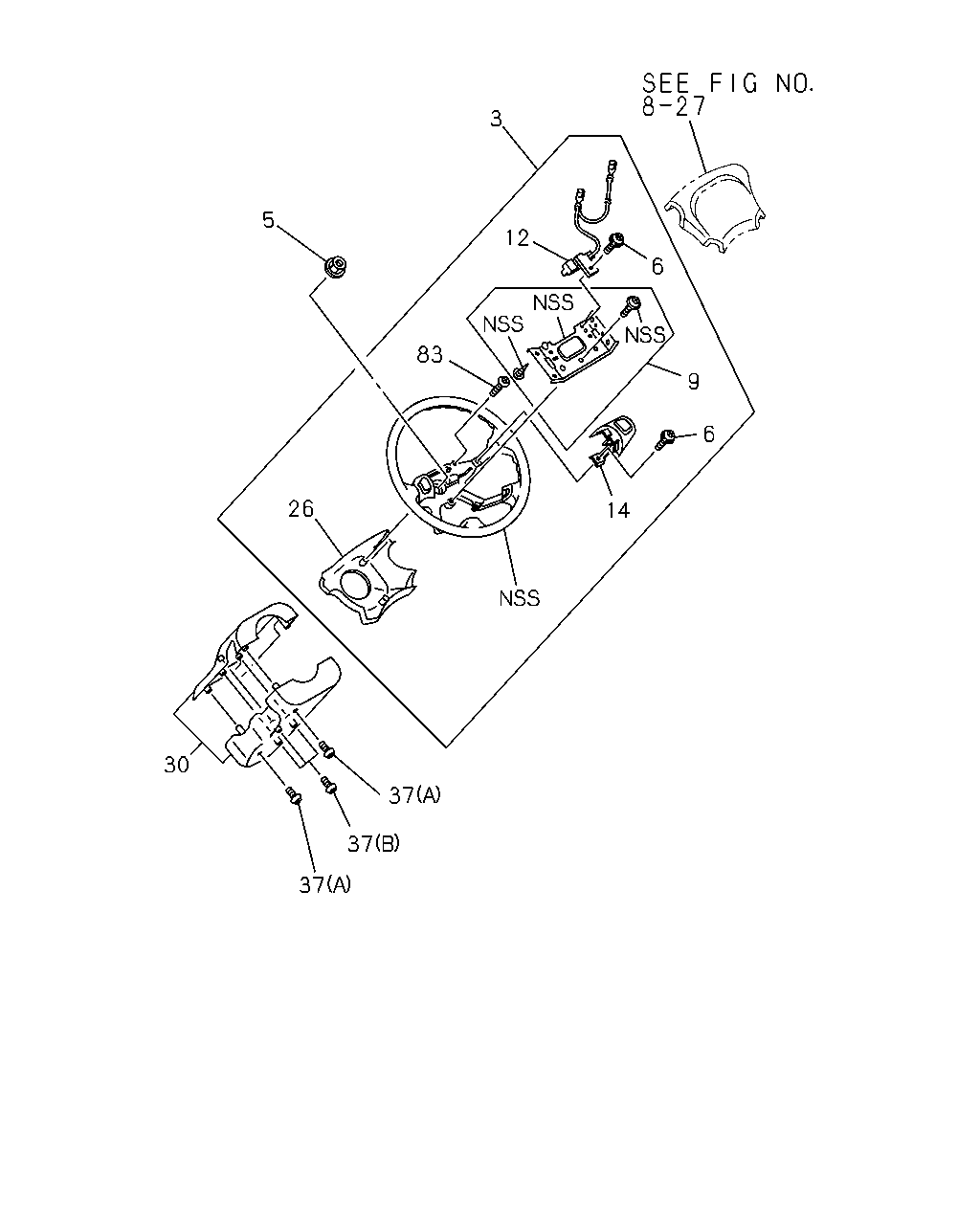

çizim 65373
3 5 12 6 9 6 14 26 37 37 37 30 83
BalonParca AdiParca NoAdetTipApplied Date
3 WHEEL; STRG
STRG WHEEL URETHANE<NK4> GRAY 		8-97009-133-0 01 1 9301-9504
3 WHEEL; STRG
STRG WHEEL URETHANE<NK4> BLACK 		8-97098-331-2 01 1 9505-9509
3 WHEEL; STRG
STRG WHEEL URETHANE<NK4> BLACK 		8-97155-250-0 01 1 9510-
3 WHEEL; STRG
STRG WHEEL LEATHER<NK3> GRAY 		8-97009-161-0 01 1 9301-9504
3 WHEEL; STRG
STRG WHEEL LEATHER<NK3> BLACK 		8-97098-332-2 01 1 9505-9509
3 WHEEL; STRG
STRG WHEEL LEATHER<NK3> BLACK 		8-97155-251-0 01 1 9510-9603
3 WHEEL; STRG
STRG WHEEL LEATHER<NK3> BLACK 		8-97157-034-1 01 1 9604-
5 NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER 		8-94455-487-0 01 1 9301-
6 SCREW; HORN SPR CONTACT
STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> 		8-94472-414-0 05 1 9301-9504
6 SCREW; HORN SPR CONTACT
STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> 		8-97122-618-0 03 1 9505-
9 PLATE; HORN CONTACT
STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> 		8-97122-394-0 01 1 9505-
12 CORD; HORN
STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> 		8-97122-397-0 01 1 9505-
14 BUTTON; HORN,STRG WHEEL
STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> BLACK 		8-97153-002-0 01 1 9505-9509
14 BUTTON; HORN,STRG WHEEL
STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> BLACK 		8-97155-253-0 01 1 9510-
14 BUTTON; HORN,STRG WHEEL
STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> BLACK 		8-97153-001-0 01 1 9505-9509
14 BUTTON; HORN,STRG WHEEL
STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> BLACK 		8-97155-252-0 01 1 9510-
26 COVER; STRG WHEEL,LWR
STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> GRAY 		8-94378-093-0 01 1 9301-9504
26 COVER; STRG WHEEL,LWR
STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> BLACK 		8-97153-000-0 01 1 9505-
30 COWL; STEERING
AUTO CRUISE CONT<K30> GRAY 		8-97004-850-2 01 1 9301-9504
30 COWL; STEERING
BLACK 		8-97098-330-5 01 1 9505-
30 COWL; STEERING
EXC. AUTO CRUISE CONT<K30> GRAY 		8-97004-846-2 01 1 9301-9504
37 SCREW; STRG COWL UPR
(A) M5X16 		5-09981-053-0 02 1 9301-9504
37 SCREW; STRG COWL UPR
(A) M5X16 		5-09981-053-0 04 1 9505-
37 SCREW; STRG COWL UPR
(B) M4X12 W/PL WASHER 		9-03900-412-0 03 1 9301-
83 SCREW; LWR COVER TO WHEEL
STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> 		8-97122-619-0 04 1 9505-
