4-25 — REAR FINAL DRIVE (#45357) — 36 parça

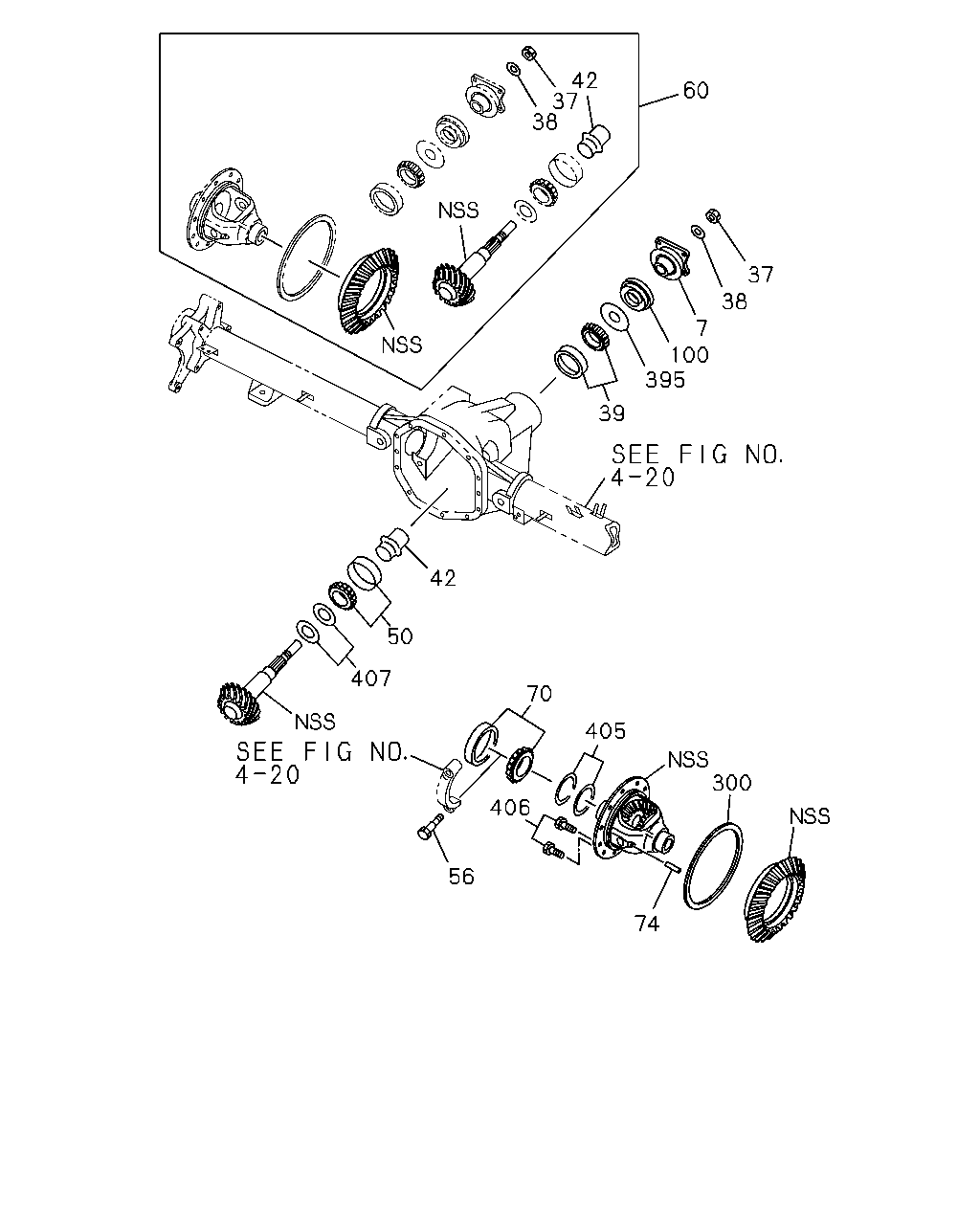

60 42 37 38 37 38 7 100 395 39 42 50 407 70 405 300 74 406 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	FLANGE; FINAL	8-97084-473-0	01	1	9301-
37	NUT; DRIVING PINION	8-97084-445-0	01	1	9301-
38	WASHER; PL,DRIVING PINION	8-97084-446-0	01	1	9301-
39	BEARING; FINAL PINION	8-97084-468-0	01	1	9301-
42	COLLAR; DIST,COLLAPSIBLE	8-97084-447-0	01	1	9301-
50	BEARING; FINAL PINION	8-97084-467-0	01	1	9301-
56	BOLT; BRG CAP	8-97084-397-0	04	1	9301-
60	GEAR SET; FINAL DRIVE,RR	8-97084-443-0	01	1	9301-9308
60	GEAR SET; FINAL DRIVE,RR EXC. WIDE TIRE<6NZ>	8-97084-443-0	01	1	9309-9511
60	GEAR SET; FINAL DRIVE,RR WIDE TIRE<6NZ>	8-97084-448-0	01	1	9309-9511
60	GEAR SET; FINAL DRIVE,RR	8-97084-448-0	01	1	9512-
70	BEARING; DIFF CAGE	8-97084-429-0	02	1	9301-
74	PIN; LK,CROSS PIN	8-97084-421-0	01	1	9301-
100	SEAL; OIL,FINAL PINION	8-97084-466-0	01	1	9301-
300	RING; EXCITER,SPD SENSOR	8-97084-474-0	01	1	9301-9511
300	RING; EXCITER,SPD SENSOR EXC. 4 WHEEL ANTI-LOCK BRAKE(JE5)	8-97084-474-0	01	1	9512-
395	SLINGER; OIL SEAL	8-97084-465-0	01	1	9301-
405	SHIM SET; DIFF SIDE BRG	8-97084-424-0	01	1	9301-
406	BOLT SET; FINAL DRIVE GEAR	8-97084-422-0	01	1	9301-
407	SHIM SET; PINION,FINAL DRIVE	8-97084-453-0	01	1	9301-

20 25 298 298 25 22 72 78 20 20 25 298 20 72 22 25 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	WASHER; THRUST,SIDE GEAR	8-97084-418-0	02	1	9301-9511
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80)	8-97084-418-0	02	1	9512-9607
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80)	8-97084-418-0	02	1	9608-
22	PIN; CROSS,DIFF PINION	8-97084-420-0	01	1	9301-9607
22	PIN; CROSS,DIFF PINION	8-97200-973-0	01	1	9608-
25	WASHER; THRUST,PINION	8-97084-419-0	02	1	9301-
72	CAGE; DIFF	8-97084-414-0	01	1	9301-9308
72	CAGE; DIFF EXC. LIMITED SLIP DIFF(G80)	8-97084-414-0	01	1	9309-
72	CAGE; DIFF LIMITED SLIP DIFF(G80)	8-97084-430-0	01	1	9309-
78	DISC; FRICTION LIMITED SLIP DIFF(G80)	8-97084-434-0	01	1	9309-9607
78	DISC; FRICTION LIMITED SLIP DIFF(G80)	8-97084-434-0	01	1	9608-
298	GEAR KIT; DIFF,RR AXLE	8-97084-415-0	01	1	9301-9308
298	GEAR KIT; DIFF,RR AXLE EXC. LIMITED SLIP DIFF(G80)	8-97084-415-0	01	1	9309-9607
298	GEAR KIT; DIFF,RR AXLE EXC. LIMITED SLIP DIFF(G80)	8-97084-415-0	01	1	9608-
298	GEAR KIT; DIFF,RR AXLE LIMITED SLIP DIFF(G80)	8-97084-431-0	01	1	9309-9607
298	GEAR KIT; DIFF,RR AXLE LIMITED SLIP DIFF(G80)	8-97084-431-0	01	1	9608-
