Isuzu WW
▶
SUV
▶
UC
▶
50688 - UC-LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-20 - REAR AXLE CASE AND SHAFT
▶

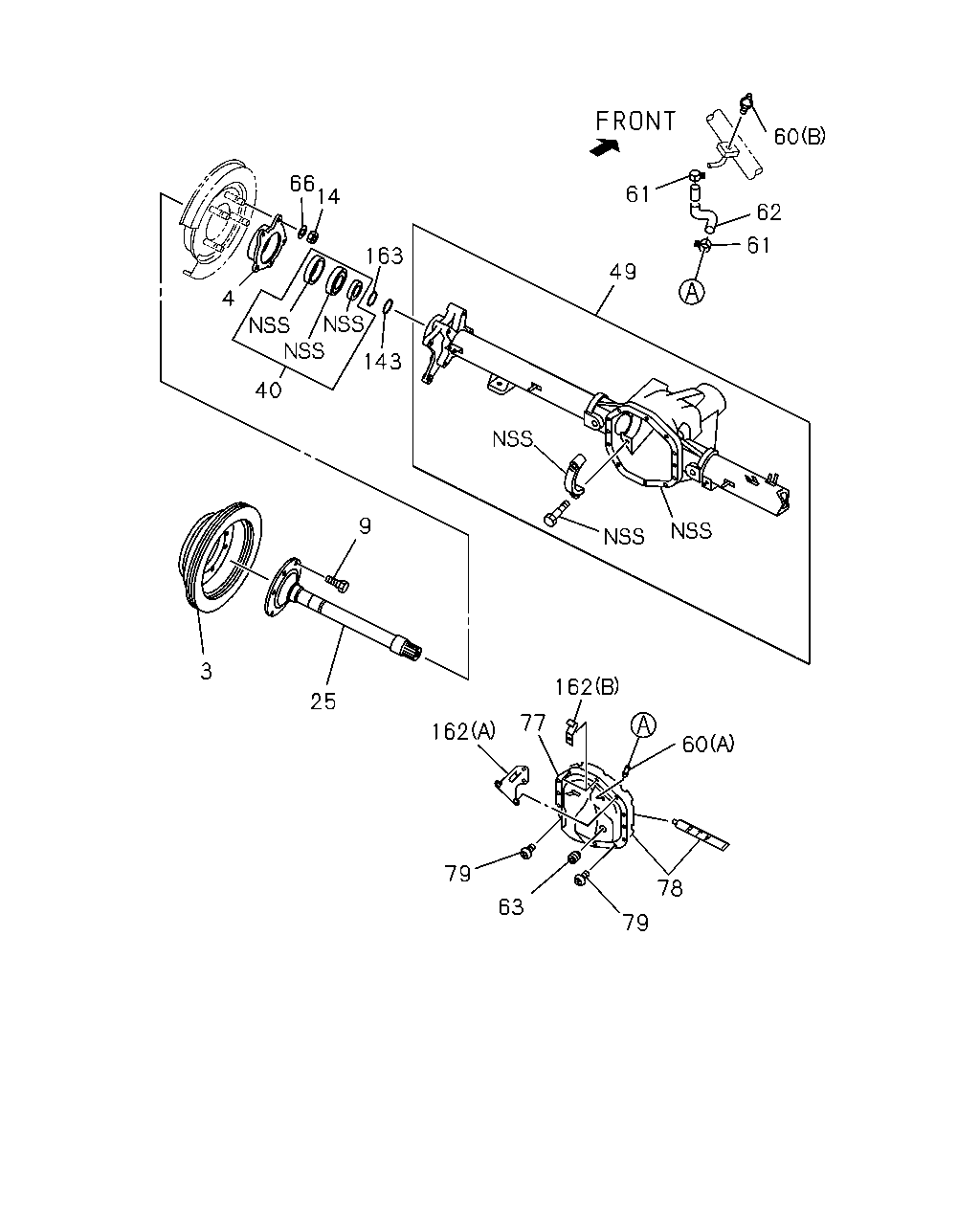

4-20 — REAR AXLE CASE AND SHAFT
(#45356) — 32 parça
60
62
61
49
61
66
14
163
143
40
4
3
9
25
162
77
162
60
78
79
63
79
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
ROTOR; DISC BRK,RR
8-97046-081-1
02
1
9301-
4
HOLDER; BRG,AXLE SHAFT
8-97081-944-0
02
1
9301-
9
PIN; WHEEL,RR AXLE
8-97081-943-0
12
1
9301-
14
NUT; BRG HOLDER TO CASE
M12
9-99110-412-0
08
1
9301-
25
SHAFT; AXLE,RR
8-97081-942-0
02
1
9301-9511
25
SHAFT; AXLE,RR
8-97134-265-0
02
1
9512-9607
25
SHAFT; AXLE,RR
EXC. 4 WHEEL ANTI-LOCK BRAKE(JE5)
8-97134-265-0
02
1
9608-
25
SHAFT; AXLE,RR
4 WHEEL ANTI-LOCK BRAKE(JE5)
8-97187-412-0
02
1
9608-
40
SEAL; OIL,REAR AXLE
8-97081-945-0
02
1
9301-
49
CASE; RR AXLE
8-97081-941-0
01
1
9301-9511
49
CASE; RR AXLE
LIMITED SLIP DIFF(G80) 4 WHEEL ANTI-LOCK BRAKE(JE5)
8-97103-816-0
01
1
9608-
49
CASE; RR AXLE
LIMITED SLIP DIFF(G80) EXC. 4 WHEEL ANTI-LOCK BRAKE(JE5)
8-97103-815-0
01
1
9608-
49
CASE; RR AXLE
EXC. LIMITED SLIP DIFF(G80),4 WHEEL ANTI-LOCK BRAKE(JE5)
8-97103-814-0
01
1
9608-
49
CASE; RR AXLE
4 WHEEL ANTI-LOCK BRAKE(JE5)
8-97134-274-0
01
1
9512-
49
CASE; RR AXLE
4 WHEEL ANTI-LOCK BRAKE(JE5) EXC. LIMITED SLIP DIFF(G80)
8-97103-817-0
01
1
9608-
49
CASE; RR AXLE
EXC. 4 WHEEL ANTI-LOCK BRAKE(JE5)
8-97163-396-0
01
1
9512-
60
BREATHER; RR AXLE CASE
(A)
8-97084-565-0
01
1
9301-
60
BREATHER; RR AXLE CASE
(B) L=30
8-94416-611-1
01
1
9301-
61
CLIP; BREATHER HOSE,RR AXLE
ID=11
8-94238-570-0
02
1
9301-
62
HOSE; RUBBER,BREATHER,RR AXLE
L=430
0-04250-430-0
01
1
9301-9308
62
HOSE; RUBBER,BREATHER,RR AXLE
L=430 SERVICED BY L=3000
0-04750-300-0
01
1
9309-
63
PLUG; OIL FILLER,AXLE CASE
8-97084-563-0
01
1
9301-
66
WASHER; LK
ID=12.2
9-09150-512-0
08
1
9301-
77
COVER; RR AXLE CASE
8-97084-562-0
01
1
9301-
78
GASKET; COVER TO RR AXLE CASE
8-97084-566-0
01
1
9301-
79
BOLT; COVER TO CASE
8-97084-564-0
10
1
9301-
143
RING; EXCITER
4 WHEEL ANTI-LOCK BRAKE(JE5)
8-97134-268-0
02
1
9512-9607
143
RING; EXCITER
4 WHEEL ANTI-LOCK BRAKE(JE5)
8-97187-419-0
02
1
9608-
162
BRACKET; SENSOR HARNESS,RR AXLE
(A)
8-97084-475-0
01
1
9301-9511
162
BRACKET; SENSOR HARNESS,RR AXLE
EXC. 4 WHEEL ANTI-LOCK BRAKE(JE5) (A)
8-97084-475-0
01
1
9512-
162
BRACKET; SENSOR HARNESS,RR AXLE
4 WHEEL ANTI-LOCK BRAKE(JE5) (B)
8-97134-272-0
02
1
9512-
163
RING; SNAP,AXLE SHAFT
8-97081-946-0
02
1
9301-
