◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UC ▶ 50688 - UC-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-12 - FRONT DRIVE SHAFT ▶
4-12 — FRONT DRIVE SHAFT (#45353) — 212 parça

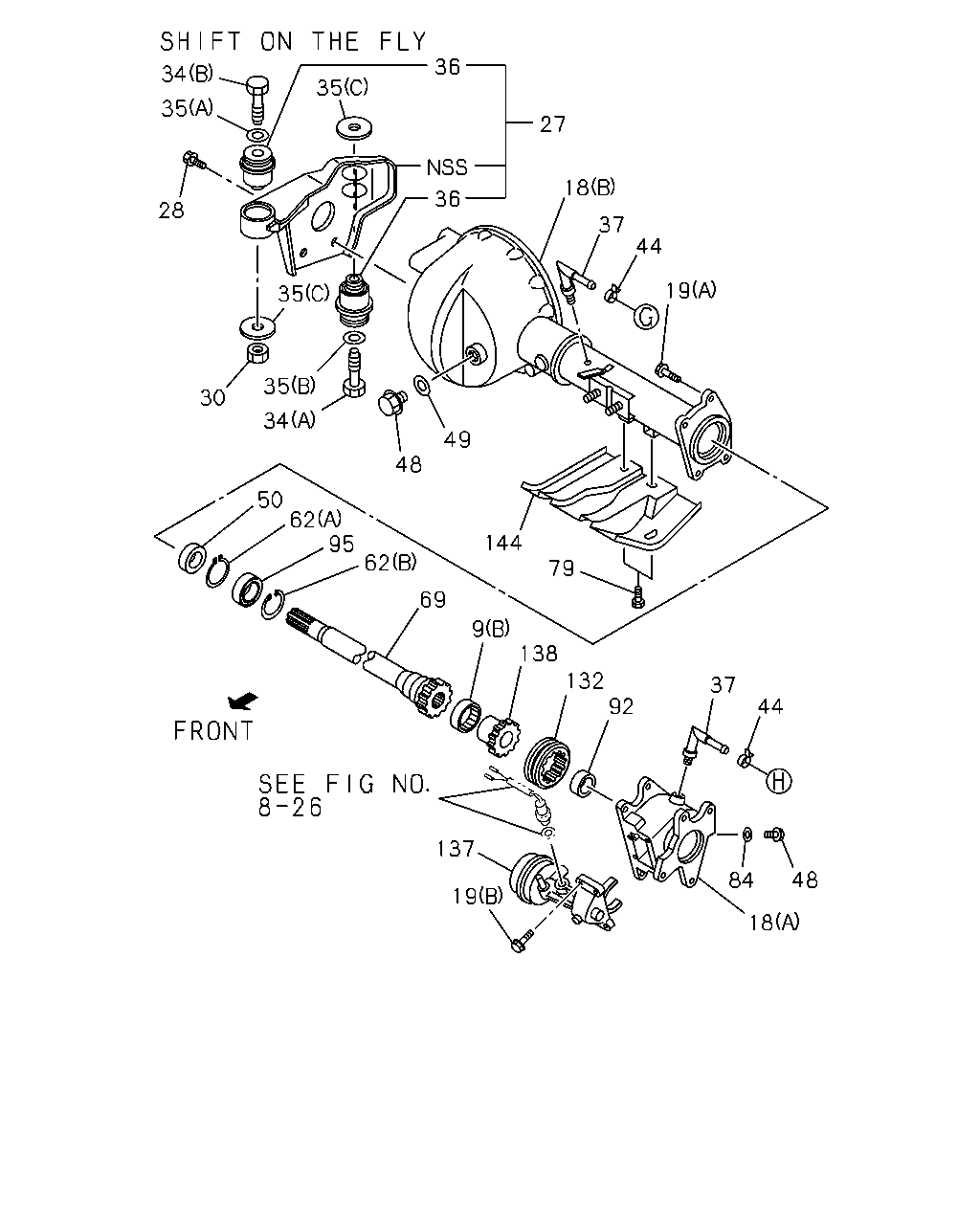

çizim 16239
34 35 28 35 35 34 30 50 62 95 62 69 9 138 132 92 37 44 48 84 19 137 18 79 144 48 49 19 44 37 18 27 36 36 35
BalonParca AdiParca NoAdetTipApplied Date
9 BEARING; AXLE SHAFT,INNER
(A) 		8-94407-724-0 02 1 9301-9511
9 BEARING; AXLE SHAFT,INNER
(A) 		8-97124-188-0 02 1 9512-
9 BEARING; AXLE SHAFT,INNER
(B) 		8-97101-878-0 01 1 9512-
18 CASE; FRT AXLE
(A) 		8-97081-658-2 01 1 9512-
18 CASE; FRT AXLE
(B) 		8-97018-230-0 01 1 9301-9511
18 CASE; FRT AXLE
(B) 		8-97101-757-3 01 1 9512-9611
18 CASE; FRT AXLE
(B) 		8-97143-331-0 01 1 9612-
19 BOLT; FRT AXLE
(F) M8X90 		9-01065-890-0 02 1 9301-9306
19 BOLT; FRT AXLE
(F) M8X90 W/LK WASHER 		8-97093-666-0 02 1 9307-
19 BOLT; FRT AXLE
(E) M8X25 		9-02060-825-0 06 1 9301-9306
19 BOLT; FRT AXLE
(E) M8X25 W/LK WASHER 		8-97093-664-0 06 1 9307-
19 BOLT; FRT AXLE
(D) M8X30 		9-02060-830-0 02 1 9301-9306
19 BOLT; FRT AXLE
(D) M8X30 W/LK WASHER 		8-97093-665-0 02 1 9307-
19 BOLT; FRT AXLE
(A) M12X22 FLANGE 		0-28081-222-0 04 1 9512-
19 BOLT; FRT AXLE
(B) M8X20 FLANGE 		0-28280-820-0 04 1 9512-
19 BOLT; FRT AXLE
(C) M8X25 W/LK&PL WASHER 		8-94180-329-1 03 1 9512-
27 BRACKET; AXLE CASE 8-94382-043-0 01 1 9301-9409
27 BRACKET; AXLE CASE 8-97113-948-0 01 1 9410-
27 BRACKET; AXLE CASE 8-94382-042-0 01 1 9301-
28 BOLT; BRKT TO AXLE CASE
M12X25 		0-20801-225-0 08 1 9301-9501
28 BOLT; BRKT TO AXLE CASE
M12X22 FLANGE 		0-28081-222-0 08 1 9502-
30 NUT; FRT AXLE MTG
M14 		9-99110-514-0 02 1 9301-9511
30 NUT; FRT AXLE MTG
M14 		9-99110-514-0 02 1 9512-
34 BOLT; FRT AXLE MTG
(A) M14X75 		9-91066-475-0 02 1 9301-9511
34 BOLT; FRT AXLE MTG
(A) M14X75 		9-91066-475-0 02 1 9512-
34 BOLT; FRT AXLE MTG
(B) M14X84 		8-94452-339-2 02 1 9301-9511
34 BOLT; FRT AXLE MTG
(B) M14X84 		8-94452-339-2 02 1 9512-
35 WASHER; FRT AXLE MTG
(A) ID=14 OD=40 		8-94457-273-0 02 1 9301-9511
35 WASHER; FRT AXLE MTG
(A) ID=14 OD=40 		8-94457-273-0 02 1 9512-
35 WASHER; FRT AXLE MTG
(B) ID=15 OD=36 		9-09164-714-0 02 1 9301-9511
35 WASHER; FRT AXLE MTG
(B) ID=15 OD=36 		9-09164-714-0 02 1 9512-
35 WASHER; FRT AXLE MTG
(C) ID=14.2 OD=50 		8-94419-772-0 04 1 9301-9303
35 WASHER; FRT AXLE MTG
(C) ID=14 OD=50 		8-97093-581-0 04 1 9304-9511
35 WASHER; FRT AXLE MTG
(C) ID=14 OD=50 		8-97093-581-0 04 1 9512-
36 BUSHING; RUBBER,FRT AXLE MTG 8-97018-240-0 04 1 9301-
37 BREATHER; FRT AXLE CASE 8-94226-943-0 01 1 9301-9511
37 BREATHER; FRT AXLE CASE 8-94226-943-0 02 1 9512-9607
37 BREATHER; FRT AXLE CASE 8-94226-943-0 01 1 9608-
44 CLIP; AIR BREATHER HOSE
ID=11 		8-94238-570-0 01 1 9301-9511
44 CLIP; AIR BREATHER HOSE
ID=11 		8-94238-570-0 02 1 9512-9607
44 CLIP; AIR BREATHER HOSE
ID=11 		8-94238-570-0 01 1 9608-
48 PLUG; DRAIN,AXLE CASE
M20X10.5 		9-09662-005-0 01 1 9301-9511
48 PLUG; DRAIN,AXLE CASE
M20X10.5 		9-09662-005-0 02 1 9512-
49 GASKET; DRAIN PLUG
ID=20 OD=30 		8-94462-734-0 01 1 9301-
49 GASKET; DRAIN PLUG
ID=20 OD=30 		8-94462-734-0 02 1 9612-
50 SEAL; OIL,SHAFT,FRT AXLE 8-97084-507-0 01 1 9512-
62 RING; SNAP,AXLE SHAFT
(A) ID=37.0 		9-09180-040-0 01 1 9512-
62 RING; SNAP,AXLE SHAFT
(B) ID=57.9 		9-09180-162-0 01 1 9512-9611
62 RING; SNAP,AXLE SHAFT
(B) ID=57.9 		9-09180-562-0 01 1 9612-
69 SHAFT; AXLE,FRT INNER 8-97130-566-1 01 1 9512-
79 BOLT; BRKT 0-28481-016-0 02 1 9512-
84 GASKET; PLUG,OIL FILLER
ID=20 OD=30 		8-94462-734-0 01 1 9512-
92 SPACER; FRT DRIVE SHAFT 8-97101-762-0 01 1 9512-9512
95 BEARING; AXLE SHAFT,FRT 8-97103-392-0 01 1 9512-
132 SLEEVE; RUBBER,HOSE 8-97130-567-1 01 1 9512-
137 ACTUATOR; AXLE 8-97101-856-3 01 1 9512-
138 GEAR; CLUTCH 8-97081-660-0 01 1 9512-9512
138 GEAR; CLUTCH 8-97134-857-0 01 1 9601-
144 PROTECTOR 8-97101-788-2 01 1 9512-

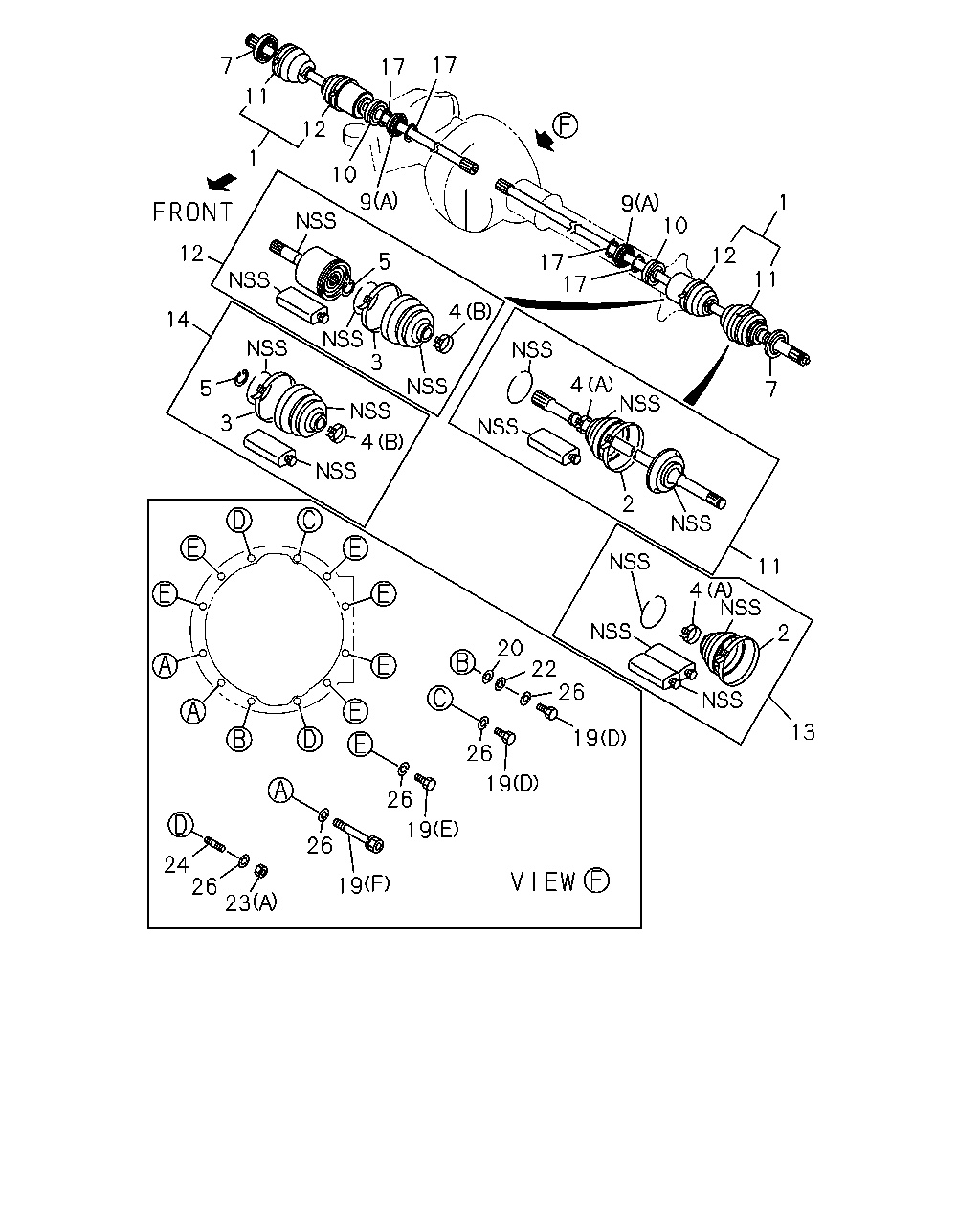

çizim 17642
7 11 1 12 10 9 17 17 9 10 12 11 1 7 17 17 5 4 3 12 14 5 3 4 4 2 11 4 2 13 19 26 22 20 26 19 26 19 19 26 23 26 24
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT ASM; FRT DRIVE 8-94173-305-3 01 1 9301-9505
1 SHAFT ASM; FRT DRIVE 8-97120-779-0 01 1 9506-9509
1 SHAFT ASM; FRT DRIVE 8-97139-096-0 01 1 9510-9511
1 SHAFT ASM; FRT DRIVE 8-94173-304-3 01 1 9301-9505
1 SHAFT ASM; FRT DRIVE 8-97120-778-0 01 1 9506-9509
1 SHAFT ASM; FRT DRIVE 8-97139-095-0 01 1 9510-9511
1 SHAFT ASM; FRT DRIVE 8-97139-091-0 02 1 9512-
2 BAND; "A",FRT DRIVE SHAFT 8-94313-084-0 02 1 9301-9505
2 BAND; "A",FRT DRIVE SHAFT 8-97131-401-0 02 1 9506-
3 BAND; "B",FRT DRIVE SHAFT 8-94313-082-0 02 1 9301-9505
3 BAND; "B",FRT DRIVE SHAFT 8-94312-929-0 02 1 9506-
4 BAND; "C",FRT DRIVE SHAFT
(A),(B) 		8-94313-094-0 04 1 9301-9505
4 BAND; "C",FRT DRIVE SHAFT
(A) 		8-94313-094-0 02 1 9506-9509
4 BAND; "C",FRT DRIVE SHAFT
(A) 		8-97138-938-0 02 1 9510-
4 BAND; "C",FRT DRIVE SHAFT
(B) 		8-94312-931-0 02 1 9506-
5 RING; RET,FRT DRIVE SHAFT
ID=26.9 		9-09180-029-0 02 1 9301-9505
5 RING; RET,FRT DRIVE SHAFT 8-97131-402-0 02 1 9506-
7 SEAL; DUST,DRIVE SHAFT 8-94407-726-2 02 1 9301-9304
7 SEAL; DUST,DRIVE SHAFT 8-97044-609-1 02 1 9305-
9 BEARING; AXLE SHAFT,INNER
(A) 		8-94407-724-0 02 1 9301-9511
9 BEARING; AXLE SHAFT,INNER
(A) 		8-97124-188-0 02 1 9512-
9 BEARING; AXLE SHAFT,INNER
(B) 		8-97101-878-0 01 1 9512-
10 SEAL; OIL,AXLE SHAFT,INNER 8-94366-610-0 02 1 9301-
11 JOINT ASM; OUTSIDE,FRT DRIVE SHAFT 8-94313-096-1 01 1 9301-9505
11 JOINT ASM; OUTSIDE,FRT DRIVE SHAFT 8-94313-095-1 01 1 9301-9505
11 JOINT ASM; OUTSIDE,FRT DRIVE SHAFT 8-97131-396-0 02 1 9506-9511
11 JOINT ASM; OUTSIDE,FRT DRIVE SHAFT 8-97131-395-0 02 1 9512-
12 JOINT ASM 8-94313-100-1 01 1 9301-9505
12 JOINT ASM 8-97131-398-0 01 1 9506-9509
12 JOINT ASM 8-97138-979-0 01 1 9510-9511
12 JOINT ASM 8-94313-099-1 01 1 9301-9505
12 JOINT ASM 8-97131-397-0 01 1 9506-9509
12 JOINT ASM 8-97138-978-0 01 1 9510-9511
12 JOINT ASM 8-97138-978-0 02 1 9512-
13 BOOT KIT; OUTSIDE,FRT DRIVE SHAFT 8-94313-105-0 02 1 9301-9505
13 BOOT KIT; OUTSIDE,FRT DRIVE SHAFT 8-97131-399-0 02 1 9506-9509
13 BOOT KIT; OUTSIDE,FRT DRIVE SHAFT 8-97138-981-0 02 1 9510-
14 BOOT KIT; IN SIDE,FRT DRIVE SHAFT 8-94313-080-0 02 1 9301-9505
14 BOOT KIT; IN SIDE,FRT DRIVE SHAFT 8-97131-400-0 02 1 9506-9509
14 BOOT KIT; IN SIDE,FRT DRIVE SHAFT 8-97138-980-0 02 1 9510-
17 RING; SNAP,DRIVE SHAFT TO TRANS AXLE
ID=27.9 		9-09180-030-0 04 1 9301-
19 BOLT; FRT AXLE
(F) M8X90 		9-01065-890-0 02 1 9301-9306
19 BOLT; FRT AXLE
(F) M8X90 W/LK WASHER 		8-97093-666-0 02 1 9307-
19 BOLT; FRT AXLE
(E) M8X25 		9-02060-825-0 06 1 9301-9306
19 BOLT; FRT AXLE
(E) M8X25 W/LK WASHER 		8-97093-664-0 06 1 9307-
19 BOLT; FRT AXLE
(D) M8X30 		9-02060-830-0 02 1 9301-9306
19 BOLT; FRT AXLE
(D) M8X30 W/LK WASHER 		8-97093-665-0 02 1 9307-
19 BOLT; FRT AXLE
(A) M12X22 FLANGE 		0-28081-222-0 04 1 9512-
19 BOLT; FRT AXLE
(B) M8X20 FLANGE 		0-28280-820-0 04 1 9512-
19 BOLT; FRT AXLE
(C) M8X25 W/LK&PL WASHER 		8-94180-329-1 03 1 9512-
20 GASKET; AXLE CASE
ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 01 1 9301-
22 WASHER; PL,AXLE CASE
ID=8.4 		9-09164-508-0 01 1 9301-
23 NUT; FRT AXLE
(A) M8 		9-09110-508-0 02 1 9301-
23 NUT; FRT AXLE
(B) M6 FLANGE 		8-97063-399-0 02 1 9512-
24 STUD; CASE,FRT AXLE
M8X25 L=37 		9-04110-825-0 02 1 9301-
26 WASHER; LK,CASE,FRT AXLE
ID=8.2 		9-09150-608-0 12 1 9301-9306
26 WASHER; LK,CASE,FRT AXLE
ID=8.2 		9-09150-608-0 02 1 9307-
çizim 20340
141 163 130 40 45 148 40 38 45 40
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; AIR BREATHER,FRT AXLE
M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9301-9511
38 BOLT; AIR BREATHER,FRT AXLE
M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9512-9607
38 BOLT; AIR BREATHER,FRT AXLE
M6X20 FLANGE 		0-28680-620-0 01 1 9608-
40 CLIP; BAND,AIR BREATHER HOSE
(A) L=140 		5-09707-031-0 01 1 9303-9511
40 CLIP; BAND,AIR BREATHER HOSE
(A) L=140 		5-09707-031-0 01 1 9512-
40 CLIP; BAND,AIR BREATHER HOSE
(B) L=170 		5-09707-054-0 02 1 9301-9302
40 CLIP; BAND,AIR BREATHER HOSE
(B) L=170 		5-09707-054-0 01 1 9303-9511
40 CLIP; BAND,AIR BREATHER HOSE
(B) L=170 		5-09707-054-0 01 1 9512-
40 CLIP; BAND,AIR BREATHER HOSE
(C) L=142 		8-94232-619-0 01 1 9301-9511
40 CLIP; BAND,AIR BREATHER HOSE
(C) L=172 		8-94232-620-0 01 1 9512-
45 CLIP
(A) ID=14.5 & 7.5 		8-94315-424-0 01 1 9512-
45 CLIP
(B) L=8.9 		8-94435-551-1 03 1 9512-
45 CLIP
(C) 		8-94466-385-0 01 1 9512-
45 CLIP
(D) ID=11 L=40 		9-09525-073-0 01 1 9301-9511
45 CLIP
(D) ID=22 L=40 		5-09700-369-0 01 1 9512-
130 FILTER; OIL,FRT AXLE 8-97101-779-0 01 1 9512-
141 HOSE; VACUUM
(A) 		8-97131-140-0 01 1 9512-
141 HOSE; VACUUM
(B) 		8-97134-845-0 01 1 9512-
148 HOSE & JOINT ASM 8-97133-592-1 01 1 9512-
163 VALVE; CHECK 8-97024-129-2 01 1 9512-

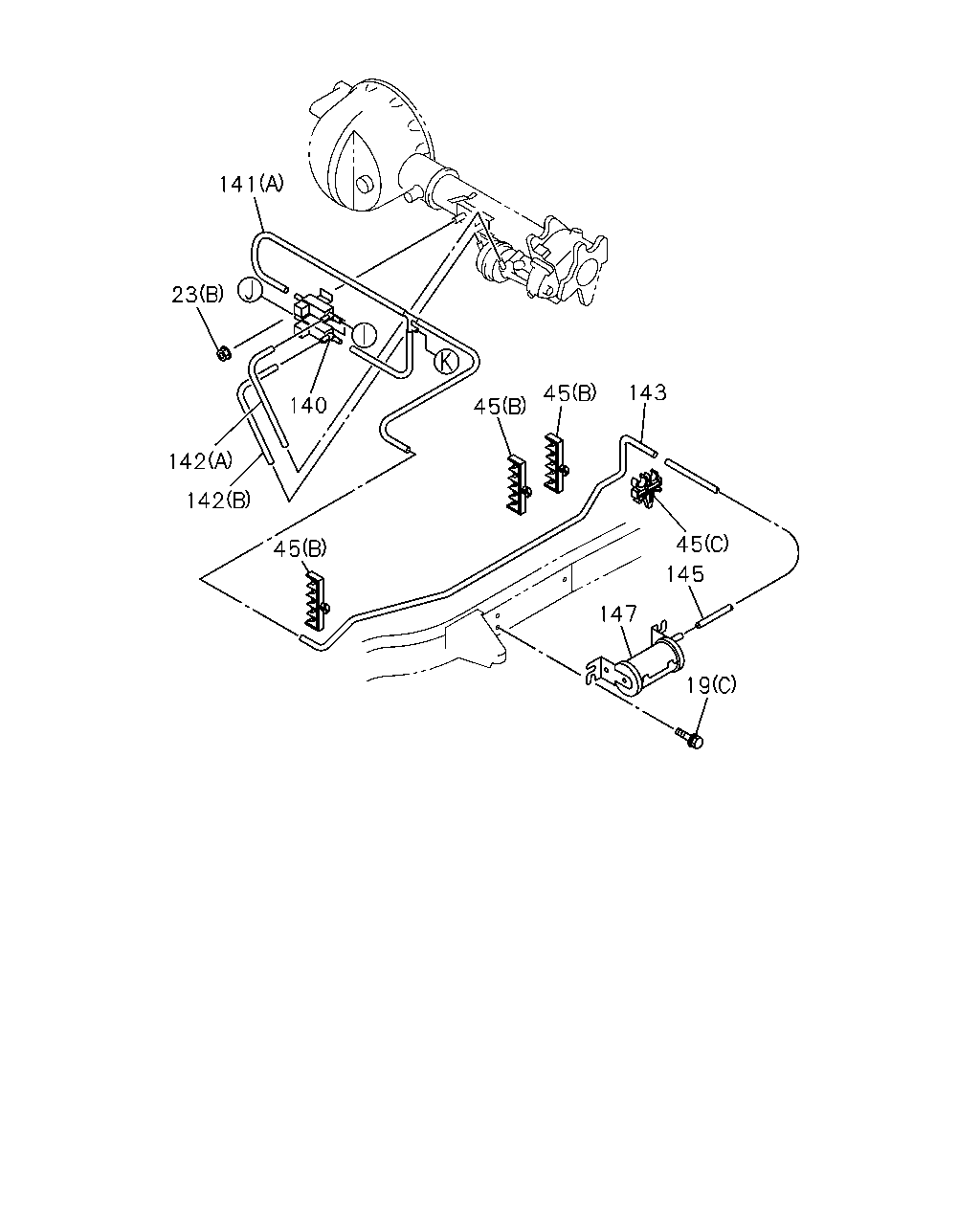

çizim 66353
141 23 142 142 140 45 45 45 143 45 145 147 19
BalonParca AdiParca NoAdetTipApplied Date
19 BOLT; FRT AXLE
(F) M8X90 		9-01065-890-0 02 1 9301-9306
19 BOLT; FRT AXLE
(F) M8X90 W/LK WASHER 		8-97093-666-0 02 1 9307-
19 BOLT; FRT AXLE
(E) M8X25 		9-02060-825-0 06 1 9301-9306
19 BOLT; FRT AXLE
(E) M8X25 W/LK WASHER 		8-97093-664-0 06 1 9307-
19 BOLT; FRT AXLE
(D) M8X30 		9-02060-830-0 02 1 9301-9306
19 BOLT; FRT AXLE
(D) M8X30 W/LK WASHER 		8-97093-665-0 02 1 9307-
19 BOLT; FRT AXLE
(A) M12X22 FLANGE 		0-28081-222-0 04 1 9512-
19 BOLT; FRT AXLE
(B) M8X20 FLANGE 		0-28280-820-0 04 1 9512-
19 BOLT; FRT AXLE
(C) M8X25 W/LK&PL WASHER 		8-94180-329-1 03 1 9512-
23 NUT; FRT AXLE
(A) M8 		9-09110-508-0 02 1 9301-
23 NUT; FRT AXLE
(B) M6 FLANGE 		8-97063-399-0 02 1 9512-
45 CLIP
(A) ID=14.5 & 7.5 		8-94315-424-0 01 1 9512-
45 CLIP
(B) L=8.9 		8-94435-551-1 03 1 9512-
45 CLIP
(C) 		8-94466-385-0 01 1 9512-
45 CLIP
(D) ID=11 L=40 		9-09525-073-0 01 1 9301-9511
45 CLIP
(D) ID=22 L=40 		5-09700-369-0 01 1 9512-
140 VALVE UNIT; AXLE 8-97101-858-1 01 1 9512-
141 HOSE; VACUUM
(A) 		8-97131-140-0 01 1 9512-
141 HOSE; VACUUM
(B) 		8-97134-845-0 01 1 9512-
142 HOSE; VSV
(A) 		8-97101-810-0 01 1 9512-
142 HOSE; VSV
(B) 		8-97101-811-2 01 1 9512-
143 PIPE; VACUUM 8-97133-591-0 01 1 9512-
145 HOSE; VAC TANK
L=150 SERVICED BY L=3000 		0-04740-300-0 01 1 9512-
147 TANK; VACUUM 8-97102-100-2 01 1 9512-

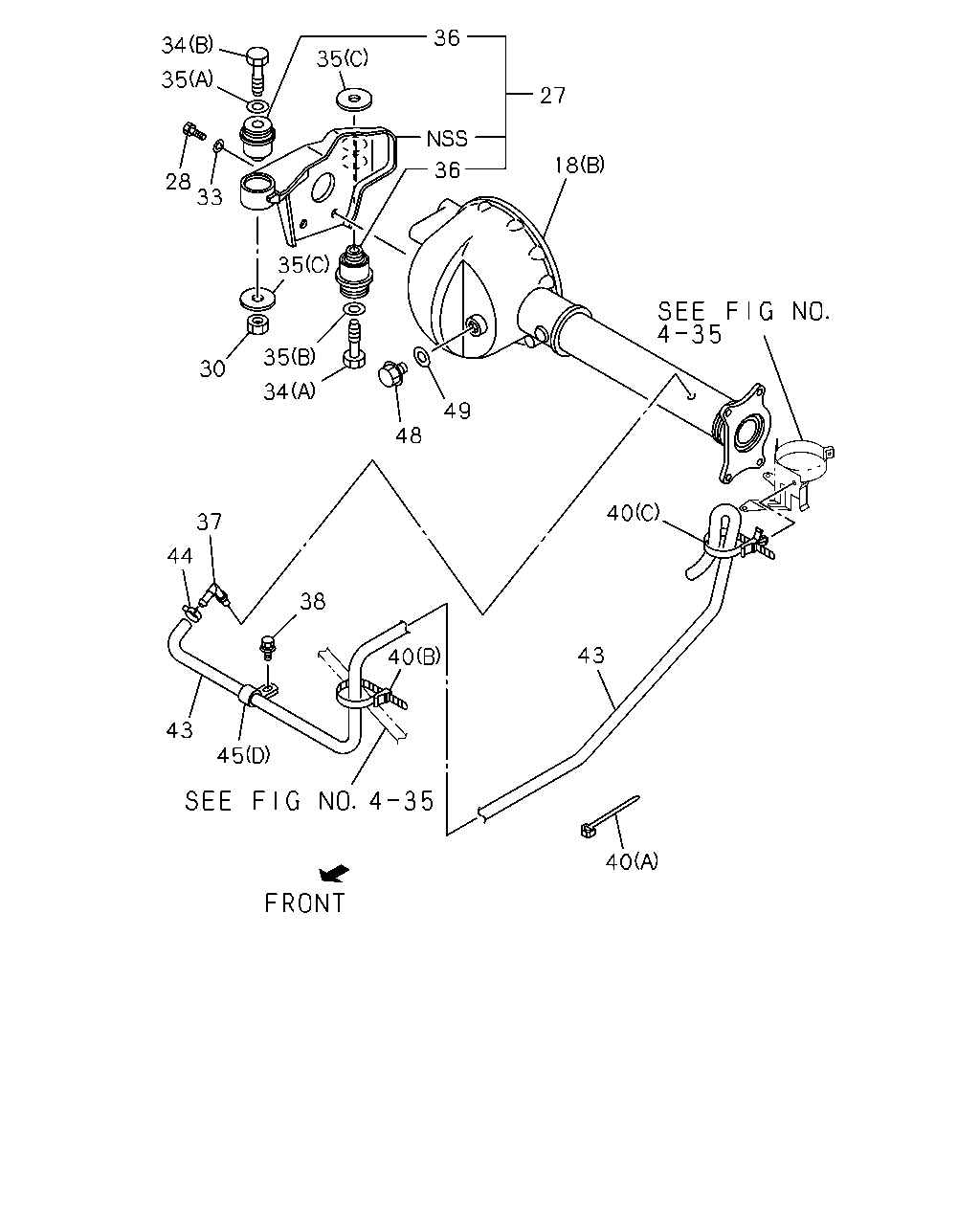

çizim 70728
34 35 28 33 35 36 27 18 36 35 30 35 34 48 49 40 43 40 40 45 43 38 37 44
BalonParca AdiParca NoAdetTipApplied Date
18 CASE; FRT AXLE
(A) 		8-97081-658-2 01 1 9512-
18 CASE; FRT AXLE
(B) 		8-97018-230-0 01 1 9301-9511
18 CASE; FRT AXLE
(B) 		8-97101-757-3 01 1 9512-9611
18 CASE; FRT AXLE
(B) 		8-97143-331-0 01 1 9612-
27 BRACKET; AXLE CASE 8-94382-043-0 01 1 9301-9409
27 BRACKET; AXLE CASE 8-97113-948-0 01 1 9410-
27 BRACKET; AXLE CASE 8-94382-042-0 01 1 9301-
28 BOLT; BRKT TO AXLE CASE
M12X25 		0-20801-225-0 08 1 9301-9501
28 BOLT; BRKT TO AXLE CASE
M12X22 FLANGE 		0-28081-222-0 08 1 9502-
30 NUT; FRT AXLE MTG
M14 		9-99110-514-0 02 1 9301-9511
30 NUT; FRT AXLE MTG
M14 		9-99110-514-0 02 1 9512-
33 WASHER; LK,BRKT TO AXLE CASE
ID=12.2 		9-09150-512-0 08 1 9301-9408
33 WASHER; LK,BRKT TO AXLE CASE
ID=12.2 		9-09150-612-0 08 1 9409-9501
34 BOLT; FRT AXLE MTG
(A) M14X75 		9-91066-475-0 02 1 9301-9511
34 BOLT; FRT AXLE MTG
(A) M14X75 		9-91066-475-0 02 1 9512-
34 BOLT; FRT AXLE MTG
(B) M14X84 		8-94452-339-2 02 1 9301-9511
34 BOLT; FRT AXLE MTG
(B) M14X84 		8-94452-339-2 02 1 9512-
35 WASHER; FRT AXLE MTG
(A) ID=14 OD=40 		8-94457-273-0 02 1 9301-9511
35 WASHER; FRT AXLE MTG
(A) ID=14 OD=40 		8-94457-273-0 02 1 9512-
35 WASHER; FRT AXLE MTG
(B) ID=15 OD=36 		9-09164-714-0 02 1 9301-9511
35 WASHER; FRT AXLE MTG
(B) ID=15 OD=36 		9-09164-714-0 02 1 9512-
35 WASHER; FRT AXLE MTG
(C) ID=14.2 OD=50 		8-94419-772-0 04 1 9301-9303
35 WASHER; FRT AXLE MTG
(C) ID=14 OD=50 		8-97093-581-0 04 1 9304-9511
35 WASHER; FRT AXLE MTG
(C) ID=14 OD=50 		8-97093-581-0 04 1 9512-
36 BUSHING; RUBBER,FRT AXLE MTG 8-97018-240-0 04 1 9301-
37 BREATHER; FRT AXLE CASE 8-94226-943-0 01 1 9301-9511
37 BREATHER; FRT AXLE CASE 8-94226-943-0 02 1 9512-9607
37 BREATHER; FRT AXLE CASE 8-94226-943-0 01 1 9608-
38 BOLT; AIR BREATHER,FRT AXLE
M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9301-9511
38 BOLT; AIR BREATHER,FRT AXLE
M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9512-9607
38 BOLT; AIR BREATHER,FRT AXLE
M6X20 FLANGE 		0-28680-620-0 01 1 9608-
40 CLIP; BAND,AIR BREATHER HOSE
(A) L=140 		5-09707-031-0 01 1 9303-9511
40 CLIP; BAND,AIR BREATHER HOSE
(A) L=140 		5-09707-031-0 01 1 9512-
40 CLIP; BAND,AIR BREATHER HOSE
(B) L=170 		5-09707-054-0 02 1 9301-9302
40 CLIP; BAND,AIR BREATHER HOSE
(B) L=170 		5-09707-054-0 01 1 9303-9511
40 CLIP; BAND,AIR BREATHER HOSE
(B) L=170 		5-09707-054-0 01 1 9512-
40 CLIP; BAND,AIR BREATHER HOSE
(C) L=142 		8-94232-619-0 01 1 9301-9511
40 CLIP; BAND,AIR BREATHER HOSE
(C) L=172 		8-94232-620-0 01 1 9512-
43 HOSE; RUBBER,AIR BREATHER
L=1400 		8-97084-538-0 01 1 9301-9308
43 HOSE; RUBBER,AIR BREATHER
L=1400 SERVICED BY L=3000 		0-04750-300-0 01 1 9309-9511
44 CLIP; AIR BREATHER HOSE
ID=11 		8-94238-570-0 01 1 9301-9511
44 CLIP; AIR BREATHER HOSE
ID=11 		8-94238-570-0 02 1 9512-9607
44 CLIP; AIR BREATHER HOSE
ID=11 		8-94238-570-0 01 1 9608-
45 CLIP
(A) ID=14.5 & 7.5 		8-94315-424-0 01 1 9512-
45 CLIP
(B) L=8.9 		8-94435-551-1 03 1 9512-
45 CLIP
(C) 		8-94466-385-0 01 1 9512-
45 CLIP
(D) ID=11 L=40 		9-09525-073-0 01 1 9301-9511
45 CLIP
(D) ID=22 L=40 		5-09700-369-0 01 1 9512-
48 PLUG; DRAIN,AXLE CASE
M20X10.5 		9-09662-005-0 01 1 9301-9511
48 PLUG; DRAIN,AXLE CASE
M20X10.5 		9-09662-005-0 02 1 9512-
49 GASKET; DRAIN PLUG
ID=20 OD=30 		8-94462-734-0 01 1 9301-
49 GASKET; DRAIN PLUG
ID=20 OD=30 		8-94462-734-0 02 1 9612-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
