Isuzu WW
▶
SUV
▶
UC
▶
50688 - UC-LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

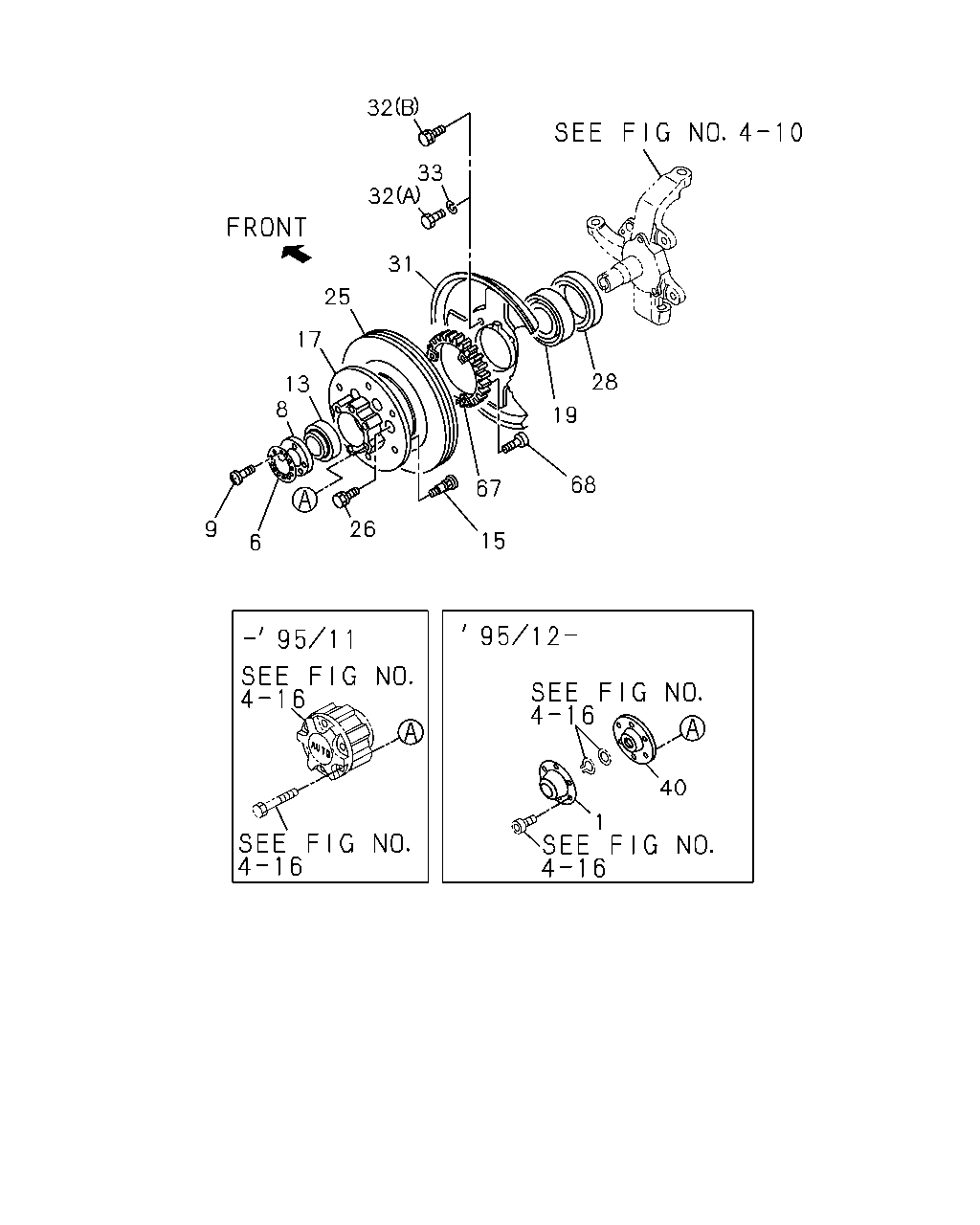

4-11 — FRONT HUB AND DRUM OR ROTOR
(#45352) — 26 parça
32
33
32
31
25
17
13
8
9
6
26
15
67
68
19
28
40
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
8-94173-314-1
02
1
9512-
6
WASHER; LK,FRT HUB
T=1.8 OD=65
8-94442-398-0
02
1
9301-
8
NUT; ADJ,FRT HUB
8-94442-399-1
02
1
9301-
9
SCREW; ADJ,NUT
M4X8 CK-HEAD
9-93090-408-0
06
1
9301-
13
BEARING; HUB OUTER,FRT AXLE
NSK
8-94227-041-0
02
1
9301-
15
PIN; WHEEL,FRT AXLE
8-94223-200-0
12
1
9301-
17
HUB; FRT AXLE
8-94381-084-1
02
1
9301-9511
17
HUB; FRT AXLE
8-97105-107-0
02
1
9512-
19
BEARING; HUB INNER,FRT AXLE
NSK
8-94258-819-0
02
1
9301-
25
ROTOR; DISC BRK,FRT
8-97046-080-0
02
1
9301-9511
25
ROTOR; DISC BRK,FRT
EXC. 4 WHEEL ANTI-LOCK BRAKE(JE5)
8-97046-080-0
02
1
9512-
25
ROTOR; DISC BRK,FRT
4 WHEEL ANTI-LOCK BRAKE(JE5)
8-97096-395-0
02
1
9512-
26
BOLT; BRK,DISC TO HUB
M12X31.5
8-94409-921-0
12
1
9301-
28
SEAL; OIL,FRT HUB
8-94407-711-0
02
1
9301-
31
COVER; DUST,FRT BRAKE
8-94375-418-0
01
1
9301-9309
31
COVER; DUST,FRT BRAKE
8-97101-933-0
01
1
9310-9511
31
COVER; DUST,FRT BRAKE
8-94375-418-0
01
1
9512-
31
COVER; DUST,FRT BRAKE
8-94375-417-0
01
1
9301-9309
31
COVER; DUST,FRT BRAKE
8-97101-932-0
01
1
9310-9511
31
COVER; DUST,FRT BRAKE
8-94375-417-0
01
1
9512-
32
BOLT; DUST COVER TO KNUCKLE
(A) M8X10
0-20800-810-0
06
1
9301-9411
32
BOLT; DUST COVER TO KNUCKLE
(B) M8X10 W/LK WASHER
8-97025-916-0
06
1
9412-
33
WASHER; LK,DRUM COVER
ID=8.2
9-09150-508-0
06
1
9301-9411
40
FLANGE; FRT WHEEL HUB
8-94173-313-0
02
1
9512-
67
ROTOR; SENSOR
4 WHEEL ANTI-LOCK BRAKE(JE5)
8-97096-411-0
02
1
9512-
68
BOLT; SENSOR ROTOR
4 WHEEL ANTI-LOCK BRAKE(JE5) M8X16
9-05820-816-0
06
1
9512-
