◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UC ▶ 50688 - UC-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#45351) — 75 parça

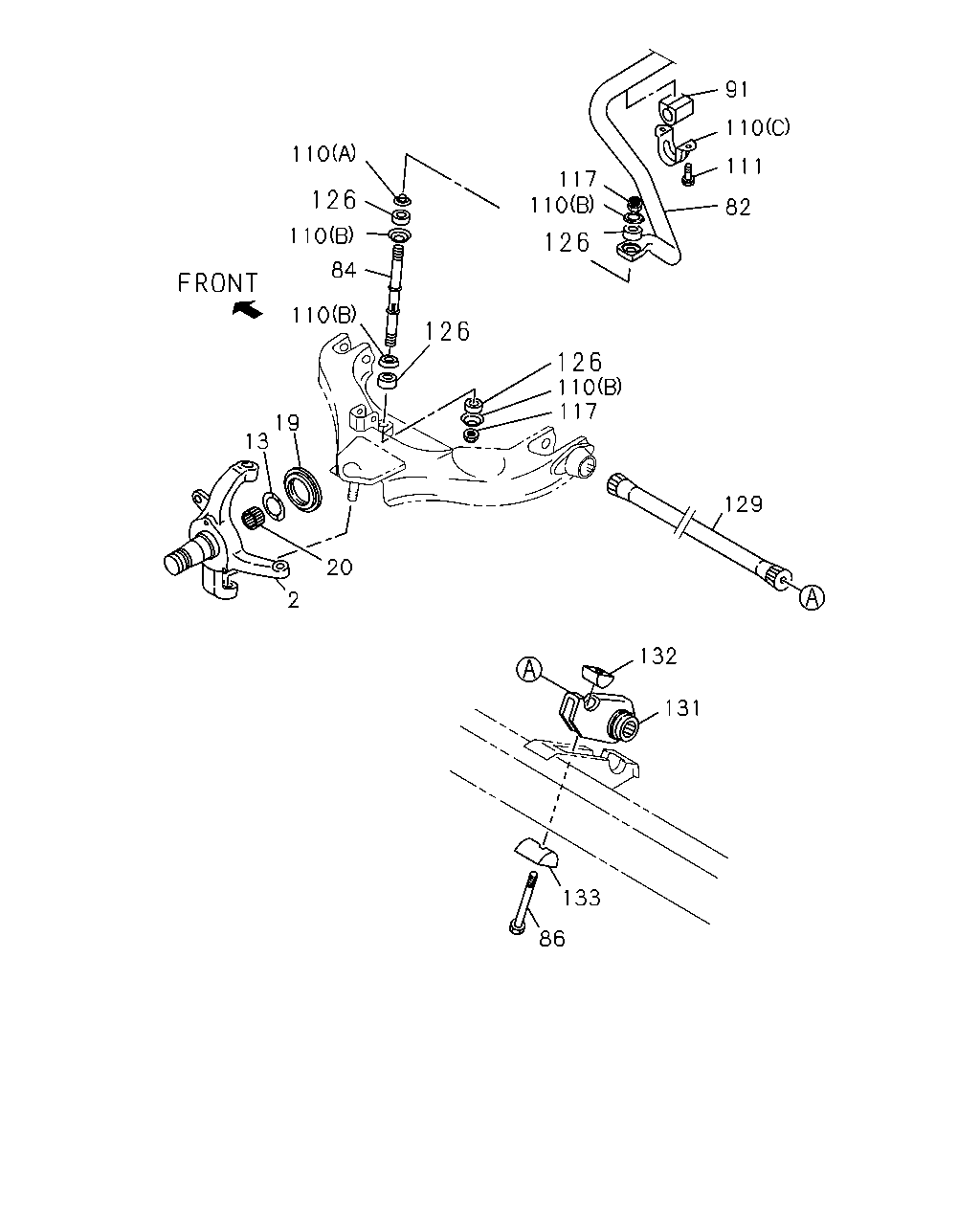

çizim 67680
91 110 111 82 117 110 126 126 110 117 129 132 131 133 86 2 20 13 19 126 110 84 110 126 110
BalonParca AdiParca NoAdetTipApplied Date
2 KNUCKLE; FRT AXLE 8-97012-101-0 01 1 9301-9511
2 KNUCKLE; FRT AXLE
EXC. 4 WHEEL ANTI-LOCK BRAKE(JE5) 		8-97104-467-0 01 1 9512-
2 KNUCKLE; FRT AXLE 8-97012-100-0 01 1 9301-9511
2 KNUCKLE; FRT AXLE
EXC. 4 WHEEL ANTI-LOCK BRAKE(JE5) 		8-97104-466-0 01 1 9512-
2 KNUCKLE; FRT AXLE
4 WHEEL ANTI-LOCK BRAKE(JE5) 		8-97104-465-0 01 1 9512-
2 KNUCKLE; FRT AXLE
4 WHEEL ANTI-LOCK BRAKE(JE5) 		8-97104-464-0 01 1 9512-
13 WASHER; THRUST,KNUCKLE 8-94407-718-0 02 1 9301-
19 SEAL; OIL,KNUCKLE 8-94407-725-1 02 1 9301-9304
19 SEAL; OIL,KNUCKLE 8-97044-741-0 02 1 9305-
20 BEARING; KNUCKLE 8-94407-708-0 02 1 9301-9511
20 BEARING; KNUCKLE 8-97120-850-0 02 1 9512-
82 BAR; STAB,FRT SUSP 8-94374-521-0 01 1 9301-9511
82 BAR; STAB,FRT SUSP 8-97126-525-0 01 1 9512-
84 BOLT; STAB SHAFT TO CONT LINK 8-94408-853-1 02 1 9301-9511
86 BOLT; TORSION BAR,HEIGHT CONT
M18X148 		8-97033-127-2 02 1 9301-
91 BUSHING; RUBBER,STAB BAR 8-94419-403-0 02 1 9301-9402
91 BUSHING; RUBBER,STAB BAR 8-97114-244-0 02 1 9403-9511
91 BUSHING; RUBBER,STAB BAR 8-97126-526-0 02 1 9512-
110 CLAMP; STAB TO ROD
(A) ID=18 OD=39 		8-94227-049-1 02 1 9301-9402
110 CLAMP; STAB TO ROD
(A) 		8-97114-257-0 02 1 9403-9511
110 CLAMP; STAB TO ROD
(B) OD=32 		8-94342-383-0 08 1 9301-9402
110 CLAMP; STAB TO ROD
(B) 		8-97114-256-0 08 1 9403-9511
110 CLAMP; STAB TO ROD
(C) ID=36 		8-94407-720-0 02 1 9301-9501
110 CLAMP; STAB TO ROD
(C) ID=36 		8-97032-869-0 02 1 9502-
111 BOLT; CLAMP TO ROD
M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 9301-9511
117 NUT; STAB BAR BUSHING
M8 FLANGE 		8-94342-381-0 04 1 9301-9511
126 RUBBER; MTG,STAB BAR 8-94227-138-0 08 1 9301-9402
126 RUBBER; MTG,STAB BAR 8-97114-245-0 08 1 9403-9511
129 BAR; TORSION,FRT SUSP 8-94337-883-0 01 1 9301-9511
129 BAR; TORSION,FRT SUSP 8-97120-786-0 01 1 9512-
129 BAR; TORSION,FRT SUSP 8-94337-882-0 01 1 9301-9511
129 BAR; TORSION,FRT SUSP 8-97120-785-0 01 1 9512-
131 ARM; HEIGHT CONT 8-94360-802-1 02 1 9301-9504
131 ARM; HEIGHT CONT 8-94360-802-2 01 1 9505-
131 ARM; HEIGHT CONT 8-97116-144-1 01 1 9505-
132 COLLAR; TORSION BAR 8-94367-757-0 02 1 9301-
133 SEAT; TORSION BAR,HEIGHT CONT 8-97032-976-1 02 1 9301-

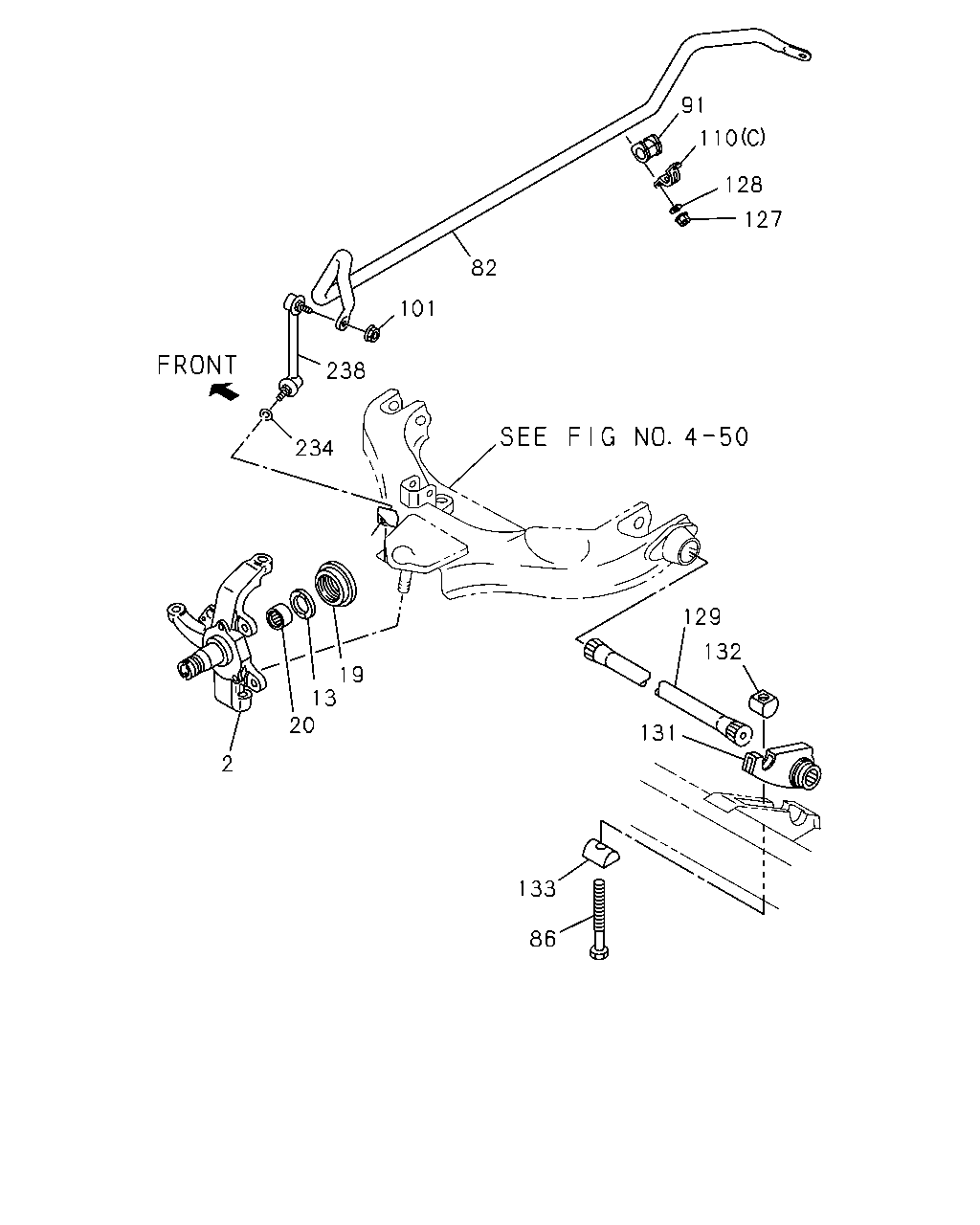

çizim 67684
91 110 128 127 82 101 238 234 19 13 20 2 133 86 131 132 129
BalonParca AdiParca NoAdetTipApplied Date
2 KNUCKLE; FRT AXLE 8-97012-101-0 01 1 9301-9511
2 KNUCKLE; FRT AXLE
EXC. 4 WHEEL ANTI-LOCK BRAKE(JE5) 		8-97104-467-0 01 1 9512-
2 KNUCKLE; FRT AXLE 8-97012-100-0 01 1 9301-9511
2 KNUCKLE; FRT AXLE
EXC. 4 WHEEL ANTI-LOCK BRAKE(JE5) 		8-97104-466-0 01 1 9512-
2 KNUCKLE; FRT AXLE
4 WHEEL ANTI-LOCK BRAKE(JE5) 		8-97104-465-0 01 1 9512-
2 KNUCKLE; FRT AXLE
4 WHEEL ANTI-LOCK BRAKE(JE5) 		8-97104-464-0 01 1 9512-
13 WASHER; THRUST,KNUCKLE 8-94407-718-0 02 1 9301-
19 SEAL; OIL,KNUCKLE 8-94407-725-1 02 1 9301-9304
19 SEAL; OIL,KNUCKLE 8-97044-741-0 02 1 9305-
20 BEARING; KNUCKLE 8-94407-708-0 02 1 9301-9511
20 BEARING; KNUCKLE 8-97120-850-0 02 1 9512-
82 BAR; STAB,FRT SUSP 8-94374-521-0 01 1 9301-9511
82 BAR; STAB,FRT SUSP 8-97126-525-0 01 1 9512-
86 BOLT; TORSION BAR,HEIGHT CONT
M18X148 		8-97033-127-2 02 1 9301-
91 BUSHING; RUBBER,STAB BAR 8-94419-403-0 02 1 9301-9402
91 BUSHING; RUBBER,STAB BAR 8-97114-244-0 02 1 9403-9511
91 BUSHING; RUBBER,STAB BAR 8-97126-526-0 02 1 9512-
101 NUT; STAB BAR 8-97035-383-0 04 1 9512-
110 CLAMP; STAB TO ROD
(A) ID=18 OD=39 		8-94227-049-1 02 1 9301-9402
110 CLAMP; STAB TO ROD
(A) 		8-97114-257-0 02 1 9403-9511
110 CLAMP; STAB TO ROD
(B) OD=32 		8-94342-383-0 08 1 9301-9402
110 CLAMP; STAB TO ROD
(B) 		8-97114-256-0 08 1 9403-9511
110 CLAMP; STAB TO ROD
(C) ID=36 		8-94407-720-0 02 1 9301-9501
110 CLAMP; STAB TO ROD
(C) ID=36 		8-97032-869-0 02 1 9502-
127 NUT; CLAMP
M8 		9-09110-508-0 04 1 9512-
128 WASHER; LK,CLAMP
ID=8.2 		9-09150-808-0 04 1 9512-
129 BAR; TORSION,FRT SUSP 8-94337-883-0 01 1 9301-9511
129 BAR; TORSION,FRT SUSP 8-97120-786-0 01 1 9512-
129 BAR; TORSION,FRT SUSP 8-94337-882-0 01 1 9301-9511
129 BAR; TORSION,FRT SUSP 8-97120-785-0 01 1 9512-
131 ARM; HEIGHT CONT 8-94360-802-1 02 1 9301-9504
131 ARM; HEIGHT CONT 8-94360-802-2 01 1 9505-
131 ARM; HEIGHT CONT 8-97116-144-1 01 1 9505-
132 COLLAR; TORSION BAR 8-94367-757-0 02 1 9301-
133 SEAT; TORSION BAR,HEIGHT CONT 8-97032-976-1 02 1 9301-
234 WASHER; STAB 8-97049-475-0 02 1 9512-
238 ROD LINK ASM; STABILIZER,FRT 8-97018-228-2 01 1 9512-
238 ROD LINK ASM; STABILIZER,FRT 8-97018-227-2 01 1 9512-
