4-01 — PROPELLER SHAFT (#45350) — 133 parça

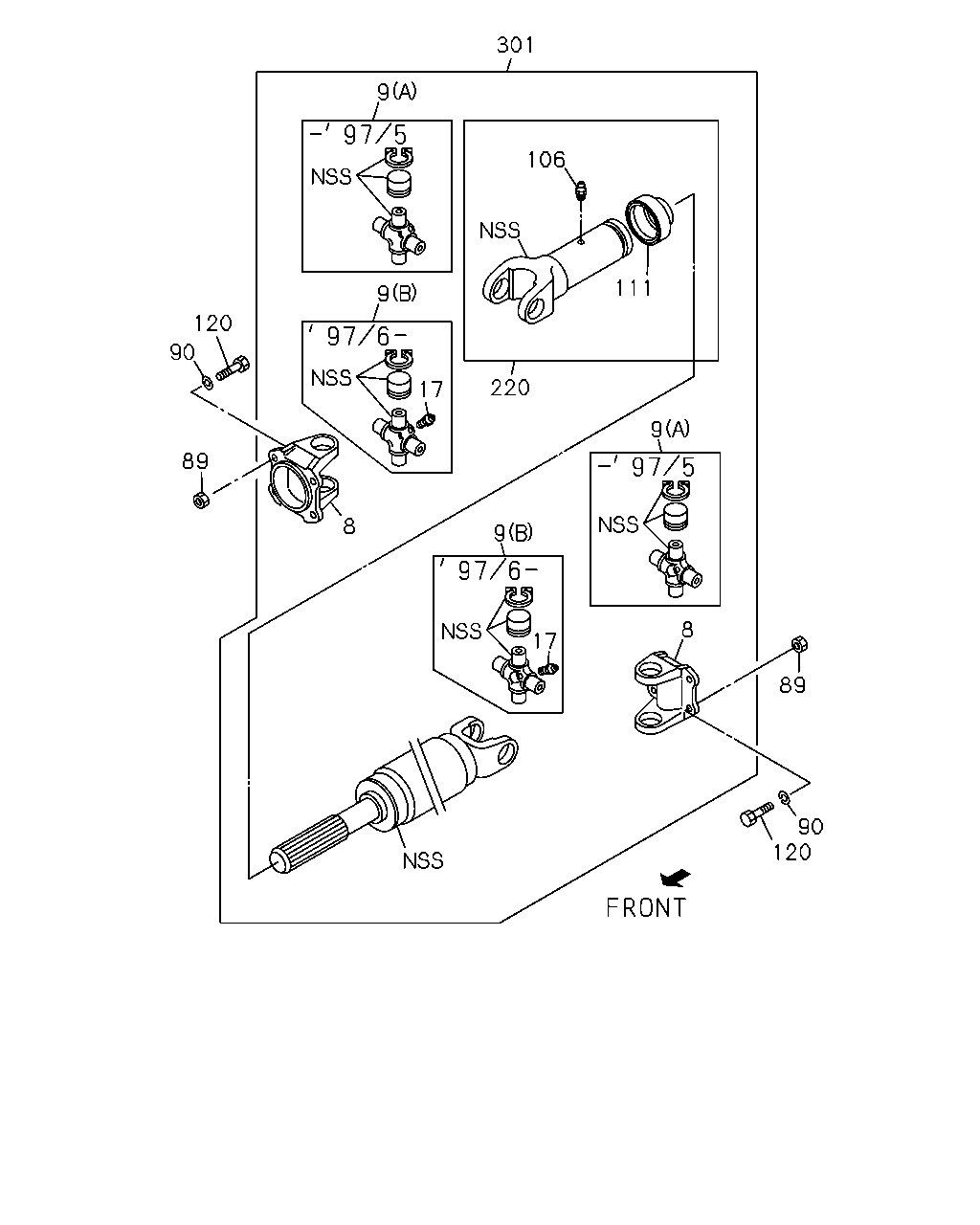

301 9 106 111 220 9 9 17 8 89 90 120 8 89 90 120 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	YOKE; FLANGE,PROP SHAFT REAR	8-97020-281-0	02	1	9301-	●	●
8	YOKE; FLANGE,PROP SHAFT FRONT	8-97020-310-0	02	1	9301-	●	●
9	JOURNAL ASM; PROP SHAFT REAR	8-97020-279-0	03	1	9301-	●	●
9	JOURNAL ASM; PROP SHAFT (A)FRONT	8-97071-811-0	02	1	9301-9409	●	●
9	JOURNAL ASM; PROP SHAFT (A)FRONT	8-94335-589-1	02	1	9409-9705	●	●
9	JOURNAL ASM; PROP SHAFT (B)FRONT	8-97029-526-1	02	1	9706-	●	●
17	NIPPLE; GREASE,PROP SHAFT FRONT M6 STRAIGHT	9-09031-006-0	02	1	9706-	●	●
89	NUT; YOKE TO RR AXLE REAR M10	8-94159-009-1	04	1	9301-	●	●
89	NUT; YOKE TO RR AXLE FRONT M10	8-94159-009-1	08	1	9301-	●	●
90	WASHER; LK,YOKE TO RR AXLE REAR ID=10.2	9-09150-610-0	04	1	9301-9308	●	●
90	WASHER; LK,YOKE TO RR AXLE REAR ID=10.2	9-09150-810-0	04	1	9309-9403	●	●
90	WASHER; LK,YOKE TO RR AXLE REAR ID=10.2	9-09150-610-0	04	1	9404-	●	●
90	WASHER; LK,YOKE TO RR AXLE FRONT ID=10.2	9-09150-610-0	08	1	9301-9308	●	●
90	WASHER; LK,YOKE TO RR AXLE FRONT ID=10.2	9-09150-810-0	08	1	9309-9403	●	●
90	WASHER; LK,YOKE TO RR AXLE FRONT ID=10.2	9-09150-610-0	08	1	9404-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT REAR	8-97081-583-0	01	1	9301-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT FRONT M6 STRAIGHT	9-09031-006-0	01	1	9301-	●	●
111	RING; SLEEVE FRONT	5-37249-004-0	01	1	9301-9308	●	●
111	RING; SLEEVE FRONT	8-97020-597-1	01	1	9309-	●	●
120	BOLT; YOKE TO RR AXLE REAR M10X27	8-94146-552-2	04	1	9301-	●	●
120	BOLT; YOKE TO RR AXLE FRONT M10X27	8-94146-552-2	08	1	9301-	●	●
220	YOKE; SPLINED FRONT	8-79020-307-0	01	1	9301-9305	●	●
220	YOKE; SPLINED FRONT L=177	8-97049-301-1	01	1	9306-	●	●
301	SHAFT ASM; PROP,FRT	8-94376-303-4	01	1	9309-9705	●
301	SHAFT ASM; PROP,FRT L=404	8-97180-424-0	01	1	9706-	●
301	SHAFT ASM; PROP,FRT L=536	8-94376-301-4	01	1	9309-9705		●
301	SHAFT ASM; PROP,FRT L=631	8-97180-423-0	01	1	9706-		●

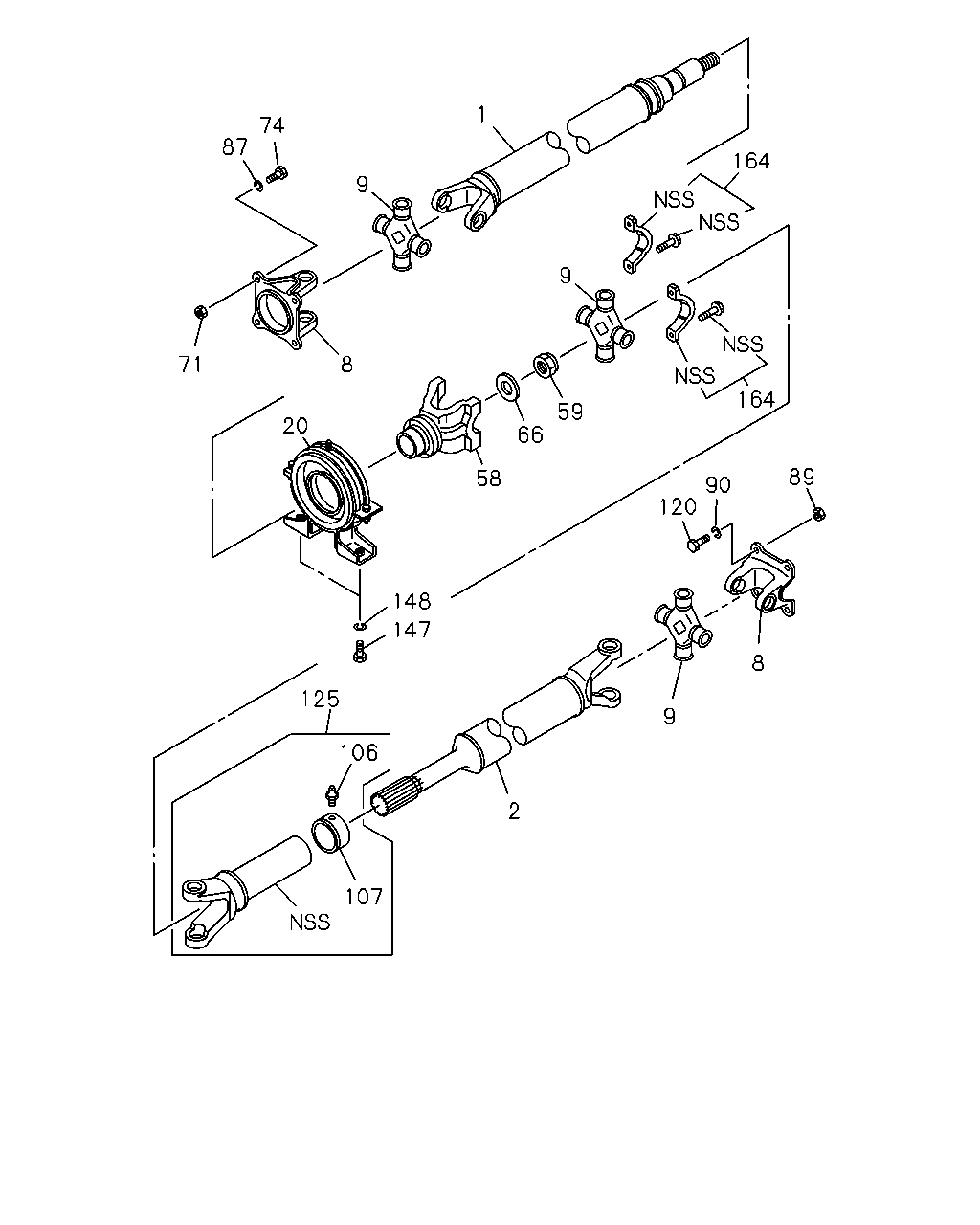

1 9 74 87 71 8 20 9 164 164 59 66 58 148 147 125 106 107 2 9 8 89 90 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP FRONT	8-94376-303-2	01	1	9301-9308	●
1	SHAFT; PROP REAR	8-97082-043-0	01	1	9301-9308	●
1	SHAFT; PROP FRONT L=536	8-94376-301-2	01	1	9301-9308		●
1	SHAFT; PROP REAR	8-97082-045-0	01	1	9301-9308		●
2	SHAFT; PROP,2ND REAR	8-97082-048-0	01	1	9301-9308	●
2	SHAFT; PROP,2ND REAR	8-97082-049-0	01	1	9301-9308		●
8	YOKE; FLANGE,PROP SHAFT REAR	8-97020-281-0	02	1	9301-	●	●
8	YOKE; FLANGE,PROP SHAFT FRONT	8-97020-310-0	02	1	9301-	●	●
9	JOURNAL ASM; PROP SHAFT REAR	8-97020-279-0	03	1	9301-	●	●
9	JOURNAL ASM; PROP SHAFT (A)FRONT	8-97071-811-0	02	1	9301-9409	●	●
9	JOURNAL ASM; PROP SHAFT (A)FRONT	8-94335-589-1	02	1	9409-9705	●	●
9	JOURNAL ASM; PROP SHAFT (B)FRONT	8-97029-526-1	02	1	9706-	●	●
20	BEARING ASM; CTR,PROP SHAFT REAR	8-97025-752-0	01	1	9301-	●
20	BEARING ASM; CTR,PROP SHAFT REAR	8-97025-753-0	01	1	9301-9308		●
20	BEARING ASM; CTR,PROP SHAFT REAR	8-97103-546-1	01	1	9309-		●
58	FLANGE; SPLINED REAR	8-97024-846-0	01	1	9301-	●	●
59	NUT; RET TO SUPPORT REAR 0.625 UNF	8-97020-286-0	01	1	9301-	●	●
66	WASHER REAR	8-97020-285-0	01	1	9301-	●	●
71	NUT; YOKE REAR M10	8-94159-009-1	04	1	9301-	●	●
74	BOLT; YOKE,TRANS REAR M10X27	8-94146-552-2	04	1	9301-	●	●
87	WASHER; LK,1ST PROP TO 2ND PROP REAR ID=10.2	9-09150-610-0	04	1	9301-9308	●	●
87	WASHER; LK,1ST PROP TO 2ND PROP REAR ID=10.2	9-09150-810-0	04	1	9309-9403	●	●
87	WASHER; LK,1ST PROP TO 2ND PROP REAR ID=10.2	9-09150-610-0	04	1	9404-	●	●
89	NUT; YOKE TO RR AXLE REAR M10	8-94159-009-1	04	1	9301-	●	●
89	NUT; YOKE TO RR AXLE FRONT M10	8-94159-009-1	08	1	9301-	●	●
90	WASHER; LK,YOKE TO RR AXLE REAR ID=10.2	9-09150-610-0	04	1	9301-9308	●	●
90	WASHER; LK,YOKE TO RR AXLE REAR ID=10.2	9-09150-810-0	04	1	9309-9403	●	●
90	WASHER; LK,YOKE TO RR AXLE REAR ID=10.2	9-09150-610-0	04	1	9404-	●	●
90	WASHER; LK,YOKE TO RR AXLE FRONT ID=10.2	9-09150-610-0	08	1	9301-9308	●	●
90	WASHER; LK,YOKE TO RR AXLE FRONT ID=10.2	9-09150-810-0	08	1	9309-9403	●	●
90	WASHER; LK,YOKE TO RR AXLE FRONT ID=10.2	9-09150-610-0	08	1	9404-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT REAR	8-97081-583-0	01	1	9301-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT FRONT M6 STRAIGHT	9-09031-006-0	01	1	9301-	●	●
107	COVER; RET,SLEEVE REAR	8-97082-032-0	01	1	9301-	●	●
120	BOLT; YOKE TO RR AXLE REAR M10X27	8-94146-552-2	04	1	9301-	●	●
120	BOLT; YOKE TO RR AXLE FRONT M10X27	8-94146-552-2	08	1	9301-	●	●
125	YOKE ASM; SPLINED,PROP SHAFT REAR	8-97024-850-0	01	1	9301-	●	●
147	BOLT; CENTER BRG MTG REAR M12X20	0-20801-220-0	02	1	9301-9504	●	●
147	BOLT; CENTER BRG MTG REAR M12X20 FLANGE	0-28081-220-0	02	1	9505-	●	●
148	WASHER; LK,CENTER BRG MTG REAR ID=12.2	9-09150-512-0	02	1	9301-	●	●
164	PLATE; STRAP REAR	8-97020-288-0	02	1	9301-	●	●

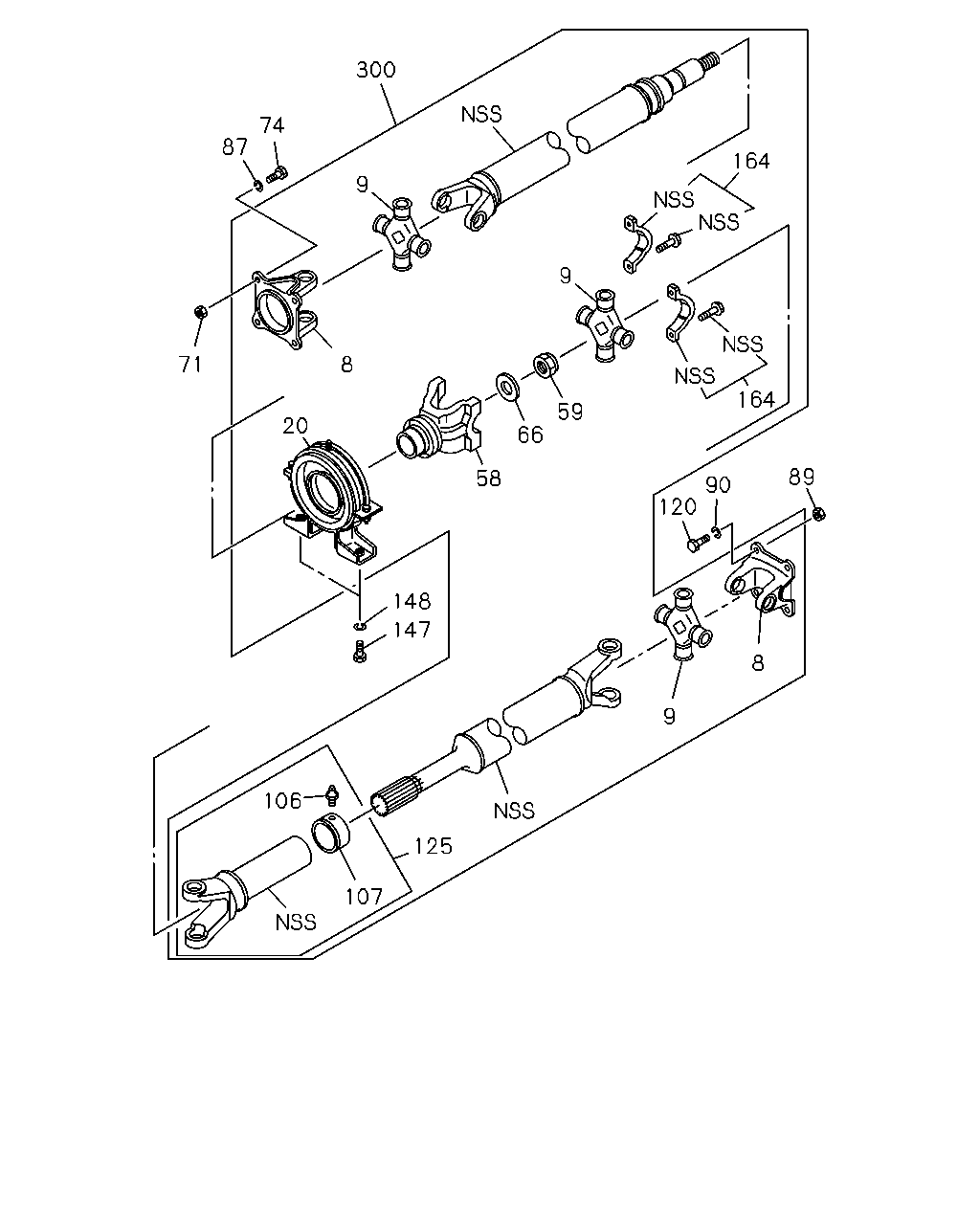

300 74 87 71 8 9 164 9 59 66 58 164 89 90 120 8 9 125 107 106 147 148 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	YOKE; FLANGE,PROP SHAFT REAR	8-97020-281-0	02	1	9301-	●	●
8	YOKE; FLANGE,PROP SHAFT FRONT	8-97020-310-0	02	1	9301-	●	●
9	JOURNAL ASM; PROP SHAFT REAR	8-97020-279-0	03	1	9301-	●	●
9	JOURNAL ASM; PROP SHAFT (A)FRONT	8-97071-811-0	02	1	9301-9409	●	●
9	JOURNAL ASM; PROP SHAFT (A)FRONT	8-94335-589-1	02	1	9409-9705	●	●
9	JOURNAL ASM; PROP SHAFT (B)FRONT	8-97029-526-1	02	1	9706-	●	●
20	BEARING ASM; CTR,PROP SHAFT REAR	8-97025-752-0	01	1	9301-	●
20	BEARING ASM; CTR,PROP SHAFT REAR	8-97025-753-0	01	1	9301-9308		●
20	BEARING ASM; CTR,PROP SHAFT REAR	8-97103-546-1	01	1	9309-		●
58	FLANGE; SPLINED REAR	8-97024-846-0	01	1	9301-	●	●
59	NUT; RET TO SUPPORT REAR 0.625 UNF	8-97020-286-0	01	1	9301-	●	●
66	WASHER REAR	8-97020-285-0	01	1	9301-	●	●
71	NUT; YOKE REAR M10	8-94159-009-1	04	1	9301-	●	●
74	BOLT; YOKE,TRANS REAR M10X27	8-94146-552-2	04	1	9301-	●	●
87	WASHER; LK,1ST PROP TO 2ND PROP REAR ID=10.2	9-09150-610-0	04	1	9301-9308	●	●
87	WASHER; LK,1ST PROP TO 2ND PROP REAR ID=10.2	9-09150-810-0	04	1	9309-9403	●	●
87	WASHER; LK,1ST PROP TO 2ND PROP REAR ID=10.2	9-09150-610-0	04	1	9404-	●	●
89	NUT; YOKE TO RR AXLE REAR M10	8-94159-009-1	04	1	9301-	●	●
89	NUT; YOKE TO RR AXLE FRONT M10	8-94159-009-1	08	1	9301-	●	●
90	WASHER; LK,YOKE TO RR AXLE REAR ID=10.2	9-09150-610-0	04	1	9301-9308	●	●
90	WASHER; LK,YOKE TO RR AXLE REAR ID=10.2	9-09150-810-0	04	1	9309-9403	●	●
90	WASHER; LK,YOKE TO RR AXLE REAR ID=10.2	9-09150-610-0	04	1	9404-	●	●
90	WASHER; LK,YOKE TO RR AXLE FRONT ID=10.2	9-09150-610-0	08	1	9301-9308	●	●
90	WASHER; LK,YOKE TO RR AXLE FRONT ID=10.2	9-09150-810-0	08	1	9309-9403	●	●
90	WASHER; LK,YOKE TO RR AXLE FRONT ID=10.2	9-09150-610-0	08	1	9404-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT REAR	8-97081-583-0	01	1	9301-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT FRONT M6 STRAIGHT	9-09031-006-0	01	1	9301-	●	●
107	COVER; RET,SLEEVE REAR	8-97082-032-0	01	1	9301-	●	●
120	BOLT; YOKE TO RR AXLE REAR M10X27	8-94146-552-2	04	1	9301-	●	●
120	BOLT; YOKE TO RR AXLE FRONT M10X27	8-94146-552-2	08	1	9301-	●	●
125	YOKE ASM; SPLINED,PROP SHAFT REAR	8-97024-850-0	01	1	9301-	●	●
147	BOLT; CENTER BRG MTG REAR M12X20	0-20801-220-0	02	1	9301-9504	●	●
147	BOLT; CENTER BRG MTG REAR M12X20 FLANGE	0-28081-220-0	02	1	9505-	●	●
148	WASHER; LK,CENTER BRG MTG REAR ID=12.2	9-09150-512-0	02	1	9301-	●	●
164	PLATE; STRAP REAR	8-97020-288-0	02	1	9301-	●	●
300	SHAFT ASM; PROP,RR	8-97081-648-0	01	1	9309-	●
300	SHAFT ASM; PROP,RR	8-97103-587-1	01	1	9309-		●

1 106 111 220 9 8 89 90 120 9 8 89 90 120 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP FRONT	8-94376-303-2	01	1	9301-9308	●
1	SHAFT; PROP REAR	8-97082-043-0	01	1	9301-9308	●
1	SHAFT; PROP FRONT L=536	8-94376-301-2	01	1	9301-9308		●
1	SHAFT; PROP REAR	8-97082-045-0	01	1	9301-9308		●
8	YOKE; FLANGE,PROP SHAFT REAR	8-97020-281-0	02	1	9301-	●	●
8	YOKE; FLANGE,PROP SHAFT FRONT	8-97020-310-0	02	1	9301-	●	●
9	JOURNAL ASM; PROP SHAFT REAR	8-97020-279-0	03	1	9301-	●	●
9	JOURNAL ASM; PROP SHAFT (A)FRONT	8-97071-811-0	02	1	9301-9409	●	●
9	JOURNAL ASM; PROP SHAFT (A)FRONT	8-94335-589-1	02	1	9409-9705	●	●
9	JOURNAL ASM; PROP SHAFT (B)FRONT	8-97029-526-1	02	1	9706-	●	●
89	NUT; YOKE TO RR AXLE REAR M10	8-94159-009-1	04	1	9301-	●	●
89	NUT; YOKE TO RR AXLE FRONT M10	8-94159-009-1	08	1	9301-	●	●
90	WASHER; LK,YOKE TO RR AXLE REAR ID=10.2	9-09150-610-0	04	1	9301-9308	●	●
90	WASHER; LK,YOKE TO RR AXLE REAR ID=10.2	9-09150-810-0	04	1	9309-9403	●	●
90	WASHER; LK,YOKE TO RR AXLE REAR ID=10.2	9-09150-610-0	04	1	9404-	●	●
90	WASHER; LK,YOKE TO RR AXLE FRONT ID=10.2	9-09150-610-0	08	1	9301-9308	●	●
90	WASHER; LK,YOKE TO RR AXLE FRONT ID=10.2	9-09150-810-0	08	1	9309-9403	●	●
90	WASHER; LK,YOKE TO RR AXLE FRONT ID=10.2	9-09150-610-0	08	1	9404-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT REAR	8-97081-583-0	01	1	9301-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT FRONT M6 STRAIGHT	9-09031-006-0	01	1	9301-	●	●
111	RING; SLEEVE FRONT	5-37249-004-0	01	1	9301-9308	●	●
111	RING; SLEEVE FRONT	8-97020-597-1	01	1	9309-	●	●
117	SHAFT; PROP,FRONT AXLE	8-97049-584-0	01	1	9301-9308	●
117	SHAFT; PROP,FRONT AXLE	8-97049-581-0	01	1	9301-9308		●
120	BOLT; YOKE TO RR AXLE REAR M10X27	8-94146-552-2	04	1	9301-	●	●
120	BOLT; YOKE TO RR AXLE FRONT M10X27	8-94146-552-2	08	1	9301-	●	●
220	YOKE; SPLINED FRONT	8-79020-307-0	01	1	9301-9305	●	●
220	YOKE; SPLINED FRONT L=177	8-97049-301-1	01	1	9306-	●	●
