3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶

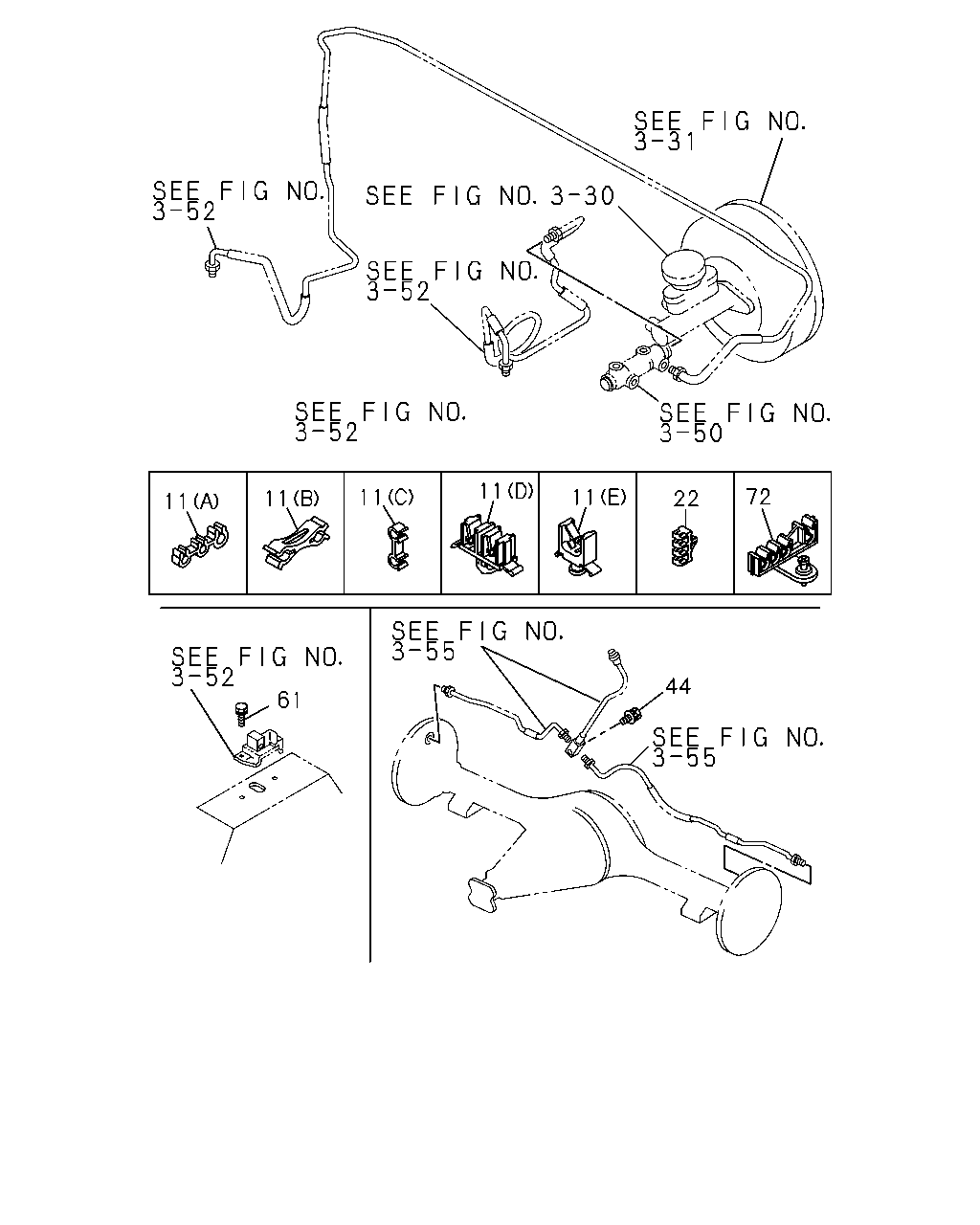

3-58 — FIXING PARTS; OIL PIPING
(#45348) — 17 parça
11
11
11
11
11
22
72
44
61
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
CLIP; OIL PIPE
4 WHEEL ANTI-LOCK BRAKE(JE5) (A) ID=4.8X3
8-94487-369-0
01
1
9512-
11
CLIP; OIL PIPE
(B) ID=4.6X2
8-94241-454-0
02
1
9301-9310
11
CLIP; OIL PIPE
(B) ID=4.6X2
8-94241-454-0
01
1
9311-9504
11
CLIP; OIL PIPE
(B) ID=4.6X2
8-94241-454-0
03
1
9505-9511
11
CLIP; OIL PIPE
(B) ID=4.6X2
8-94241-454-0
02
1
9512-9512
11
CLIP; OIL PIPE
4 WHEEL ANTI-LOCK BRAKE(JE5) (B) ID=4.6X2
8-94241-454-0
02
1
9601-
11
CLIP; OIL PIPE
EXC. 4 WHEEL ANTI-LOCK BRAKE(JE5) (B) ID=4.6X2
8-94241-454-0
01
1
9601-
11
CLIP; OIL PIPE
EXC. 4 WHEEL ANTI-LOCK BRAKE(JE5) (B) ID=6.4 & 4.8
8-94257-329-0
01
1
9601-
11
CLIP; OIL PIPE
4 WHEEL ANTI-LOCK BRAKE(JE5) (C)
8-94338-104-0
01
1
9512-
11
CLIP; OIL PIPE
(D)
8-94222-044-2
01
1
9512-
11
CLIP; OIL PIPE
(E) ID=4.8 H=26
8-94249-685-0
01
1
9512-
22
CLIP; PIPE TO FRAME
8-94442-883-1
02
1
9301-9511
22
CLIP; PIPE TO FRAME
8-94442-883-1
01
1
9512-
44
BOLT; CLIP TO FRAME
M8X32
0-50140-832-0
01
1
9301-9607
44
BOLT; CLIP TO FRAME
M8X30 FLANGE
0-28680-830-0
01
1
9608-
61
BOLT; BRK PIPE
M6X16 W/LK WASHER
0-50040-616-0
02
1
9512-
72
CLIP; OIL PIPE
4 WHEEL ANTI-LOCK BRAKE(JE5)
8-97139-309-1
03
1
9512-
